Product Type	Waffle Maker
Brand	Ravanson
Model	GR-7010
Dimensions (approx.)	25 x 20 x 10 cm
Weight (approx.)	1.5 kg
Power Supply	220-240V, 50/60Hz
Power Consumption	1200 W
Non-Stick Coating	Yes
Indicator Lights	Power and Ready lights
Temperature Control	Adjustable thermostat
Number of Waffles at Once	2 (square/round)
Plate Material	Aluminum with non-stick coating
Handle Type	Cool-touch handle
Anti-Slip Feet	Yes
Cord Length	0.8 m
Cord Storage	Cord wrap under base
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Automatic shut-off, overheat protection
Spare Parts Availability	Contact Ravanson customer service
Warranty	1 year

Frequently Asked Questions - GR-7010 Ravanson

How do I use the Ravanson GR-7010 waffle maker for the first time?

Before first use, wipe the plates with a damp cloth and dry. Preheat the waffle maker until the ready light indicates it's hot. Lightly grease the plates, pour batter, close the lid, and cook until golden brown.

Can I adjust the temperature on this waffle maker?

Yes, the GR-7010 has an adjustable thermostat. Turn the dial to your preferred setting: lower for lighter waffles, higher for darker, crispier results.

How do I clean the waffle maker?

Unplug and let cool completely. Wipe the plates with a soft damp cloth or sponge. Do not use abrasive cleaners or immerse in water. A gentle brush can remove stuck bits.

What type of batter works best?

Standard waffle batter works well. Avoid overfilling; about 1/2 cup per side is sufficient. The non-stick plates don't require much oil, but a light spray helps.

Does the waffle maker have an automatic shut-off?

Yes, it features automatic shut-off and overheat protection for safety. The device turns off after a set time of inactivity.

How do I store the waffle maker?

Allow to cool completely, wrap the cord around the base, and store upright in a dry place. The cool-touch handle ensures safe handling.

What are the dimensions of the GR-7010?

Approximate dimensions are 25 x 20 x 10 cm, making it compact for countertop storage.

Can I replace the non-stick plates?

The plates are not user-replaceable. If the coating wears, please contact Ravanson customer service for repair or replacement options.

Why is the ready light not turning on?

Check that the unit is plugged in and the power switch is on. If the light still doesn't come on, the thermostat may have tripped. Allow it to cool and try again. Persistent issues may require service.

Is the Ravanson GR-7010 dishwasher safe?

No, do not put any part of the waffle maker in the dishwasher. Only wipe the exterior with a damp cloth.

USER MANUAL GR-7010 Ravanson

ENG User's manual Waffle Maker

Line drawing of a waffle-based microwave oven with control panel (no text or symbols)

MODEL:

GR-7010

Producent:

Ravanson®

RAVANSON LTD., Sp. z .o.

Failure to o(serve the (elow mentione) safety warnings an) safety gui)elines for may 8ause to ele8tri8 sho8k, fire an)/or serious injuries.

Keep safety instru8tions an) warnings at han) for future referen8e.

GENERAL SAFETY GUIDELINES

This appliance is not intended for use by children under the age of 8 or other persons, without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely or by persons without experience and knowledge on the use there of. People using this product must understand the risks related to the use of the appliance.

Cleaning and maintenance by children without supervision is not allowed.

Children are not aware of dangers that may arise during the use of electric devices.

Keep the appliance and corresponding cord out of the reach of children under the age of 8.

Do not allow children to use the appliance as a toy.

Do not operate the appliance with a damaged cord.

Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

Do not allow the power cord to touch sharp edges or hot surfaces.

The plug must fit the socket.

The plug must not be modified in any way.

Avoid rain or moisture when using the appliance.

For cleaning the appliance use a soft and damp (not wet) cloth and a delicate cleaning agent. For cleaning surfaces in contact with food use a cleaning agent provided for such surfaces. Follow the guidelines of the cleaning agent's manufacturer. Do not use solvents, gasoline and other agents which may damage the appliance.

Transport and store in an original package protecting from humidity, dust and mechanical damages.

The appliance must be repaired by a qualified person using only original spare parts.

Do not leave the appliance running unattended.

WARNING! If the heating surface is cracked turn the appliance off in order to avoid electrical shock.

WARNING! The appliance is not provided for operating with use of external sleep timers or separate remote control systems.

WARNING! Accessible surfaces may become hot during operation.

Do not touch accessible surfaces during operation.

The temperature of accessible surfaces may be higher when the appliance is working. Do not touch the heated surface of waffle maker. Always use the handle for lifting the waffle maker's cover.

Before cleaning, unplug from the mains. Allow it to cool down before cleaning.

Do not place the appliance on quickly heating surfaces. When placing the waffle iron on such surfaces use a thermal insulating mat.

Before each actuation of the appliance check its status in scope of mechanical damage and check whether the power cord is not damaged. Don't use damaged device.

The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors.

Do not su(merge in water!

ATTENTION! Unplug immediately if the appliance is wet or damp.

Do not operate with wet hands.

Disconnect the unit from the mains when you don't use it.

Do not place any objects on the closed waffle maker.

Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

It is recommended to connect the device to the power supply network equipped with a residual current device (R7D) with a switch-off current of 30mA or less.

TECHNICAL PARAMETERS

Voltage 220–240 V

Frequen8y 50 Hz

Rate) power 1200 W

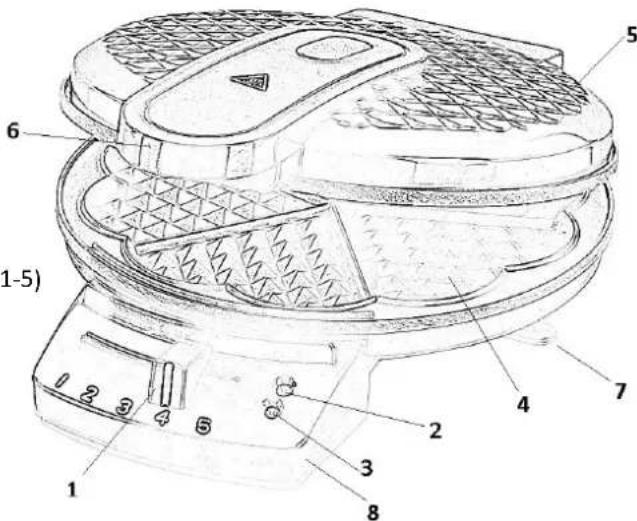

PARTS

1. Termostat Knob (waffle browning level 1-5)
2. Power LED (red)
3. Ready LED (green)
4. Non-stick plates
5. Cover
6. Handle
7. Feet
8. Base

P/RPOSE

The waffle maker is provided for use in home and similar conditions. Do not use the appliance outdoors.

FIRST SWITCH ON

WARNING!

Make sure that the power sour8e to whi8h the applian8e is to (e 8onne8te) is a88or)ant with the parameters spe8ifie) on the rating plate.

The Waffle iron is manufa8ture) in the first prote8tion 8lass, whi8h means that it shoul) (e plugge) into a so8ket with an earthing prong.

Before first use of the applian8e 8lean an) then pre8isely )ry all surfa8es 8onta8ting foo).

Do not immerse in water!

Before ea8h a8tuation of the applian8e 8he8k its status in s8ope of me8hani8al (amage an) 8he8k whether the power 8or) is not (amage). Don't use (amage) jevi8e.

A88essi(le surfa8es may (e8ome hot )uring operation! Do not tou8h!

1. Remove all the packaging components
2. Place the waffle iron on a flat, even, horizontal surface
3. Connect the waffle iron to the mains. A red LED will light and remain lit for the entire period when the device is on
4. Grease the heating plates with edible oil
5. Close the cover and set the thermostat to the maximum value (5)

6. Heat the device to the maximum temperature. When the device reaches the set temperature, a green LED lights. The thermostat will retain the temperature set by the user, by switching the heating component on and off

7. When the device warms up (a green LED is on), pour the batter and bake first two waffles

8. After preparing the first two waffles throw them, turn the appliance off, leave until the temperature falls and clean it

ATTENTION!

During the first a8tuation the applian8e may emit unpleasant smells an) a )eli8ate smoke for several minutes. If this state )oes not su(si)e after some time, turn the applian8e off an) 8onta8t with authorise) servi8e.

Do not remove waffles from the waffle maker with your (are han)s. In or)er to )o it use a fork or a spatula, taking 8are to avoi) jamaging the surfa8e of the heating plates.

Do not use sharp metal kit8hen utensils. This may lea) to )amaging the plate.

USE

Once you have completed steps (1-8) - FIRST SWITCH ON - you can continue baking waffles.

1. Connect the waffle iron to the mains. A red LED will light
2. Grease the heating plates with edible oil and close the cover
3. Set the thermostat to a selected temperature (3-5) and wait until the device reaches the set temperature (a green LED lights). When you choose 4 or 5, your waffles will be browner

Warm the device up thoroughly before you pour the batten onto it. To this aim, wait 2 heating cycles, that is green LED will light, go out and then light again.

1. Spread the batter evenly on the lower heating plate

2. Close the cover gently

3. You can open it after 2-3 minutes to check the baking results. By controlling the quality of first waffles, you can modify the baking time and temperature whenever required

4. If you open the cover earlier, your waffles will delaminate

5. Take the baked waffles out carefully

6. Repeat the above steps until you have used up the whole batter prepared

7. After you have finished baking, unplug the device and leave until cold, then clean

ADVICE AND TIPS

Position 1 – perfect for warming up waffles baked earlier

Position 3-5 – we can have different browning levels of waffles depending on the temperature selected

Scope of thermostat temperatures:

Position 1,2 - 180°C

Position 3 - 200°C

Position 4 - 215°C

Position 5 - 225°C

Low-fat batter - grease the plates with oil before baking to improve browning

Take care of the coating - use kitchen utensils that do not scratch the baking coating. This will extend its service life

CLEANING AND CARE

Clean the appliance after each use. Always un-plug the device from the outlet. Allow it to cool down before cleaning. For cleaning the appliance use a soft and damp (not wet) cloth and a delicate cleaning agent. For cleaning surfaces in contact with food use a cleaning agent provided for such surfaces. Follow the guidelines of the cleaning agent's manufacturer. Do not use solvents, gasoline and other agents which may damage the appliance. Do not use elements which may damage the heating surface (wire cleaners, scrubbing cleaning agents). Do not submerge in water!

TROUBLESHOOTING

Disconnect from the mains and contact authorized service centre for possible repair.

Do not attempt to repair the device on your own.

TRANSPORTATION AND STORAGE

Before storage and transport wait until it cools down. Transport and store in a package protecting from humidity, dust and mechanical damages. Keep away from children.

Such a marking informs that this equipment cannot be disposed of together with other household waste. The user is obliged to pass the device to a company authorized to dispose of electronic/electric devices. Both the person who deals with direct disposal, shops and other local units make a system enabling to dispose of the device. Proper procedures concerning electric/electronic equipment disposal are intended to avoid any harmful impact to humans and environment resulting from dangerous components and improper storage or processing of the devices. Substances having negative environmental impact have been reduced to make the product safer after its disposal.
