Product Type	Waffle Maker
Brand	Ravanson
Model	GR-7030
Voltage	220-240 V
Frequency	50/60 Hz
Rated Power	1100 W
Non-stick Plates	Yes
Thermostat Control	Adjustable from MIN to MAX (Dark)
Power Indicator Light	Yes (POWER diode)
Ready Indicator Light	Yes (READY diode)
Handle	For safe lifting
Baking Time	Approximately 2-3 minutes
Temperature	Approximately 220°C
First Use Conditioning	Heat on MAX for 30 minutes with oil, discard first two waffles
Cleaning Method	Soft damp cloth and mild detergent; do not immerse in water
Safety Features	Thermostat auto shut-off; earthing prong required
Overheat Protection	Thermostat turns heater off at set temperature
Intended Use	Household indoor use only
Protection Class	Class I (earthing required)
Storage	In original package, away from dust and moisture
Certification	CE marking implied

Frequently Asked Questions - GR-7030 Ravanson

How do I use the Ravanson GR-7030 waffle maker for the first time?

Before first use, clean the plates and dry them. Set the thermostat to MAX (Dark), plug in, and let it heat for about 30 minutes with a thin layer of vegetable oil on the plates. Then discard the first two waffles. After that, the appliance is ready for normal use.

What is the correct baking time for waffles?

Bake waffles for approximately 2-3 minutes at around 220°C. The first waffle may require adjustment of time and temperature to achieve desired browning.

Can I use metal utensils on the non-stick plates?

No, do not use sharp metal kitchen utensils as they may damage the non-stick coating. Use a fork or silicone spatula to remove waffles.

How do I clean the waffle maker?

Unplug the appliance and let it cool. Clean with a soft, damp (not wet) cloth and a mild cleaning agent. For food contact surfaces, use a cleaner suitable for such surfaces. Do not immerse in water or use abrasive cleaners.

Why does the appliance emit smoke or smell during first use?

During the first operation, the appliance may emit unpleasant smells and a delicate smoke for several minutes. This is normal and should subside. If it persists, turn the appliance off and contact service.

What do the indicator lights mean?

The POWER light indicates the appliance is on. The READY light turns on when the thermostat has reached the set temperature and cycles with the heating element to maintain temperature.

How do I adjust the browning level?

Turn the thermostat knob from MIN to MAX (Dark). The 'LIGHT' position is an intermediate setting. Higher settings produce darker waffles.

What should I do if the appliance malfunctions?

Disconnect from the mains and contact an authorized service centre. Do not attempt to repair yourself.

Can I use the waffle maker outdoors?

No, the appliance is intended for indoor household use only. Do not use outdoors or in damp conditions.

How should I store the waffle maker?

After cooling, store in its original package in a dry place, away from dust and mechanical damage, and out of reach of children.

USER MANUAL GR-7030 Ravanson

ENG User's manual Waffle iron

Line drawing of a waffle grater with open lid and control panel (no text or symbols)

PL

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries

3eep safety instructions and warnings at hand for future reference

GENERAL SAFETY GU7DEL7NESS

This appliance is not intended for use by children under the age of 8 or other persons, without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely or by persons without experience and knowledge on the use thereof. People using this product must understand the risks related to the use of the appliance. Do not allow children to use the appliance as a toy. Cleaning and maintenance by children without supervision is not allowed.

Children are not aware of dangers that may arise during the use of electric devices.

Keep the appliance and corresponding cord out of the reach of children under the age of 8.

1. Do not operate the appliance with a damaged cord.
2. Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.
3. Do not allow the power cord to touch sharp edges or hot surfaces.
4. The plug must fit the socket.
5. The plug must not be modified in any way.
6. Avoid rain or moisture when using the appliance.
7. For cleaning the appliance use a soft and damp (not wet) cloth and a delicate cleaning agent. For cleaning surfaces in contact with food use a cleaning agent provided for such surfaces. Follow the guidelines of the cleaning agent's manufacturer. Do not use solvents, gasoline and other agents which may damage the appliance.
8. Transport in an original package protecting from mechanical damages.
9. The appliance must be repaired by a qualified person using only original spare parts.
10. Do not leave the appliance running unattended.

ATTENT7ON! 7f the heating surface is cracked turn the appliance off in order to avoid electrical shock.

ATTENT7ON! The appliance is not provided for operating with use of external sleep timers or separate remote control systems.

ATTENT7ON! Accessible surfaces may become hot during operation.

1. Do not touch accessible surfaces during operation.
2. The temperature of accessible surfaces may be higher when the appliance is working. Do not touch the heated surface of waffle iron. Always use the handle for lifting the waffle iron.
3. Before cleaning, unplug from the mains.

4. Store and transport in a package protecting against dust, moisture and mechanical damages.

5. Do not place the appliance on quickly heating surfaces. When placing the waffle iron on such surfaces use a thermal insulating mat.

6. Do not place any objects on the closed waffle iron.

/echnical parameters

Voltage 220-240 V

Frequency 50/60 Hz

Rated power 1100 W

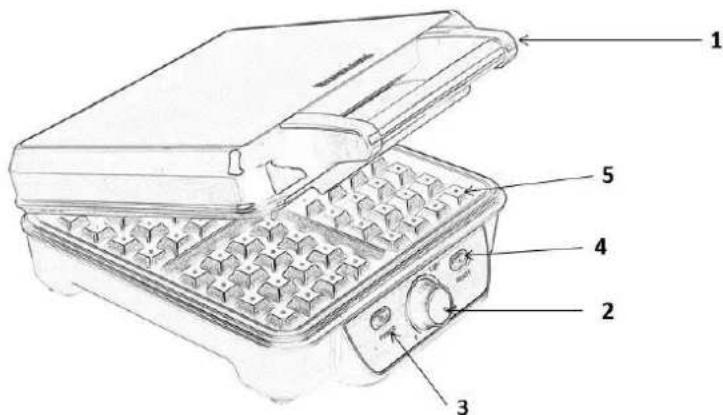

Parts:

1. Handle
2. Thermostat Knob
3. Power Light
4. Ready Light
5. Non-stick Plates

Purpose and use:

1. The waffle iron is provided for use in home and similar conditions.
2. Do not use the appliance outdoors.

Attention! Make sure that the power source to which the appliance is to be connected is accordant with the parameters specified on the rating plate.

/he Waffle iron is manufactured in the first protection class, which means that it should be plugged into a socket with an earthing prong.

A//EN/7ON! Before first use of the appliance clean and then precisely dry all surfaces contacting food.

Do not immerse in water

Place the appliance on a flat surface resistant to high temperatures. 7fter turning the regulating knob the appliance immediately starts operating, which is marked with the lighting of the "POWER" diode. During first operation set the regulating knob to "M7X" / "Dark".

A//EN/7ON! During the first actuation the appliance may emit unpleasant smells and a delicate smoke for several minutes.

If this state does not subside after some time, turn the appliance off.

7fter reaching an appropriate temperature the thermostat will turn the heater off.

Use:

1. Before each actuation of the appliance check its status in scope of mechanical damage and check whether the power cord is not damaged.
2. Turn the knob from the "0" position to a selected value between "MIN" and "M7X" (Dark). The control diode "RE7DY" will turn on and will keep glowing until the thermostat reaches the set temperature. The control diode signals the operation of the heating element. The thermostat will maintain the user selected temperature cyclically actuating and turning off the heating element. The "LIGHT" position signifies a setting of intermediate temperature between the highest and the lowest values.

Attention! Do not use sharp metal kitchen utensils. /his may lead to damaging the plate.

First actuation

• Plug the waffle iron to the power source
• Set the thermostat to the maximum value
• Cover the heating plates with vegetable oil.
• Close the cover and leave the appliance turned on for 30 minutes

- Pour the dough in and prepare the waffles.

- 7fter preparing the first two waffles dispose of them, turn the appliance off, leave until the temperature falls and clean it.

- Next, the appliance may be again plugged in to the power source, greased with oil and used for making waffles.

• Before pouring in the dough wait around 15 minutes - time for preliminary heating of the plates.

- Bake waffles around 2-3 minutes in a temperature of around 220^ . Check the quality of the first waffles in order to possibly introduce changes of temperature and time settings.

A//EN/7ON Do not remove waffles from the waffle iron with your bare hands. In order to do it use a fork or a spatula, taking care to avoid damaging the surface of the heating plates.

7fter finishing the preparation of the waffles the set the appliance's thermostat in the maximum position in order to burn out the remaining dough. Leave the appliance to cool and clean it.

WARN7NG! Accessible surfaces may become hot during use. Do not touch.

Cleaning and care

Clean the appliance after each use.

For cleaning the appliance use a soft and damp (not wet) cloth and a delicate cleaning agent. For cleaning surfaces in contact with food use a cleaning agent provided for such surfaces. Follow the guidelines of the cleaning agent's manufacturer. Do not use solvents, gasoline and other agents which may damage the appliance. Do not use elements which may damage the heating surface (wire cleaners, scrubbing cleaning agents).

/roubleshooting

Disconnect from the mains and contact authorized service centre for possible repair.

/transportation and storage

Before putting the device away, wait until it cools down. Keep and store in a package protecting from humidity and mechanical damages. Keep away from children.

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been limited in this device.
