GZ 596 - Dehumidifier Guzzanti - Free user manual and instructions

Product Type	Dehumidifier
Brand	Guzzanti
Model	GZ 596
Power Supply	220-240 V ~ 50 Hz
Power Input	370 W
Moisture Removal Capacity (30°C, RH80%)	12 liters/day
Refrigerant Type	R290 (flammable)
Refrigerant Amount	0.043 kg
Dimensions (W x D x H)	290 x 240 x 414 mm
Applicable Temperature Range	5°C to 35°C
Water Tank Capacity	2.3 L
Control Panel	Digital with buttons for power, fan speed, timer, humidity setting
Fan Speeds	Low (LOW) and High (HI)
Timer Range	1 to 24 hours
Humidity Setting Range	Continuous (CO) to 30%-90% RH (in steps) and Comfort Mode (AU)
Continuous Drainage	Yes, via PVC tube (not included) connected to drain hole
Filter Type	Washable foam filter
Filter Cleaning Interval	Every 2 weeks
Defrost Function	Automatic, indicated by DEFROST light; compressor stops, fan continues
Water Full Indication	Yes, TANK FULL light illuminates, unit stops until tank emptied
Safety Features	Auto shut-off on full tank, compressor delay restart (3 min), overheat protection
Fuse Rating	3.15 A, 250 V (Type 5H or 524)
Error Code	E1: temperature sensor error - contact service
Refrigerant Classification	Flammable (A3) - follow safety precautions
Minimum Room Area	4 m²

Frequently Asked Questions - GZ 596 Guzzanti

How do I set the desired humidity level?

Press the HUMIDITY SETTING button repeatedly to cycle between continuous dehumidification (CO), 30% to 90% in 5% increments, and comfort mode (AU). The unit will stop when ambient humidity is 3% below the set value.

Can I use continuous drainage?

Yes. Remove the water tank, connect a PVC tube (not included) to the drain hole, then replace the tank. Ensure the tube is lower than the hole for proper drainage.

What does the WATER FULL indicator mean?

The TANK FULL light turns on when the water tank is full. The unit will stop operating until you empty the tank and replace it. Then press the POWER button to restart.

How often should I clean the filter and how?

Clean the filter every two weeks. Remove the water tank, pull out the filter, wash it with cool water (below 40°C), let it air-dry completely, then reinstall. Do not use gasoline or alcohol.

What should I do if the display shows E1?

Error E1 indicates a temperature sensor malfunction or control system issue. Please contact a qualified service agent for repair.

Can I use the dehumidifier in a bathroom?

No. The manual explicitly states do not operate the dehumidifier in a wet room such as a bathroom or laundry room. Use in dry indoor areas only.

What type of refrigerant does this unit use and is it safe?

It uses R290 (propane), a flammable refrigerant. The unit is designed with safety features, but must be kept away from ignition sources and operated in a room larger than 4 m². Follow all safety instructions in the manual.

How do I set the timer?

Press the TIMER button repeatedly to set 1 to 24 hours. In standby, the unit will start after the set time; while running, it will stop after the set time. The timer cancels if you press POWER before countdown ends.

The unit is running but not collecting water. Is that normal?

If the ambient humidity is low or close to the set level, the compressor may cycle off. Also, check the filter for dirt, ensure the room is enclosed, and verify the temperature is between 5°C and 35°C. The unit also defrosts periodically, during which no water is produced.

How do I restart the unit after a power failure or if it shuts down unexpectedly?

Wait at least 3 minutes before restarting to protect the compressor. If it still doesn't start, check the power cord connection and wait 10 minutes (for internal repositioning). If it still fails, contact a service agent.

USER MANUAL GZ 596 Guzzanti

Line drawing of a portable electronic device with ventilation slots and a flat base (no text or symbols)

Návod k obsluze

Návod na obsluhu

Instrukcja obsługi

Használati útmutató

Navodila za uporabo

Gebrauchsanleitung

Instruction manual

BEZPEČNOSTNÍ POKYNY

Line drawing of a portable air purifier with a box and directional arrow indicating motion (no text or symbols)

Obr. 01

Line drawing of a portable air purifier with control panel and wheels (no text or symbols)

Obr. 02

Vyjmutí filtru

Cartoon illustration of a sad face emerging from the ground with scattered stars (no text or symbols)

Simple line drawing of a face with a finger pointing downward (no text or symbols)

Odstraňování potíží

Symbol of a waste bin with no text or labels

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Four black-and-white icons representing warning symbols, an open book, an open book with a person, and a closed book with a wrench (no text or labels)

Line drawing of a portable air purifier with a box and directional arrow indicating airflow or movement (no text or symbols)

Fig. 01

Line drawing of a portable air purifier with control panel and battery (no text or symbols)

Fig. 02

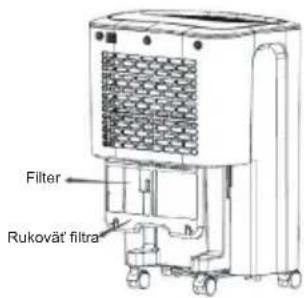

Vybratie filtra

1. Vyberte zásobník vody pred vybratím filtra.
2. Vytiahnite filter pomocou rukovätí filtra.
3. Umyte filter v studenej vode (chladnejšia ako 40°) každé dva týždne a vložte ho spät po dôkladnom vysušení.

Pokyny pre údržbu

Cartoon drawing of a sad face emerging from water with stars nearby (no text or symbols)

Simple line drawing of a face with a pointing finger, no text or symbols present

Simple line drawing of a smiling face inside a rectangular frame with water and a small flame, connected to a vertical line (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a portable air purifier with a box and directional arrow indicating motion (no text or symbols)

Rys. 01

Line drawing of a portable air purifier with control panel and battery (no text or symbols)

Rys. 02

Demontaż filtra

Cartoon illustration of a sad rectangular object with a frowning face, surrounded by small dots and steam lines (no text or symbols)

Simple line drawing of a face with a finger pointing downward (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Line drawing of a portable air purifier with a box underneath, showing airflow direction (no text or symbols)

1 ábra

Line drawing of a portable air purifier with wheels and a battery unit (no text or symbols)

2 ábra

A szűrő tisztítása

Cartoon drawing of a sad face emerging from water with scattered particles (no text or symbols)

Simple line drawing of a sad face with a finger pointing downward (no text or symbols)

Hibaelhárítás

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Four black-and-white icons representing warning symbols, an open book, an open book with a person, and an open book with a wrench (no text or labels)

WATER FULL (Poln zbiralnik vode)

Če je zbiralnik vode poln, se prižge kontrolna lučka in aparat preneha delovati, dokler ne izpraznite zbiralnika vode.

Diagram of a portable air purifier with a box and directional arrow indicating airflow or movement (no text or symbols on the device itself)

Neprekinjeno odvajanje vode

Line drawing of a portable air purifier with control panel and wheels (no text or symbols)

Odstranitev filtra

Cartoon drawing of a sad rectangular object with surprised expression, surrounded by floating stars (no text or symbols)

Simple line drawing of a face with a pencil, no text or symbols present

Simple line drawing of a smiling face inside a rectangular frame with water and a flame, connected to a vertical line (no text or symbols)

Odpravljanje težav

Symbol of a trash bin crossed out by two diagonal lines, representing waste or discharge (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Diagram of a portable air purifier with a box and directional arrow indicating motion (no text or symbols)

Abb. 01

Line drawing of a portable air purifier with control panel and wheels (no text or symbols)

Abb. 02

Simple line drawing of a sad rectangular object with a surprised face and scattered particles below (no text or symbols)

Simple line drawing of a sad face with a finger pointing downward (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

1. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
2. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.)
3. Do not pierce or burn.
4. Be aware that refrigerants may not contain an odour.
5. Appliance shall be installed, operated and stored in a room with a floor area larger than 4 m2
6. Servicing shall be performed only as recommended by the manufacturer.
7. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
8. All working procedure that affects safety means shall only be carried by competent persons.

Warning symbol of a flame inside a triangle (no text or numbers)

Simple line drawing of an open book with a person icon on the right page (no text or symbols)

Simple line drawing of an open book with a horizontal bar on the right page (no text or symbols)

1. Please read the manual carefully before the first time using this product, and storage the unit in safe place to avoid electricity leakage, flaming or person injure.

2. Do not put this product in the water or any other liquids.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Please ask professional service agent to repair the product. Improper repair might cause damage to users.

5. Disconnect the appliance from power supply before moving or cleaning the product, and also when the product is not in used.

6. Please operate the product with specified electricity voltage.

7. Please use this product only for household appliance and follow the designed purpose.

8. Do not put any stuff on the product.

9. In order to avoid water leakage, please clean the water tank before moving the product.

10. Do not incline the product, or leaking water may damage the product.

11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

12. Please keep the product from the wall or other barriers in a minimum distance of 50 cm.

13. The appliance shall be installed in accordance with national wiring regulations.

14. The applicable operating temperature range for this unit is 5-35°C.

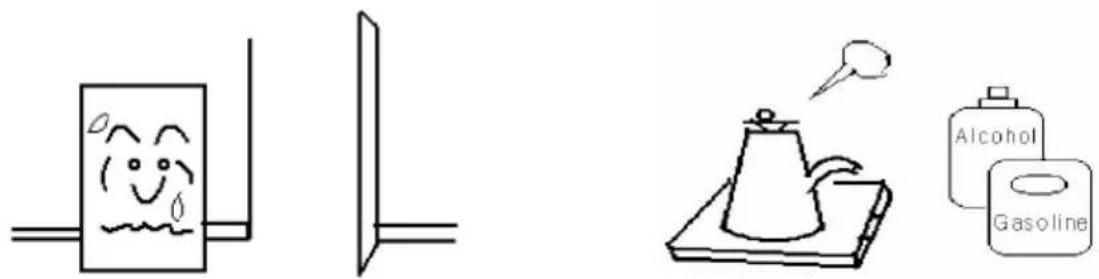

15. Do not operate your dehumidifier in a wet room such as a bathroom or laundry room

Transportation, marking and storage for units

1. Transport of equipment containing flammable refrigerants Compliance with the transport regulations
2. Marking of equipment using signs Compliance with local regulations
3. Disposal of equipment using flammable refrigerants Compliance with national regulations
4. Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions.
5. Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.
6. The appliance shall be stored so as to prevent mechanical damage from occurring.
7. General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

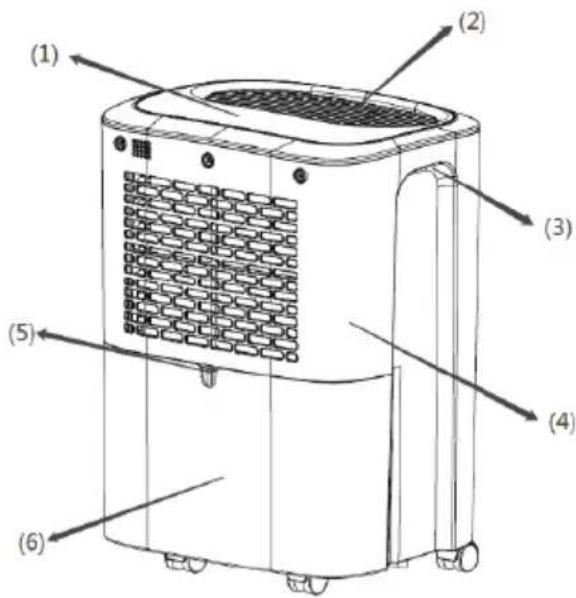

1. Control panel
   2 Air outlet
2. Handel
3. Housing
4. Drain hole
5. Water tank

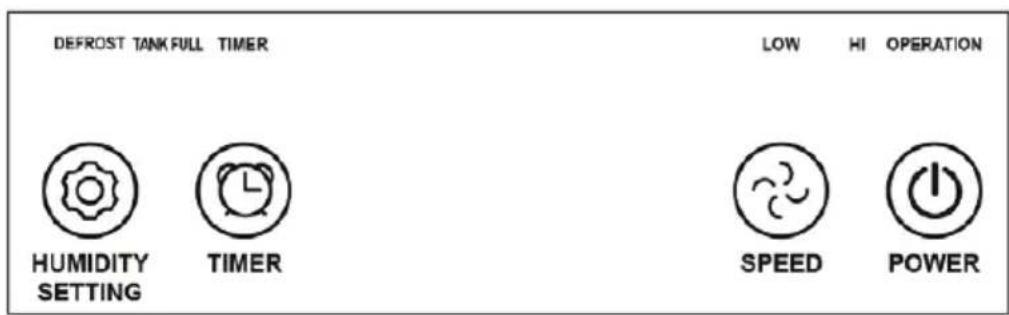

CONTROL PANEL DESCRIPTION

Press this key to turn "on" or "off" corresponding indicating light on or off (While the indoor humidity reaches the setting value, the compressor will stop running and the indicating light will flash.)

2. FAN SPEED

Press the key to choose high speed (HI) or low speed (LOW), and the relating indicating light may follow the instruction to illuminate or extinguish.

3. TIMER

a. Press the key to set time you need. (1 to 24 hours)
b. When setting timer in stand-by mode, the unit will be turned on automatically; when setting timer in operating mode, the unit will be turned off automatically.
c. If pressing the power key to turn off the unit before time finishes counting down, the setting timer will be canceled.
d. While the timer is in used, the indicating light illuminates; if not, then the indicating light extinguishes.
e. After set the timer, the display may switch back to show the ambient humidity.

4. HUMIDITY SETTING

- Press the key to set the relative humidity you need. (From continuous dehumidification [CO] to relative humidity 30%, 35%, 40%, 45%, 50%, 55%, 60%, 65%, 70%, 75%, 80%, 85%, 90% comfort mode [AU], and back to continuous dehumidification [CO]. The first time you electrify the unit, the unit is set to be continuous dehumidification [CO].

- When ambient humidity is lower than setting humidity by 3%, compressor will stop automatically, and return working until the ambient humidity is higher than setting humidity by 3%.

COMFORT MODE [AU]

a. When ambient temperature is lower than 5^ C, compressor will stop working.
b. When ambient temperature is higher than 5^ C and lower than 20^ C, the product will set the humidity to 60% automatically.
c. When ambient temperature is higher than 20^ C and lower than 27^ C, the product will set the humidity to 55% automatically.
d. When ambient temperature is higher than 27^ C, the product will set the humidity to 50% automatically.

WATER FULL

When the water tank is full, the indicating light will illuminate and the unit will stop working until empty the water tank.

DEFROST

When the unit is defrosting, the indicating light will illuminate and the compressor will stop working but the motor will keep operating.

WARNING

1. When operating the dehumidifier, please do not set the humidity higher than ambient humidity.
2. When indicating light illuminates, please pour the water out of the tank and put it back. Then the product will resume working.
3. When the product shut down, please wait at least 3 minutes before restarting the unit to prevent damaging the compressor.
4. The applicable operating temperature range for this unit is 5-32°C.
5. If the dehumidifier can't start (the indicating light does not illuminate) or the dehumidifier shut down unreasonably, please make sure whether the plug is connected firmly to power supply. If the plug and power supply are in normal condition, please wait for 10 minutes before restart the unit (because it takes 10 minutes to reposition). If the unit still does not start after 10 minutes, please ask your local distributor service station to repair.
6. When the dehumidifier is operating, it's a normal situation that the working compressor may cause some heat and bring the ambient temperature up.
7. When the product is defrosting, the related indicating light will illuminate.
   The compressor stops while defrosting but the motor keeps running.
8. The unit shows the ambient humidity when it's operating. If the ambient humidity is higher than RH95%, the display shows "HI"; if the ambient humidity is lower than RH35%, the display shows "LO".
9. The compressor stops while defrosting but the motor keeps running.

DRAINING INSTRUCTION

Draining water can storage in the water tank, or be continuous drained by PVC tube.

(The PVC tube is not included in the product.)

USAGE OF WATER TANK

When dehumidifying, the condensing water may be drained to water tank.

And the unit will stop working with indicating light illuminates when the water tank is full of water, please pour out the water that time.

1. Take out the water tank as Fig 01 and pour out the water.

2. Put the water tank back.

3. Press power key to turn on the unit.

Line drawing of a portable air purifier with wheels and a box, showing no text or symbols

Fig. 01

CONTINUOUS DRAINAGE

1. Before continuous draining water, please take out the water tank and plug a draining tube to draining hole (See Fig 02.) Then put the water tank back.
2. Draining tube should place lower than the draining hole to let water flow out.

Line drawing of a portable air purifier with wheels and a battery (no text or symbols)

Fig. 02

FILTER REMOVAL

1. Take out the water tank before remove the filter.
2. Pulling out the filter with handles of filter.
3. Wash the filter with cool water (cooler than 40^ C) every two weeks, and put filter back after it air-dried naturally.

1. The unit is not allowed to be placed on surface which is soft or not flat to avoid the unit cause noise, vibration, and water or electricity leakage when operating.
2. Never insert any slim rod or hard stuff into the unit to avoid the damage of the unit.

Cartoon drawing of a sad face emerging from water with scattered stars (no text or symbols)

Simple line drawing of a face with a finger pointing downward (no text or symbols)

1. Please disconnect the power cord to the power supply when you turn off the unit or intend to stop using for long time.
2. In order to improve the performance of dehumidifier, please keep the unit in open place away from barriers which may block the air.
3. Please wash the filter with cool water (cooler than 40^ C) but not gasoline or alcohol every two weeks, and put filter back after it air-dried naturally.

Troubleshooting

1. Information on servicing

1) Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2) Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

3) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

4) Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

5) No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed.

6) Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

7) Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

- The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

– The ventilation machinery and outlets are operating adequately and are not obstructed;

- If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;

- Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

- Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

8) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

• That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• That there no live electrical components and wiring are exposed while charging, recovering or purging the system;
  • That there is continuity of earth bonding.

2. Repairs to sealed components

1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

Ensure that apparatus is mounted securely.

Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

3. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.

Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

4. Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

5. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

6. Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.

Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed.

Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipework.

If a leak is suspected, all naked flames shall be removed/ extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

7. Removal and evacuation

When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

• Remove refrigerant;
• Purge the circuit with inert gas;
• Evacuate;
• Purge again with inert gas;
• Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be "flushed" with OFN to render the unit safe. This process may need to be repeated several times.

Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

8. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed.

- Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.

– Cylinders shall be kept upright.

- Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

- Label the system when charging is complete (if not already).

- Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

9. Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:

• Mechanical handling equipment is available, if required, for handling refrigerant cylinders;
• All personal protective equipment is available and being used correctly;
• The recovery process is supervised at all times by a competent person;
• Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

10. Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

11. Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.

When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Fuse parameters of the machine

Type: 5H or 524 Voltage: 250V Current: 3.15 A

Problems Cause of problem Solution
E1 Temperature	ature sensor error, or the control system is off	Please contact service agent or similarly qualified persons for repairing

SPECIFICATIONS

Specification GZ-595 GZ-596
Power Supply 220-240 V~50Hz
Power Input 190 W 370
Moisture Removal (30°C RH80%)	12 liters/day 12 liters/day
Refrigerant R290, 0,058kg R290, 0,043kg
Permissible Excessive Operating Pressure
Suction: 0.6MPa
Discharge 2.5MPa
Maximum Operation Pressure 4.0MPa
Dimension (W x D x H) mm	290 x 240D x 414H
Applicable temperature 5°C-35°C
Water Tank Capacity	2.3L

Symbol of a trash bin crossed with no text or labels

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible hazards to the environment or human health from uncontrolled waste disposal, please recycle it to prove the sustainable reuse of material resources. Please ask return and collection systems or contact the retailer where the product was purchased to return your used device, they can recycle products safely.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
