Product Type	Vacuum Cleaner
Brand	Emerio
Model	VCE-111504.5
Type	Canister Vacuum Cleaner
Dimensions (L x W x H)	Approximately 400 x 250 x 300 mm (main unit)
Weight	Approximately 4.5 kg
Power Consumption	1000 W
Voltage	220-240 V, 50/60 Hz
Dust Capacity	1.5 L (bagless container)
Filtration System	HEPA filter + exhaust filter
Cord Length	5 m
Vacuuming Modes	Floor, carpet, upholstery (with attachments)
Noise Level	Approximately 75 dB(A)
Attachments Included	Crevice tool, upholstery brush, floor nozzle
Cord Rewind	Automatic reel
Variable Suction Power	Yes, adjustable (electronic or mechanical)
Maintenance	Empty dust container after use; clean HEPA filter every 3 months
Safety Features	Overheat protection; automatic shut-off if clogged
Repairability	Spare parts available: filters, nozzles, hoses; user-replaceable
Warranty	2 years (subject to terms)

Frequently Asked Questions - VCE-111504.5 Emerio

How do I empty the dust container?

Turn off and unplug the vacuum. Press the release button on the dust container and lift it out. Hold it over a trash bin, press the bottom release to empty. Reattach by sliding back until it clicks.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3 months. Rinse it under cold water, let it dry completely for 24 hours before reinserting. Do not use detergents.

What should I do if suction power decreases?

Check for blockages in the hose, wand, or floor nozzle. Empty the dust container if full. Clean or replace the filters if dirty. Ensure the suction setting is correct.

Can I use the vacuum on hardwood floors?

Yes, use the floor nozzle in the appropriate setting (hard floor mode if available). Avoid using the rotating brush on bare floors to prevent scratches.

How do I replace the belt?

The belt drives the brush roller. Unplug the vacuum, remove the bottom plate of the floor nozzle, take out the old belt, and loop a new belt around the motor shaft and brush roller. Reassemble.

Why does the vacuum shut off during use?

Overheating protection may have triggered. Turn off the vacuum, unplug it, and let it cool for at least 30 minutes. Check for blockages or full dust container. Restart.

What attachments are included?

The vacuum comes with a crevice tool for tight spaces, an upholstery brush for furniture, and a combination floor nozzle for carpets and hard floors.

How do I store the vacuum?

Wrap the power cord around the cord hooks. Stand the vacuum upright or place it on its side in a dry area. The attachments can be clipped onto the wand or stored in a holder if provided.

Is the vacuum bagless?

Yes, it is a bagless model with a transparent dust container. Empty it when the fill line is reached. Wash the container with mild soap and water periodically.

Where can I find spare parts?

Spare parts such as filters, belts, and nozzles can be purchased online through the Emerio website or authorized retailers. Use only genuine Emerio parts to maintain performance.

USER MANUAL VCE-111504.5 Emerio

Exterior view of a modern office vacuum cleaner with red and silver casing (no text or symbols visible)

Multi cyclone vacuum cleaner (EN)

Multi ciklonski sesalnik (SI)

Multi-ciklon staubsauger (HU)

Multi-Zyklone Vysávač (SK)

Multi-Zyklone Vysavač (CZ)

Multi ciklonski usisavač (HR)

Aspirator Multicyclone (RO)

Instruction manual – English ...... - 10 -

Navodila za uporabo – Slovenian.... - 18 -

Line drawings of a vacuum cleaner's internal components and assembly process (no text or symbols)

Technical line drawing of a robotic vehicle with labeled parts (no text or symbols present)

Line drawing of a vacuum cleaner with a rotary button and labeled component (no text or symbols)

Technical line drawings of four different mechanical components or assemblies, including a cylindrical component with rotating arms and a flanged base (no text or symbols present)

c. Luftauslassfilter

Aufbewahrung:

Exterior view of a modern vacuum cleaner with black handle and orange belt (no text or symbols visible)

Exterior view of a modern vacuum cleaner with black handle and orange accents (no text or symbols visible)

TECHNISCHE DATEN

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
19. Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
20. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
21. Do not use this appliance without filters in place.
22. Use extra care when vacuuming on stairs.
23. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
24. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
25. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.
26. Keep your work area well dry.
27. Do not use the cleaner to clean your pets or any animal.
28. When using and you hear a squeaking sound from the

vacuum cleaner, or suction power appears to be reduced, stop the machine immediately and clean all filters.

1. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

2. Tip: By reducing the suction power you can move the floor brush easier on the floor. Set the suction power to minimal for furniture, to medium for carpet and hard floors. Only use the maximum setting on hard floors in combination with a brush for hard floors.

USE AND FUNCTION

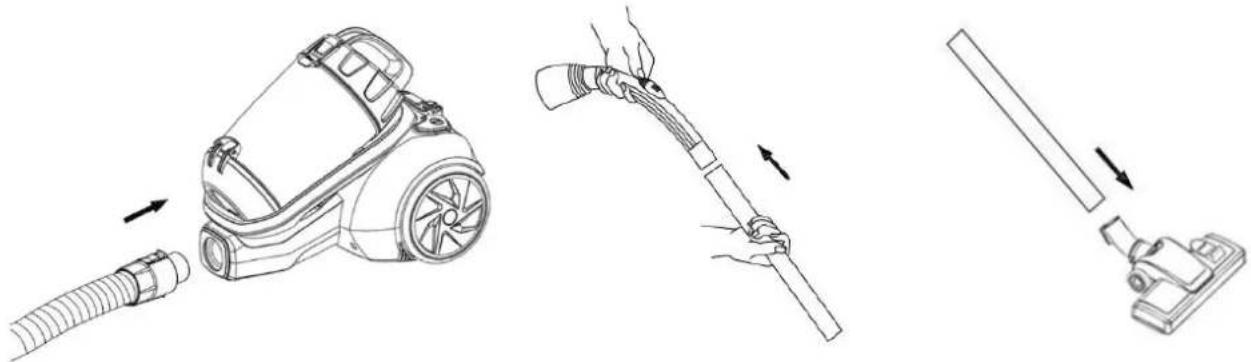

Assembling vacuum cleaner

Note:

Always remove the power plug from the wall outlet before assembling or removing accessories.

1. Attaching the Flexible Hose into the vacuum. Connect the flexible hose into the air intake duct; push in until you hear a "click" sound, indicating it is in its locked position.
2. Fitting the tube to the curved wand/hose extension. Push the tube into the curved wand/hose extension.
3. Fitting the floor brush to the tube. Push the tube into the floor brush. Adjust the tube to the desired length. Tip: By reducing the suction power you can move the floor brush easier on the floor. Set the suction power to minimal for furniture, to medium for carpet and hard floors. Only use the maximum setting on hard floors in combination with a brush for hard floors.

Line drawings of a vacuum cleaner being cleaned, showing step-by-step assembly (no text or symbols)

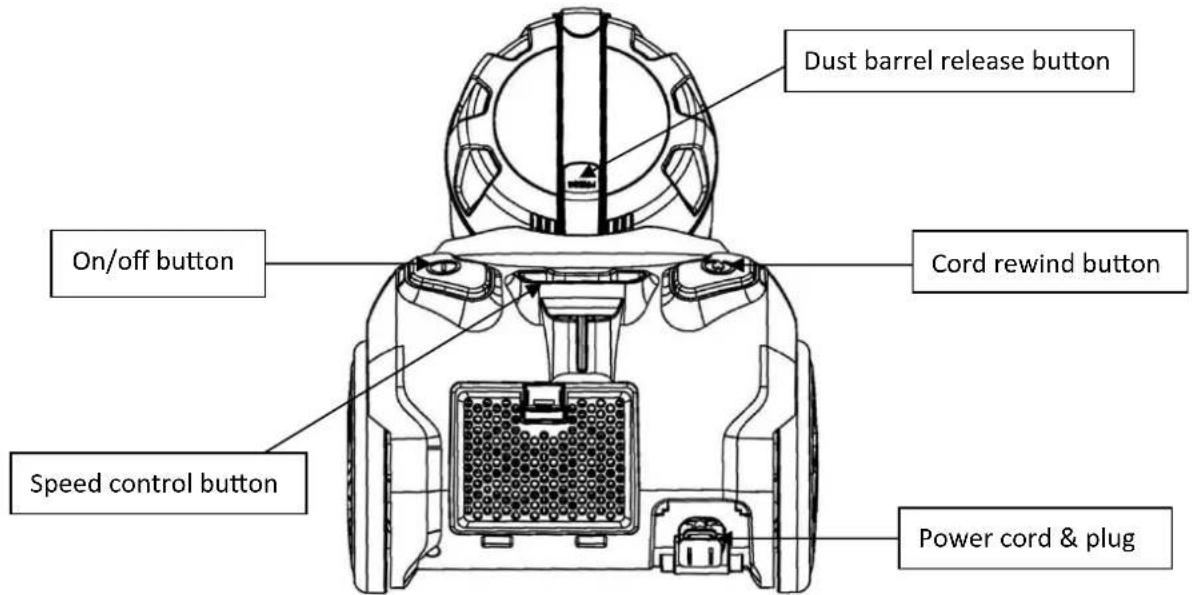

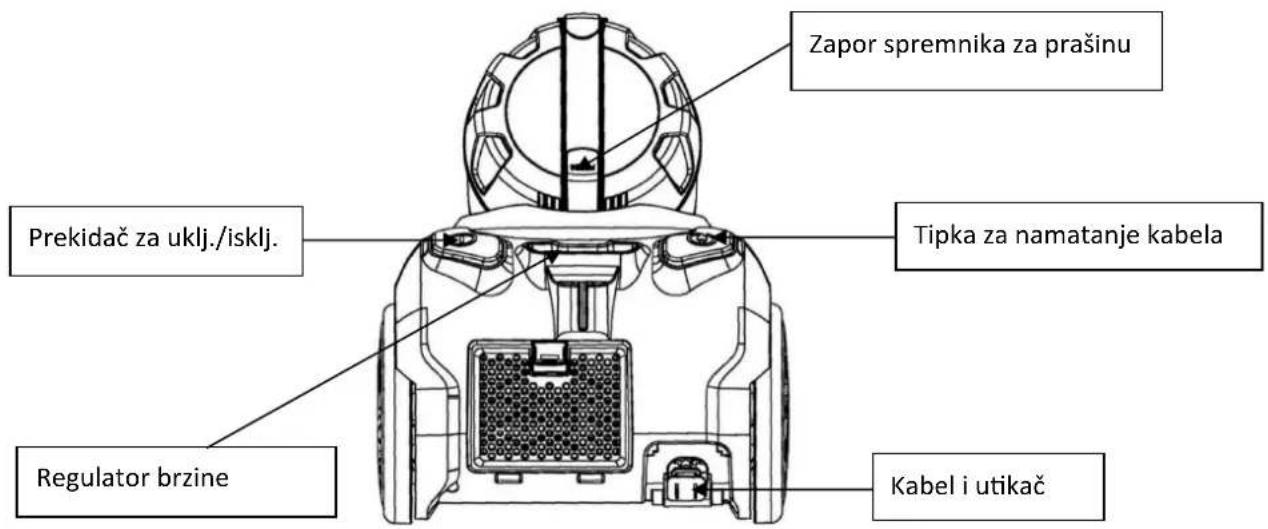

BUTTON FUNCTION INTRODUCTION

Note:

Once all attachments are in place, unwind a sufficient length of cable and insert the plug into the wall outlet. A yellow mark on the power cord shows the ideal cable length. Do not pull the power cord beyond the red mark.

1. Insert the power plug into the wall outlet.
2. Press the on/off button located on the unit to turn the vacuum cleaner "on". To adjust the suction, move the speed control button to control the suction power of the vacuum cleaner.
3. To rewind the power cord, press the cord rewind button with one hand and guide the power cord with the other hand to ensure that it does not whip causing damage or injury.

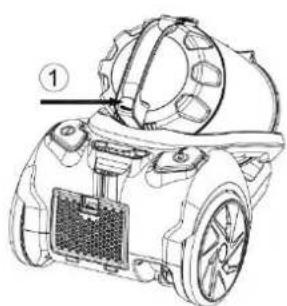

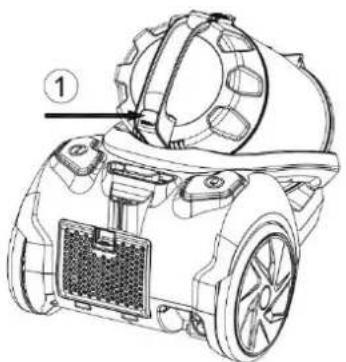

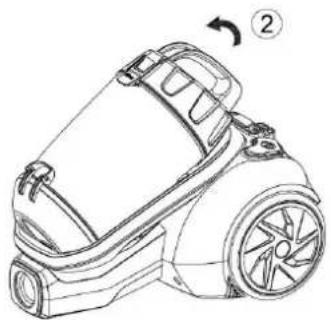

CLEAN THE DUST BARREL

1. Press the button on the dust barrel arm.

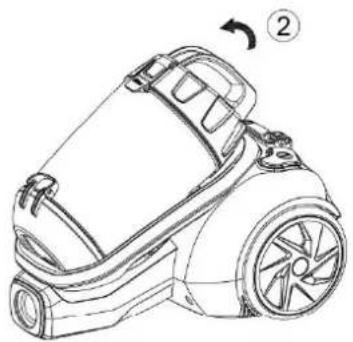

2. Lift dust barrel up.
3. Press the button on low end of dust barrel to open the dust barrel cover.

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (no text or symbols)

Removing & cleaning motor filter, plastic dust filter and air outlet filter.

Warning: Always unplug the unit from electrical outlet before getting out the dust barrel.

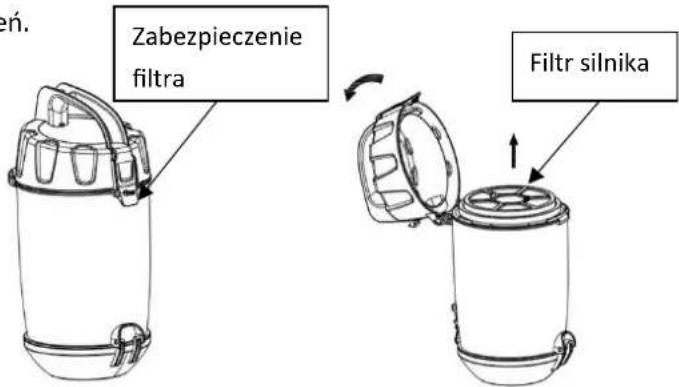

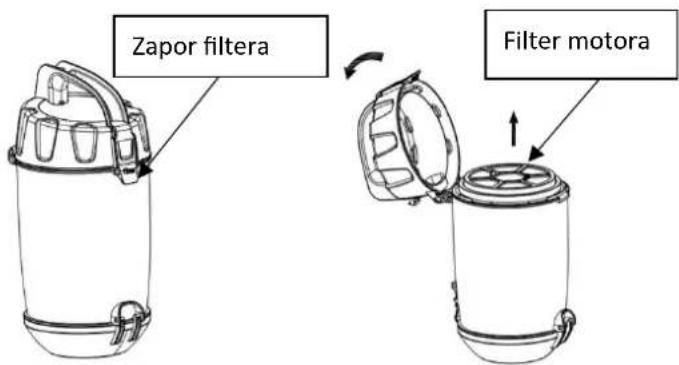

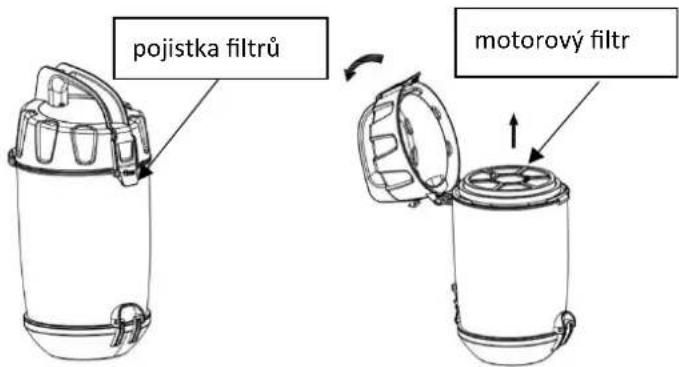

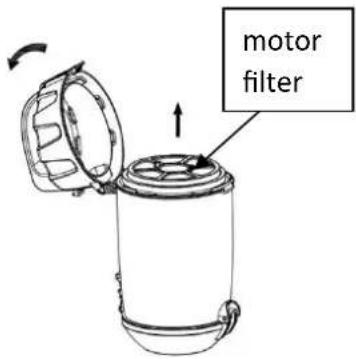

a. Motor filter

1. Press the button on the dust barrel arm.
2. Lift dust barrel up.
3. Pull up the buckle to release the filter lock.
4. Take out the motor filter for cleaning and changing.

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (②), no text or symbols present

Notes:

1. Make sure to dry the motor filter thoroughly before placing it back.
2. Never use the vacuum cleaner without a motor filter.

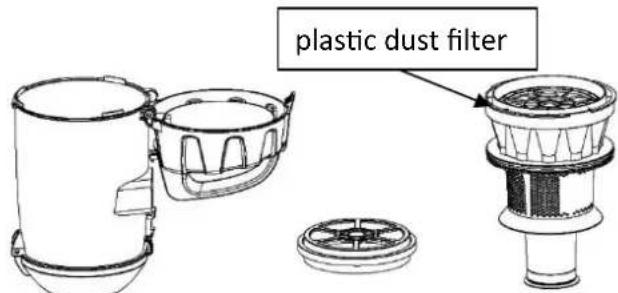

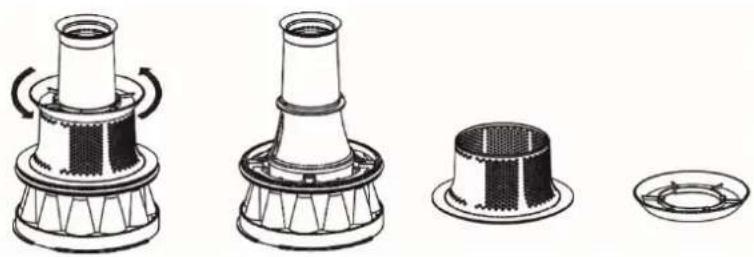

b. Plastic dust filter

1. Press the button on the dust barrel arm.
2. Lift dust barrel up.
3. Release the filter lock and take out the motor filter
4. Take out the plastic dust filter.
5. Use a soft brush to clean the plastic dust filter then rinse it with clean water, dry it thoroughly before placing it back.

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Line drawing of a vacuum cleaner with a rotating button and fan (no text or symbols)

Technical line drawings of mechanical components with no visible text or symbols

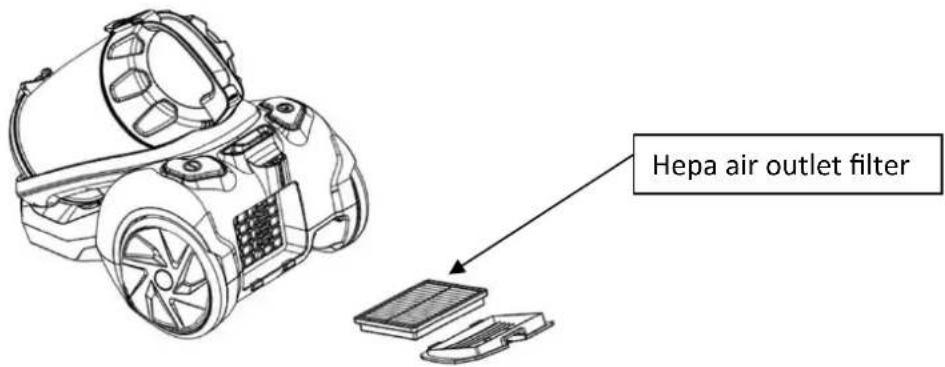

c. Air outlet filter

1. Open the air outlet filter cover.
2. Take out the air outlet filter for cleaning and changing.

Please note:

• The filters in the cleaner will become dusty over time. This is normal and will not affect the performance of the filter. If the filters are so dusty that suction does not return to 100%, we suggest that the filters be removed then rinsed under the faucet and allowed to dry for 24 hours by airing not near the fire or some high temperature objects before refitting into the vacuum. This should be done once six months or when suction appears to be reduced obviously.
• The suction hole must be open, free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.
• All filters should be checked regularly for signs of damage, preferably after each cleaning task. The filters must be replaced immediately if they become damaged. Always disconnect the vacuum from the electrical outlet when checking the filters.
  • If the suction power of the vacuum cleaner gets low please check the hose for obstacles.

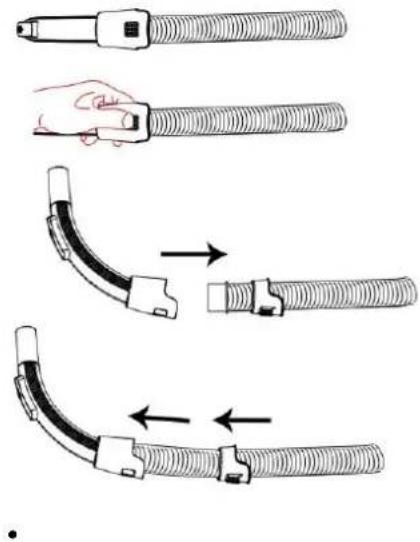

You can open the hose by pressing the square part on the hose handle. Take apart the two parts and remove any obstacles.

To assemble the hose again first press the flexible hose into the handle and then click in the connection part.

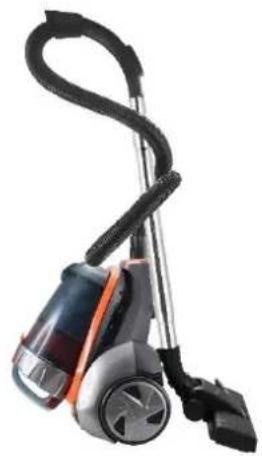

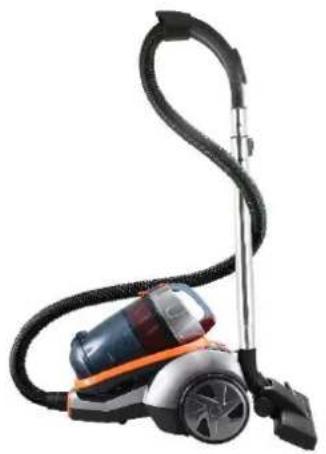

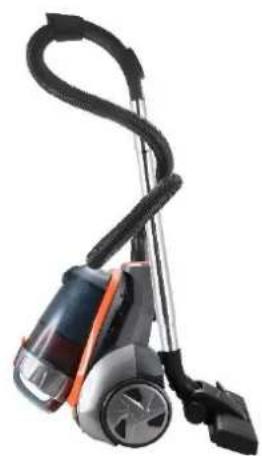

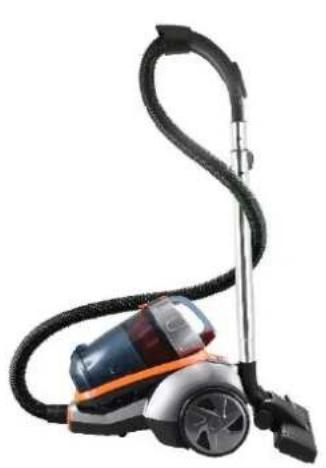

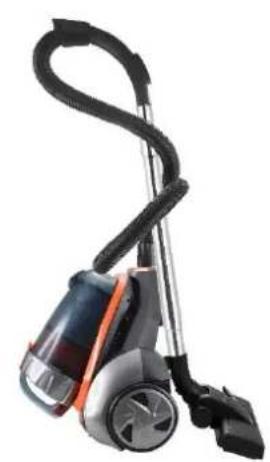

Parking:

This vacuum cleaner can be parked as below style to save your room space.

Exterior view of a compact vacuum cleaner with black handle and orange belt (no text or symbols visible)

Exterior view of a modern vacuum cleaner with black handle and orange/Organ logo (no text or symbols visible)

TECHNICAL DATA

Voltage: 220-240V \~ 50-60Hz

Power: 800W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Höffer Weg 14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]

VARNOSTNA OPOZORILA

Line drawings of a vacuum cleaner's cleaning process showing body positioning, tool path, and mounting bracket (no text or symbols)

RAZLAGA GUMBOV

Nasvet:

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (②), no text or symbols present

Shranjevanje:

Close-up of a black and silver vacuum cleaner with coiled hose (no visible text or symbols)

Exterior view of a compact vacuum cleaner with black handle and orange cover (no text or symbols visible)

TEHNIČNI PODATKI

Delovna napetost: 220-240V \~ 50-60Hz

Moč: 800W

GARANCIJA IN SERVIS

Line drawings of a vacuum cleaner's internal components and cleaning steps (no text or symbols)

A BEKAPCSOLÓ MAGYARÁZATA

Figyelem:

Technical line drawing of a robotic vehicle with labeled parts (no text or symbols present)

Line drawing of a vacuum cleaner with a rotary button and labeled component (no text or symbols)

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (no text or symbols)

Line drawing of a portable water heater with lid and side panel, showing internal components and airflow direction (no text or symbols)

Tanácsok:

Technical line drawings of four different mechanical components or assemblies, including a cylindrical component with rotating arms and a flanged base (no text or symbols present)

c. Levegőszűrő

Exterior view of a modern vacuum cleaner with black handle and orange belt (no text or symbols visible)

Exterior view of a compact vacuum cleaner with black handle and orange clapper (no text or symbols visible)

TECHNIKAI ADATOK

Line drawings of a vacuum cleaner's tip, showing step-by-step assembly: adding cable, holding tool, and removing part (no text or symbols)

VYSVETLENIE SPÍNAČOV

Upozornenie:

Akonáhle sú všetky komponenty zmontované, vytiahnite kábel tak d'aleko, ako to bude potrebné, a pripojte ho. Žltá značka na napájacom kábli indikuje ideálnu dížku. Netahajte napájací kábel d'alej než červená značka.

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (no text or symbols)

Upozornenie:

1. Motorový filter dôkladne vysušte, predtým ako ho vložíte spät.
2. Nikdy nepoužívajte vysávač bez filtra motora.

Technical line drawings of four different mechanical components or assemblies, including a cylindrical component with rotating arms and a flanged base (no text or symbols present)

c. Vzduchový filter

Skladovanie:

Exterior view of a modern vacuum cleaner with black handle and orange strap (no text or symbols visible)

Close-up of a compact vacuum cleaner with black handle and orange handle (no visible text or symbols)

TECHNICKÉ Ú DAJE

Line drawings of a vacuum cleaner's internal components and assembly process (no text or symbols)

VYSVĚTLENÍ SPÍNAČŮ

Upozornění:

Technical line drawing of a robotic vehicle with labeled parts (no text or symbols present)

Line drawing of a vacuum cleaner with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (no text or symbols)

Technical line drawings of four different mechanical components or assemblies, including a cylindrical component with rotating arms and a flanged base (no text or symbols present)

c. Vzduchový filtr

Skladování

Exterior view of a modern vacuum cleaner with black handle and orange strap (no text or symbols visible)

Exterior view of a modern vacuum cleaner with black handle and orange/Organ logo (no text or symbols visible)

TECHNICKÉ Ú DAJE

Line drawings of three different vacuum cleaner components: engine, handheld device, and handheld tool (no text or symbols)

OBJAŠNJENJE O PREKIDAČIMA

Napomena:

Nakon što ste sastavili sve dijelove, izvucite kabel koliko je potrebno te ga priključite. Žuta oznaka na kabelu označava idealnu dužinu. Ne izvlačite kabel preko crvene oznake.

1. Stavite utikač u utičnicu.
2. Za uključivanje uređaja pritisnite prekidač za uklj./isklj. na uređaju. Usisnu snagu možete podesiti pomoću regulatora brzine usisivača.
3. Pri namatanju kabela jednom rukom pritisnite tipku za namatanje, a drugom držite kabel, kako ne bi došlo do oštećenja predmeta ili ozljeda osoba.

ČIŠĆENJE SPREMNIKA ZA PRAŠINU

1. Pritisnite tipku na drški spremnika za prašinu.
2. Podignite spremnik za prašinu.
3. Pritisnite tipku dolje na spremniku za prašinu, kako biste otvorili pokrov.

Technical line drawing of a robotic vehicle with labeled parts (no text or symbols present)

Line drawing of a vacuum cleaner with a rotary button and labeled component (no text or symbols)

Uklanjanje i čišćenje filtera motora, plastičnog filtera prašine i filtera zraka.

Upozorenje: Prije uklanjanja spremnika za prašinu izvucite utikač iz utičnice.

a. Filter motora

1. Pritisnite tipku na drški spremnika za prašinu.
2. Podignite spremnik za prašinu.
3. Otvorite kopču, kako biste otvorili zapor filtera.
4. Za čišćenje i zamjenu izvadite filter motora.

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (no text or symbols)

Napomene:

1. Prije ponovnog umetanja temeljito osušite filter motora.
2. Ne koristite usisavač bez filtera motora.

Technical line drawings of four different mechanical components or assemblies, including a cylindrical component with rotating arms and a flanged base (no text or symbols present)

Odlaganje:

Kao što je dolje prikazano, usisavač prilikom odlaganja ne zauzima puno prostora.

Exterior view of a black and silver vacuum cleaner with orange strap (no text or symbols visible)

Close-up of a compact vacuum cleaner with black handle and orange/Organ logo (no visible text or symbols)

TEHNIČKI PODACI

Nazivni napon: 220-240V \~ 50-60Hz

Nazivna snaga: 800W

JAMSTVO I SERVIS

Line drawings of a vacuum cleaner with attached hose and handle, showing step-by-step assembly (no text or symbols)

EXPLICAREA BUTONULUI

Indicatie:

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (no text or symbols)

Technical line drawings of four different mechanical components or assemblies, including a cylindrical component with rotating arms and a flanged base (no text or symbols present)

c. Filtrul de aer

Depozitare:

Exterior view of a modern vacuum cleaner with black handle and orange belt (no text or symbols visible)

Close-up of a compact vacuum cleaner with black handle and orange handle (no visible text or symbols)

DATE TEHNICE

Tensiune de functionare: 220-240V \~ 50-60Hz

Putere maximă: 800W

GARANTIE ŞI SERVICIU CLIENTI

Line drawings of a vacuum cleaner being handled with a tool, showing step-by-step assembly (no text or symbols)

Technical line drawing of a robotic device with labeled parts (no text or symbols present)

Line drawing of a vacuum cleaner with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with labeled component (no text or symbols present)

Line drawing of a vacuum cleaner with labeled component (no text or symbols)

Technical line drawings of mechanical components with no visible text or symbols

Przechowywanie:

Exterior view of a modern vacuum cleaner with black handle and orange strap (no text or symbols visible)

Close-up of a modern vacuum cleaner with black handle and orange/Organ logo (no visible text or symbols)

DANE TECHNICZNE
