USER MANUAL TANGO 4K Xblitz

Black Xblitz Tango 4K digital camera with a red circular lens and screen (no visible text or symbols on the device body)

A

Interior view of a car dashboard and steering wheel (no text or symbols)

PL

INSTRUKCJA OBSŁUGI

WIDEOREJESTRATOR

Producent:

KGK Trade sp. z o.o. sp. k.

ul. Ujastek 5b

31-752 Kraków

Polska

Before use, please read the enclosed user manual and safety instructions carefully.

PURPOSE OF THE PRODUCT

The Xblitz Tango 4K car camera allows you to monitor the route of your vehicle and record any traffic events.

01. KIT

1. Video recorder
2. Car charger
3. Memory card reader
4. Instruction
5. Magnetic holder

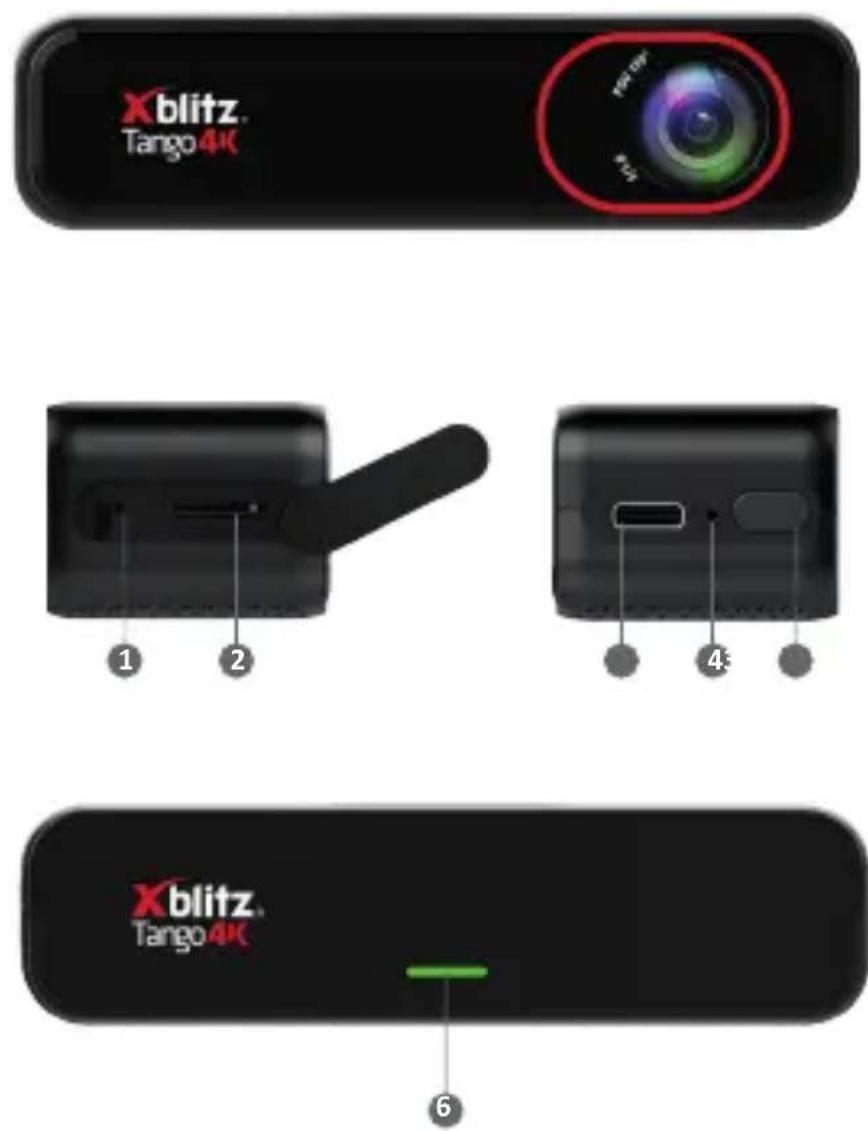

02. PRODUCT DESCRIPTION

SEE FIGURES A

1. Reset
2. MicroSD card slot
3. USB type C socket
4. Microphone
5. Power button
6. LED lamp

03. BEFORE USE

1. The use of branded microSD cards is recommended.
2. The card must be formatted before inserting it into the recorder.
3. When inserting a memory card, the camera must be switched off, otherwise the card and the device may be damaged. The same applies to removing the card from the device.
4. When the memory card becomes full, the oldest unprotected recording will be overwritten.

5. It is recommended to set the G - SENSOR option to minimum, in order to avoid securing unnecessary material and thus losing space on the memory card. The card should be formatted in the FAT32 file system first on the computer and then on the recorder.

6. Audio: The device has a condenser microphone that records all environmental sounds. Sounds may overlap causing distortion.

04. MONITORING

1. Select and clean the camera mounting location.
2. Mount the camera bracket.
3. Insert the memory card into the slot in the camera.
4. Place the camera in the bracket.
5. Point the camera lens towards the roadway.
6. Connect the power supply to the camera.

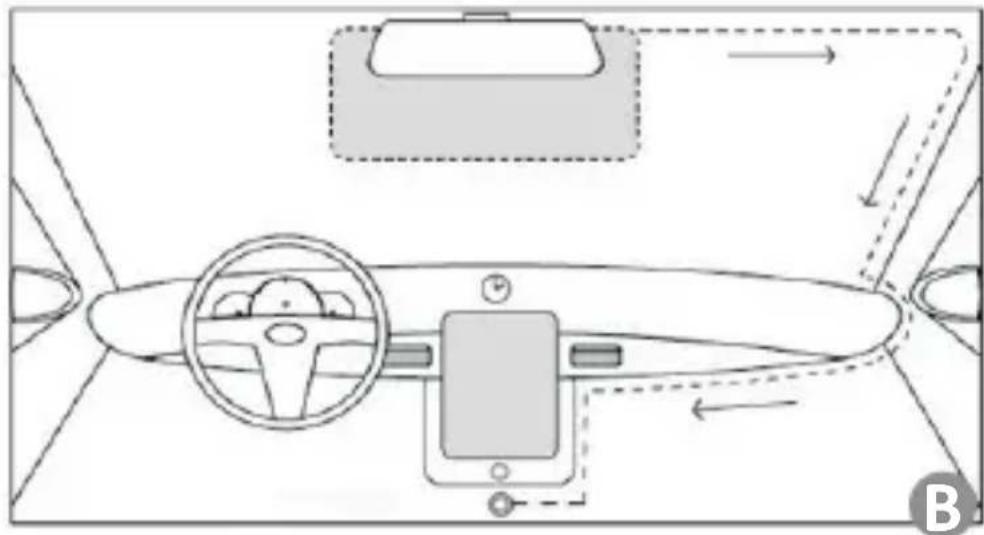

7. Route the power supply cable so that it does not obstruct your view while driving (see Figure B).
8. Plug the power adapter into the car's cigarette lighter socket.

05. FUNCTIONING OF THE DEVICE

1. Power button:

2. Pressing the button when the video recorder is connected to the app will start or stop recording.

3. When the video recorder communicates an SD card error, pressing the button within 5s of the message will format the SD card
4. Pressing and holding the power button will turn the device on or off.

5. Press 5 times in quick succession to reset the unit to factory settings.

6. Charging: connect via USB or car charger. Connect to the car charger (SEE POINT: INSTALLATION; 6.,7.,8.) The recorder records automatically when you start the car, turns off and saves the last file when you turn off the car.

7. Connecting to an application: Specialised software (ROADCAM) is used to control the operation of the device. Connect your phone to the device's WiFi network named Xblitz Tango 4K and the default Wi-Fi password is 123456789. The software can be downloaded from the Google Play shop or App Store. All settings of the device can be accessed from the Roadcam app.

8. Record: Connect the video recorder to the application as described in step 3. The recorder is in record mode by default if a card has been inserted and formatted. In recording mode, the LED light blinks green. The recording file will be saved on the SD card. To stop, press the record button.

9. Camera mode: Connect the video recorder to the app as described in step 3. Then in the app, press the camera icon to enter photo taking mode. Then press the camera button to take a photo.

06. SETTING FUNCTIONS

1. Leave the device on, connect the app to your mobile phone, go to the home screen, click on the settings icon in the top right corner.

2. Video resolution: Select the resolution of the recorded videos.

3. Loop recording time: 1min / 3min / 5min.
4. Encoding types: Select an encoding type.
5. Volume: Set the preferred volume for messages.
6. Settings for time-lapse shots.
7. Wifi name: Set your own name for your WiFi network.
8. Wifi password: set your own WiFi password.
9. Restore factory settings.
10. Format: Select to format the SD card.
11. Version: Check the software version.

07. PRECAUTIONS

1. Do not disassemble or tamper with the camera yourself. In case of a malfunction, contact the service department.
2. Use only original accessories.
3. Use only the original charger supplied. Use of any other power adaptor may adversely affect the performance of the device and battery.
4. The equipment must not be used in contravention of the laws of your country or region.
5. The permissible operating temperature is 0-35 °C.
6. Do not subject the device to damage or impact.
7. Keep the product, especially the lens, clean. Do not use detergents or chemicals when cleaning.
8. Clean only when the device is disconnected from the power supply.
9. Keep the unit out of the reach of children.
10. Do not expose the device to extremely high temperatures or fire.
11. If you smell burning plastic or electronics from the camera, unplug the unit as soon as possible and contact service.

08. FAQ

1. The unit does not turn on/off. The reason for this behaviour may be a permanent power source in the cigarette lighter socket.
2. The unit restarts while driving. It is recommended to check the power source.
3. The device does not record in a loop (it records randomly). Check the setting of the „motion detection” function - it should be switched off.
4. The device shows the message „card full”. Check the „G-sensor“ and „parking mode“ functions and set them to minimum. The card must be formatted in FAT32 format first in the computer and then in the recorder.
5. The device records noisy, distorted, unclear sound. The device has a very sensitive microphone which records all ambient noises. Recorded sounds

may overlap. Windscreen air intake may also distort the sound.

1. The device does not respond. Briefly press the RESET button or restore the device to factory settings.

2. Cross stripes appear on the video. Incorrect setting of the frame rate value. Set the frequency value to 50Hz or 60Hz depending on local settings.

09. NOTE

1. Due to continuous product improvement, the manufacturer reserves the right to make changes to the device and its kit without prior notice. Some functions described in this manual may differ slightly from reality.
2. Use only the original charger with a charging current of 5V/2A. (Do not connect directly to a 220/230V outlet). Failure to do so may cause damage to the camera or lead to dangerous situations.
3. If the device has the Parking Mode function: Parking Mode works only on direct battery power or battery power (if the device has it). It consists in the fact that when the device detects a shock (depending on the set sensitivity of the sensor), the camera starts and records the event, then turns off, this allows the device to remain in standby mode as long as possible. Recordings from parking mode may be of lower quality due to the lower frame rate characteristic of the mode. The manufacturer does not take responsibility for not recording any damage caused while using the Parking Mode.

10. SPECIFICATION

Recording resolution: 4K 2160p

Viewing angle: 170°

Input: 5V 2A

Capacitor: 1.5 uF

Sensor: GC4653

G-SENSOR: yes

Night mode: yes

Loop recording: yes

Motion detection: yes

WIFI: yes

Built-in microphone: yes

Video format: H.265

Supports microSD memory cards: up to 32 GB, class: 10 and higher

Dimensions: 10.6 x 3.55 x 2.79 cm (without handle)

Weight: 85g (without handle)

11. WARRANTY CARD/COMPLAINTS

The product is covered by a 24-month warranty. Warranty conditions can be found at:

http://reklamacje.kgktrade.pl/Szczegóły, contact and service address can be found at: www.xblitz.pl. Specifications and contents are subject to change without notice. We apologise for any inconvenience.

KGK Trade declares that the TANGO 4K is in compliance with the essential requirements of Directive 2014/53/EU. The text of the declaration can be found at the link:

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of charge. Disposal is subject to the recast version of the WEEE Directive (2012/19/ EU) and the Directive on batteries and accumulators (2006/66 / EC). Proper disposal of the device prevents degradation of the natural environment. Information about the collection points of the facilities is issued by the competent local authorities. Incorrect disposal of waste is subject to penalties provided for by the law in force in the given area.

Manufacturer:

KGK Trade sp. z o.o. sp. k.

Ujastek 5b

31-752 Cracow

Poland

Made in PRC

Xblitz®
