USER MANUAL VAPORETTINO EASY POLTI

Vaporetto Easy 1S01 Fig.7 Fig.4 Fig.8

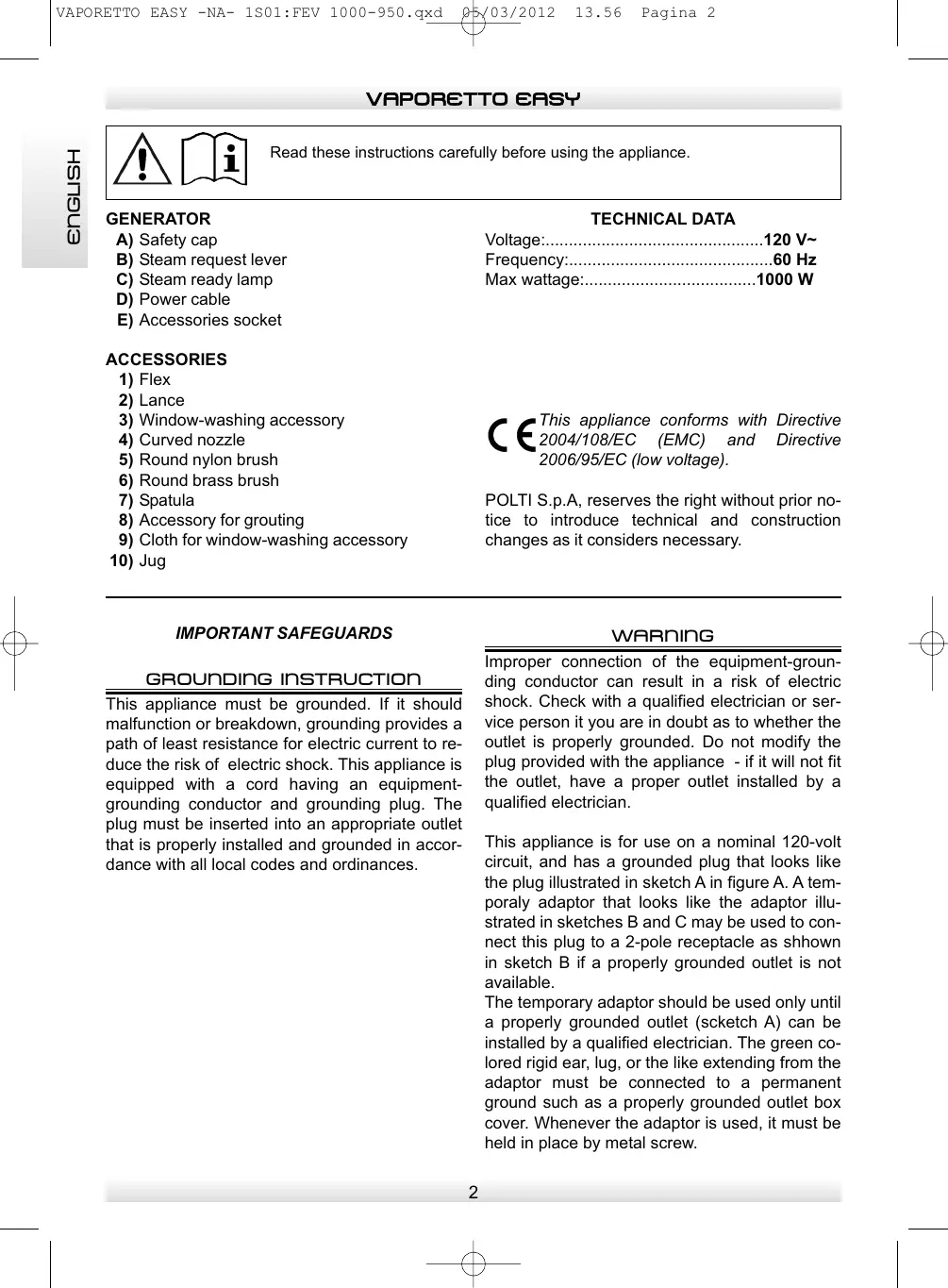

• INSTRUCTIONS FOR USE ENGLISH VAPORETTO EASY VAPORETTO EASY Read these instructions carefully before using the appliance. ACCESSORIES

1) Flex

2) Lance

3) Window-washing accessory

4) Curved nozzle

5) Round nylon brush

6) Round brass brush

7) Spatula

8) Accessory for grouting

9) Cloth for window-washing accessory

10) Jug

This appliance conforms with Directive 2004/108/EC (EMC) and Directive 2006/95/EC (low voltage). POLTI S.p.A, reserves the right without prior notice to introduce technical and construction changes as it considers necessary. IMPORTANT SAFEGUARDS WARNING Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person it you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. GROUNDING INSTRUCTION This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipmentgrounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. This appliance is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug illustrated in sketch A in figure A. A temporaly adaptor that looks like the adaptor illustrated in sketches B and C may be used to connect this plug to a 2-pole receptacle as shhown in sketch B if a properly grounded outlet is not available. The temporary adaptor should be used only until a properly grounded outlet (scketch A) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adaptor must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by metal screw.

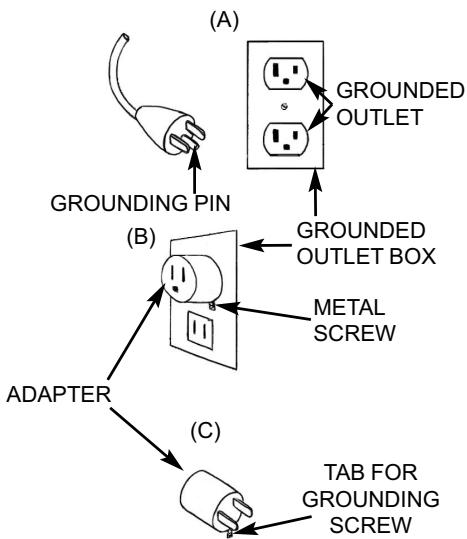

Note: In Canada, the use of a temporary adaptor is not permitted by the Canadian Electrical Code.

• WARNING – To reduce the risk off fire, electric shock, or injury:
• Not for Space heating Purposes
• To provide continued protection against risk of fire of electric shock, connect to properly grounded outlet
• For Household Use Only
• To Reduce The Risk Of Electric Shock – Use Indoor Only
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce hair flow.
• Use extra care when cleaning on stairs
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

SAVE THESE INSTRUCTIONS

• Connect to a properly grounded outlet only. See Grounding instructions”
• To Reduce the Risk of Fire, do not use a flammable or combustible liquid to clean a floor”

KEEP THESE INSTRUCTIONS

Read these instructions for use carefully before using the appliance. Any use which does not comply with these instructions will invalidate the warranty. The wiring system to which the appliance is connected must always comply with the laws in force. Before connecting the appliance, make sure that the mains voltage is the same as the voltage indicated on the data label of the appliance and that the power outlet is connected to earth. If the appliance is left unused, always disconnect it from the mains. Never leave the appliance unattended with the cable plugged into the mains. Always make sure the appliance is unplugged before performing maintenance work of any kind. Do not pull the power cord out of the socket, but grasp the plug itself to avoid damage to the socket. Do not allow the power cord to be twisted, crushed, stretched, or come into contact with sharp or hot surfaces. Do not use the appliance if the power cable or other important parts are damaged. Do not use electric extension leads that are not authorized by the manufacturer, as they may cause damage or fire. If it is necessary to replace the power supply cable, please refer to the nearest authorised service centre, since the use of a special tool is necessary. Never touch the appliance with wet hands or feet with the cable plugged into the mains. Do not use the appliance when barefoot. Do not use the appliance near a bathtub, shower or container full of water. Never immerse the appliance, the cable or the plugs in water or another liquid. Use of the appliance in places where there is a danger of explosions is prohibited. Do not use the product with toxic substances. Do not lay the hot appliance on surfaces sensitive to heat. Do not leave the appliance exposed to wind or rain. Do not place the appliance near a live element, an electric stove or any other source of heat. ENGLISH VAPORETTO EASY VAPORETTO EASY

• Do not expose the appliance to extreme temperatures.
• Never let children or people who are not familiar with how the appliance works use it.
• Do not press the buttons hard or with a pointed object such as a pen.
• Always rest the appliance on a stable surface.
• In case of accidental fall of the appliance it is necessary to have it checked by an authorized Service Centre as the internal safety features may have been affected.
• In case of breakdown or malfunction switch off the appliance and never attempt to disassemble it, but refer to an authorized Service Centre.
• In order to avoid prejudicing the safety of the appliance, use only original spare parts and accessories approved by the manufacturer.
• Do not wind the power cord around the appliance, especially when the appliance is still hot.
• During refilling with water, disconnect the appliance from the mains.
• Do not direct the steam jet on electrical and/or electronic appliances.
• Let the appliance cool down before cleaning it.
• Before storing the appliance make sure that it has completely cooled down.
• This appliance is equipped with safety devices which are to be replaced only by a suitably qualified technician.
• Do not direct the steam jet at people, animals or debris.
• Never place your hands inside the jet of steam. appliance is in use.
• Check the safety cap and that the related inner gasket is present, replace them with original spare parts if necessary.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance must not be used if it has fallen, been dropped or when it has visible signs of damage or leaks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CORRECT USE OF THE PRODUCT

This appliance is intended for home use as a steam generator as described and in accordance with the instructions provided in this manual. Please read these instructions carefully and keep them, as you may find them useful in future. Polti declines liability for any damage or accident derived from any use of Vaporetto which is not in conformity with the instructions contained in this booklet. ATTENTION Directive 2002/96/EC (Waste Electrical and Electronic Equipment - WEEE): information for users This product complies with EU Directive 2002/96/EC. The crossed-out wastebasket symbol on the appliance means that at the end of its useful lifespan, the product must be disposed of separately from ordinary household wastes. ATTENTION: Danger of burns!

• When refilling the boiler, keep your face away. Otherwise the still hot boiler walls can spit drops of very hot water or steam spray.
• Do not put any detergent or chemical substance in the boiler.
• Make sure the safety cap is fully and correctly screwed on, otherwise you may experience very hot steam escaping from around the cap.
• Do not refill the boiler while it is still hot. Allow it to cool down for a few minutes before refilling.
• Do not empty the appliance when the water in the boiler is still hot.
• Do not try to unscrew the safety cap when the The user is responsible for delivering the appliance to an appropriate collection facility at the end of its useful lifespan. Appropriate separate collection to permit recycling, treatment and environmentally compatible

disposal helps prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. For more information on available collection facilities, contact your local waste collection service or the shop where you bought this appliance. IMPORTANT:

• During use, do not tilt the appliance more than 45°. If necessary, use the flex (1) keeping the product horizontal. ATTENTION: if pressing the steam request lever (B) when the appliance is still pressurised, even if off and disconnected from the mains, steam may in any case be released. As such, before turning the appliance off and putting it away, please first press the steam request lever (B) until the steam flow ceases. IMPORTANT Before leaving our factory all our products are rigorously tested. Your Vaporetto may contain some residual water in the boiler from the factory testing.

PREPARATION FOR USE

• Unscrew the safety cap (A) by pressing and holding (fig. 1).
• Fill the boiler with up to 6,5 fl oz (200 ml) of water, using the jug (10) (fig.2). It is a good idea to check that the boiler is empty before filling it.

WARNING: never exceed the maximum boiler fill level of 6,5 fl oz (200 ml); always use

• Carefully screw the cap back in fully. Ensure that the safety cap (A) is correctly fastened. If not, steam could escape from the opening. “WATER OUT” When no more steam comes out of the appliance, do as follows:
• Disconnect the power supply cable (D) from the mains.
• Act on the steam request lever (B) until steam flow ceases.
• Wait for a few minutes to allow the generator boiler to cool down.
• Unscrew the safety cap (A) by pressing and holding (fig. 1).
• When cool, proceed to carefully refill the boiler as described in “Preparation for Use” section. If refilling the generator when not completely cooled, we recommend that you then CAREFULLY pour only very small quantities of water at each pouring, so as to avoid spitting from the boiler. Cover exposed skin whilst filling. USE
• Plug the power cable (D) into a suitable socket with an earth connection.
• The “Steam Ready” lamp (C) will turn on. Wait for the steam ready lamp (C) to go out (approx. 5 minutes). Your appliance is now ready for use.
• To supply steam, simply press the steam request lever (B) (fig.3).
• The first time it is used, drops of water may leak out. This is due to an imperfect thermal stabilisation within the flex. We therefore recommend directing the first jet of steam onto a cloth, until a uniform jet is obtained. NOTE: the steam ready lamp (C) turns on and off during use. This indicates that the electric resistance is operating to keep constant pressure and is therefore quite normal.

ENGLISH VAPORETTO EASY

TIPS FOR BETTER UNIT

PERFORMANCE WARNINGS For cleaning leather, wood or delicate fabrics, consult the surface manufacturers instructions. Clean without accessories at a safe distance together with a soft cloth and always do a test on a non visible part of the item first or on a sample. Allow the test area to dry completely before observing results and effects on surface or colour before proceeding to clean further areas, making sure that exactly the same distance and technique are applied as for the test area. DO NOT USE ON DRAYLON, VELVET OR

OTHER SIMILAR PILE OR DELICATE SURFACES

For cleaning wood surfaces (furniture, doors etc.) or brickwork floors take great care as a too long application of the steam could alter the waxed appearance, the shine or the colour of the surfaces cleaned. We therefore recommend you to apply the steam on such surfaces only for brief periods or to clean these surfaces using a cloth first held in the steam. When cleaning glass surfaces in particularly low temperatures preheat the glass holding the appliance at minimum 20 In (50 cm) distance from the surface to be cleaned. For the care of your plants vaporise at a minimum distance of 20 In (50 cm) . FLEX (1) The flex is used to reach points that are difficult to access.

• To join the flex (1) to the appliance, simply bring the arrow on the flex into line with the single notch on the appliance (fig. 4) and then rotate the flex body in the direction of the arrow, until it clicks into place.
• To release the flex, pull the little lever above it and rotate in the opposite direction from before (fig. 5).
• In turn, the lance can be connected to the flex (2) and therefore all other accessories supplied. LANCE (2) The lance allows you to direct the jet of steam to the most hidden and difficult parts to reach with the steam gun. Ideal for cleaning radiators, door and window frames, bathroom elements and shutters. It is an extremely important accessory.
• To attach the lance (2), simply bring the arrow on the lance into line with the single notch on the appliance (fig.6) and then rotate the lance in the direction of the arrow. The following accessories can be attached to the lance:
• To attach the window-washing accessory (3), the curved nozzle (4), the brushes (5) (6), the spatula (7) and the accessory for grouting (8), simply insert them into the lance tip and rotate until they lock into place. (fig.7). The more stubborn the dirt, the closer the steam gun must be kept, as temperature and pressure are greatest at the time of release. In all cases, after steaming, rub more stubborn dirt with a dry cloth or abrasive sponge. Vaporetto can be used without accessories to:
• treat marks on carpets or rugs
• clean stainless steel, glass, mirrors, stratified and enamel coverings;
• clean corners that are difficult to access, such as stairs, window frames, door frames, aluminium profiles;
• clean hob knobs and tap bases;
• clean shutters, radiators and car interiors;
• steam house plants (from a distance);
• eliminate odours and creases from clothes. (3) - Window-washing accessory: recommended for cleaning windows and mirrors. Windows should be cleaned in 2 stages:
• Steaming the surface to be cleaned to dissolve the dirt, using the steam request lever (B);
• Rubbing the window-washing frame over it to eliminate the dirt, without steaming. By covering the window-washing (3) with the cloth (9), this accessory can be transformed into a small brush (fig.8). The small brush can be used for:
• furnishing fabrics (after a few tests on hidden parts);
• velvets and leathers (from a distance and after a few tests on hidden parts));
• car interiors, dirt-encrusted windscreen;
• small glass surfaces;

• tiles and other small surfaces. (4) - Curved nozzle: recommended for reaching even more inaccessible points, thanks to its curved shape. WARRANTY If the appliance requires repair, it must be returned with this coupon and a receipt valid for tax purposes attesting to the purchase. (5) (6) - Round brushes recommended for removing encrusted dirt from very narrow surfaces, such as hobs, blinds, tile grouting, bathroom elements, etc. Depending on the type of surface, choose the most suitable brush for the material. Do not use the round brass brush (6) on particularly delicate surfaces. Polti products are guaranteed to the purchaser for 1 year from the date of purchase as shown on a valid receipt issued by the seller. During the warranty period, Polti will repair products with defects present at time of manufacture in workmanship or materials at no charge to the customer for either labour or materials. To have work performed under warranty, custumer must send the appliance back to the Polti Service Centre in the country where purchased, and present a valid receipt issued at the time of purchase as evidence of the date of purchase. Warranty does not cover defects due to incorrect use or use other than that described in the instruction booklet and other enclosed literature, which is an integral part of the contract of sale for the product. Warranty does not cover defects resulting from chance (fire, short circuit) or attributable to a third party (tampering with the product). Warranty does not cover parts that are damaged by wear or subject to normal wear (consumables such as filters, brushes, etc.). Warranty does not cover any damage caused by limescale. Polti will accept no responsibility for any injury to people or animals or damage to objects directly or indirectly resulting from failure to follow the instructions provided in the instruction booklet or other enclosed warning literature, in particular the warnings and product maintenance instructions. (7) - Spatula: Recommended for removing stubborn encrusted dirt (8) - Accessory for grouting: extremely useful for cleaning tile grouting and in any case parts that are difficult to reach with the other accessories.

CARE OF YOUR APPLIANCE

• Before attempting any maintenance operation, make sure to always disconnect the appliance from the mains
• We recommend that the bristles of the round brushes are allowed to cool down in their normal position after use, so as to avoid any misshaping.
• To clean the body of the appliance, simply use a moist cloth.

ENGLISH VAPORETTO EASY COFFRET DE PRISE DE COURANT MIS

A LA TERRE
