USER MANUAL Sani System Business POLTI

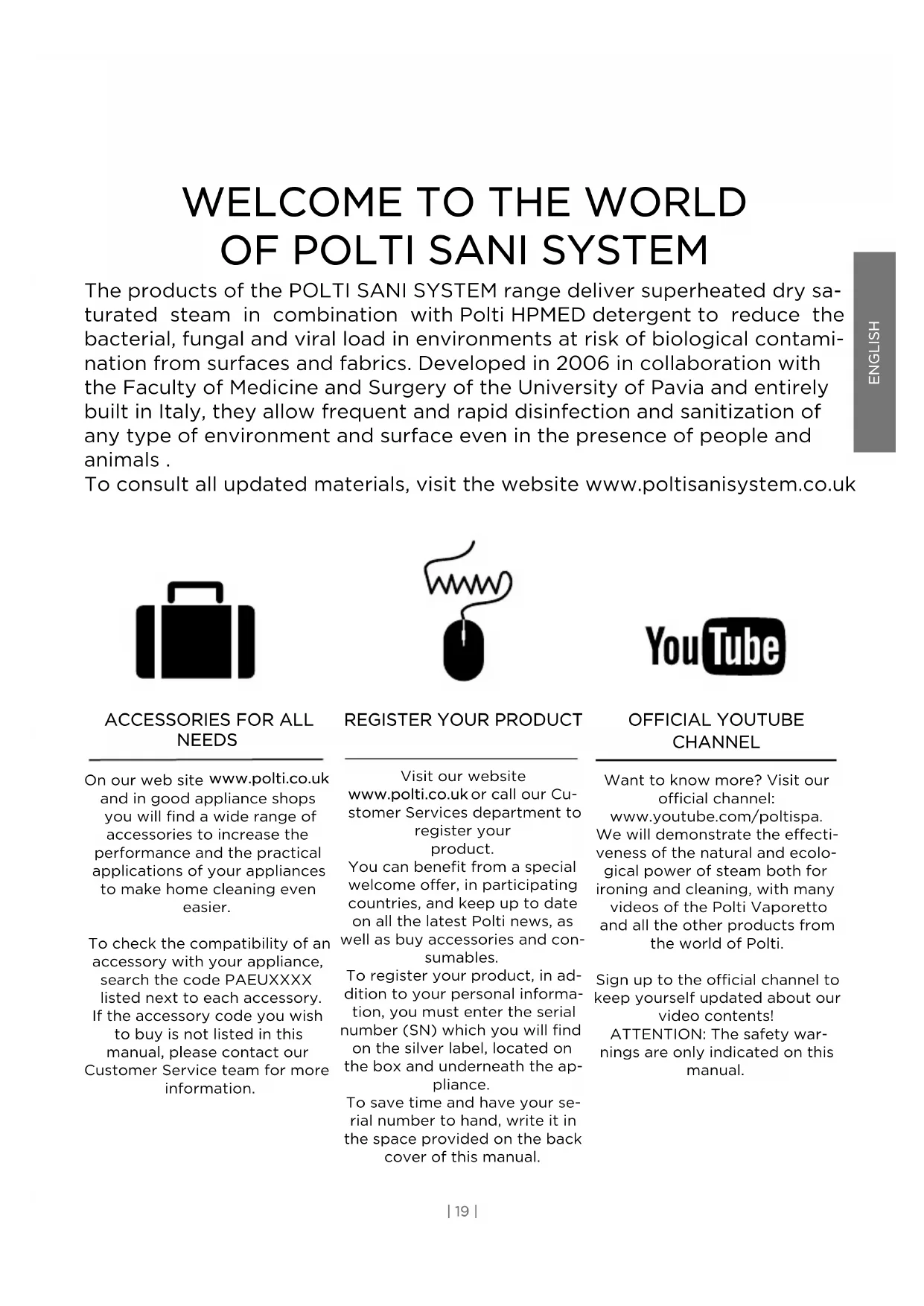

The products of the POLTI SANI SYSTEM range deliver superheated dry sa- turated steam in combination with Polti HPMED detergent to reduce the bacterial, fungal and viral load in environments at risk of biological contami- nation from surfaces and fabrics. Developed in 2006 in collaboration with the Faculty of Medicine and Surgery of the University of Pavia and entirely built in Italy, they allow frequent and rapid disinfection and sanitization of any type of environment and surface even in the presence of people and animals . To consult all updated materials, visit the website www.poltisanisystem.co.uk

NEEDS On our web site www.polti.co.uk and in good appliance shops you will find a wide range of accessories to increase the performance and the practical applications of your appliances to make home cleaning even easier. To check the compatibility of an accessory with your appliance, search the code PAEUXXXX listed next to each accessory. If the accessory code you wish to buy is not listed in this manual, please contact our Customer Service team for more information.

REGISTER YOUR PRODUCT

Visit our website www.polti.co.uk or call our Cu- stomer Services department to register your product. You can benefit from a special welcome offer, in participating countries, and keep up to date on all the latest Polti news, as well as buy accessories and con- sumables. To register your product, in ad- dition to your personal informa- tion, you must enter the serial number (SN) which you will find on the silver label, located on the box and underneath the ap- pliance. To save time and have your se- rial number to hand, write it in the space provided on the back cover of this manual. OFFICIAL YOUTUBE CHANNEL Want to know more? Visit our official channel: www.youtube.com/poltispa. We will demonstrate the effecti- veness of the natural and ecolo- gical power of steam both for ironing and cleaning, with many videos of the Polti Vaporetto and all the other products from the world of Polti. Sign up to the official channel to keep yourself updated about our video contents! ATTENTION: The safety war- nings are only indicated on this manual.SAFETY WARNINGS

WARNINGS IN THIS MANUAL,

APPLIANCE ITSELF. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. Correct use of the product is only as detailed in this instruction manual. Any use which does not comply with these instructions will invalidate the warranty. SAFETY SYMBOLS:

WARNING: High temperature. Risk of scalding!

If shown on the product, do not touch as parts may be very hot.

Risk of scalding! This appliance reaches very high temperatures. Incorrect use of the device can cause scalding.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try to repair the appliance yourself. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• This appliance must not be used if it has been dropped, if there are visible signs of damage or if it leaks.

• The plug must be removed from the socket before the tank/boiler is filled with water.

• During use there is pressure inside the boiler. Do not remove the boiler cap if the equipment is switched ON.

• To carry out any maintenance or cleaning requiring access to ENGLISH | 20 |the boiler, ensure that the appliance is switched off at the power switch and disconnected from the mains for at least two hours.

• Always unplug the appliance if it is not in use.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must be supervised to ensure they do not play with the appliance.

• Keep the appliance out of reach of children when it is plugged in or cooling down.

• Keep all the parts of the packaging out of the reach of children; they are not toys. Keep the plastic bag out of the reach of children: danger of suffocation.

• The appliance must not be left unattended if plugged in to the mains.

• Steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

• This appliance is intended for indoor and similar domestic use only.

• During use, keep the base in a horizontal position on stable surfaces. In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the basic precautions listed in this manual.

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical system to which the appliance is connected complies with current laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the electrical circuit in use.

• Do not overload sockets with adaptors and/or transformers. ENGLISH | 21 |Only connect the product to a single socket with current that is compatible with the plug supplied.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and possibly lead to short circuiting, fire, power outage or damage to the equipment. Only use extension leads which are certified, suitable for the power rating, supporting 16A and earthed.

• Always turn the appliance off before unplugging it.

• To remove the plug from the socket, do not pull the power cable, but hold the plug itself to avoid damage to the plug and the cable.

• Fully unwind the cable from the cable winder before connecting the appliance to the mains and before use. Always use the product with the cable completely unwound.

• Do not pull or jerk the cable or expose it to tensions (twisting, crushing or stretching). Keep the cable away from hot and/or sharp surfaces and elements. Avoid crushing the cables in doors and windows. Do not pull the cable tight around corners. Avoid treading on the cable. Do not wind the power cable around the appliance, especially if the appliance is hot. Do not place the appliance on top of the power cable, this can be dangerous.

• Do not substitute the plug on the power cable.

• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid all possible hazards. Do not use the product if the power cable is damaged.

• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use in swimming pools containing water. Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Never immerse the cleaner in water or other fluid. RISKS DURING USE OF THE PRODUCT – INJURIES/SCALDING

• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.

• Do not pour toxic substances, acids, solvents, detergents, ENGLISH | 22 |corrosive substances and/or explosives or perfumes into the boiler.

• Only pour water or the water mix indicated in the section “Which water to use in the boiler” into the boiler.

• Do not direct the steam jet onto toxic substances, acids, solvents, detergents or corrosive substances.

• Do not direct the steam jet onto explosive powders or liquids, hydrocarbons, open flames and or extremely hot objects.

• The handling and removal of dangerous substances must be carried out according to the indications of the manufacturers of these substances.

• Do not position the product near sources of heat such as fireplaces, stoves and ovens.

• Do not position the product near electromagnetic fields such as induction plates.

• Re-wind the cable when the appliance is not in use.

• Use the special carry handle for transport. Do not pull the power cable. Do not use the power cable as a handle. Do not lift the appliance using the power cable or the steam hoses/vacuum tubes.

• Do not obstruct the openings and grills on the product.

• Do not direct the steam jet on any part of the body of people or animals.

• Do not direct the steam jet onto clothes while they are being worn.

• Cloths and rags and fabrics which have been subjected to a deep steam reach very high temperatures, above 100°C. Wait a few minutes and check that they have cooled before handling them. Therefore, avoid contact with the skin if they have just been steamed. The steam lock on the handle guarantees greater safety, as it prevents the accidental activation of steam delivery by children or people who are unaware of the function of the appliance. When steam is not being used, engage the steam lock. To continue steam delivery, return the switch to its original position.

• Always use the appliance with the safety cap supplied or an ENGLISH | 23 |original replacement part. Using non-original Polti safety caps can lead to accidents.

• When accessing the pressurised boiler (removing the cap, filling up), ensure that the appliance has been switched off at the power switch and disconnected from the mains for at least two hours, allowing it to cool. There is a risk of accidents while the boiler is switched on/hot and pressurised.

• Do not connect the appliance with the safety cap removed. Carefully tighten the safety cap before plugging in and turning on the appliance.

• Before turning on the appliance, check that there is nothing blocking the mouth of the boiler (filler bottle, funnel, or other objects), and that the safety cap is closed.

• Check that the safety cap is correctly tightened; if steam is escaping from the cap, switch off the boiler, unplug the power cable, wait for two hours for the appliance to cool, and then unscrew. Check the condition of the safety cap and seal. If the cap is in good condition, screw it back on completely. If steam continues to escape from the cap, leave it to cool for 2 hours, then take the appliance to the nearest authorised service centre.

• Periodically check the condition of the safety cap and seal. Impact and being dropped may compromise the safety of the cap. Replace with an original spare part or replace the seal.

• If the cap spins freely, this indicates that the boiler is still pressurised and therefore hot. Never force the cap open, whether the appliance is switched on or the boiler is switched off and the appliance is disconnected from the mains. Always wait for the boiler to cool for 2 hours before opening the cap without forcing it.

• Do not use tools to unscrew the cap. If the cap cannot be removed, even once the appliance has cooled, go to your nearest authorised service centre.

• WARNING Never fill the boiler as soon as the safety cap has been opened when the boiler is still hot, even if the appliance is unplugged from the mains. On contact with the hot, empty boiler, cold water will evaporate producing a spray of steam which can cause burns. Only fill the boiler ENGLISH | 24 |when cold and always keep your face away from the boiler mouth when filling.

• The use of non-original Polti caps and disregard for the instructions in this manual constitutes improper use. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. RISKS RELATED TO USE OF THE IRONING ACCESSORY

• Iron only on surfaces that are heat resistant and which allow the steam to permeate.

• When placing the iron on its stand, make sure that the surface on which the stand is placed, is stable.

• If the iron rest mat needs to be replaced, only use original spare parts.

• The iron must be used with the ironing mat provided.

• The iron must be used and rested on a flat stable surface.

• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

• Do not place the hot appliance on heat-sensitive surfaces.

• If ironing whilst sitting down, take care to ensure that the jet of steam is not angled towards your legs. Steam can scald.

• Before connecting the appliance to the current, ensure that the continuous steam jet button is not pressed (if present).

• Never leave the iron unattended when it is plugged in. ENGLISH

| 25 |CORRECT USE OF THE PRODUCT

This appliance is intended for home and simi- lar professional use, according to the descrip- tions and instructions given in this manual. Please read these instructions carefully and keep them. If this manual is lost, it can be consulted and/or downloaded from the web- site www.polti.co.uk. POLTI S.p.A. reserves the right to make the aesthetic, technical and construction changes it deems necessary, without prior notice. Before leaving our factory all our products are rigorously tested. This is the reason why your Polti Sani System may contain some re- sidual water in the boiler. The intended use of the product is only as indicated in this instruc- tion booklet and in the protocol for use. Any other use may damage the appliance and in- validate the warranty. Polti S.p.A. declines all responsibility for acci- dents resulting from the use of this appliance in a manner that does not comply with these instructions for use.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but sent to an official collec- tion facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner involves the application of the administrative sanctions envisaged by current legislation.

WHICH WATER TO USE IN THE

BOILER This appliance has been designed to function with normal medium tap water between 8°f and 20°f. If the tap water contains a lot of li- mescale use a mix composed of 50% tap wa- ter and 50% demineralised water which is wi- dely available to purchase. Do not use pure demineralised water.

Warning: check the hardness of the water at

the technical office at your local council or the local water supplier. If you only use tap water, you can reduce the formation of limescale by using the special Polti Kalstop limescale product, distributed by Polti, and available for sale at all major do- mestic-appliance stores or online at www.pol- ti.com. Never use distilled water, rain water or water containing additives (e.g. starch, perfumes), or water produced by other domestic ap- pliances, by water softeners or filter jugs. Do not add chemical, natural, detergent, or li- mescale removing substances, etc. POLTI HPMED Polti HPMed is an adjuvant detergent for the sanitising action of steam.

• Respectful of the environment

• Can be used in the presence of people and animals.

• Can be used on surfaces and fabrics without damaging them. Polti HPMed is on sale in appliance stores, at authorized Polti Technical Assistance Centers and on the website www.polti.co.uk.

1. PREPARING FOR USE

1.1 Remove the appliance from the packaging,

checking that the product is whole and that all the parts are there.

1.2 Attach the pivoting wheels to the base of

Polti Sani System Business applying pressure (1-2).

1.3 Unscrew the safety cap (E)(3) and fill the

boiler with 2l of water (5-6)(if completely

WARNING: When the level of Polti HPMed

contained in the disposable bottle falls be- low the minimum level indicated on the la- bel, replace it with a new bottle. Once the disposable bottle is opened and inserted in the dispenser, use it within the following 7 days and replace it with a new one. Do not refill the disposable bottle. ENGLISH | 26 |ENGLISH | 27 | empty). Carefully screw the safety cap back on (7), checking that it is fully tightened. This operation must always be carried out when the boiler has cooled and with the power cable disconnected from the mains.

1.4 Open the flap of the monobloc socket (8)

and insert the monobloc plug of the steam hose, press the button and make sure that the coupling pin is fixed (9).

1.5 Unscrew the cap of the Polti HPMed deter-

1.6 Insert the wick into the bottle (11) until it

rests on the base of the bottle, ensuring that it stays as straight as possible (12).

1.7 Screw the bottle into the dispensing gun

fitting taking care to ensure that the stopper enters the hole inside the fitting perfectly, without bending (13).

1.8 Connect the cable plug to an earthed

power supply of the correct voltage (14). Completely unwind the power cable before plugging it into the mains and before use, and always use the appliance with the power ca- ble completely unwound.

1.9 Press the boiler switch ( ) (15)and the ac-

cessories switch ( ) (16) which will light up together with the steam ready light ( ) (17) and the light on the steam gun.

1.10 Wait for the “steam ready” indicator light

( ) and the steam dispenser light to turn off (18). The pressure gauge signals that there is pressure in the boiler. The appliance is ready for use.

Adjust the flow of steam to an average posi- tion by turning the knob on the steam gene- rator (19).

The spacer stand (D) can be used in the open (F) or closed (G) position depending on the treatment to be carried out. You can also use the spacer stand in the middle position to rest the gun (H). The safety button (C) on the gun prevents ac- cidental activation of the steam supply. When the steam is not used, move the safety button to the stop position (20). To resume dispen- sing, return the button to its initial position (21). To dispense steam, press the trigger on the gun (23). Treatment: dispense "non-usable" steam for 2 seconds and, without interrupting the flow, position the jet perpendicular to the surface or fabric. Refer to the Protocol for Use for the treatment of surfaces and fabrics. Wait for rapid and spontaneous drying. Drying times depend on the environmental conditions (temperature and humidity), on correct use and on the nature and tempera- ture of the surfaces. Complete drying with a disposable cloth only if strictly necessary.

Flow concentrators are used to treat hard-to- reach places or where a concentrated steam jet is needed.

Straight flow concentrator : for a concentra- ted jet, often used to treat drain pipes and

WARNING: Do not screw the bottle to the

gun without the stopper. If no consumption of Polti HPMed is seen during use of the pro- duct, this means that the stopper has not been inserted correctly, or has folded within the bottle. Unscrew the bottle and repeat the insertion procedure, taking care to posi- tion it correctly.

WARNING: If steam is escaping from the sa-

fety cap, switch the appliance off and unplug it from the mains. Wait for two hours for the appliance to cool before unscrewing the cap and screwing it back on.

WARNING: A larger or smaller adjustment will

be necessary only when using Polti Sani Sy- stem Business in combination with the optio- nal accessories (Steam cleaning kit and Fluid Curve accessory iron).

WARNING: Dispense "non-usable" steam for

about 30 seconds downwards to reach the optimum operating temperature and pres- sure. At the first use after switching on the appliance, some drops of water may be mixed with the steam due to imperfect ther- mal stabilization

WARNING: For additional safety, test steam

delivery on a hidden part, leave the steamed part to dry to ensure that no changes in co- lour or deformations have occurred. Subsequent switching on and off of the light indicate that the electric heaters are active. It is a normal operation, there is no need to in- terrupt operations.grates.

Curved flow concentrator : to reach difficult and / or inaccessible points, e.g. toilets. To connect the concentrator, match the ac- cessory to the dispenser and rotate it until it locks.

The lack of water in the boiler is indicated by the flashing of the indicator light ( ) . To continue with use, proceed as follows:

• Turn off the boiler switch ( ) and the ac- cessory switch ( ).

Unplug from the mains electricity.

• Wait at least 10 minutes and remove the safety cap, unscrewing it without force.

• Leave the appliance to cool for at least 10 minutes.

• Fill the boiler as indicated in Section 1.

• Carefully screw the safety cap back on, checking that it is completely closed.

6. GENERAL MAINTENANCE

To clean the outside of the appliance, only use a damp cloth and tap water. Clean the steam gun after every 10 uses or if visibly dirty. Clean the dispensing nozzle using the brush included, sli- ding it inside the gun so as to remove any limescale residue in it. Do not use detergents of any type. Every 2 months, rinse the boiler with tap wa- ter: - Unplug the appliance and let it cool for at least 2 hours, if it is hot; - Unscrew the safety cap; - Turn the appliance upside down and empty the residual water out of the boiler; - Pour 500 ml of cold water into the boiler; - Rinse the boiler by shaking it and empty the remaining water.

Polti Kalstop is a descaler for boiler applian- ces. Regular use of Polti Kalstop, every time the tank is filled with water: - Extends the life of the appliance. - Allows emission of a “drier” steam - Prevents limescale build up. - Protects the walls of the boiler. - Contributes to saving energy.

(4) into the boiler filled previously with water.

7.2 Continue with the rest of the operations li-

sted in Section 1 “Preparation for use”. Polti Kalstop is on sale at household ap- pliance stores, at Polti authorised service centres or on the site www.polti.co.uk.

8.1 Turn off the appliance and disconnect

from the mains electricity.

8.2 Wait for the appliance to cool down com-

pletely before storing it.

WARNING: Never fill the boiler as soon as the

safety cap is opened. The boiler is still hot, even if the appliance is unplugged. On con- tact with the hot, empty boiler, cold water will evaporate producing a spray of steam which could cause burns. Only fill the boiler when it is cold and always keep your face away from the boiler opening when filling.

accessory it is necessary to detach the Polti HPMed disposable bottle and connect the empty bottle supplied.

WARNING: If, during unscrewing, the cap

spins freely or if steam is escaping, immedia- tely stop the operation, ensuring that the boiler is switched off and the power cable is unplugged from the mains. Wait for the ap- pliance to cool (two hour) and unscrew the cap before removal. TAKE CARE OF YOUR FACE !!!

WARNING: Perform these operations when

the appliance is turned off, cold and discon- nected from the mains or disconnected from Polti Sani System Business. When the water is particularly hard, use greater concentrations (up to one phial per litre of water). ENGLISH | 28 |ENGLISH | 29 |

(code PAEU0269) Polti Sani System Business can be converted into a steam cleaning system for all washable surfaces. Thanks to the many accessories and cloths provided, you can easily clean and sa- nitize all types of floors, rugs, sofas and upholstery, sanitary ware, taps and all washa- ble surfaces.

FLUID CURVE IRON ACCESSORY

(code PFEU0035) Transform the Polti Sani System Business into a powerful iron with boiler to perfectly iron and sanitize any type of fabric. The exclusive rounded and multidirectional aluminum plate, with the innovative and patented 360° FLUID CURVE technology, allows you to stretch even the most stubborn creases with just one pass. The rounded edges of the plate allow a perfect smoothness of the iron with no effort and the ability to iron in all directions. Also ideal for vertical ironing. The PAEU0269 steam cleaning kit and the PFEU0035 Fluid Curve Iron Accessory Iron are on sale at authorized Polti Technical Assi- stance Centers and on the website www.pol- ti.co.uk10. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The appliance does not turn on. No power. Check that the product has been connected to the mains, as indicated in Section 1. The “steam ready” indicator light and the steam dispenser light come on and go off du- ring use. This indicates that the electrical resistor has started to work to keep the pressure constant It is a normal phenomenon, no action is necessary. Does not dispense steam. Out of water. The boiler is not yet pressurised. The steam dispenser is not inserted correctly. Child safety inserted. Add water to the boiler as de- scribed in Section 5. Wait until the steam indicator light comes on. Insert the steam dispenser correctly all the way down. Deactivate the safety switch. Steam does not come out and the cap won’t unscrew. Steam button broken. Do not try to open the cap. Take the device to an Authori- sed Service Centre. The appliance is pressurized but little steam comes out. Steam adjustment dial set to the minimum

Adjust the position of the dial for the desired increase. During use the appliance does not consume Polti HP- Med. The stopper inside the bottle has not been in- serted correctly. Insert the stopper correctly, following the instructions in

If problems persist or are not listed above, please contact a Polti Authorised Service Centre (www.polti.co.uk for the updated list) or contact Customer Services. ENGLISH | 30 |WARRANTY This appliance is guaranteed for one year from the date of purchase if purchased by a professional/commercial business with an in- voice (VAT number). If the purchase is made by a consumer with a tax receipt, the war- ranty period is two years, as required by the Consumer Code. The date of purchase and the duration of the guarantee must be proven by the tax document issued by the seller:

• Invoice: one year warranty

• Tax receipt: two-year warranty For repairs, the appliance must be accompa- nied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights whi- ch the consumer should uphold with respect to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warran- ties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free re- pair of a product with a manufacturing or fac- tory defect and, therefore, the client is not lia- ble to pay for any work or materials. In case of irreparable defects, Polti may repla- ce the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Cen- tres with proof of purchase from the seller va- lid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruc- tion booklet, an integral part of the pro- duct sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, battery, etc.) da- maged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of mainte- nance/cleaning according to the manu- facturer’s instructions.

• Assembly of non-original Polti accesso- ries or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this ma- nual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instruc- tions indicated in this instruction booklet, re- garding warnings for use and product main- tenance. To see the up-to-date list of the Polti Authori- sed Service Centres, visit the website www.polti.co.uk. ENGLISH | 31 |ENGLISH | 32 |FRANÇAIS| 33 |
