Product Type	Steam Iron
Brand	Siemens
Model	TB602810
Soleplate Material	Stainless Steel
Water Tank Capacity	300 ml
Continuous Steam Output	40 g/min
Steam Shot Output	150 g/min
Power Consumption	2400 W
Voltage	220-240 V, 50/60 Hz
Cord Length	2 m
Weight	1.5 kg
Dimensions (L x W x H)	280 x 120 x 150 mm
Auto Shut-Off	Yes (8 min vertical, 30 sec horizontal)
Anti-Calc System	Yes
Self-Clean Function	Yes
Spray Function	Yes
Vertical Steaming	Yes
Temperature Settings	Adjustable thermostat
Indicator Light	Yes (power and temperature ready)
Safety Features	Thermal fuse, auto shut-off

Frequently Asked Questions - TB602810 SIEMENS

How do I descale my Siemens TB602810 iron?

Use the self-clean function: fill the tank with water, set iron to max temperature, unplug, hold over sink, press and hold the self-clean button until steam and water flush out deposits. Repeat if necessary. Always follow manual instructions.

Can I use tap water in the iron?

Yes, but to minimize scale buildup, mix tap water with distilled water 1:1. Avoid using pure distilled or demineralized water as it may affect steam production. In hard water areas, descale more frequently.

What does the auto shut-off feature do?

The iron automatically turns off when left unattended: after 8 minutes in vertical position and after 30 seconds in horizontal or tipped-over position. This prevents accidents and saves energy.

How to clean the soleplate?

Allow the iron to cool. Wipe the soleplate with a damp cloth and mild detergent if needed. Do not use abrasive cleaners. For stubborn residue, use a specialized soleplate cleaner or a paste of baking soda and water.

Why is my iron not producing steam?

Check if the water tank is empty, the temperature is set to steam zone, and the steam button is pressed. If the iron is cold, wait for it to heat up. Scale buildup may also block steam vents – perform a self-clean cycle.

How to store the iron properly?

Always empty the water tank after use. Allow the iron to cool completely. Wrap the cord loosely, do not bend sharply. Store upright on a stable surface to avoid damage to the soleplate.

What is the warranty period for this iron?

Siemens typically offers a 2-year warranty from the date of purchase. Keep your receipt and register the product online if required. Warranty covers manufacturing defects but not wear and tear or misuse.

Can I use the iron on delicate fabrics?

Yes, the iron has adjustable temperature settings. For delicate fabrics like silk or polyester, set the temperature to low (1 dot) and use a protective cloth. Avoid using steam on delicate fabrics unless specified.

How to replace the soleplate or other parts?

The soleplate is not user-replaceable. For other spare parts (e.g., water tank cap, steam trigger), contact Siemens customer service or an authorized service center. Do not attempt disassembly yourself.

What should I do if the iron leaks water?

Leaking can occur if the iron is not hot enough, or if the steam button is pressed before reaching set temperature. Ensure the iron is fully heated. Also, do not overfill the tank. If leaking persists, descale and check for debris.

USER MANUAL TB602810 SIEMENS

Register your product online

Illustration of an open book with blank pages and a bookmark (no text or symbols visible)

Index
DEUTSCH6
ENGLISH20
NEDERLANDS34
ESPAÑOL48
PORTUGUÊS62
ΕΛΛΗΝΙΚΑ 76
TÜRKÇE90
POLSKI104
PYССКИЙ 118
العربية	145

Illustration of an open book with blank pages and a bookmark (no text or symbols visible)

Illustration showing hands using pliers to adjust a car interior panel (no text or symbols present)

Top-down diagram of a car interior showing airflow control panel and directional arrows (no text or symbols)

Hand holding a plug with a circular socket, pointing to the socket (no text or symbols present)

Line drawing of a pair of trousers with a close-up detail showing a patterned garment (no text or symbols)

Line drawing of a hand using a steam iron to burn, with an inset showing a spray bottle labeled 'CABO SHUTT' (no text on main subject)

Line drawing of a hand opening a steam iron (no text or symbols)

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no text or symbols

Tipp:

Top-down diagram of a car interior showing dashboard, rearview mirror, and dashboard controls (no text or symbols)

Line drawing of a mechanical component with a circular dial indicator (no text or symbols)

Illustration of a hand using a power iron to clean air, with a magnified inset showing the drop of a bolt (no text or symbols present)

Illustration of a hand using a steam iron to clean or store air (no text or symbols visible)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Zubehör

Illustration of a small bottle and a rectangular box (no text or symbols)

Line drawing of a teardrop-shaped object with a handle, resembling a plastic or plastic container (no text or symbols)

Line drawing of a single flannel or plastic object with internal compartments and ridges (no text or symbols)

Thank you for buying the IQ500 steam iron from Siemens.

Carefully read through the operating instructions for the appliance and safeguard them for future reference.

You can download this manual from the local home pages of Siemens.

General safety instructions

☐ The iron must not be left unattended while it is connected to the supply mains.
☐ Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
☐ The appliance must be used and placed on a stable surface.
☐ When placed on its stand, make sure that the surface on which the stand is placed is stable.
☐ The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.
☐ With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.
☐ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
☐ This appliance is designed only for household use up to 2000m above sea level.
Surface is liable to get hot during use.

CAUTION. Hot surface.

Important notices

• This appliance has been designed exclusively for domestic use and must not be used for industrial purposes.
• This appliance must be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.

• This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns in case of improper use.

• Do not touch the soleplate! Hold the iron by its handle.

• Do not leave the supply cord hanging over the table or ironing board, to prevent the appliance from falling.
• Do not iron clothing while it is being worn!

• Never spray or aim the steam at persons or animals!

• Do not allow the power cable to come into contact with sharp edges or with the soleplate when it is hot.

• Never rest the iron in a horizontal position when the soleplate is hot. Rest it on its heel.
• Do not touch the appliance with wet hands when in operation.
• This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
  • In order to avoid that, under unfavorable mains conditions,

phenomena like transient voltage drops or lighting fluctuations can happen, it is recommended that the iron is connected to a power supply system with a maximum impedance of 0.29 Ω. If necessary, the user can ask the public power supply company for the system impedance at the interface point.

• In special environmental conditions slight instability may occur.
• The appliance must never be placed directly under the tap to fill the water tank.
• Unplug the appliance from the mains supply after each use, or if a fault is suspected.
• The electrical plug must not be removed from the socket by pulling the cable.
• Never immerse the iron in water or any other fluid.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.).

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Your local town council can give you information about how to dispose of obsolete appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

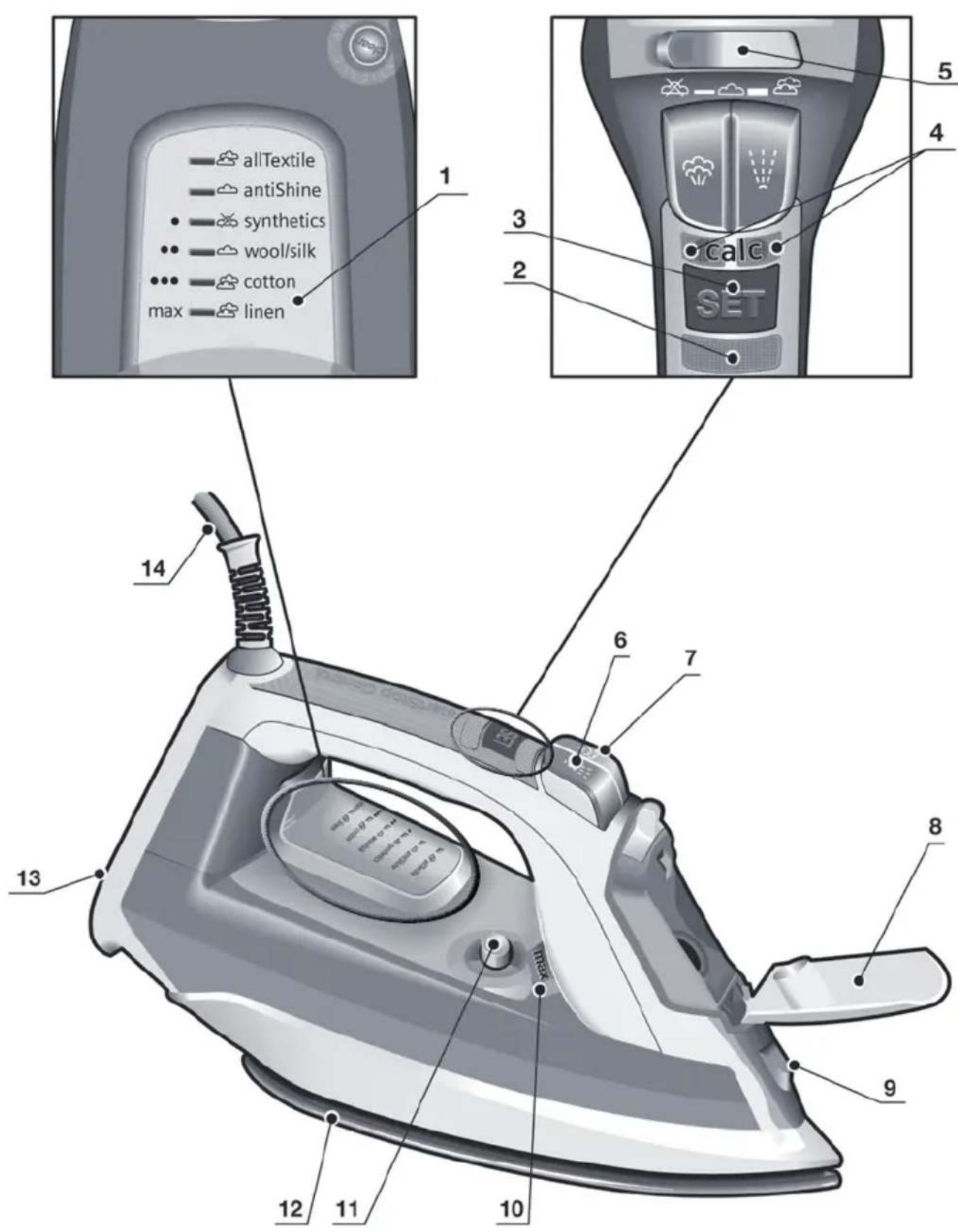

Description

Illustration of an open book with blank pages, no text or symbols visible

1. Ironing programme indicator lamps
2. "startStop Control" indicator lamp
3. "SET" button
4. "calc'n Clean" indicator lamp
5. Steam regulator
6. Spray button
7. Shot of steam button
8. Water inlet lid
9. Spray nozzle
10. Level mark for maximum filling
11. "clean" button
12. Soleplate
13. Heel
14. Power cable

Using your appliance

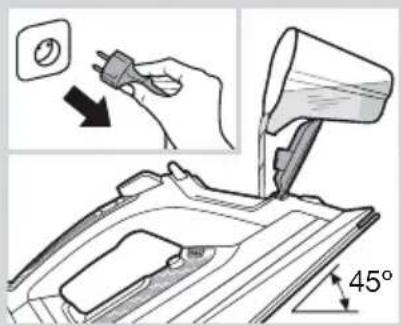

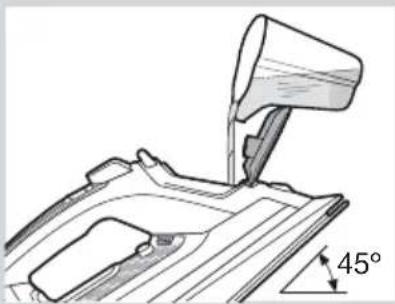

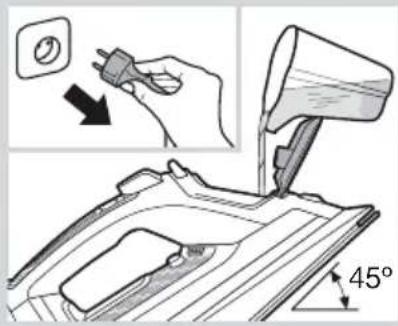

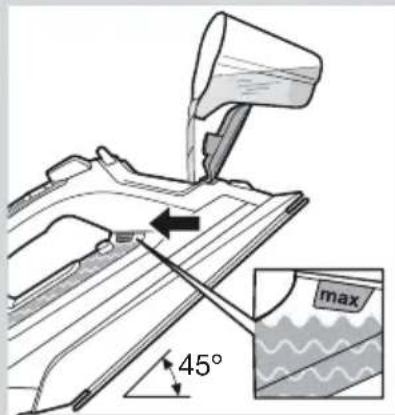

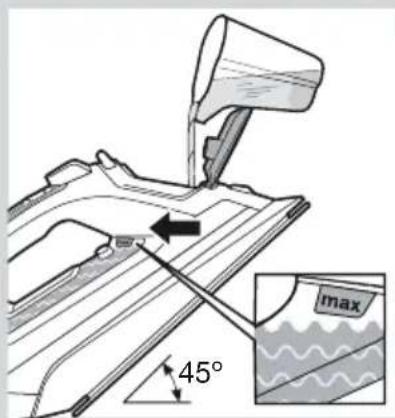

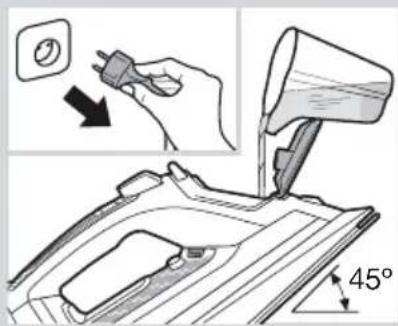

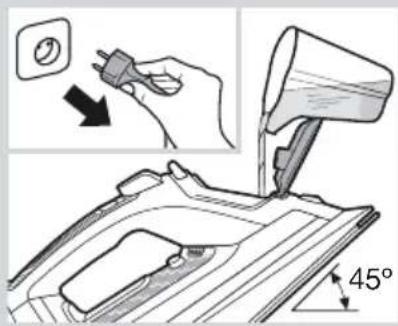

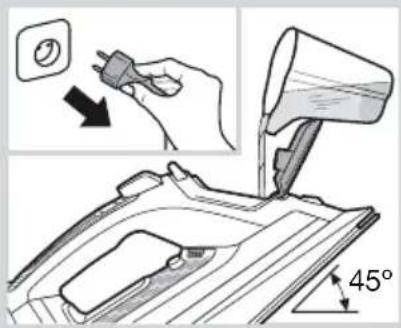

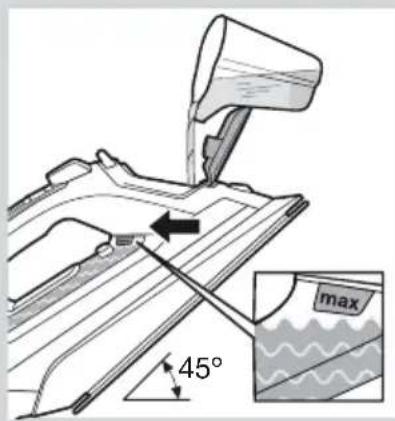

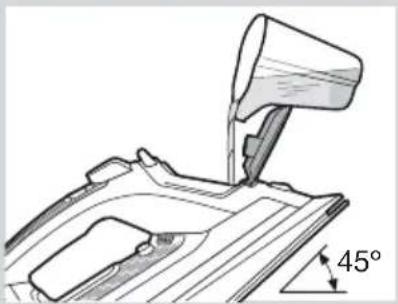

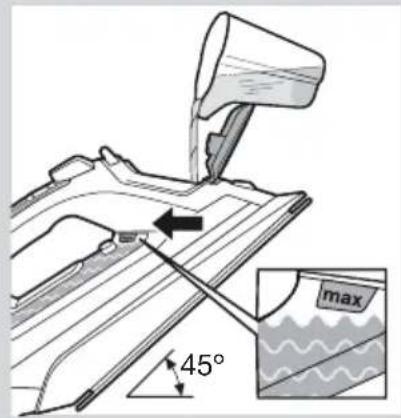

1. Filling the water tank

This appliance has been designed to use normal tap water.

Important:

Do not use additives! The addition of other liquids, such as perfume, vinegar, starch, condensation water from tumble dryers or from air conditioning systems or chemicals will damage the appliance. Any damage caused by the use of the aforementioned products will make the guarantee void!

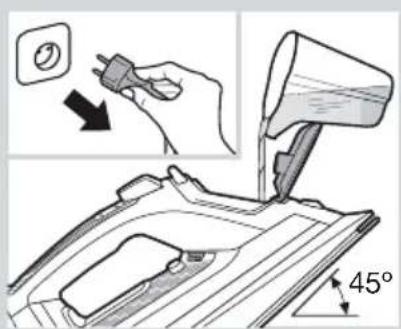

1 Unplug the iron from the mains.
2 Open the water inlet lid (8).

3 Set the steam regulator (5) to the position

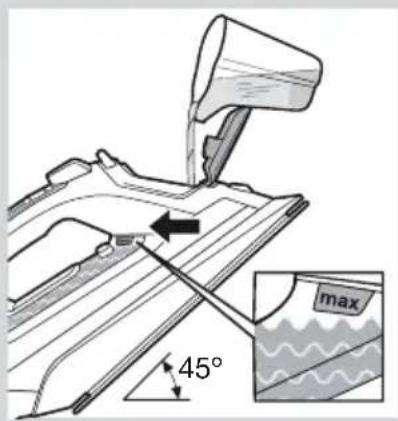

4 Fill the water tank. Never fill beyond the level mark for maximum filling (10)!
5 Close the water inlet lid.

Tip:

To prolong the optimum steam function, you may mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2.

You can inquire about the water hardness with your local water supplier.

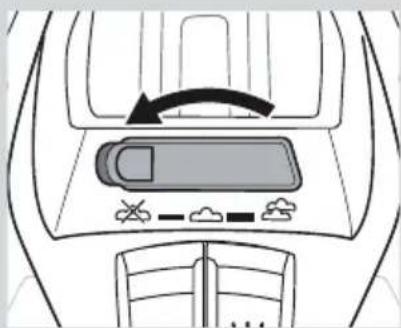

2. Heating

Remove any labels or protective covering from the soleplate (12).

1 Plug in the iron.

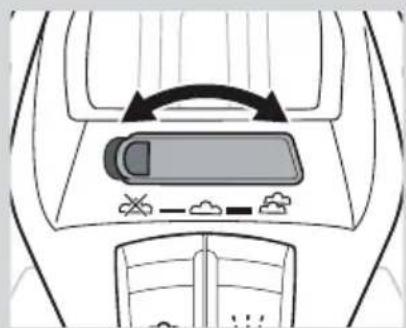

2 Set the steam regulator (5) to the position 🙏.

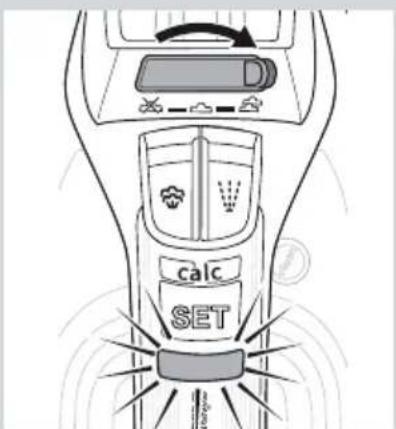

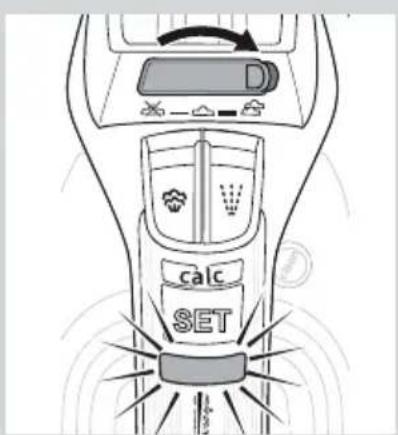

3 "startStop Control" function will be activated and the indicator lamp (2) will flash.

Top-down diagram of a car interior showing airflow control panel and directional arrows (no text or symbols)

Hand holding a plug with a circular button, pointing to it (no text or symbols present)

4 The iron will shift automatically to the "allTextile" programme. The "allTextile" indicator lamp (1) will flash, indicating that the iron is heating up.
5 When the iron is ready to use, the indicator lamp will remain lit continuously.

"allTextile" programme

Line drawing of a pair of trousers with a zipper, showing front and side views (no text or symbols)

The iron will shift automatically to the "allTextile" programme.

This programme sets an appropriate temperature, which is suitable for all fabrics that can be ironed (symbols 🐘 🐘), and prevents clothes from becoming damaged due to an unsuitable temperature being selected.

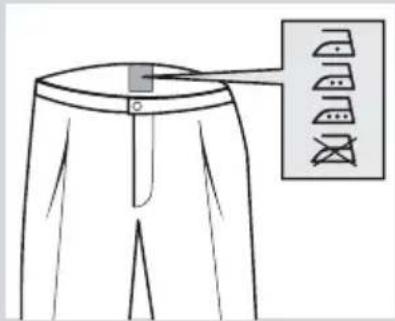

The "allTextile" programme does not apply to fabrics that cannot be ironed (symbol 📧).

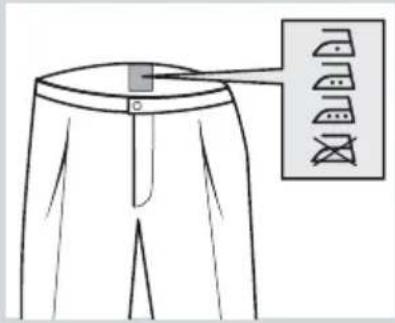

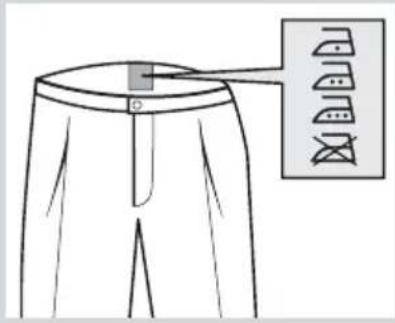

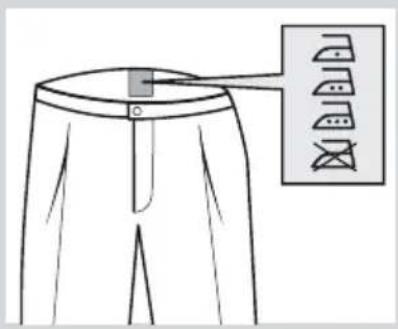

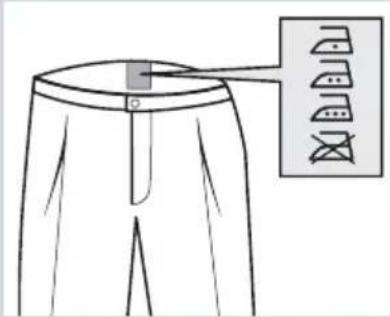

Please check the garment care label for details or try ironing on a part of the fabric not visible normally.

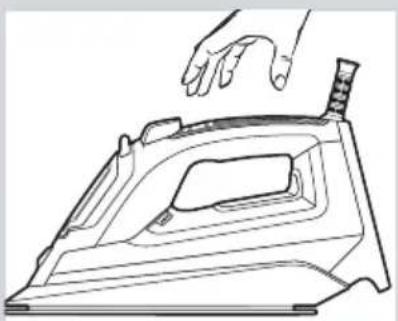

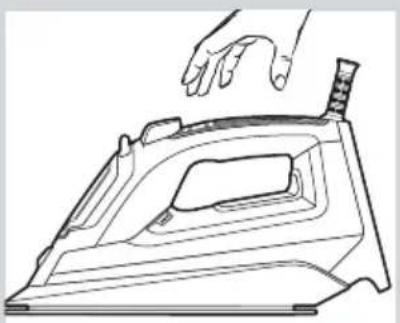

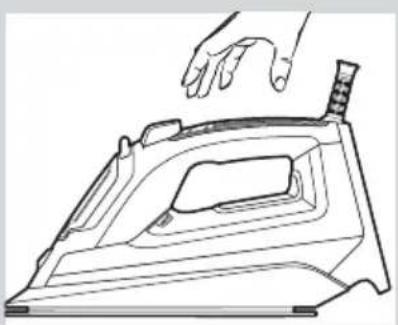

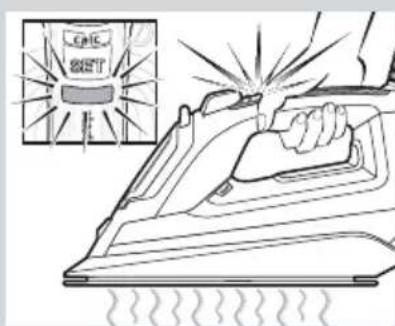

3. "startStop Control" function

After the initial heating, "startStop Control" function switches off the iron when it is left unattended, thus increasing security and saving energy.

Line drawing of a hand pressing down on an iron iron (no text or symbols)

1 While the handle is gripped, the iron heats up. The "startStop Control" indicator lamp (2) will remain lit continuously.
2 When the handle is released, the "startStop Control" function is activated and the iron stops heating. The "startStop Control" indicator lamp (2) will flash.

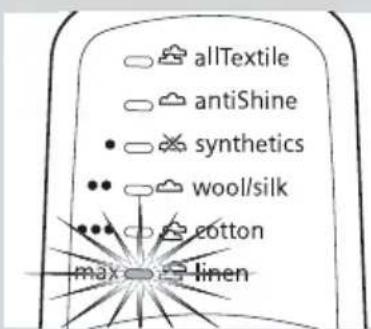

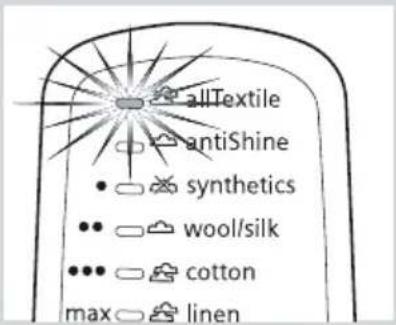

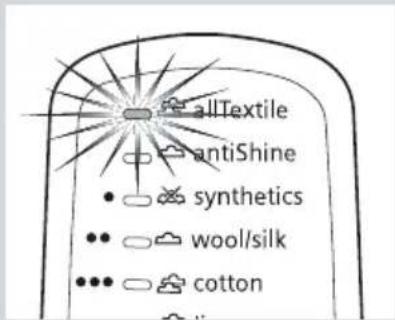

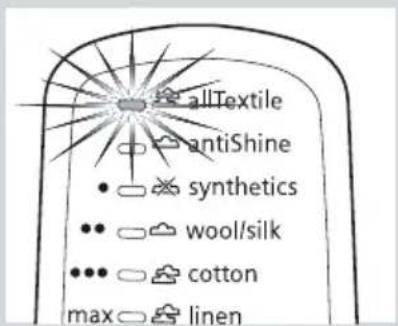

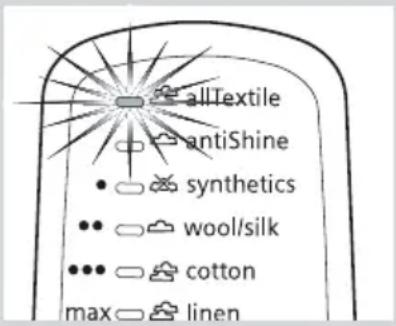

4. Setting the temperature

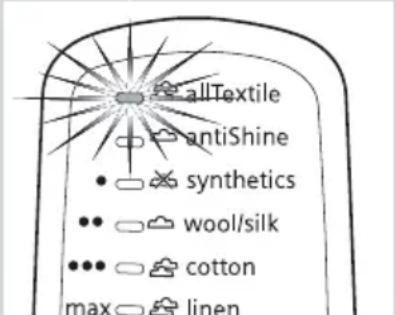

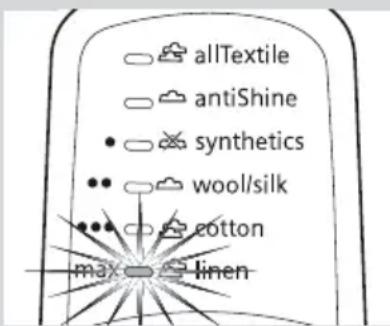

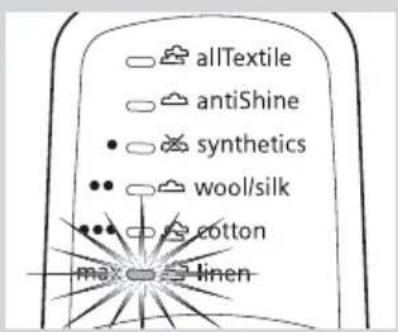

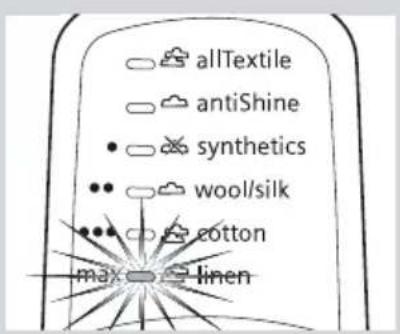

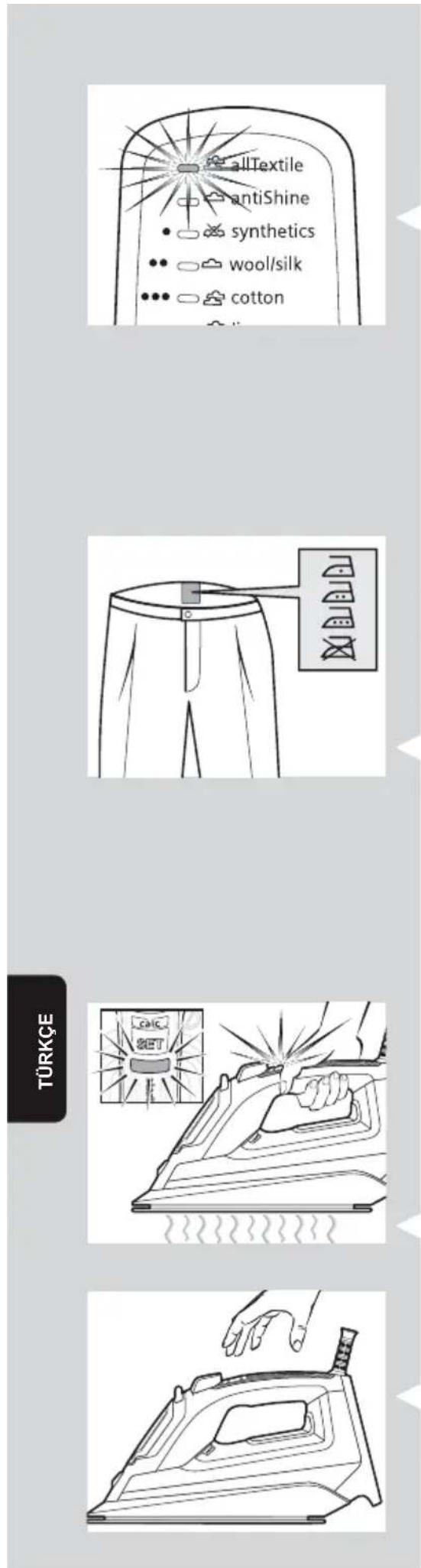

Your steam iron is equipped with six ironing programmes.

Tip:

Start by ironing the fabrics that require the lowest ironing temperature. Check the recommended ironing temperature on the label on the garment.

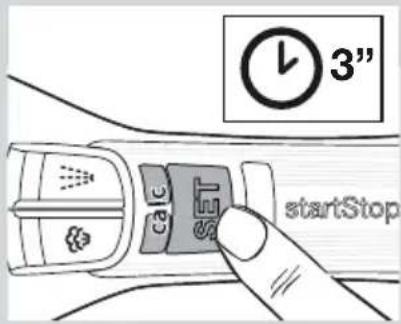

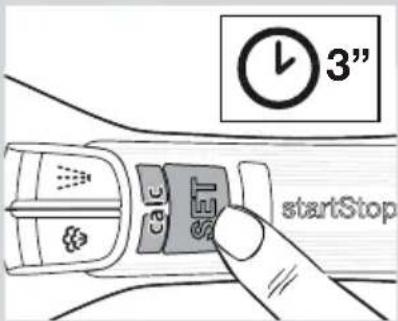

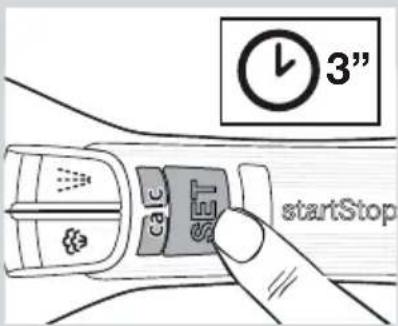

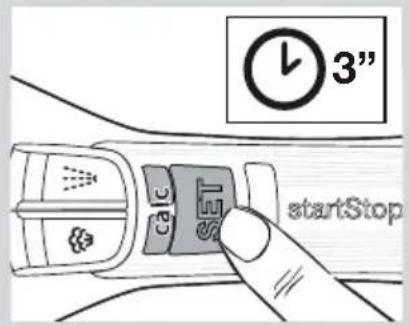

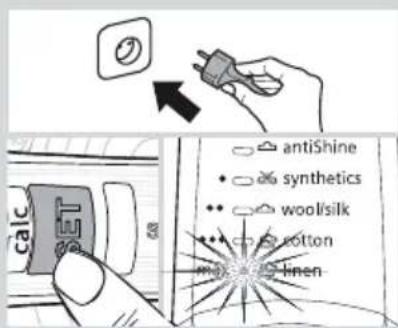

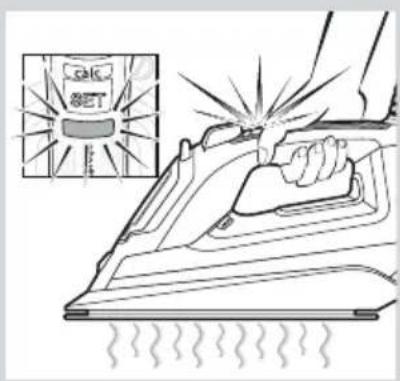

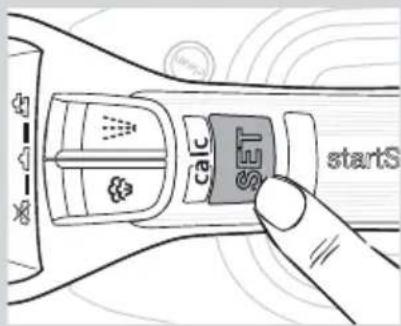

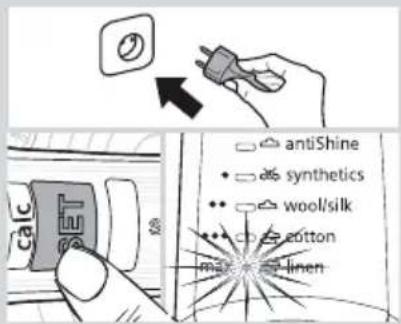

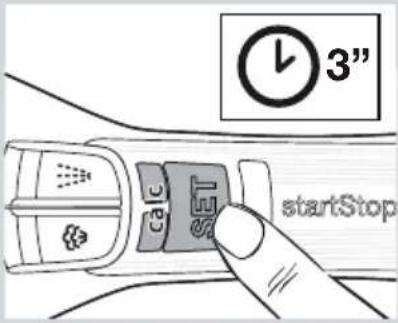

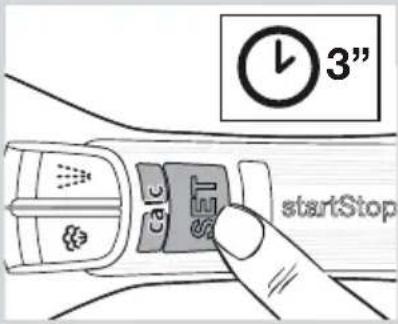

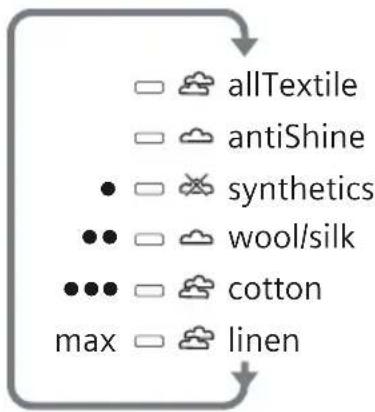

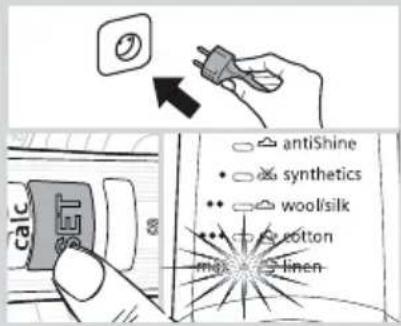

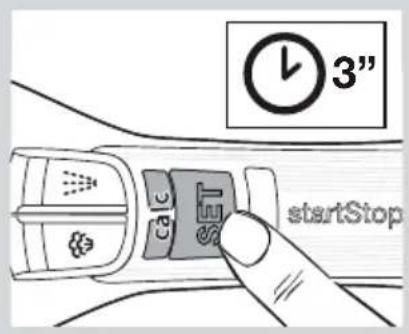

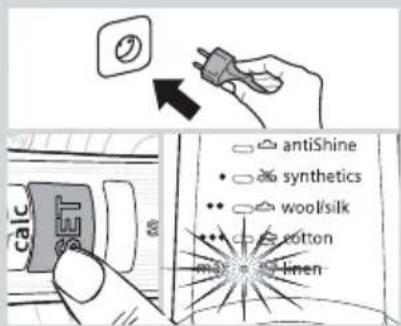

You can change the ironing programme by pressing the “SET” button (3) successively. With each pressing, the setting will go to the next programme.


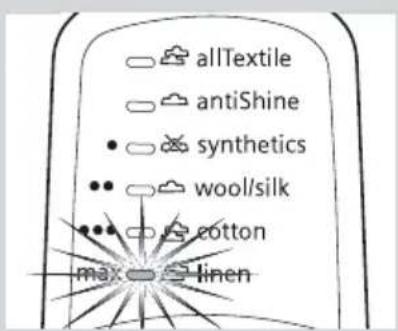

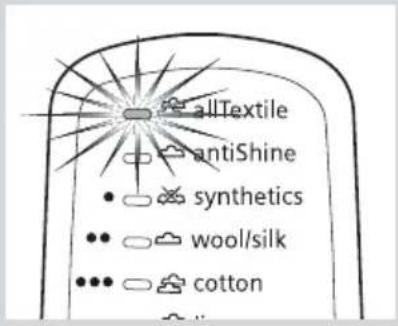

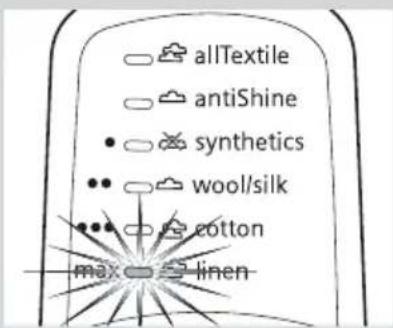

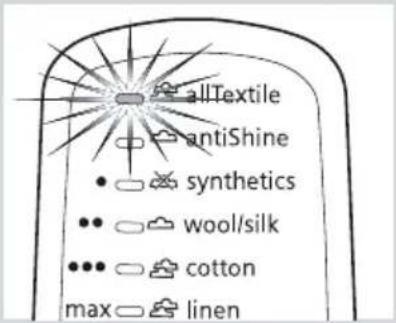

The programme indicator lamp (1) will flash.

When the iron is ready to use, the indicator lamp will remain lit continuously.

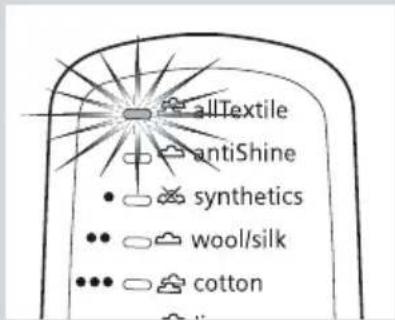

"allTextile" programme

When plugging the iron in, it will shift automatically to the "allTextile" programme (see "Heating" section).

"antiShine" programme

Suitable for dark and delicate fabrics. Reduces the risk of shiny marks when ironing.

Tip:

Try to iron the fabrics while they are still damp after washing. Steam will be generated from the fabrics rather than the iron.

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no text or symbols

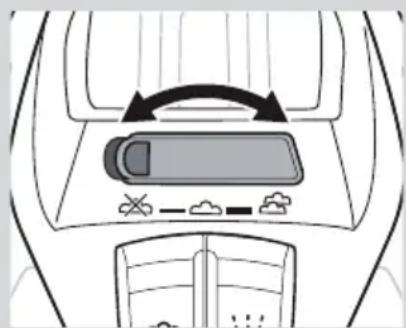

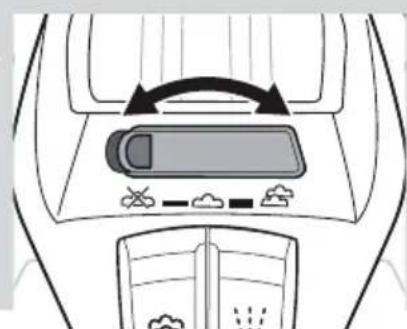

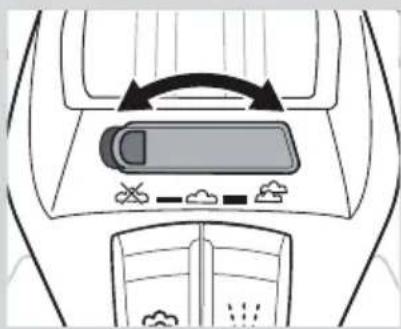

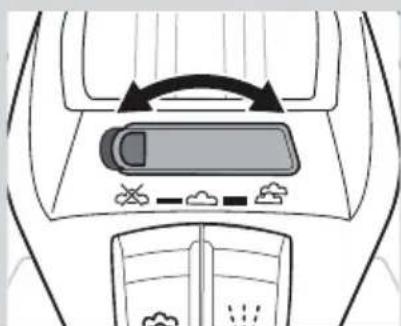

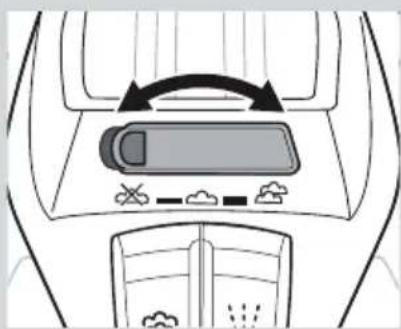

5. Steam settings

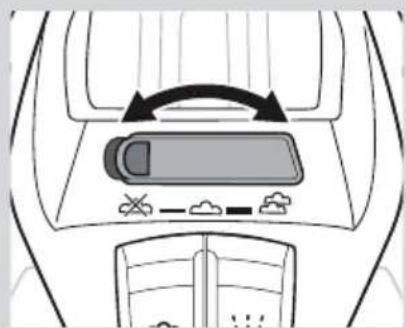

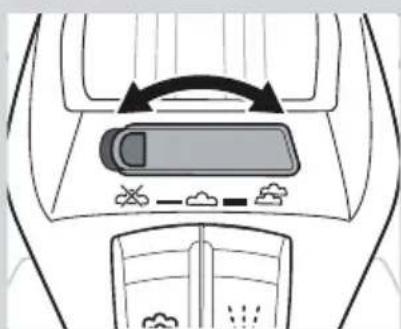

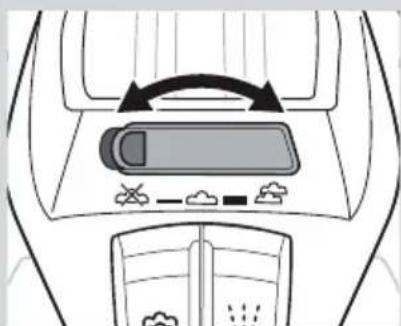

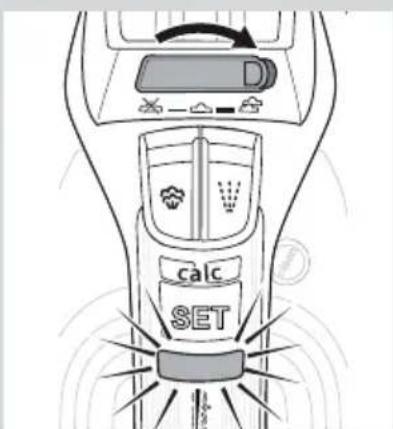

The steam regulator (5) is used to adjust the amount of steam produced when ironing.

The recommended position of the steam regulator for each temperature setting is:

Temperature programme steam regulator
allTextile
antiShine
• synthetics
•• wool/silk
••• cotton
max linen
dry ironing

Tip:

For better ironing results, iron the last strokes without steam to dry the garment.

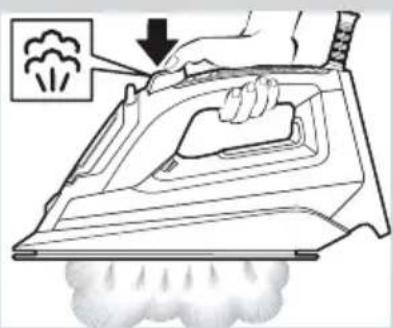

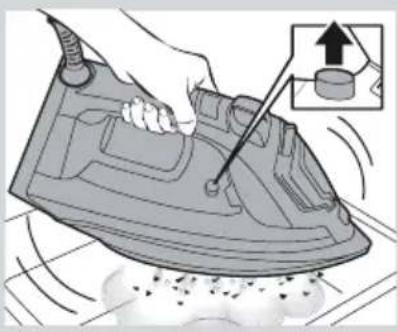

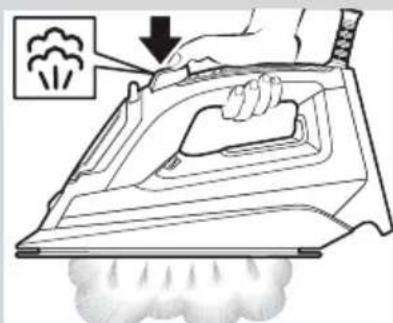

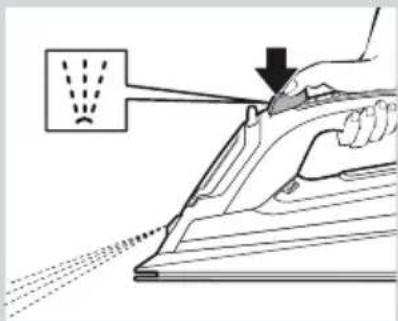

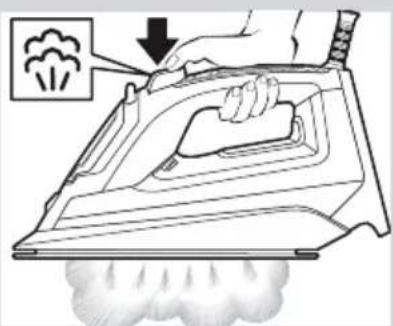

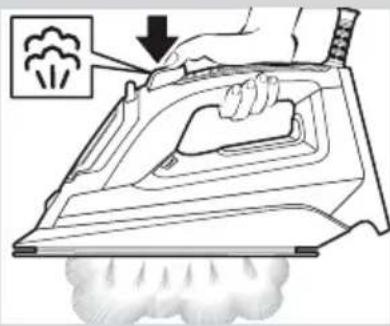

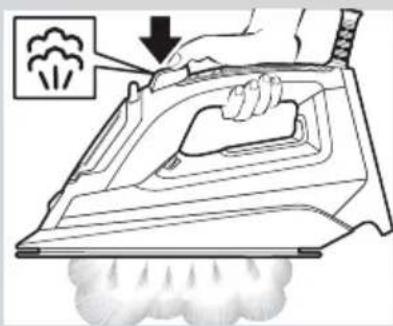

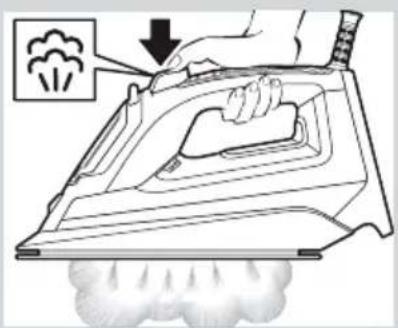

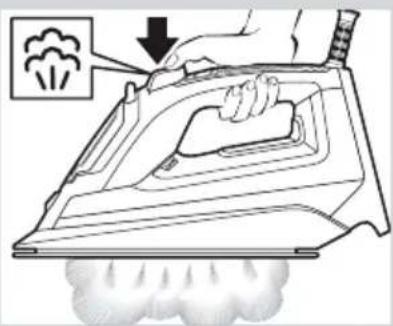

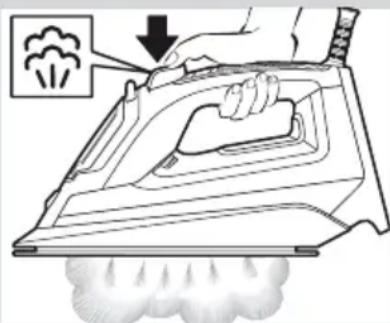

6. Shot of steam function

Shot of steam can be used to remove stubborn wrinkles or to press in a sharp crease or pleat.

1 Set the temperature to "max".
2 Press the shot of steam button (7) repeatedly with intervals of at least 5 seconds.

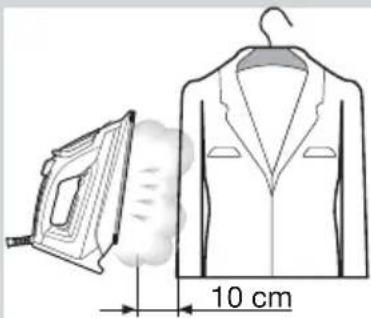

7. Vertical steam

Vertical steam can be used to remove creases from hanging clothes, curtains etc.

1 Set the temperature to "max".

2 Hang article of clothing on a clothes hanger.
3 Operate the iron in a vertical position at a distance of 10 cm / 4 in, and press the shot of steam button (7) repeatedly with pauses of at least 5 seconds.

Important:

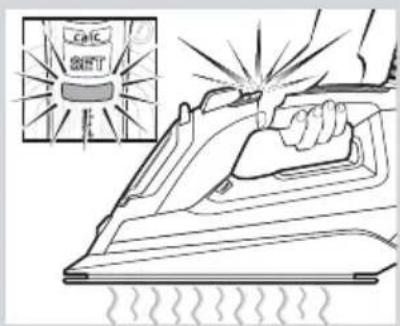

If the "startStop Control" indicator lamp (2) flashes while ironing in a vertical position, it means that the handle is not properly gripped and the iron will cool down.

Grip the handle correctly in such a way that the indicator lamp remains lit permanently.

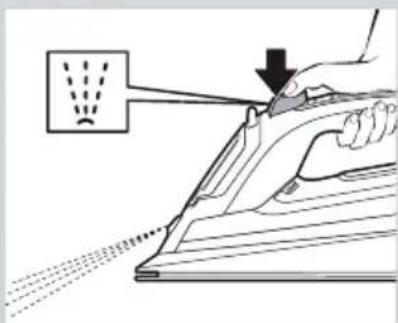

8. Spray

Spray can be used to remove stubborn wrinkles.

1 When ironing, press the spray button (6) and water will spray out of the spray nozzle (9) onto the garment.

Tip:

Do not use the spray function with silk.

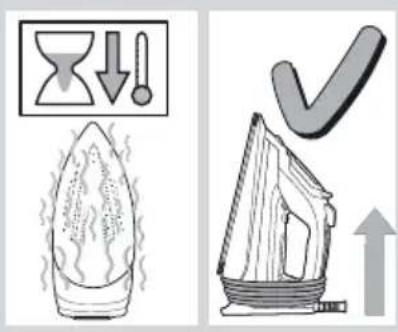

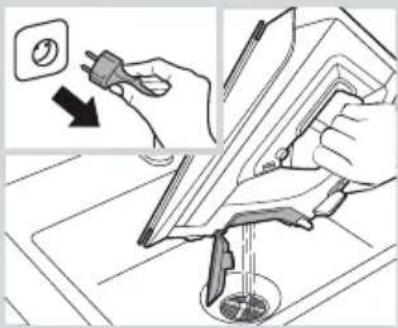

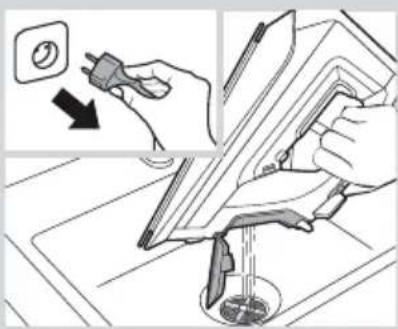

9. After ironing

1 Unplug the iron from the mains socket.
2 Empty the water tank.

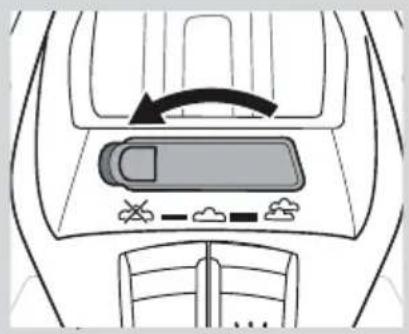

3 Switch the steam regulator (5) from to and back again several times (self-cleaning). Set the steam regulator to the position

Line drawing of a hand using a power iron to cut a surface with a downward arrow indicating the process (no text or symbols present)

Top-down diagram of a car interior showing dashboard, rearview, and side view with no text or symbols

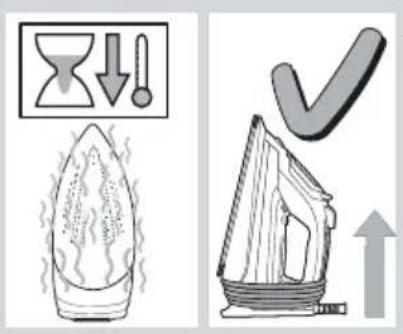

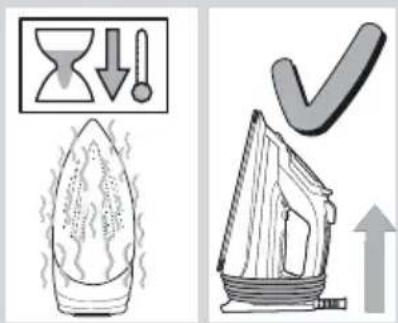

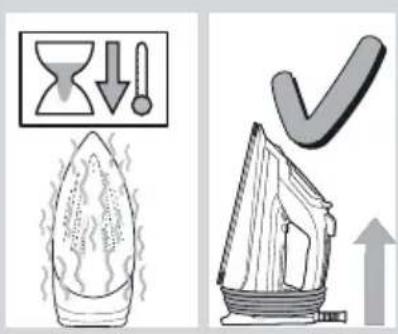

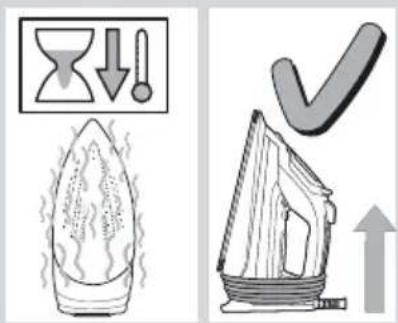

4 Set the iron aside in a vertical position on its heel (13) to cool down.
5 Coil the power cable (14) loosely around the heel of the iron. Store the iron in an upright position.

Tip:

For immediate storage of the iron, you may use the "storeProtect" accessory (see "Accessories" section).

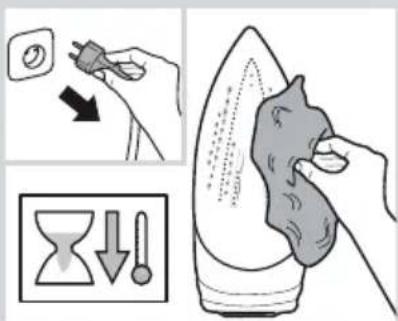

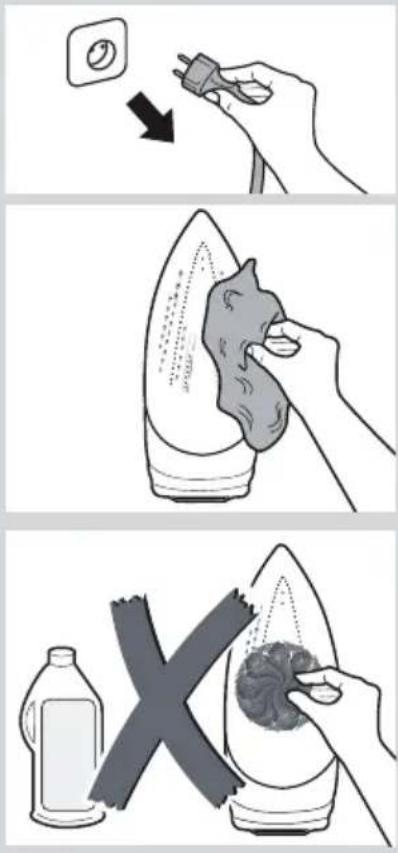

Cleaning & Maintenance

⚠️ Attention! Risk of burns!

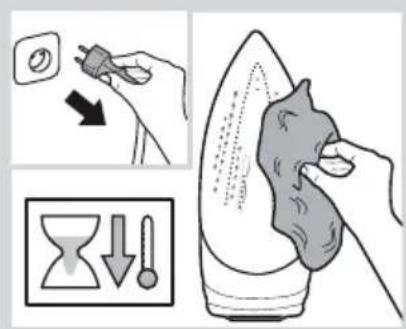

Always unplug the appliance from the mains supply before carrying out any cleaning or maintenance operation on it.

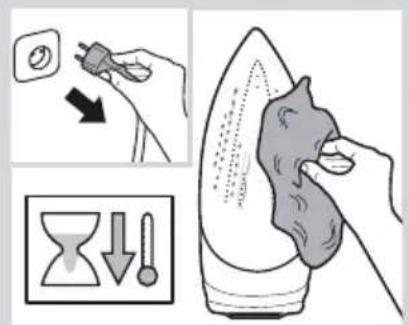

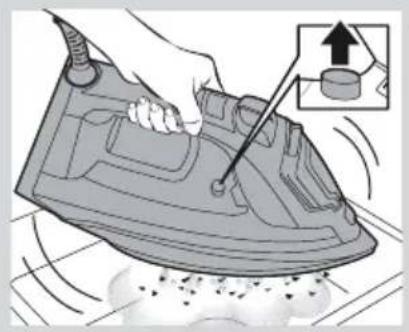

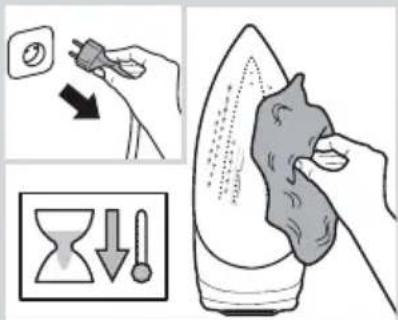

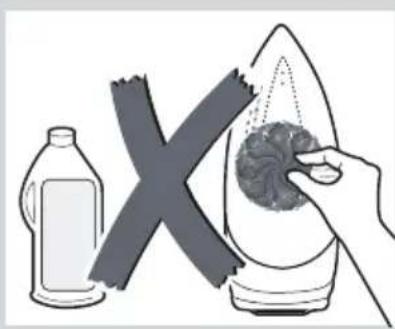

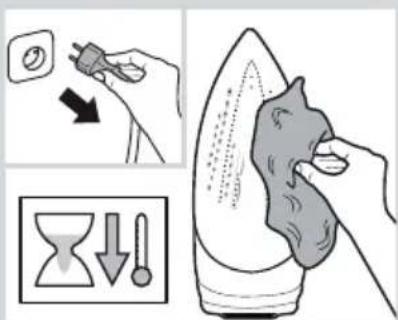

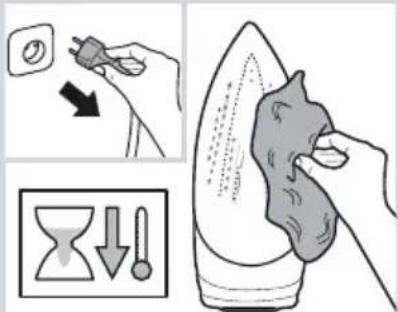

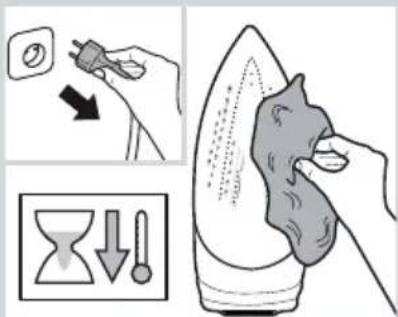

1 If the soleplate (12) is soiled or has garment residues due to a wrong selection of the temperature, rub off immediately with a thickly folded, damp cotton cloth.
2 To keep the soleplate smooth, you should avoid hard contact with metal objects. Never use a scouring pad or chemicals to clean the soleplate.

Descaling systems

Your iron is equipped with the following descaling features:

A "self-clean"

Each time you use the steam regulator (5), the "self-clean" system cleans the mechanism of scale deposits.

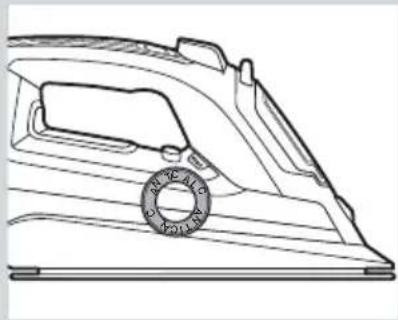

B “anti-calc”

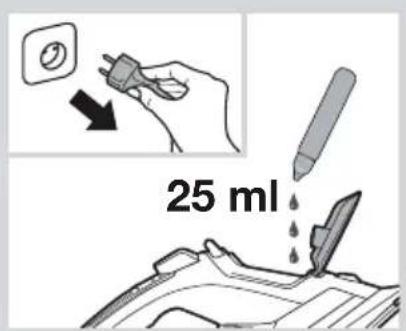

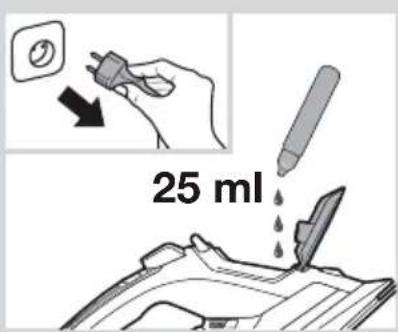

The “anti-calc” cartridge has been designed to reduce the build-up of scale produced during steam ironing, helping to extend the useful life of your iron. Nevertheless the “anti-calc” cartridge cannot prevent all of the scale that is produced naturally over time. Due to this, the “calc'n Clean” function has been designed.

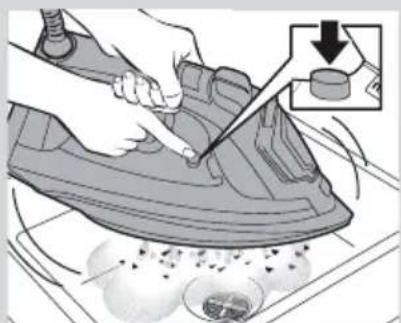

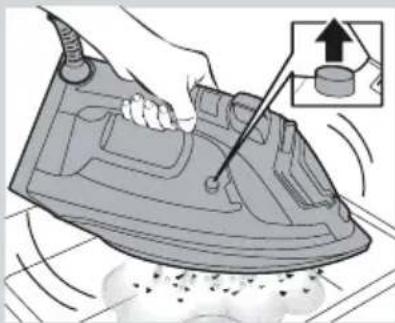

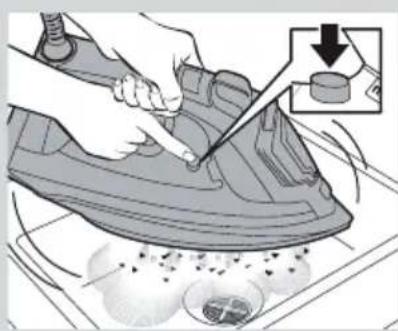

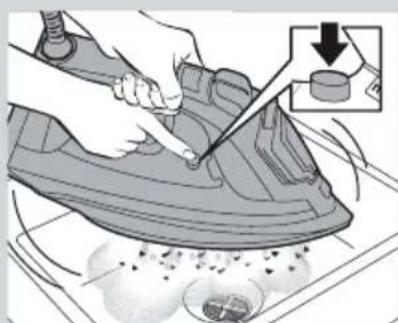

C "calc'n Clean" function

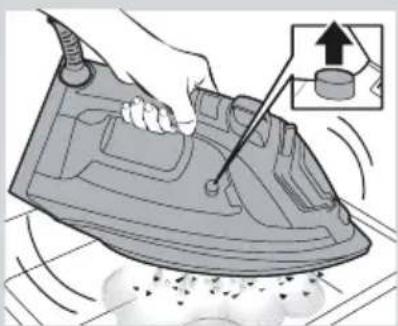

The "calc'n Clean" function helps to remove scale particles out of the steam chamber.

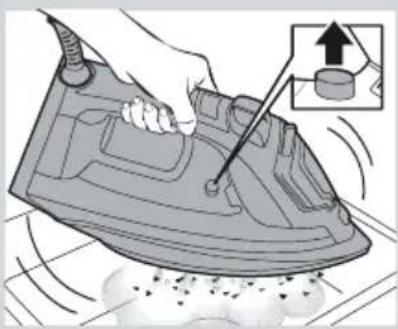

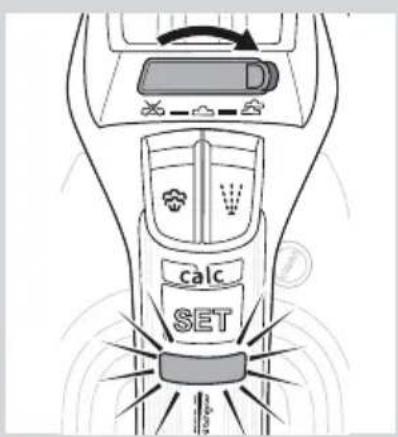

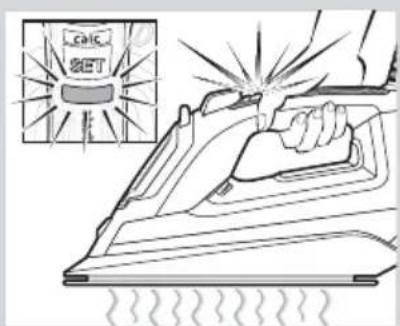

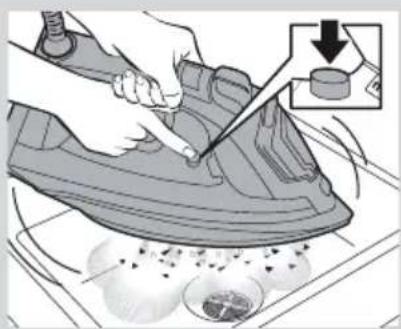

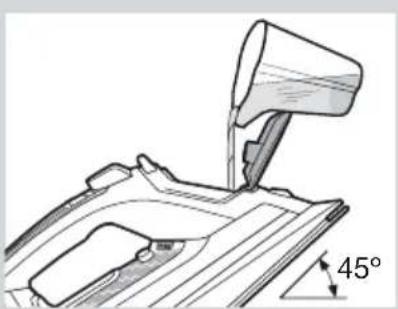

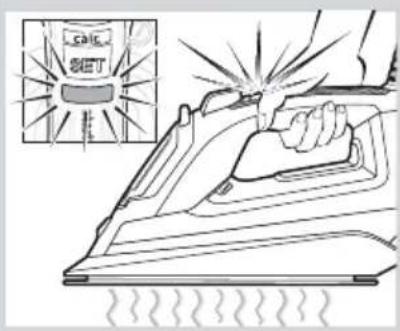

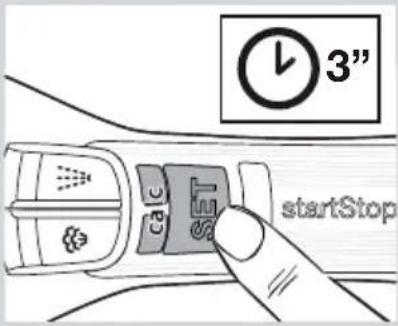

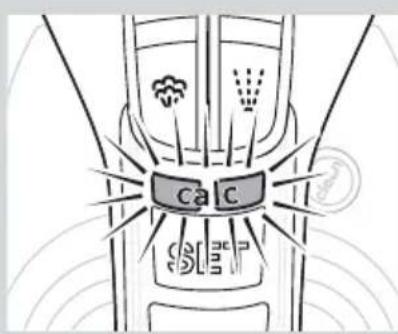

"calc'n Clean" timer:

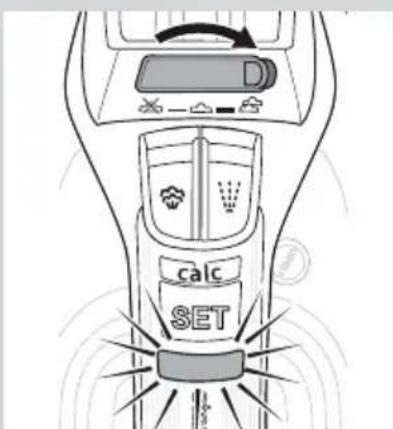

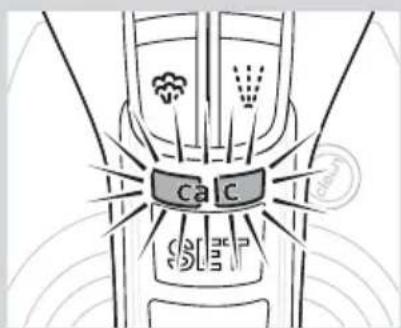

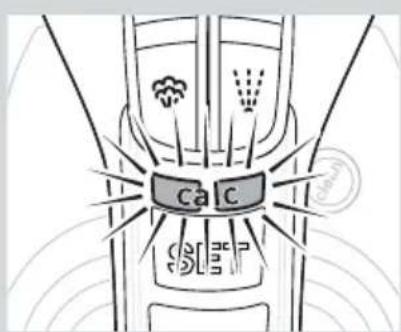

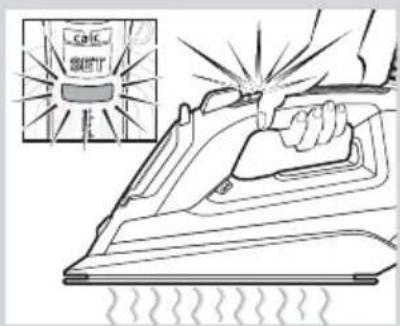

After a period of use, the automatic clean warning lamp "calc" (4) flashes, indicating that "calc'n Clean" process must be performed.

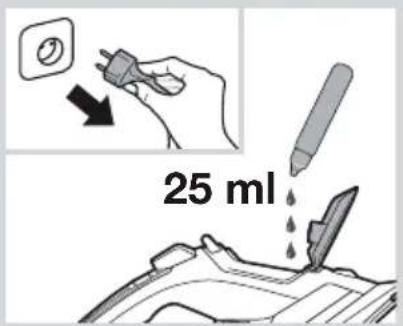

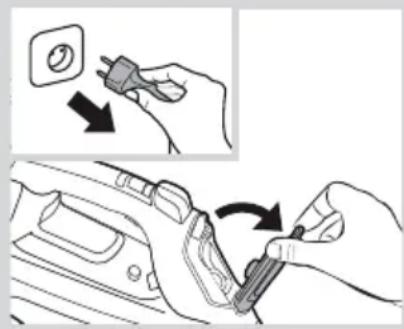

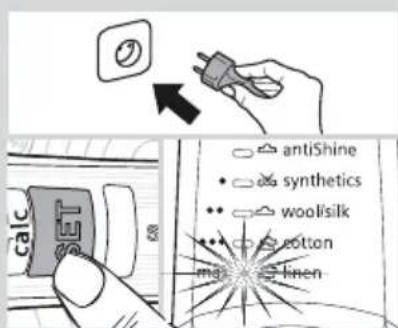

1 Set the steam regulator (5) to the position ☒. Unplug the iron from the mains socket, and fill the water tank with water.

2 Plug in the iron and set the temperature to the "max" position.

3 When the lamp "max" remains lit continuously, unplug the iron (very important!).

4 Hold the iron over a sink. 5 Press the “clean” button (11) and shake the iron until approximately one third of the water capacity of the tank is evaporated. Boiling water and steam will come out, carrying scale or deposits that might be there.

Line drawing of a steam iron with a circular fastener (no text or symbols)

Illustration of a hand using a power tool to clean or store floor tiles, with a magnified inset showing a drop (no text or symbols)

Illustration of a hand using a steam iron to clean air, with an inset showing the correct assembly (no text or symbols present)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

6 Release the "clean" button, and gently shake the iron for some seconds.
7 Repeat steps 5 and 6 three times until the tank is empty.
8 Plug the iron in and heat it up again until the remaining water has evaporated. Push the "clean" button a few more times to make sure that the water tank is empty.
9 Press the "SET" button (3) for three seconds or until the "calc" lamp (4) goes off.
10 Unplug the iron and let the soleplate cool down. Wipe the soleplate with a damp cotton cloth only.

Tip:

If the water in your area is very hard, you may use this function approximately every two weeks without waiting for the automatic clean warning lamp "calc" to flash.

D "calc'n Clean" with descaling liquid \*

For deep descaling, it is recommended to use the descaling liquid (see “Accessories” section) every second time the automatic clean warning lamp “calc” (4) flashes.

Follow the procedure described below:

1 Unplug the iron.

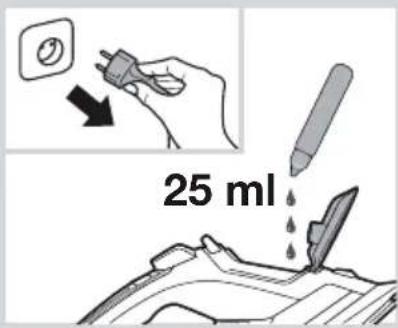

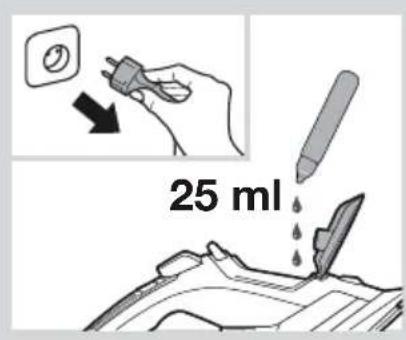

2 Pour a measure (25 ml) of the descaling fluid into the water tank.

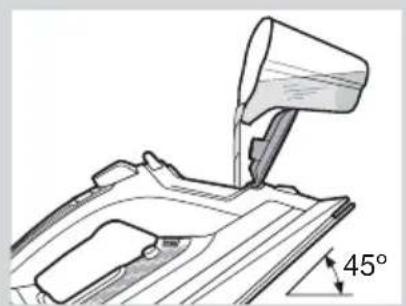

3 Fill the water tank up to the level mark for maximum filling.

4 Then follow the procedure described above in section C "calc'n Clean function" (steps 2 to 10).

Accessories

The accessories may be purchased from the customer service or specialist shops.

Descaling liquid

Name of the accessory: TDZ1101

Accessory code: 00311715

Contents: 4 bottles x 25 ml

For deep descaling of the steam iron.

"textileProtect"

Name of the accessory: TDZ1550

Accessory code: 00575494

Used for steam-ironing delicate garments at maximum temperature and maximum steam without damaging them.

"storeProtect"

Name of the accessory: TDZ1750

Accessory code: 00575960

Enables an immediate and safe storage of the iron, even with a hot soleplate.

Illustration of a baby bottle and a rectangular box (no text or symbols)

Line drawing of a teardrop-shaped object with a handle, resembling a stylized leaf or blade (no text or symbols)

Line drawing of a teapot with handle and spout (no text or symbols)

Problem Probable cause Solution
The iron does not heat up.	1. The “startStop Control” function has been activated. The iron is set to stand-by.	1. Grip the handle of the iron to re-start it.
“startStop Control” indicator lamp (2) flashes.	1. The “startStop Control” function has been activated. The iron is set to stand-by.	1. Grip the handle of the iron to re-start it.
Programme indicator lamp (1) flashes.	1. The soleplate (12) is heating up or cooling down to the selected temperature.	1. This is normal and lights will stop flashing when the selected temperature is reached.
The clothes tend to stick.	1. The temperature of the soleplate (12) is too high.	1. Select a lower temperature and wait until the iron has cooled down.
Water drips out of the soleplate when using the “shot of steam” function.	1. You have pressed the shot of steam button (7) repeatedly without waiting for 5 seconds between each press.2. The temperature is too low.	1. Wait 5 seconds between each press of the shot of steam button.2. Set the temperature to “max”.
Water drips out of the soleplate (12) together with steam.	1. Temperature of the soleplate (12) is too low.2. Steam regulator (5) is set too high in conjunction with a low temperature.	1. Set the temperature to a higher setting and wait until the programme indicator lamp (2) remains lit continuously.2. Set the steam regulator (5) to a lower setting.
Problem Probable cause Solution
Steam does not come out.	1. Steam regulator (5) is set to position.2. The temperature of the soleplate (12) is too low.	1. Set the steam regulator to a higher position.2. Set the recommended steam setting according to the selected temperature programme (see "Steam settings" section).
Excessive dripping or steaming.	1. No proper closing of “clean” button (11).	1. Point the iron away from the ironing area. Actuate a few times the “clean” button.
Smoke comes out when connecting the iron for the first time.	1. This may be caused by the lubrication of some of the internal parts.	1. This is normal and will stop after a few minutes.
Deposits come out through the holes in the soleplate (12).	1. Traces of lime scale are coming out of the steam chamber.	1. Carry out a cleaning cycle (see “calc'n Clean function” section).
The automatic clean warning lamp “calc” (4) flashes.	1. “calc'n Clean” reminder has been activated.	1. Carry out a cleaning cycle (see “calc'n Clean function” section).

If none of the above solves the problem, get in touch with an Authorised Technical Service.

Illustration of an open book with blank pages, no text or symbols visible

Illustration showing hands using a tool to adjust or install a component, with no visible text or symbols.

1. De watertank vullen

Top-down diagram of a car interior showing airflow control panel and directional arrows (no text or symbols)

Hand holding a plug with a circular socket, pointing to the socket (no text or symbols)

Line drawing of a pair of trousers with a close-up inset showing internal detail (no text or symbols)

Line drawing of a hand opening a house iron (no text or symbols)

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no text or symbols

5. Stoomstanden

Illustration of a hand using a power iron to cut a surface with a downward arrow indicating compression (no text or symbols present)

Top-down diagram of a car interior showing dashboard, rearview, and side-mounted air conditioner unit (no text or symbols)

⚠️ Pas op! Verbrandingsgevaar!

Line drawing of a steam iron with a circular gasket (no text or symbols)

Illustration of a hand using a power iron to clean or store items on a machine, with a magnified inset showing a drop (no text or symbols)

Illustration of a hand using a power iron to clean or store air, with an inset showing a close-up of the iron being inserted (no text or symbols present)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Accessoirecode: 00311715

Accessoirecode: 00575960

Illustration of a bottle and a rectangular box, both without any text or symbols

Line drawing of a teardrop-shaped object with a handle, resembling a stylized spoon or container (no text or symbols)

Line drawing of a flanged object with internal patterns (no text or symbols)

Illustration of an open book with blank pages, no text or symbols visible

Illustration showing two steps of a car interior repair or installation procedure, with no visible text or symbols.

Top-down diagram of a car interior showing airflow control panel with arrows and icons (no text or labels)

Hand holding a plug with a circular socket, pointing to the socket (no text or symbols present)

Line drawing of a pair of trousers with a zipper, shown with a magnified inset showing patterned fabric (no text or symbols)

Line drawing of a hand opening a steam iron (no text or symbols)

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no visible text or symbols

5. Modos de vapor

Illustration of a hand using a power iron to cut a surface with a downward arrow indicating the process (no text or symbols present)

Illustration of hands using a tool to clean or store contents on a kitchen surface, with no visible text or symbols.

Top-down diagram of a car interior showing dashboard, rearview, and side-mounted air conditioner unit (no text or symbols)

Line drawing of a mechanical iron or steam iron component with mounting holes and a central circular feature (no text or symbols)

Illustration of a hand using a power iron to clean air, with an inset showing a drop in the air (no text or symbols present)

Illustration of a hand using a power iron to clean or smoke from a machine, with an inset showing the process (no text or symbols)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Illustration of a bottle and a rectangular box, both without any text or symbols

Line drawing of a teardrop-shaped object with a handle and narrow neck (no text or symbols)

Line drawing of a single sheet iron or plow with internal compartments (no text or symbols)

Illustration of an open book with blank pages, no text or symbols visible

Illustration showing hands using a tool to adjust or install a component, with no visible text or symbols.

Top-down view of a car interior showing the dashboard, rearview, and seat area with icons (no text or labels)

Hand holding a plug with a circular socket, pointing to it (no text or symbols present)

Line drawing of a pair of trousers with a zipper and a close-up inset showing garment pattern (no text or symbols)

Line drawing of a hand pressing down on an iron iron (no text or symbols)

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no visible text or symbols

5. Modos de vapor

Line drawing of a pair of clothes: a steam iron and a jacket, with a 10 cm measurement scale (no text or symbols on the clothing itself)

Illustration of a hand using a power iron to cut a socket with a downward arrow indicating the process (no text or symbols present)

Top-down diagram of a car interior showing dashboard, rearview, and side-mounted air vent (no text or symbols)

Line drawing of a steam iron with a circular bolt head (no text or symbols)

Illustration of a hand using a power tool to clean air in a machine, with a magnified inset showing the process (no text or symbols)

Illustration of a hand using a power iron to clean or store air, with an inset showing a magnified view of the iron being inserted (no text or symbols present)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Illustration of a small bottle and a rectangular box (no text or symbols)

Line drawing of a teardrop-shaped object with a handle, resembling a stylized spoon or blade (no text or symbols)

Line drawing of a fluted or plastic object with internal slots and a handle (no text or symbols)

Illustration of an open book with blank pages, no text or symbols visible

Top-down view of a car interior showing the rearview and side profile with no visible text or symbols

Hand holding a plug with a circular socket, pointing to it (no text or symbols present)

Line drawing of a pair of trousers with a close-up inset showing a pair of five different sizes (no text or symbols)

Illustration of a hand using an iron on a steam iron, with a magnified inset showing a CME exhaust device (no text or symbols on the diagram itself)

Line drawing of a hand opening a steam iron (no text or symbols)

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no text or symbols

Illustration of a hand using a power iron to cut a surface with a downward arrow indicating the process (no text or symbols present)

Top-down diagram of a car interior showing dashboard, rearview mirror, and dashboard controls (no text or symbols)

Illustration of a hand holding a food item next to a bottle and a cross mark (no text or symbols)

Line drawing of a steam iron component with a circular gasket (no text or symbols)

Illustration of a hand using a power iron to clean or store items on a conveyor belt, with an inset showing a close-up of the tool (no text or symbols present)

Illustration of a hand using a power iron to clean or store air, with an inset showing a close-up of the iron being inserted (no text or symbols present)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Illustration of a small bottle and a rectangular box (no text or symbols)

Line drawing of a teardrop-shaped object with a handle, resembling a plastic or plastic sheet (no text or symbols)

Line drawing of a conical object with internal compartments and handle (no text or symbols)

Illustration of an open book with blank pages and a curved arrow indicating rotation (no text or symbols)

Illustration of hands installing a switch into a car seatbelt, showing mechanical assembly (no text or symbols)

Top-down diagram of a car interior showing airflow control panel and directional arrow (no text or symbols)

Hand holding a plug with a circular socket, pointing to it (no text or symbols present)

"allTextile" program

"allTextile" program

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no visible text or symbols

5. Buhar modlari

Top-down diagram of a car interior showing dashboard, rearview, and side-mounted air vent (no text or symbols)

Line drawing of a steam iron component with a circular gasket (no text or symbols)

Illustration of a hand using a power iron to clean air, with a magnified inset showing the drop of a cylindrical component (no text or symbols present)

Illustration of a small bottle and a rectangular box (no text or symbols)

Line drawing of a teardrop-shaped object with a handle, resembling a stylized spoon or blade (no text or symbols)

Line drawing of a flue or plow device with internal compartments (no text or symbols)

Illustration of an open book with blank pages and a curved arrow indicating rotation (no text or symbols)

Illustration of hands installing a switch into a car seatbelt, showing mechanical assembly (no text or symbols)

Top-down view of a car interior showing the rearview and side profile with no visible text or symbols

Hand holding a plug with a circular socket, pointing to the socket (no text or symbols present)

Line drawing of a pair of trousers with a zipper, showing front and side views (no text or symbols)

Illustration of a person using a steam iron with a magnified inset showing a 'Calc' and 'SBRT' label (no text or symbols on the main image)

Line drawing of a hand using a hand to clean or install an iron on a machine (no text or symbols)

Program "allTextile"

Program "allTextile"

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no visible text or symbols

Illustration of hands using a tool to clean or store items, showing a magnified view of a small object (no text or symbols present)

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no text or symbols

Line drawing of a steam iron component with a circular gasket (no text or symbols)

Illustration of a hand using a power iron to clean air, with a magnified inset showing the drop of a bolt (no text or symbols present)

Illustration of a hand using a power iron to burn on a surface, with an inset showing a magnified view of the iron being inserted (no text or symbols present)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Akcesoria

Illustration of a bottle and a rectangular box, both without any text or symbols

Line drawing of a teardrop-shaped object with a handle and narrow neck (no text or symbols)

Line drawing of a mechanical component with internal slots and a tapered body (no text or symbols)

Illustration of an open book with blank pages and a curved arrow indicating rotation (no text or symbols)

Illustration showing hands using a tool to adjust or install a component, with no visible text or symbols.

Top-down diagram of a car interior showing airflow control panel and directional arrows (no text or symbols)

Hand holding a plug with a circular socket, pointing to the socket (no text or symbols present)

Line drawing of a pair of trousers with a zipper, showing front and side views (no text or symbols)

Line drawing of a hand using an iron on a steam iron, with a magnified inset showing a coffee cup and its label 'COFC' (no text or symbols on the main diagram)

Line drawing of a hand opening a steam iron (no text or symbols)

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no text or symbols

Совет:

Illustration of a hand using a power iron to cut a surface with a downward arrow indicating the process (no text or symbols present)

Top-down diagram of a car interior showing dashboard, rearview, and side view with no text or symbols

Hand holding a plug with a circular socket, pointing downward (no text or symbols)

Line drawing of a hand using a tool to clean or brush the air onto a piece of paper (no text or symbols)

Illustration of a hand holding a halved fruit next to a bottle and a cross symbol (no text or symbols present)

Line drawing of a steam iron component with a circular gasket (no text or symbols)

Illustration of a hand using a power iron to clean air, with a magnified inset showing the drop of a bolt (no text or symbols present)

Illustration of a hand using a steam iron to burn on a surface, with an inset showing a magnified view of the iron being inserted (no text or symbols present)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Принадлежности

Illustration of a bottle and a rectangular box, both without any text or symbols

Line drawing of a teardrop-shaped object with a handle, resembling a stylized leaf or blade (no text or symbols)

Line drawing of a flue or plow device with internal compartments and handle (no text or symbols)

Technical line drawing of a mechanical component with a 45-degree angle标注 (no text or symbols beyond the angle marker)

Illustration of a bottle and a rectangular box, both without any text or symbols

Line drawing of a teardrop-shaped object with a handle and curved body (no text or symbols)

Line drawing of a steam iron with handle and spout (no text or symbols)

Illustration of a hand using a steam iron to clean or store air (no text or symbols visible)

Illustration of a hand using a power iron to clean circular components, with an inset showing a drop (no text or symbols)

Illustration of a wooden iron (£) with a checkmark symbol above it and an upward arrow below (no text or symbols)

التنظيف والصيانة

Hand holding a plug with a circular button, pointing downward (no text or symbols)

Illustration of a hand using a cloth to clean or wash the iron (no text or symbols)

Illustration of a hand holding a food item next to a bottle and a cross symbol (no text or symbols present)

Illustration of a hand using a power iron to cut a socket with a downward arrow indicating the process (no text or symbols present)

.8. الرش

Illustration of hands using a tool to clean or store floor tiles, with no visible text or symbols

9.بعد الكى

The image is too blurry to recognize any text content.

2

Top-down diagram of a car interior showing dashboard, rearview mirror, and dashboard controls (no text or symbols)

The image is too blurry to recognize any text content.

7. البخار الرأسي

Top-down diagram of a car interior showing dashboard, rearview, and seat area with no text or symbols

4. ضبط درجة الحرارة

Line drawing of a pair of trousers with a zipper and a close-up inset showing patterned fabric (no text or symbols)

"startStop Control" uptiقة

Line drawing of a hand using an iron on a steam iron, with a magnified inset showing a small object (no text or symbols)

Line drawing of a hand opening a steam iron (no text or symbols)

Top-down diagram of a car interior showing dashboard, seatbelt, and directional arrows (no text or symbols)

Hand holding a plug with a circular socket, pointing to the socket (no text or symbols present)

(ال Connectivity) "clean" زر.11

Illustration of an open book with blank pages and a curved arrow indicating rotation (no text or symbols)

Illustration of hands using pliers to adjust a component in a car (no text or symbols present)

[Unrecognizable Symbol]
