Product Type	Combined Refrigerator-Freezer
Brand	ECG
Model	ERM 10470 WA+
Total Net Capacity	260 L
Refrigerator Capacity	190 L
Freezer Capacity	70 L
Dimensions (H x W x D)	177 x 54.5 x 55 cm
Weight	48 kg
Energy Efficiency Class	A+
Annual Energy Consumption	225 kWh
Noise Level	40 dB
Climate Class	N/ST
Type of Control	Mechanical Thermostat
Defrost Type	Refrigerator: Automatic; Freezer: Manual
Cooling System	Static (Direct Cool)
Lighting	Internal LED Lamp
Door Reversibility	Yes
Number of Shelves (Fridge)	4 Glass Shelves
Vegetable Drawer	1 Crisper Drawer
Freezer Drawers	3 Drawers
Ice Cube Tray	Included
Adjustable Feet	Yes, front
Power Supply	220-240 V, 50 Hz
Power Consumption	90 W
Repair Index (if applicable)	7.5 / 10
Spare Parts Availability	At least 7 years

Frequently Asked Questions - ERM 10470 WA+ ECG

What is the recommended temperature setting for the fridge and freezer?

For optimal food preservation, set the fridge to 3-5°C and the freezer to -18°C. The thermostat dial ranges from 1 (warmest) to 7 (coldest). A setting of 3-4 is usual.

How do I defrost the freezer?

Manual defrost is required. Remove all food, unplug the appliance, and leave the freezer door open. Place towels to catch water. Do not use sharp tools to remove ice. Clean and dry before restarting.

Why is my fridge not cooling properly?

Check if the thermostat is set correctly, door seals are intact, and ventilation grilles are clean. Ensure the appliance is not placed near a heat source or in direct sunlight. Also, avoid overloading.

How do I clean the fridge?

Unplug the refrigerator. Remove all shelves and drawers. Wash them with warm soapy water. Wipe the interior with a soft cloth dampened with a mild cleaning solution. Do not use abrasive cleaners. Rinse and dry thoroughly before reassembling.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: remove hinges, transfer handle and hinge parts to the opposite side. You may need a screwdriver and possibly help from another person.

What should I do if the fridge is making unusual noises?

Normal sounds include humming (compressor), gurgling (refrigerant), and clicking (thermostat). Ensure the fridge is level on the floor and not touching the wall. If noises are loud or irregular, contact service.

How much energy does this fridge consume?

The annual energy consumption is approximately 225 kWh, based on standard testing. Actual consumption depends on usage, ambient temperature, and door opening frequency. Energy class A+.

Can I store hot food directly in the fridge?

No, allow hot food to cool to room temperature before placing it in the fridge. Inserting hot food raises the internal temperature and may spoil other items.

Where can I find the serial number?

The serial number is located on a rating plate inside the refrigerator, usually on the left wall or near the bottom. It is also in the manual. Have it ready for service requests.

How long is the warranty and what does it cover?

Warranty varies by region. Typically ECG offers 2 years on parts and labor. It covers manufacturing defects, not damage from misuse or normal wear. Check your purchase receipt or contact ECG support.

USER MANUAL ERM 10470 WA+ ECG

Interior view of a small refrigerator with open shelves holding fresh vegetables and beverages (no visible text or labels)

ERM 10470 WA+

CZ

CHLADNIČKA

NÁVOD K OBSLUZE

SK

CHLADNIČKA

NÁVOD NA OBSLUHU

DE

KÜHLSCHRANK

BEDIENUNGSANLEITUNG

GB

REFRIGERATOR

INSTRUCTION MANUAL

HR/BIH

HLADNJAK

UPUTE ZA UPORABU

SI

HLADILNIK

NAVODILA

ET

KÜLMIK

KASUTUSJUHEND

LT

ŠALDYTUVAS

INSTRUKCIJŲ VADOVAS

LV

LEDUSSKAPIS

ROKASGRÄMATA

BEZPEČNOSTNÍ POKYNY

VÝSTRAHA: NEBEZPEČÍ OHNĚ / HOŘLAVÉ MATERIÁLY

INSTALACE A ZAPNUTÍ ZAŘÍZENÍ

Umístění

VÝSTRAHA: NEBEZPEČENSTVO OHŇA/HORĽAVÉ MATERIÁLY

INŠTALÁCIA A ZAPNUTIE ZARIADENIA

Umiestnenie

WARNUNG: BRANDGEFAHR / BRENNBARE STOFFE

INSTALLATION UND EINSCHALTEN DES GERÄTES

Speicherort

Read carefully and keep for future use!

Warning: The safety measures and instructions contained in this manual do not include all conditions and potential situations. The user must be aware that common sense, caution, and care are factors that cannot be integrated into a product. These factors must be therefore secured by the user/users using and operating this device. We are not liable for any damages caused during shipping, by incorrect use, voltage fl ectuation or the modification or adjustment of any part of the appliance. To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not operate the device if the cord is damaged. All repairs or adjustments including cord replacements must be carried out by a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. The appliance must not come into direct contact with water or other liquids in order to prevent a potential electric shock. Do not immerse the cord or the plug in water!
4. Do not use the appliance in places, where a gas leak or a contact with an explosive atmosphere could occur. Do not touch the cord or the device with wet hands. There is a risk of electric shock.
5. The power cord must remain accessible once the device is installed. Do not shorten the cable or use adapters in electrical outlets. Do not allow the cord to touch hot surfaces or place the cord over sharp edges.
6. Do not turn the appliance on or off by plugging or unplugging the power cord. Do not remove the power cord from the outlet

by yanking the cord. Unplug the power cord from the outlet by grasping the plug.

1. Do not insert any objects into the device or place any objects on the device (e.g. vases, cups, etc.). Never cover the ventilation openings!
2. Do not use in the appliance other electrical devices and refrigeration equipment.
3. If this appliance is replacing an old product equipped with a lock, destroy the lock of the old appliance, so that children would not lock themselves in (e.g. during a play).
4. Do not use mechanical devices or other artificial means to speed up defrosting. Do not use electrical appliances in the space designed to store foods. Protect the cooling circuit of the appliance against damage.
5. Do not allow children to play with the appliance. Also, they may not sit on the shelves and hang on the door of the appliance.
6. Do not use sharp metal objects to remove the ice from the refrigerator, because they may damage the refrigerating circuits and cause irreparable damage to the appliance. If necessary, use a plastic scraper.
7. Do not store explosive substances in the appliance, e.g. sprays with propellant gas.
8. Do not place containers with liquids (glass jars or tin cans) in the freezer. The container could burst.
9. When you store bottles containing liquids with high content of alcohol, they must be properly closed and in vertical position.
10. Do not expose the appliance to direct sunlight, do not use it outside and do not expose it to rain.
11. Do not touch the cooling surfaces with wet hands. Risk of injury.
12. Do not eat the ice removed from the freezer.

13. This appliance is intended for household use and similar areas, such as:

14. kitchenettes in shops, offices, and other workplaces

15. appliances used in the agricultural industry
16. by guests in hotels, motels, and other residential areas

- in bed and breakfast establishments

1. This appliance may be used by children under 8 years of age and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if supervised or instructed to use the appliance in a safe manner and understand the potential hazards. Children may not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children without supervision.

2. Children aged 3 to 8 years can insert and remove food from refrigerating appliances.

3. Child supervision is essential to prevent them from playing with the appliance.
4. The manufacturer is not liable for any damage caused by improper grounding/use.

To prevent food contamination, please follow these recommendations:

• Opening the door for a long time can cause a significant increase in the temperature inside the appliance.
• Regularly clean surfaces and accessible drainage systems that may come into contact with food.
• Clean water containers if not used for 48 h; flush the water system connected to the water supply if the water has not flowed for 5 days.
• Store raw meat and fish in the refrigerator in suitable containers so that they do not come into contact with or drip into other foodstuff s.
• Two-star freezing compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for freezing fresh food.
• If the refrigerating appliance is left empty for a long time, turn it off, defrost, clean, dry and leave the door open to prevent mold formation inside the appliance.

RISK OF FIRE!

WARNING: RISK OF FIRE/FLAMMABLE MATERIALS

GB

This appliance contains R600a (the coolant isobutane), natural gas which is very environmentally friendly but flammable. When transporting and installing the equipment it is necessary to make sure that no part of the cooling circuit is damaged. In the case of damage, reduce the flame and ventilate the premises where the appliance is located for a few minutes.

When replacing the interior lighting of the refrigerator, always unplug the refrigerator - otherwise there is a risk of electric shock. • If the replacement of the interior lighting is too complicated for you, contact your service representative. • If the products are equipped with LEDs, do not remove the lighting cover and LED yourself. – contact your service representatives.

REPLACING THE LED BULB: Do not remove the indicator cover or indicator yourself when the internal or external LEDs no longer operate. Contact the service representatives.

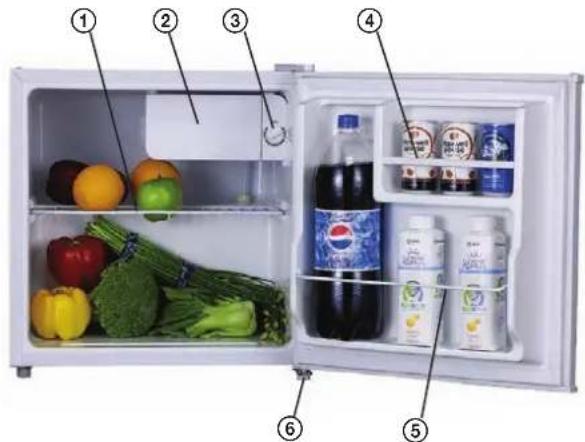

DESCRIPTION

This type of refrigerator finds wide application in places such as hotels, offices, student dormitories and households. It is ideal for cooling and storing food such as fruit and drinks. Its advantages are small size, light weight, low power consumption and ease of use.

This description is only for information about the components of the appliance. Individual parts may differ according to the particular appliance model. ① ② ③ ④

1. Refrigerator shelves
2. Evaporator
3. Thermostat
4. Door compartment
5. Door compartment for bottles
6. Adjustable feet

INSTALLATION AND TURNING ON THE APPLIANCE

Installing the device

• Do not tilt the refrigerator more than 45^ from the vertical during transport. Protect the refrigerator from mechanical stresses. Deformation, especially around the door and the evaporator, could adversely affect the performance of the appliance.
• Leave enough space around the refrigerator necessary for its proper functioning.
• Do not place the refrigerator in too warm or humid places, to avoid damage due to moisture and corrosion.
• Do not place heavy objects on the refrigerator.
  • The refrigerator must stand firmly in a horizontal position. Use the two adjustable front feet for levelling.

Connection

• Before plugging into an electrical outlet, make sure the power supply voltage matches the voltage on the rating plate. The power cord of the appliance should be plugged into a single outlet power strip may cause overheating of the plug and cord.
  • The outlet has to be accessible after you place the appliance.

OPERATING INSTRUCTIONS

Start and operation

• Before first use, turn the refrigerator on without food and allow it to stabilize at the selected temperature. That takes about 2 to 3 hours. Then set the thermostat to the desired temperature and place the food in the refrigerator.
• You can set the temperature in the refrigerator using the thermostat control. For normal operation, it is best to set the controller to a medium value.
• Whenever the evaporator surface forms a frost layer with a thickness of 3–4 mm, perform defrosting of the refrigerator, see "Defrosting".

Tips for proper use

• Inserting larger quantities of food at one time, frequent door opening or long time open door leads to an increase in electricity consumption.
  • Do not put in the refrigerator objects that are too heavy or sharp or aggressive materials.

• To reduce humidity and consequent increase the frost, never put liquids in unsealed containers into the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.

• Never put warm foods in the refrigerator. These should cool down at room temperature and then be placed in the refrigerator to ensure adequate air circulation.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. After disconnecting the refrigerator from the power supply wait at least 10 minutes before plugging it in again.
• Do not store bottles in the freezing compartment. The packaging could break and damage the refrigerator.
• In case of power failure, open the refrigerator as little as possible.
• Never use sharp or metal objects to remove ice from the evaporator when defrosting. You could damage the evaporator.
• Do not touch the foods and containers in the freezer compartment with wet hands to avoid the risk of frostbite.

Using the refrigerator at home

• Try not to open the door too often, especially in hot and humid weather. When you open the door, remember to close it as soon as possible.
  • Check from time to time if there is sufficient ventilation (adequate air circulation behind the appliance).
  • Under normal temperature condition at home set the thermostat to the medium value.
• Before putting food in the refrigerator, let it cool first to room temperature.
• A layer of ice and frost increases energy consumption, therefore defrost the refrigerator when the frost layer reaches a thickness of 3–5 mm.
• If the refrigerator is equipped with an external cooler, the wall behind the refrigerator should be always clean and free of dust and dirt.
• Always keep in mind the instructions given in paragraph "Location". Otherwise the power consumption of the refrigerator could increase significantly.

CLEANING AND MAINTENANCE

• Before you start cleaning the refrigerator, remove the power cord plug from the outlet.
• Carefully wipe the refrigerator with a cloth dipped in a mild detergent solution. Do not use abrasive cleaners, alkaline cleaners and lye, chemical cloths, thinners, alcohol, acid, petrol cleaners or hot water. You could damage the surface fi nish and plastic components.
• The door seal is easily clogged, clean it regularly.
• If the refrigerator is not used for long periods, unplug the power cord from the outlet, dry the freezer compartment and carefully close the door.
• At least once a year use a brush to clean the condenser at the back of the appliance. You will increase efficiency and lower the energy consumption.

Defrosting

• When defrosting, remove all the food from the refrigerator and set the thermostat dial to "OFF".
• Place a drip tray under the evaporator, which will collect the melted water.
  • After the ice melts, pour away the melted water and wipe the interior of the refrigerator dry.
• You can switch the refrigerator on again by setting the thermostat to the desired temperature.

TROUBLESHOOTING

You can solve a number of common problems on your own. If the refrigerator is not working properly, check the following points before calling a service technician:

Cause Check
The refrigerator is not cooling.	Is the refrigerator turned on?Is the power supply in order?Did the fuses of the outlet on a circuit in which the refrigerator is plugged fail?Is the power cord plug correctly inserted in the outlet?
Low efficiency. • Is the thermostat set in correct position?Is there enough of free space around the refrigerator?Is the door opened too frequently or for long periods?Is the refrigerator exposed to direct sunlight or placed too close to heat sources?Are there too many foods inside?Do you put in foods, which are too warm?
Frozen foods inside the refrigerator.	Is the thermostat set in correct position?Are the foods too cramped?
Noisy operation. • Is the refrigerator in a stable and horizontal position?Does the refrigerator touch other objects?
It does not automatically shut off the compressor.	Did you put in too many foods?Is the door opened too frequently or for long periods?

If the above mentioned tips do not solve the problem, contact the service centre immediately.

The following does not indicate a malfunction

The sound of running liquid:

- You can hear the sound of running liquid during a normal operation.

Exterior condensation:

- The condensation on the surface is a normal sign during high ambient humidity. You simply wipe off the wet surface.

Achieving the desired temperature

- It takes some time before the temperature in the refrigerator decreases to the required level. When the ambient temperature is high, the cooling takes longer time.

The surface of the compressor heats up.

- The surface of the compressor can become hot during normal operation. Do not touch it with bare hands.

INFORMATION SHEET ACCORDING TO EU DIRECTIVE 1060/2010

Trademark ECG
Model ERM 10470 WA+
Appliance type ^3	10
Energy efficiency class A+
Energy consumption in 365 days ^1 (kWh) 105
Star designation of the freezing compartment 0
Total usable volume (l) 42
of which the volume of the cooling section (l) 42
of which the volume of the freezing section (l) 0
of which the “frost-free” refrigeration/freezing section (l/l) 0/0
Storage time when power off (hrs.)	0
Freezing capacity (kg/24 hrs.)	0
Climate class ^2	T/N/ST
Noise level ^4 dB (re 1 pW)	42
Voltage	220–240 V ~ 50 Hz
Bulb maximum power consumption (W)	0
Dimensions in cm (h × w × d)	49.2 × 47.2 × 44.4
Weight kg	14
Built-in appliance	NO

1. Energy consumption in kWh / year based on standard test results for 24 hours. The actual energy consumption depends on how the appliance is used and the location of the appliance.
2. SN: ambient temperatures from +10 °C to +32 °C

ST: ambient temperatures from +18 °C to +38 °C

N: ambient temperatures from +16 °C to +32 °C

T: ambient temperatures from +18 °C to +38 °C

GT: ambient temperatures from - 43 °C to 16 °C

1. 1 = Refrigerator without low temperature compartment

7 = Refrigerator/freezer with low temperature compartment * (* * *)

8 = Upright freezer

9 = Chest freezer

10 = Refrigerator with compartment near 0^ C

1. Noise level according to European standard EN 60704.

NOTE:

The above mentioned data are subject to change.

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

08/05

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

Old refrigerators and freezers contain insulation gases and freezing media, which must be disposed off. Entrust the disposal to a competent local waste disposal service. In doubt contact your local authority or your vendor. Make sure that the pipes of the cooling unit, which will be removed by the appropriate waste disposal, service are not damaged.

SIGURNOSNE UPUTE

POZOR: OPASNOST OD POŽARA – ZAPALJIVE TVARI!

HR/BIH

UGRADNJA I POKRETANJE

Smještaj

SVARILO: NEVARNOST OGNJA/VNETLJIVI MATERIALI

SI

SI

INŠTALACIJA IN PRIKLJUČITEV APARATA

Namestitev

HOIATUS: TULEKAHJU OHT/ SÜTTIMISOHTLIKUD MATERJALID

SEADME PAIGALDAMINE JA SISSE LÜLITAMINE

ET

Seadme paigaldamine

PERSPĖJIMAS: GAISRO RIZIKA / DEGIOS MEDŽIAGOS

PRIETAISO IRENGIMAS IR IJUNGIMAS

Prietaiso jrengimas

BRĪDINĀJUMS! AIZDEGŠANĀS RISKS/UZLIESMOJOŠI MATERIĀLI

IERİCES UZSTÄDİŞANA UN IESLĖGŠANA

lerīces uzstādīšana

250 69 Kličany, Czech Rep. e-post: [e-mail]

LT

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. el. paštas: [e-mail]

LV

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. e-pasts: [e-mail]
