AC 28 - Cooler ECG - Free user manual and instructions

Product Type	Portable Cooler / Thermoelectric Refrigerator
Brand	ECG
Model	AC 28
Capacity	28 liters
Cooling Technology	Thermoelectric (Peltier)
Power Supply	12V DC (car cigarette lighter) and 230V AC via included adapter
Temperature Range	Up to 20°C below ambient temperature (approx. 5°C to 25°C cooling)
Heating Function	Yes, can warm up to +65°C (switchable cool/warm)
Dimensions (L x W x H)	42 x 30 x 32 cm
Weight	6.0 kg
Color	White with blue accents
Material	Plastic exterior, insulated interior (EPS foam)
Energy Consumption	45W (cooling), 50W (heating)
Noise Level	< 40 dB
Certifications	CE, RoHS
Maintenance	Clean with a soft, damp cloth; do not use abrasive cleaners
Safety Instructions	Do not immerse in water; ensure proper ventilation; unplug when not in use
Spare Parts Availability	Power adapter and fan available from ECG service centers
Repairability	Modular design; fan and Peltier module can be replaced by qualified technician
Accessories Included	12V car adapter, 230V mains adapter, user manual

Frequently Asked Questions - AC 28 ECG

Can I use the ECG AC 28 cooler to keep food cold during a road trip?

Yes, the AC 28 is designed for portable use in vehicles. Connect it to the 12V car adapter and it will cool your food and drinks up to 20°C below ambient temperature. Ensure the cooler is placed upright with ventilation slots uncovered.

How long does it take to cool items to the desired temperature?

Cooling time depends on the initial temperature and load. Typically, the thermoelectric cooler reaches its maximum cooling difference in about 30-60 minutes. Pre-chilling items can help.

Can I switch between cooling and heating modes?

Yes, the AC 28 has a switch that lets you choose between cool and warm settings. In warm mode, it can heat up to +65°C, ideal for keeping food warm. Make sure to turn off and unplug before switching modes.

What power sources can I use?

You can use either a 12V DC car socket (cigarette lighter) with the included adapter or a 230V AC wall outlet with the provided mains adapter. Do not use both simultaneously.

Is the cooler fully waterproof?

No, the ECG AC 28 is not waterproof. It has an IPX0 rating. Avoid exposing it to rain or splashes. For cleaning, use a damp cloth only, never immerse in water.

How do I clean the cooler properly?

Wipe the interior and exterior with a soft, damp cloth and mild detergent if needed. Do not use abrasive cleaners or solvents. Dry thoroughly before storing.

Why is my cooler not as cold as expected?

Check that the ventilation slots are not blocked, the power supply is stable, and the cooler is not overfilled. Thermoelectric coolers work best in well-ventilated areas and with moderate ambient temperatures. If problems persist, contact ECG support.

Can I leave the cooler running overnight?

Yes, it is safe to leave the AC 28 connected to a power source for extended periods. However, ensure the cooler is on a stable surface and the ventilation is adequate. When used in a car, ensure the battery is not drained.

What is the warranty period?

ECG typically offers a 2-year warranty on the AC 28 cooler against manufacturing defects. Keep your purchase receipt and register the product on the ECG website for support.

Where can I find spare parts?

Spare parts such as the 12V adapter, mains adapter, and internal fan can be ordered from authorized ECG service centers. Visit the ECG website and enter your model AC 28 to locate a service partner.

USER MANUAL AC 28 ECG

Blue and white striped backpack with a gray ECG air conditioner cover (no text or symbols visible)

ECG

AUTOCHLADNIČKA

AC 28

NÁVOD K OBSLUZE

Black plastic electrical plug with two terminal connectors (no visible text or symbols)

Blue and white striped backpack with a gray ECG air conditioner cover (no text or symbols visible)

ECG

AUTOCHLADNIČKA

AC 28

NÁVOD NA OBSLUHU

Black plastic electrical plug with two terminal connectors (no visible text or symbols)

Blue and white striped backpack with a gray ECG air conditioner cover (no text or symbols visible)

ECG

Black plastic electrical plug with power outlet and cable connector (no visible text or symbols)

Blue and white striped backpack with a gray ECG air conditioner cover (no text or symbols visible)

ECG

TRAVEL COOLER

AC 28

USER'S MANUAL

Always read the safety&use instructions carefully before using your appliance for the first time. The user's manual must be always included.

SAFETY INSTRUCTIONS

Read carefully and store for future use!

Warning: The safety steps and instructions in this user's manual do not include all the possible conditions and situations which may arise. The user must understand that a factor that cannot be designed into any product is common sense, caution and care. These factors must therefore come from the user/s using and operating this appliance. We do not take responsibility for damages caused during transport, by incorrect use, by voltage fl ectuations or a change or modification of any part of the appliance.

To prevent a fire or injury by electric shock, basic safety provisions should always be adhered to, including the following:

1. Make sure that the voltage in your power socket corresponds to the voltage on the appliance's label and that the power socket is properly earthed. The power socket must be installed according to valid safety regulations.

Connect the appliance only in the following manner:

• connect the 100-240 V adapter into a power socket with the same voltage
• connect the 12 V power cord into a power socket with the same voltage of corresponding shape.

On boats: If the appliance is connected to the power grid, ensure that the power source has current protection. Danger of injury!!

1. Do not use the travel cooler if any of the power cords are damaged. Have all repairs including power cord replacement done in an authorised service! Do not remove protective covers from the appliance as there exists a danger of injury by electric shock!
2. Protect the appliance against direct contact with water and other liquids, do not place near containers with liquids so that a potential injury by electric shock does not occur. Never submerge it under water!
3. Before using the appliance ensure that the power cord and its power plug are dry. Do not touch the power cord of the appliance with wet hands. There is a danger of injury by electric shock!
4. Keep the 12 V power socket (cigarette lighter) to which you will connect the power plug clean and free of cigarette ash. When cleaning power sockets do not use metal or otherwise conductive items.
5. In cars where it is possible to power the appliance from a 12 V power socket without the car engine running, it is important to check the state of the battery to avoid it from going completely flat at.
6. Do not allow children to play with the travel cooler. This appliance is not a toy! Pay extra attention if using the travel cooler near children.
7. Do not place the travel cooler near an open flame or other sources of heat (heating, direct sunlight, etc.) Danger of overheating!
8. If you have a feeling that the appliance is not working correctly, immediately disconnect it from the power source and take it to a service centre.
9. Never use the travel cooler simultaneously with both power cords! Always select only a single power source!
10. We recommend that you do not leave the travel cooler with the power cord inserted in the power socket without supervision. Before carrying out maintenance pull the power cord out of the power socket. Do not pull the power plug out of the power socket by pulling on the cord. Pull the cord out of the power socket by holding the power plug.
11. The power cord must not touch any hot parts or go over sharp edges.
12. Keep the travel cooler at a sufficient distance from the walls of other objects, because air circulation must be maintained. Never block the ventilation openings of the travel cooler or insert anything into them. Do not step on the travel cooler or place anything on it.

13. Do not use the travel cooler to transport corrosive or solvent compounds. Store food only in original packaging or in appropriate containers. Do not fill the inside of the travel cooler with ice and do not pour any liquids inside.

14. Use only accessories authorised by the manufacturer. Co not use any electronic devices inside the travel cooler unless they are recommended by the manufacturer.

15. Use the travel cooler only in accordance to the instructions contained in this user's manual. This travel cooler is intended for household use only. The manufacturer takes no responsibility for damages caused by the incorrect use of this appliance.
16. This appliance may not be used by any persons (including children) with mental disabilities, weak strength or by inexperienced persons, unless they have been properly trained or schooled in the safe use of the appliance, or unless they are properly supervised by a qualified person who is responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

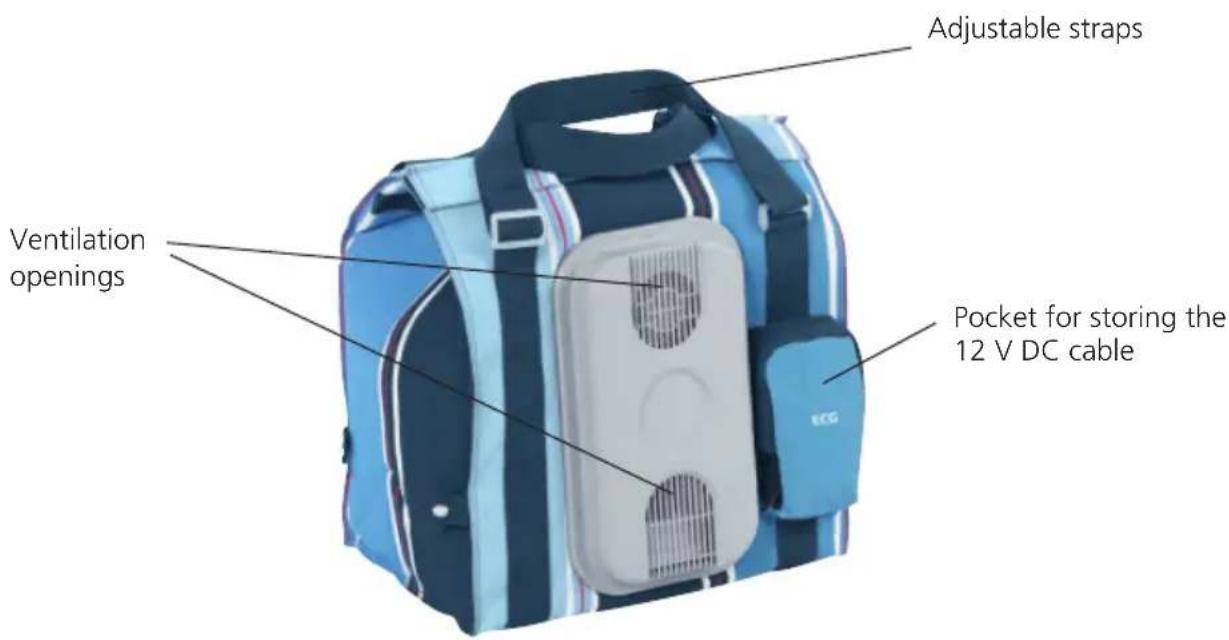

DESCRIPTION

Power cord for connection in car - 12 V DC

Adapter for connection at home - 100-240 V AC

Black plastic electrical plug with two terminal inputs and a cable, no visible text or symbols

Travel cooler is suitable for keeping steady the temperature of already cooled food and beverages.

The travel cooler is appropriate for mobile use, e.g. for camping and can also be used as storage space for cookware (cups, etc.). The appliance must not be exposed to rain!

The device is designed for connection to a 12 V car power socket (cigarette lighter), and on a boat or in a caravan in the same way as for connection to the mains socket outlet.

The temperature inside the cooler may be up to 15^ C below the ambient temperature.

Note: If you wish to keep medication cold, make certain that the cooling capacity is suitable for that particular medication.

The cooling mechanism of this appliance is inexhaustible on the basis of the thermoelectric effect.

Because during cooling the humidity inside the travel cooler condensates, in the case of longer cooling periods, water drops may form on the internal sides of the bag. This is a normal effect, if necessary wipe the condensation away using a dry wipe.

The pockets located on the outer sides of the travel cooler serve as storage space. The items stored here are not cooled. You can also use the zip pocket for storing the 12 V power cord.

If the bag is empty, you can fold it up and pin together using the press fasteners to save space.

OPERATING INSTRUCTIONS

For hygiene reasons, before use, wipe the inside area of the travel cooler with a sponge lightly dipped in a weak solution of kitchen detergent. Following this wipe the inside area using a sponge dipped in clean water and wipe dry.

1. Place the travel cooler on an even surface, which guarantees a sufficient amount of free space for the correct function of the ventilation openings.
2. Make sure that the foods and drinks inside the travel cooler are appropriate for cooling at the given temperature.
3. Connect the 12 V power cord to the power socket of the cigarette lighter or the 12 V socket in the car, or the 100-240 V adapter into the power grid socket.
4. The travel cooler will start to cool.
5. Turn off the travel cooler by pulling the power plug from the power socket.

Note: If you connect the travel cooler to a cigarette lighter in the car, the ignition must be on for the travel cooler to be powered by energy.

Energy saving tips

Choose a well ventilated area, that is protected from direct sunlight.

If you wish to keep foods cool, allow them to cool down sufficiently before placing them in the appliance.

Do not open the travel cooler more often than is necessary.

Open the travel cooler only for the shortest possible time.

CLEANING AND MAINTENANCE

Before cleaning or maintenance of the appliance always pull the power plug out of the power socket or cigarette lighter!

Wipe the inside/outside areas of the travel cooler with a sponge lightly dipped in a weak solution of kitchen detergent. Following this wipe the inside/outside area using a sponge dipped in clean water and wipe dry. Do not use abrasive sponges or cleaning powders. Never clean the travel cooler under running water, do not rinse and do not submerge in water!

TROUBLESHOOTING

Problem Possible cause Solution
The travel cooler doesn't work. The	is no power in the 12 V power socket (cigarette lighter).	I most types of vehicles the ignition must be turned on for the cigarette lighter to be powered with electrical power.
	There is no electrical power in the power socket where the travel cooler is plugged in.	Try connecting the travel cooler to a different power socket.
The travel cooler doesn't cool (it is connected, the LED is on).	The internal ventilator or travel cooler are damaged.	This defect must be remedied by an authorised service centre.
The travel cooler doesn't heat (it is connected, the LED is on).	The internal ventilator or the cooling element are defective.	This defect can only be remedied by an authorised service centre.
Connecting to the 12 V power socket (cigarette lighter): The travel cooler is receiving power, but is not working. Pull out the power plug from the power socket and carry out the following steps.	The cigarette lighter is dirtied by ash from cigarettes, which is the cause of the bad power supply.	If the 12 V power plug of the travel cooler in the power socket of the cigarette lighter overheats, either the cigarette lighter socket needs to be cleaned, or the 12 V power plug was not installed correctly.
	The 12 V fuse of the power plug is burned out.	Change the fuse (5A) in the 12 V power plug.
	The fuse of the vehicle is burned out.	Change the vehicle's power socket fuse (usually 15 V). (Please follow the instructions in your vehicle's user's manual.)

TECHNICAL INFORMATION

28 | Capacity

For home and car use – dual voltage 100-240 V / 12 V

Cools up to 15°C below the ambient temperature

Dual ventilation system for faster cooling

Quality light-weight insulation

Practical pocket on the front side

Adjustable shoulder straps

Can be folded when empty

Zipped pocket for connection cable and adapter

Rated voltage: 100-240 V \~ 50/60 Hz AC / 12 V DC

Rated power input: 35 W DC 12 V / 20 W DC 9 V

This product is approved for use in vehicles in accordance with EU directives.

USE AND DISPOSAL OF WASTE

Wrapping paper and cardboard - take to waste collection point. Wrapping foil, PE bags, plastic parts - take to plastic recycling bins.

DISPOSAL OF THE APPLIANCE AT THE END OF ITS LIFETIME

The disposal of used electric and electronic devices (valid in EU member states and other European countries with an implemented system for sorting waste)

The displayed symbol on the product or the packaging means that the products should not be handled as household waste. Hand over the product to a location designated for the recycling of electric and electronic devices. By correctly disposing of the product you will prevent negative effects on human health and the environment. The recycling of material helps to protect natural resources. You can receive more information about the recycling of this product at the town council, at the organisation for the processing of household waste or at the store where you purchased this product.

K+B Progres, a.s. (dále jen K+B), IČO: 61860123

The importer takes no responsibility for printing errors contained in the product's user's manual.
