Type	Cooler (portable refrigerator)
Brand	ECG
Model	AC 3032 HC Dual
Dimensions (W x D x H)	approx. 380 x 250 x 290 mm
Weight	approx. 3.5 kg
Power Supply	12V DC (car adapter) and 230V AC (mains adapter)
Power Consumption	approx. 45 W
Capacity	30 L
Temperature Range	+5°C to +20°C (cooling) / -20°C (freezing) depending on mode
Cooling Technology	Compressor (dual zone possible)
Functions	Cooling, freezing, temperature display, dual zone (HC Dual)
Control Type	Electronic with LED display
Insulation	High-density foam
Material	Plastic exterior, metal interior
Maintenance & Cleaning	Clean with damp cloth, avoid abrasive cleaners, regularly defrost if needed
Safety Features	Overheat protection, low battery protection, reverse polarity protection
Spare Parts & Repairability	Replacement parts available through service center; user replaceable fuses
Included Accessories	12V car cable, 230V mains adapter, user manual
Warranty	2 years
General Information	Portable cooler suitable for car, camping, home use; dual zone allows separate cooling and freezing

Frequently Asked Questions - AC 3032 HC Dual ECG

How do I set the temperature on the ECG AC 3032 HC Dual cooler?

Use the + and - buttons on the control panel to adjust the desired temperature. The set temperature will be displayed on the LED screen. The cooler will automatically maintain the temperature.

Can I use the cooler with both 12V and 230V power sources?

Yes, the AC 3032 HC Dual comes with both a 12V car adapter and a 230V mains adapter. You can switch between them depending on your location.

How do I change between cooling and freezing modes?

The cooler has a dual zone feature. Press the Mode button to toggle between cooling (blue) and freezing (red) for each compartment. Refer to the manual for specific instructions on setting different temperatures for each zone.

What is the temperature range of this cooler?

The cooling mode can maintain temperatures from +5°C to +20°C, while the freezing mode can go down to -20°C. Exact range depends on ambient conditions.

How should I clean the cooler?

Clean the interior and exterior with a soft damp cloth and mild detergent. Avoid using abrasive cleaners or solvents. Make sure to unplug the device before cleaning.

Does the cooler have a battery protection feature?

Yes, it has low battery protection that automatically shuts off the device to prevent draining your vehicle's battery. It also has overheat and reverse polarity protection.

How much weight can the cooler hold?

The cooler has a capacity of 30 liters. The maximum load depends on the items placed; ensure not to exceed the shelf weight limit as indicated in the manual (typically around 10 kg per shelf).

Can I keep the cooler running while the car engine is off?

It is possible, but be aware of the battery protection. If the voltage drops too low, the cooler will turn off automatically to protect your car battery. It's recommended to use it while the engine is running for extended periods.

What should I do if the cooler is not cooling enough?

Check if the temperature setting is correct. Ensure the ventilation slots are not blocked, and the lid is properly closed. If the issue persists, try defrosting the cooler if ice has built up, or contact customer service.

How do I defrost the cooler?

To defrost, remove all items and unplug the cooler. Leave the lid open to allow ice to melt naturally. Do not use sharp objects to remove ice. Wipe dry before use.

USER MANUAL AC 3032 HC Dual ECG

3D rendering of a gray and lime green portable electronic device with ventilation slots (no text or symbols visible)

English

Deutsch

Čeština

Eesti keel

Hrvatski

Bosanski

Română

Ελληνικά

Українська мова

AC 3022 HC Dual

AC 3032 HC Dual Navy

CAR COOL BOX

INSTRUCTION MANUAL

AUTOKÜHLBOX

BEDIENUNGSANLEITUNG

AUTOCHLADNIČKA

NÁVOD K OBSLUZE

AUTO JAHUTUSKAST

KASUTUSJUHEND

AUTO HLADNJAK

UPUTE ZA UPORABU

CAMERĂ FRIGORIFICĂ AUTO

INSTRUCTIUNI DE UTILIZARE

ΨΥΓΕΙΟ ΑΥΤΟΚΙΝΗΤΟΥ

ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ

B

English

A) Car cool box

1. The body of the car cool box
2. Lid
3. Handle
4. Air vents
5. Location of the control panel (in the back, in the lid)

Items not pictured:

• Power cable for power outlet
• 12 V power cable for the car socket

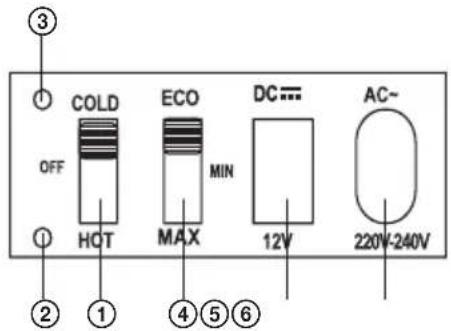

B) Control panel

1. Switch to heating (HOT) or cooling (COLD) / OFF mode
2. Heating light
3. Cooling indicator
4. Switch to ECO/MIN/MAX mode
5. Jack to connect to the car
6. Jack to connect to the wall outlet

Deutsch

A) Autokühlbox

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.

Connect the device only as follows:

- When using the mains supply in a household, use the supplied power cord. The voltage in the outlet must correspond to voltage 220–240 V\~ 50–60 Hz. - When connecting a 12 V DC socket to a car, connect the cable to the socket with the same voltage.

On boats: If the device is plugged in, make sure that the power source has a circuit breaker.

Danger of injury!

1. Do not use the cool box if the power cord or plug is damaged, if the car cool box is not working properly, if it fell to the ground and was damaged or if it fell into the water. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
2. Avoid potential electric shock by protecting the appliance against direct contact with water and other liquids, and also by not placing

any containers with liquids on the appliance. Do not immerse into water.

1. Before using the device, make sure the power cord and plug are dry. Do not touch the cord or the device with wet hands. Risk of electric shock!
2. The device is suitable for indoor use and temporary outdoor use, but it must be always kept dry and plugged to an indoor power source.
3. Keep the 12 V DC outlet (cigarette lighter) where you would insert the plug clean and free of cigarette ash. Do not use metal or other conductive material when cleaning the outlet.
4. It is important to check the state of the battery in cars that allow powering a device from 12 V DC outlets without the motor running, to prevent complete loss of battery power.
5. Do not allow children to play with the car cool box. It is not a toy! Pay extra attention if you use the car cool box near children.
6. Do not use the car cool box close to open fire or other sources of heat (heating, direct sunlight, etc.). Risk of overheating!
7. If you feel the device is not functioning properly, unplug it immediately from the power source and visit a service centre with the appliance.
8. Never connect the car cool box with both cables in the same time! Always select only one source of power!
9. We recommend that you do not leave the plugged-in car cool box unattended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not pull the cord from the outlet by yanking the cable. Unplug the cable from the outlet by grasping the plug.
10. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.
11. Do not switch the device on or off by inserting or pulling out the power cable plug.
12. Keep the car cool box sufficient distance from the walls and other objects to ensure proper air circulation. Never block the air vents

of the car cool box and do not insert any objects into them. Do not step on the car cool box and do not place anything on top.

1. Do not use the car cool box to transport corrosive substances or solvents. Store food in original packaging only or in suitable containers. Do not fill the interior of the car cool box with ice and do not pour liquids in it.
2. Only use accessories approved by the manufacturer. Do not use any electronic devices inside the car cool box unless recommended by the manufacturer.
3. Use the car cool box as recommended by the instructions in this manual. This car cool box is designed for home use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
4. This appliance can be used by children aged 8 years and older and people with lower physical or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed to use the product in a safe manner and understand the potential dangers. Children shall not play with the appliance. Cleaning and maintenance performed by the user should not be done by children unless they are older than 8 years and under supervision. Children under 8 years old must keep away from the appliance and its power supply.
5. This refrigerating appliance is intended for use at ambient temperatures of 10 °C to 32 °C (climate class SN/N).
6. This refrigerating appliance is not suitable for freezing food.

DESCRIPTION

The car cool box is suitable for keeping the temperature of the already cooled foods and beverages (it is not to be used as a refrigerator).

The car cool box is also equipped with a heating function for your convenience (keeps food warm). Select the setting with the switch for switching the cooling/heating functions.

It is suitable for mobile use, e.g. for camping, fishing and it could be used as a storage for dishes as well (cups etc.). The device must not be exposed to rain!

The device is designed for connection to 12V DC outlet in the car (cigarette lighter), in a boat or in a caravan, as well as for connection to the main power grid of 220-240 V.

Warning: If you wish to keep medication cold, make sure that the cooling power of the equipment is suitable for the medication.

Since during the cooling the humid air inside the car cool box condenses, you can find drops of water on the inside of the bag in case of long-term cooling. It is a normal phenomenon, wipe the condensation with dry cloth if necessary.

USING THE APPLIANCE

For hygienic reasons, wipe the inside space of the car cool box with a sponge slightly moistened with a mild solution of dish detergent before first use. Then wipe the space with a sponge moistened with clean water and dry it.

When the handle is pushed back, the lid is closed and cannot be opened. Do not try to force the lid. The lid may be opened when the handle points toward the front.

Warning: Always lift the car cool box by the handle. Risk of tipping over!

Note about cooling:

You can use 3 modes for cooling

1. MAX mode:

In this mode (the switch is in the "MAX" position), the temperature inside the refrigerator drops approx. 15–20 °C below the outdoor temperature if the outdoor temperature is approx. 25 °C.

1. ECO mode:

In this mode (switch is in the ECO position) the cooling operates in the energy class F and the temperature inside the cool box drops about 6–10°C below the outside temperature, if the outside temperature is about 25°C

1. MIN mode:

It is recommended to use this mode a few minutes before turning off the refrigerator completely to gradually balance the ambient temperature with the temperature inside the refrigerator. You will thus prevent the food from being ploughed when it is removed.

Note: When transferring food to a classic refrigerator, there is no need to switch the car refrigerator to MIN mode.

Note about heating:

The heating operates only in the „MAX“ mode and the internal temperature reaches about 55–65°C.

1. Place the car cool box on a flat surface, which ensures enough free space for proper functioning of the air vents.

2. Make sure that the food and drinks placed in the car cool box are suitable for cooling at that temperature and let them cool sufficiently before placing them in the device. We recommend that you pre-cool the car cool box for at least 4 hours to keep the food cooled to the required temperature for as long as possible.

3. Connect the 12V DC power cable to the cigarette lighter socket or to the 12V DC socket in the car, or connect the mains cable to the appropriate connector on the car refrigerator and to the mains voltage socket.

4. Close the lid of the car cool box and secure it by turning the handle backwards.

5. Turn the switch on the control panel to the position COLD (cooling) or HOT (heating). According to the selected mode, green light (cooling) or red light (heating) turns on.

In the heating mode, the fan automatically turns on or off and thus regulates the temperature.

Warning: Before switching the car cool box from the cooling mode to heating mode and vice versa, the car cool box must be switched OFF for at least 5 minutes!

1. The car cool box starts cooling/heating.

2. By turning the switch into the position OFF you will switch off the cooling/heating. If you will not use the device any more, unplug the cable from the cigarette lighter in your car or from the wall outlet.

Warning:

If you plug the cable in the cigarette lighter in the car, the ignition must be on to supply the power to the car cool box.

We definitely do not recommend starting the vehicle with a refrigerator connected. Always unplug the refrigerator from the outlet when starting the vehicle.

The refrigerator has a consumption of up to 7 A during operation, therefore it is necessary to have the car battery in good condition and the socket circuit protected by a fuse prescribed by the vehicle manufacturer.

If there are more than one outlet in the electrical circuit, it is recommended that only one appliance is connected at a time to avoid overloading and damaging the electrical system.

Power saving tips

Choose a well ventilated place that is protected against direct sunlight.

Do not open the lid more often than necessary.

Clean the insulation on the inside of the lid regularly.

CLEANING AND MAINTENANCE

Always unplug the power cable from the cigarette lighter or an outlet before any cleaning or maintenance! Wipe the inside/outside of the car cool box with a sponge slightly moistened in a weak solution of dish detergent. Then wipe the inside/outside with a sponge soaked in water and dry.

Do not use coarse sponges or cleaning powder. Do not wash the car cool box under running water and do not immerse it in water!

TROUBLESHOOTING

Problem Possible cause Solution
The car cool box is not functioning.	There is no power in the 12V DC outlet (cigarette lighter) of the car.	In most types of cars the ignition must be switched on to have power in the cigarette lighter.
	There is no voltage in the wall outlet where you connected your car cool box.	Try to plug the car cool box into another outlet.
The car cool box is not cooling (it is plugged in and the control light is on).	The inside fan or the car cool box is damaged.	This defect must be repaired by an authorized service center.
The car cool box does not heat (it is connected and the LED indicator is on).	The inside fan or the heatsink is broken.	This defect must be repaired only by an authorized service center.
The connection to the 12V DC outlet (cigarette lighter): The car cool box receives power, but is not functioning. Unplug it from the outlet and take following steps.	The cigarette lighter is covered by cigarette ash, which is the cause of insufficient power.	If the 12V DC plug of the car cool box overheats when plugged in the cigarette lighter outlet, either the cigarette lighter must be cleaned, or the 12V DC plug was incorrectly installed.
	The fuse of the 12V DC plug burned out.	Change fuse (5A) in the 12V DC plug.
	The car fuse burned out.	Change the fuse in the car outlet (usually 15 A). (Please, follow the instructions in your car manual.)

• Please refer to the attached Warranty Sheet or www.ecg-electro.eu for professional service of this product.

• The warranty for this product is 24 months.

• Spare parts listed in EU 2019/2019 are available for 7 years.

• You can access the product database, where model information is stored (according to EU 2019/2016) by reading the QR code on the energy label.

TECHNICAL DATA

Capacity: 28 l

Noise level: 26 dB

Climatic class: N

Mains power supply

Nominal voltage: 220–240 V\~ 50–60 Hz

Nominal input power: Cooling....55 W

Nominal input power: Heating.....50 W

Car power supply

Nominal voltage: 12 V DC

Nominal input power: Cooling....45 W

Nominal input power: Heating.....40 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating manual is available on internet at www.ecg-electro.eu. Changes of text and technical parameters are reserved.

08/05
