Type	Weather Station
Brand	Hyundai
Model	WSC 2180 V
Indoor Temperature Range	0°C to 50°C (32°F to 122°F)
Outdoor Temperature Range	-20°C to 50°C (-4°F to 122°F)
Humidity Range	20% to 99% RH
Weather Forecast Icons	5 icons: Sunny, Slightly Cloudy, Cloudy, Rainy, Snow
Barometric Trend Indicator	Rising, Steady, Falling
Moon Phase Display	8 phases (New Moon to Waning Crescent)
Time Control	Radio controlled (DCF 77.5 kHz) with manual setting
Time Display Mode	12-hour or 24-hour selectable
Calendar	Perpetual up to year 2099
Day of Week Languages	8 languages (German, French, Spanish, Italian, Dutch, Danish, Russian, English)
Alarm	Daily with snooze (5 min, up to 7 times)
Dual Time	Yes (DT mode)
Wireless Sensor Frequency	433 MHz
Transmission Range	30 m (98 ft) in open area
Maximum Outdoor Sensors	3 (selectable channels CH1, CH2, CH3)
Low Battery Indicator	For outdoor sensor (icon on LCD)
Temperature Probe	1.5 m cord for outdoor sensor (for extreme cold)
Power Supply (Main Unit)	2 x AA batteries (not included)
Power Supply (Outdoor Sensor)	2 x AAA batteries (not included)
Main Unit Dimensions	168 x 129 x 29 mm (W x H x D)
Main Unit Weight	262 g
Outdoor Sensor Dimensions	62 x 101 x 24 mm
Outdoor Sensor Weight	64 g
Mounting	Table stand or wall mount (both units)
Cleaning	Use soft cloth; no abrasive or corrosive cleaners
Safety	Do not use near water; no user-serviceable parts; consult qualified service
Disposal	WEEE directive; do not dispose as household waste

Frequently Asked Questions - WSC 2180 V HYUNDAI

How do I set the time manually on the Hyundai WSC 2180 V?

To set the time manually, hold the MODE button for 3 seconds to enter Clock/Calendar setting mode. Then press ▲ or ▼ to adjust the hour, minute, second, year, month, day, time zone, and day-of-week language. Press MODE to confirm each setting. The clock will automatically exit if no key is pressed for 15 seconds.

How do I switch between Celsius and Fahrenheit?

Press the °C/°F button (labeled ▼ on some units) to toggle between Celsius and Fahrenheit for both indoor and outdoor temperature displays.

What should I do if the outdoor sensor signal is lost?

If the main unit displays '- -.-' for outdoor temperature, hold the CHANNEL button for 3 seconds to manually search for the sensor signal. Ensure the sensor is within 30 meters in an open area and batteries are fresh. Press RESET on the sensor if needed.

How do I set the weather forecast?

After inserting batteries, hold the WEATHER button for 3 seconds until the weather icon flashes. Use ▲ or ▼ to select the current weather (sunny, slightly cloudy, cloudy, rainy, snow) and press WEATHER to confirm. The forecast will update after 6 hours.

How do I use the temperature probe for extreme cold?

Insert the probe plug into the jack on the outdoor sensor. Place the metal probe outside and keep the sensor indoors to prevent battery freezing when temperatures drop below -20°C. The probe measures temperatures from -50°C to +70°C.

How do I set the alarm and snooze?

Press MODE repeatedly until the alarm time shows (AL on LCD). Hold MODE for 3 seconds to set the alarm hour and minute using ▲/▼, then press MODE to confirm. Press AL ON/OFF to enable/disable. When alarming, press SNOOZE/LIGHT to snooze for 5 minutes (up to 7 times).

What does the comfort indicator bar mean?

The comfort indicator shows indoor climate: COLD (too dry/cold), CORP (comfortable), or HOT (too humid/hot). It is based on indoor temperature and humidity readings.

How do I reset the maximum/minimum temperature records?

Press the MAX/MIN button to view the maximum or minimum recorded temperatures and humidity. Hold the MAX/MIN button for 3 seconds to clear all stored records.

How do I mount the outdoor sensor?

The outdoor sensor can be placed on a horizontal surface or wall-mounted using the hanging hole at the back. Ensure it is sheltered from direct sunlight and rain. The transmission range is up to 30 meters in open area.

What should I do if the unit malfunctions?

Use a pin to press the RESET button on the back of the main unit. If problems persist, check battery polarity and replace if low. Do not attempt to repair; contact qualified service. Avoid placing near interference sources like TVs or computers.

USER MANUAL WSC 2180 V HYUNDAI

3. VENKOVNÍ TEPLOTNÍ SENZOR

Technical line drawing of a mechanical part with labeled dimension D8 (no text or symbols beyond label)

Simple line drawing of a sun, birds, and birds in the sky (no text or symbols)

Simple line drawing of a sun and clouds with the word 'Polojasno' above (no other text or symbols)

Simple line drawing of stylized clouds with no text or symbols

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a sun, birds, and birds in the sky (no text or symbols)

Simple line drawing of a landscape with clouds, sun, and clouds, labeled 'Polojasno' (no other text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Technical line drawing of a mechanical part with labeled dimension D8 (no text or symbols beyond label)

Simple line drawing of a sun, birds, and a bird in the sky (no text or symbols)

Simple line drawing of a rain scene with clouds and raindrops (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

- Sunny, Slightly Cloudy, Cloudy, Rainy and Snow animation

1.2 Time

• Radio controlled time with Manual Time setting option
• Dual Time setting
• 12/24 hour user selectable
• Daily Snooze Alarm function
• Perpetual Calendar Up to Year 2099
• Day of week in 8 languages user selectable

1.3 Humidity

• Measurable range: 20 \~ 99 %
• Max/Min Memory

1.4 Temperature

• Indoor measurable range: 0 \~ 50 °C [+32 \~ +122 °F]
• Measures °C/°F user selectable
• Outdoor measurable range: -20 \~ 50 °C [-4 \~+ 122 °F]
• Max/Min Memory [indoor & outdoor]
• Comfort Indicator Bar

1.5 Wireless Outdoor Sensor

• Low-battery indicator for Outdoor Thermo Sensor
• Wall Mount or Table Stand
• One Wireless Thermo Sensor Included
• 433 MHz RF transmitting frequency
• 30 meter [98 feet] transmission range in an open area

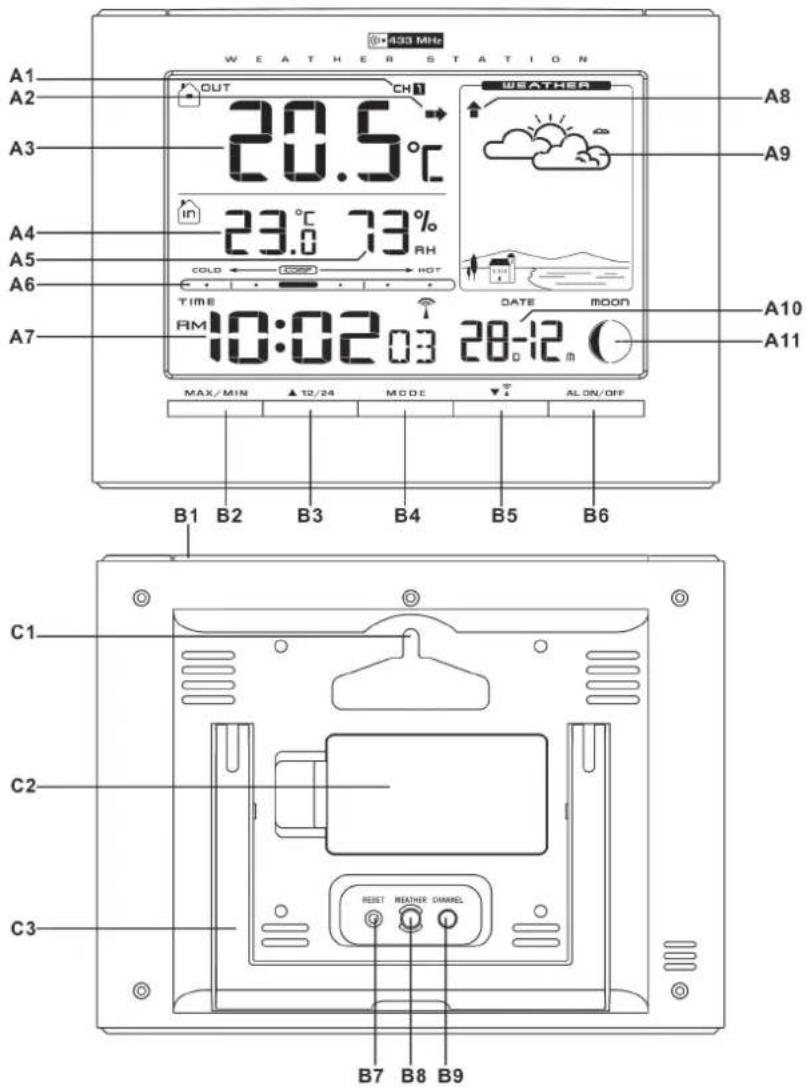

2. MAIN UNIT APPEARANCE

2.1 Part A - LCD

A1: Outdoor Temperature Channel

A2: Outdoor Temperature Trend

A3: Outdoor Temperature

A4: Indoor Temperature

A5: Indoor Humidity

2.2 Part B – Buttons

B1: "SNOOZE/LIGHT" button

B2: "MAX/MIN" button

B3: “▲ 12/24” button

B4: "MODE" button

2.3 Part C – Structure

C1: Wall Mount Hole

A6: Comfort Indicator Bar

A7: Radio Controlled Time

A8: Air Pressure Trend

A9: Weather Forecast

A10: Date

A11: Moon Phase

B5: “▼/” button

B6: "AL ON/OFF" button

B7: "RESET" button

B8: "WEATHER" button

B9: "CHANNEL" button

C2: Battery Cover

C3: Stand

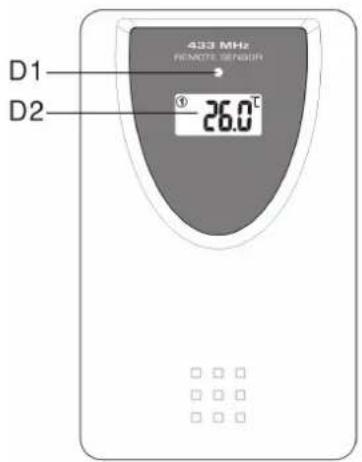

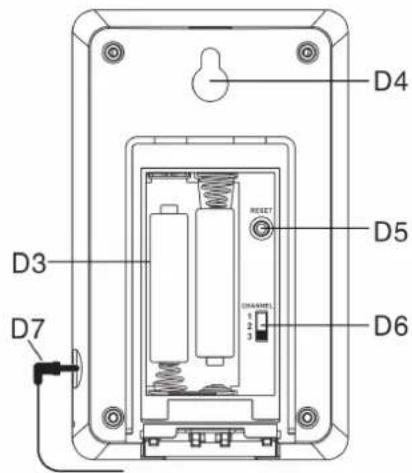

3. OUTDOOR THERMO SENSOR

Technical line drawing of a door panel with labeled dimension D8 (no text or symbols beyond label)

D1: Transmission Indication LED
D2: Outdoor Temperature
D3: Battery Compartment
D4: Wall Mount Hole

D5: "RESET" button
D6: Channel Select Switch
D7: Temperature Probe Plug & Jack
D8: Stand

4. GETTING STARTED:

4.1 Main Unit:

• Slide open main unit battery compartment cover [C2]
• Insert 2 x AA batteries observing polarity [ “+” and “−” marks]
• Replace main unit battery compartment cover [C2]
• Use a pin to press the RESET [B7] button on the rear of the main unit, the main unit is now ready for use

4.2 Outdoor Thermo Sensor

• Batteries compartment (D3) of thermo sensor is locating behind the back cover, unscrews the batteries cover to open.
• Insert 2 x AAA batteries observing polarity [ “+” and “−” marks]

5. INSTALLATION

5.1 Main Unit

The main unit can be placed onto any flat surface (C3), or wall mounted by the hanging hole (C1) at the back of the unit.

5.2 Outdoor Thermo sensor

The remote sensor should be securely mounted onto a horizontal surface.

Note: Transmissions between receiver and transmitter can reach up to 30 m in open area. Open Area: there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc.

6. WEATHER FORECAST FUNCTION

6.1 Operation

• After Batteries inserted, OR holding "WEATHER" button (B8) for 3 seconds, weather icon flash (A9) on the LCD. Enter the current weather pressing "▲" (B3) or "▼" (B5) button. Press "WEATHER" (B2) button to confirm the setting. The weather forecast may not be accurate if the current weather entered is not correct.
• The current weather status should be entered again if the altitude of the Main Unit is changed (Barometric pressure is lower at higher altitude location. Therefore, altitude change will affect the weather forecast). The weather station will start the first forecast at 6 hours later after the current weather status is entered.

6.2 Weather Conditions

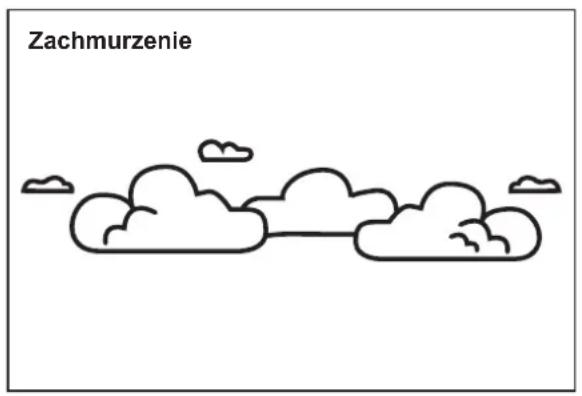

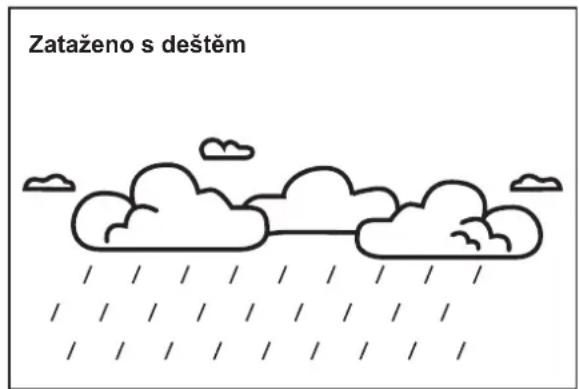

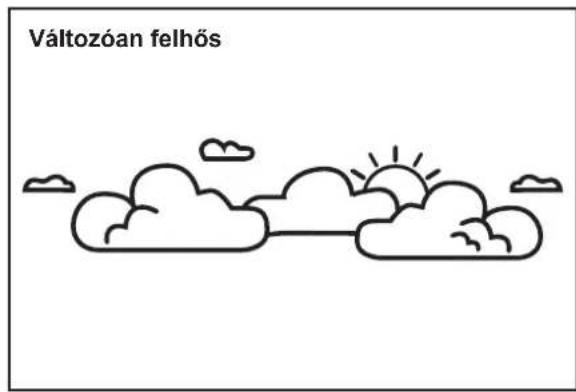

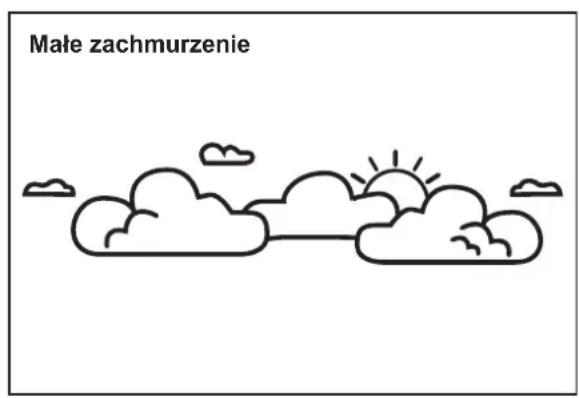

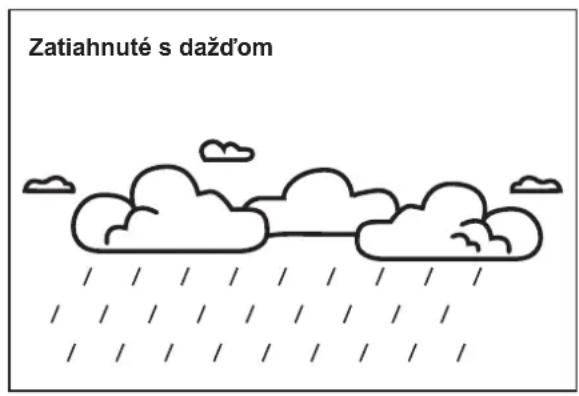

There are totally 5 different weather status animations in the weather forecast.

Simple line drawing of a sunny day with birds flying nearby (no text or symbols)

Simple line drawing of a cloudy landscape with sun and clouds (no text or symbols)

Simple line drawing of stylized clouds with no text or symbols

Simple line drawing of rain with cloud shapes and raindrops (no text or symbols)

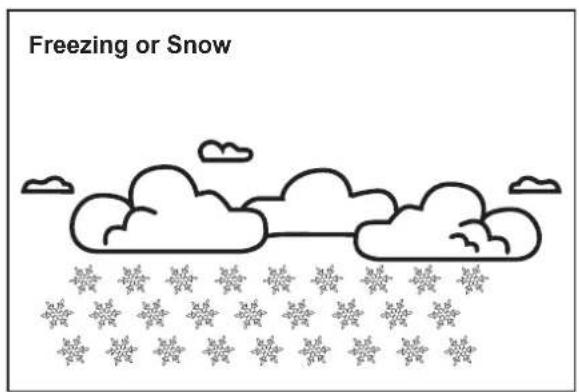

Note: “Freezing or snow” is shown if the weather forecast is Rainy and outdoor temperature (any channel) under 0^ C.

• Frost Alert: “ ✉” is shown if the outdoor temperature (any channel) is between -2°C \~ +3 °C
• If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail. The manufacture will not hold responsible for any trouble that may come up due to wrong forecasting from this unit.

6.3 Barometric Trend Pointer (A8)

The trend pointer displayed on the LCD (A8) indicates the trend of the Barometric pressure.

Indicating the barometric pressure trend is rising

Indicating the barometric pressure trend is steady

Indicating the barometric pressure trend is falling

7. THERMOMETER

7.1 RF Transmission Procedure:

• The main unit automatically starts receiving transmission from outdoor thermo sensor for outdoor temperature after weather condition setting.
• The thermo sensor unit will automatically transmit temperature signal to the main unit after batteries inserted.
• For having more than one external transmitter (Maximum3), select the Channel, CH1, CH2 or CH3 to ensure each sensor is transmitting difference channel before inserting batteries. The channel select switch (D6) is at the back of the thermo sensor.
• If main unit failed to receive transmission from outdoor thermo sensor in first 3 minutes after the batteries inserted (“- - . -” display on the LCD), hold “CHANNEL” button (B9) for 3 seconds to receive transmission manually. RF icon “flashes on the LCD

Note: Buttons (except "Channel" & "Light" buttons) will not function while scanning for thermo sensor's signal unless they are well received or stopped manually.

7.2 Temperature& Humidity

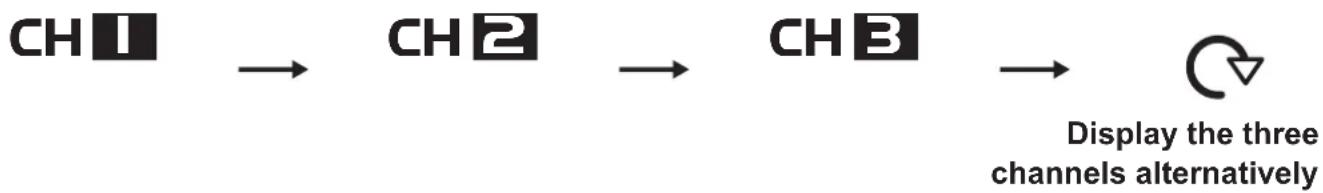

(1) Outdoor Temperature --- Channel Selection

- Press "CHANNEL" button (B9) to view the 3 Channel's temperature.

The sequence is shown as follow:

PRESS "CHANNEL" button → PRESS "CHANNEL" button → PRESS "CHANNEL" button
    note right of D
        Display the three channels alternatively
    end

- When viewing the record on CHANNEL 1 or 2, or 3, hold “CHANNEL” button (B9) for 3 seconds to cancel the record on this channel manually, and receive the transmission from channels automatically again.

(2) Outdoor Temperature Trend

- The trend pointer (A2) displayed on the LCD indicates the trend of the outdoor temperature.

Indicating the outdoor temp. is rising

Indicating the outdoor temp. is steady

Indicating the outdoor temp. is falling

• Press “°C/°F” button (B5) to select Indoor/Outdoor Temperature in Celsius mode or Fahrenheit mode.
• If the temperature is out of the measurable range, LL.L (beyond the minimum temperature) or HH.H (beyond the maximum temperature) will be shown on the LCD.

(4) Maximum / Minimum Temperature & Indoor Humidity Recording Function:

• Press "MAX/MIN" button (B2) to show the maximum recorded Indoor/Outdoor Temperature and Indoor Humidity. "MAX" is shown on the LCD
• Press "MAX/MIN" button (B2) again to show the minimum recorded Indoor/Outdoor Temperature and Indoor Humidity. "MIN" is shown on the LCD.
• Hold "MAX/MIN" button (B2) for 3 seconds to clear the recorded maximum and minimum reading.

(5) Comfort Indicator Bar COLD ← CORP → HOT (A6) for the display of pleasant/unpleasant climate.

(6) The use of 1.5m cord Temperature Probe:

• Insert the probe plug (D6) to the jack on the right hand side of the Thermo Sensor Unit.
• Put the metal casing outside and leave the Thermo Sensor Unit in indoor area to avoid freezing up the battery when the outdoor temperature is below -20 °C.
• Always use the temperature probe to sense the temperature when the temperature is between the following range: -50^ 0^ and +50^ +70^

8. TIME AND ALARM SETTING

8.1 Radio Controlled Clock:

- After batteries inserted and main unit finishes receiving the transmissions from outdoor thermo sensor, the clock automatically starts to scan the DCF time signal. Radio Control Icon “💡 flashes on the LCD.

flashes,Indicating now is receiving DCF signal

turns on,Indicating signal received successfully

disappear,Indicating signal reception failed

• The clock automatically scans the time signal at 3.00 a.m. every day to maintain accurate timing. If reception fail, scanning stops (“ 📋 on LCD disappear) and repeats again at 4.00 a.m. 5.00 a.m. and 6.00 a.m.
• The clock can be set to scan the time signal manually by holding “ 🔺 button (B5) for 3 seconds. Each reception takes about 5 minutes. If receptions fail, scanning stops. (“ 🔺 ” on LCD disappear) and repeats again on next full hour. E.g. scanning failed at 8.20 a.m. It will scan again at 9.00 a.m.
• Stop scanning by holding “ 🔊 button (B5) for 3 seconds.
• "DST" shown on the LCD if it is in Daylight Saving Time Mode

Note: Buttons (except "LIGHT" button (B1)) will not function while scanning for DCF time signal unless they are well received or stopped manually.

8.2 Manual Time Setting:

• Hold "MODE" button (B4) for 3 seconds to enter Clock/Calendar setting mode.
• Press “▲” (B3) or “▼” (B5) button to adjust the setting and press “MODE” button (B4) to confirm each setting.
• The setting sequence is shown as follow: Hour, Minute, Second, Year, Month, Day, Time Zone, Day-of-week language.
• 8 languages can be selected in Day-of-week, they are: German, French, Spanish, Italian, Dutch, Denmark, Russian, and English.
• The languages and their selected abbreviations for each day of the week are shown in the following table.

Language Sunday Monday		day Tuesday	day Wednesday	day Thursday	Friday Saturday
German, GE	SO	MO	DI	MI	DO	FR	SA
English, EN	SU	MO	TU	WE	TH	FR	SA
Russian, RU	BC	NH	BT	CP	HT	NT	CY
Denmark, DA	SO	MA	TI	ON	TO	FR	LO
Dutch, NE	ZO	MA	DI	WO	DO	VR	ZA
Italian, IT	DO	LU	MA	ME	GI	VE	SA
Spanish, ES	DO	LU	MA	MI	JU	VI	SA
French, FR	DI	LU	MA	ME	JE	VE	SA

• The Time zone is used for the countries where can receive the DCF time signal but the time zone is different from the German time.
• When the country time is faster than the German time for 1 hour, the zone should be set to +1. Then the clock will automatically set 1 hour faster from the signal time received.

Note:

1) Second adjusted to zero only.
2) The Time Setting Mode will automatically exit in 15 seconds without any adjustment.

8.3 12/24 Hour Display mode:

Press “(12/24)” button (B3) to select 12 or 24 hours mode.

8.4 Daily Snooze Alarm Function:

- Press "MODE" button (B4) to select to view:

Time → Weekday → Alarm Time (“AL” Shown on the LCD)

• When viewing the Alarm Time, hold "MODE" button (B4) for 3 seconds to enter Alarm Time setting. Press "▲" (B3) or "▼" (B5) button to adjust the alarm time. Press "MODE" button (B4) to confirm the setting.
• Press "AL ON/OFF" button (B6) to switch alarm on or off. If it is on, " (●) " shown on the LCD.
• When Alarming, press "SNOOZE/LIGHT" button (B1) to activate the snooze alarm, ("((●)) flash on the LCD). The alarm will snooze for 5 minutes, then it alarms again. This snooze function can be enabled for maximum 7 times.

8.5 Dual Time Setting Function

- Press "MODE" button (B4) to select to view :

Time → Weekday → Alarm Time → Dual Time ("DT" shown on the LCD)

- When viewing the Dual Time, hold "MODE" button (B4) for 3 seconds to enter Dual Time setting. "Hour" & "Min" digits flash. Press "▲" (B3) or "▼" (B5) button to adjust the "hour", press "MODE" button (B4) to confirm and quit the setting.

9. MOON PHASE DISPLAY

The Moon Phase (A11) of each day is shown on the LCD.

A

B

C

D

E

F

G

H

A: New Moon

B: Waxing Crescent

C: First Quarter

D: Waxing Gibbous

E: Full Moon

F: Waning Gibbous

G: Last Quarter

H: Waning Crescent

10. LOW BATTERY INDICATION:

The low battery icon “☐” will appear at particular channel indicating that thermo sensor unit of the channel is in low battery status. The batteries should be replaced.

11. BACKLIGHT

Press "SNOOZE/LIGHT" button (B1), back light states for 5 seconds.,

12. PRECAUTIONS

• Use a pin to press the reset button (B7) if the Unit does not work properly.
• All Setting Modes will automatically exit in 15 seconds without any adjustment.
• The clock loses its time information when the battery is removed.
• Avoid placing the clock near interference sources/metal frames such as computer or TV sets.
• Do not expose it to direct sunlight, heavy heat, cold, high humidity or wet areas
• The outdoor sensor must not be set up and installed under water.
  Set it up in away direct sunlight and Rain
• Never clean the device using abrasive or corrosive materials or products.
  Abrasive cleaning agents may scratch plastic parts and corrode electronic circuits
• If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail.
  The manufacturer will not take responsible for incorrect forecasting from this unit

13. SPECIFICATIONS

Indoor Data:
Temperature range: 0 to 50 °C [+32 to +122 °F]
Temperature Units Measured: °C or °F [switchable]
Humidity Range: 20% to 99 %
Weather Forecast:	5 icons [sunny, slightly cloudy, cloudy, rainy & snow]
Outdoor Data:
Transmission distance:(open area)	30 m @ 433 MHz
Temperature range: -20 °C to 50 °C [-4 to +122 °F]
Mount: wall/table
Main Unit Dimensions: (w) 168 x (h) 129 x (d)	29 mm
Main Unit Weight (NETTO): 262 g
Thermo Sensor Dimensions: (w) 62 x (h) 101	x (d) 24 mm
Thermo Sensor Weight (NETTO): 64 g
Battery Requirements:
Base Station [indoor]: 2 x AA batteries
Sensors [outdoor]: 2 x AAA batteries

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

CE DECLARATION OF CONFORMITY

The manufacturer (authorised representative):

ETA a. s., Zelený pruh 95/97, 147 00 Praha 4 – Braník, Company Identification No.: 275 44 001,

hereby declares that the hereinafter described product:

Weather station with wireless data transmission:

Hyundai WSC 2180,

Purpose of use: signal transmission from the transmitting device to the receiving device in the Czech Republic and in the EU member states, used frequency: 433,92 MHz band

is in conformance with the provisions of the GD No. 426/2000 Coll. that is in conformity with the R&TTE Directive 1999/5/EC concerning radio and telecommunication devices.

The following technical regulations have been applied in assessing the conformance:

Harmonised standards:

ETSI EN 300 220-1 V2.3.1 (2010-02)

ETSI EN 300 220-2 V2.3.1 (2010-02)

ETSI EN 301 489-3 V1.4.1 (2002-08)

ETSI EN 301 489-1 V1.8.1 (2008-04)

ETSI EN 300 220-1 V2.1.1 (2006-04)

ETSI EN 300 220-2 V2.1.2 (2007-06)

EN 60950-1:2006+A11:2009+A1:2010+A12:2011

The test results are provided in the Test Reports No. GTSE12060069901, GTSE12060069902, GTSS12060032001, GTSE11020009801, GTSE11020009802 and GTSS11020006101 issued by the GTS – Global United Technology Services Co., Ltd., China.

The conformity has been assessed according to the Annex No. 3 to GD No. 426/2000 Coll.

We declare that the product complies with the basic requirements of the above-mentioned GD, i.e. the user safety and health protection, electromagnetic compatibility and effective utilisation of the spectrum.

Declaration issuance date and venue: 19.7.2012, Praha Authorised person's stamp:

1. FUNKCIÓK

Technical line drawing of a mechanical part with labeled dimension D8 (no text or symbols beyond label)

Simple line drawing of a sun and two birds in the sky, labeled 'Napos' (no text or symbols on the diagram itself)

Simple line drawing of stylized clouds with no text or symbols

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Licensed by Hyundai Corporation, Korea
