WS 2202 - Weather Station HYUNDAI - Free user manual and instructions

Product Type	Weather Station
Brand	Hyundai
Model	WS 2202
Display Type	Color LCD
Main Unit Power Supply	DC 4.5V adapter (included) or 2x AA batteries (not included)
Outdoor Sensor Power Supply	2x AAA batteries (not included)
Indoor Temperature Range	0°C to +50°C (+32°F to +122°F)
Outdoor Temperature Range	-20°C to +50°C (-4°F to +122°F)
Humidity Range (Indoor)	20% to 99% RH
Radio Controlled Clock	DCF-77, automatic synchronization
Manual Time Setting	Yes, with time zone adjustment
Alarm Function	Daily alarm with snooze (5 min, up to 7 times)
Weather Forecast	5 icons: Sunny, Slightly Cloudy, Cloudy, Rain, Freezing/Snow
Moon Phase Display	8 phases
Number of Outdoor Channels	Up to 3 (1 sensor included)
Transmission Frequency	433 MHz
Transmission Range (open area)	30 meters (98 feet)
Backlight	Adjustable HI/LO dimmer, 5-second light button
Calendar	Perpetual up to year 2099, day of week in 8 languages
Temperature Probe	1.5m cord probe for extended range (-50°C to +70°C)
Low Battery Indicator	Yes, for outdoor sensor
Mounting Options	Main unit: table stand; Sensor: wall mount or table stand
CE Compliance	Yes
Manual Languages	Multiple (see manual)

Frequently Asked Questions - WS 2202 HYUNDAI

How do I set the time manually?

Press and hold the MODE/SET button (B2) for 3 seconds to enter clock/calendar setting mode. Use + (B4) or - (B3) to adjust each value (hour, minute, second, year, month, day, time zone, language) and press MODE/SET to confirm. The setting sequence is: Time zone, Hour, Minute, Second, Year, Month, Day, Time Zone, Day-of-week language.

How do I change the batteries in the outdoor sensor?

Open the back cover of the thermo sensor. Insert 2x AAA batteries observing polarity (+ and - marks). The sensor will automatically transmit temperature to the main unit.

Why is my outdoor temperature showing - -.- ?

This indicates the main unit has not received a signal from the outdoor sensor. Wait 3 minutes after inserting batteries. If still not receiving, press and hold the CHANNEL button (B9) for 3 seconds to manually search for the sensor. Ensure the sensor is within 30m (98ft) in open area.

How do I set the alarm?

Press MODE/SET repeatedly until the alarm time is displayed (showing 'AL'). Then press and hold MODE/SET for 3 seconds to enter alarm setting. Use + or - to adjust the hour and minute, then press MODE/SET to confirm. Press AL ON/OFF (B5) to turn the alarm on or off.

What do the weather forecast icons mean?

There are 5 icons: Sunny (clear), Slightly Cloudy, Cloudy, Rain, and Freezing or Snow (shown when forecast is rain and outdoor temp below 0°C). The frost alert 'ICE' appears when outdoor temp is between -2°C and +3°C.

How do I set the correct weather for accurate forecast?

After inserting batteries, press and hold the WEATHER button (B8) for 3 seconds until the weather icon flashes. Use + or - to select the current weather condition, then press WEATHER to confirm. The forecast will become accurate after 6 hours.

Can I add more than one outdoor sensor?

Yes, you can connect up to 3 outdoor sensors. Each sensor must be set to a different channel (CH1, CH2, or CH3) using the channel select switch (D5) before inserting batteries. The main unit will cycle through channels when you press the CHANNEL button.

How do I use the temperature probe?

Insert the probe plug (D6) into the jack on the right side of the thermo sensor unit. Place the probe outdoors and keep the sensor indoors to avoid battery freezing in very cold temperatures (below -20°C). The probe is useful for measuring temperatures between -50°C and +70°C.

What does the moon phase display show?

The LCD shows the current moon phase among 8 phases: New Moon, Waxing Crescent, First Quarter, Waxing Gibbous, Full Moon, Waning Gibbous, Last Quarter, Waning Crescent.

How do I clean and maintain the weather station?

Clean the device with a soft dry cloth. Do not use abrasive or corrosive cleaners. Avoid exposure to direct sunlight, extreme heat, cold, high humidity, or wet areas. Do not immerse in water. If the unit malfunctions, use a pin to press the RESET button (B10).

USER MANUAL WS 2202 HYUNDAI

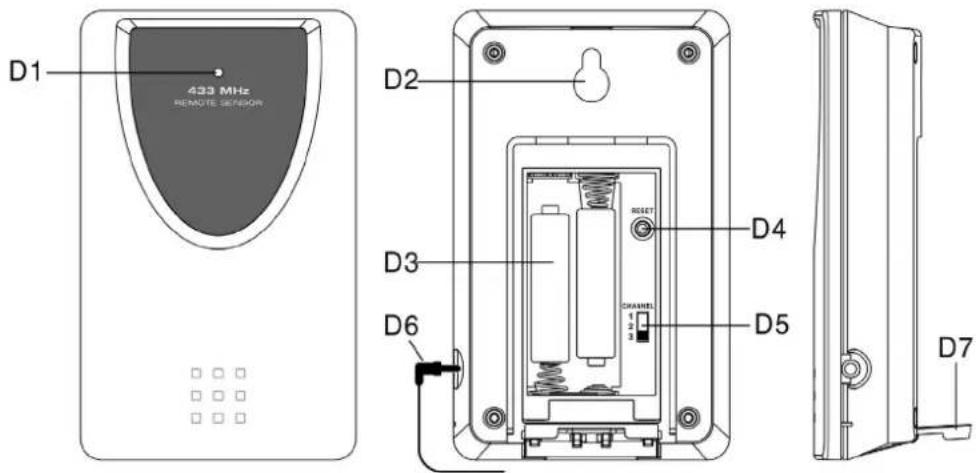

3. VENKOVNÍ TEPLOTNÍ SENZOR

Line drawing of a portable electronic device with a black cable and plug, no text or symbols present

5. INSTALACE

5.1 Hlavní jednotka

Simple image showing a white sphere on a black background labeled 'Sunny' (no other text or symbols)

Poznámka:

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Line drawing of a portable electronic device with a black cable and plug, no text or symbols present

6. FUNKCIE PREDPOVEDE POČASIA

6.1 Prevádzka

Simple image showing a white sphere on a black background labeled 'Sunny' (no other text or symbols)

Poznámka:

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

B5: Przycisk "AL ON/OFF"

B8: Przycisk "WEATHER"

B9: Przycisk "CHANNEL"

B10: Przycisk "RESET"

Line drawing of a portable electronic device with a black cable and plug, no text or symbols present

5. INSTALACJA/MONTAŻ

5.1 Stacja pogodowa

Simple image showing a white sphere on a black background labeled 'Sunny' (no other text or symbols)

Informacje:

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

-Sunny, Slightly Cloudy, Cloudy, Rainy and Snow animation

1.2 Time

-Radio controlled time with Manual Time setting option
-Dual Time setting
-12/24 hour user selectable
-Daily Snooze Alarm function
-Perpetual Calendar Up to Year 2099
-Day of week in 8 languages user selectable

1.3 Humidity

-Measurable range: 20 \~ 99 %
-Max/Min Memory

1.4 Temperature

-Indoor measurable range: 0 \~ 50 °C [+32 \~ +122 °F]
-Measures °C/°F user selectable
-Outdoor measurable range: -20 \~ 50 °C [-4 \~ +122 °F]
-Max/Min Memory [indoor & outdoor]

1.5 Wireless Outdoor Sensor

-Low-battery indicator for Outdoor Thermo Sensor
-Wall Mount or Table Stand
-One Wireless Thermo Sensor Included
-433 MHz RF transmitting frequency
-30 meter [98 feet] transmission range in an open area

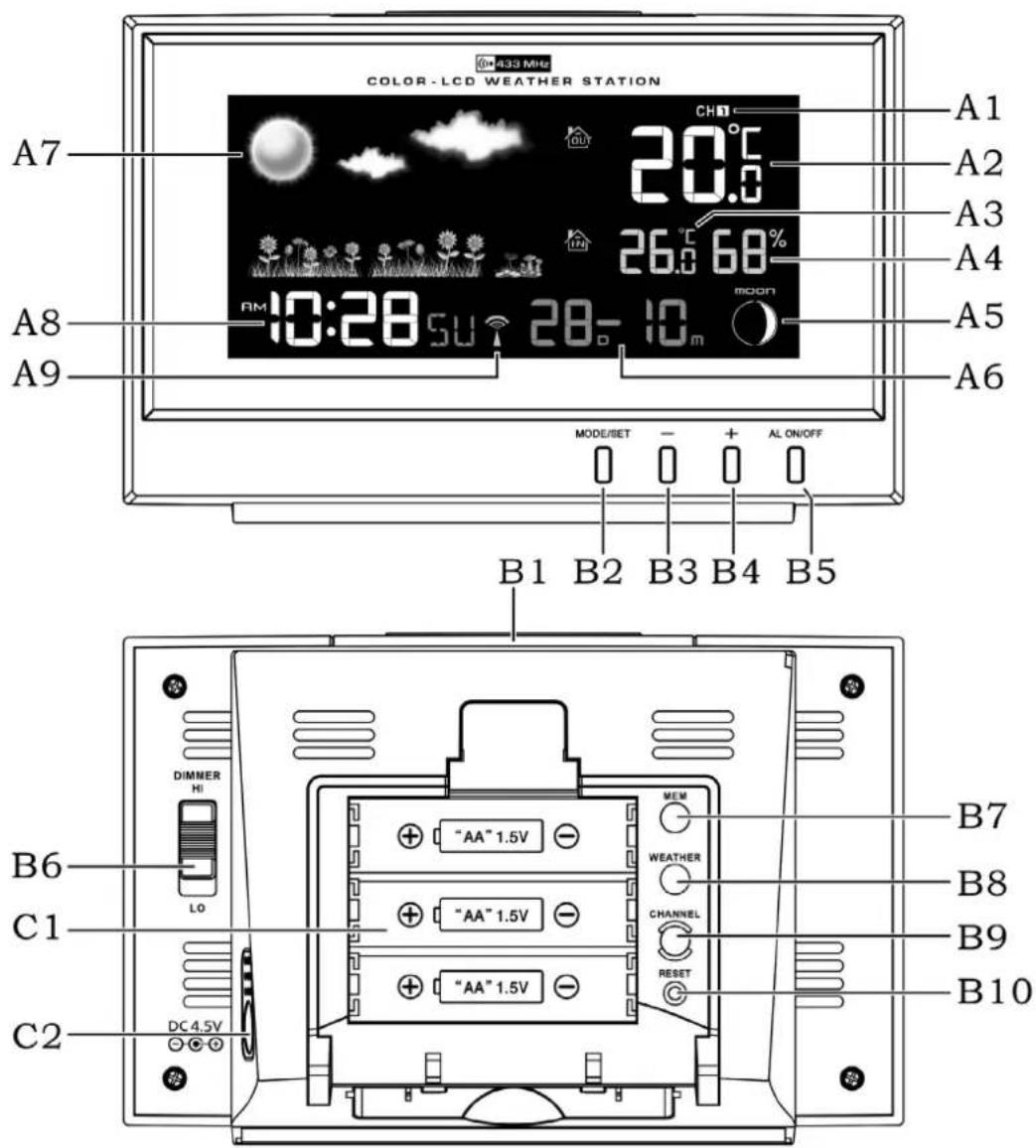

2. MAIN UNIT APPEARANCE

2.1 Part A-LCD

A1: Outdoor Temperature Channel

A2: Outdoor Temperature

A3: Indoor Temperature

A4: Indoor Humidity

A5: Moon Phase

A6: Date

A7: Weather Forecast

A8: Time

A9: Radio Controlled Icon

2.2 Part B- Buttons

B1: "SNOOZE/LIGHT" button

B2: "MODE/SET" button

B3: "-" button

B4: “+” button

B5: "AL ON/OFF" button

B6: DIMMER "HI/LO" Slide

Switch

B7: "MEM" button

B8: "WEATHER" button

B9: "CHANNEL" button

B10: "RESET" button

2.3 Part C- Structure

C1: Battery Compartment

C2: DC Input

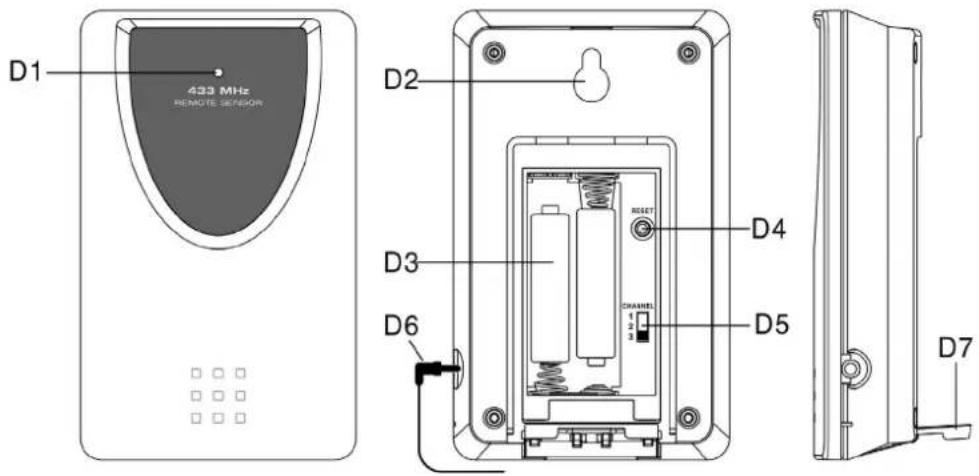

3. OUTDOOR THERMO SENSOR

D1: Transmission Indication LED
D2: Wall Mount Hole
D3: Battery Compartment
D4: "RESET" button

D5: Channel Select Switch
D6: Temperature Probe Plug & Jack
D7: Stand

4. GETTING STARTED

4.1 Main Unit:

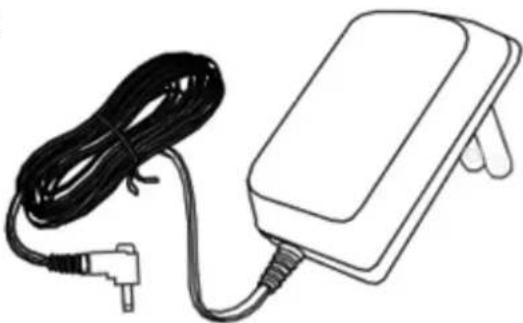

• Plug in adapter or remove rear compartment and insert batteries
• When connecting with the adaptor on the premise that AA batteries have been installed correctly, this product will switch to the external power supply automatically

4.2 Outdoor Thermo Sensor

• Batteries compartment of thermo sensor is locating behind the back cover.
• Insert 2 x AAA batteries observing polarity [“+” and “−” marks]

5. INSTALLATION

5.1 Main Unit

Place the main unit onto any flat surface.

5.2 Outdoor Thermo sensor

The remote sensor should be securely mounted onto a horizontal surface.

Note: Transmissions between receiver and transmitter can reach up to 30 m in open area. Open Area: there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc.

Line drawing of a portable electronic device with a black cable and plug, no text or symbols present

6. WEATHER FORECAST FUNCTION

6.1 Operation

• After Batteries inserted, OR holding “WEATHER” button (B8) for 3 seconds, weather icon flash (A7) on the LCD. Enter the current weather pressing “-” (B3) or “+” (B4) button. Press “WEATHER” (B8) button to confirm the setting. The weather forecast may not be accurate if the current weather entered is not correct.
• The current weather status should be entered again if the altitude of the Main Unit is changed. (Barometric pressure is lower at higher altitude location. Therefore, altitude change will affect the weather forecast). The weather station will start the first forecast at 6 hours later after the current weather status is entered.

6.2 Weather Conditions

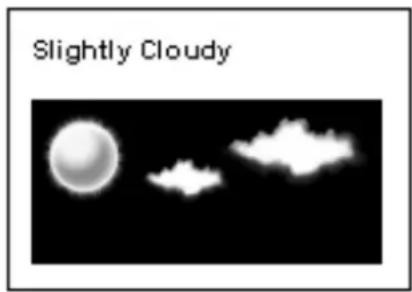

There are totally 5 different weather status animations in the weather forecast.

Simple image showing a white sphere on a black background labeled 'Sunny' (no other text or symbols)

Note:

• "Freezing or snow" is shown if the weather forecast is Rainy and outdoor temperature (any channel) under 0 °C.
• Frost Alert: “ICE” is shown if the outdoor temperature (any channel) is between -2^ +3^ .
• If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail. The manufacture will not hold responsible for any trouble that may come up due to wrong forecasting from this unit.

7. THERMOMETER

7.1 RF Transmission Procedure:

• The main unit automatically starts receiving transmission from outdoor thermo sensor for outdoor temperature after weather condition setting.
• The thermo sensor unit will automatically transmit temperature signal to the main unit after batteries inserted.
• For having more than one external transmitter (Maximum3), select the Channel, CH1, CH2 or CH3 to ensure each sensor is transmitting difference channel before inserting batteries. The channel select switch (D5) is at the back of the thermo sensor.
• If main unit failed to receive transmission from outdoor thermo sensor in first 3 minutes after the batteries inserted (“- - . -” display on the LCD), hold “Channel” button (B9) for 3 seconds to receive transmission manually. RF icon “flashes on the LCD.

Note: Buttons (except "Channel"&"Light" buttons) will not function while scanning for thermo sensor's signal unless they are well received or stopped manually.

7.2 Temperature& Humidity

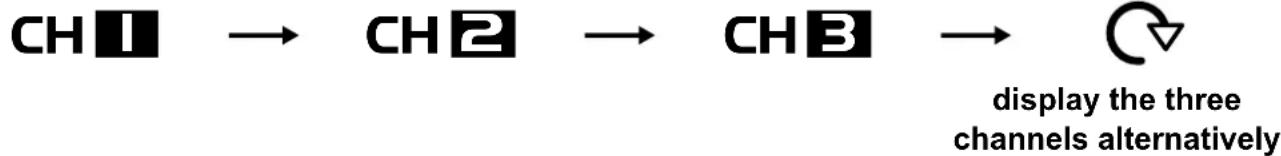

(1) Outdoor Temperature --- Channel Selection

- Press “CHANNEL” button (B7) to view the 3 Channel’s temperature. The sequence is shown as follow:

PRESS "CHANNEL" button select to view
    note right of D
        display the three
        channels alternatively
    end

- When viewing the record on CHANNEL 1 or 2, or 3, hold “CHANNEL” button (B9) for 3 seconds to cancel the record on this channel manually, and receive the transmission from channels automatically again.

• Press “-” button (B3) to select Indoor/Outdoor Temperature in Celsius mode or Fahrenheit mode.
• If the temperature is out of the measurable range, LL.L (beyond the minimum temperature) or HH.H (beyond the maximum temperature) will be shown on the LCD.

(3) Maximum/Minimum Temperature & Indoor Humidity Recording Function:

• Press "MEM" button (B7) to show the maximum recorded Indoor Outdoor Temperature and Indoor Humidity. "MAX" is shown on the LCD.
• Press "MEM" button (B7) again to show the minimum recorded Indoor/Outdoor Temperature and Indoor Humidity. "mls shown on the LCD.

(4) The use of 1.5 m cord Temperature Probe:

• Insert the probe plug (D6) to the jack on the right hand side of the Thermo Sensor Unit.
• Put the cable outside and leave the Thermo Sensor Unit in indoor area to avoid freezing up the battery when the outdoor temperature is below -20^ .
• Always use the temperature probe to sense the temperature when the temperature is between the following range: -50^ 0^ and +50^ +70^

8. TIME AND ALARM SETTING

8.1 Radio Controlled Clock:

- After batteries inserted and main unit finishes receiving the transmissions from outdoor thermo sensor, the clock automatically starts to scan the DCF time signal. Radio Control Icon “ 📋 (A9) flashes on the LCD.

(A9) flashes,Indicating now is receiving DCF signal

(A9) turns on,Indicating signal received successfully

(A9) disappear,Indicating signal reception failed

• The clock automatically scans the time signal at 3.00 a.m. every day to maintain accurate timing. If reception fail, scanning stops (“ ” on LCD disappear) and repeats again at 4.00 a.m. 5.00 a.m. and 6.00 a.m.
• The clock can be set to scan the time signal manually by holding “-” button (B3) for 3 seconds. Each reception takes about 5 minutes. If receptions fail, scanning stops. (“ ” on LCD disappear) and repeats again on next full hour. E.g. scanning failed at 8:20 a.m. It will scan again at 9:00 a.m.
• Stop scanning by holding “-” button (B3) for 3 seconds.
• "DST" shown on the LCD if it is in Daylight Saving Time Mode

Note: Buttons (except "LIGHT" button (B1)) will not function while scanning for DCF time signal unless they are well received or stopped manually.

8.2 Manual Time Setting:

• Hold "MODE" button (B2) for 3 seconds to enter Clock/Calendar setting mode.
• Press "+" (B4) or "-" (B3) button to adjust the setting and press "MODE" button (B2) to confirm each setting.
• The setting sequence is shown as follow: Time zone, Hour, Minute, Second, Year, Month, Day, Time Zone, Day-of-week language.
• 8 languages can be selected in Day-of-week, they are: German, French, Spanish, Italian, Dutch, Denmark, Russian, and English.
• The languages and their selected abbreviations for each day of the week are shown in the following table.

Language Sunday Monday		day Tuesday	day Wednesday	day Thursday	Friday Saturday
German, GE	SO	MO	DI	MI	DO	FR	SA
English, EN	SU	MO	TU	WE	TH	FR	SA
Russian, RU	BC	H	BT	CP	ЧТ	ПТ	СБ
Denmark, DA	SO	MA	TI	ON	TO	FR	LO
Dutch, NE	ZO	MA	DI	WO	DO	VR	ZA
Italian, IT	DO	LU	MA	ME	GI	VE	SA
Spanish, ES	DO	LU	MA	MI	JU	VI	SA
French, FR	DI	LU	MA	ME	JE	VE	SA

• The Time zone is used for the countries where can receive the DCF time signal but the time zone is different from the German time.
• When the country time is faster than the German time for 1 hour, the zone should be set to +1. Then the clock will automatically set 1 hour faster from the signal time received.

Note:

1) Second adjusted to zero only.
2) The Time Setting Mode will automatically exit in 15 seconds without any adjustment.

8.3 12/24 Hour Display mode:

Press “+” button (B4) to select 12 or 24 hours mode.

8.4 Daily Snooze Alarm Function:

- Press "MODE" button (B2) to select to view :

Time → Weekday → Alarm Time („AL“ Shown on the LCD)

• When viewing the Alarm Time, hold "MODE" button (B2) for 3 seconds to enter Alarm Time setting. Press "-" (B3) or "+" (B4) button to adjust the alarm time. Press "MODE" button (B2) to confirm the setting.
• Press "AL ON/OFF" button (B5) to switch alarm on or off. If it is on, " 🔍" show on the LCD.
• When Alarming, press "SNOOZE/LIGHT" button (B1) to activate the snooze alarm, ("⚡" flash on the LCD). The alarm will snooze for 5 minutes, then it alarms again. This snooze function can be enabled for maximum 7 times.
• Except "Snooze" button, press any buttons to stop the snooze alarm.

8.5 Dual Time Setting Function:

- Press "MODE" button (B4) to select to view:

Time → Weekday → Alarm Time → Dual Time ("DT" shown on the LCD)

- When viewing the Dual Time, hold "MODE" button (B2) for 3 seconds to enter Dual Time setting. Press "-" (B3) or "+" (B4) button to add on/back "hour", press "MODE" button (B2) to confirm and quit the setting.

9. MOON PHASE DISPLAY

The Moon Phase (A10) of each day is shown on the LCD.

A

B

C

D

E

F

G

H

A: New Moon

B: Waxing Crescent

C: First Quarter

D: Waxing Gibbous

E: Full Moon

F: Waning Gibbous

G: Last Quarter

H: Waning Crescent

10. LOW BATTERY INDICATION:

The low battery icon “☒” will appear at particular channel indicating that thermo sensor unit of the channel is in low battery status. The batteries should be replaced.

11. BACKLIGHT

- Slide Dimmer Hi/Lo Switch (B2) to select the bright or dark display

- Press "SNOOZE/LIGHT" button (B1), back light states for 5 seconds

12. PRECAUTIONS

- Use a pin to press the reset button (B10) if the Unit does not work properly.

- All setting modes will automatically exit in 15 seconds without any adjustment.

- The clock loses its time information when the battery is removed.

- Avoid placing the clock near interference sources/metal frames such as computer or TV sets.

- Do not expose it to direct sunlight, heavy heat, cold, high humidity or wet areas

- The outdoor sensor must not be set up and installed under water. Set it up in away direct sunlight and Rain

- Never clean the device using abrasive or corrosive materials or products. Abrasive cleaning agents may scratch plastic parts and corrode electronic circuits

- If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail. The manufacturer will not take responsible for incorrect forecasting from this unit.

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

CE DECLARATION OF CONFORMITY

The manufacturer (authorised representative):

ETA a. s., Zelený pruh 95/97, 147 00 Praha 4 – Braník, Company Identification No.: 275 44 001,

hereby declares that the hereinafter described product:

Weather station with wireless data transmission:

Hyundai WS 2202,

Purpose of use: signal transmission from the transmitting device to the receiving device in the Czech Republic and in the EU member states, used frequency: 433 MHz band

is in conformance with the provisions of the GD No. 426/2000 Coll. that is in conformity with the R&TTE Directive 1999/5/EC concerning radio and telecommunication devices and in accordance with the provisions of Government Decree No. 481/2012 Coll., which is in accordance with the Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment

The following technical regulations have been applied in assessing the conformance:

Harmonised standards:

ETSI EN 300 220-1 V2.4.1 (2012-05)

ETSI EN 300 220-2 V2.4.1 (2012-05)

ETSI EN 301 489-3 V1.4.1 (2002-08)

ETSI EN 301 489-1 V1.9.2 (2011-09)

ETSI EN 300 330-1 V1.7.1 (2010-02)

ETSI EN 300 330-2 V1.5.1 (2010-02)

EN 60950-1:2006+A11:2009+A1:2010+A12:2011

EN 62479:2010

The test results are provided in the Test Reports No. GTSE13090149101, No. GTSE13090149102, No. GTSE13090149103, No. GTSE13090149104 and No. GTSS13090070101, issued by the GTS – Global United Technology Services Co., Ltd., P.R.China and in the RoHS protocols for specific component and materials issued by the SGS-CSTC Ltd., PRChina.

The conformity has been assessed according to the Annex No. 3 to GD No. 426/2000 Coll.

We declare that the product complies with the basic requirements of the above-mentioned GD, i.e. the user safety and health protection, electromagnetic compatibility and effective utilisation of the spectrum.

Declaration issuance date and venue: 9. 10. 2013, Praha

Authorised person's stamp:

1. JELLEMZÖK

B5: "AL ON/OFF" gomb

Line drawing of a portable electronic device with a black cable and plug, no text or symbols present

5. TELEPÍTÉS

5.1 Főegység

Simple image showing a white sphere on a black background labeled 'Sunny' (no other text or symbols)

Megjegyzés:

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Licensed by Hyundai Corporation, Korea.
