Product Type	Video Door Phone System
Brand	Emos
Model	H1018
Display	7-inch TFT LCD
Communication	Hands-free audio and video
Outdoor Camera	With IR illumination for 0 Lux visibility
Door Release	Electric door release and gate control
Memory	SD card slot for missed call recording (AVI format)
Power Supply	230V/50Hz AC via included adapter
Cable Type	8-core cable; video signal via 75 Ohm coaxial recommended
Max Cable Distance	30 m (0.5 mm²), 50 m (0.65 mm²), 70 m (0.8 mm²), 115 m (1.0 mm²)
Installation	Wall-mount for monitor and camera unit
Call Duration	120 seconds per call
Photo Browsing	Browse captured images on monitor or PC via SD card
Video Recording	Manual or automatic recording on SD card
Maintenance	Clean with damp cloth; power off before cleaning
Safety Warning	Do not place near TV, high temperature, or damp areas; do not disassemble
Included Accessories	Monitor, wall-mount frame, screws, outdoor camera unit, camera wall-mount frame, power supply
Monitor Dimensions (approx.)	200 x 130 x 25 mm
Monitor Weight (approx.)	0.5 kg

Frequently Asked Questions - H1018 Emos

What is the maximum distance between the camera and monitor?

The maximum distance depends on the wire cross-section: 30 m for 0.5 mm², 50 m for 0.65 mm², 70 m for 0.8 mm², and 115 m for 1.0 mm². Use a 75 Ohm coaxial cable for video signal in areas with high interference.

How do I install the monitor and camera?

Mount the wall-mount frames at eye level. Drill holes for cables, fix frames with plugs and screws. Connect the camera to the monitor using the provided cable, then snap the monitor onto its frame. Finally, plug the power supply into the monitor and mains.

How do I answer a call and speak to the visitor?

Press the Talk button on the monitor to accept the call. The call duration is limited to 120 seconds. Press Talk again to communicate.

How do I release the door or gate?

Press the Electric door release / Gate button on the monitor while communicating with the visitor.

Does the system record missed calls?

Yes, if an SD card is inserted, the system automatically records video of missed calls in AVI format. You can browse recordings on the monitor or view them on a PC via the SD card.

How do I browse photos or videos on the monitor?

Press the Menu button, then use the navigation buttons to select Photo browsing or Video record. Long press (3 seconds) to access the function.

What type of SD card is supported?

The system uses a standard SD card (likely up to 32 GB, but not specified). Insert it into the SD card slot on the monitor for recording and storage.

How do I clean the monitor?

Clean the monitor with a damp cloth. Always power off and unplug the device before cleaning. Do not use abrasive cleaners or immerse in water.

What should I avoid to prevent damage?

Do not place the monitor near TVs, high temperatures, or damp areas. Protect the camera lens from direct sunlight to avoid pale images. Avoid drops and impacts. Do not disassemble any part of the system.

Is the system compatible with other Emos intercom models?

This manual covers models H1018 and H1019. They share the same wiring and operation. Compatibility with other models is not specified.

USER MANUAL H1018 Emos

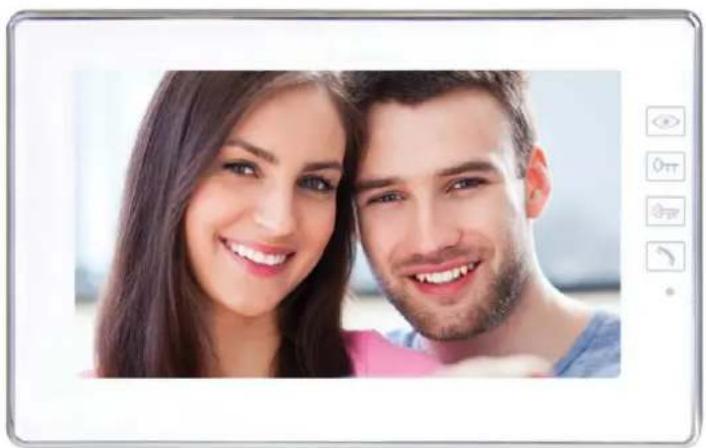

Close-up photo of a smiling couple (no text or symbols visible)

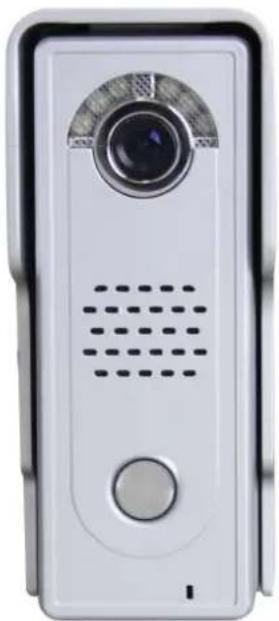

Front view of a white rectangular electronic device with a circular lens and control buttons (no visible text or symbols)

Close-up portrait of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

Video door phone system

• Pțovides audio and video connection between the țesidents and visitoțs.
• Enables electric doot lease and gate control
• Important +eatuțe o+ this system is higheț sa+ety and com+oțt +oț țesidents.

Basic function and possibility of the system)

• Communication between esidents and visitots
• Highet sa+ety
• Missed calls tecotding on SD catd +unction
• Electtic Doot lease and gate control
• Visual check o+ visitots behind the doot
• 7"TFTLCD display
• Hands-+tee communication
• Wall-mount installation o+ the monito;

- Illumination o+ the outdoor atea in +tont o+ the cameta unit. Cleat pictute when 0 Lux.

Content of delivery

A+te t delive ty , please check the content o+ this box acco ^tding to the

+ollowing list:

• monitoț 1 pc
• wall-mount +tame +ot video monitoț 1 pc
• pack o+ sctews 1 pc
• outdoor cameta unit 1 pc
• wall-mount +tame +ot outdoor cameta unit 1 pc
• powet suppliet 1 pc

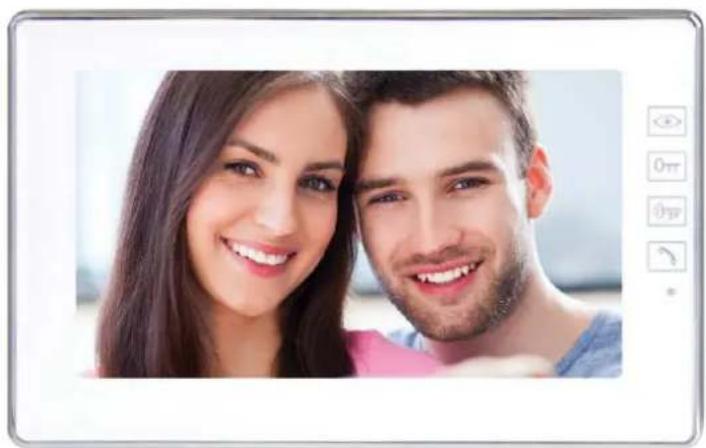

Technical description of the monitor

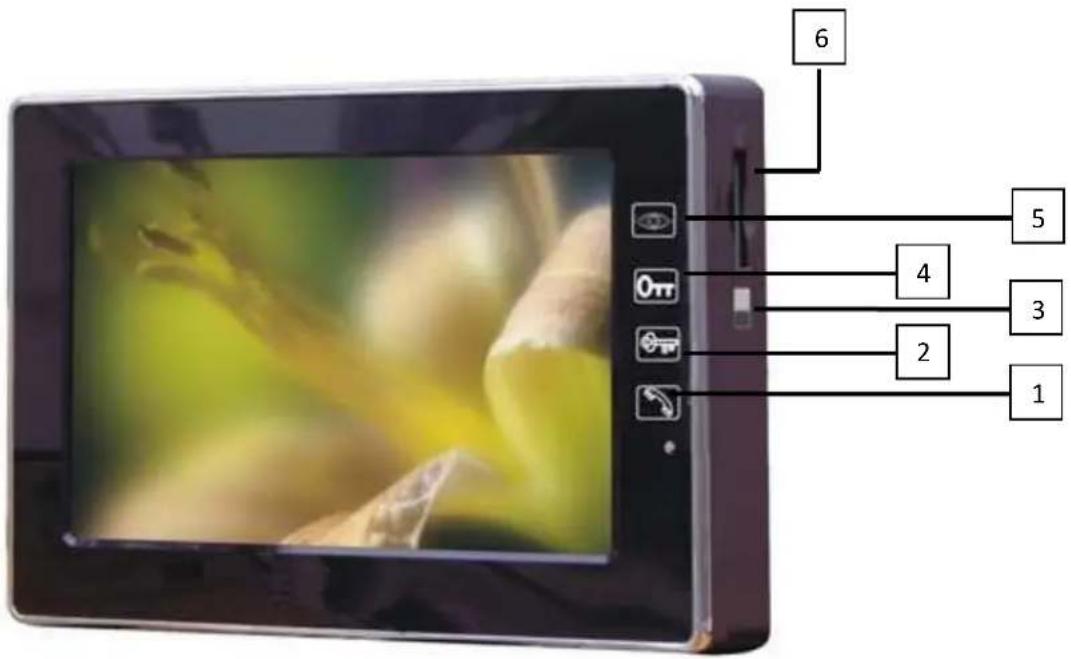

Description of the video monitor)

1 talk
2 lock
3 melody volume
4 gate
5 monitot (pteview)
6 SD catd slot

Installation of the video monitor)

Diagram of a camera module with lens, screwdriver, and screen (no text or symbols)

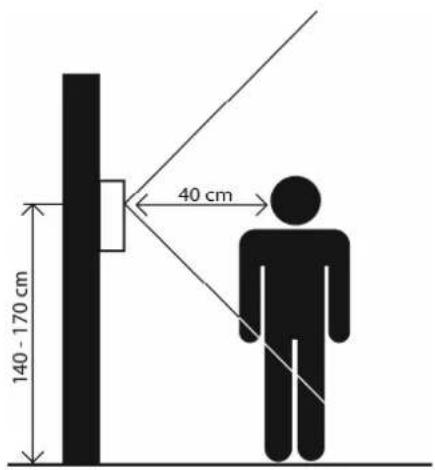

Where to install the video monitor

Choose the place +oṭ installation with ṣegaṭd to cabling o+ the system. It is ṣecommended to +ix the monitoṭ at the uset-eyes height.

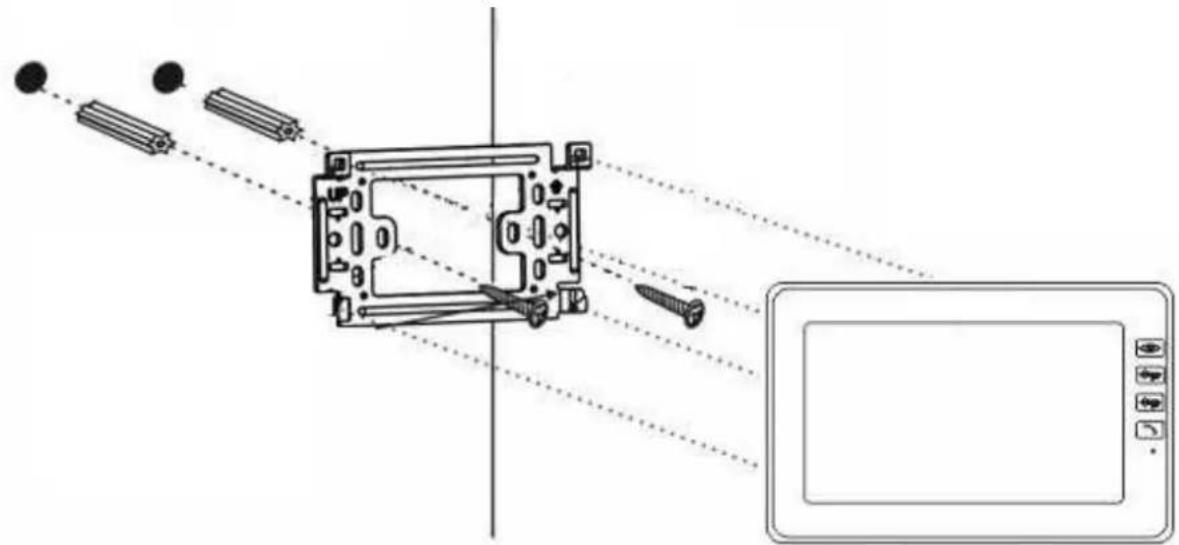

Installation of video monitor wall-mount frame

1. Matk the holes o+ the +tame on the wall and d till the holes.
2. D till the hole into the wall in the middle o+ the +tame +ot all cables coming to monito (camea unit cable and cable +tom powet suppliet, etc.).
3. Fix the +tame with wall plugs and sctews.

System connection

Wite the outdoor cameta unit to the monito by plugging the cable into descipted connections.

Video monitor fitting

1. Ptess the monitoț to the +țame.
2. Push the monitot down.

Connection to the mains power

1. Plug the powet suppliet to the mains 230V/50Hz.
2. Plug the powet suppliet connectot into the descipted connection onto the monitot.
3. When powet is ptesent on the video monitoş the LED will be lit on the monitoş.

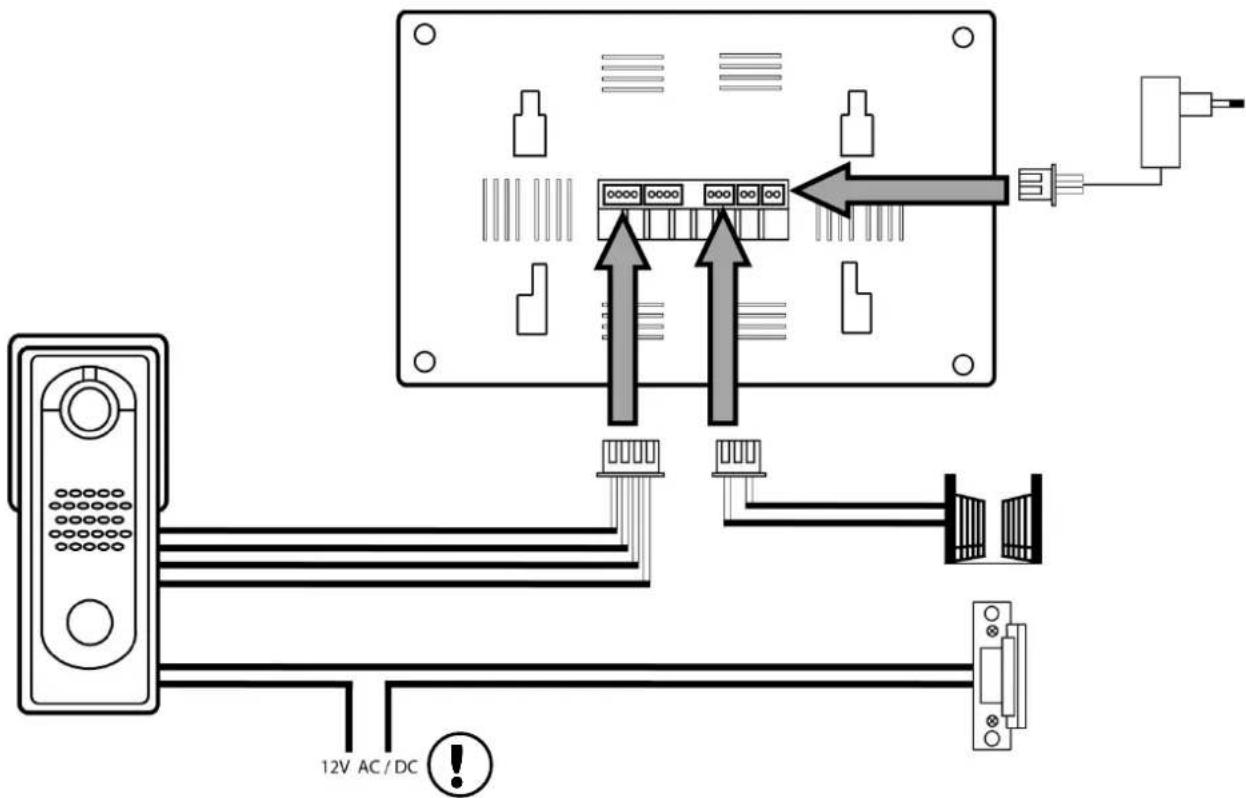

Wiring diagram of video phone system

Requirements on catling of the system

Video doot phone system uses 8 co-te cables. Maximal distances between came-ta unit and monito-t with tegatds to the ctoss sectional atea (CRA) o+ the wites is show in the +ollowing table.

In the ațeas with high possibility o+ inteț+ețence it is țecommended to use a 75 Ohm coaxial cable +oț connection o+ video signal.

CRA o+ the wi#e [mm] 0,5 0,65 0,8 1
Distance [m] 30 50 70 115

Operation of the video door phone

To call the tesidents by visitot p'tess the button on the outdoor cameta unit.

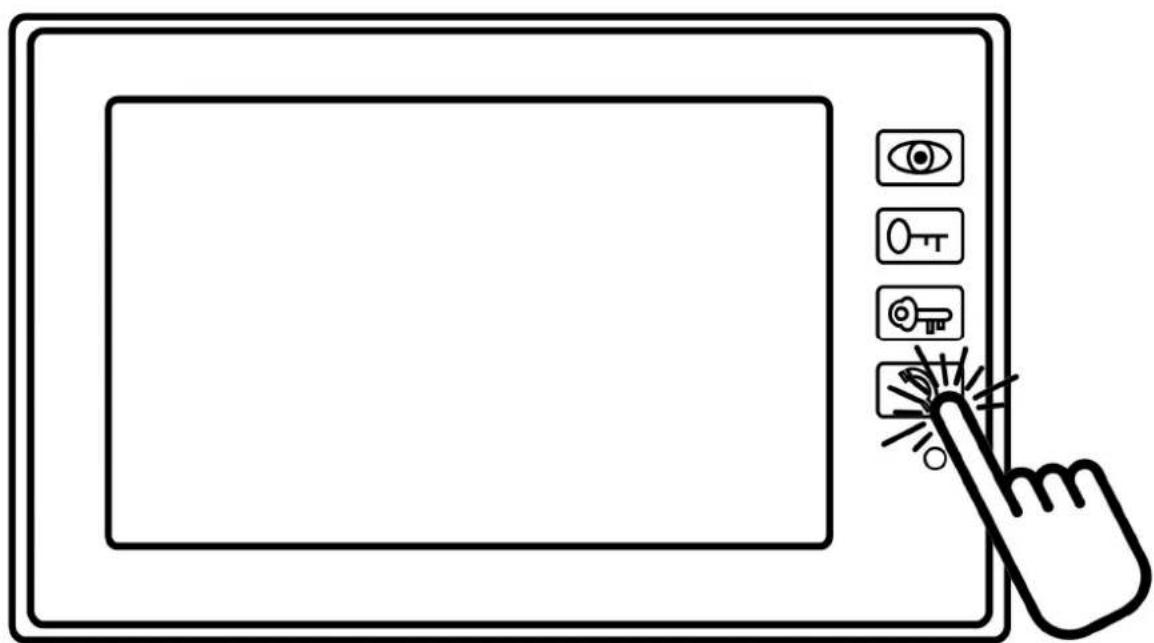

To accept the call, p'tess Talk button on the video monito. Calling time pejiod is limited to 120s.

- Foț communication between the monitoț and cameța unit, please pțess button

Talk

- To contțol an electric doot telease ot gate, please pțess

Electric door release / Gate

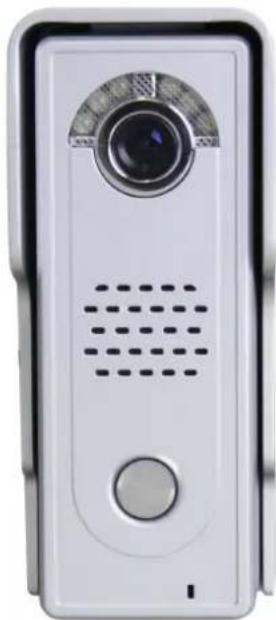

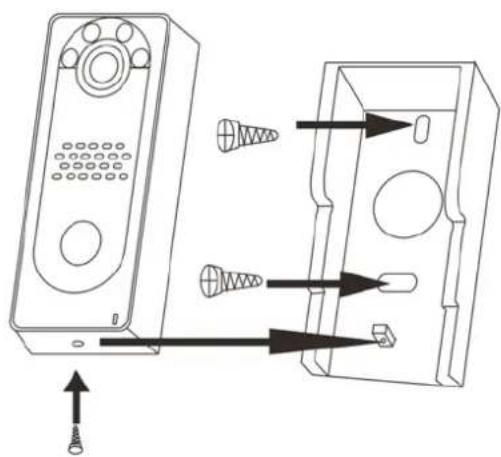

Camera unit installation

Technical line drawing of a device with two components: a remote control unit and a rectangular housing, showing screw and pin connections (no text or symbols)

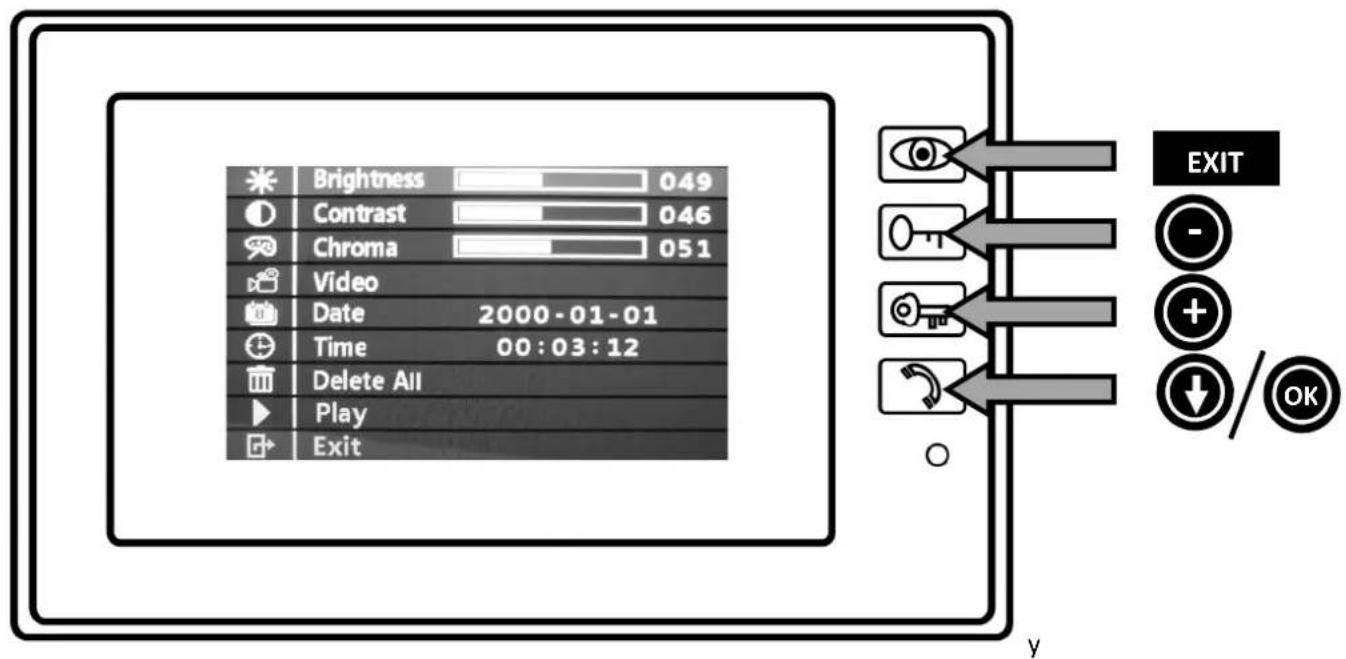

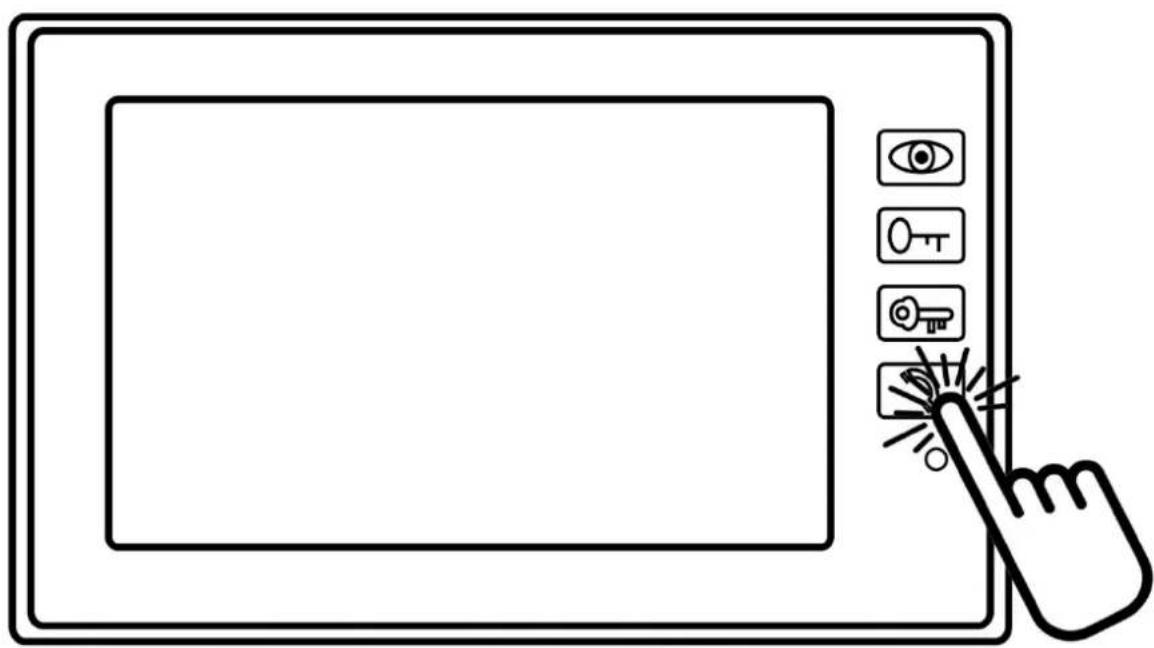

Operation of the video monitor

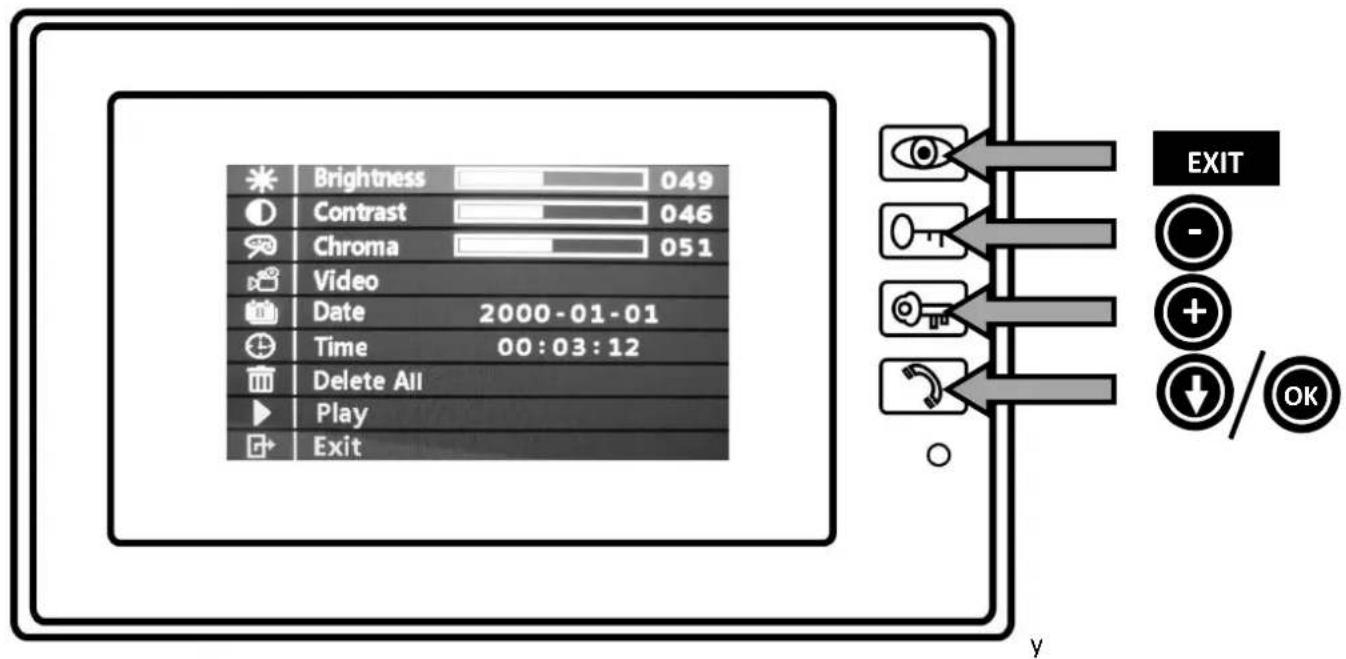

1. Menu

Line drawing of a hand pressing a button on a tablet device (no text or symbols)

YYYYYYYYYYYYYYYYYYYYYYYYYYYYYYYY

5 SEC.

y

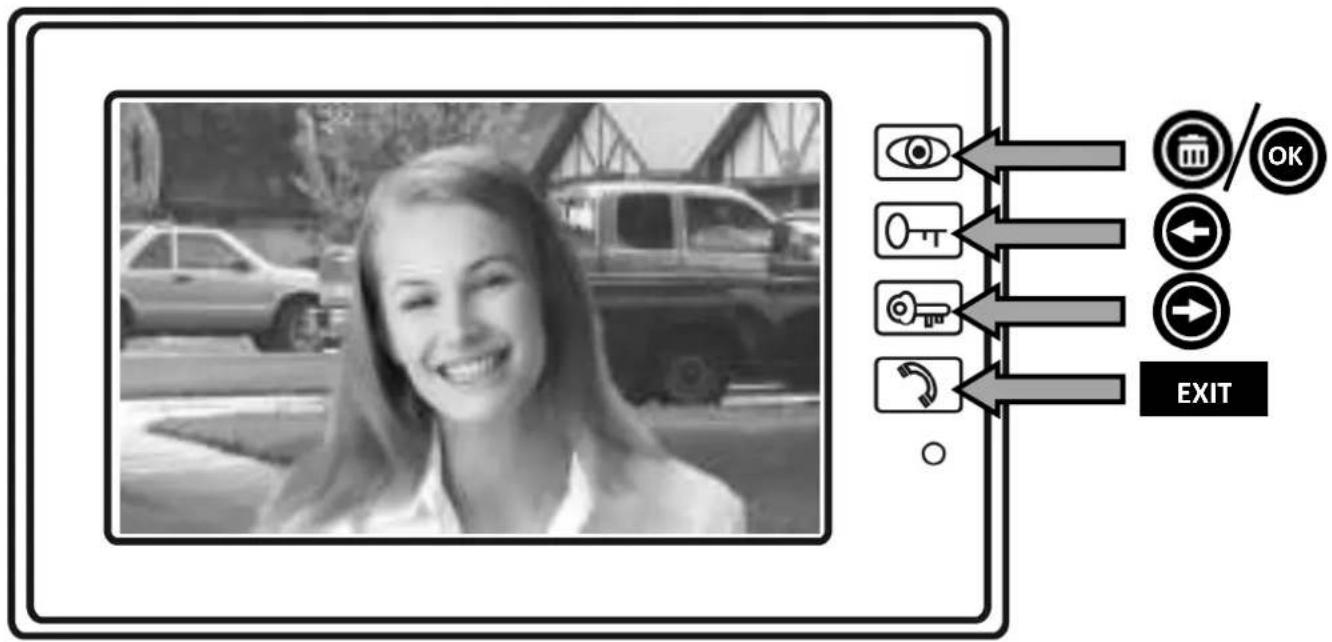

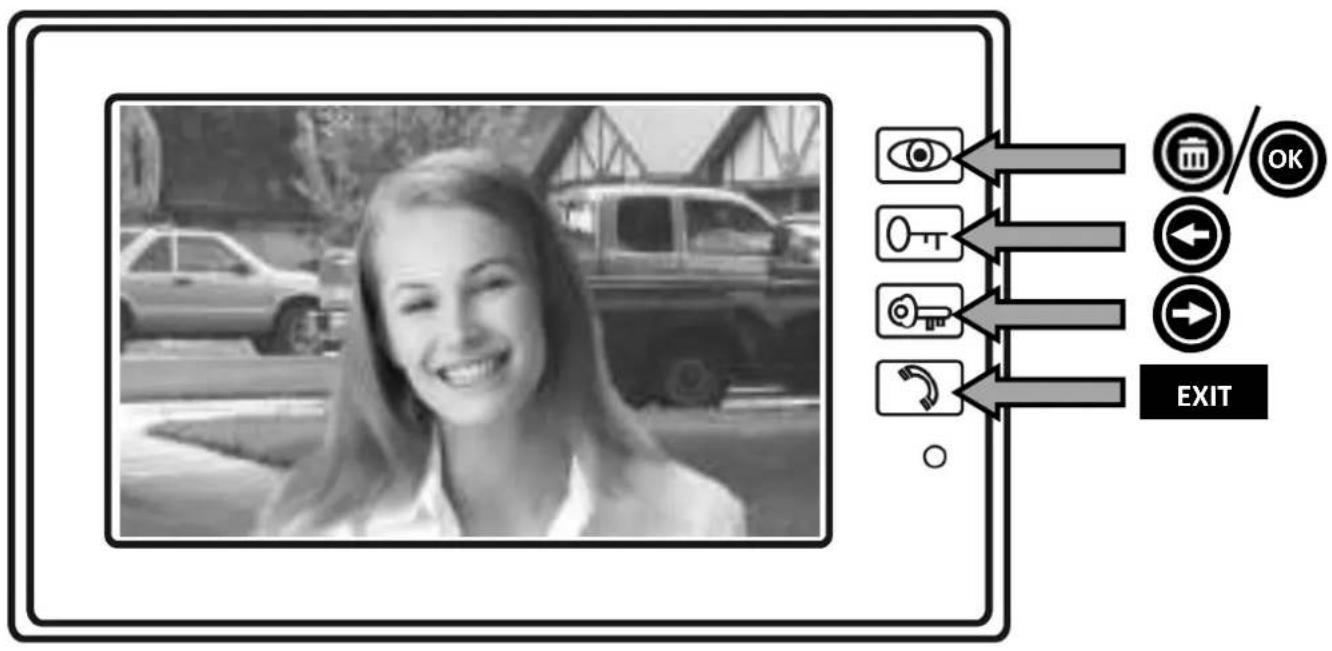

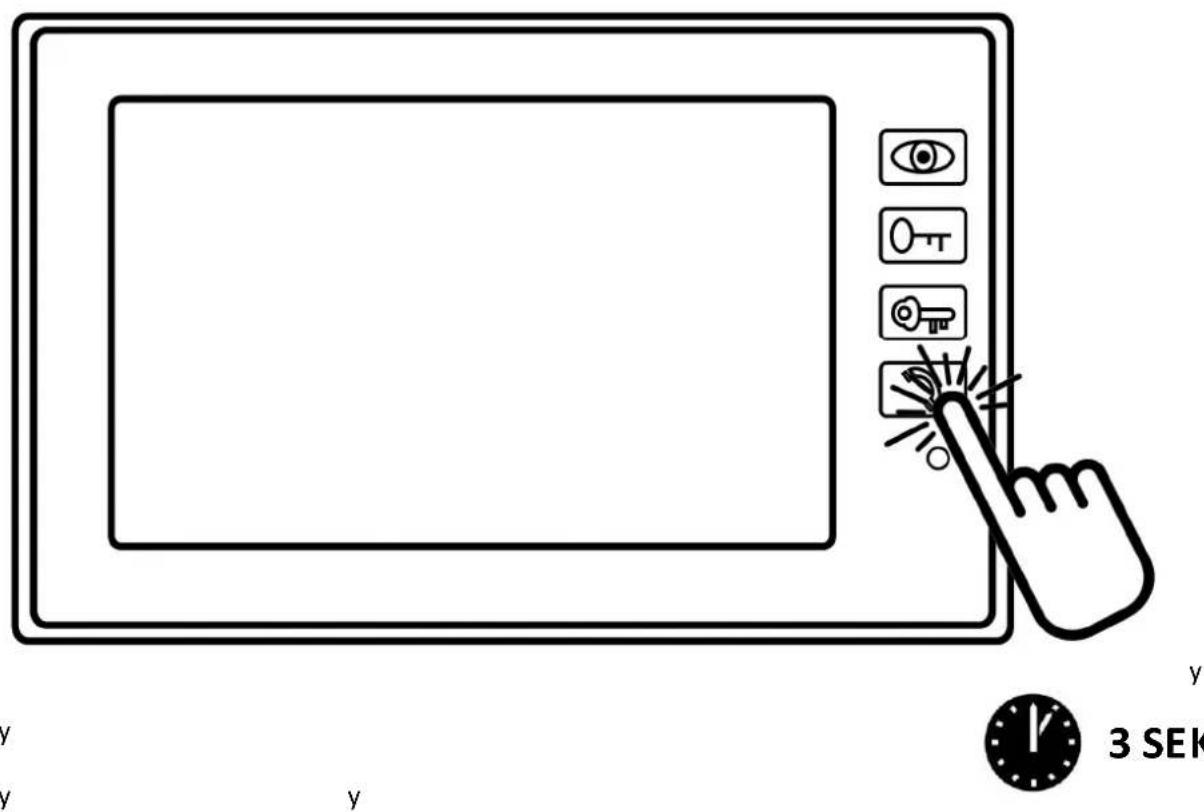

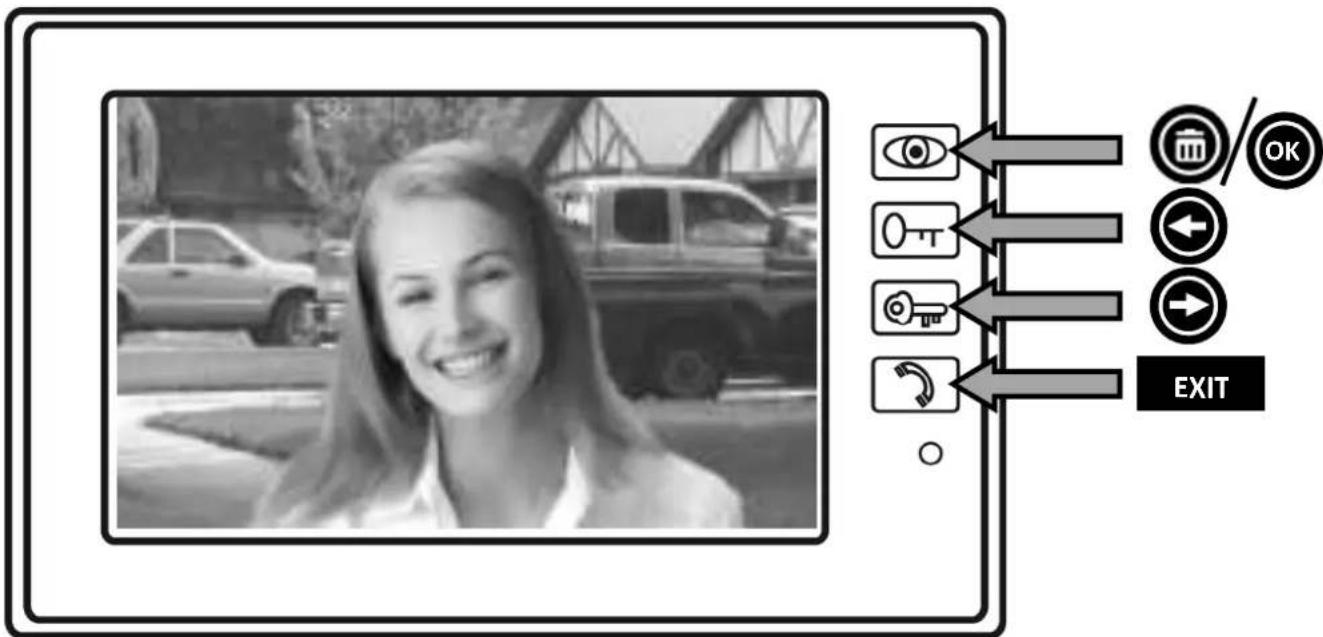

2. Photo trowsing function

Line drawing of a hand pressing a button on a tablet device (no text or symbols)

3 SEC.

y y

y y y

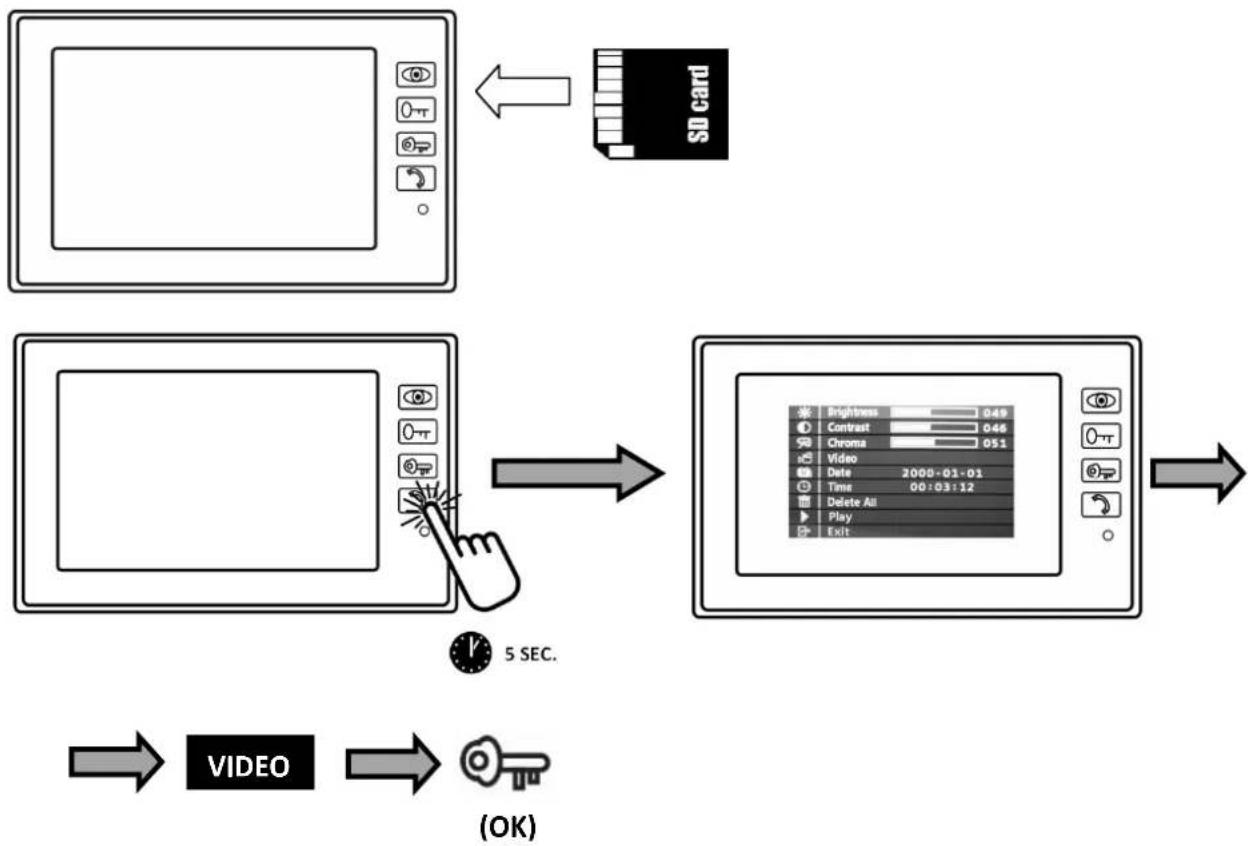

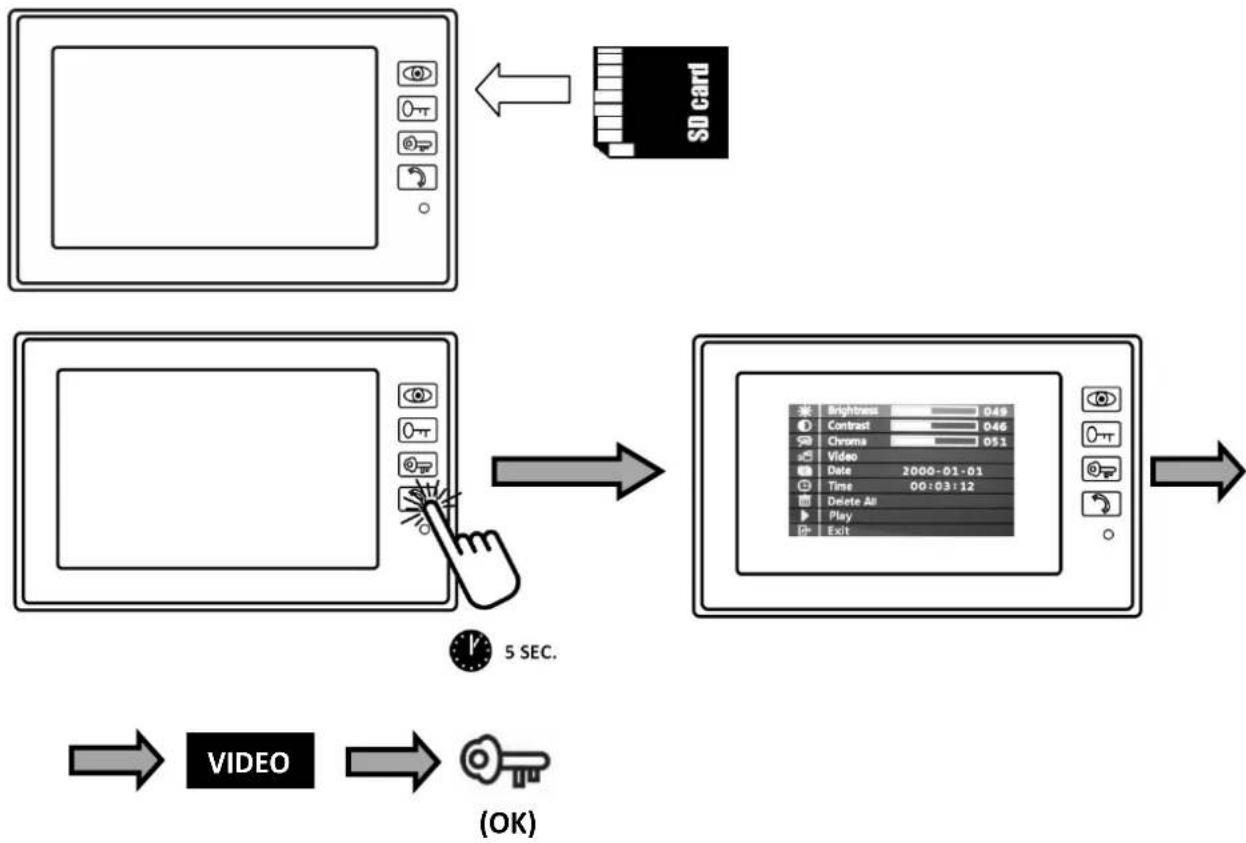

3. Video record function

"toqed +iles ate possible to btowse: a) at the video monitoş of b) on the PC with "D catd slot

Maintenance of the video monitor

Video monitoş is easy to maintain. It is țecommended to clean the video monitoş by wet cloth sometimes to achieve best quality o+ the displayed pictuţe.

Attention please!

It is strictly recommended that electric device is powered off and unplugged from the mains power during the maintenance!

Safety warning

• Do not place the mon_tot_neat to the TV-set ot_nto env_tonment w_th h_gh tempețatuțe, ot whete damp.
• Do not touch the TFT LCD d_splay o+ the mon_tot and do not ta@e apatt outdoor, un_t of any patts o+ the v_deo system.
• -totect the lens o+ outdoot cameta un_t +tom d_tect sun l_ght to avo_d hav_ng p_ctuțe on the mon_tot pale.
• Do not use the equipment where environment with btat ons. -totect the equipment +tom +alls.

Illustration of a multi-tiered air conditioner unit with no visible text or symbols

Abstract geometric shape with intersecting diagonals forming a 3D cube (no text or symbols)

Simple line drawing of a laboratory flask with a stopper inside, enclosed in a square frame (no text or symbols)

Illustration of a person holding a musical instrument crossed out by a diagonal line (no text or symbols)

Line drawing of a hand wiping a cloth or towel (no text or symbols)

EMOS

Close-up photo of a smiling couple, no visible text or symbols

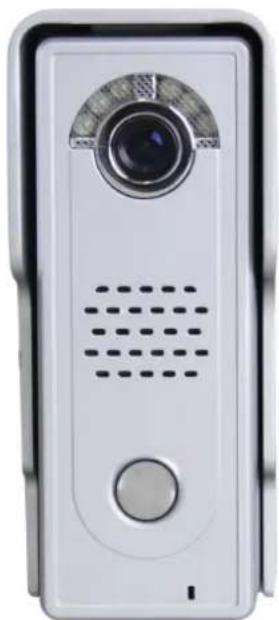

Front view of a white rectangular electronic device with a circular lens and control buttons (no visible text or symbols)

Close-up portrait of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

Diagram of a device with lens and screw components, showing light path from left to right (no text or symbols)

Diagram of a device with two components, one showing screw and pin connections, the other showing arrows pointing to internal components (no text or symbols)

Otsluha monitoru

1. Menu


Line drawing of a hand pressing a button on a tablet device (no text or symbols)

5 SEC.

y

Line drawing of a hand pressing a button on a tablet device (no text or symbols)

y

y

y

y

3 SEC.

1. Záznam video

Illustration of a multi-tiered industrial machine or container with no visible text or symbols

Geometric diagram of a square with diagonals and shaded faces, enclosed in a larger square frame (no text or symbols)

Simple line drawing of a laboratory flask with a stopper inside, enclosed in a square frame (no text or symbols)

Illustration of a person playing a flute with a cross-shaped background (no text or symbols)

Line drawing of a hand cleaning a cloth (no text or symbols)

EMOS

Close-up photo of a smiling couple (no text or symbols visible)

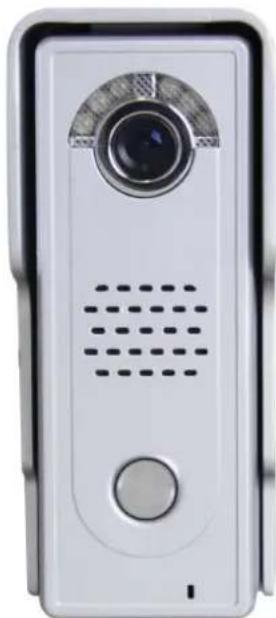

Front view of a white mobile phone door with a circular lens and ventilation grille (no visible text or symbols)

Close-up portrait of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

Diagram of a device with components and light paths, no text or symbols present

Technical line drawing of a device with two components, one showing screw and pin connections (no text or symbols)

Otsluha monitora

1. Menu


Line drawing of a tablet with a hand cursor clicking the button (no text or symbols)

y

1. Prezeranie fotografií


Line drawing of a hand pressing a button on a tablet device (no text or symbols)

y

y

y

y

3 SEC.

1. Záznam video

Illustration of a multi-tiered industrial machine with no visible text or symbols

Abstract geometric diagram with intersecting lines forming a 3D cube-like structure (no text or symbols)

Simple line drawing of a laboratory flask with liquid inside, enclosed in a square frame (no text or symbols)

Illustration of a person playing a flute with a cross-shaped background (no text or symbols)

Line drawing of a hand gripping a cloth or towel (no text or symbols)

EMOS

System wideodomofonu

H1018 / H1019

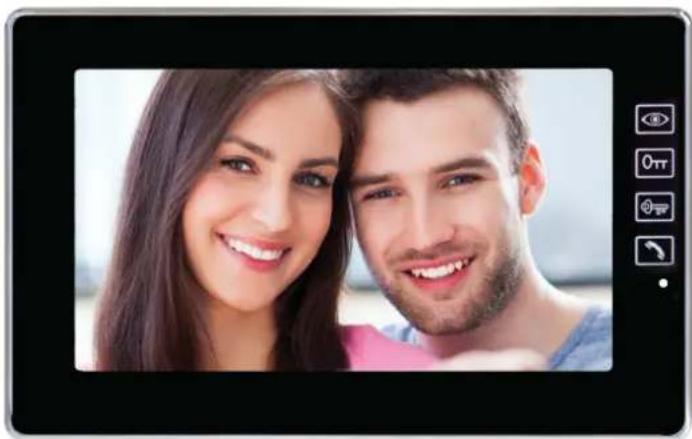

Close-up photo of a smiling couple, no visible text or symbols

Front view of a white mobile phone with a camera lens and control panel (no visible text or symbols)

Close-up portrait of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

System wideodomofonu

Diagram of a device with components and light rays, showing internal components and alignment lines (no text or symbols)

Diagram of a device with two components, one showing a remote control panel and others inserted into a housing (no text or symbols present)

Otsługa monitora

+. Menu

Line drawing of a tablet with five key icons and a hand cursor pointing at it (no text or symbols)

5 SEK.

1. Przeglądanie zdjęć


1. Zapis video

Illustration of a multi-chamber electric shock absorber with no visible text or symbols

Abstract geometric shape with intersecting diagonals forming a cube (no text or symbols)

Simple line drawing of a laboratory flask with liquid inside, enclosed in a square frame (no text or symbols)

Illustration of a person playing a flute with a cross-shaped background (no text or symbols)

Line drawing of a hand gripping a piece of dough (no text or symbols)

Close-up photo of a smiling couple (no text or symbols visible)

Front view of a white mobile phone door with a circular lens and control buttons (no visible text or symbols)

Close-up portrait of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

Diagram of a device with components and light paths, no text or symbols present

Technical line drawing of a device with two components, one showing screw and pin connections, the other showing internal components (no text or symbols)

Line drawing of a hand pressing a button on a tablet device (no text or symbols)

5 SEC.

y

Line drawing of a hand pressing a button on a tablet device (no text or symbols)

y

y

y

3 SEC.

3. Videó felvétel

Illustration of a multi-tiered industrial machine with wheels and internal compartments, enclosed in a square frame (no text or symbols)

Geometric diagram of a square with diagonals and shaded faces, enclosed in a larger square frame (no text or symbols)

Simple line drawing of a laboratory flask with a stopper inside, enclosed in a square frame (no text or symbols)

Illustration of a person holding a musical instrument crossed out by a diagonal line (no text or symbols)

Line drawing of a hand cleaning a cloth or towel (no text or symbols)

EMOS

DOMAČI VIDEONADZORNI SISTEM

H1018 / H1019

Close-up photo of a smiling couple in a studio setting, captured within a digital camera frame (no text or symbols visible)

Front view of a white mobile phone with a camera lens and control panel (no visible text or symbols)

Close-up portrait of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

DOMAČI VIDEONADZORNI SISTEM

Omogoča avdiovizualno povezavo z elektičnim vțatațjem in upțavljanje vțatne ključavnice.

Osnovna kočist tega sistema je povečanje udobja in vačnosti bivanja.

Osnovne funkcije in možnosti sistema)

Diagram of a camera module with lens, showing light path and screen view (no text or symbols)

Diagram of a device showing two components with screw and pin connectors, no text or symbols present

Upravljanje zaslona

1. Meni


Line drawing of a hand pressing a button on a tablet device (no text or symbols)

y

2. Ogledovanje slik

Line drawing of a hand pressing a button on a tablet device (no text or symbols)

y

y

y

3 SEK.

1. Snemanje video

Po zvonjenju ali pti@licu sli@e se posnete@ shtani na "D @ajtico v +otmatu AVI.

Illustration of a multi-tiered industrial machine or control unit with no visible text or symbols

Abstract geometric shape with intersecting diagonals forming a cube (no text or symbols)

Simple line drawing of a flask with liquid inside, enclosed in a square frame (no text or symbols)

Illustration of a person holding a musical instrument crossed out by a diagonal line (no text or symbols)

Line drawing of a hand gripping a rope or cloth (no text or symbols)

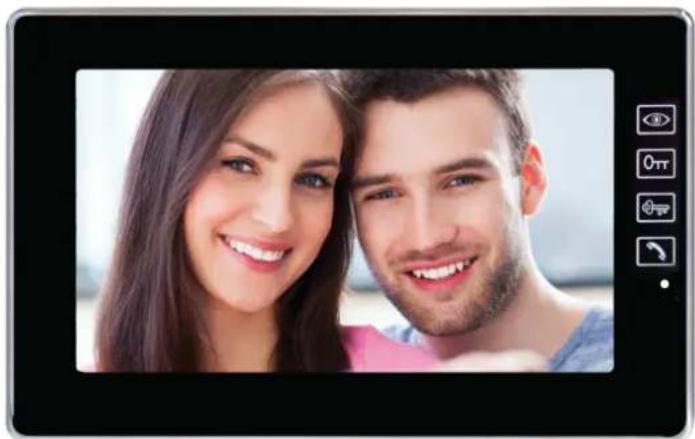

Close-up photo of a smiling couple (no text or symbols visible)

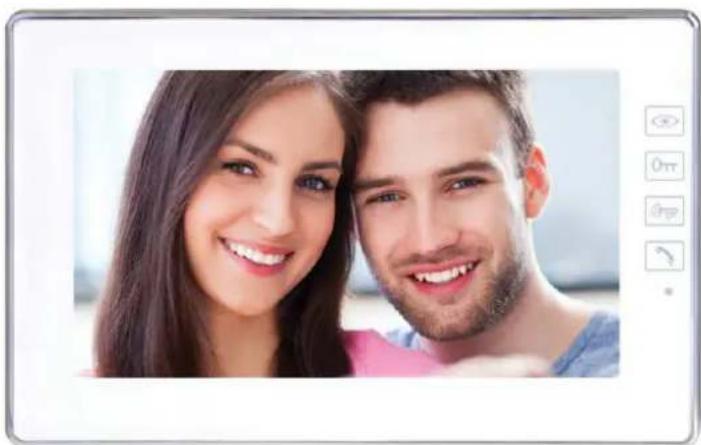

Front view of a white mobile phone door with a circular lens and control panel (no visible text or symbols)

Close-up photo of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

Diagram of a camera module with lens, showing light path and screen view (no text or symbols)

Diagram showing two electronic device components with screw and pin connections, no text or symbols present

Rukovanje s monitorom

1. Iztornik


Line drawing of a tablet with a hand cursor clicking the button (no text or symbols)

y

1. Pregledanje fotografija


Line drawing of a hand pressing a button on a tablet device (no text or symbols)

y

y

y

y

3 SEC.

1. Video snimanje

Na@on zvonjenja ili pti@aza sli@e snimanje se pohţani na "D @aţticu u +oţmatu AVI.

Illustration of a multi-tiered industrial machine or control unit with no visible text or symbols

Abstract geometric diagram with intersecting lines forming a cube shape (no text or symbols)

Simple line drawing of a flask with liquid inside, enclosed in a square frame (no text or symbols)

Illustration of a person holding a musical instrument crossed out by a diagonal line (no text or symbols)

Line drawing of a hand gripping a rope or cloth (no text or symbols)

EMOS

Close-up photo of a smiling couple in a studio setting, framed within a digital camera interface (no text or symbols on the main image)

Front view of a white mobile phone with a circular dial and control panel (no visible text or symbols)

Close-up portrait of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

Diagram of a device with lens and screw components, showing light path from left to right (no text or symbols)

Technical line drawing of a device showing two components with screw and pin connections (no text or symbols)

Line drawing of a tablet with five key icons and a hand cursor pointing at it (no text or symbols)

5 SEC.

Line drawing of a hand pressing a button on a tablet device (no text or symbols)

3 SEC.

Illustration of a multi-tiered industrial machine or container with no visible text or symbols

Geometric diagram of a square with diagonals and shaded faces, enclosed in a larger square frame (no text or symbols)

Simple line drawing of a conical flask inside a square frame with diagonal lines (no text or symbols)

Illustration of a person playing a flute with a cross-shaped background (no text or symbols)

Line drawing of a hand gripping a cloth or towel (no text or symbols)

EMOS

Close-up photo of a smiling couple (no text or symbols visible)

Front view of a white rectangular electronic device with a circular lens and control buttons (no visible text or symbols)

Close-up portrait of a smiling couple (no text or symbols visible)

*H+0+8 / *H+0+9

Diagram of a camera module with lens, screw, and screen components (no text or symbols)

Diagram of a device's internal components with screw and pin indicators, showing no text or symbols

Comanda monitorului

1. Meniu


Line drawing of a hand pressing a button on a tablet device (no text or symbols)

5 SEC.

1. Vizualizarea fotografiilor


Line drawing of a hand pressing a button on a tablet device (no text or symbols)

3 SEC.

1. Înregistrare video

Illustration of a multi-tiered industrial machine or control unit with no visible text or symbols

Geometric diagram of a cube with diagonal lines forming an X-shape (no text or symbols)

Simple line drawing of a laboratory flask with liquid inside, enclosed in a square frame (no text or symbols)

Illustration of a person playing flute with a cross-shaped background (no text or symbols)

Line drawing of a hand washing a rope (no text or symbols)
