USER MANUAL Julita 377 Zelmer
| NÁVO K POLDITOGOSTAVOVACTyrs 377 | 2-49 | MOTRYURU TIO SICHTAI/ALDIKONCKOBIVSKAHATa 377 | 100-15 | USERYURUKLJUDE EXTRACTORTya 377 | 25-26 |
| NÁVO NA OBSLJUOGOSTAVOVACTyrs 377 | 15-12 | MOTRYURU MA STORPEASOKOKECTISKRAVACHa 377 | 100-15 |
Julita
Sokowirówka
Juice Extractor
The image is too blurry to recognize any text content.
[Unreadable]
2.1.1 陈伟
[Unreadable]
2017年
[Unreadable]
(1) 2017年1月1日
5.9.10.16
(二)交易对方
M
[Unreadable]
zelmer
www.admter.nl
www.zeimer.com
A
B
C
D
E
PL
Szanowny Kllende!
Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.
In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.
Please read this user manual carefully. Pay special attention to important safety instructions. Keep this user manual for future reference.
Product features
The juice extractor is an appliance used to quickly extract juice from fruits and vegetables, separating the pulp at the same time. The extracting speed has been set to obtain optimal quality parameters of the extracted juices. The juice contains small fractions of fruits (vegetables) which are beneficial for the health, but which can slightly reduce the juice clarity. It is an intended effect, the manufacturer of the juice extractor came to the conclusion that it is more important to retain the nutritional, health and dietetic value of the extracted juice rather than its clarity. The amount of the juice received from 1kg of the product depends on the products' freshness as well as on the cleanliness of the sieve and the state of the grinding disc (e.g. for fresh carrot) and equals 50-60%. The parts that have contact with the processed products have been made of food grade materials.
Safety Operation Instructions
Before starting to use the appliance, become familiar with the whole content of this user manual.
Make sure that you understand the instructions given below.
Danger! / Warning!
Risk of injury
Do not start up the appliance when the supplying cord is damaged or the casing is visibly damaged.
the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.
The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.
Do not use the juice extractor if the rotating sieve is damaged.
Check if the lid is properly attached with the clams before operating the appliance.
Do not release the clams when the appliance is operating and the sieve is rotating.
Turn off the device and unplug it from an outlet before
replacing the equipment or approaching moving parts during use.
Before cleaning, assembling or disassembling the appliance, always unplug it first.
Use only the pusher to push the product.
Day special attention while operating the appliance in the presence of children.
Do not place the juice extractor on a wet surface.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Warning!
Risk of property damage
Do not disconnect the plug from the socket pulling the cord.
The appliance may only be plugged to an electrical socket (alternating current only) with a voltage in conformity with the one given on the rating plate of the appliance.
Do not overload the appliance with too much product or by pushing it too hard (with the pusher).
- switch off the appliance immediately after noticing strong vibrations or reduced speed. Clean the sieve and its housing.
- Stop the operation and unplug the appliance if the product is blocked in the feeding tube or on the grinding disc. Remove the cause of the blockage.
Immediately stop operation and unplug the appliance if any liquid has entered into the motor of the juice extractor. Return the juice extractor to a service point for inspection.
Do not expose the juice extractor to temperatures over 60°C.
Do not leave a plugged in appliance unattended.
Do not immerse the motor into water. Do not wash it under running water.
Do not use abrasive detergents such as emulsions, cream cleaners, polishes, etc. to clean the housing. They may remove the graphic information symbols such as: scales, marks, warning signs etc.
Place the motor body near a socket on a flat, stable surface so that the vent holes of the appliance are not covered.
Information on the product and hints on its use
The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions shall change.
Unplug the appliance after operation.
Use a soft brush to wash the metal parts especially the sieve with the sharp grinding disc.
Do not wash metal parts in the dishwasher. Aggressive detergents used in the dishwasher cause these parts to darken. Wash them manually using traditional dishwashing liquids.
Before the first use, wash thoroughly all elements of the equipment.
Technical data
The technical parameters are quoted on the nameplate of the product.
| Admissible time of non-stop operation | 15 minutes |
| An interval between repeated operation | 30 minutes |
| Noise generated by the appliance (LWA) | 80 dB/A |
The juice extractor type 377 is built in II class insulation ☐. The juice extractor meets applicable norms requirements.
The appliance meets the requirements of the directives: - Low voltage electrical device (LVD) – 2006/95/EC. - Electromagnetic compatibility (EMC) – 2004/108/EC.
The product is marked with CE symbol on the nameplate.

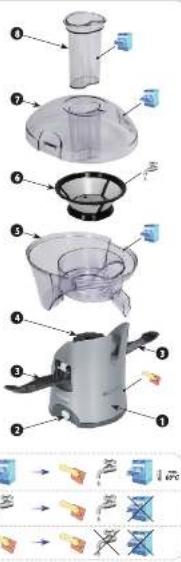

Description
(Fig. A)
1 Motor base
2 On/Off button
3 Clamps
4 Clutch
5 Juice bowl
6 Strainer basket
7 Cover
8 Food pusher
Before operation
(Fig. B)
Before the first use, dismantle the juice extractor, wash and dry the parts that have contact with the processed product.
① Place the motor on a hard, clean and dry surface near the electrical outlet.
② Grasp the clamps on both sides of the appliance and pull them away from the motor housing.
③ Lift the clamps, release the lid and lower the clamps.
④ Take out the food pusher. Remove the lid and the bowl together with the sieve.
Juice extractor assembly (Fig. C)
① Insert the bowl on the motor so that the groove fits into the slit of the motor housing.
② Insert the sieve on the driver, press until stop and check if it is correctly inserted and it turns easily.
③ Insert the lid on the bowl.
④ Lift both clamps and insert the fastenings in the openings of the lid.
⑤ Press the clamps to the housing (you will hear a characteristic click).
⑥ Place an appropriate utensil under the groove discharge.
Start up and operating the juice extractor (Fig. D)
Check if the switch is in the "0" position.
Onwind a sufficient length of the cord. The remaining cord can be stored in the housing. Put the remaining cord in the housing through the opening situated at the side of the juicer.
① Plug in the appliance and switch it on.
② Place the product to be processed into the feeding tube and gently press with the pusher.
After operation (after extracting the juice) (Fig. E)
① Switch off the appliance.
② Unplug the appliance.
Dismantle the parts – as in the case of the initial wash.
Maintenance
After you have finished clean the juice extractor thoroughly to avoid the residue drying out.
The motor base housing should be cleaned with a wet cloth and a small addition of a washing-up liquid.
- Use a brush to clean the strainer, clean it in a running water. Cleaning this part with your hand may result in skin injury.
Do not use metal brushes to clean the strainer basket.
The other components (juice bowl, cover and food pusher) should be cleaned after finishing the work in a lukewarm water with an addition of a washing-up liquid. Rinse them and dry. These component may be also cleaned in a dishwasher at max. 60°C (except the strainer).
Do not use aggressive detergents, such as emulsions, polishes, etc, as they may remove graphic symbols (marking, signs, etc.).
Dirt entrapped in corners and holes should be removed with a toothbrush or a bottle-brush.
Take care of transparent plastic components, which are sensitive to shocks and falls and may be damaged easily.
What to do when:
The juice extractor does not work:
Return the juice extractor to a service facility.
The juice is extracted in a poor manner, the juice extractor is subject to vibrations:
- switch the appliance off, clean the strainer from any residue, empty the waste receptacle,
Replace the strainer in case of mechanical damage.
How to extract juice from fruits and vegetables:
■ remove stones from fruits as they may damage the juice extractor.
Carefully wash the fruits and vegetables to be processed.
Wash berries directly before processing, as they quickly lose freshness.
Extracting juice from plums, blueberries, raspberries and soft pears is troublesome. The pulp of these fruits blocks the openings of the sieve. You can process these fruits by mixing them in small quantities with other fruits and vegetables. In such a case the sieve has to be cleaned more often.
While extracting juice from grapes, insert whole fruits into the feeding tube, without the stem.
●Out bigger fruits and vegetables into pieces before processing.
Insert the fruits and vegetables into the feeding tube after switching on the appliance.
The nutritional value of the raw juices is similar to the nutritional value of the fruits and vegetables, except that the juice does not contain fiber which is removed during juice processing.
obtained from some fruits and vegetables has a tendency to concentrate. This is due to the characteristics of the used products and it is not influenced by the juice extractor. The obtained juice might not be clear, but this kind of juice has the most nutritional value.
Ecology – Environment protection
Each user can protect the natural environment. It is neither difficult nor expensive.
In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.
When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.
Do not dispose into the domestic waste disposal!!!
The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling.
The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.
