Product Type	Electric Steam Iron
Brand	Eta
Model	628490010
Series	VerTo
Ironing Plate Coating	Eloxium or Ceramic layer (extreme hardness, scratch-resistant, excellent glide)
Power Supply	220–240 V ~ 50/60 Hz (typical)
Power Consumption	2000–2400 W (typical)
Water Tank Capacity	300 ml
Weight (without water)	Approx. 1.6 kg
Steam Settings	Adjustable via steaming regulator (0 to MAX)
Intensive Steam (Steam Shock)	Yes, for stubborn creases
Vertical Steam	Yes (VERTICAL SYSTEM) for hanging garments
Spray Function	Additional spray button for moistening fabrics
Drip Stop Function	Prevents water leakage when temperature is too low
Auto Shut-Off	30 seconds in horizontal position, 10 minutes in vertical position
Self-Clean System	Yes (SELF CLEAN button) to flush out scale
Anti-Calc System	Permanent decalcification (ANTI CALC) – no maintenance required
Temperature Control	Thermostat regulation wheel with fabric symbols (synthetic, silk/wool, cotton, linen)
Control Light	Indicates when set temperature is reached (turns off)
Handle	Closed, ergonomic for left and right hand
Cord Storage	Space for power cord wind-up on back
Filling Method	Via filling hole with included cup
Safety Features	Auto shut-off, drip stop, do not immerse, keep away from children under 8
Usage	Household only, not for commercial use

Frequently Asked Questions - 628490010 Eta

How do I use the steam function on my Eta 628490010 iron?

Fill the water tank (max 300 ml) and set the thermostat to a steam-compatible temperature (marked area on the dial). Once the control light turns off, move the steaming regulator away from 0 to start steam. The more you move it towards MAX, the more steam is produced.

What type of water should I use in the iron?

Use common clean drinking water. For hard water (above 15°N), mix tap water with distilled water: medium hardness 2:1, hard 1:1, very hard 1:2. Never use water from freezers, dryers, air conditioners, or water with additives like starch, perfume, or vinegar.

Why is water dripping from the ironing plate?

Possible causes: the water tank lid is not closed properly, the temperature is too low (set higher), the steam shock function was used at low temperature, or the SELF CLEAN button was pressed accidentally. Also, if the iron is placed horizontally with water in the tank and steam regulator not at 0, it may drip.

How do I clean the iron using the Self-Clean function?

Unplug the iron, fill half the water tank, set thermostat to MAX, plug in, wait for control light to turn off, then unplug. Hold the iron horizontally over a sink and press the SELF CLEAN button repeatedly (2-3 times) for about 5 seconds each. Water will flush out. Repeat if necessary, then iron a clean cloth to dry the plate.

Does the iron have an auto shut-off feature?

Yes, for models ETA 2284 and ETA 6284/10. The iron switches off automatically after 30 seconds of inactivity in horizontal position or if tilted, and after 10 minutes in vertical position. The control light flashes and a beep sounds. It restarts automatically when you move the iron.

Can I use the iron vertically for steaming hanging clothes?

Yes, the VERTICAL SYSTEM allows steaming of hanging textiles. Set thermostat to the steam area (max position), wait for control light to turn off. Stretch the fabric with one hand, move the iron vertically bottom-up while pressing the intensive steaming button (not continuously, max 10 times). Keep a distance of 10-20 cm to avoid burning.

How do I store the iron after use?

After finishing, unplug the iron and empty any remaining water (be careful, it may be hot). Let the iron cool down. Turn the steaming regulator to 0, wind the power cord around the cord wind-up space, and place the iron in the rest position (vertical) out of reach of children.

Why is my iron not producing steam?

Check that the water tank has water, the steaming regulator is not at 0, and the thermostat is set to a temperature suitable for steaming (not too low). If the temperature is below the steam range, the DRIP STOP function prevents steam to avoid dripping.

How do I remove brown stains or residue from the ironing plate?

Brown stains may come from starched laundry or using improper water. Use the SELF CLEAN function and steam shock. For stubborn residue, clean the cooled plate with a mild detergent containing fine sand. Never use abrasive pads or harsh chemicals.

What do the symbols on the temperature dial mean?

The symbols correspond to fabric types: one dot = synthetic (SILON), two dots = wool/silk (VLNA/HEDVÁBÍ), three dots = linen/cotton (LEN/BAVLNA). Start ironing at the lowest temperature and increase as needed. For mixed fabrics, use the setting for the most delicate material.

USER MANUAL 628490010 Eta

Electric steam iron • USER MANUAL

GB 20-27

Dear customer, thank you for buying our product. Before putting the appliance into operation, read carefully these instructions for use and store this manual properly together with the certificate of warranty, a cash voucher and possibly with the package and the internal contents of the package.

According to the type, the ironing plate has the Eloxium or Ceramic layer that ensures extreme hardness of the coating, it is resistant to scratching and it keeps its excellent gliding property permanently. The iron enables both dry ironing and steam ironing. It is equipped with elements increasing comfort of use – intensive/vertical steaming, sprinkling device, and systems DRIP STOP, SELF CLEAN, ANTI CALC. The handle of the iron is closed and it is adapted for ironing with the right and the left hand. At the back side the handle forms a support that enables putting it in the rest position. Handling while ironing is easier thanks to a swing-out power cable terminal. The electronics automatically switch the heating element on and off during ironing that maintains the set temperature. Regulation of the ironing plate temperature takes place in pre-set steps.

I. SAFETY WARNING

- Before the first use, read all the instructions for use carefully, look at the picture and keep the instructions for later use. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected only to electric installation socket complying applicable standards. Use of separate electric circuit with 16 A fuse is recommended.

- The electric socket must be easily accessible to easy disconnect the iron in dangerous and/or emergency situations.

- Do not insert to or take out the plug from a socket with wet hands and do not pull the power cord!

- Do not leave the iron plugged in power supply without supervision!

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged and is leaking. In this case take the appliance to a special service to check its safety and proper function.

- This product can be used by children at the age of 8 years and older and people with reduced physical or mental abilities or lack of experience and knowledge if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- Iron and its supply keep out of reach of children under 8 years (when is plugged in to power or cools down).

- Use and place the iron on a stable surface.

- When putting the iron on a stand, make sure that the surface that the stand is placed on is stable.

- Whenever you fill the container with water during ironing and empty the container after ironing, unplug the iron from the electric power.

- The appliance is intended for use in households only and for similar use (in shops, offices and similar areas, in hotels, motels and other residential areas, in bed and breakfast facilities)! It is not designed for commercial use!

- Do not use the iron outdoor!

- Do not use the iron as room heating device!

- Do not put any objects to the iron.

- Do not use the appliance with program, time switch or any other item, which switches ON the appliance automatically, as there is a risk of fire, when the appliance is covered or improperly located.

- Never iron or steam iron the clothes on persons (directly on body) and do not direct the steam to any persons or animals.

- The thermostat can never be used as a switch!

- Never immerse the appliance into water (even its parts)! Do not wash it under running water!

- Any modification of the appliance surface (e.g. by means of self-adhesive wall-paper, foil etc.) is prohibited!

- Do not place the iron in such a way that could represent harm (e.g. fire, burn and scalding).

- Due to production tests, the internal iron container can be misted up. Do not consider it to be a defect when purchasing the iron.

- Never pour water to the container that was produced by defrosting of a freezer, water condensed in a dryer, air-conditioning or dehumidifying units, certain types of mineral waters, rain-water, water enriched with alcohol, perfume and preparations for treatment and for stiffening fabrics (e.g. starch, fabric conditioners) or vinegar, decalcifying agents, softeners or other chemical substances. Do not use pure distilled water.

- When ironing, be very careful, tilting of the iron may result in the hot water pouring out of the filling hole.

- Make sure that the power cord is always dry and it is not damaged.

- Regularly check condition of the appliance power cord.

- The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges. Never put it to hot surfaces, prevent its free hanging over edge of table or work board. Touching, stumbling or pulling the power cord e.g. by children may cause tipping over or falling of the appliance with subsequent severe injury!

- The appliance is portable and it is equipped with a movable connector with a plug which ensures double-pole disconnection from power supply.

- If you need to use the extension cord, it has to be uncorrupted and it has to comply with the valid standards.

- Never use the appliance for any other purpose than for that described in these instructions for use!

- The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire, clothes damage, scratching and contamination of the ironing plate) and its guarantee for the appliance does not apply to situations when the safety warnings above have not been complied with.

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A – ironing plate H – thermostat regulation wheel
B – additional spray jet I – water container
C – filling hole lid J – SELF CLEAN button
D – steaming regulator K – rest board
E – additional spray button L – space for power cord wind-up
F – steam shock button M – power cord
G – control light N – handle
O - filling cup

III. INSTRUCTIONS FOR USE

Remove all the packing material and take out the iron with the accessories. Remove any labels, protective foils or covers from the ironing plate before the first use. At first switch the iron ON to maximum temperature and let the iron at least 10 minutes running without water. The iron may produce slight smoke, which is cased by burning of used lubricants and seals in steam chamber. This is normal situation and does not form the reason for warranty claim. During first filling of the tank with operating water it is recommended to release the steam from whole tank outside the ironed fabric.

Ironing temperatures

• Sort laundry and iron according to the instructions for treatment (e.g. manufacturer's recommendation - the label on clothes). If the instruction is missing and you know the material of the clothes, follow the table on picture 3. The table applies to basic materials only, not to possible decorations, material treatment, etc.
• Start to iron from the lowest temperatures to higher temperatures. If clothes consist of e.g. two and more materials or if they contain stringing, purls, embossing, stretch material, etc., always iron according to the material requiring the lower temperature only. If you do not know the material, find the suitable place that is not visible when wearing and try suitable temperature for ironing at the place.
• When ironing woollen fabrics, we recommend ironing on the back side of the fabric and you can iron virgin wool through additional cloth. Velvet and similar fabrics can be ironed in one direction (you will prevent creation of glossy areas).
• Steam ironing is not suitable for fabrics from synthetic and silk fibers (e.g. acrylon, nylon, polyamide or polyester).
• We recommend using soft textile permeable base materials for steam ironing.
• Make sure that the ironed fabric is tensed up properly so that steam does not leak to the sides.
• For the ironing plate to remain smooth, protect it from direct contact with sharp metal objects (e.g. zip fasteners, buttons, snap buttons, decorative objects).

Ironing without steaming

Plug the power cord M to electric socket; control is lit. Put the iron to the rest position (Fig. 7). Turn the steaming regulator D to the 0 position, steaming off (fig. 5) or pour out water from the container I. Set the program on the display using regulation wheel H according to the selected fabric material (Fig. 2). Reaching the required temperature is shown by turning the indicator lamp G OFF.

WARNING

– During ironing the thermostat will cycle, which is accompanied by characteristic sound (clicking). This is normal situation and does not form the reason for warranty claim related to the appliance.

Recommendation

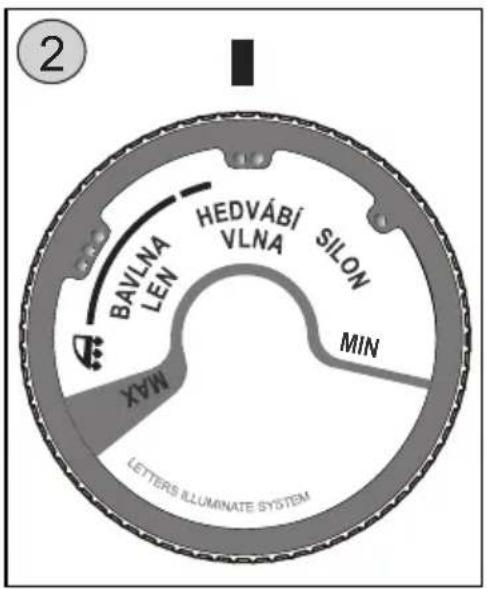

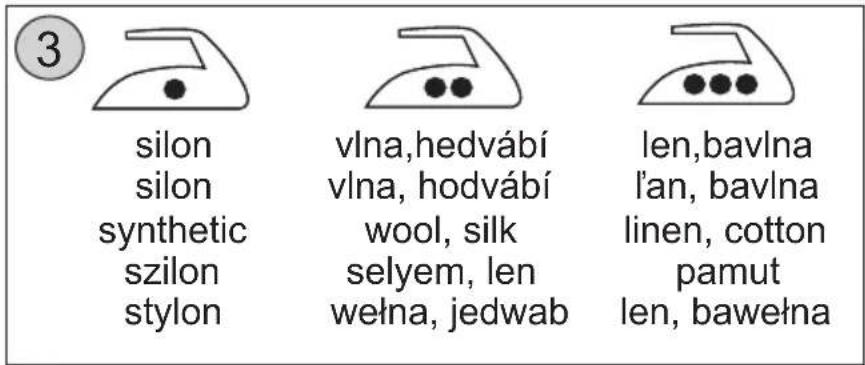

Control H (Fig. 2) is marked with international symbols that recommend the optimum ironing temperature and they are the same as marking on some types of laundry and textiles (Fig. 3). When the temperature is increased from the cold state or if the temperature is set from higher to lower, we recommend waiting for a while (see the information on the display and listen for sound signalling) due to stabilization of the ironing plate temperature.

Steam ironing

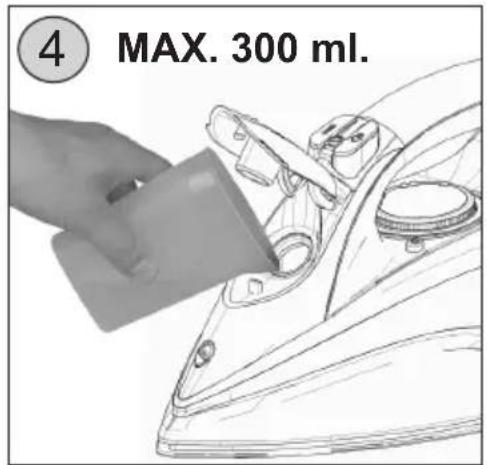

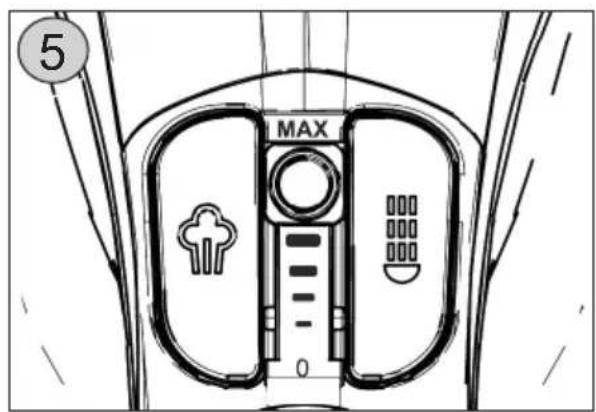

Hold the iron in your hand, turn the steaming regulator D to the position 0 (Fig. 5) and slide the cover C to open the filling container lid. Pour in water to the container I (Fig. 4) with the enclosed cup O and close the filling hole lid in the opposite direction. Keep the position of the iron for pouring in water. Put the iron to the rest position (Fig. 7) and set the regulation wheel H to the marked area for steaming (Fig. 2 - ). Plug the power cord M to a socket. When the control light G goes off, move the steaming regulator D away from handle. The more you move the regulator towards MAX, the bigger amount of outgoing steam there will be (Fig. 5). Place the iron to the rest position, automatic creation of steam will stop (more steam may be going out for a short time).

Warning

• For all normal ironing the middle adjustment of the steam amount is recommended. Only on ironing the linen fabric, thick cotton and similar fabrics the adjustment of the steam amount to maximum value is recommended. Setting to high-pressure steam ironing os recommended only if the regulation wheel H is set to temperature setting ...
• Be extra careful to avoid accidental pushing of the SELF CLEAN button.
• When water container I is filled with water over the permitted limit (MAX. 300 ml), steam can be created even in the rest position.
• At places with hard water we recommend diluting it with distilled water. You will get the information about water hardness at the water-management authorities, or at the local sanitary station. For water hardness > 15 °N we recommend filling the iron in the following ratio:

Water hardness Ratio of tap water : distilled water

medium 2:1

hard 1:1

very hard 1:2

Sprinkling appliance (additional spray)

It is used for moistening fabrics and it is effective in ironing extremely creased fabrics. It is activated by repeated pressing of additional spray button E. We do not recommend applying additional spray for fine fabrics (e.g. silk and synthetic) as the used water may stain the fabric.

Intensive steaming (steam shock)

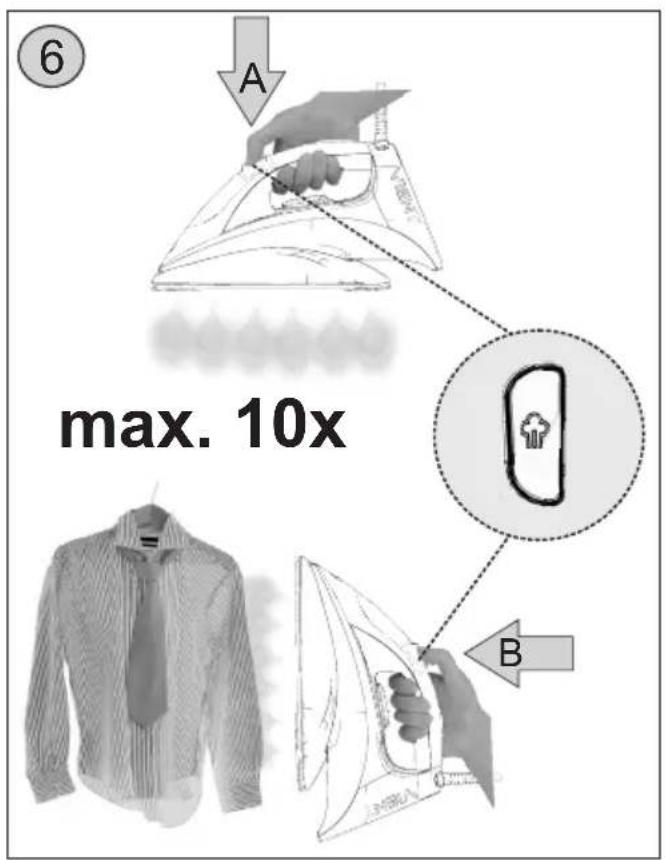

Use only if the steam ironing is insufficient. In this case press intensive steaming button F several times (Fig. 6A - ≈). Thus you will get additional steam except for the steam created by standard steaming.

Warning

When you press intensive steaming button F several times, water may drip from the ironing plate due to excess water in the steam chamber. Do not consider this as faulty operation.

VERTICAL SYSTEM

It is intensive vertical steaming for steaming of freely hanging textiles (such as hanging clothes, draperies, hangings). Set the regulation wheel H to the marked area for steaming (Fig. 2). As soon as the indication lamp G turns OFF, stretch the fabric slightly with one hand and move the iron vertically bottom-up (Fig. 6B - ). Press the intensive steaming button F so that you reach vertical steam hammer. Do not hold the intensive steaming button pressed continuously and do not use it more than 10 times consecutively.

CAUTION

• Prevent burning of sensitive fabrics, do not close them to the iron to distance of 10 to 20 cm.
• Use the VERTICAL function only if the regulation wheel H to the ⋯ or maximum position.
• Do not iron clothes that you or other people are wearing!
• Never direct steam flow to persons or animals!

DRIP STOP

The appliance prevents leaking water from the ironing plate when its temperature is insufficient.

Safety electronics (AUTO STOP – applies for type ETA 2284 and ETA 6284/10)

The safety electronics ensures switching OFF the iron plate heating within 30 seconds, when the iron is left without any movement in horizontal position or when it is tilted over to one side, or within 10 minutes, when it is left in vertical position. Function of safety electronics is signalled by flashing of indicator lamp G and by acoustic signal (beep). The iron is restarted automatically, when the ironing is resumed.

Self-cleaning system (SELF CLEAN)

Hold the iron disconnected from power supply in your hand, turn steaming regulator D to 0 position (Fig. 5) and lift off cover C to open the filling container lid. Pour water into container I using the enclosed cup O to fill half of it and close the filling hole lid (Fig. 4) by snapping it. Keep the position of the iron for pouring water in it. Put the iron to the rest position (Fig. 7) and set the regulation wheel H to the maximum position. Plug power cord M into a socket. When the control light G switch off, disconnect the iron from the electric power. Hold the iron in the horizontal position over a sink. Press the SELF CLEAN button repeatedly (two to three times), each time for about 5 seconds.

Then wait till water stops going out from the ironing plate. If the iron still contains a lot of impurities, repeat the procedure while pushing the intensive steaming button between individual pushing of the SELF-CLEAN button. After completing the cleaning, plug the iron into the electric power, set the selected program and then iron a clean piece of cotton cloth so that the ironing plate is cleaned. Clean the ironing plate using the SELF CLEAN function continuously.

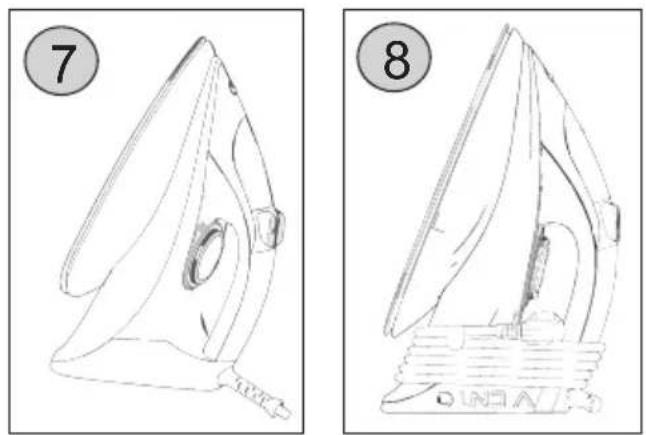

Storage

After finishing ironing, pour out the unused water from the container (be careful, it can be hot), or let the rest of the water evaporate and let the iron cool down. Then turn regulator D to 0 position (steam switched off). Wind power cord M over the back side of cover L and put the iron to the rest position (Fig. 8) out of reach of children and incapacitated persons.

IV. MAINTENANCE

Before every maintenance, unplug the iron from power supply by taking the fork of the power cord out of the socket! Do not use rough and aggressive detergents (e.g. sharp objects, peelers, pot scourers, caustic agents for cleaning or other solvents). Wipe the entire iron with a wet cloth in the cooled state and dry up. If brown film is created on the ironing plate (e.g. when ironing starched laundry), you can remove the film by a detergent containing fine sand.

The iron is equipped with a permanent decalcification system ANTI CALC that does not require maintenance. But the system cannot fully prevent creation of calcareous sediments.

V. TROUBLESHOOTING

Problem Cause	Use Solution
Iron is not heated.	Power supply not connected Check	the cord, plug and the socket
	Thermostat regulation wheel is in MIN position	Set the wheel to position • / • • / • • or MAX
	AUTO STOP function activated Move	ve the iron for deactivation of the safety function
Iron does not create steam	There is no water in the container	Pour water into the container
	Steaming regulator is in 0 position	Move the regulator into the steaming position
	Low temperature is set for activating the DRIP-STOP function	Use the regulation wheel to set a temperature, during which you can use steaming and wait till the iron is heated for using it
Iron does not create steam shock	Low temperature is set for activating DRIP-STOP function	Use the regulation wheel to set a temperature, during which you can use steaming and wait till the iron is heated for using it
	The function of steam shock was used too often during a short period of time	Let the iron heat and wait for a while before using the electric shock function again
Sprinkling equipment (additional spray) does not sprinkle water	There is no water in the container P	Pour water into the container
	The water system is aerated Tighten	n finger on the additional spray jet hole and at the same time press the sprinkling device button several times
Water is dripping from the ironing plate	The lid of the pouring hole of the container is not closed properly.	Close the pouring hole lid
	Low temperature is set Use the reg	ulation wheel to set a temperature, during which you can use steaming and wait till the iron is heated for using it
	The steam shock function was used when temperature below ooo was set	Use the regulation wheel to set a tem-perature··· or MAX
	The SELF CLEAN button was pressed during ironing	Do not use the SELF CLEAN function
	After finishing ironing, the iron was put into the horizontal position and the steaming regulator is not in 0 position	Move the steaming regulator to 0 position, empty the container and put the iron into the rest position
Flakes and other impurities are peeled off the ironing plate	Contrary to recommendation undiluted water is used with excessive hardness >15°N	Use water diluted with distilled water
		Clean the iron using the SELF CLEAN function and steam shock
Brown liquid is pouring out of the ironing plate	Improper chemical agents were used for removing scale	Do not add any chemical agents into the water container for removing scale
	You use one of the types of water that we do not recommend	Use only common clean drinking water for filling in the container, or water diluted with distilled water
	Fibers from linen got into the holes in the ironing plate and they are burning there	Clean the iron using the SELF CLEAN function and the steam shock, or vacuum the cooled plate delicately from time to time
The ironing plate is dirty or it has brownish colour	High temperature is set Set the pro	gram/temperature by the control that corresponds to the ironed material so that the material is not burned on the ironing plate
	Laundry is not sufficiently rinsed and it contains residues of wa-shing powder, softener or starch	Clean the ironing plate (see Maintenance). Rinse the laundry properly.
The ironing plate surface is scratch-ed	The plate was in contact with sharp and hard objects while ironing	During ironing, avoid contact with metal objects containing sharp edges and do not put the iron on a metal base with sharp edges and protrusions

VI. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts of the appliance. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation for good, after disconnecting it from power supply we recommend cutting off the power cord and in this way it will not be possible to use the appliance again.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service!

Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VII. TECHNICAL DATA

Voltage (V) specified on the type label

Input (W) specified on the type label

Water volume (volume ml.) 300

Weight without water (kg) about 1,6

The product matches the requirements of the below statutory order as amended:

• Committee Regulation No. 2006/95/ES as amended, setting the technical requirements of the electrical appliance as low.
• Committee Regulation No. 2004/108/ES as amended, setting the technical requirements of products in terms of their electromagnetic compatibility.

The manufacturer reserves the right to make insignificant changes to the standard design that do not affect the function.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY
