Product Type	Electric steam iron
Brand	Eta
Model	Tiara II 1269 90000
Dimensions (H x W x D)	302 x 123.5 x 148 mm
Weight (without water)	Approx. 1.5 kg
Power Input	Shown on type label (e.g., 2000-2400 W typical)
Voltage	Shown on type label (e.g., 220-240 V)
Water Tank Capacity	450 ml
Soleplate Type	Eloxium or Ceramic coating
Dry Ironing	Yes
Steam Ironing	Yes, adjustable steam output
Vertical Steaming	Yes, with steam burst function
Sprinkling Function	Yes, additional spray jet
Drip Stop System	Yes, prevents water leaks at low temperature
Self-Cleaning System	Yes, SELF CLEAN button
Anti-Calc System	Yes, permanent ANTI CALC system
Auto Shut-Off	Yes (for models ETA2269, ETA3269); 30 sec horizontal, 8 min vertical
Cord Length	Swing-out power cable terminal, cord wind-up space
Protection Class	Class I
Standby Power Consumption	< 0.50 W
Maintenance	Wipe with damp cloth; use SELF CLEAN monthly; descale with vinegar if needed
Safety Features	Auto shut-off, drip stop, anti-calc, overheat protection
Intended Use	Household only; not for commercial use

Frequently Asked Questions - Tiara II 1269 90000 Eta

Why is my iron not heating up?

Check the power cord and socket. Ensure the temperature dial is set to a suitable setting (e.g., •• or MAX). If the auto shut-off function (AUTO STOP) has activated, simply move the iron to deactivate it.

Why is no steam coming out?

Make sure the water tank is filled. The steam regulator should not be in the 'O' position. Also, the iron must be heated to a temperature suitable for steaming (dial set to ••• or higher). Wait for the temperature light to go off.

How do I use the vertical steam function?

Set the temperature dial to MAX. When the iron is heated, hold it vertically 10-20 cm from the fabric. Press the steam shock button (intense steam) repeatedly, but no more than 5 times consecutively. Allow at least 1 minute between bursts.

Water is dripping from the soleplate. What should I do?

Ensure the filling hole lid is closed properly. Avoid using the steam shock function at low temperatures (below •••). Do not press the SELF CLEAN button during ironing. After use, turn the steam regulator to 'O' and empty the water tank.

How do I clean the iron?

Unplug and let it cool. Wipe the exterior with a damp cloth. Use the SELF CLEAN function monthly: fill half tank, set to max temperature, unplug, hold horizontally over sink, press SELF CLEAN button repeatedly. Then iron a clean cotton cloth to remove residue.

What kind of water should I use?

Use ordinary clean tap water. If water is very hard (hardness >15°N), mix with distilled water in ratio 1:1 (hard) or 1:2 (very hard). Do not use mineral water, rainwater, or water with additives like starch or softeners.

Why is brown liquid coming out of the soleplate?

It may be caused by using chemical descaling agents or inappropriate water. Only use clean tap water or distilled water mixture. Use the SELF CLEAN function and steam shock to flush out residues. Ensure laundry is properly rinsed.

The iron shuts off automatically. Is this normal?

Yes, for models ETA2269 and ETA3269, the AUTO STOP function switches off heating if left motionless horizontally for 30 seconds or vertically for 8 minutes. Just move the iron to restart. This is a safety feature.

How do I store the iron after use?

Empty any remaining water from the tank (be careful, it may be hot). Set the steam regulator to 'O'. Wind the power cord around the cord storage space. Place the iron in its rest position, out of reach of children.

Why does the soleplate have scratches?

Avoid ironing over hard metal objects like zippers or buttons. Do not place the iron on rough surfaces. The soleplate has a durable coating but can be scratched by sharp objects.

USER MANUAL Tiara II 1269 90000 Eta

Electric steam iron • USER MANUAL

GB 22-29

Illustration of a steam iron with a paper cut, showing internal components and a label '4' (no text or symbols on the iron itself)

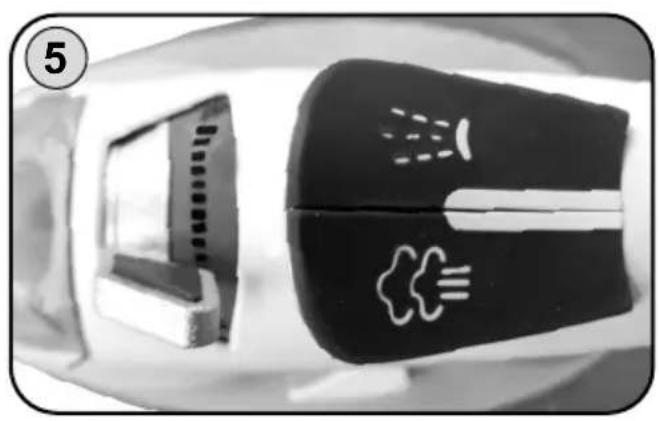

Close-up of a black and white object with white symbols, possibly a device or tool, against a light background (no readable text or labels)

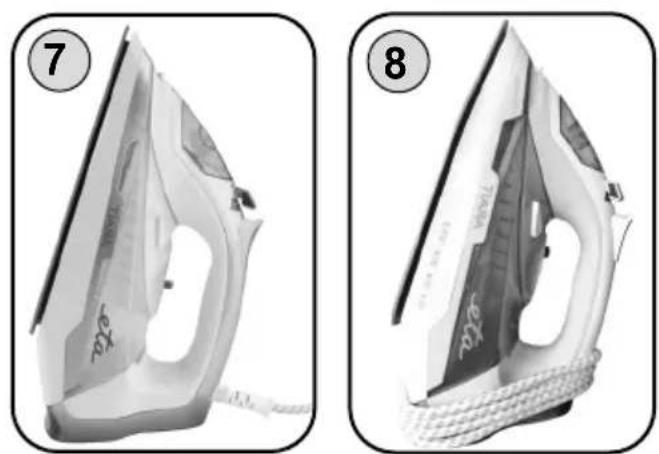

Two views of a pair of iron iron burners, labeled ⑦ and ⑧, showing different angles and surface textures (no text or symbols on the image itself)

CZ I. BEZPEČNOSTNÍ UPOZORNĚNÍ 4

II. POPIS SPOTŘEBIČE (obr. 1) 6

III. POKYNY K OBSLUZE 6

IV. ÚDRŽBA 9

V. ŘEŠENÍ PROBLÉMŮ 10

VI. EKOLOGIE 11

VII. TECHNICKÉ ÚDAJE 12

SK I. BEZPEČNOSTNÉ UPOZORNENIA 13

II. OPIS SPOTREBIČA (obr. 1) 15

III. POKYNY NA OBSLUHU 15

IV. ÚDRŽBA 18

V. RIEŠENIE PROBLÉMOV 19

VI. EKOLÓGIA 20

VII. TECHNICKÉ ÚDAJE 21

GB I. SAFETY WARNING 22

II. DESCRIPTION OF THE APPLIANCE (fig. 1) 24

III. INSTRUCTIONS FOR USE 24

IV. MAINTENANCE 27

V. TROUBLESHOOTING 27

VI. ENVIRONMENTAL PROTECTION 29

VII. TECHNICAL DATA 29

HU I. BIZTONSÁGI ELŐÍRÁSOK 30

Dear customer, thank you for buying our product. Before putting the appliance into operation, read carefully these instructions for use and store this manual properly together with the certificate of warranty, a cash voucher and possibly with the package and the internal contents of the package. According to the type, the ironing plate has the Eloxium or Ceramic layer that ensures extreme hardness of the coating, it is resistant to scratching and it keeps its excellent gliding property permanently. The iron enables both dry ironing and steam ironing. It is equipped with elements increasing comfort of use – intensive/vertical steaming, sprinkling device, and systems DRIP STOP, SELF CLEAN, ANTI CALC, AUTO STOP. The handle of the iron is closed and it is adapted for ironing with the right and the left hand. At the back side the handle forms a support that enables putting it in the rest position. Handling while ironing is easier thanks to a swing-out power cable terminal. The electronics automatically switch the heating element on and off during ironing that maintains the set temperature. Regulation of the ironing plate temperature takes place in pre-set steps.

I. SAFETY WARNING

• This manual is considered to be a part of the appliance and as such should be passed on to any other user of the appliance.
• Make sure the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to a properly wired and grounded socket according to the national standards. Use of a separate electric circuit with 16 A fuse is recommended.
• The electric socket must be easily accessible, so that the iron can be easily disconnected in emergency.
• Children above the age of 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge may use this appliance under supervision or after they were given instructions concerning the safe use of the appliance and they understand the hazards involved. Do not allow children to play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• Keep the iron and the power cord out of reach of children under 8 years (when it is plugged in or cooling down).
• If the power cord of the appliance is damaged, it has to be replaced by the manufacturer, service technician or a similarly qualified person in order to prevent dangerous situations.
• Unplug the device from the power socket, when filling the container with water during ironing.
• When installing the iron on the stand, make sure the stand is placed on a stable surface.
• Use and place the appliance on a stable, flat and heat-resistant surface.
• Do not leave the plugged-in iron without supervision!

- The iron must not be used, if it was dropped, shows signs of damage or leaks.

- Turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket after finishing work and prior to accessories or accessible parts replacement, assembly and disassembly, cleaning or maintenance!

- Never use the appliance, if the power cord or plug is damaged, the appliance is not working properly or fell in water. In such cases take the appliance to a professional service centre to verify its safety and correct function.

- Unwind the power cord completely before you plug it to the electric socket.

- Do not plug the fork of the power cord to the socket or unplug it with wet hands or by pulling the power cord!

- The appliance is intended for home and similar use only (shops, offices and similar workplaces, hotels, motels and other residential environments, facilities providing accommodation with breakfast). It is not intended for commercial use!

- Do not immerse the appliance into water (even its parts)! Do not wash it under running water!

- Do not use the appliance outdoor! Do not use the appliance as room heating device!

- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Do not put any objects on the appliance.

- When switching the iron on for the first time, set the highest temperature and let the iron on for at least 10 minutes without water. Light fumes may be coming out of the iron as a result of lubricants and binding agents in the steam chamber being burned out. This is not a defect and is not a reason for returning the device.

- When using the steam for the first time, use the maximum volume of the container and let the steam out away from the ironed clothes.

- Never iron or steam-iron the clothes on persons (directly on body) and do not direct the steam to any persons or animals.

- The thermostat must never be used as a switch!

- It is not allowed to modify the surface of the appliance in any way (e.g. with self - adhesive paper, foils, etc.)!

- As a result of factory tests, the internal container may be dewy. This is not to be considered a defect.

- Do not overfill the container, the maximum amount of water is 450 ml and it is marked on the container with a MAX line.

- Never fill the container with water obtained by defrosting a freezer, water condensed in a dryer, air-conditioning or dehumidifier, mineral water, rain-water, water enriched with alcohol, perfume and solutions for treatment and stiffening of fabrics (e.g. starch, softener), or vinegar, decalcifying agents, softeners or other chemical substances.

- In case of unexpected power blackout, disconnect the appliance by unplugging the power cord from the electric socket.

- Make sure that the power cord is always dry and not damaged.

- Do not put the power cord on hot surfaces, do not let it hang over the edge of a table or a work top. When brushed against or pulled (e.g. by children), the cord may cause the appliance to tilt over or fall down and cause serious injury!

• Check the power cord regularly.
• If you need to use an extension cord, it has to be undamaged and in compliance with the applicable standards.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• CAUTION: Do not use the appliance with a device sensitive to temperature, program, time switch or any other device that turns the appliance on automatically, as there is a risk of fire, if the appliance is covered or not placed properly.
• WARNING: There is a risk of injury when the appliance is not used correctly (not in accordance with the manual).
• All texts in foreign languages and pictures shown on the packaging or the product itself, are translated and explained at the end of this language mutation.
• The manufacturer is not responsible for damage caused by improper use of the appliance (e.g. burns, fire, clothes damage, or scratches and staining of the ironing plate) and the guarantee may not be applicable, if the safety warnings above are not followed.

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A – ironing plate

H – thermostat regulation wheel

B – additional spray jet

I – water container

C – filling hole lid

J – SELF CLEAN button

D – steaming regulator

K - rest board

E – additional spray button

L – space for power cord wind-up

F – steam shock button

M - power cord

G - control light

N - handle

G1 - control light (only for type ETA2269, ETA3269)

O - filling cup

III. INSTRUCTIONS FOR USE

Remove all the packing material and take out the iron with the accessories. Remove any labels, protective foils or covers from the ironing plate before the first use. Put the iron on a flat, stable, smooth, clean and heat resistant work surface, out of reach of children and incapacitated people (see par. I. SAFETY WARNING). Make sure that the power cord is not damaged and that it does not lead any sharp or hot surfaces. The electric socket must be easily accessible so that the iron can be easily disconnected from power supply if danger appears. At first switch the iron ON to maximum temperature and let the iron at least 10 minutes running without water. The iron may produce slight smoke, which is cased by burning of used lubricants and seals in steam chamber. This is normal situation and does not form the reason for warranty claim. During first filling of the tank with operating water it is recommended to release the steam from whole tank outside the ironed fabric.

Ironing temperatures

• Sort laundry and iron according to the instructions for treatment (e.g. manufacturer's recommendation - the label on clothes). If the instruction is missing and you know the material of the clothes, follow the table on picture 3. The table applies to basic materials only, not to possible decorations, material treatment, etc.

• Start to iron from the lowest temperatures to higher temperatures. If clothes consist of e.g. two and more materials or if they contain stringing, purls, embossing, stretch material, etc., always iron according to the material requiring the lower temperature only. If you do not know the material, find the suitable place that is not visible when wearing and try suitable temperature for ironing at the place.

• When ironing woollen fabrics, we recommend ironing on the back side of the fabric and you can iron virgin wool through additional cloth. Velvet and similar fabrics can be ironed in one direction (you will prevent creation of glossy areas).

• Steam ironing is not suitable for fabrics from synthetic and silk fibers (e.g. acrylon, nylon, polyamide or polyester).
• We recommend using soft textile permeable base materials for steam ironing.
• Make sure that the ironed fabric is tensed up properly so that steam does not leak to the sides.
• For the ironing plate to remain smooth, protect it from direct contact with sharp metal objects (e.g. zip fasteners, buttons, snap buttons, decorative objects).

Ironing without steaming

Plug the power cord M to electric socket a signaling light G1 will come on (only for type ETA2269, ETA3269). Put the iron to the rest position (Fig. 7). Turn the steaming regulator D to the O position, steaming off (fig. 5) or pour out water from the container I. Set the temperature using regulation wheel H according to the selected fabric material (Fig. 2) and signaling light G will come on. Reaching the required temperature is shown by turning the indicator lamp G OFF.

WARNING

• During ironing the thermostat will cycle, which is accompanied by characteristic sound (clicking). This is normal situation and does not form the reason for warranty claim related to the appliance.
• To set the temperatures, you just need to turn the thermostat regulation wheel (to the right / left) within the given range. Forcible rotation could lead to damaging the regulation wheel.

Recommendation

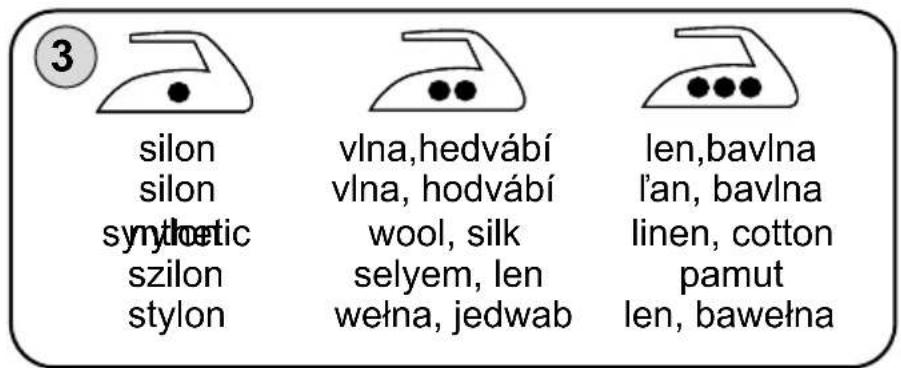

Control H (Fig. 2) is marked with international symbols that recommend the optimum ironing temperature and they are the same as marking on some types of laundry and textiles (Fig. 3). When the temperature is increased from the cold state or if the temperature is set from higher to lower, we recommend waiting for a while due to stabilization of the ironing plate temperature.

Steam ironing

Hold the iron in your hand, turn the steaming regulator D to the position O (Fig. 5) and slide the cover C to open the filling container lid. Pour in water to the container I (Fig. 4) with the enclosed cup O and close the filling hole lid in the opposite direction. Keep the position of the iron for pouring in water. Put the iron to the rest position (Fig. 7) and set the regulation wheel H to the marked area for steaming (Fig. 2 - ⇌). Plug the power cord M to a socket. When the control light G goes off, move the steaming regulator D to the right. The more you move the regulator towards ⚙the bigger amount of outgoing steam there will be (Fig. 5). Place the iron to the rest position, automatic creation of steam will stop (more steam may be going out for a short time).

Warning

• For all normal ironing the middle adjustment of the steam amount is recommended. Only on ironing the linen fabric, thick cotton and similar fabrics the adjustment of the steam amount to maximum value is recommended. Setting to pressure steam ironing os recommended only if the regulation wheel H is set to temperature setting ...
• Be extra careful to avoid accidental pushing of the SELF CLEAN button.
• When water container I is filled with water over the permitted limit (MAX. 450 ml), steam can be created even in the rest position.

- At places with hard water we recommend diluting it with distilled water. You will get the information about water hardness at the water-management authorities, or at the local sanitary station. For water hardness >15^ we recommend filling the iron in the following ratio:

Water hardness Ratio of tap water : distilled water

medium 2:1

hard 1:1

very hard 1:2

Sprinkling appliance (additional spray) > ≡

It is used for moistening fabrics and it is effective in ironing extremely creased fabrics. It is activated by repeated pressing of additional spray button E. We do not recommend applying additional spray for fine fabrics (e.g. silk and synthetic) as the used water may stain the fabric.

Intensive steaming (steam shock)

Use only if the steam ironing is insufficient. In this case press intensive steaming button F several times (Fig. 6A –). Thus you will get additional steam except for the steam created by standard steaming.

Warning

When you press intensive steaming button F several times, water may drip from the ironing plate due to excess water in the steam chamber. Do not consider this as faulty operation.

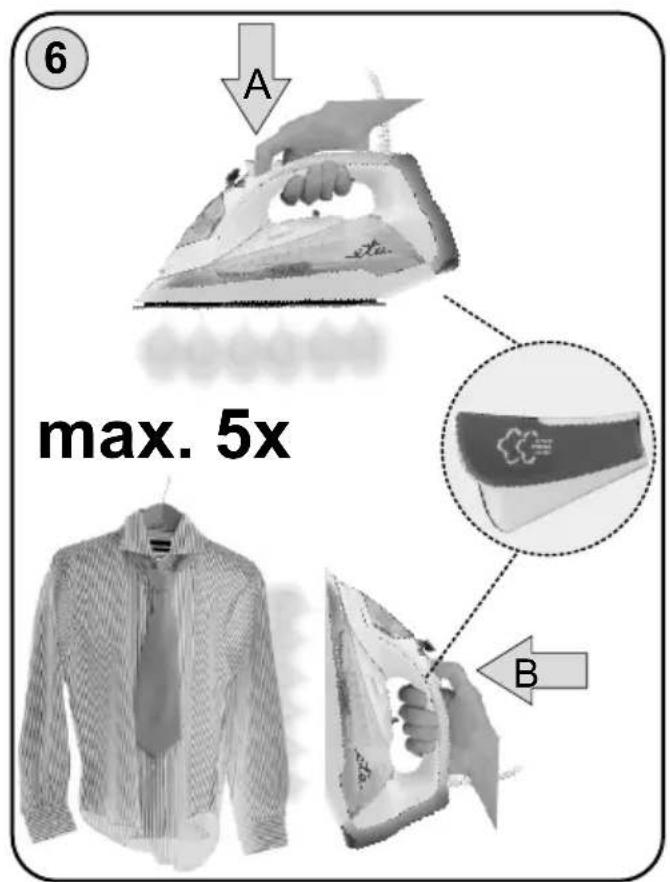

VERTICAL SYSTEM

It is intensive vertical steaming for steaming of freely hanging textiles (such as hanging clothes, draperies, hangings). Set the regulation wheel H to the marked area for …MAX (Fig. 2). As soon as the indication lamp G turns OFF, stretch the fabric slightly with one hand and move the iron vertically bottom-up (Fig. 6B – ⬆ Press the intensive steaming button F so that you reach vertical steam hammer. Do not hold the intensive steaming button pressed continuously and do not use it more than 5 times consecutively. Also allow at least one minute interval before applying this burst of steam function.

WARNING

• Prevent burning of sensitive fabrics, do not close them to the iron to distance of 10 to 20~cm .
• Use the VERTICAL function only if the regulation wheel H to the ·s or maximum position.

DRIP STOP

The appliance prevents leaking water from the ironing plate when its temperature is insufficient.

Self-cleaning system (SELF CLEAN)

Hold the iron disconnected from power supply in your hand, turn steaming regulator D to O position (Fig. 5) and lift off cover C to open the filling container lid. Pour water into container I using the enclosed cup O to fill half of it and close the filling hole lid (Fig. 4) by snapping it. Keep the position of the iron for pouring water in it. Put the iron to the rest position (Fig. 7) and set the regulation wheel H to the maximum position. Plug power cord M into a socket. When the control light G switch off, disconnect the iron from the electric power. Hold the iron in the horizontal position over a sink. Press the SELF CLEAN button repeatedly (two to three times), each time for about 5 seconds. Then wait till water stops going out from the ironing plate. If the iron still contains a lot of impurities, repeat the procedure while pushing the intensive steaming button between individual pushing of the SELF-CLEAN button.

After completing the cleaning, plug the iron into the electric power, set the selected temperature and then iron a clean piece of cotton cloth so that the ironing plate is cleaned. Clean the ironing plate using the SELF CLEAN function continuously (about once a month).

Safety electronics (AUTO STOP – applies for type ETA2269, ETA3269)

The safety electronics ensures switching OFF the iron plate heating within 30 seconds, when the iron is left without any movement in horizontal position or when it is tilted over to one side, or within 8 minutes, when it is left in vertical position. Function of safety electronics is signalled by flashing of indicator lamp G1 and 6 beeps The iron is restarted automatically, when the ironing is resumed.

Storage

After finishing ironing, pour out the unused water from the container (be careful, it can be hot), or let the rest of the water evaporate and let the iron cool down. Then turn regulator D to O position (steam switched off). Wind power cord M over the back side of cover L and put the iron to the rest position (Fig. 8) out of reach of children and incapacitated persons.

IV. MAINTENANCE

Before every maintenance, unplug the iron from power supply by taking the fork of the power cord out of the socket! Do not use rough and aggressive detergents (e.g. sharp objects, peelers, pot scourers, caustic agents for cleaning or other solvents). Wipe the entire iron with a wet cloth in the cooled state and dry up. If brown film is created on the ironing plate (e.g. when ironing starched laundry), you can remove the film by a detergent containing fine sand. The iron is equipped with a permanent decalcification system ANTI CALC that does not require maintenance. But the system cannot fully prevent creation of calcareous sediments.

V. TROUBLESHOOTING

Problem Cause Solution
Iron is not heated	Power supply not connected Check	the cord, plug and the socket
	Low temperature is set for	Set the wheel to position • / •• / ••• or MAX
	AUTO STOP function activated Move	ove the iron for deactivation of the safety function
Iron does not create steam	There is no water in the container Pour water into the container
	Steaming regulator is in O position	Move the regulator into the steaming position
	Low temperature is set	Use the regulation wheel to set a temperature, during which you can use steaming and wait till the iron is heated for using it
Iron does not create steam shock	Low temperature is set for activating DRIP-STOP function	Use the regulation wheel to set a temperature, during which you can use steaming and wait till the iron is heated for using it
	The function of steam shock was used too often during a short period of time	Let the iron heat and wait for a while before using the electric shock function again
Sprinkling equipment (additional spray) does not sprinkle water	There is no water in the container P	Pour water into the container
	The water system is aerated Tighten	n finger on the additional spray jet hole and at the same time press the sprinkling device button several times
Water is dripping from the ironing plate	The lid of the pouring hole of the container is not closed properly	Close the pouring hole lid
	The steam shock function was used when temperature below ooo was set	Use the regulation wheel to set a temperature ••• or MAX
	The SELF CLEAN button was pressed during ironing	Do not use the SELF CLEAN function
	After finishing ironing, the iron was put into the horizontal position and the steaming regulator is not in O position	Move the steaming regulator to O position, empty the container and put the iron into the rest position
Flakes and other impurities are peeled off the ironing plate	Contrary to recommendation undiluted water is used with excessive hardness >15°N	Use water diluted with distilled water
		Clean the iron using the SELF CLEAN function and steam shock
Brown liquid is pouring out of the ironing plate	Improper chemical agents were used for removing scale	Do not add any chemical agents into the water container for removing scale
	You use one of the types of water that we do not recommend	Use only common clean drinking water for filling in the container, or water diluted with distilled water
	Fibers from linen got into the holes in the ironing plate and they are burning there	Clean the iron using the SELF CLEAN function and the steam shock, or vacuum the cooled plate delicately from time to time
The ironing plate is dirty or it has brownish colour	High temperature is set Use the regulation wheel to set a temperature, by the control that corresponds to the ironed material so that the material is not burned on the ironing plate
	Laundry is not sufficiently rinsed and it contains residues of washing powder, softener or starch	Clean the ironing plate (see Maintenance). Rinse the laundry properly.
The ironing plate surface is scratched	The plate was in contact with sharp and hard objects while ironing	During ironing, avoid contact with metal objects containing sharp edges and do not put the iron on a metal base with sharp edges and protrusions

VI. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts of the appliance. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation for good, after disconnecting it from power supply we recommend cutting off the power cord and in this way it will not be possible to use the appliance again.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service!

Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VII. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Input (W) shown on the type label of the appliance

Water volume (volume ml.) 450

Weight without water (kg) about 1.5

Protection class of the appliance I.

Size of the product (mm) 302 x 123.5 x 148

Input in standby mode is < 0.50 W.

The manufacturer reserves the right to make insignificant changes to the standard design that do not affect the function.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.

WARNING: HOT SURFACE
