FH-505 - Heating Ravanson - Free user manual and instructions

Product Type	Fan Heater
Model	FH-505
Rated Power	2000W
Voltage	220-240V
Frequency	50/60Hz
Heating Element	PTC Ceramic
Number of Heat Settings	2 (Low/High)
Thermostat	Adjustable Thermostat
Fan Speed	2 Speeds
Oscillation	Yes, 70°
Safety Features	Overheat Protection, Tip-Over Switch
Dimensions (W x H x D)	25 x 30 x 20 cm
Weight	1.5 kg
Cord Length	1.8 m
Material	ABS Plastic
Color	White/Black
Noise Level	< 45 dB
Room Coverage	Up to 20 m²
Cleaning	Wipe with a soft damp cloth; do not immerse
Maintenance	Check and clean air intake grille monthly
Spare Parts Availability	Fan motor, heating element, thermostat
Repairability Index	7.2/10

Frequently Asked Questions - FH-505 Ravanson

How do I clean the FH-505 heater?

Unplug the heater and allow it to cool. Use a soft, damp cloth to wipe the exterior. Do not use any abrasive cleaners or immerse in water. The air intake grille can be cleaned with a vacuum cleaner using a brush attachment.

What safety features does the Ravanson FH-505 have?

The FH-505 is equipped with overheat protection that automatically shuts off the heater if it gets too hot, and a tip-over switch that turns the unit off if it is knocked over.

Can I use the FH-505 in a bathroom?

No, the FH-505 is not designed for use in bathrooms or damp environments. It should only be used in dry indoor areas to avoid electrical hazards.

How do I adjust the thermostat on the FH-505?

Turn the thermostat dial to your desired temperature setting. The heater will automatically cycle on and off to maintain that temperature. A higher setting means warmer output.

What is the maximum room size the FH-505 can heat?

The FH-505 is suitable for heating rooms up to 20 square meters (approximately 215 square feet) in average insulation conditions.

Does the FH-505 have a fan-only mode?

Yes, the FH-505 includes a fan-only setting for use in summer to circulate cool air. Select the 'Fan' mode on the control panel.

Why is the heater not turning on?

Check if the power cord is securely plugged in and the wall outlet is working. Ensure the thermostat is set above room temperature. Also check if the tip-over switch is triggered; place the heater on a level floor. If the overheat protection has activated, unplug for 15 minutes to reset.

Is the FH-505 energy efficient?

The FH-505 uses PTC ceramic heating technology which provides efficient and rapid warming. It has a thermostat to prevent unnecessary energy consumption. However, like all electric heaters, it consumes up to 2000W when running at full power.

Can I leave the FH-505 unattended?

While the FH-505 has automatic safety shut-off features, it is always safer to never leave any heater unattended or running while you sleep. Always turn it off and unplug it when not in use.

Where can I get spare parts for the FH-505?

Spare parts such as the fan motor, heating element, and control board can be obtained from authorized Ravanson service centers or online retailers. Contact Ravanson customer support for specific part numbers.

USER MANUAL FH-505 Ravanson

EN Original instructions Fan Heater

Six different types of electric heating fans shown from different angles (front, side, top, front, side, top) with no visible text or labels.

EN This product is only suitable for well insulated spaces or occasional use.

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries

Keep safety instructions and warnings at hand for future reference

SAFETY INSTRUCTIONS

1. WARNING: In order to avoid overheating, do not cover the heater.

2. The heater must not be located immediately below a socket-outlet.

3. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exist if the heater is covered or positioned incorrectly.

4. The heater grille prevents direct access to the heating elements and has to be in place when the heater is being used.

5. The heater grille does not provide full protection for small children and infirm persons.

6. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

7. Children under the age of 3 should be kept away or supervised at all times.

8. Children between 3 and 8 years of age may only switch the device on and off if it is placed and installed in normal position as per its intended use, under supervision only and in a safe way as per the manual and provided they understand the hazards related to the device. Children between 3 and 8 years of age must not unplug, adjust, clean, or service the device.

9. This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must

not play with the device. Cleaning and maintenance must not be performed by unsupervised children.

1. WARNING: Some parts of the product may be very hot and cause burns. Pay particular attention to children and sensitive person.

2. WARNING: The device cannot be covered. It may result in overheating or fire.

3. Always inspect power cord, and do not operate heater with a damaged cord or plug. If the power cord becomes damaged, it should be replaced by the manufacturer, in a specialist repair workshop, or by a qualified person in order to prevent any hazards.

4. Disconnect the unit from the mains when you don't use it. Do not leave it with the switch off and/or with thermostat set to minimum when you don't use it.

5. Use the device at a safe distance from inflammable materials such as: curtains, paper, bedding, wooden or plastic elements, etc.

6. Do not cover or obstruct top and bottom air vents of the heater, otherwise will cause the heater overheating, to warn this, a phrase "Do not cover" and its symbol have been print near the top air vents of the heater.

7. Always switch off the device when you don't use it. While removing the plug from the socket do not pull by the power cord.

8. Do not allow children or animals to play around the device. Touching the outlet grate may result in burns.

9. Do not use it in the rooms where gas or other volatile or inflammable substances can occur.

10. The device should be cleaned with a dry or slightly wet cloth. During cleaning the device cannot be connected to the mains.

11. Before starting any maintenance or repair work always disconnect the device from the power source. In addition, do not forget to let the device cool down.

12. Do not use the device in dusty rooms.

13. Store it in a clean and dry place.

14. Transport in the original packaging. Protect against dust, humidity, and mechanical damage.

15. The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors.

16. Its place of operation should provide stability. The power cord cannot run in the vicinity of hot air outlets. It cannot be bent or crushed or run in the neighborhood of sharp edges.
17. Do not insert any objects into the opening of the device's body.
18. Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.
19. It must be possible to unplug the device after it is installed; access to the plug must be provided.
20. WARNING: Before switching the device on, make sure that the power characteristics comply with the parameters on the nameplate. This heater is equipped with a grounded type plug and must be plugged into a grounded type outlet. This is a safety feature: DO NOT REPLACE THIS PLUG!
21. NOTE! The device is not designed to work with external timers or a separate remote control system.
22. It is recommended to connect the device to the power supply network equipped with a residual current device (RCD) with a switch-off current of 30mA or less.

PURPOSE

The device is intended for use in domestic or similar environments, such as:

- offices and other working environments

- use by clients in hotels, motels and other residential environments

OPERATION

ATTENTION! Make sure that the power source to which the appliance is to be connected is accordant with the parameters specified on the rating plate.

It is normal for the heater to emit some odor when it is turned on for the first time, or after having not been used for a long period of time. A burning smell may be produced by the dust on the heating element. This will disappear when the heater has been on a short while.

Always remember to keep a safety distance (minimum 100 cm) from walls or other objects. Airflow cannot be blocked!

1. Choose a suitable location for the heater, taking into account the safety instructions above.
2. Insert the plug of the heater into a suitable outlet (220-240V).
3. Turn the thermostat control hand-wheel clockwise to maximum.
4. To set heating to minimum turn the hand-wheel (clockwise) to position I (1000W).
5. To set heating to maximum turn the hand-wheel to position II (2000W).

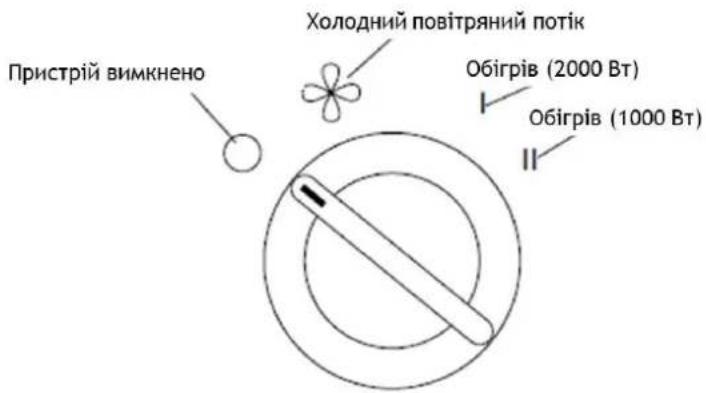

6. To set the fan functions set the hand-wheel to position
7. To switch the device off, turn the control hand-wheel (counterclockwise) to position

- OFF

- Cool air

I - Hot air (1000 W)

II - Hot air (2000 W)

Simple line drawing of a crossed pencil inside concentric circles with a flower and partial symbols (no text or labels)

Function selector

THERMOSTAT CONTROL (option)

The device features a thermostat. The thermostat knob can be used to set the desired temperature. When the temperature is high enough, the device is turned off. When the temperature drops below the set point, the fan heater is turned on.

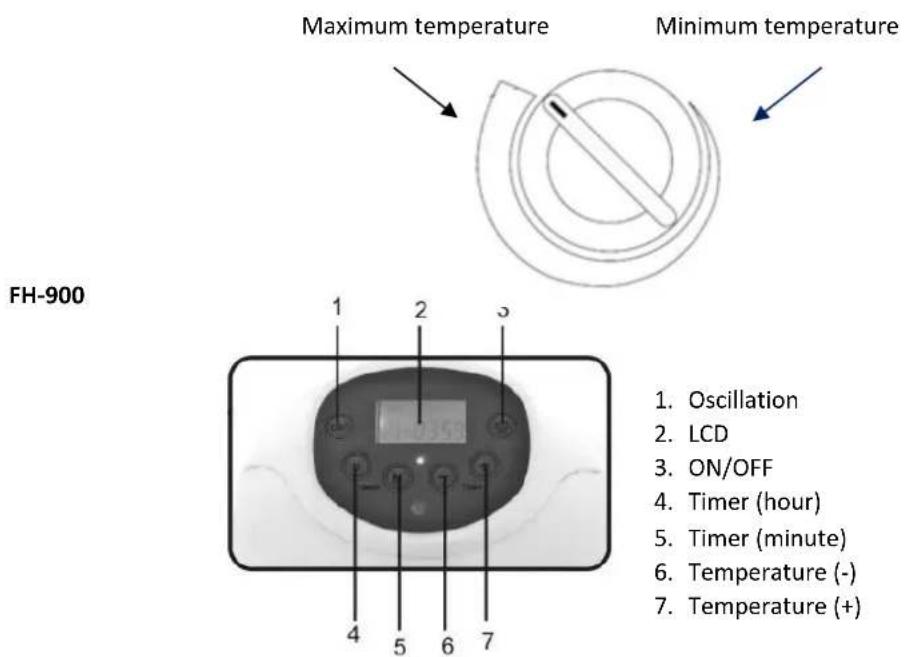

Setting the desired temperature

After switching the device on, set the thermostat knob to the maximum position (maximum temperature). After the temperature reaches a satisfactory level (thermal comfort) slowly turn the thermostat knob lowering the temperature setting until the fan heater is turned off. Keep the knob in this position. When the temperature drops, the device is turned on and emits heat until the set temperature is reached.

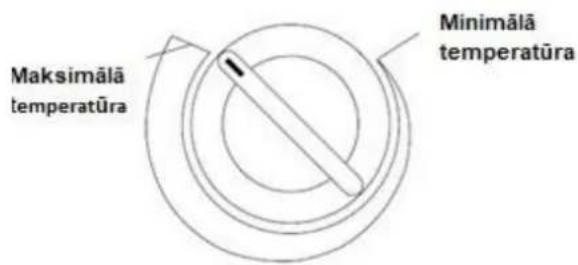

Thermostat knob

OVERHEATING PROTECTION

This device is equipped with fuse preventing overheating.

WARNING!

In the event that the thermal fuse is automatically engaged and the device is turned off due to the danger of overheating, it is necessary to disconnect the power cord from power source and to wait approx. 15 minutes until the device cools down. Only then will it be possible to turn it on again.

NOTE!

If you are not able to reach the desired temperature in room, it is necessary to use next device.

DO NOT:

• Install the device near furniture, curtains, below shelves, inside walls.

• Cover the device when it is turned on

FAILURES

If any damage is disclosed after purchase, contact the seller.

Follow the rules in this manual.

Do not modify the product.

When the device does not work, unplug it. Check if there is power in the socket the device is connected to.

If power was not disrupted, do not attempt to repair the device on your own. Contact manufacturer's authorized service centre.

TECHNICAL SERVICE

All devices undergo a thorough post production control. If you still find any fault, you can ask technical service for help.

Before you talk to technical service, check if:

• There is power in the wall socket.
- You followed this manual when turning the device on.

CLEANING THE HEATER AND MAINTENANCE

• Always un-plug the heater from the outlet.

- Allow it to cool down before cleaning.

- Clean the outside of the heater by wiping with a dry or slightly wet cloth and buff with a dry cloth. Do not use any detergents or abrasives and do not allow any water to enter the heater. Do not submerge in water!

TRANSPORT AND STORAGE

• When the heater is not used for long periods of time, it should be protected from dust and stored in a clean, dry place.
• Store out of reach of children. Protect against dust, humidity, and mechanical damage.
• Transport in the original packaging. Protect against dust, humidity, and mechanical damage.
  • Always let the device cool down prior to storage or transport.

NOTE!

The illustrations and descriptions may differ from reality depending on the product model.

Manufacturer reserves the right to change the technical parameters of the device without notice.

TECHNICAL PARAMETERS

Model	Nominal voltage	Nominal frequency	Nominal power consumption
FH-101	220-240V	50/60 Hz	2000 W
FH-105/ FH-105B	220-240V	50/60 Hz	2000 W
FH-200	220-240V	50/60 Hz	2000 W
FH-300	220-240V	50/60 Hz	2000 W
FH-505	220-240V	50-60 Hz	2000 W
FH-900	220-240V	50-60 Hz	2000 W

Model identifier(s):		FH-101/ FH-105/ FH-105B/ FH-200/ FH-300/FH-505
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2,0	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output (indicative)	P_min	1,0	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	P_max	2,0	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	el_max	0	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0	kW		single stage heat output and no room temperature control	no
In standby mode	el_SB	0	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	yes
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Ravanson Ltd. ul. Mazowiecka 6, 09-100 Płońsk, Polska
Model identifier(s):		FH-900
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,962	kW		manual heat charge control, with integrated thermostat	no
Minimum heat output (indicative)	P_min	0	kW		manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	P_max	1,962	kW		electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output	no
At nominal heat output	el_max		kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	-	kW		single stage heat output and no room temperature control	no
In standby mode	el_SB	-	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	yes
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Ravanson Ltd. ul. Mazowiecka 6, 09-100 Płońsk, Polska

Such a marking informs that this equipment cannot be disposed of together with other household waste. The user is obliged to pass the device to a company authorized to dispose of electronic/electric devices. Both the person who deals with direct disposal, shops and other local units make a system enabling to dispose of the device. Proper procedures concerning electric/electronic

equipment disposal are intended to avoid any harmful impact to humans and environment resulting from dangerous components and improper storage or processing of the devices. Substances having negative environmental impact have been reduced to make the product safer after its disposal.

DE

Simple line drawing of a crossed-out circle with a flower and two circles, no text or symbols present.

ÜBERHITZUNGSSCHUTZ

Simple line drawing of a crossed pencil inside concentric circles with a flower and a small circle nearby (no text or symbols)

NASTAVOVÁNÍ S POUŽITÍM TERMOSTATU (volitelné)

OCHRANA PROTI PŘEHŘÁTÍ

Simple line drawing of a crossed-out circle with surrounding symbols (no text or labels)

Simple line drawing of a circular target with a diagonal line, a flower, and a circle (no text or symbols)

TERMOSTATO REGULIAVIMAS (parinktis)

Simple line drawing of a circular object with a diagonal line and two arrows pointing outward (no text or symbols)

FH-900

APSAUGA NUO PERKAITIMO

Simple line drawing of a crossed-out circle with a flower and two circles, no text or symbols present.

SEADME REGULEERIMINE TERMOSTAADIGA

KAITSE ÜLEKUUMENEMISE EEST

Simple line drawing of a crossed-out circle with a flower and two circles, no text or symbols present.

REGULACIJA PREK TERMOSTATA (opcija)

Simple line drawing of a circular object with a central rod and two arrows pointing outward (no text or symbols)

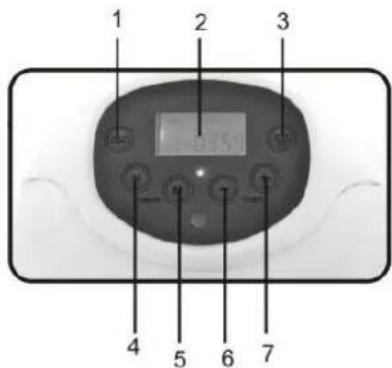

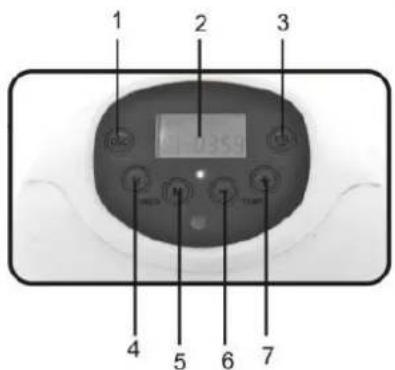

FH-900

1. Vklop/izklop funkcije oscilacije zračnega dotoka
2. LED zaslon
3. Tipka vklopa/izklopa
4. Timer (uri)
5. Timer (minuti)
6. Temperature (-)
7. Temperature (+)

ZAŠČITA PRED PREGRETJEM

Simple line drawing of a circular object with a central rod and two arrows pointing outward (no text or symbols)

FH-900

TÚLMELEGEDÉS ELLENI VÉDELEM

Termostata regulators
