RAZE ZEUS - Loudspeaker Niceboy - Free user manual and instructions

Product Type	Portable Wireless Speaker
Brand	Niceboy
Model	RAZE ZEUS
Bluetooth Version	5.0
Frequency Band	2.4 GHz
Transmission Range	10 meters
Supported Codecs	SBC
Supported Profiles	A2DP, AVRCP, HFP
Power Output	65 W
Impedance	4 Ω
Sensitivity	>88 dB
Frequency Range	80 Hz - 20 kHz
Battery Type	Li-Ion 6000 mAh
Battery Life	12 hours (at 50% volume)
Charging Time	Approximately 3 hours
Waterproof Rating	IPX6
Audio Inputs	3.5 mm AUX, USB-A, Micro SD
Charging Port	USB-C
Supported Storage	USB flash drive, Micro SD up to 32 GB
Supported Audio Formats	MP3, WMA, WAV
Equalizer Modes	Indoor / Outdoor / Karaoke
TWS Function	Yes (stereo pair with another RAZE ZEUS)
Automatic Power Off	After 15 minutes of inactivity
Dimensions	Not specified in manual
Weight	Not specified in manual

Frequently Asked Questions - RAZE ZEUS Niceboy

How long does it take to fully charge the RAZE ZEUS speaker?

Full charging takes approximately 3 hours using the supplied USB-C cable with a 5V/1A adapter or PC USB port.

How do I turn the speaker on and pair it with my phone?

Press and hold the On/Off button (8) for 3 seconds. The LED will flash, indicating pairing mode. Activate Bluetooth on your device and select 'Niceboy RAZE Zeus' from the list.

Can I connect two RAZE ZEUS speakers for stereo sound?

Yes, use the TWS (True Wireless) function. Turn on both speakers, long-press the TWS button (3) on one speaker until a tone confirms pairing, then connect via Bluetooth from your device.

How do I reset the speaker to factory settings?

With the speaker on, press and hold the On/Off button (8) for 8 seconds. The speaker will turn off and back on, completing the reset.

What equalizer modes are available?

Press the BASS BOOST button (2) to cycle through Indoor, Outdoor, and Karaoke modes.

How can I play music from a USB flash drive or micro SD card?

Insert the drive or card into the corresponding port (12 or 13). The speaker automatically switches to playback mode. Use the playback buttons to control tracks. Supports up to 32 GB and MP3, WMA, WAV formats.

Is the speaker waterproof?

Yes, it has an IPX6 rating, meaning it can withstand powerful water jets. However, do not submerge it.

How long does the battery last?

Battery life is approximately 12 hours at 50% volume. Actual duration may vary based on volume level and playback mode.

Does the speaker automatically turn off to save battery?

Yes, the speaker will automatically power off after 15 minutes of inactivity.

Can I use the speaker for phone calls?

Yes, press the Play/Pause button (4) to answer or end a call, and long-press to reject an incoming call. The built-in microphone allows hands-free calling.

USER MANUAL RAZE ZEUS Niceboy

User Manual / Wireless Speaker

CZ

SK

EN

DE

HU

HR

PL

SL

RO

SE

OBSAH BALENÍ

USB-C charging cable

Audio cable

Instruction manual

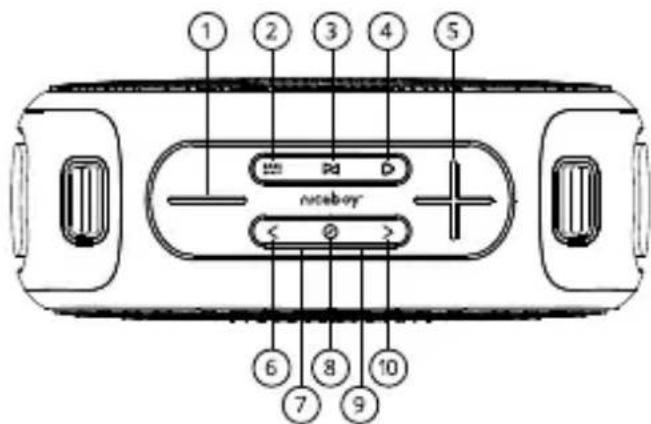

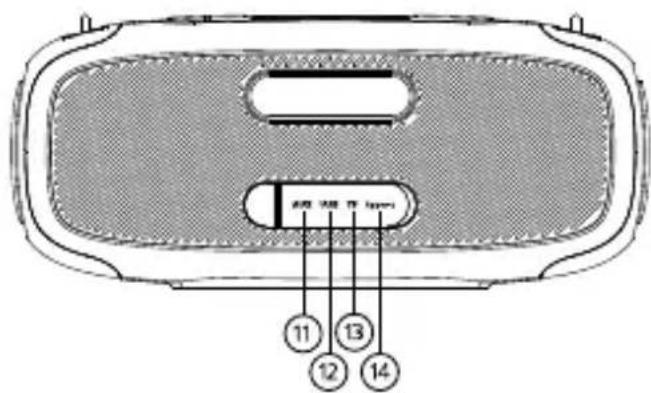

PRODUCT DESCRIPTION

1. Volume reduction button
2. Automatic equalizer
3. TWS button / mode switch
4. Play / Pause / Answer / End

/ Reject call / Last dialed number

1. Volume increase button
2. Previous track button
3. Operating LED indicator
4. On / Off
5. LED charging indicator
6. Next track button
7. 3.5 mm AUX jack input
8. Charging USB - output, port for a USB flash disk
9. Micro SD card slot
10. USB-C charging port

CHARGING

We recommend that you fully charge the speaker before using it for the first time to maximize battery life. A full charging takes approximately 3 hours. Low battery is indicated by an audio signal. To charge the speaker's battery, plug the supplied USB-C cable into the charging port (14) and connect it to any charging adapter (5 V voltage and at least 1 A output current) or to a USB port in a PC. You can follow the charging progress thanks to the 4 charging LED diodes (9), after a full charge is complete, all 4 diodes will be lit.

POWER ON / OFF

To turn the speaker on or off, press and hold button (8) for 3 seconds.

*If the speaker is left inactive, it will turn off automatically after 15 minutes to save power.

CONNECTING TO A DEVICE

1. Press and hold the on/off button (8) for 3 seconds to turn the speaker on. The speaker is now in pairing mode for wireless connectivity. Pairing mode is indicated by the flashing of the operating LED (7).

2. Activate Bluetooth on your device. Select "Niceboy RAZE Zeus" in the list of available devices.

3. The device will connect to the speaker. A successful pairing is indicated by a tone and the operating LED (7) lighting up.

*When switched on again, the speaker automatically connects to the last paired device.

PLAYBACK

To start or pause a track, short-press button (4). Control the volume by short- or long-pressing button (1) or (5). Short-pressing button (6) or (10) skips to the next or previous track.

AUX MODE

1. Plug the enclosed 3.5 mm jack cable into the audio port (11); the speaker will automatically switch to the corresponding mode.
2. Control what music the speaker plays using the device the speaker is connected to.
   Control the volume by short- or long-pressing button (1) or (5).

USB FLASH DRIVE AND MICRO SD CARD

Insert a data storage device into the corresponding port (12), (13).

The speaker automatically switches to playback mode, indicated by a tone.

To start or pause a track, short-press button (4). Control the volume by short- or long-pressing button (1) or (5). Short-pressing button (6) or (10) skips to the next or previous track.

*The device supports data storage devices with a maximum capacity of 32 GB and MP3, WMA, WAV audio format.

PHONE CALLS

To answer and afterwards end a phone call, press button (4). Long-press the same button to reject an incoming call.

AUTOMATIC EQUALIZER

Pressing button BASS BOOST (2) switches between individual sound modes INDOOR / OUTDOOR / KARAOKE

TRUE WIRELESS (TWS) CONNECTION

True Wireless (TWS) technology enables you to connect two Niceboy RAZE Zeus speakers and play music simultaneously in stereo.

1. Turn both Niceboy RAZE Zeus speakers on and make sure they are not connected to any Bluetooth device (mobile, notebook etc.).
2. Long-press button (3) on one of the speakers.
   A tone will indicate a successful interconnection of the speakers.
3. You can now open Bluetooth settings on your device. Select "Niceboy RAZE Zeus" in the list of available devices. A tone will indicate a successful pairing.

FACTORY SETTINGS

In case of technical problems, reset the speaker to factory settings. The speaker must be turned on. Press and hold button (8) for 8 seconds. The speaker will turn off then back on again. The reset is now complete.

PARAMETERS

BT version: 5.0

Frequency band: 2.4 GHz

Radiofrequency power: ≤ 2.5 mW

Transmission range: 10 meters

Supported codecs: SBC

Supported profiles: A2DP, AVRCP, HFP

Power output: 65 W

Impedance: 4 Ω

Sensitivity: >88 dB

Frequency range: 80 Hz - 20 kHz

Supported data storage devices: USB flash drive, micro SD card, max. 32 GB

Supported audio formats: MP3, WMA, WAV

Battery: Li-Ion 6000 mAh

Battery life: 12 hours (at 50% volume)

Waterproofness: IPX6

SAFETY INFORMATION

Listening to music at very high volume can damage your hearing. Do not expose the device to fluids or humidity. Do not expose the device to extreme temperatures or try to disassemble it. Protect the device from sharp objects and falls from height. Batteries – improper handling (prolonged charging, short circuit, breakage by other objects, etc.) may result in fire, overheating or battery leakage.

The battery or accumulator that may be included with the product has a service life of six months, as it is a consumable.

The manual is available for download in electronic form at www.niceboy.eu in the support section. NICEBOY s.r.o. hereby declares that radio device type Niceboy RAZE Zeus complies with Directives 2014/53/EU, 2014/30/EU, 2014/35/EU, and 2011/65/EU. The full EU Declaration of Conformity is available at the following website: https://niceboy.eu/en/raze-zeus

INFORMATION FOR USERS ON DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT (HOUSEHOLDS)

The above symbol on the product or accompanying documentation means that used up electrical or electronic products must not be disposed of as communal waste. To dispose of the product correctly, bring it to designated waste collection points, where it will be disposed of free of charge. Proper disposal of the product helps preserve valuable natural resources and prevent potential negative impact on the environment and human health caused by improper waste disposal. For more information, contact local authorities or the nearest waste collection point. Improper disposal of this type of waste may result in a fine pursuant to national legislation. Information for Users on Disposal of Electrical and Electronic Equipment (Corporate Use). To properly dispose of electrical and electronic equipment for corporate use, contact the manufacturer or importer of the product. They will provide you information on disposal methods for the product and will inform you on who is obligated to fund the disposal of the electrical device based on the date the product was put on the market. Information on Disposal in Countries outside the European Union. The above symbol only applies in EU countries. To properly dispose of electrical and electronic equipment, request more information from your local authority or the seller of the product.

DE

LIEFERUMFANG

PRAVA BREZŽIČNA POVEZAVA (TWS)

Codecuri acceptate: SBC

Profiluri acceptate: A2DP, AVRCP, HFP

Putere de ieşire: 65 W

Impedanță: 4 Ω

Sensibilitate: >88 dB

Gama de frecventă: 80 Hz - 20 kHz

Dispositive de stocare a datelor acceptate: Unitate flash USB, card micro SD, max. 32 GB

Formate audio acceptate: MP3, WMA, WAV

Baterie: Li-Ion 6000 mAh

Durata de viață a bateriei: 12 ore (la volum 50%)

Praha 4, Czech Republic, ID: 294 16 876.

Made in China.
