GT7010 - Tools BLAUPUNKT - Free user manual and instructions

Product Type	Grass trimmer
Brand	Blaupunkt
Model	GT7010
Power	550 W
Rotational Speed	10000/min
Cutting Diameter	290 mm
String Diameter	1.4 mm
String Type	Double string
Telescopic Rod	Adjustable length
Head Angle Adjustment	Yes
Flower Stopper	Yes
String Dispensing	Automatic
Sound Pressure Level	80.20 dB(A)
Sound Power Level	94.50 dB(A) (measured), 96.00 dB(A) (guaranteed)
Vibration Level	3.07 m/s²
Safety Features	Safety guard, flower stopper
Intended Use	Domestic gardening

Frequently Asked Questions - GT7010 BLAUPUNKT

How to replace the cutting spool?

First, ensure the switch is off and unplug the device. Press the side latches of the reel cover, remove the inner cover, take out the old spool, insert a new one, and push it back until it clicks into place.

How to adjust the telescopic tube length?

Use the central locking knob to loosen the tube, extend or retract the telescopic rod to the desired length, then tighten the knob securely.

What safety precautions should I take before using the trimmer?

Always wear safety glasses, protective gloves, and long trousers. Keep bystanders and pets at least 15 meters away. Check that the device is undamaged and the string is properly installed. Do not use in wet conditions or near flammable materials.

What is the recommended grass height for effective cutting?

The trimmer is most effective when grass is no higher than 15 cm. For taller grass, cut in stages. Also, mow only when the grass is dry for best results.

How does the flower stopper work?

The flower stopper is a guard at the cutting head that helps protect plants and flowers from accidental damage while trimming grass around them.

How to adjust the head angle?

Press the head adjustment button and tilt the cutting head to the desired angle, then release the button to lock it in place. This allows edging along curbs or flower beds.

What are the noise and vibration levels of this trimmer?

The sound pressure level is 80.20 dB(A), sound power level (measured) is 94.50 dB(A), and guaranteed sound power is 96.00 dB(A). Hand-arm vibration is 3.07 m/s² with uncertainty of 1.50 m/s².

How should I clean and maintain the grass trimmer?

After each use, clean plant residues from the device and the lower cover. Keep ventilation slots dust-free. Use a clean cloth or compressed air. Do not use solvents. Check and tighten screws after the first two hours of operation.

Can I use an extension cord with this trimmer?

Yes, but use a waterproof extension cord suitable for outdoor use. For cable lengths under 20 m, use at least 1.5 mm² cross-section; between 20-50 m, use at least 2.5 mm². Always route the cord behind you to avoid tripping.

What should I do if the string does not dispense automatically?

The trimmer has an automatic dispensing system activated when starting. If it fails, check if the spool is correctly installed and the string is not tangled. You can also manually pull out the string by pressing the button on the cutting head.

USER MANUAL GT7010 BLAUPUNKT

Blue and black cleaning power tool with metal rod and handle (no visible text or symbols)

Enjoy it.

Електрически тример Elektrická strunová kosačka Нлектрико хортокоптико Elektriline murutrimmer Električni trimer Elektriskais zâles trimmeris

Podkaszarka elektryczna Grass trimmer Električna kosilnica na nitko Elektrinė žoliapjovė Elektrická strunová sekačka Elektromos szegélynyíró Trimmer electric

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.
• The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.
  • Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.
• Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Keep your workplace tidy and well lit.

• Disorder and insufficient lighting lead to accidents.

- Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.

- A moment of carelessness may cause losing control of your tool.

- If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.

- Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.

- Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.

- Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.

- Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

• Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.
• Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.
• Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.
• Ensure that the vents are free from debris.
• The device may only be used in a dry, well-lit environment.
  • This tool should not be used by anyone under the age of 16.

Electrical safety

Connect the device only to an electrical supply of characteristics in accordance with the information on the data plate.

The power tool plugs must match the power sockets. Never alter the power cord plug in any way. Unmodified plugs and suitable electrical sockets reduce the risk of an electric shock. Avoid touching grounded or shorted to ground surfaces such as piping, radiators, radiators and refrigerators. If parts that are grounded or shorted to ground are touched, the risk of electric shock increases.

Do not expose electric devices to rain or humid conditions. If water enters the power tool, the risk of an electric shock increases.

Do not tighten the connection cables. Never use the connection cable to carry, pull electrical equipment or pull the

plug out of the socket. Keep the connection cable away from heat sources, oils, sharp edges or moving parts. Damaged or entangled connection cables increase the risk of an electric shock.

Before starting the work, check the power cord before starting the work. Do not operate if the power cord or extension cord is abraded, cut or otherwise damaged. If the power cord is damaged during use, switch off the device and unplug it from the socket.

If the power tool is used outdoors, the connection cables should be extended with waterproof extension cords designed to operate outdoors. Using such an extension cord reduces the risk of an electric shock. The cross-section area of the extension cord conductors should be at least 1.5 mm when the length of the cable is less than 20 m, and if the length of the cable is between 20 and 50 m, the minimum cross-section is 2.5 mm. ^2 A residual current protection device (RCD) must be used as protection against shock from the supply voltage. Using the RCD reduces the risk of electric shock. The equipment should be supplied through an RCD with a rated current not exceeding 30 mA.

General information

The device is intended for house gardening use only as described and protected by these instructions for use After switching off the trimmer, the string/blade rotates for some time. Wait until the motor and the string/blade completely stop before restarting the device.

Do not turn the trimmer on or off at short intervals.

The operator of the trimmer should wear proper footwear with non-slip soles and long trousers to protect the legs. Do not work barefoot or in flip-flops, sandals.

Always use the trimmer holding it with both hands.

Operate the device only during the day or in good artificial lighting.

	Read the user manual.		Use ear protection
			Wear protective glovesGeneral warning
	Fire hazard		Wear protective clothing
	Electric shock hazard		Wear a protective mask
	Wear safety glasses		Wear respiratory protection

SYMBOLS

• The following symbols may appear in the operating instructions or on the tool's nameplate.
  • These signs contain important information about the product and instructions on how to use it.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Intended use:

The gardening tool is designed for home use, for trimming grass and weeds, usually in areas that cannot be reached with a lawnmower. The gardening tool is not intended for commercial or industrial use.

Before starting the device:

Check the technical condition of the device and make sure that none of the components are damaged and that the reel with the string is properly installed and fastened.

Before using the trimmer, check that there are no signs of wear or damage and, if necessary, return it to an authorised service centre.

Check that bystanders and animals are at a safe distance from the trimmer's workplace (at least 15 meters).

The trimmer should be disconnected from the power supply in the event of breaks in work, before moving it to another workplace, and before any work on the power tool (e.g. setting or cleaning).

WEAR PERSONAL PROTECTIVE EQUIPMENT

• Wear safety glasses according to En166
• Use protective masks in accordance with En149
• Use other types of proper personal protective equipment, depending on the type of work involved.

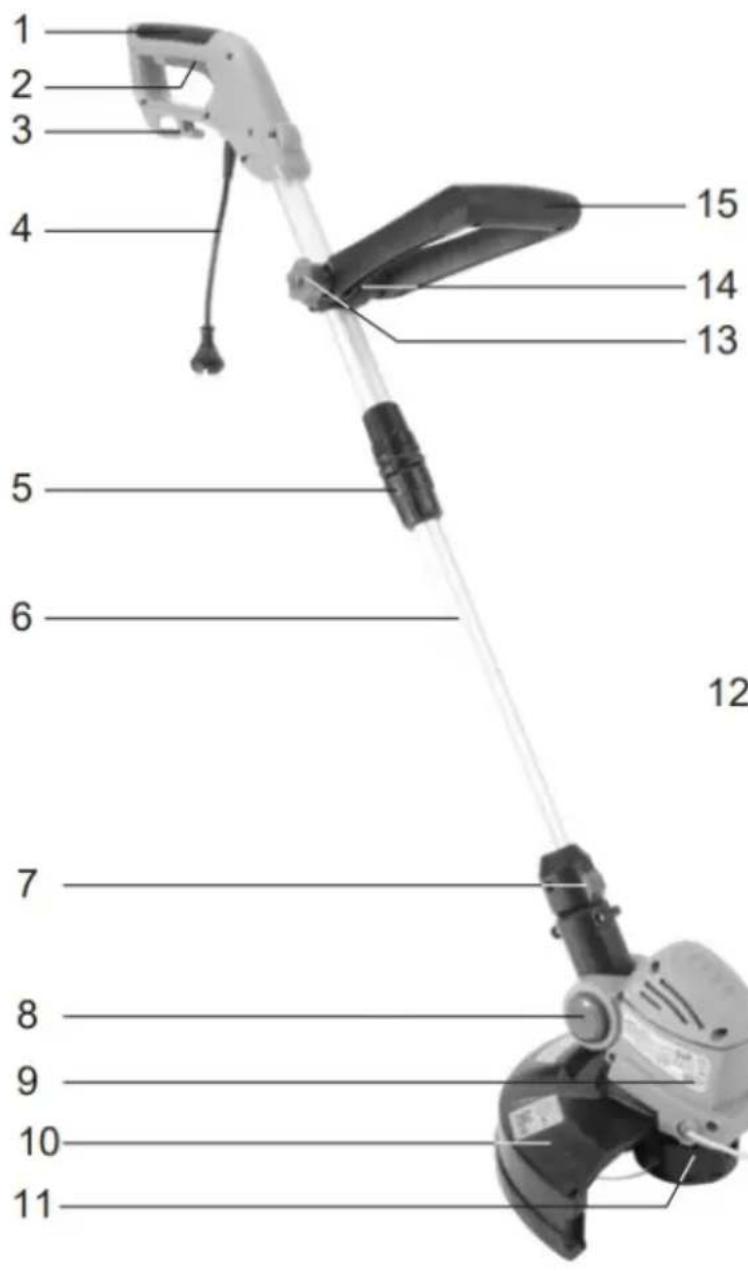

Device description

1. Upper handle
2. Switch trigger
3. Cord holder
4. Power cord
5. Central locking knob (for length adjustment)
6. Telescopic tube
7. Head adjustment button
8. Tilt angle adjustment button
9. Motor body
10. Safety guard
11. Cutting head
12. Stopper
13. Additional handle fixing nut
14. Mounting screw
15. Additional handle

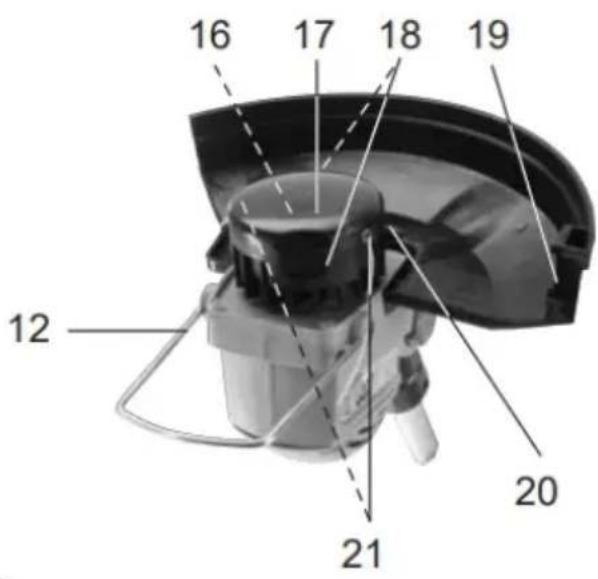

16. Reel
17. Inside of the reel
18. Reel lock buttons
19. String cutter
20. Button to manually pull out the string
21. String lead holes

Device assembly:

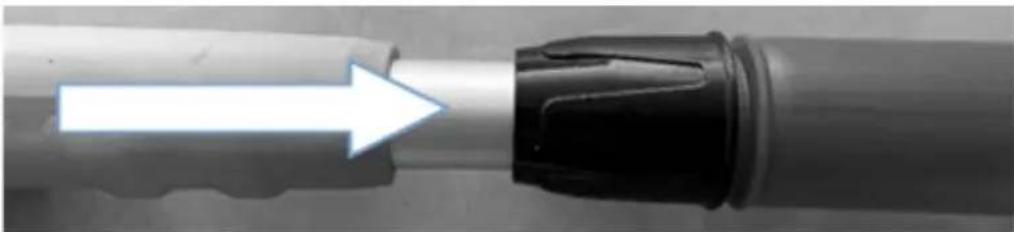

1. Turn the locking knob and insert the telescopic tube.

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

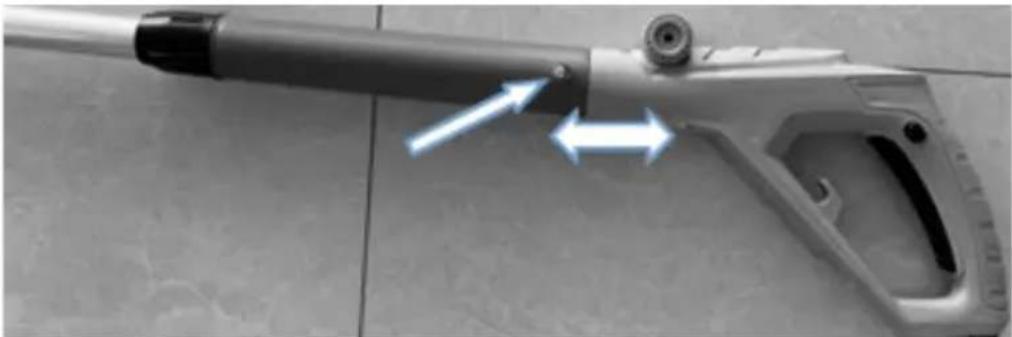

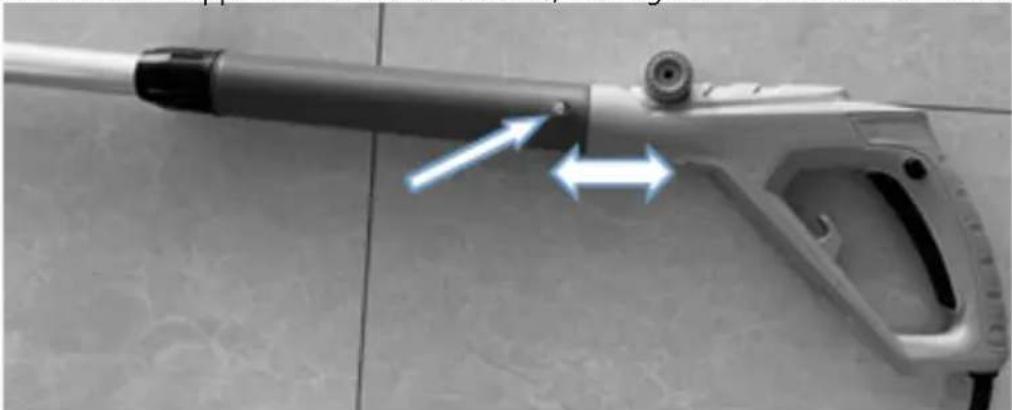

1. Connect the upper tube to the centre tube, then tighten the screw on both sides.

Close-up of a mechanical lever with directional arrows indicating movement or force (no text or symbols visible)

1. Fixing the safety guard:

Insert the safety guard into the motor housing and tighten the screw.

Close-up of a mechanical component with directional arrows indicating flow or movement (no text or symbols visible)

Changing the reel:

1. Check that the switch is in the off position and remove the plug from the socket.
2. Press the side latches of the reel cover, remove the inner cover from the reel, then remove it from the inside and replace with a new one.
3. Push the reel back into the reel holder ensuring it is securely seated.

Device assembly:

Use the on/off button to turn the device on/off

Use the head adjustment button to use the mowing function at the curb.

To replace the reels use the reel lock button and remove it and replace it with a new one

Installation of the additional handle:

To install the handle use the nut and bolt, insert the bolt through the hole fixing the handle, and secure it with the nut.

Remember to set the appropriate angle of handle inclination.

Adjusting the length of the telescopic tube:

Use the lock knob to extend/retract the telescopic tube and extend/retract the tube.

GRASS mowing:

Do not mow wet grass. The best mowing results are achieved when the grass is dry. Insert the extension cord through the back of the arm, making sure that it is always behind the user when cutting.

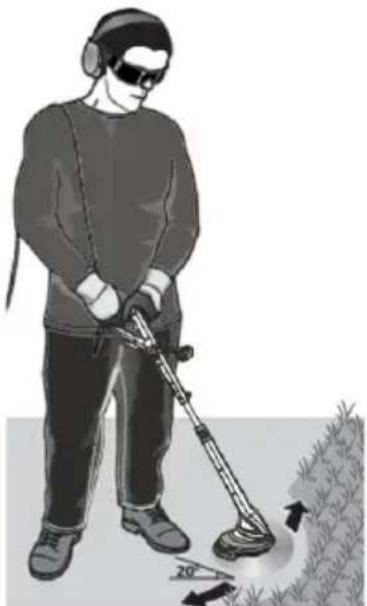

Keep the device tilted at an angle of 20 degrees to the grass being mowed, moving it in a pendulum motion, to the left and right. Make sure to keep the device away from yourself – see figure.

Illustration of a person using a handheld metal detector to clean vegetation, with arrows indicating direction (no text or symbols)

Effective mowing of the grass with the device is possible only if the grass not higher than 15 cm. Keep the grass trimmer away from hard objects. When the string comes into contact with a hard object, the string may break. Stones can be thrown away and hit the surrounding objects at high speed causing damage. It is prohibited to use the device without a safety cover.

When using the trimmer, remember to maintain proper body posture during work.

MOWING AROUND SHRUBS AND TREES

When mowing grass and weeds around shrubs and trees be extremely careful and do not allow them to come into contact with the rotating string. Damage to the bark may result in the death of the tree or shrub.

Dispensing the string:

The device is equipped with an automatic string dispensing system which ejects a certain amount of string every time the trimmer is started.

The excess of the dispensed string is cut by the cutter.

Cleaning and maintenance

1. After each use clean the entire device of plant residues and the lower cover of the collected compacted mass.
2. Ventilation slots and motor housing should be kept free of dust and dirt, as much as possible. Wipe the device with a clean cloth, brush or purge with compressed air.
3. It is recommended to clean immediately after every use.
4. Do not use any cleaning agents or solvents to clean the device; they may damage the plastic parts. Take care not to allow water to enter the device.
5. Check the condition of the cutting string regularly, as well as the tightening of the screws. With new devices, the bolt tightening should be checked after about 2 first hours of operation. Tighten the loosened bolts if necessary.
6. Ensure that all components of the power tool are in good working order and do not overload or carry out any work for which the device is not intended

Grass trimmer

Power: 550 W

Rotational speed: 10000/min

Cutting diameter: 290 mm

String diameter: 1.4 mm

Double string

Adjustable length (telescopic rod)

Flower stopper

Head angle adjustment

Cord length: 200 mm

Head Type: automatic

Noise and vibrations.

The noise and vibrations have been measured in accordance with En786

Noise emission: Sound pressure level (LpA): 80.20 dB (A)

KpA deviation: 3.00 dB (A)

Measured sound power level LwA: 94.50 dB (A)

KwA deviation: 1.91 dB (A)

Guaranteed sound power level: LwA: 96.00 dB (A)

Total vibration value and measurement uncertainty (K):

The value of vibrations acting on the upper limbs: 3.07 m/s^2 , k=1.50 m/s^2

The declared total vibration value has been measured according to the standard test method and can be used to compare one device to another. The given vibration emission value may be used for the preliminary estimation of the negative impact.

After every 15 minutes of work allow 15 minutes break.

WAŻNE INFORMACJE

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a metallic mechanical lever with two directional arrows indicating movement or force (no text or symbols visible)

Close-up of a mechanical component with a curved blade and internal blades, showing no visible text or symbols.

Wymiana szpuli:

Illustration of a person using a handheld metal detector to dig through grass, with no visible text or symbols

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a mechanical tool with directional arrows indicating movement or force (no text or symbols visible)

Close-up of a mechanical component with a curved blade and internal structure, showing no visible text or symbols.

Výměna cívky:

Illustration of a person using a handheld metal detector to clean vegetation, with no visible text or symbols.

POUŽÍVAJTE OSOBNÉ OCHRANNÉ PROSTRIEDKY

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a metallic mechanical lever with two blue arrows indicating motion direction (no text or symbols visible)

Close-up of a mechanical component with curved surfaces and internal blades, no visible text or symbols

Výmena cievky:

Person using a handheld tool to clean vegetation, no text or symbols visible

Close-up of a black mechanical component with a white arrow pointing to its edge, no visible text or symbols.

Close-up of a metallic mechanical lever with two directional arrows indicating movement or force (no text or symbols visible)

Close-up of a mechanical component with curved surfaces and directional arrows (no text or symbols)

Az orsó cseréje:

Illustration of a person using a metal detector to clean vegetation, with no visible text or symbols

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a metallic mechanical device with two blue arrows indicating motion or force direction (no text or symbols visible)

Close-up of a mechanical component with directional arrows indicating flow or movement (no text or symbols visible)

Zamenjava koluta:

Illustration of a person using a metal detector to clean vegetation, with no visible text or symbols

Close-up of a black cylindrical object with a white arrow pointing right, showing a textured surface (no text or symbols visible)

1. Spojite gornju cijev sa srednjom cijevi, zatim zategnite vijak s obje strane.

Close-up of a metallic mechanical lever with directional arrows indicating motion (no text or symbols visible)

Close-up of a mechanical component with a curved blade and internal structure, showing directional arrows (no text or symbols)

Zamjena špule:

1. Provjerite je li prekidač u isključenom položaju i izvucite utikač iz utičnice.
2. Pritisnite bočne zasune poklopca kalema, uklonite unutarnji poklopac s kalema, zatim ga uklonite iznutra i zamijenite novim.
3. Gurnite kalem natrag u držač kalema, pazeći da je čvrsto na mjestu.

Instalacija uređaja:

Illustration of a person using a metal detector to clean vegetation (no text or symbols)

Učinkovito košenje trave s uređajem moguće je samo ako trava nije viša od 15 cm. Držite trimer podalje od tvrdih predmeta. Kad je linija dođe u dodir s tvrdim predmetom, kabel može puknuti ili se oštetiti. Kamenje se može odbaciti i velikom brzinom pogoditi okolne objekte, uzrokujući štetu. Zabranjeno je koristiti uređaj bez sigurnosnog poklopca.

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a metallic mechanical lever with two directional arrows indicating motion or movement (no text or symbols visible)

Close-up of a mechanical component with a curved fan and internal blades, showing motion direction arrows (no text or symbols)

Illustration of a person using a metal detector to clean vegetation, with no visible text or symbols

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a metallic spray gun with two blue arrows pointing to the handle (no text or symbols visible)

Close-up of a mechanical component with a circular top and radial blades, showing internal structure and motion arrows (no text or symbols)

Person using a metal detector to clean vegetation, no text or symbols visible

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a metallic firearm with two blue arrows pointing to the handle (no text or symbols visible)

Close-up of a mechanical component with a curved blade and internal blades, showing directional arrows (no text or symbols)

Înlocuirea bobinei:

Illustration of a person using a handheld device to dig through a fence, with arrows indicating movement (no text or symbols)

Close-up of a mechanical component with a white arrow pointing to its edge, no visible text or symbols.

Close-up of a mechanical lever with directional arrows indicating motion or force (no text or symbols visible)

Close-up of a mechanical component with a curved blade and internal structure, showing no visible text or symbols.

Ritès keitimas:

Illustration of a person using a metal detector to clean vegetation, with no visible text or symbols

Close-up of a black mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a metallic spray gun with two directional arrows indicating motion (no text or symbols visible)

1. Kaitsekatte paigaldamine:

Close-up of a mechanical component with a curved blade and internal structure, showing directional arrows (no text or symbols)

Illustration of a person using a metal detector to clean or dig through a pipe (no text or symbols visible)

Close-up of a mechanical component with a white arrow pointing right, no visible text or symbols

Close-up of a metallic spray gun with two directional arrows indicating motion (no text or symbols visible)

Close-up of a mechanical component with internal blades and a curved blade (no visible text or symbols)

Spoles nomaina

Illustration of a person using a metal detector to clean vegetation, with arrows indicating movement (no text or symbols)

EU – DECLARATION OF CONFORMITY

01/2022/GT7010

MANUFACTURER:

BLAUPUNKT COMPETENCE CENTER

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

Authorized person to prepare the technical documentation:

Tomasz Jakóbczyk

ul. Puławska 403A

02-801 Warsaw, Poland

We declare under our sole responsibility that our product:

Type of device:

Grass trimmer

Name:

GT7010

If used for its intended use complies with the essential protection requirements relating to the:

2014/30/EU (EMC Directive)

2014/35/EU (LVD Directive)

2006/42/EC (MD Machinery Directive)

2011/65/EU (RoHS Directive) and its Annex II amending directive 2015/863/EU

The assessment of this product has been based on the following standards:

EMC standards:

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A2:2021

EN 55014-1:2017+A1:2020 | EN IEC 55014-1:2021

EN 55014-2:2015 | EN IEC 55014-2:2021

MD and LVD standards:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021

EN 50636-2-91:2014

EN 62233:2008

RoHS standards:

EN IEC 63000:2018

Warsaw, 15.12.2022

BLAUPUNKT

02-801 Warsaw, Poland

Corespondence address:

Puławska 12

05-532 Baniocha, Poland

Phone [phone]

Competence Center

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

Email:[e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
