USER MANUAL R5 Power Xblitz

User's manual in English lanugage - EN

Exterior view of a black Xblitz (RS Power) electronic device with red wiring and a small terminal block (no visible text or symbols on the device itself)

Xblitz®

Xblitz®

[R POWER]5

INSTRUKCJA OBSŁUGI

PL

Exterior view of a black BLITZ [IN POWER] power connector with red wiring and terminal blocks (no text or symbols on the device itself)

Xblitz®

Exterior view of a black BLITZ (INR POWER) electrical connector with red wiring and terminal blocks (no text or symbols on the device itself)

Xblitz®

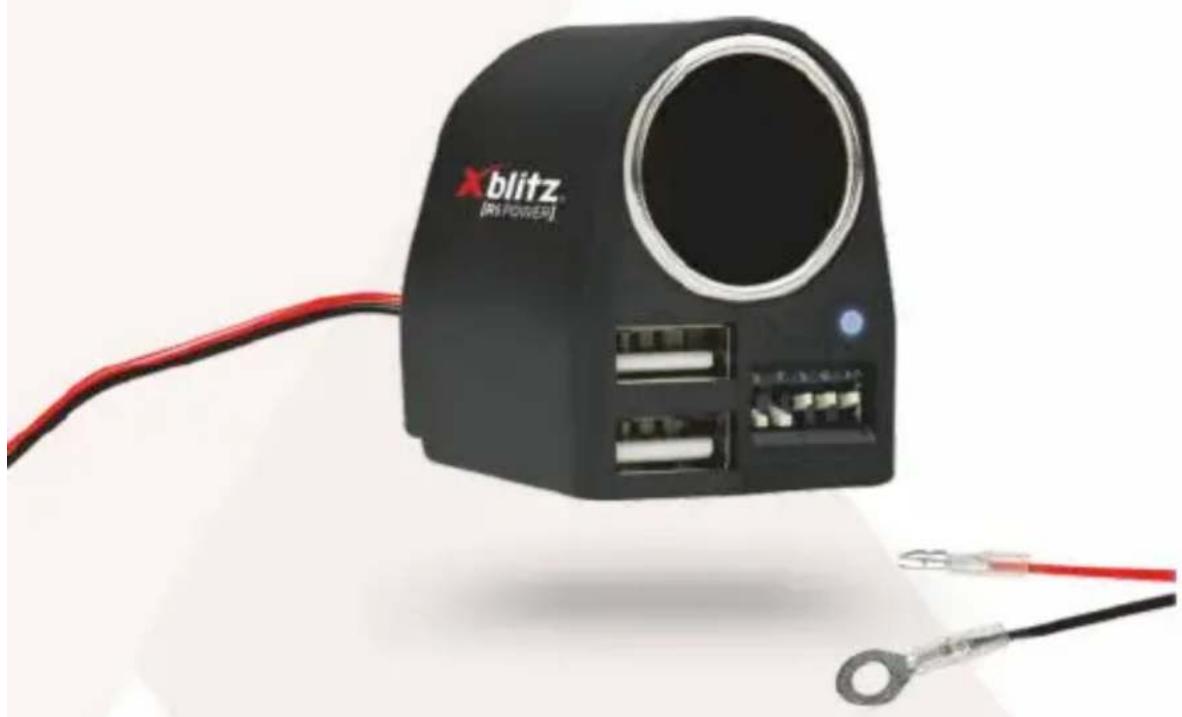

Thank you for purchasing Xblitz R5 Power.

This device is a power adapter, providing power for devices in your car, even when it is parked. The adapter is connected to the car's battery with piggy-back fuse cable and provides power with 12/24V voltage. Please read the user's manual before usage.

01. PACKAGE CONTENTS

1. Xblitz R5 Power
2. Fuses x4
3. Manual

Black electronic device with a red cable and labeled component '1' (no text or symbols on the device itself)

2

Four identical black and red electrical fuse connectors with terminal leads, shown from different angles (no text or symbols visible)

Xblitz®

02. INSTALLATION

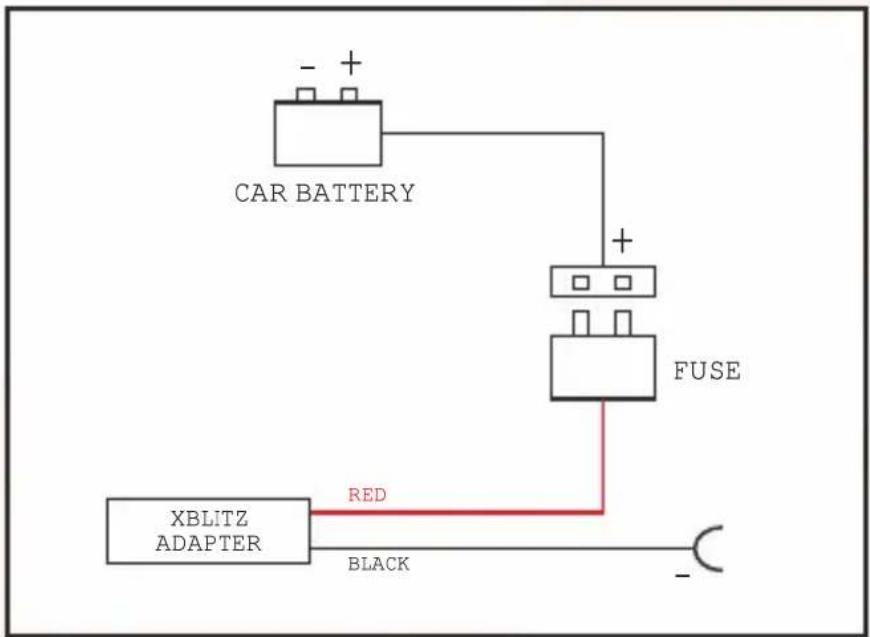

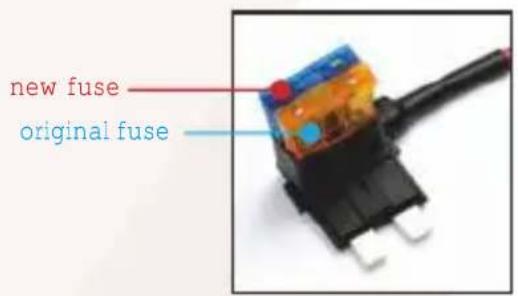

1. Rem ove the fuse in your car's fuse box and put it into the empty slot in the piggy-back fuse cable ("original vehicle fuse" in the image).

1. Put the R5 Power piggy-back fuse cable into the now-empty slot in the fuse box.
2. Insert the stripping wire of the black cord into the GROUND terminal on R5 Power body and lock the wire into place using the attached screwdriver; make sure no copper wiring is sticking out of the terminal.
3. Insert the stripping wire of red cord into 12/24V positive terminal on R5 Power body and lock the wire into place using the attached screw driver; make sure no copper wiring is sticking out of the terminal; check the wiring again to avoid a short-circuit.

Xblitz®

1. Attach the metal ring terminal from black cord to a metal ground point on the body of the vehicle. Do not attach the ring terminal to a painted surface.
2. Insert the plug of the red cord into the receptacle of the piggy-back fuse cable.
3. Press the power switch on R5 Power, check if the control light is on.
4. Seal the paired cartridge connector in place with tape, close the vehicle fuse box.
5. Fasten the parallel red and black cables to other vehicle cables with the use of cable ties.
6. Enjoy your purchase!

03. SETTINGS

Xblitz R5 Power has two settings you can configure to avoid over-discharging the vehicle's battery when the vehicle is parked - Parking Tim er Delay and Battery Drain Cut-O. R5 Power will cut the power supply to the connected devices o based on whichever setting activates first. Parking Tim er Delay can be set from 5 minutes to infinity.

In addition to the timer, you can set battery drain cut-oil voltage. As soon as your parked vehicle's battery voltage drops to the set cut-oil value, R5 Power will stop powering your devices, saving your vehicle's battery.

R5 Power will cut the power output of at the end of time set by Parking Timer Delay setting, even if the battery voltage is still higher than the Battery Drain Cut-O setting.

R5 Power will cut the power output of then the battery voltage drops to the value set by Battery Drain Cut-O setting, even if it the time set by Parking Timer Delay did not pass yet.

Thanks to those two settings, you never have to worry about your vehicle's battery dying when your vehicle is parked.

Xblitz®

PARKING TIMER DELAY SETTING

NO TIMING

DRAIN CUT OFF SETTING

04. DEVICE DESCRIPTION

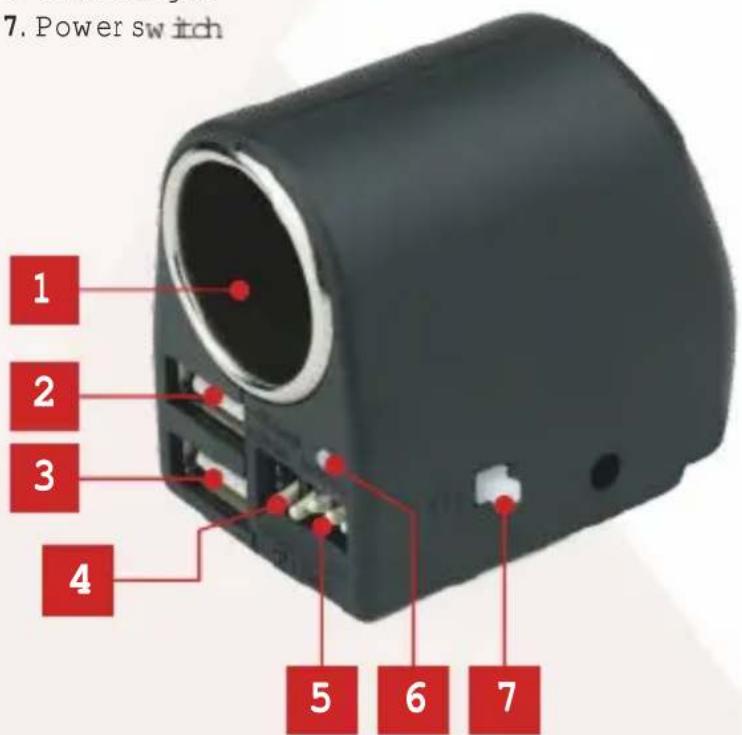

1. Lighter socket (OUTPUT POW ER MAX 36W)
2. Quick Charge port (OUTPUT POW ER MAX 24W)
3. USB port (OUTPUT POWER 5V 2A)
4. Cut-d voltage settings
5. Parking timer settings
6. Control light
7. Power switch

Xblitz®

05. PROTECTION FROM OVERHEATING

1. R5 Power has a built-in temperature sensor, which measures the temperature of the wiring to protect R5 Power and your vehicle; if the wiring reaches a temperature above 90°C, R5 Power will automatically cut power supply o; when the temperature falls beneath 90°C, R5 Power will automatically resum working.

06. PROTECTION FROM OVER-DISCHARGE

1. Please set the cut-o voltage value according to the temperature and how much of the battery's capacity should be consumed before R5 Power cuts o the power output. Here is a chart for your reference (specifics may differ for different batteries).

TEMPERATURE		12V LEAD ACID CAPACITY & VOLTAGE (Volt)
°F	°C	100%	75%	50%	25%	0
0	-18	12.842	12.642	12.432	12.252	12.082
10	-12	12.818	12.618	12.408	12.228	12.058
20	-7	12.794	12.594	12.384	12.204	12.034
30	-1	12.77	12.57	12.36	12.18	12.01
40	4	12.746	12.546	12.336	12.156	11.986
50	10	12.722	12.522	12.312	12.132	11.962
60	16	12.698	12.498	12.288	12.108	11.938
70	21	12.674	12.474	12.264	12.084	11.914
80	27	12.65	12.45	12.24	12.06	11.89
90	32	12.626	12.462	12.216	12.036	11.866
100	38	12.602	12.402	12.192	12.012	11.842
110	43	12.578	12.378	12.168	11.988	11.818
120	49	12.554	12.354	12.144	11.964	11.794
130	54	12.53	12.33	12.122	11.94	11.77
140	60	12.506	12.306	12.096	11.916	11.746

Xblitz®

For example:

If the environment temperature is 100^ F ( 38^ C) and assuming you want to keep 50% of your car's battery capacity to remain when R5 Power cuts the output of, you should set the device to cut power output of at the 12.2V setting (i.e. above the 12.192 voltage from the chart). For a regular 50W h lead-acid battery, 50% of battery consumption supports around 20 hours of dash camera recording.

There are 4 protective band settings in R5 Power, which you can switch according to your needs:

For 12V battery, the voltage cut-o☐ settings are:

11.8V/12.0V/12.2V/12.4V

For 24V battery, the voltage cut-off settings are:

23.6V/24.0V/24.4V/24.8V

12.2V/24.4V band is recommended for most users in typical working conditions.

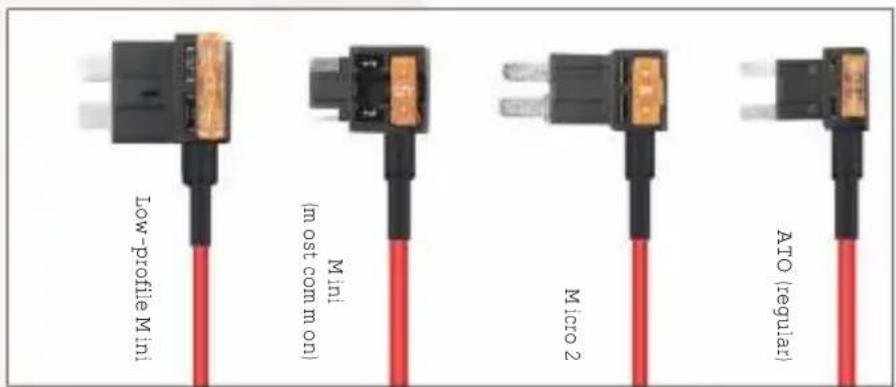

07. PIGGY-BACK FUSE TAP TYPE

The chosen fuse type is included in the kit.

Xblitz®

08. SAFETY MEASURES

1. Do not install the device unless the car's engine is turned off. The same is true for disassembly of the device.
2. Do not use the device in a way that is against any laws of regulations of the region or country you are in.
3. Do not connect any devices that require a power supply different than 12/24V to the adapter.
4. Keep the device away from children
5. Do not expose the device to fire, extreme heat or extreme cold.
6. Do not put fingers or any other foreign objects into any of the device's ports or sockets.
7. Do not dam age the device.
8. Do not damage the wiring connecting the device and the car's battery.
9. In case of device malfunctioning, contact Xblitz service point. Do not repair or maintain the device by yourself.

Xblitz®

09. W ARRANTY CARD/ COMPLAINTS

The product is covered by a 24-month warranty. The terms of the guarantee can be found at: https://xblitz.pl/warranty/

Com plaints should be reported using the com plaint form located at: http://reklam acje.kgktrade.pl/

Details, contact and website address can be found at: www.xblitz.pl

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of charge. Disposal is subject to the recast version of the WEEE Directive (2012/19 / EU) and the Directive on batteries and accumulators (2006/66 / EC). Proper disposal of the device prevents degradation of the natural environment. Information about the collection points of the facilities is issued by the competent local authorities. Incorrect disposal of waste is subject to penalties provided for by the law in force in the given area.

Manufacturer:

KGK Trade sp. z o.o. sp. k.

Ujastek 5B,

31-752 Cracow

Poland

Made in P.R.C.

Xblitz®

Xblitz®

[R POWER]5

NÁVOD K POUŽITÍ

CZ

Exterior view of a black XBlitz (IN Power) electronic device with red wiring and terminal blocks (no text or symbols on main body)

Xblitz®

Black electronic device with a red cable and labeled component '1' (no visible text or symbols on the device itself)

2

Four identical electrical connector packages with black and red wires, shown from different angles (no text or symbols visible)

Xblitz®

02. INSTALACE

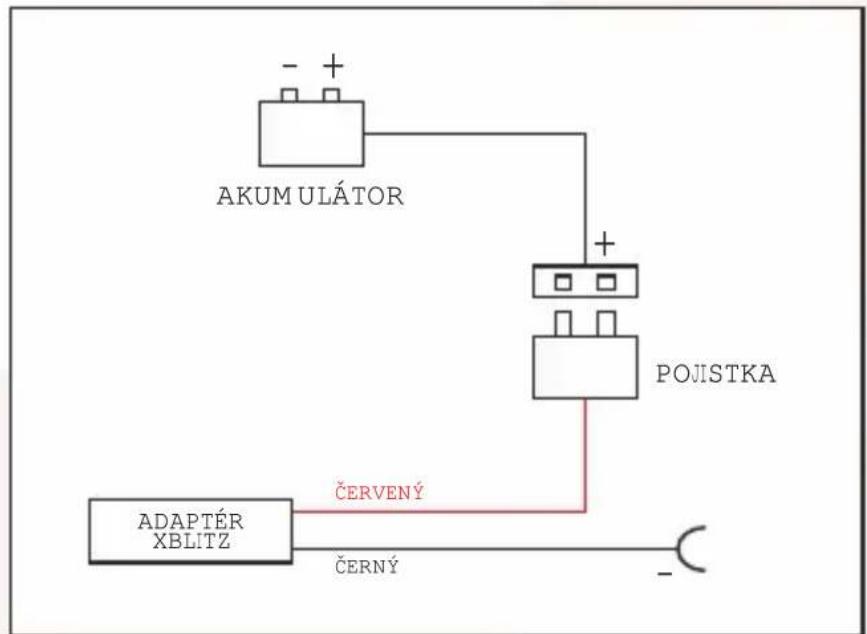


Exterior view of a black BLITZ [IN POWER] power connector with red wiring and terminal blocks (no text or symbols on the device itself)

Xblitz®

Xblitz®

02. INSTALLATION
