Product Type	Aluminium Multi-Purpose Ladder
Brand	Parkside
Model	HG01975
Material	Aluminium
Weight	Approx. 9.8 kg
Maximum Load	150 kg
Maximum Number of Users	1
Intended Use	Private household use for reaching high objects or areas; not for commercial use
Configurations	Leaning ladder and stepladder modes
Safety Features	Rubber feet, locking devices, stabilizer bars, pictogram labels
Inspection Requirements	Visual check before each use; regular periodic inspection for professional users
Cleaning and Care	Wipe with slightly damp, lint-free cloth; keep dry and free of contaminants
Storage	Store in a safe, dry place; do not store materials on ladder
Warranty	5 years from date of purchase
Service (Great Britain)	Tel: [phone], Email: [e-mail]
Service (Cyprus)	Tel: [phone], Email: [e-mail]

Frequently Asked Questions - HG01975 PARKSIDE

What is the maximum weight capacity of the Parkside HG01975 ladder?

The maximum total load is 150 kg, including the user, tools, and materials.

Can I use this ladder for commercial work?

No, the ladder is intended for private household use only. It is not designed for commercial applications.

How should I inspect the ladder before use?

Visually check for damage, wear, or missing parts. Ensure all locking devices are secure and the ladder is clean and free of contaminants.

What is the correct angle for a leaning ladder?

For a leaning ladder, the angle of inclination should be approximately 1:4 (about 75 degrees from horizontal).

Can I stand on the top rungs?

No. Do not stand on the top three rungs of a leaning ladder or the top two rungs of a stepladder without a platform and handrail.

How should I clean and maintain the ladder?

Clean with a slightly damp, lint-free cloth. Lubricate locking mechanisms regularly and store in a dry place.

What should I do if I notice a defect?

Do not use the ladder. Contact the service department at the number provided in the manual. Do not attempt to repair it yourself.

Is the ladder suitable for use near electricity?

No, metal ladders conduct electricity. Identify electrical risks like overhead lines and do not use near live cables. Use non-conductive ladders for electrical work.

Can I use the ladder on stairs?

Only if the stairs are level. Using on uneven stairs can cause tipping or loss of balance.

How long is the warranty period?

The ladder comes with a 5-year warranty from the date of purchase, covering material and manufacturing defects.

USER MANUAL HG01975 PARKSIDE

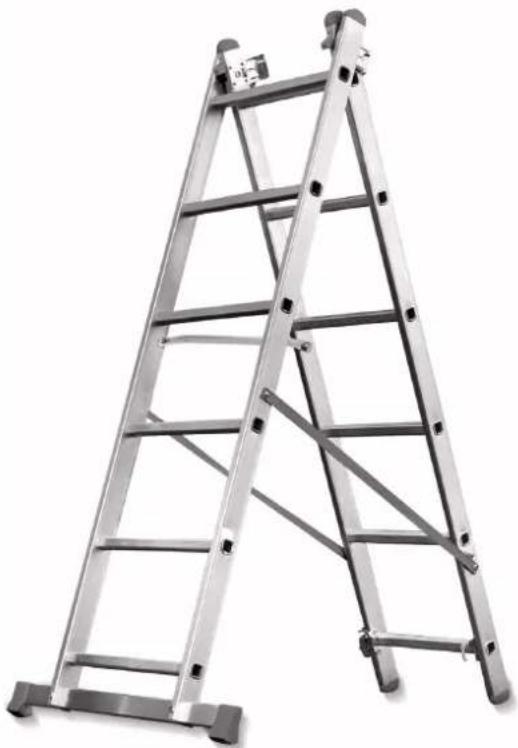

Metal ladder structure with metal frame and support legs (no text or symbols visible)

ALUMINIUM MULTI-PURPOSE LADDER

GB CY

ALUMINIUM MULTI-PURPOSE LADDER

Operation and safety notes

HR

ALUMINIJSKE MULTIFUNKCIONALNE LJESTVE

GB/CY Operation and safety notes Page 21

HR Upute za posluživanje i za Vašu sigurnost Stranica 31
RS Napomene o upotrebi i bezbednosti Strana 41
RO Instructiuni de utilizare și de siguranță Pagina 53
BG Инструкции за обслужване и безопасност		Страница	63
GR/CY	Υποδείξεις χειρισμού кαι ασφαλείας	Σελίδα	77
DE/AT/CH	Bedienungs- und Sicherheitshinweise	Seite	87

Follow the advices on the pictograms to avoid accidents: / Slijedite upute prikazane na slikama kako biste izbjegli nezgode: / Pratite uputstva na piktogramima da biste izbegli nesreće: / Respectați instrucțiunile de pe pictograme pentru a evita accidentele: / Следвайте инструкциите върху пиктограмите, за да избегнете злополуки: / Тнреіте тіс упобдєїзєиє тов еиковоγραμμάτων για την αποφυγή ατυχημάτων: / Befolgen Sie die Anweisungen auf den Piktogrammen, um Unfälle zu vermeiden:

	GBWarning, fall off the ladder.HRUpozorenje, pad s ljestava.RSUpozorenje, pad sa merdevina.ROAvertisment, cădere de pe scară.BGПредупреждение, падане от стълбата.GRПроєидопоїнση, ківδυνος πτώσης ап่о тн скáла.DEATWørnung, Sturz von der Leiter.
	GBRefer to instruction manual / booklet.HRSlijedite upute.RSPratite uputstva.RORespectați instrucțiunile.BGСъблюдавайте ръководството.GRСтіреіте тіс обнүгіес хрήσης.DEATAnleitung beachten.
	GB inspect the ladder after delivery. Before every use visually check the ladder is not damaged and is safe to use.Do not use a damaged ladder.HR Nakon isporuke provjerite ljestve. Prije svake uporabe obavite vizualnu kontrolu ljestava na oštećenja i sigurnu uporabu.Nemojte upotrebljavati oštećene ljestve.RS Nakon isporuke proverite merdevine. Pre svakog korišćenja, vizuelno proverite da li su merdevine oštećene i bezbedne za upotrebu.Nemojte koristiti oštećene merdevine.RO Verificați scara după livrare. Înainte de fiecare utilizare, verificare vizuală a scării pentru deteriorări și utilizare sigură. Nu folosiți scări deteriorate.BG Проверете стълбата след доставка. Преди всяка употреба оглед на стълбата за повреди и безопасно използване. Не използвайте повредена стълба.GR Ελέγξτε τη σκάλα μετά την παράδοση. Прів апó кáθε χρήση ελέγξτε οπτικά τη σκάλα για βλάβες και ως προς την ασφάλειά της.Μην χρησιμοποιείτε σκάλες που έχουν υποστεί βλάβες.DE AT Leiter nach Lieferung überprüfen. Vor jeder Nutzung Sichtprüfung der Leiter auf Beschädigung und sichere Benutzung. Keine beschädigte Leiter benutzen.
	GB Maximum total load.HR Najveća moguća nosivost.RS Najveće moguće opterećenje.RO Sarcină utilă maximă posibilă.BG Максимален полезен товар.GR CMėγιστη φέρουσα ικανότητα.DE AT Höchstmögliche Nutzlast.
	GBDo not use the ladder on an unlevel or unfirm base. HRLjestve nemojte upotrebljavati na neravnoj ili labavoj podlozi. RSNemojte koristiti merdevine na neravnoj ili klimavoj površini. RONu folositi scara pe o bază denivelată sau slabă. BGHe използвайте стълбата върху неравна или хлабава основа. GRСМнв хрпσιμοποιείτε τη σκάλα σε μη επίπεδα ή χαλαρά δάπεδα. DEATDieLeiter nicht auf einem unebenen oder losen Untergrund benutzen.
	GBDo not overreach. HRIzbjegavajte bočno naginjanje. RSIzbegavajte bočno naginjanje. ROEvitați aplecarea laterală în afară. BGИзбягвайте накланяне настрани. GRСМнв тєнтώνετε το σώμα σας προς τα πλάγια. DEATSeitliches Hinauslehnen vermeiden.
	GBDo not erect ladder on contaminated ground. HRLjestve nemojte postavljati na nečistu podlogu. RSNemojte postavljati merdevine na uprljanu površinu. RONu aşezati scara pe o bază murdară. BGHe поставяйте стълбата върху замърсена основа. GRСМнв топотетеіте τη σκάλα σε βρώμικο δάπεδο. DEATDieLeiter nicht auf verunreinigtem Untergrund aufstellen.
	GBСMaximum number of users. HRNajveći mogući broj korisnika. RSMaksimalan broj korisnika. RONumăr maxim posibil de utilizatori. BGМаксимален брой потребители. GRСМėγιστος аріθμός хрпστών. DEATHöchstmögliche Anzahl der Benutzer.GBDo not ascend or descend unless you are facing the ladder.HRNe penjite se i ne spuštanje po ljestvama licem okrenutim od ljestava.RSNemojte okrenuti leđima da se penjete uz, niti da se spuštate niz stepenice.RONu urcați și nu coborâți scara cu privirea în altă parte.BGHe ce качвайте или слизайте с гръб към стълбата.GRKoitačete pàvta proç tŋ σκάλa ótav aveβaívete ŋ kateβaívete apó autýv.DEATMitdem Gesicht zur Leiter aufsteigen oder absteigen.
	GBKeep a secure grip on the ladder when ascending and descending. Maintain a handhold whilst working from a ladder or take additional safety precautions if you cannot.HPRi penjanju i spuštanju dobro se držite za ljestve. Tijekom rada na ljestvama čvrsto se držite ili poduzmite druge mjere sigurnosti ako to nije moguće.RSDržite se čvrsto za merdevine prilikom penjanja ili silaska. Držite se čvrsto za merdevine kada radite na njima ili ako to nije moguće koristite druge mere bezbednosti.ROȚineți-vă bine la urcarea și coborârea de pe scară. Țineți-vă când lucrați pe scară sau folosiți alte măsuri de siguranță dacă nu vă puteți ține.BGПри качване и слизане се дръжте здраво за стълбата. При работа се дръжте за стълбата или прилагайте други мерки за безопасност, ако това не е възможно.GRKratnθeіте калá ótav aveβaívete кай катеβaívete tŋ σκάλа. Ката την εктėлеση εργασιών, кратnθeіте калá апó tŋ σκάλа Ů λάβετε ́ Albania μέτρα ασφαλείας αν auto δεν είναι εφικτό.DEATBeim Aufsteigen und Absteigen an der Leiter gut festhalten. Bei Arbeiten auf der Leiter festhalten oder andere Sicherheitsmaßnahmen ergreifen, wenn dies nicht möglich ist.GB Avoid work that imposes a sideways load on ladders, such as side-on drilling through solid materials.HR Izbjegavajte radove koji utječu na bočno opterećenje ljestava, npr. bočno bušenje kroz tvrde tvari.RS Izbegavajte radove koji na merdevinama stvaraju bočno opterećenje, npr. bočno bušenje čvrstih materijala.RO Evitați lucrările care provoacă o sarcină laterală la scară, de ex. găurirea laterală în materiale tari.BG Избягвайте работи, които оказват странично натоварване върху стълбите, напр. странично пробиване в твърди материали.GR Апофúγετε τις εργασίες που απαιτούν πλευρική επιβάρυνση στη σκάλα, π.χ. πλευρική διάτρηση σκληρών υλικών.DE AT Arbeiten, die eine seitliche Belastung bei Leitern bewirken, z. B. seitliches Bohren durch feste Werkstoffe, vermeiden.
	GB Do not carry equipment which is heavy or difficult to handle while using a ladder.HR Prilikom uporabe ljestava ne nosite teške ili nezgrapne predmete.RS Prilikom korišćenja merdevina nemojte nositi tešku ili kabastu opremu.RO La utilizarea unei scări, nu purtați echipamente care sunt grele sau greu de mânuit.BG При използване на стълба не носете оборудване, което е тежко или неудобно за носене.GR Ката́ тн хрήση της σκάλας μην φοράτε εξοπλισμό που είναι βαρύς ή δύσκολος στο χειρισμό.DE AT Ttogen Sie keine schweren oder sperrigen Gegenstände, wenn Sie die Leiter verwenden.GB Do not wear unsuitable footwear when climbing a ladder. HR Ne penjite se na ljestve s neodgovarajućim cipelama. RS Nemojte stajati na merdevine u neodgovarajućoj obući. RO Nu urcați scara cu încălțăminte neadecvată. BG He се качвайте на стълбата с неподходящи обувки. GR CMnv aveβaivete otη σκάλα με ακατάλληλα υποδήματα. DE AT Trugen Sie immer rutschhemmende Schuhe, wenn Sie die Leiter oder die Arbeitsbühne betreten.

GB Do not use the ladder if you are not fit enough. Certain medical conditions or medication, alcohol or drug abuse could make ladder use unsafe.

GB Warning, electricity hazard. Identify any electrical risks in the work area, such as overhead lines or other exposed electrical equipment and do not use the ladder where electrical risks occur.

HR Upozorenje, električna opasnost. Utvrdite sve rizike koji postoje zbog električnih pogonskih sredstava, npr. visokonaponskih nadzemnih vodova ili drugih slobodnih električnih pogonskih sredstava i ne koristite vodiče ako postoji opasnost od električnog udara.

RS Upozorenje, opasnost od struje. Identifikujte sve opasnosti koje predstavlja električna oprema u radnom području, kao npr. visokonaponske nadzemne kablove ili drugu nezaštićenu električnu opremu, i nemojte koristiti merdevine ako postoji opasnost od strujnog udara.

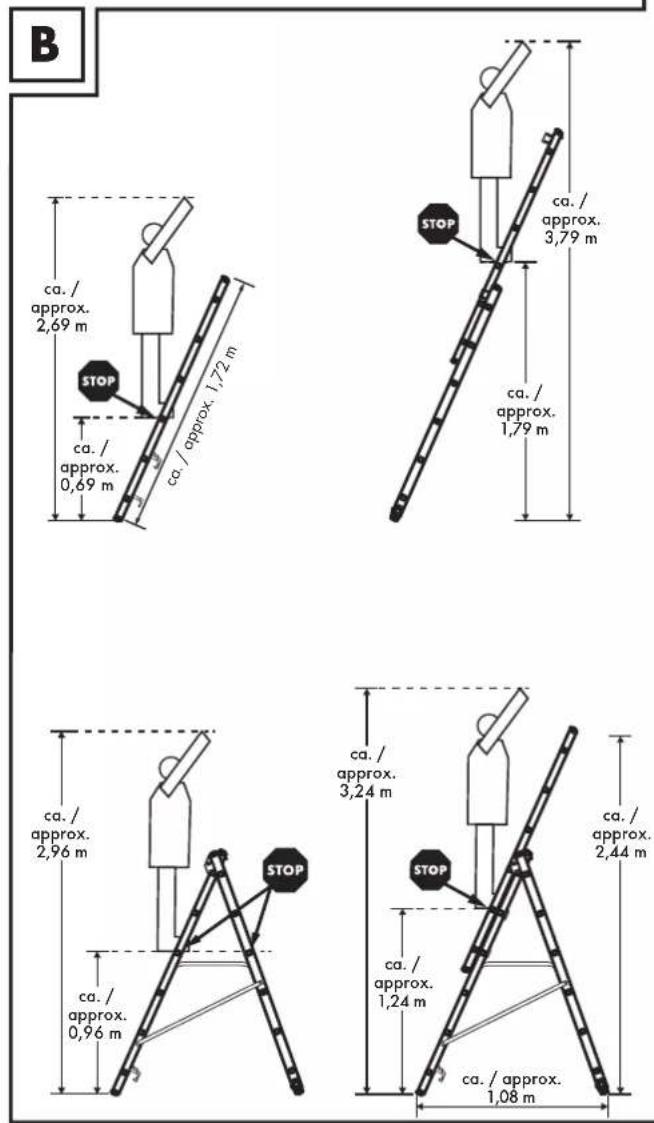

GB Do not stand on the top three steps / rungs of a leaning ladder.

For telescopic ladders the last metre shall not be used.

HR Tri najviša gazišta / prečke prisionih ljestava nemojte upotrebljavati kao površinu za stajanje.

GB cDo not stand on the top two steps / rungs of a standing ladder without a platform and a hand / knee rail.

Intended use Page 22

Technical data....Page 22

Safety instructions....Page 22

General safety instructions .... Page 22

Safety instructions with regard to setting up the ladder.....Page 22

Safety instructions for using the ladder....Page 24

Before use....Page 26

Positioning and erecting the ladder ...... Page 26

Using the ladder....Page 27

List of items to be inspected....Page 28

Repairs, maintenance and storage .... Page 29

Cleaning and care ...... Page 29

Disposal Page 29

Warranty Page 29

ALUMINIUM MULTI- PURPOSE LADDER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is only intended to be used as an aid to reach high objects or areas in private households. The product is not intended for commercial use.

- Technical data

Weight: approx. 9.8 kg

⚠️ Safety instructions

● General safety instructions

Inspect the ladder after delivery and before first use to confirm condition and operation of all parts;

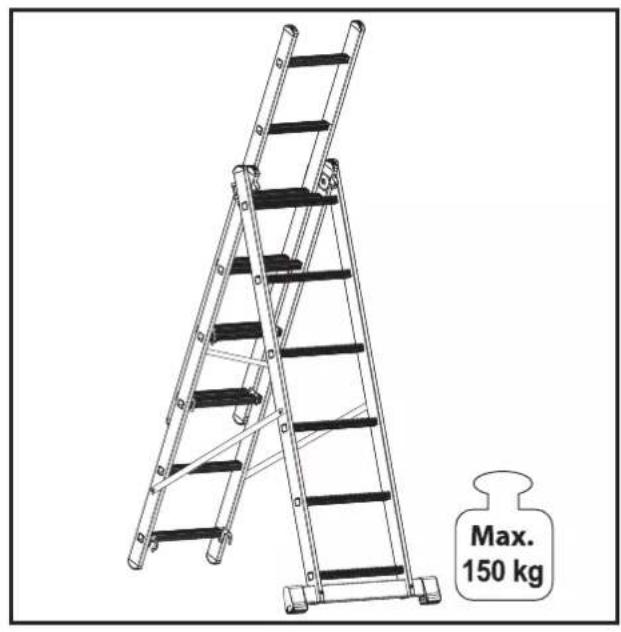

Maximum total load 150 kg. The weight of the user plus tools and other materials must not exceed 150 kg.

- Keep the ladder clean and remove any dirt. Keep the ladder dry to avoid any slippage or toppling over.

■ Before using a ladder at work a risk assessment should be carried out respecting the legislation in the country of use.

● Safety instructions with regard to setting up the ladder

- Inspect all parts prior to each use. Discontinue use if any parts of the ladder are missing, damaged or worn in any way.

• Do not use any other attachments, components or accessories manufactured by other supplier.
  ■ Never attempt to fix a damaged ladder. Always have a qualified repair person fix the damaged ladder.
  ■ Use extreme caution when used in windy, rainy or icy conditions.
  ■ Always place ladder on even, firm surfaces for stability. Never try to increase the height of the ladder in any position by placing anything under the stabilizer bars.
  ■ Always make sure all four rubber feet of the stabilizer bars are firmly supported.
  ■ Always use caution when getting on or off ladder.
  ■ Never set up the ladder in front of doors that are not locked.
  ■ Always use extreme caution when using ladder on a drop cloth, carpet or other protective surface. This will prevent the rubber feet from gripping the surface properly.

• Do not use ladder jacks with this ladder.
  ■ Pushing or pulling anything while on the ladder or scaffold may cause the ladder to tip and you to fall. Use extreme caution if you must push or pull from the ladder.
  ■ Never attempt to jump, walk or move ladder while on it. If you need to move the ladder get off it first. Move it, then reposition yourself.
  ■ To avoid losing balance and/or tipping ladder or scaffold, never overreach. Always stay balanced while on ladder. Keep your body centered between side rails.
  ■ Never use ladder as a brace in any way.
  ■ Never place yourself or allow anyone to stand or work under scaffolding or ladder while in use.

■ Do not stand on ladder while releasing the locking mechanism.

■ Never use on stairs if they are not level. This could cause the ladder to tip or cause you to lose your balance.

■ Always wear skid resistant shoes while using this ladder or scaffold.

■ Before using it, check all parts of the ladder. Do not use the ladder if any parts are missing, damaged or worn.

- Check all locking devices. Before using the ladder, make sure that all locking devices are locked in place.

■ Place the ladder only on a horizontal, dry, immovable firm surface.

■ Ladders shall not be positioned on slippery surfaces (such as ice, shiny surfaces or significantly contaminated solid surfaces) unless additional effective measures are taken to prevent the ladder slipping or ensuring contaminated surfaces are sufficiently clean.

■ Do not use the ladder as a bridging structure.

■ Leaning ladder should lean against a flat non-fragile surface and should be secured before use, e.g. tied or use of a suitable stability device.

■ Attention! Metal is an electrical conductor! Make sure that no part of the ladder is touching a live cable.

■ When positioning the ladder take into account risk of collision with the ladder e.g. from pedestrians, vehicles or doors.

■ Ladder shall be stood on its feet, not the rungs or steps.

● Safety instructions for using the ladder

■ Do not use the ladder if you are under the influence of alcohol, drugs or strong medication. Do not use the ladder if you are ill or do not feel well.

- Do not use the ladder if it is wet, damaged or if it has become slippery because of water, ice or snow.

■ Always hold on tightly to the ladder and always face the ladder when getting on and off the ladder.

■ Do not carry bulky or heavy objects when climbing up the ladder.

- Do not try to change the location of the ladder when you are standing on it or from above. Get off the ladder first and then change the position of the ladder. Then get onto the ladder again.

- Do not lean out too far when you are on the ladder. Keep the centre of your body between the ladder stringers and stand with both feet on the same rung. User should keep their belt buckle (navel) inside their stiles.

- Do not step off a leaning ladder at a higher level without additional security, such as tying off or use of a suitable stability device.

This ladder is not a toy and is not suitable for use by children. Make sure that the ladder cannot be used by children. Do not leave the ladder unattended after you have set it up.

■ Make sure that you do not get tired when working and take breaks. Tiredness represents an increased security risk and could lead to accidents.

■ Ladders should only be used for light work of short duration.

■ Use non-conductive ladders for unavoidable live electrical work.

- Do not use the ladder outside in adverse weather conditions, such as strong wind.

■ Maintain a handhold whilst working from a ladder or take additional safety precautions if you cannot.

- Avoid any tasks in which a lateral load is exerted on the standing ladder, e.g. drilling sideways into solid material (e.g. masonry or concrete).

- Do not use the top three rungs of the ladder as a platform if you are using the ladder as a lean-to ladder (see Figure B).

- Do not use the top two rungs of the ladder as a platform if you are using the ladder as a stepladder (see Figure B).

• Do not stand on the top four steps / rungs of a standing ladder with an extending ladder at the top (see Figure B).
• Do not stand on the top two steps / rungs of a standing ladder without a platform and hand / knee rail.
  ■ Do not modify the ladder design.
  ■ Attached to the ladder frame you will find labels with pictograms for a safe use of the ladder.

Before use

■ Ensure that you are fit enough to use a ladder. Certain medical conditions or medication, alcohol or drug abuse could make ladder use unsafe;
■ When transporting ladders on roof bars or in a truck, ensure they are suitably placed to prevent damage;

• Inspect the ladder after delivery and before first use to confirm condition and operation of all parts;
  ■ Visually check the ladder is not damaged and is safe to use at the start of each working day when the ladder is to be used;
  ■ For professional users regular periodic inspection is required;
  ■ Ensure the ladder is suitable for the task;
  ■ Do not use a damaged ladder;
  ■ Remove any contamination from the ladder, such as wet paint, mud, oil or snow;

● Positioning and erecting the ladder

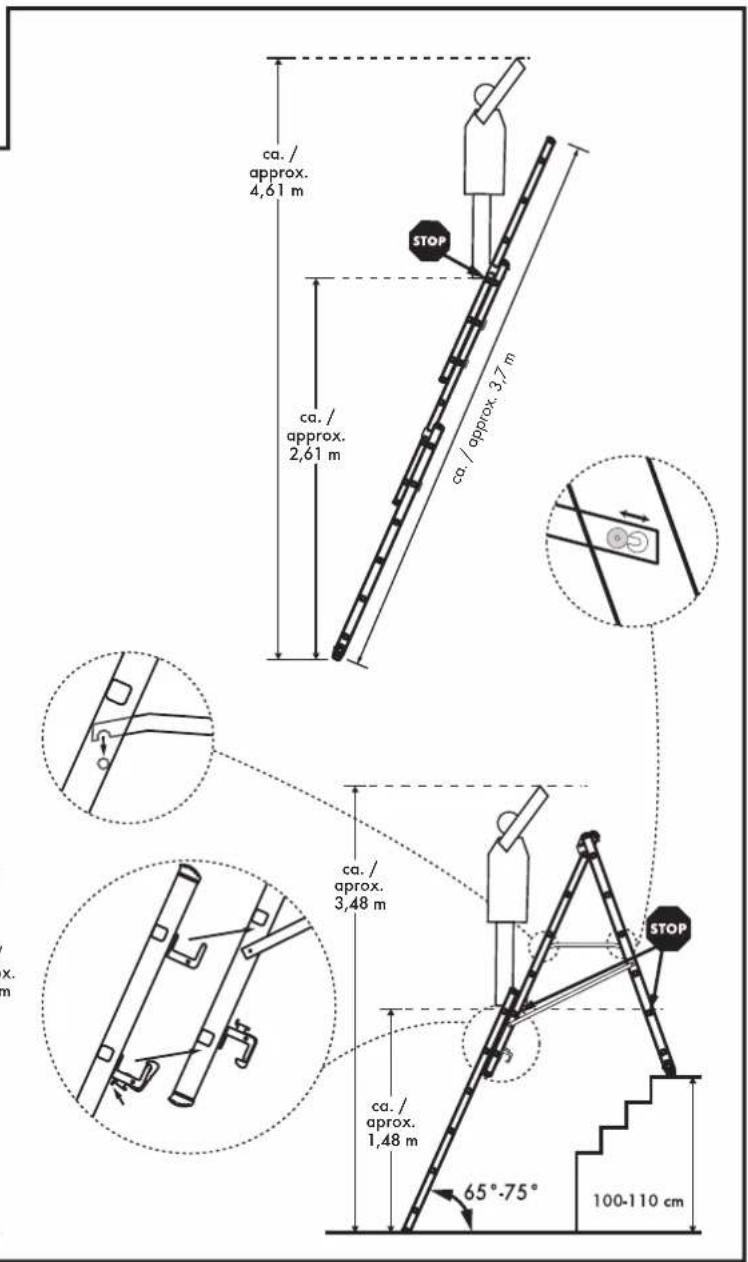

■ Ladder shall be erected at the correct position, such as the correct angle for a leaning ladder (angle of inclination approximately 1:4) with the rungs or treads level and complete opening of a standing ladder;
■ Locking devices shall be fully secured before use;

■ Ladder shall be on an even, level and unmoveable base;
■ Leaning ladder should lean against a flat non-fragile surface and should be secured before use, e.g. tied or use of a suitable stability device;
■ Ladder shall never be repositioned from above;
■ When positioning the ladder take into account risk of collision with the ladder e.g. from pedestrians, vehicles or doors. Secure doors (not fire exits) and windows where possible in the work area;
- Identify any electrical risks in the work area, such as overhead lines or other exposed electrical equipment;
■ Ladder shall be stood on its feet, not the rungs or steps;

Using the ladder

• Do not exceed the maximum total load for the type of ladder;
  ■ Do not use standing ladders for access to another level;
  ■ Do not stand on the top three rungs of a leaning ladder;
  ■ Do not stand on the top two rungs of a standing ladder without a platform and hand/knee rail;
  ■ Do not stand on the top four steps/ rungs of a standing ladder with an extending ladder at the top;
  ■ Take precautions against children playing on the ladder;
• Secure doors (not fire exits) and windows where possible in the work area;
  ■ Face the ladder when ascending and descending;
• Keep a secure grip on the ladder when ascending and descending;
  ■ Wear suitable footwear when climbing a ladder;
  ■ Leaning ladders used for access to a higher level should be extended at least 1 m above the landing point;

■ Equipment carried while using a ladder should be light and easy to handle;

- Avoid work that imposes a sideways load on standing ladders, such as side-on drilling through solid materials (e.g. brick or concrete);

■ Maintain a handhold whilst working from a ladder or take additional safety precautions if you cannot.

● List of items to be inspected

The ladder must be inspected before use. For regular inspection, the following items shall be taken into account:

-is the ladder tag in place and up to date?

-check that the rung hooks are not missing, damaged, loose or corroded and engage properly on the rungs;

-check that guide brackets are not missing, damaged, loose or corroded and engage property on the mating stile;

- are the instructions readable?

-check that the stiles / legs (uprights) are not bent, bowed, twisted, dented, cracked, corroded or rotten;

-check that the stiles / legs around the fixing points for other components are in good condition;

-check that fixings (usually rivets, screws or bolts) are not missing, loose, or corroded;

-check that rungs / steps are not missing, loose, excessively worn, corroded or damaged;

-check that the hinges between front and rear sections are not damaged, loose or corroded;

-check that the locking stays horizontal, back rails and corner braces are not missing, bent, loose, corroded or damaged;

-check that the stabilizer bars are fixed and in a good condition.

-check that plastic feet / end caps are not missing, loose, excessively worn, corroded or damaged;

-check that the entire ladder is free from contaminants (e.g. dirt, mud, paint, oil or grease);

-check that locking catches (if fitted) are not damaged or corroded and function correctly; -check that the platform (if fitted) has no missing parts or fixings and is not damaged or corroded.

If any of the above checks cannot be fully satisfied, you should NOT use the ladder.

● Cleaning and care

■ To do so, use a slightly damp, lint-free cloth.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

● Repairs, maintenance and storage

- Keep ladder clean and free of all foreign materials that could destroy hinges and ladder function.

■ Lubricate mechanism of locks regularity.

■ Property secure and support ladder while in transit.

■ Never store materials on ladder.

■ Repair and maintenance work on the ladder must be carried out by a technical expert.

■ When not using it, store the ladder in a safe, dry place.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

Uvod. Stranica 32

Uvjeti korištenja .... Stranica 32
