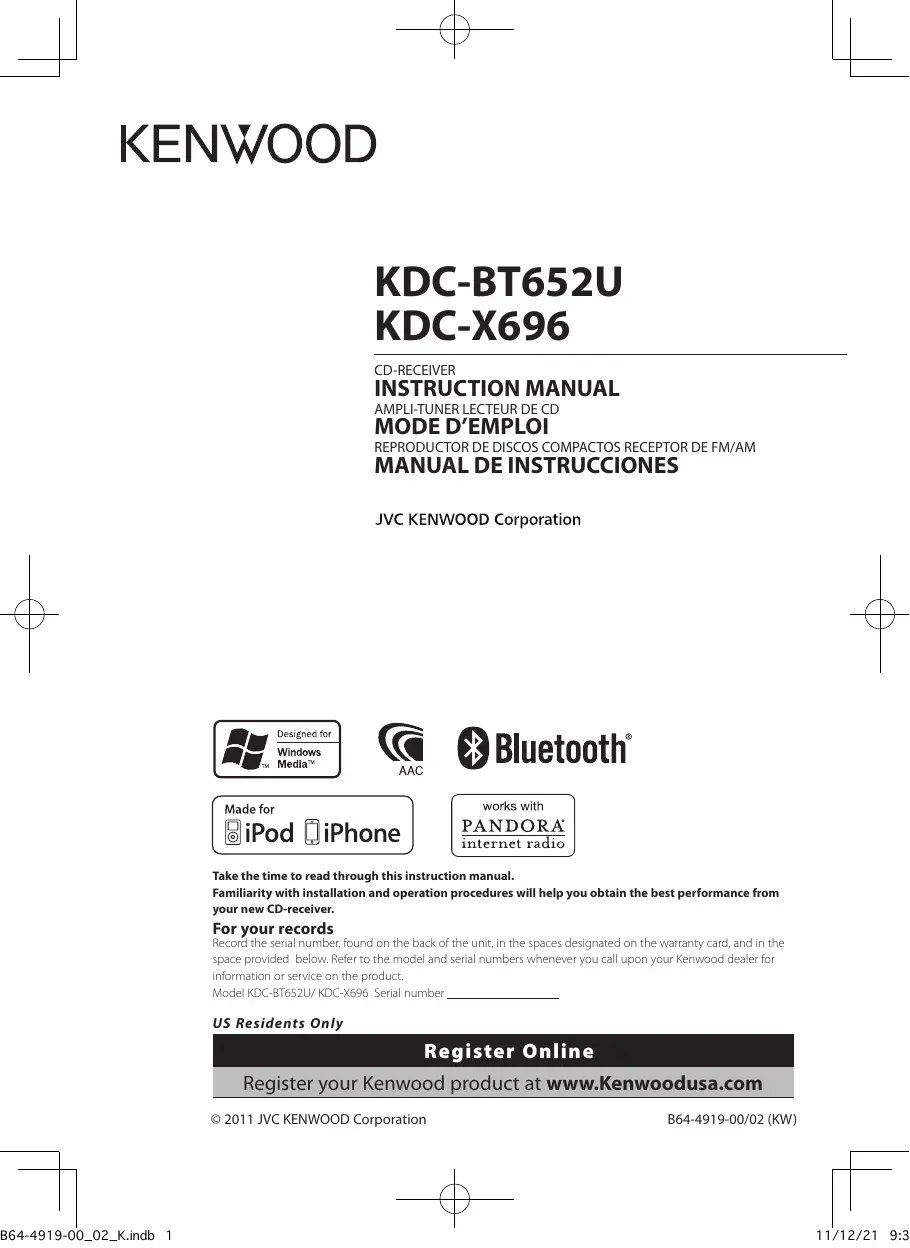

USER MANUAL KDC-BT652U KENWOOD

Made for works with : iPod [iPhone PANDORA Take the time to read through this instruction manual. US Residents Only Register Onl Register your Kenwood product at www.Kenwoodusa.com 864-4919-00/02 (KW) © 2011 JVC KENWOOD Corporation

CONTENTS Safety 3 Getting Started of Bluetooth 16 Maintenance Registering your Bluetooth device with this . unit (Pairing) Preparation 4 Registering from Bluetooth devices (Pairing) Howr to attach/detach the faceplate How to reset your unit Operation of Hands-Free Phoning 18 Howr to prepare the remote controller Making a Call (RC405) Make a Voice Dialing Call . Receiving a Call Getting Started 5 DuingaCal Canceling the display demonstration Switching between Two Connected Cell- Setting the demonstration mode phones Adjusting the clock Clearing the disconnection message Initial settings before operations Downloading the Phone Book Basic Operations 6 Usingthe remote controller (RG405) Listening to the Radio 8 Listeningtoa Bluetooth Audio 21 Direct Access Tuning using the remote are controller (RC405) electing Random Flay Using the remote controller (RC-405) Bluetooth Setup 22 Adjust (SETTINGS] mode settings Selecting the Bluetooth Device Listening to the other external Bluetooth Device Registration Test components 9 Bluetooth Setup Listening to a Disc/USB device/iPod 10 Function settings 24 Start playing a disc Installation/connection 26 Start playing a USB device or iPod _ Removing the USB device or iPod Troubleshooting 30 Selecting Repeat Play Selecting Random Play All Random Play Selecting a folder/track/file Alphabet Search for iPod Direct Music Search using the remote controller (RC-405) Using the remote controller (RC-405) Selecting App & iPod Control Mode Adjust [SETTINGS] mode settings Specifications 33 Listening to Pandora° internetradio 14 Listening to Pandora® internet radio Removing the iPhone Station Search mode Using the remote controller (RC-405) 2 Engish —— In B64-4919-00_02_Kindb 2

Safety ANWARNING Stop the car before operating the unit. Important to know... = To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit = Caution: Adjust the volume so that you can hear the sound outside the car. Driving with the volume adjusted to a too high level may cause an accident. = Condensation: When the car is air- conditioned, moisture may collect on the laser lens. This may cause disc read errors. In this case, remove the disc and wait for the moisture to evaporate. = The illustrations in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the illustrations may differ from what appears on the actual equipment. = you experience problems during installation, consult your Kenwood dealer. = When you purchase external components, check with your Kenwood dealer to make sure that they work with your model and in your area. Maintenance Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. Failure to observe this precaution may result in damage to the monitor or unit. Cleaning the connector: The unit may not function properly ifthe connector between the unit and faceplate are dirty. Detach the faceplate and clean the connector with a cotton swab gently, being careful not to damage the connector. Connector (on the reverse side of the faceplate) 864-4919-00_02_Kindb 3 = The “AAC' logo is a trademark of Dolby Laboratories. = The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. = ‘Made for iPod” and ‘Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use ofthis accessory with iPod or iPhone may affect wireless performance. = iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc. registered in the U.S. and other countries = PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc, used with permission: English 3

Preparation # Do not expose the faceplate to direct sunlight, excessive heat, or humidity. Also avoid places with too much dust or the possibility of water splashing = Keep the faceplate in its casing while detached = The faceplate is a precision component of the unit and can be damaged by shocks or joits. = To prevent deterioration, do not touch the terminals of the unit and faceplate with your fingers. How to reset your unit 23% ifthis unit fails to operate

ZE > | properly, press the reset

SN button. | The unit returns to the factory settings when the reset button is pressed Reset button Æ English B64-4919-00_02_Kindb 4 How to prepare the remote controller (RC-405) When you use the remote controller for the first time, pull out the insulation sheet. x Insulation sheet Ifthe effectiveness of the remote controller decreases, replace the battery. À Caution: = Do not set the remote control in hot places such as on the dashboard = Lithium battery. Danger of explosion ifthe battery is incorrectly replaced. Replace only with the same or equivalent type. = The battery pack or batteries shall not be exposed to excessive heat such sunshine, fire or the like. = Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries promptly. If swallowed, contact a physician immediately.

CALIFORNIA, USA ONLY

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply. See wwwdtsc.ca.gov/hazardouswaste/ perchlorate

Getting Started Canc: g the display Adjusting the clock demonstration 1 Press the volume knob to enter The display demonstration is always turned IFUNCTION] mode. on unless you cancel it 2 Turn the volume knob to select ISETTINGS], then press to enter. When you turn on the power (or after you 3 Turn the volume knob to select [CLOCK], reset the unit), the display shows: then press to enter. [CANCEL DEMO] =} [PRESS] = [VOLUME 4 Turn the volume knob to select [CLOCK KNOB] ADJUST], then press to enter. 1 Press the volume knob. Clock hour flashes on the display. [YES] is selected as the initial setup. 5 Turn the volume knob to adjust the hour, 2 Press the volume knob again to confirm. then press to enter minute adjustment. [DEMO OFF] appears. Clock minutes flashes on the display. = Ifno operation is done for about 15 seconds 6 Turn the volume knob to adjust the or if you turn the volume knob to select minute, then press to confirm. INOI in step 2, [DEMO MODE] appears and Press Hd / mb to move between the the display demonstration starts. hour and minute adjustment. 7 Hold # to finish the procedure. Setting the demonstration mode Press the volume knob to enter [FUNCTIONI. Turn the volume knob to select [DEMO MODE], then press to enter. Turn the volume knob to select [ON] or [OFF]. IFLONI is selected, display demonstration starts if no operation is done for about 20 seconds. 4 Hold # to finish the procedure.

I settings before operations Press & SRC to enter [STANDBY] mode. Press the volume knob to enter IFUNCTION] mode. Turn the volume knob to select [INITIAL SET], then press to enter. Turn the volume knob to make a selection, then press to confirm. See table below for selection. Hold # to finish the procedure. Item Selectable setting (Preset: *) PRESET TYPE NORMAL *: Memarizes one station for each preset button in each band {FMA1/ FM2/ FM3/ AM). ; MIX: Memorizs one station for each preset button regardes ofthe selected band (FN1/FM2/ FM3/ AMI ON */OFF: Activates/eactivates the keypres tone ON *: Alows you to select "PANDORA' source by connecting an Phone or iPod touch (with the Pandore® internet radio application); OFF Disables"PANDOR"in source selection ON *:Enables AUX” in source selection, Sound oftne connected external component is produced through te car speakers. ; OFF: Disables AUX: in source selection. 1% Automatic istinguishes betueen audio le disc and music CD.; 2: Forces to play as a music CD. No sound can be heard ifan audio fe discis played OFF 75/4) 6 x 961 OEM: Select the speaker size for optimum performance. ES: Start upgrading he nm. ; NO >: Cancel [upgrading is not actvated) For details on how to update the fnmsrare, see: www kemwood com/cs/ce/ KEY BEEP PANDORA SRC BUILT-IN AUX COREAD SP SELECT FW UP x English 5 864-4919-00_02_Kindb 5

Basic Operations Loading slot Remote sensor = Do not expose to bright sunlight Ejects the disc

Volume knob Display window Detaches the faceplate The following indicator lights up when: ST: A stereo broadcast is received RDS: Radio Data System service is available. TE: Traffic Information function is turned on. IN: A disc is in the unit. ATT: The sound attenuates. EQ: [PRESET EQ] is set to an EQ mode other than [NATURAL]. (page 24) B.BOOST: [BASS BOOST] is set to [LV1], ILV2] or [LV3] (page 24) Auxiliary input jack Œ:Indicates that the Music Search mode is selected now BT: Bluetooth cell-phone connection status Slide open the cover USB terminal 6 English —— In B64-4919-00_02_Kindb 6

When you press or hold the following button(s). Main unit ae General operation (a Turns on. 7 [a Turns offif pressed and held Selects the available sources (TUNER, BT AUDIO, USB or iPod, PANDORA, CD, AUX, STANDBY), if the power is turned on. wsre IFthe source is ready, playback also starts. sre |: PANDORA'iselectable only when an iPhone or iPod touch (with the Pandora® interet radio application is connected and [ON] is selected for [PANDORA SRC] (page 5) . “iPod”or "CD" is selectable only when an iPod is connected or a disc is loaded. Volume knob | VOLAV |Adjusts the volume level turn) AIYW Selects items. Volume knob ENTRH |Confirms selection. (press) __ [#Enters [FUNCTION] settings 1 Start voice recognize of cell-phone if pressed and held ATV [Enters Music Search mode LS *AM-/ Selects the FM bands (FM1/ FM2/ FM3) or AM when *TUNER" is ms [selected as the source 1(8-/2@4 Selects the previous/ next folder. Pauses/resumes playback of a disc/ USB device/ iPod/Pandora/ Bluetooth Audio. (æ Searches for radio station. 6(w11) | ENT>I PPTLES “ 1 Selects track/file. m Fast-fonwards/fast-backwards tracks/files if pressed and held 1 Changes the display information: scrLDisp | ["Scrolsthe display information fpressed andheld ia Enters clock adjustment mode directly (page 5) if pressed and held while in clock display screen Re |nEES Bluetooth mode (page 18) = Press to answer an incoming call —__|Enters Bluetooth pairing mode if pressed and held. (page 16) — AUD Enters [AUDIO CONTROL] settings directly. Attenuates the sound. To return to the previous level press the button again #5 Returnstothe previous item. EXIT [Exit from setting mode Press and hold #5 on the main unit will also exit from the setting mode. English 7 —— In B64-4919-00_02_Kindb 7

Listening to the Radio = Press and hold to memorize the current station. = Press briefly to recall memorized station. 1 Press & SRC to select "TUNER". 2 Press Q repeatedly to select a band (FM1/ FM2/ FM3/ AM). 3 Press @4@/»æ1t0 search for a station. = The tuning mode can be changed. Refer to <SEEK MODE> (page 8) Direct Access Tuning using the remote controller (RC-405) 1 Press FM+/ AM- to select a band. 2 Press DIRECT to enter Direct Access Tuning mode. “appears. 3 Press the number buttons to enter the frequency. 4 Press #4 / +»æ1to search for the frequency. # To cancel Direct Access Tuning mode, press 4 or EXIT. = Ifno operations is done for 10 seconds after step 3, Direct Access Tuning is automatically canceled Using the remote controller (RC- 405) #FM+/*AM- : Selects band Hd /#ææ :Selects station 1-6 :Selects preset station. Adjust [SETTINGS] mode settings While listening to the radio. 1 Press the volume knob to enter IFUNCTION] mode. 2 Turn the volume knob to select ISETTINGS], then press to enter. 3 Turn the volume knob to make a selection, then press to confirm. See table below for selection. 4 Hold # to finish the procedure. Selectable setting (Preset: *) SEEK MODE IMANUAL: Manually search for a station. AUTOT *: Automatical search for a station. AUTOZ: Search inthe order ofthe stations in the preset memory. : AUTO MEMORY |YES: Automatical starts memorzing 6 stations with good reception. ; NO *: Cancel (automatic memoriingis not activated). (Selectable only [NORMAL] is selected for [PRESET TYPE) (page 5) MONO SET |ON:Improves the FM reception {butte stereo effect may be lost. OFF *: Cancel (stereo effect resume PTY SEARCH |Selects the avañable Program Type (page ). Then, press + / D» to stat searching 7 ON: The traffcinformation automatically when te trafic bulletin stats; OFF *: Cancel, (Not applicable "AM" is selected) rm [Ti] [PTY SEARCH] is selectable anly when the source is “FM. 8 English B64-4919-00_02_Kindb 8

2 CTI: other playback source is selected, these setings ar selectable under [TUNER SET] item. page 25) = Available Program Type: SPEECH, MUSIC NEWS INFORNM; SPORTS; TALK; ROCK: CLS (ciasic) ROCK, ADLT (adult) HIT, SOFT ACK (rock, TOP 40; COUNTRY: OLDIS, SOFT: NOSTALGA; JAZZ, CLASSICL; R&B, SOFT R&B LANGUAGE; REL (reigious) MUSC: REL (rligious) TALK; PERSALTY {personal PUBLIC; COLLEGE; HABL_ESP (spanish talk; MUSC-ESP (spanish musio; HIP-HOP: WEATHER The unit wi search arte Program type categorized under [SPEECH] or [MUSIG if selected. ISPEECH : Roman typeface tem. [MUSIQ : ali typeface item. = The Radio Data System feature won't work where the service is not supported by any broadcasting station. = fthe volume is adjusted during reception of traffic information, the adjusted volume is memorized automatically, it will be applied the next time Traffic Information function is turned on. Listening to the other external components Preparation : Make sure [ON] is selected for [BUILT-IN AUX]. (page 5) KENWOOD mr els 1 Press Ÿ SRC to select "AUX". 2 Turn on the external component and start playing. 3 Turn the volume knob to adjustthe volume. Portable audio device (commercially available)

Listening to a Disc/ USB device/ iPod Ejects the disc. (NO DISC’ appears and ‘IN° Loading slot …_indicator goes off)

m Press to select track/file. #Press and hold to fast- forwards/fast-backwards. USB terminal Press to pause. Press again to resume playback Press to select folder of Audio File/iPod. Start playing a disc 1 Press & SRC to turn on the power. 2 Insert a disc into the loading slot. Playback starts automatically. Start playing a USB device or iPod 1 Press & SRC to turn on the power. 2 Slide open the cover. 3 Connect a USB device or iPod to the USB terminal. The source automatically switches, and playback starts. USB device {commercial avale)

KCA-iP102 {optional accessor)) Removing the USB device or iPod 1 Press & SRC to select a source other than “USB”, “Pod” or “PANDORA". 2 Remove the USB device or iPod. Selecting Repeat Play Press number button 4 (REP) repeatedly to make a selection. Audio CD : TRACK REPEAT, REPEAT OFF Audio File

Selecting Random Play Press number button 3 (ALL RDM) repeatedly to make a selection. Audio CD : DISC RANDOM, RANDOM OFF Audio File/ iPod

FOLDER RANDOM, RANDOM OFF

AllRandom Play Press and hold number button 3 (ALL RDM). Pressing this button again plays songs in the normal mode starting, Audio File/ iPod

ALL RANDOM, RANDOM OFF

= Changes the iPod browsing item to “songs Selecting a folder/track/file 1 Press @ to enter Music Search mode. *SEARCH" appears, then the current file name appears on the display. 2 Turn the volume knob to select a folder/ track/ file, then press to confirm. 2 To skips songs, press 4/ wæ1. Holding Hed/ »»41 skips songs at 10% regardes of the setting made. (page 12) This operation is effective only for the iPod or KENWOOD Music Editor media = To return to the root folder (audio file), top menu (iPod) or first track (audio CD), press 5. 2 To return to the previous folder, press 4. = To cancel the Music Search mode, press and hold #. M < or > onthe display indicates that preceded/next item is available. Alphabet Search for iPod Press @ to enter Music Search mode. "SEARCH" appears. 2 Turnthe volume knob to select a category, then press to confirm. Press @ again to enter alphabet search mode. "SEARCH <_ >" appears. 4 Turn the volume knob to select the character to be searched for.

Press #4 / mp1 to move to the entry position. You can enter up to three characters. Press the volume knob to start searching. After this step, see step 2 of <Selecting a folder/track/file> (page 11) to select à song. = To return to the Music Search mode, press

# To cancel the Music Search mode, press and hold #. # A longer searching time is required ifthere are many songs or playlists in the iPod a To search for à character other than A to Z and 0 to 9, enter only **". = The article (a, an, the) of songs name will be skipped during search

ct Music Search using the remote controller (RC-405) + Not available if Random Play, KENWOOD Music Editor media, iPod playback is selected. 1 Press DIRECT to enter Direct Music Search mode. “--—" appears. 2 Press the number buttons to enter the track number. 3 Press #4 / +»æ1to search for the music. = To cancel the Direct Music Search mode, press # or EXIT. Using the remote controller (RC- 405) In playback mode: #FM+ /*AM- : Selects folder. H@/+æp :Selects track/file. ENT :Pauses/resumes playback AIY : Enter Music Search mode. In Music Search mode: ENTæI : Confirms selection AIY :Selects folder/file/track. # 2 Returns to the previous folder. Continued to next page English 11

Selecting App & iPod Control Mode Press number button 5 (iPod) repeatedly to make a selection. MODE ON Control iPod from the iPod *. "APP&iPod MODE" appears on the display. MODE OFF: Control iPod from the unit

• You can still control play/pause, select files, fast- forward/reverse files from the unit. Adjust [SETTINGS] mode settings While listening to an iPod or KENWOOD Music Editor media 1 Press the volume knob to enter IFUNCTION] mode. 2 Turn the volume knob to select ISETTINGS], then press to enter. 3 Turn the volume knob to select [SKIP SEARCH], then press to enter. Turn the volume knob to make a selection, then press to confirm. 0.5% (initial)/ 1%/ 5%/ 10% : Sets the ratio of skip when searching for a song in Music Search mode. (Holding 4 / »æ41 skips songs at 10% regardless ofthe setting made) 5 Hold # to finish the procedure. Handling discs = Do not touch the recording surface of the disc. # Do not stick tape etc. on the disc, or use a disc with tape stuck on it = Do not use any accessories for the disc. = Clean the disk by moving the cloth outward from the center of the disc. = Clean the disc with a dry silicon or soft cloth. Do not use any solvents. = When removing a disc from this unit, pull it out horizontally = Ifthe center hole or outside rim of a disc has burrs, remove them before inserting adisc Dises that cannot be used = This unit can only play the CDs with: me dE dE RETARDS mA disc that is not round. = A disc with coloring on the recording surface or a disc that is dirty. # You cannot play a Recordable/ReWritable disc that has not been finalized. (For the finalization process, refer to the instruction manual that came with your disc writing software or your disc recorder) #3-inch CD cannot be used. An attempt to insert using an adapter can cause malfunction: About the Audio file = Playable Audio files: MP3 (mp3), WMA (wma), AAGLC (m4a) = Playable disc media: CD-R/RW/ROM = Playable disc file formats: ISO 9660 Level 1/2, Joliet, Romeo, Long ile name. = Playable USB devices: USB mass storage class = Playable USB device file systems: FATI6, FAT32 Although the audio files are complied with the standards listed above, the play maybe impossible depending on the types or conditions of media or device. = Detailed information and notes about the pleyable audio files are stated in an online manual on the following site: wwwkenwood.com/cs/ce/audiofile/ 12 Engish 864-4919-00_02_Kindb 12

About the USB device = This unit can play audio files stored on a USB mass storage class device. = Install the USB device in the place where itwill not prevent you from driving your vehicle properly. # You cannot connect a USB device via a USB hub or multi card reader. = Make sure all important data has been backed up to avoid losing the data # Connecting a cable whose total length is longer than 5 m can result in abnormal playback = This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA. # When connecting the USB device, use of. the CA-UIEX (optio) is recommended The maximum current consumption of the CA-UIEX is 500 mA. About compatible iPod/iPhone Made for — iPod touch — iPod touch — iPod touch — iPod touch — iPod classic — iPod with video — iPod nano (éth generation) — iPod nano (Sth generation) — iPod nano (Ath generation) — iPod nano (3rd generation) — iPod nano (2nd generation) — iPod nano (1st generation) — iPhone 4 — iPhone 4 — iPhone 3GS — iPhone 3G — iPhone (Ath generation) Brd generation) (nd generation) st generation) (AS of January 2012) # Latest compatible list of iPod/iPhone. For details, see: wwnwkenwood.com/cs/ce/ipod = Types of available control vary depending on the type of connected iPod. For details, see above URL. = The word Pod" appearing in this manual indicates the iPod or iPhone connected to this unit with a connection cable, KCA- iP102 (optional accessory). = if you start playback after connecting the iPod, the music that has been played by the iPod is played first In this case, "RESUMING" is displayed without displaying à folder name, etc Changing the browse item will display à correct title, etc. = You cannot operate the iPod if" KENWOOD" or" displayed on the iPod. About "KENWOOD Music Editor” = This unit supports the PC application “KENWOOD Music Editor Light ver1.1" or later. = When you use the audio file with database information added by the “KENWOOD Music Editor Light ver! 1’, you can search for a file by title, album or artist name using the function mentioned in Music Search (page 11). “in the Instruction manual, the term “Music Editor media” is used to mean the device that contains audio iles with database information added with KENWOOD Music Editor. = “KENWOOD Music Editor Light ver1.1"is available from the following web site: www.kenwood.com/cs/ce/ 2 For further information on “KENWOOD Music Editor Light verl.1", refer to the site above orthe application help. 864-4919-00_02_Kindb 13 English 13

Listening to Pandora° internet radio Preparation : Make sure [ON] is selected for [PANDORA SRC]. (page 5) KENWOOD ssssspsssss Press to skip à song Press to select thumbs down/up. Listening to Pandora® internet radio Open the Pandora® application on your device. Slide open the cover. Connect an iPhone to the USB terminal. The source switches, and broadcasting starts automatically from your current station

Apple iPhone commercial avaleble) (optional accessor)} = To select thumbs down/up, press number button 1(8-)/2(#+) To skip a song, press 41. = To pause or resume playback, press number button 6 (»11) 14 Engish 864-4919-00_02_Kindb 14 USB terminal Press to pause. Press again to resume playback Removing the iPhone 1 Press & SRC to select a source other than “PANDORA' or “iPod”. 2 Remove the iPhone. Station Search mode While listening to “PANDORA' source. 1 Press @ to enter Station Search mode. 2 Turn the volume knob to select [A-Z] (stations are displayed in alphabetical order) or [BY DATE] (stations are displayed in date order), then press to enter. 3 Turn the volume knob to select a desired station, then press to confirm.

Using the remote control 405) In playback mode: + :Skips a song. ENTæI1 :Pauses/resumes playback AIY : Enter Station Search mode. In Station Search Mode: AIY ++ Selects [A-Z] or [BY DATE]. + Selects item ENTæI : Confirms selection. EXIT : Cancels Station Search mode. About Pandora? internet radio Requirements for listening to the PANDORA® internet radio are as follows: = Use an Apple iPhone or iPod touch running under iO$3 or later. # Search for “Pandora" in the Apple iTunes App Store to find and install the most current version of the Pandora? application on your device. æiPhone/ iPod touch connected to this unit with a KCA-P102. æinthe application on your device, log in and create an account with Pandora {If you are not already a registered user, an account can also be created at www. pandora.com) #Internet connection by 3G, EDGE, or WiFi. = Pandora* is available only in the US. = Because Pandora® is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all ofthe services may become unavailable. = Some functions of Pandora? cannot be operated from this unit = For issues using the application, please contact Pandora® at pandora-support@ pandora.com 864-4919-00_02_Kindb 15 English 15 11/12/21 9:3

Getting Started of Bluetooth Press and hold to pairing mode. Registering your Bluetooth device with this unit (Pairing) 1 Press and hold & to enter pairing mode “PAIRING" is displayed. m Any ofthe following is displayed depending on Bluetooth device registration condition: — "PLEASE PAIR YOUR PHONE" When registering a Bluetooth device for the first time. — “(device name)": When a Bluetooth device has already been registered — "DEVICE FULL When à maximum of five Bluetooth devices have already been registered m To cancel the pairing mode, press &. When registering a Bluetooth device for the first time (Registering a Bluetooth device) 2 “PLEASE PAIR YOUR PHONE" is displayed. 3 Start registering this unit by operating the Bluetooth device. By operating the Bluetooth device, register the hands-free unit or audio unit (pairing) Select “KENWOOD BT CD/R-ST1” from the list of found units. 4 Input the PIN code (*0000") in the Bluetooth device. Check that registration is complete on the Bluetooth device. PIN code is set to “0000” as the default. You can change this 16 English code. Refer to [PIN CODE EDIT] under <Bluetooth Setup> (page 23). 5 "(device name)” is displayed. Press the volume knob. 6 The receiver is connected to a Bluetooth device, with “HF CONNECT” or “AUD CONNECT" displayed, and exits the pairing mode. = Ifan error code is displayed during paring, see <Troubleshooting> (page 30) When a Bluetooth device has already been registered, or maximum of five Bluetooth devices have already been registered (Selecting a Bluetooth device) 2 “(device name)" or "DEVICE FULL" is displayed. 3 Tu the volume knob to select a Bluetooth device name. # To register a new Bluetooth device, select “{PAIRING]", then go to “When registering a Bluetooth device for the first time!" 4 Press the volume knob. 5 Turn the volume knob to select the profile for the device to connect. ='HANDSFREEY AUDIO”: The device can be connected using either a hands-free or audio profile. “HF/AUD': The device is can be connected using both hands-free and audio profiles.

Press the volume knob to set up the Bluetooth device. mkH%A (device name)" The selected Bluetooth device is busy. m'-H-A (device name)" The selected Bluetooth device is on standby. = “(blank) (device name)“ The Bluetooth device is deselected. = Iftwo cell-phones or an audio player have already been selected, deselect one device before selecting a new Bluetooth device. + “H(HFP) or ‘A" (A2DP) indicates the corresponding profile. 7 Press & to exit pairing mode. Deleting the registered Bluetooth device 2 “(device name)” or "DEVICE FULL" is displayed. 3 Turn the volume knob to select a Bluetooth device name. 4 Press and hold the volume knob to delete the selected cell-phone. “DELETE" is displayed 5 Turn the volume knob to select "YVES", then press to confirm. *COMPLETED" is displayed 6 Press & to exit easy pairing mode. Registering from Bluetooth devices 1 Press & SRC to turn on the power. 2 Start registering this unit by operating the Bluetooth device. By operating the Bluetooth device, register the hands-free unit or audio unit (pairing). Select "KENWOOD BT CD/R-ST1” from the list of found units. Input the PIN code (“0000”) in the Bluetooth device. Check that registration is complete on the Bluetooth device. PIN code is set to “0000” as the default. You can change this code. Refer to [PIN CODE EDIT] under <Bluetooth Setup> (page 23) By operating the Bluetooth device, start hands-free connection. mIfthere are 5 or more Bluetooth devices registered, you cannot register à new Bluetooth device.

About the Cell-Phone = Version: Bluetooth Standard Ver. 2.HEDR = Profil: HFP (Hands Free Profile) SPP (Serial Port Profile) OPP (Object Push Profile) PBAP (Phone book Access Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) For the cell-phones veriied for compatibiliy, access the following URL: wwwkenwood.com/cs/ce/bt/ a The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG However, it may be impossible for such units to communicate with your cell- phone depending on its type. 864-4919-00_02_Kindb 17 English 17

Operation of Hands-Free Phoning Preparation : You need to register your cell-phone before using it with this unit. (page 16) Built-in microphone (KDCBT652U only)

= Press to enter Bluetooth mode. = Press to answer an incoming call » Press and hold to memorize the current phone number. #Press briefly to recall memorized phone number. Making a Call 1 Press & to enter Bluetooth mode. 2 Turn the volume knob to select a dialing method, then press to enter. = Operation method of each mode is described below. — "PHONE BOOK" Calling a Number in the Phone Book

—"OUTGOINGY “INCOMINGY/ *MISSED

CALLS* Calling a Number in the Call Log "NUMBER DIAL' Dialing a Number - Speed Dialing (Preset Dial) —"DVC PRIORITY* Displays the main and sub cell-phones. Turn the volume knob to switch between the main and sub cell-phones displayed = Switches between name and phone number, press DISP. 2 To retum to the Bluetooth mode, press and hold #. = To cancel the Bluetooth mode, press &. Calling a Number in the Phone Book 2 Turn the volume knob to select “PHONE BOOK", then press to enter. 3 Press @ to enter alphabet search mode. 4 Turn the volume knob to select the character to be searched for. 18 English 864-4919-00_02_Kindb 18 2 To move to the next row, press 64 / m4. = To return to the Phone Book mode, press 5 Press the volume knob to start searching. 6 Turn the volume knob to select a name and category. 2 To move to the next character, press 44 lb. 7 Press the volume knob to make a call. = To use the Phone Book, it must be downloaded to this unit in advance. Refer to <Downloading the Phone Book> (page 20) = During search, a non-accent character such as ‘is searched for instead of an accent character such as ‘ü" = IFTRANSFER PB" is displayed, download the Phone Book 1."DL PB MODE" is displayed 2.By operating the cell-phone, send the phone book data to this unit. 3.When downloading is completed, return to Phone Book operation — To cancel the download mode, press #. = Ifthe Phone Book is downloaded manually, its entries can be deleted 1.Press and hold the volume knob in step 6. 2.Turn the volume knob — Deleting one entry :"DELETE ONE" is displayed

— Deleting all entries :"DELETE ALL'is displayed. Press the volume knob. Turn the volume knob to select ES’, then press to confirm: 3.Press the volume knob. "COMPLETE" is displayed 4.Press the volume knob to return to Phone Book operation. Calling a Number in the Call Log 2 Turn the volume knob to select the “OUTGOING" (outgoing call), “INCOMING" incoming call), or “MISSED CALLS”" {missed call), then press to enter. 3 Turn the volume knob to select a name or phone number. 4 Press the volume knob to make a call. = Ifyour cell-phone cannot download the Phone Book automatically, the outgoing call log, incoming call log, and missed call log contain only the calls dialed from or received by this unit Dialing a Number 2 Turn the volume knob to select "NUMBER DIAL", then press to enter. 3 Turn the volume knob to selectthe phone number m To move to the next digit, press B-bel 2 To delete the last digit, press tt. = Press number button (1 — 0), #(FM+), “AM-), or +(p-æ1) on the remote controller. 4 Press the volume knob to make a call. = Press OK on the remote controller. = You can input max 32 digits. Speed Dialing (Preset Dial) 2 Press number button (1 -6). 3 Press the volume knob to make a call. Registering in the preset dial number list 2 Enterthe phone number with reference to the following: Dialing a Number/ Calling a number in the call log/ Calling a number in the Phone Book 864-4919-00_02_Kindb 19 3 Press and hold number button (1 — 6). Make a Voice Dialing Call You can make a voice call using the voice recognition function of your cell-phone 1 Press and hold the volume knob to start voice recognize. “VOICE TAG is displayed. 2 Pronounce the name registered in the cell-phone. Make à call = To cancel the voice recognize, press and hold the volume knob. mIFNO SUPPORT” is displayed, your cell-phone does not support the voice recognition function: m IF"N/A VOICE TAG” is displayed, your cell- phone cannot start voice recognition. æ If your voice cannot be recognized, a message is displayed. Press and hold the volume knob to terminate voice recognition. Retry it again from the beginning, # Audio sound is not output during voice recognition Receiving a Call Answering a Phone Call Press & or the volume knob. = The following operations disconnect the line: Insert à CD. Connect a USB device. = The name ofthe calling party is displayed iFit has already been registered in the Phone Book. Rejecting an Incoming Call Press & SRC. During a Call Disconnecting a Call Press & or & SRC. Switching to the Private Mode Press number button 6 to switches between Private talk (“PRIVATE TALK") and Hands-free talk (“HANDS FREE"). Adjusting the Voice Volume during a Call Turn the volume knob. Continued to next page English 19

Switching between Two Connected Cell-phones 1 Press & to enter Bluetooth mode. 2 Press and hold &,.. m You cannot switch between the connected cell-phones during dounloading of the Phone Book. 2 Onlythe main cell-phone from which you can make à call. = Both the main and sub cell-phones can receive an incoming call » Ifthe other cell-phone receives an incoming call while you are talking on the active cell-phone, you must finish the current call to answer the incoming call to the other cell-phone = Ifthe main cell-phone is disconnected when itis taken out of the vehicle, the sub cell- phone becomes the main cell-phone ifit is held connected. When the disconnected cell-phone is brought back into the vehicle, itis reconnected as the sub cell-phone Clearing the disconnection message Press & to “HF DISCONCT" disappears. Downloading the Phone Book To download automatically Ifthe cell-phone supports a phone book synchronization function, the phone book is downloaded automatically after Bluetooth connection. 2 Setting on the cell-phone may be required 2 Up to 1000 phone numbers can be registered for each registered cell-phone æ Up to 32 digits can be registered for each phone number along with up to 20* characters representing a name. € 20: Number of alphabetical characters. Fewer characters can be input depending on the type of characters.) = Ifno phone book data is found in the unit even after the compete display, your cell- phone may not support a phone book data automatic downloading function. In this case, try downloading manually. 20 Engish 864-4919-00_02_Kindb 20 To download from the cell-phone manually Use this procedure when your cell-phone does not support the Phone Book Access Property (PBAP) 1 Press & to enter Bluetooth mode. 2 Turn the volume knob to select ISETTINGS], then press to enter. 3 Turn the volume knob to select [TRANSFER PB], then press to enter. "DL PB ***" is displayed 4 By operating the cell-phone, send the phone book data to this unit By operating the cell-phone, download the phone book data to this unit. 5 When downloading is completed, press the volume knob. = The manually downloaded phone book data can contain up to 400 phone numbers. = When you switch between the connected cell-phones, the manually downloaded phone book data is deleted. = To cancel downloading of the phone book data, operate the cell-phone Using the remote controller (RC- 405) Making a call: & : Enter Bluetooth mode. AIY iSelects a dialing method ENT »11 : Enter dialing mode DIRECT : Make a call 1—6 _:Selects preset dial 0—9 :inputa digit in number dial mode #FM+ _2input‘#' in number dial mode. *AM- 2input“*’in number dial mode. +##»1 2input + in number dial mode 144 : Clear the entered phone number. Receiving a call: LE + Answer the call During a call: SRC _:Endthe call ENT » 11 : Switch between the private talk mode and the hands-free talk mode.

Listening to a Bluetooth Audio Preparation : You need to register your audio player before using it with this unit. (page 16)

+ ED mms 2105 2)(s m Press to select file Press to pause. Press again mPress and hold to fast-forwards/fast- to resume playback backwards. 1 Press & SRC to select "BT AUDIO”. Selecting Repeat Play 2 Press #4 /»»1to selects a file. Press number button 4 (REP) repeatedly # Bluetooth audio players that do not support to make a selection. AVRCP (Audio/Video Remote Control Profile) FILE REPEAT, REPEAT OFF cannot be used with this unit, Operate from the audio player. 2 Some functions cannot be operated from the Bluetooth audio player. = Speakers from which audio is output change depending on the Bluetooth setting *BT HF/AUDIO" The default is Front. (page 23) Selecting Random Play Press number button 3 (ALL RDM) repeatedly to make a selection.

RANDOM ON, RANDOM OFF

English 21 —— In 864-4919-00_02_Kindb 21

Bluetooth Setup Selecting the Bluetooth Device Press &, to enter Bluetooth mode. Turn the volume knob to select ISETTINGS], then press to enter. Turn the volume knob to select IPAIRING], then press to enter. Turn the volume knob to select [PHONE SELECT] or [AUDIO SELECT], then press to enter. Turn the volume knob to select a Bluetooth device name. Press the volume knob to set up the Bluetooth device. =‘# (device name)" The selected Bluetooth device is busy. =‘ (device name)": The selected Bluetooth device is on standby. = “blank) (device name)“: The Bluetooth device is deselected = two cell-phones or an audio player have already been selected, deselect one device before selecting a new Bluetooth device. 7 Hold # to finish the procedure. m To cancel the Bluetooth mode, press &. N =

Bluetooth Device Registration Test You can check whether your Bluetooth device can be registered using this unit 1 Press and hold À to enter pairing mode “PAIRING" is displayed. 2 “PLEASE PAIR YOUR PHONE" is displayed. = When “(device name)" is displayed, select "PAIRING]" and press the control knob. = When “DEVICE FULL'is displayed, delete à Bluetooth device and retry.

1. Turn the volume knob to select the

Bluetooth device, then press and hold to confirm.

2. Turn the volume knob to select "YES",

Start registering this unit by operating the Bluetooth device. By operating the Bluetooth device, register the hands-free unit or audio unit (pairing). Select"KENWOOD BT CD/R-5T1" from the list of found units. Input the PIN code (*0000") in the Bluetooth device. Check that registration is complete on the Bluetooth device. PIN code is set to 0000" as the default. You can change this code. Refer to [PIN CODE EDIT] under <Bluetooth Setup> (page 23) “(device name)” is displayed. Press and hold the volume knob. *BTTEST" is displayed The connection result, “OK” or “NGr, is displayed. =PAIRING" Registration to this unit mHE CNT“ Hands-free phoning AUD CNT”: Audio playback ‘PB DL’ Phone Book downloading 7 Press & to exit pairing mode. = Data (Phone Book, etc.) ofthe cell-phone checked for connection does not remain in this unit.

Bluetooth Setup 1 Press K to enter Bluetooth mode. 2 Turn the volume knob to select ISETTINGS], then press to enter. 3 Turn the volume knob to make a selection, then press to confirm. # See table below for selection. # Repeat step 3 until the desired item is selected/activated. m Press 4 to return to the previous item 4 Hold # to finish the procedure. = To cancel the Bluetooth mode, press &.

Item Selectable setting (Preset: *) PAIRING PHONE SELECT Selects a cell-phone connection. (For details, see page 22] AUDIO SELECT Selects a Bluetooth audi player connection. (For details, see page 22. DEVICE DELETE (Cancel registration ofthe Bluetooth device À. Turnthe volume knob to selectthe Bluetoath device, then press t confirm,

2. urnthe volume knob to select "VES* then press to confrm "DELETE" displayed

TRANSFER PB KFor detail, see page 20 DETAILED SET

AUTO ANSWER (OFF: Does nat answer the phone cal automatically; Automaticlly answer re phone callat once; = 8* -99: Automatical answers the phone cal after lapse of 1 — 99 seconds RECONNECT (ON Automatical reconnects the selected Bluetooth device when radio wave becomes strong enough, even afteritisdisconnected. ; OFF: Cancls 1m When this function is turned ON, the Bluetooth devices reconnectedifithas been disconnected by selecting [PHONE SELECT}/ [AUDIO SELECT] BTHF/AUDIO FRONT *: Ourpurs audio from te front-ef and front-right speakers. ; ALL: Output audio from the al speakers CALL BEEP (ON *: Sets whether to output beep rom te speaker ven call comes in. ; OFF: Cancels

Function settings BuN= Press & SRC to select a source other than “STANDBY". Press the volume knob to enter [FUNCTION] mode. Turn the volume knob to select [AUDIO CONTROL] or [SETTINGS], then press to enter. Turn the volume knob to make a selection, then press to confirm. = See table below for selection: = Repeat step 4 until the desired item is selected/activated # Press # to return to the previous item.

Hold #5 to finish the procedure. [AUDIO CONTROL] : While listening to any source except in STANDBY state or Bluetooth mode: Item Selectable setting (Preset: *) SUB-WLEVEL |-15—0* — +15: Adjuststhe subwoofer output level BASS LEVEL F8 —0*— +8: Source tone memary: Adjusts the level to memorize in each source. Before making an MID LEVEL adjusiment, select the source you want to adjust) TRELEVEL EQPRO KDCK696 only BASSADJUST [BASS CTRFRQ |60/80/ 100 */ 200:Selects the center frequency. BASSLEVEL |-8—0*—+8:Adjuststhelevel BASS QFACTOR |1.00 */ 1.25/ 1.50/ 2.00: Adjusts the qualit factor BASS EXTEND|ON: Turns on the extended bass. ; OFF *: Cancel MIDADIUST [MIDCTRFRQ |0.5K/1.0K * 1.5K/ 2.5K:Selects the center frequency. IMIDLEVEL |-8—0*— +8:Adjuststhe level MID Q FACTOR _|0.75/ 1.00% 1.25: Adjusts the qualit factor TREADJUST [TRECTRERQ |10.0K/12.5K 7 15.0K/ 17.5K:Selects the center frequency TRELEVEL |-8—0*— +8:Adjuststhe level PRESETEQ NATURAL */ USER/ ROCK/ POPS/ EASY/ TOP40/ JAZZ/ POWERFUL: Select à preset sound mode suitable to the music genre. (Selects USER] to use the customized bass, middle, and reble settings.) BASS BOOST B.B0OST LV1/B.BOOST LV2/ B.BOOST LV3:Selects your preferred bass boost level; OFF *: Cancels LOUDNESS LOUDNESS LV1 */ LOUDNESS LV2: Select your referred low and high frequencies boost ta produce awell- balänced sound at à low volume level. ; OFF: Cancel. BALANCE L15— 0 * — R15: Adjusts the left and right speaker output balance. FADER R1S— 0 * — F1S: Adjusts the rear and front speaker output balance. SUBWOOFER SET [ON *: Turn on the subwoofer output. OFF: Cancel. DETAILED SET HPF THROUGH *: Al signal are sent ta the front speaker; 100/ 120/ 150 (HZ): Frequencis lower than the specified value are cut off. LPF THROUGH *: Al signal are sent t the subwoofer; SUBWOOFER. |85/ 120/ 160 (HZ):Frequencies higher than the specified value are cut off. SUB-W PHASE _ [REVERSE (180°)/ NORMAL (0°) * Select the phase angle ofthe subwoofer output to be in ie with the speaker output far optimum performance. (Selectébe only fa setting other than [THROUGH] is selected for ILPF SUBWOOFER] | 24 Engish 864-4919-00_02_Kindb 24

Item Selectable setting (Preset: *) SUPREME SET |ON*: Creates reaistic sound by interpolatig the high-frequency components that are lost in AAC/ MP3/ AWMA audio compression. ; OFF: Cancel. (Selectabe only when playback an AAC/ MP3/ WMA disc ora USB device, except iPod} (Selectable oniyif"CD"/ "USB" is selected as the source) VOLUME OFFSET |-8— 0* — +8 (for AUX): -8 — 0 * (or other sources} Preset the volume adjustment level ofeach source, The volume level will automaticaly increase or decrease when you change the source. (Befre making an adjustment, select the source you want to adjust.) 2 Select a source before making a source tone memory adjustment, [EQ PRO] = SUB-W LEVEL/ LPF SUBWOOFER/ SUB-W PHASE] is selectabe any [SUBWOOFER SET] is set ta [ON] ISETTINGS] Item Selectable setting (Preset: *) AUXNAMESET [AUX */TV/ VIDEO/ GAME/ PORTABLE/ DVD: Select the desired name far the connected component KGelectable any ifAUX" selected as the source} CLOCK CLOCKADJUST | (For details, see page 5) TIMESYNC |ON: Synchronizes the Radio Data System station time data and the unit‘ clock. ; OFF *: Cancel. DISPLAY DISP DIMMER _|ON:Dims the display lumination.; OFF *: Cancel. TEXT SCROLL _ |AUTO */ ONCE: Selects to scrol the display information automatically, or scroll ondy once. ; OFF: Cancels BTDVCSTATUS | You can display the connection stats, signal strength, and battery level of Bluetooth device. HF-CON: Connection status or cell-phone. ; AD-CON: Connection status for BT Audia.; BAT: Battery level of el-phone.; SIGNAL: Signal strength ofcell-phone. TUNERSET TE Selectale only ifany source other than tuner source is selected. (For detail, see page 8.) English 25 864-4919-00_02_Kindb 25

Installation/connection Part list: À Faceplate € ® Escutcheon L © Mounting sleeve. x © Wiring harness 6 © Removal tool C ® Flat head screw (for Nissan cars) C2 @ Round head screw (for Toyota cars)….x4) @ Microphone (3 m) (KDGX696 only).….(xt Basic procedure Remove the key from the ignition switch, then disconnect the © terminal of the car battery. Make proper input and output wire connections. = <Wiring connection> (page 28) Install the unit to your car. = <installing the unit> (page 29) Reconnect the © terminal of the car battery. Reset the unit. (page 4)

AWWarning = The unit can only be installed in à car with a 12 V DC power supply, negative ground = Ifyou connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box # Disconnect the battery's negative terminal and make all electrical connections before installing the unit. 2 Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends ofthe unconnected wires or the terminals. # Be sure to ground this unit to the cars chassis again after mounting, 26 Engish 864-4919-00_02_Kindb 26 =lfthe power is not turned ON (*PROTECT" is displayed) the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked A\Caution = lfyour cars ignition key switch does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wires to a constant- voltage power source, as with battery wires, the battery may die. = Do not use your own screws. Use only the screws provided. = Install this unit in the console of your vehicle. Make sure the faceplate will not hit the lid ofthe console (if any) when closing and opening, = After the installing the unit, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. = Mount the unit so that the mounting angle is 30° or less. = Ifthe fuse blows, first make sure the wires are not touching other parts to cause à short circuit, and then replace the old fuse with one with à new the same rating, = Connect the speaker wires correctly to the corresponding terminals. The unit may be damaged or fail to work if you share the © wires or ground them to any metal part in the car. = When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). 11/12/21 9:3

= Mounting and wiring this product requires skills and experience. For safety's sake, leave this work to professionals. Ifyou experience problems during installation, consult your Kenwood dealer. = Reception may become poor ifthere are metal objects near the Bluetooth antenna. Bluetooth antenna unit For Good Reception To assure good reception, note the following, # Communicate with the cell-phone within the line-ofssight distance of 10 m (30 #0). The communication range becomes shorter depending on the surrounding environment. The communication range also becomes shorter when there is an obstacle between this unit and the cell-phone. The above maximum communication range (10 m) is not always assured. = Abroadcast station or walkie-talkie located nearby can interfere with communication due to a too strong signal. 864-4919-00_02_Kindb 27 /\ CAUTION Install this unit in the console of your vehicle Do not touch the metal part ofthis unit during and shortly after the use of the unit, Metal part such as the heat sink and enclosure become hot. English 27

Wiring connection |: USB connector AUX input (Stereo) FM/AM antenna Use the mini-plug (3.5 mm; 1/8") cable input (JASO) Gif which is stereo type and does not have Antenna Cord any resistance. + Fuse (104) —| 1 Sub Woofer output Microphone @ E {KDC-X696 only) p—Wiring harness ©) © White © White/Black © Gray © Gray/Black © Green © Green/Black © Purple © Purple/Black [___ Ifno connections are made, do notlet the wire come out from the tab To front left speaker To front right speaker To rear left speaker To rear right speaker Blue/White (Power control/Antenna [ #1 ] control wire) onnect either to the power control terminal when sing the optional power amplifier, or to the antenna ontrol terminal in the vehicle. (Max. 300mA, 12V) Brown {Mute control wire) o connect the Kenwood navigation system, consult jour navigation manual Light Blue/Yellow (Steering remote control wire) use the steering wheel remote control feature, you need to an exclusive remote adapter (not supplied) matches your car is required! REMOTE con TC)

Blue {Not used) Car fuse box Ignition key switch Red (Ignition wire) Car fuse box Yellow (Battery wire) (Main fuse) Black (Ground wire) To the metallic body or chassis ofthe car + Battery 28 English 864-4919-00_02_Kindb 28

Installing the unit Connectthe wiring harness to the unit, Other wiring connection has been completed earlier. (page 28) Before attaching, make sure the direction of the escutcheon is correct. {Wider hooks on the bottom side) Dashboard of your car

Bend the appropriate tabs M to hold the mounting sleeve

firmly in place. Installing without using the mounting sleeve (Japanese car) 1 Remove the mounting sleeve and escutcheon @) from the unit. Q 2 Align the holes in the unit (on both sides) n® @r À with the vehicle mounting bracket and ) secure the unit with the supplied screws. T: Toyota cars Ne: Nissan cars Removing the unit 1 Detach the faceplate (A). 2 Engage the catch pin on the removal tools ©) into the holes on both sides of the escutcheon ( then pull it out. 3 Insert the removal tools (®) deeply into the slots on each side, then follow the arrows instructions as shown on the right. English 29 864-4919-00_02_Kindb 29

Installing the Microphone Unit (KDC-X696 only) microphone (.

installation surface. Install the microphone.

possible from the cell-phone. Peel offthe release coated paper of double-face adhesive tape to secure the microphone on the place shown above. Check the installation position of the Remove oil and other dirt from the Wire the microphone cable up to the hands-free box with it secured at several positions using tape or the like. # Install the microphone as far away as Fix a cable with a commercial item of tape.

Turn the microphone toward the driver. Troubleshooting Symptom Remedy/Cause Sound cannot be heard. Ajust the volume to the optimum level. / Check te cors and connections “PROTECT” appears and no operations can be done. Check t be sure the terminal afthe speaker ea are covered with isulting tape proper, then reset the uni. F*PROTECT" does not disappear, consult your nearest service center. The unit does not work at all Reset the unit. Radio reception s poor. / Static noise while listening to the radio. (Connectthe antenna fm. / Pull the antenne outall he way. “IN'flashes. The CD players not operating property. Rensert te disc proper the condition did notimprove tu ofthe unitand consult your nearest service center. CD-R/CD-RW cannot be played back and Insert a inalized CD-R/CD-RW finalze with the companent which you used for tracks canot be skipped recording) Disc sounds sometimes iterrupted Stop playback while dräng on rough road. / Change the disc. Checkthe cards and |connections. FRA FLE" appears. The units playing an unsupporte audio fl. NO DISC" appears Insert a playable discinto te loading lt. FTOCERROR" appears The CD is quite dire. / The CD is upside=down The CDs scratched a ot. Try another disc instead ERROR 99" appears The unitis malfunctioning for some reason. Press the reset button on the unit. IFthe ERROR 99" code does not disapper, consul your nearest service center. 30 Engish 864-4919-00_02_Kindb 30

Symptom Remedy/Cause COPY PRO" appears. AA capy-protected file is played RAD ERROR" appears Copy te les and folersfarthe USB device again. the eror message ist displayed initialize the USB device ar se other USB devices. FNO DEVICE" appears No USB device is connected. Connect a USB device, and change the source to USB again. NO MUSIC" appears The connected USB device contains no payable audio le. NA DEVICE" appears Connecta supported USB device, and check the connections. Pod ERROR" appears. Reconnectthe iPod. / Conf that te software or the Pod ste Latest version. / Reset the iPod. Noise generated Skipto another rack or change the disc Tiadks cannot play backas you have intended tem to play. Playback order is determined when files are recorded. READING" keeps lashing Longerreadouttime is required. Do not use to0 many ierarchies and folder. Elapsed playing time s not correct This is caused by how the tracks are recarded. The number of songs contained in "SONGS" category ofthis units different from that contained in "SONGS" category ofiPod. Podcast les are not counted in his uni as ti unit does not support the playback of podcast files Correct characters are not displayed [eg This unit can only display etes upper case), numbers, and imited number of album name) symbols Pandora Symptom Remedy/Cause PANDORA ERR 5” appears Thumb up/down operation has failed NO SKIPS" appears he skip count imi has been exceeded CHKDEVICE" appears Check te Pandora? application on the iPhone/iPod touch Bluetooth Symptom Remedy/Cause The hands-free talk volume is low. The hands-fre talk volume can be adjusted independent Adjustit during hands- free talk. [MIC GAIN] of <Bluetooth Setup> (page 22) No beepisheardat reception ofan incoming all a bep heard depending on the type of your cel-phone. The ICALL BEEPI of <Bluetooth Setup> (page 2) is set ON. Voices notrecognize. 1 The vehicle windows open. the surounding noie large voice cannot be recognized prop. lose the vehicle windows t reduce noise. Small voie. Ivoiceis 00 smal, it cannot berecognizedpropery. Speak nt the microphone à lite more loudy and natural The person utterng he voice tags tte one wo registered tel, Only the voice ofthe person who registered te voice tag can be recognized. NO NUMBER" appears. The caling party does not notfy a callerID./ There no phone number data NO DATA" appears There no outgoing cl is. There noincoming call it. / There is no missed call ist. There is no phone book ist. / Data is ot contained in the phone book 864-4919-00_02_Kindb 31 Continued to next page English 31

Symptom Remedy/Cause NO ENTRY" appears The cel-phone has not been registered (pain) “HF DISCONCT" appears. he uit cannot communicate with the cel-phone. “AUD DISCONCT” appears. The uit cannot communicate with the audio player. HF ERROR 07" appears The memory cannot be accessed. Turn ffthe poer andon again. this message st lappears, press the reset button on the control unit. HF ERROR 68" appears. The unit cannot communicate with he cel-phone. Turn offthe power and on again. IF this message still appears, press the reset button on the control unit. HF ERROR 89" appears. Update ofthe Bluetooth firmware has filed. Retry it. UNKNOWN" appears The Bluetooth device cannot be detected “DEVICE FULL appears 5 Bluetooth device have already been registered. No more Bluetooth device cannot be registered “PIN CODE NG' appears The PIN code is wrong, CONNECT NG' appears. The uit cannot be connected to the device. “PAIRING NG' appears Faing eo. “NO ACTIVE DVC' appears. No cel-phone is connected. Connect your cel-phone before starting voice recognition. The sound from the Bluetooth audio player is (æ Another Bluetooth device is affecting the Bluetooth communication. Turn off discontinuous another Bluetooth device. Move anather Bluetooth device away from this unit. 1m Another Bluetooth device or prfle is used for communication. The dovnloading of te Phone boak disconnects the sound. 32 English 864-4919-00_02_Kindb 32

Specifications FM tuner section Frequency range (200 kHz space): 879 MHz — 1079 MHz Usable sensitivity (S/N= 26 dB}:

Quieting sensitivity (DIN S/N = 46 dB):

19.2 dBf (2.5 uv/75 O)

Frequency response [43 dB): 30 Hz — 15 kHz Signal-to-Noise ratio (MONO): 63 dB Stereo separation (1 kHz: 40 dB AM tuner section Frequency range (10 kHz space): 530 kHz — 1,700 kHz Usablesensitivity (S/N= 20 dB: 31 dBya (36 iv) CD player section Laser diode: Ga/AIAS Digital filter (D/A)}: 8 Times Over Sampling D/A converter: 24 Bit Spindle speed: 500 rpm — 200 rpm (CL) Wow & Flutter: Below Measurable Limit Frequency response (1 dB}: 20 Hz — 20 kHz Total harmonic distortion (1 kHz): KDGK696: 0.008 %

Signal-to-Noise ratio (1 kHz): KDG696: 110 dB KDGBT6S2U: 105 dB Dynamic range: 93 dB AACdecode: AAC-LC “m4a' files MP3 decode: Compliant with MPEG-1/2 Audio Layer3 WMA decode: Compliant with Windows Media Audio USB interface USB standard: USB1.1/ 2.0 (Full speed) Maximum supply current: DC 5 V1 À File system: FAT16/ 32 AACdecode: AAC-LC “m4a' files MP3 decode: Compliant with MPEG-1/2 Audio Layer3 WMA decode: Compliant with Windows Media Audio Bluetooth section Technology: Bluetooth Ver. 2.1+EDR Certified Frequengÿ: 2.402 GHz — 2480 GHz Output Power: +4 dBm (MAX), 0 dBm (AVE) Power Class 2 Maximum Communication range: Line of sight approx. 10m (32.8 ft) Profile: HFP (Hands Free Profile), SPP (Serial Port Profile), OPP (Object Push Profile), PBAP (Phonebook Access Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile) Audio section Maximum output power: 50 W x 4 Full bandwidth power (at less than 1% THD): Wx4 Speakerimpedance: 4 Q — 8 Tone action: Bass: 100 Hz +8 dB Middle: 1 kHz +8 dB Treble: 12.5 kHz +8 dB Preout level / load (CD): KDCX696: 4,000 mV/ 10 KQ KDGBT6S2U: 2,500 mV/ 10 KQ Preout impedance: < 600 Frequency response (43 dB}: 20 Hz — 20 kHz Input maximum voltage: 1,200 mV Inputimpedance: 10 kQ General Operating voltage: HA V(10.5 V — 16 V allowable) Maximum current consumption: 10 À Installation size (W x H x D}: 182 mm x 53 mm x 160 mm 3/16" x 21/16" x 6-5/16") Weight: 2.9 lbs (1.3 kg) Subject to change without notice. English 33

RANDOM ON, RANDOM OFF

RANDOM ON, RANDOM OFF

FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual The user could lose the authority to operate this equipment if an unauthorized change or modification is made. FCCNOTE This equipment has been tested and found to comply with the limits for à Class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. IFthis equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: æ Reorient or relocate the receiving antenna. M Increase the separation between the equipment and receiver. # Connect the equipment into an outlet on à circuit different from that to which the receiveris connected # Consult the dealer or an experienced radio/ TVtechnician for help. # Contains Transmitter Module

= Contains Transmitter Module

864-4919-00_02_Kindb 98 IC (Industry Canada) Notice Operation is subject to the following two conditions: {1} This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:" before the certification/ registration number only signifies that the Industry Canada technical specification were met. ANCAUTION This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement € to OETÉS and RSS-102 ofthe IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But itis desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada, To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (exp) is not more than that necessary for successful communication. 11/12/21 9:3
