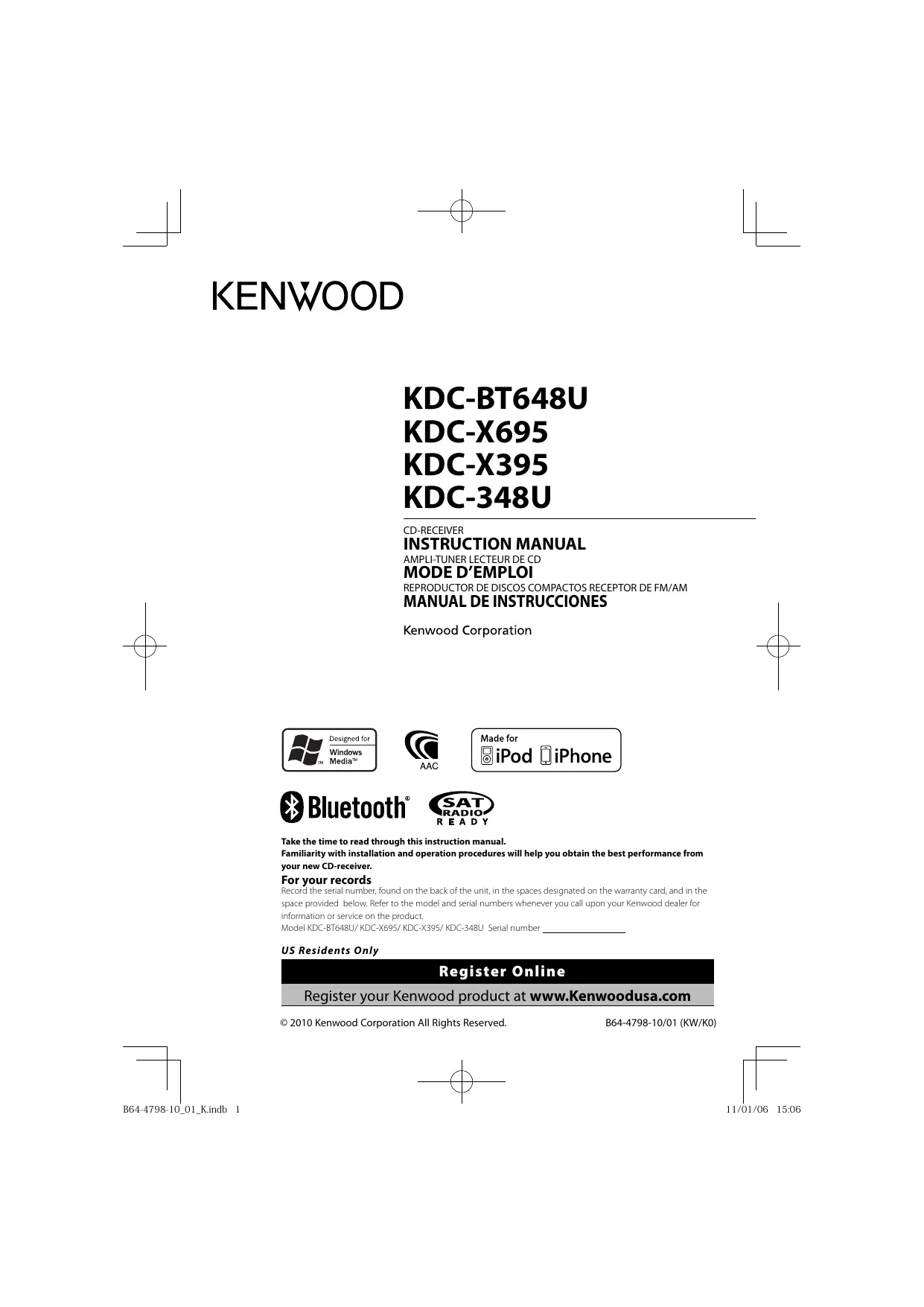

USER MANUAL KDC-BT648U KENWOOD

Windows L.. Media AC OBluetooth ED Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver. Register your Kenwood product at www.Kenwoodusa.com © 2010 Kenwood Corporation All Rights Reserved. B64-4798-10/01 (KW/KO) B64-4798-10_01_Kindb 1 11/01/06 15:06

CONTENTS Safety 3 Operation of Hands-Free Phoning 15 Maintenance Getting Started . Making a Call Preparation 4 Receiving a Call How to attach/detach the faceplate During a Cal How to reset your unit Call Wang Hour to prepare the remote controller Downloading the Phone Book (RC-405) _ . Bluetooth Setup 18 Getting Started 5. "Easy Paringfunction Canceling the display demonstration Registering Bluetooth Device (Pairing) Setting the demonstration mode Selecting the Bluetooth Device Adjusting the clock Setting a Voice Command Initial settings before operations Bluetooth Setup Basic Operations 6 sMS (Short Message Service) 23 Muting upon the reception of a phone call Donnloading the SMS Listening to the Radio 8 Displaythe SMS Adjust [SETTINGS] mode settings HD Radio” Tuner Control 24 Listening to the other external Direct Access Tuning using the remote components 9 controller (RC405) iTunes Tagging Listening to a Disc/ Adjust [SETTINGS] mode settings USB devicel iPod 10 Satellite Radio Tuner Control 26 art playing à disc Start playing a USB device or iPod caegonand Channel Search Removing the USB device or Pod Direct Access Tuning using the remote Start playing the disc changer le AUD Selecting Repeat Play Adjust [SETTINGS] mode settings Selecting Random Play Al Random Play Function settings 28 Selecting Magazine Random Play u Selecting Scan Play Installation/connection 30 Selecting à folder/track/file Troubleshooting 34 Alphabet Search for IPod Direct Music Search using the remote Specifications 37 controller (RC-405) Direct Disc Search using the remote controller (RC-405) My Playlist for iPod iPod control by Hand mode Adjust [SETTINGS] mode settings 2 English

Safety WARNING Stop the car before operating the unit Important to know... = To prevent a short circuit, never put or leave: any metallic objects (such as coins or metal took) inside the unit. = Caution: Adjust the volume so that you can hear sounds outside the car. Driving with the volume to0 high may cause an accident. = Condensation: When the car is air- conditioned, moisture may collect on the laser lens. This may cause disc read errors. In this case, remove the disc and wait for the moisture to evaporate. = The illustrations in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the illustrations may differ from what appears on the actual equipment. = Ifyou experience problems during installation, consult your Kenwood dealer. = When you purchase external components, check with your Kenwood dealer to make sure that they work with your model and in your area. Maintenance Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. Failure to observe this precaution may result in damage to the monitor or unit. Cleaning the connector: Wipe off dirt on the connector ofthe unit and faceplate. Use à cotton swab or cloth. B64-4798-10_01_Kindb 3 = The AAC" logo is a trademark of Dolby Laboratories a The Bluetooth word mark and logos are owned by the Bluetooth SIG, nc and any use of such marks by Kenwood Corporation is under license. Other trademarks and trade names are those of their respective owners. a Ready to receive HD Radio” broadcasts when connected to the KTC-HR300/ KTC- HR200/ KTCŒ-HRIOOTR, sold separately. = ‘Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use ofthis accessory with iPod or iPhone may affect wireless performance. = iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc, registered in the US. and other countries. = iTunes is a trademark of Apple Inc. This symbol mark indicates that Kenwood manufactured this product so as to decrease harmful influence on the environment. English 3 11/01/06 15:06

Preparation How to attach/ letach the faceplate # Do not expose the faceplate to direct sunlight, excessive heat, or humidity. Also avoid places with too much dust or the possibility of water splashing = Keep the faceplate in its casing while detached = The faceplate is a precision piece of equipment and can be damaged by shocks or jolts. = To prevent deterioration, do not touch the terminals of the unit and faceplate with your fingers. À How to reset your unit Ifthis unit fails to operate properly, press the reset button. The unit returns to factory L. settings when the reset button is pressed Reset button Æ English B64-4798-10_01_Kindb 4 How to prepare the remote controller (RC-405) When you use the remote controller for the first time, pull out the insulation sheet. Insulation sheet the effectiveness of the remote controller decreases, replace the battery.

À Caution: # Do not set the remote control in hot places such as on the dashboard! 2 Lithium battery. Danger of explosion ifthe battery is incorrectly replaced. Replace only with the same or equivalent type. = The battery pack or batteries shall not be exposed to excessive heat such sunshine, fire or the like. = Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries prompt. If swallowed contact physician immediately.

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply. See wwwdtsc.ca.gov/hazardouswaste/ perchlorate 11/01/06 15:06

Getting Started Canceling the display demonstration The display demonstration is always tumed on unless you cancel it When you turn on the power (or after you reset the unit), the display shows:

ICANCEL DEMO] =+ [PRESS] => [VOLUME

KNOB] 1 Press the volume knob. LIVES] is selected as the initial setup. 2 Press the volume knob again to confirm. IDEMO OFF] appears. = Ifno operation is done for about 15 seconds or if you turn the volume knob to select INO] in step 2, [DEMO MODE] appears and the display demonstration starts. Setting the demonstration mode Press the volume knob to enter IFUNCTIONI. Turn the volume knob to select [DEMO MODE], then press to enter. Turn the volume knob to select [ON] or [OFF]. IIONI is selected, display demonstration Starts ifno operation is done for about 20 seconds. Hold # to finish the procedure.

Adjusting the clock Press the volume knob to enter IFUNCTION] mode. 2 Turn the volume knob to select [SETTINGS], then press to enter. Turn the volume knob to select [CLOCK], then press to enter. 4 Turn the volume knob to select [CLOCK ADJUST], then press to enter. Clock hour flashes on the display. Turn the volume knob to adjust the hour, then press to enter minute adjustment. Clock minutes flashes on the display. 6 Turn the volume knob to adjustthe minute, then press to confirm. Press 4 / we 10 move between the hour and minute adjustment. 7 Hold # to finish the procedure.

I settings before operations 1 Press & SRC to enter [STANDBY] mode. 2 Press the volume knob to enter IFUNCTION] mode. 3 Turn the volume knob to select [INITIAL SET], then press to enter. 4 Turn the volume knob to make a selection, then press to confirm. See table below for selection. 5 Hold # to finish the procedure.

Item Selectable setting (Preset: *) PRESET TYPE NORMAL *: Memorizes ane station for each preset button in each band (FM1/ FM2/ FM3/ AM); MIX: Memorizes one station for each preset button regardless ofthe selected band {FM1/ FM2/ FM3/ AM) and {another Satelite Radio Tuner. KEY BEEP (ON */OFF: Activates/deactivats tr Keypres tone. BUILT-IN AUX (ONT*: Outputs sound ofthe connected extermal component through the car speakers when “AUX"s selected asthe source. ; ON2: Outputs sound from the connected external component when AUX" selected as the source. Wen Yyouturn on the power, the sound attenuates (to prevent noise when no external component is connected Turnthe volume knob clockwiseta return ot previous volume level; OFF: Disables “AUX in source selection. COREAD FF Automaticaly distinguishes between audio fl dis and music CD. ; 2: Forces to play as a muse CD. No sound can be heard an audio le disc played. SP SELECT (OFF */ 5/4/ 6 x 9/6/ OEM: Selects the speaker size for optimum performance F/W UP ocxx VES: Start upgrading the firmware; NO * Cancel (upgrading is not acivated) For detail on how to update the frmvre, see wwvekenood com/cs/ce/ B64-4798-10_01_Kindb 5 English 5 11/01/06 15:06

Basic Operations Loading slot Remote sensor # Do not expose to bright sunlight. Ejects the disc Volume knob Detaches the faceplate The following indicator lights up when. ST: A stereo broadcast is received RDS: Radio Data System service is available. TI: Traffic Information function is turned on. IN: A disc is in the unit. ATT: The sound attenuates. EQ: [SYSTEM Q] is set to an EQ mode other than [NATURAL]. (page 28) B.BOOST: [BASS BOOST] is set to [1] or [2] (page 28) Œ:Indicates that the Music Search mode is selected now. BT: Bluetooth cell-phone connection status. USB terminal Auxliary input jack Slide open the‘cover The illustration and button names used for explanation in this manual are of KDC-BT648U/ KDC-X695 (unless mentioned otherwise) Refer to the table below for the difference

When you press or hold the following button(s) Mainunit ercnote General operation controller = Turns on 7 [se Tumsoffif pressed and held wsRe Selects the available sources (TUNER, USB or iPod, CD, AUX, sRC STANDBY), if the power is turned on. : Hfthe source is ready, playback also starts. iPod” and “CD' are selectable only when an iPod is connected or a disc is loaded. Volume knob | VOLAV lAdjusts the volume level (turn) AY |Selects items. Volume knob| ENTæ 11 |Confirms selection. (press) — Enters [FUNCTION] settings. samy |" Slects the FM bands (FM1/ FM2/ FM) or AM BAND æ Selects the next folder. (Press *AM- on remote controller to select #FM+ the previous folder) 6œ1 ENT |Pauses/resumes playback of a disc/ USB device/ iPod. Legs |" Searches for radio station em | |MSelects track/ile = Fast-fonwards/reverses tracks/files if pressed and held. = Changes the display information. SCRL DISP ___ [" Scrolls the display information if pressed and held = Enters clock adjustment mode directly (page 5) ifpressed and held while in clock display screen

KDCBT648U/ KDGX695 only. = Enters Bluetooth mode. (page 15) = Press to answer an incoming call = Enters Bluetooth easy pairing mode ifpressed and held. (page 18) KDCX395/ KDC-348U only. = Selects “Pod” source. iPod 7 [= Switches the controlling terminal (HANDS ON/ HANDS OFF) for iPod playback if pressed and held. (page 13) _ AUD |Enters [AUDIO CONTROL] settings directly. _ ATT Attenuates the sound :_ To return to the previous level, press the button again. #5 |Returnstothe previousitem s Exit from setting mode. EXIT |: Press and hold # on the main unit will also exit om the setting mode. B64-4798-10_01_Kindb 7 English 7

Muting upon the reception of a phone call (KDC-X395/ KDC-348U only) To use this feature, connect the MUTE lead to your telephone using a commercial telephone accessory. (See ‘Installation Manual” on a separate volume) When a call comes in, “CALL' appears. = The audio system pauses. 2 To continue listen to the audio system during a call, press & SRC."CALL' disappear and the audio system resumes. When a call ends, “CALL' disappear. = The audio system resumes. Listening to the Radio = Hold for about 2 seconds to memorie the curent station orthe selected Program Type. (Refer to [PTY SEARCH] on the table below to select the Program Type) = Press brief to recall memorized station (or Program Type after entering the PTY search mode) 1 Press & SRC to select "TUNER". Adjust [SETTINGS] mode settings 2 Press BAND repeatedly to select a band While listening to the radio. {FM1/ FM2/ FM3/ AM). 1 Press the volume knob to enter 3 Press 4-4 / ææ1 to search for a station. IFUNCTION] mode. 2 Turn the volume knob to select Using the remote controller (RC-405) ISETTINGS], then press to enter. #FM+/*AM- : Selects band 3 Turn the volume knob to make a H4@ / +21 :Selects station. selection, then press to confirm. 1-6 :Selects preset station. See table below for selection. 4 Hold # to finish the procedure. Item Selectable setting (Preset: *) SEEX MODE |Selectsthe tuning mode for tt / DD buttons. AUTO * Automatical search for station. ; AUTO: Search inthe order ofthe stations in the preset memory. ; IMANUAL: Manual search for station AUTO MEMORY | YES: Automaticalystarts memorzing 6 stations with good reception. NO * Cancel (automatic memorizing is not activated). (Selectable only if [NORMAL] is selected for [PRESET TYPE] ) (page 5) 1 ON: The traffic information automatically when the traffic bulletin starts.; OFF *: Cancels. (Not applicable if°AM" is selected) 8 English B64-4798-10_01_Kindb 8 11/01/06 15:06

Item Selectable setting (Preset: *) MONO SET |ON:Improvesthe FM reception [butte stereo effect may be lost. ; OFF *: Cancel (stereo effect resume) PTYSEARCH _ |Selects the valable Program Iype (page 9). Then, press Det start searching 2 (TJ isselectable only when the souris “FM other playback source is selected these settings are selctable under [TUNER SET] item. (page 29) = Available Program Type: SPEECH, MUSIC NES; INFORM, SPORTS; TALK; ROCK; CLS (classic) ROCK, ADLT (adult) HI, SOFT RCK (rack), TOP 40, COUNTRY OLDIES SOFT: NOSTALGA; JAZZ CLASSICL; R&B, SOFT R&B LANGUAGE; REL religious) MUSC REL (rligious) TALK; PERSHLTY {personal PUBLIC; COLLEGE: WEATHER The unit wil search forthe Program type categarized under [SPEECH] or [MUSIG iselected. ISPEECH : Raman typeface tem. [MUSIG: ali typeface item. = The Radio Data System feature won't work where the service is not supported by any broadcasting station. = ifthe volume is adjusted during reception of traffic information, the adjusted volume is memorized automatically. It will be applied the next time Traffic Information function is tumed on Listening to the other external components Preparation : Make sure [ON1] or [ON2] is selected for [BUILT-IN AUX]. (page 5) 1 Press & SRC to select "AUX". 2 Turn on the external component and start playing. 3 Turn the volume knob to adjust the volume.

Listening to a Disc/ USB device/ iPod Ejects the disc. ENO DISC" appears and ‘IN’ indicator goes off) KENWOOD C ZE IC m Press to select track/file. USB terminal = Hold to fast-forwards/reverses. Press to pause. Press again to resume playback = Press to select next folder of Audio File/iPod. = Press to select next disc of CD changer. Start playing a disc 1 Press & SRC to turn on the power. 2 Insert a disc'into the loading slot. Playback starts automatically Apple iPod {commercial avalble) Start playing a USB device or iPod 1 Press & SRC to turn on the power. 2 Slide open the cover. 3 Connect a USB device or iPod to the USB terminal. The source automatically switches, and playback starts. {optional accessor)} Removing the USB device or iPod 1 Press & SRC to select a source other than “USB” or “iPod”. 2 Remove the USB device or iPod. USB device Start playing the disc changer {commercial available) 1 Press & SRC to turn on the power. 2 Press & SRC to select “CD CHANGER". CA-UTEX {optional accessor)) 10 English

Selecting Repeat Play Press number button 4 (REP) repeatedly to make a selection. Audio CD : TRACK REPEAT, REPEAT OFF Audio File

= Changes the iPod browsing item to “songs” Selecting Magazine Random Play Press number button 5 repeatedly to make a selection. CD changer : MGZN (magazine) RANDOM, RANDOM OFF Selecting Scan Play Press number button 2 (SCAN) repeatedly to make a selection. Audio CD : TRACK SCAN, SCAN OFF Audio File : FILE SCAN, SCAN OFF CD changer : TRACK SCAN, SCAN OFF = lfscan play is selected, the unit starts playing the first 10-second intro ofthe music in the disc/current folder. IF'SCAN OFF" is selected, the unit resumes normal play of the current song. B64-4798-10_01_Kindb 11 Selecting a folder/track/file + Not available if disc changer playback is selected. 1 Press @ to enter Music Search mode. “SEARCH” appears, then the current file name appears on the display. 2 Turn the volume knob to select a folder/ track/ file, then press to confirm. 2 To skips songs, press H4/ wæ1. Holding He »»41 skips songs at 10% regardes of the setting made. (page 13) This operation is effective only for the iPod or Kenwood Music Editor media. = To return to the root folder (audio file), top menu (iPod) or first track (audio CD), press BAND. 2 To return to the previous folder, press 2 To cancel the Music Search mode, press and hold #. m < or > onthe displayindicates that preceded/next item is available. Alphabet Search for iPod Press @ to enter Music Search mode. "SEARCH" appears. Turn the volume knob to select a category, then press to confirm. Press & again to enter alphabet search mode. "SEARCH <>" appears. Turn the volume knob to select the character to be searched for. Press #4 / »æ1t0 move to the entry position. You can enter up to three characters. Press the volume knob to start searching. After this step, see step 2 of <Selecting a folder/track/file> (page 11) to select a song 2 To return to the Music Search mode, press

2 To cancel the Music Search mode, press and hold #. m A longer searching time is required ifthere are many songs or playlists in the iPod

Continued to next page English 11

= To search for à character other than A to Z and 0 to 9, enter only "*" = The article (a, an, the) of songs name will be skipped during search Direct Music Search using the remote controller (RC-405) + Not available if Random Play, Scan Play, KENWOOD Music Editor media, iPod playback is selected. 1 Press DIRECT to enter Direct Music Search mode. *--" appears. 2 Press the number buttons to enter the track number. 3 Press 44/+»æ1 to search for the music. = To cancel the Direct Music Search mode, press + Onfy when the source is CD changer. + Not available if Random Play, Scan Playis selected. 1 Press DIRECT to enter Direct Disc Search mode. -_" appears. 2 Press the number buttons to enter the disc number. 3 Press #FM+ / *AM- to search for the disc. = To cancel the Direct Disc Search mode, press Using the remote controller (RC-405) In playback mode: #FM+/*AM- : Selects folder/disc Hd /#ww :Selects track/file ENT>1 : Pauses/resumes playback. In Music Search mode: ENT»: Confirms selection. AIY elects folder/file/track. sS keturns to the previous folder. 12 English B64-4798-10 01_Kindb 12 My Playlist for iPod Registering songs in the playlist Select and play the song you want to register. (page 11) Press and hold number button 5 (MEMO MY LIST) to register. “#4 STORED" (registration number) appears. You can register up to 10 songs. "MEMORY FULL' appears, if you try to register the eleventh song, = If you attempt to register a song from a different iPod, “NO INFO" followed by “MPLIST DELETE" appears To delete the playlist, turn the volume knob to select"VES" then press to confirm = You can also register the song displayed in the Music Search mode by following the same procedure = Do not register Podcasts.

Playing a song on the playlist 1 Press number button 5 (MEMO MY LIST) to display the playlist. “MY PLAYLIST" appears. 2 Tum the volume knob to select the song you want, then press to confirm. = Random play cannot be performed during playback of a song in the playlist

Deleting a song on the playlist Press number button 5 (MEMO MY LIST) to display the playlist. “MY PLAYLIST" appears. Turn the volume knob to select the song you want to delete, then press and hold the volume knob. Turn the volume knob to select [DELETE ONE] or [DELETE ALL], then press to confirm. Select “DELETE ALL to delete all the songs in the playlist. Turn the volume knob to select [VES], then press to confirm. “COMPLETED" appears.

iPod control by Hand mode Press number button 1 (iPod) repeatedly to make a selection. [kocx395 M koc-s4su| Press and hold iPod repeatedlly to make a selection. HANDS ON Control iPod from the iPod 2 This mode is not compatible with music information display. The display will show “iPod MODE" HANDS OFF: Control iPod from the unit. Adjust [SETTINGS] mode settings While listening to an iPod or KENWOOD Music Editor media 1 Press the volume knob to enter IFUNCTION] mode. 2 Turnthe volume knob to select ISETTINGS], then press to enter. 3 Turnthe volume knob to make a selection, then press to confirm. See the following table for selection. 4 Hold # to finish the procedure. Item | Selectable setting (Preset: *) SKIP SEARCH 0.596 */ 196/ 5%/ 10%: Sets the ratio ofskip wie searching fr a song in Music Search mode MUST |YES:Deletesthe saved My Playlist; DELETE [NO *: Cancel, æ [MPLIST DELETE is selectable only when the source is “iPod” B64-4798-10 01_Kindb 13 Handling discs 2 Do not touch the recording surface of the disc = Do not stick tape etc. on the disc, or use à disc with tape stuck on it. = Do not use any accessories for the disc = Clean from the center ofthe disc and move outward = Clean the disc with a dry silicon or soft cloth. Do not use any solvents = When removing discs from this unit, pull them out horizontall. = Remove the rims from the center hole and disc edge before inserting a disc. Discs that cannot be used = This unit can only play the CDs with: de dE déc = Discs that are not round. = Discs with coloring on the recording surface or discs that are dirty. = You cannot play a Recordable/ReWritable disc that has not been finalized. (For the finalization process refer to your disc writing software, and your disc recorder instruction manual.) = 3-inch CD cannot be used. Attempt to insert using an adapter can cause malfunction: About Audio file = Playable Audio file MP3 (mp3), WMA (wma) AAGLC (ma) KDGBT648U/ KDGX695 only = Playable disc media: CD-R/RW/ROM = Playable disc file format: 150 9660 Level 1/2, Joliet, Romeo, Long file name. = Playable USB device file system: FATI6, FAT32 Continued to next page English 13

Although the audio filles are complied with the standards listed above, the play maybe impossible depending on the types or conditions of media or device. = Detailed information and notes about the pleyable audio files are stated in an online manual on the following site: wwwkenwood.com/cs/ce/audiofile/ About USB device = This unit can play audio files stored on a USB mass storage class device. = Install the USB device in the place where itwill not prevent you from driving your vehicle properly. # You cannot connect a USB device via a USB hub and Multi Card Reader. = Make sure all important data has been backed up to avoid losing the data = Connecting a cable whose total length is longer than 5 m can result in abnormal playback. “A USB connection cable, CA-UIEX optional accessary is required for connecting a USB device. About compatible iPod/iPhone Made for — iPod touch (Ath generation) — iPod touch (3rd generation) — iPod touch (2nd generation) — iPod touch (1st generation) — iPod classic — iPod with video — iPod nano (éth generation) — iPod nano (Sth generation) — iPod nano (Ath generation) — iPod nano (3rd generation) — iPod nano (2nd generation) — iPod nano (1st generation) — iPhone 4 — iPhone 3GS — iPhone 3G — iPhone (As of January 2011) = Latest compatible list ofiPod/iPhone For details, see: wwwkenwoodcom/cs/ce/ipod = Type of control available varies depending on the type of connected iPod. For details, see above URL = The word ‘Pod’ appearing in this manual indicates the iPod or iPhone connected to this unit with à connection cable, KCA- iP102 (optional accessory) = fyou start playback after connecting the iPod, the music that has been played by the iPod is played first. In this case, "RESUMING" is displayed without displaying à folder name, etc. Changing the browse item wi display à correct title, etc. # You cannot operate iPod if "KENWOOD" or “V' displayed on iPod About “KENWOOD Music Editor” = This unit supports the PC application “KENWOOD Music Editor Light verl.1" or later. = When you use the audio file with database information added by the “KENWOOD Music Editor Light verl.l’, you can search a file by title, album or artist name using Music Search (page 11). #inthe Instruction manual, the term “Music Editor media” is used to mean the device that contains audio files with database information added with KENWOOD Music Editor. "KENWOOD Music Editor Light verl.1" is available from the following web site: wwwkenwood.com/cs/ce/ = For further information on “KENWOOD Music Editor Light verl.1", refer to the site above or the application help. 14 English B64-4798-10 01_Kindb 14 11/01/06 15:07

Operation of Hands-Free Phoning Preparation : KDC-X395/ KDC-348U: Only with the optional accessory KCA-BT300 or KCA-BT200 connected.

KDGX395/ KDG348U = Press and hold for about 2 seconds to memorize the = Press and hold to enter current phone number. Bluetooth mode. = Press briefly to recall memorized phone number m Press to answer an incoming call

= Press to enter Bluetooth mode. = Press to answer an incoming call Getting Started Before use the cell-phone, you need to connect cell-phone to this unit. # For details on the Bluetooth cell-phone with the hands-free function, see <About the Cell-Phone> (page 22) [Kkocsréasu knc-xess| 1 Press and hold & to enter easy pairing mode “PAIRING' is displayed "SEARCHING" is displayed. Search for the Bluetooth device. When search is completed, *FINISHED" is displayed. Turn the volume knob to select a cell- phone name, press to confirm. Input the PIN code = Turn the volume knob to select the number. 2 To move to the next digit, press Del. 2 To delete the last digit, press 4 Press the volume knob to transmit the PIN code. IF*PAIRING OK'is displayed, registration is completed

B64-4798-10 01_Kindb 15 When “CONFIRM PHONE" is displayed, confirm connection with a cell-phone operation. 6 The receiver is connected to a cell-phone, with “HF CONNECT" displayed, and exits the easy pairing mode. m For more details, see <Easy Pairing function> (page 18). = Ifan error code is displayed during paring, see <Troubleshooting> (page 34) LES / CE The following 3 steps procedure is necessary. Step 1. Pairing (Registering from Bluetooth devices) Press & SRC to turn on the power. Start registering this unit by operating the Bluetooth device. By operating the Bluetooth device, register the hands-free unit (pairing). Select'KCA- BT300" or "KCA-BT200° from the list of connected units. Input the PIN code (‘0000") in the Bluetooth device. Check that registration is complete on N =

Continued to next page English 15 11/01/06 15:07

the Bluetooth device. PIN code is set to “0000” as the default. You can change this code. Refer to [PIN CODE EDIT] under <Bluetooth Setup> (page 22). 4 By operating the Bluetooth device, start hands-free connection. Step 2. Connection IF you have registered 2 or more cell phones, you need to select one ofthem For more details, see <Selecting the Bluetooth Device> (page 20) When a cell-phone is connected, the "BT" indicator lights up. Step 3. Hands-free phoning You can do hand-free phoning when the connection is made. = When registering from this unit, Refer to <Registering Bluetooth Device (Pairing)> (page 19). Making a Call 1 CU) Press & to enter Bluetooth mode. [koox305 Hkpc-s4su| Press and hold the volume knob to enter Bluetooth mode. Turn the volume knob to select a dialing method, then press to enter. 2 Operation method of each mode is described below. “PHONE BOOK” Calling a Number in the Phone Book

“OUTGOINGY “INCOMING?/ "MISSED

CALLS" Calling a Number in the Call Log “NUMBER DIAL* Dial a Number “VOICE RECOG": Make a Voice Dialing Call Speed Dialing (Preset Dial) = Switches between name and phone number, press DISP. 2 To return to the Bluetooth mode, press and hold #. = To exit Bluetooth mode, press & SRC.

Calling a Number in the Phone Book 2 Turn the volume knob to select “PHONE 16 Engiish B64-4798-10 01_Kindb 16 BOOK', then press to enter. Press @ to enter alphabet search mode. Turn the volume knob to select the character to be searched for. = To move to the next row, press BAND. = To return to the Phone Book mode, press #2. Press the volume knob to start searching. Turn the volume knob to select a name and category. = To move to the next character, press HA

7 Press the volume knob to make a call. 2 To use the Phone Book, it must be downloaded to this unit in advance. Refer to <Downloading the Phone Book> (page 17) = During search, a non-accent character such as “u”is searched for instead of an accent character such as *ü”. = The category items in the Phone Book are displayed as follows. GE: General ; HM: Home ; OF: Office ; MO: Mobile ; OT: Other

Calling a Number in the Call Log 2 Turn the volume knob to select the “OUTGOING" (outgoing call), “INCOMING" {incoming call), or “MISSED CALLS" {missed call), then press to enter. 3 Turn the volume knob to select a name or phone number. 4 Press the volume knob to make a call. = The outgoing call list and the incoming call list, and the missed call list are the lists of calls originated from and received at this unit. They are not the ones stored in the cell-phone memory. Dial a Number 2 Turn the volume knob to select "NUMBER DIAL', then press to enter. 3 Turn the volume knob to select the phone number 2 To move to the next digit, press BB. = To delete the last digit, press H@«. = Press number button (1 — 0), #{FM+),

“AM-), or +(pæe) on the remote controller. 4 Make a call. = Press the volume knob = Press OK on the remote controller. = You can input max 25 (KDC-BT648U/ KDGX695) / 32 (KDGX395/ KDG348U) digits. Speed Dialing (Preset Dial) 2 Press number button (1 - 6). 3 Press the volume knob to make a call. Registering to the Preset Dial Number (Preset Memory) 2 Enterthe phone number with reference to the following: Dial a number/ Calling a number in the call log/ Calling a number in the Phone Book 3 Press and hold number button (1 - 6) for about 2 seconds. Make a Voice Dialing Call 2 Turn the volume knob to select "VOICE RECOG’, then press to enter. “V-RECG READY" is displayed 3 Press the volume knob to start voice recognize. 4 "PB NAME" is displayed. When à beep is heard, say the name within 2 seconds. 5 "PNTYPE" is displayed. When à beep is heard, say the category name within 2 second. The recognized phone number (name) is displayed. 6 Press the volume knob to make a call. = This step is the same as step 4 ofthe procedure in <Calling à Number in the Phone Book> (page 16). You can make à call or select a category. = if your voice cannot be recognized, a message is displayed. Pressing the Volume knob allows you to retry voice input. Refer to <Troubleshooting> (page 34) = Both the name and category require registration of a voice tag. Refer to <Setting a Voice Command> (page 20) B64-4798-10 01_Kindb 17 = Audio sound is not output during voice recognition Receiving a Call Answering a Phone Call [koc-sT6asu fAKkDc-x695| Press. [kc-x395 koc-348u | Press the volume knob. Rejecting an Incoming Call Press Ü SRC. During a Call Disconnecting a Call EEU / Press. [kc-x395 Pkoc-348u | Press Ü SRC. Switching to the Private Mode Press number button 6 to switches between Private talk (“PRIVATE TALK) and Hands-free talk (“HANDS FREE"). Call Waiting L Answering Another Incoming Call with the À Current Call Suspended Turn the volume knob to select [ANSWER], then press to enter. Continuing the Current Call Turn the volume knob to select [REJECT], then press to enter. Switching between the Current Call and Waiting Call Press the volume knob to switches the calling party. Downloading the Phone Book To download automatically Ifthe cel-phone supports a phone book synchronization function, the phone book is downloaded automatically after Bluetooth connection. = Setting on the cell-phone may be required = no phone book data is found in the unit even after the compete display, your cell-phone may not support automatic Continued to next page English 17 11/01/06 15:07

download of phone book data. In this case, try downloading manual. To download from the cell-phone manually 1 By operating the cell-phone, end the hands-free connection. 2 By operating the cell-phone, sendthe phone book data to this unit By operating the cell-phone, download the phone book data to this unit. = During downloading: "DOWNLOADING" is displayed = After completion of downloading *COMPLETE" is displayed. 3 Byoperating the cell-phone, start the hands-free connection. = To clear the downloading completion message, press any button. 2 Up to 1000 phone numbers can be registered for each registered cell-phone = Up to 25 (KDCBT648U/ KDC-X695)/ 32 KDEX395/ KDC-348U) digits can be registered for each phone number along with up to 50* characters representing à name {* 50: Number of alphabetical characters. Fewer characters can be input depending on the type of characters) Bluetooth Setup = To cancel downloading of the phone book data, operate the cell-phone. Using the remote controller (RC-405) Making a call: Le + Enter Bluetooth mode. AY :Selects a dialing method Enter dialing mode DIRECT : Make a call 0—9 : Input a digit in number dial mode. #FM+ input #'in number dial mode. *AM- input in number dial mode +»» 2input#'in number dial mode: #4: Clearthe entered phone number. Receiving a call: Le : Answer the call. ENT 11 : Switch between the private talk mode and the hands-free talk mode Call waitin L + Answer Another Incoming Call with the Current Call Suspended SRC _: Answer another Incoming Call after Terminating the Current Call D 1 : Continue the Current Call. During a call: SRC :Endthe call Preparation : KDC-X395/ KDC-348U: Only with the optional accessory KCA-BT300 or KCA-BT200 connected. + KDGBT648U/ KDCX695 only. 1 Press and hold K to enter easy pairing mode “PAIRING" is displayed. » Any of the following is displayed depending on cell-phone registration condition: “SEARCHING" When registering a cell- phone for the first time “cell-phone name)": When a cell-phone has already been registered 18 English B64-4798-10 01_Kindb 18 “DEVICE FULL“ When maximum of five cell-phones have already been registered. When registering a cell-phone for the first time, registering a cell-phone 2 "SEARCHING" is displayed. Search for the Bluetooth device. When search is completed, “FINISHED" is displayed 3 Turn the volume knob to select a cell- phone name, press to confirm. 11/01/06 15:07

4 Input the PIN code = Tu the volume knob to select the number. To move to the next digit, press Be. = To delete the last digit, press 44 Press the volume knob to transmit the PIN code. IF*PAIRING OK" is displayed, registration is complete. When *CONFIRM PHONE" is displayed, confirm connection with a cell-phone operation. The receiver is connected to a cell-phone, with “HF CONNECT" displayed, and exits the easy pairing mode. = ifan error code is displayed during paring, see <Troubleshooting> (page 34)

When a cell-phone has already been registered, or maximum offive cell-phones have already been registered/selecting a cell: phone 2 “(cell-phone name)" or “DEVICE FULL'is displayed. 3 Turn the volume knob to select a cell- phone name. 2 To register a new cell-phone, select “DVC SEARCH], then go to “When registering a cell-phone for the first time. 4 Press the volume knob to set up the cell-phone. ‘#(cell-phone name)": The selected Bluetooth device is busy. (cell-phone name)’: The selected Bluetooth device is on standby. {cell-phone name)": The Bluetooth device is deselected = fa cell-phone is already selected, deselect it, and then select a different one. 5 Press & to exit easy pairing mode. Deleting the registered cell-phone 2 “(cell-phone name)" or “DEVICE FULL'is displayed. 3 Turn the volume knob to select a cell- phone name. B64-4798-10 01_Kindb 19 4 Press and hold the volume knob to delete the selected cell-phone. “DELETE" is displayed 5 Turn the volume knob to select "YES”", then press to confirm. *COMPLETED" is displayed Registering Bluetooth Device (Pairing) Registering from Bluetooth devices Press & SRC to turn on the power. 2 Start registering this unit by operating the Bluetooth device. By operating the Bluetooth device, register the hands-free unit (pairing). Select “KENWOOD BT CD/R-3P1',“KCA-BT300" or “KCA-BT200" from the list of connected units. Input the PIN code (*0000") in the Bluetooth device. Check that registration is complete on the Bluetooth device. PIN code is set to “0000” as the default. You can change this code. Refer to [PIN CODE EDIT] under <Bluetooth Setup> (page 22). By operating the Bluetooth device, start hands-free connection.

Registering from this unit LRKoc-8T648u PA KDC-x695 Press &, to enter Bluetooth mode. [kc-x395 Pkoc-348u | Press and hold the volume knob to enter Bluetooth mode. Turn the volume knob to select [SETTINGS], then press to enter. Turn the volume knob to select [PAIRING], then press to enter. Turn the volume knob to select [DEVICE SEARCH), then press to enter. Press the volume knob to search for the Bluetooth device. When search is completed, "FINISHED" is displayed Turn the volume knob to select a Bluetooth device name, press to confirm. Gontinued to next page English 19

“PAIRING" is displayed (KDC-X395/ KDC-348U with KCA-BT300 only) IF“PAIRING OK" is displayed, proceed to step 10. IF“PIN CODE NG'is displayed, proceed to steps 8. Input the PIN code = Tumthe volume knob to selectthe number. m To move to the next digit, press Bebe. # To delete the last digit, press @@ Press the volume knob to transmit the PIN code. IF“PAIRING OK" is displayed, registration is completed. Ifthe error message appears even though the PIN code is correct, try Registering Special Bluetooth device. 10Hold # to finish the procedure. = To exit Bluetooth mode, press & SRC = Ifthere are 5 or more Bluetooth devices registered, you cannot register a new Bluetooth device.

| Registering Special Bluetooth device C [ko sTeasu ]} Press & to enter Bluetooth mode. [koox395 Dkpc-s4su| Press and hold the volume knob to enter Bluetooth mode. Turn the volume knob to select [SETTINGS], then press to enter. Turn the volume knob to select [PAIRING], then press to enter. 4 Turn the volume knob to select [S-DVC SELECT], then press to enter. Turn the volume knob to select a device name, press to confirm. Go through the procedure step 4 of <Registering from this unit> and complete the registration (pairing). = Ifthe device name is not in the list, select "OTHER PHONE

Selecting the Bluetooth Device

LR KDC-BT648U FA KDC-X695

Press & to enter Bluetooth mode. [koexs0s kocsasul Press and hold the volume knob to enter 20 English B64-4798-10 01_Kindb 20 Bluetooth mode. 2 Turn the volume knob to select ISETTINGS], then press to enter. 3 Turn the volume knob to select IPAIRING], then press to enter. 4 Turn the volume knob to select [PHONE SELECT] or [AUDIO SELECT], then press to enter. 5 Turn the volume knob to select a Bluetooth device name. 6 Press the volume knob to set up the Bluetooth device. ="#(Device name)": The selected Bluetooth device is busy. Device name)": The selected Bluetooth device is on standby. =" (Device name)“ The Bluetooth device is deselected. = fa cell-phone is already selected, deselect it, and then select a different one. 7 Hold # to finish the procedure. » To exit Bluetooth mode, press & SRC

Setting a Voice Command Registering Phone Book Name 1 CEE) Press &, to enter Bluetooth mode. [koc-x395 PA koc-34su| Press and hold the volume knob to enter Bluetooth mode. Turn the volume knob to select ISETTINGS], then press to enter. Turn the volume knob to select [VOICE TAG], then press to enter. Turn the volume knob to select [PB NAME EDIT], then press to enter. Search for the Phone Book name to register Select the name to register with reference to 5 in <Calling a Number in the Phone Book> (page 16) Ifa voice tag has already been registered for a name, “*" is displayed before the name. Turn the volume knob to select [PB NAME REG], then press to enter.

= To select “PB NAME CHK' play the registered voice. = To select ‘PB NAME DEL' delete a voice tag. Turn the volume knob to select "ES", then press to confirm. 7 “ENTER lis displayed. When a beep is heard, say a voice tag within 2 seconds. 8 “ENTER 2"is displayed. When a beep is heard, say the same voice tag as that you said in step 7 within 2 seconds. "COMPLETE" is displayed 9 Press the volume knob to return to step 5. m To exit Setting mode, press #. = To exit Bluetooth mode, press & SRC = You can register up to 35 voice tags = Audio sound is not output during voice tag registration. Registering Phone Book Name Type LRKDC-8T648U PA KDC-x695 Press &, to enter Bluetooth mode. [kpc-x305 Pknc-s48u| Press and hold the volume knob to enter Bluetooth mode. = To select “PN TYPE CHK' play the registered voice. (KDGX395/ KDG348U onby) = To select “PN TYPE DEL delete a voice tag. Turn the volume knob to select *YES’ then press to confirm. (KDGX395/ KDC348U onby) “ENTER is displayed. When a beep is heard, say a voice tag within 2 seconds. “ENTER 2” is displayed. When a beep is heard, say the same voice tag as that you said in step 7 within 2 seconds. “COMPLETE" is displayed 9 Press the volume knob to return to step

= Set the voice tag for all the 5 categories. If the voice tag is not registered for all the categories, the Phone book may not be recalled by voice command

Press & to enter Bluetooth mode. [kpe-x395 Pknc-34su| Press and hold the volume knob to enter 2 Tu the volume knob to select ISETTINGS], then press to enter. Bluetooth mode. 3 Tumthe volume knob to select [VOICE 2 Turn the volume knob to select TAG], then press to enter. ISETTINGS], then press to enter. 4 Tumthe volume knob to select IPNTYPE 3 Turn the volume knob to make a EDIT], then press to enter. selection, then press to confirm. 5 Tu the volume knob to select "See table below for selection. [GENERAL], [HOME], [OFFICE], [MOBILE], " Repeat step 3 until the desired item is or [OTHER], then press to enter. selected/activated 6 Turn the volume knob to select [PN TYPE # Press # to return to the previous item. REG], then press to enter. 4 Hold # to finish the procedure. = To exit Bluetooth mode, press & SRC. Item Selectable setting (Preset: *) PAIRING DEVICE SEARCH |Registers a Bluetooth device (pairing {For detail, see page 19) PHONE SELECT |Selectsacel-phone connection {For detail, see page 20) AUDIO SELECT KDC-X395/ KDC-348U oniy. Selectsa Bluetooth audi player connection. (For details, see page 20) S-DVCSELECT | (For detail, see page 19) B64-4798-10_01_Kindb 21 Gontinued to next page English 21

PNTYPE EDIT Register vice for voice recognition and voie to select the Phone number category in Phone book. For details, see page 20.) DETAILED SET

AUTO ANSWER (OFF: Does not answer the phone call automatically; Automaticaly answer te phone callat once; = 8* -99: Automatically answers the phone cal after lapse of 1 — 99 seconds RECONNECT KDC-BT64BU/ KDCK6S oniy (ON *: Automatical reconnects the selected Bluetooth device when radio wave becomes strong enough, even afteritisdisconnected. ; OFF: Cancels 1m When this function is turned ON, the Bluetooth devices reconnectediithas been disconnected by selecting [PHONE SELECT) BTHF/ BTHF/AUDIO FRONT *: Outpurs audio from te front-ef and front-riht speakers. ; ALL: Outputs audio from the ll speakers CALL BEEP (ON *: You can output a bep from the speaker wie a call comes in; OFF: Cances

Display the firmware version and update the firmware. MICGAIN =3—0* — +3: Adjustthe senstviy ofthe butin microphone or a telephone cl Adjustthe voice of caller.Setting to “+ increases the voice volume. NRLEVEL 3 — 0 — +3: Reducethe noses generated by surounding environment without changing the buit-in microphone volume. Adjustthe voice of callerwhenitis ot clear Setting to “+" increases the noise reduction. ECLEVEL L-2—0*— +2: Adjustthe level afecha cancellation. Setting to “+” increases the echo cancel reduction. MICSELECT Deterines whether te bui-in or external microphone is to be used when te receverincorporates à Microphone. IN *: Use the buit-in micraphane ; EX: Use te external microphone 2æ [MIC GAIN], [NR LEVEL), [EC LEVEL] is selectable only far KDC-BT648U, KDC-X695 and KDC-X395/KDC-348U with KCA-BT300. About the Cell-Phone wwwkenwood.com/cs/ce/bt/ = Version: Bluetooth Standard Ver. 2.0 m The units supporting the Bluetooth = Profile: function have been certified for HFP (Hands Free Profile) conformity with the Bluetooth Standard OPP (Object Push Profile) following the procedure prescribed PBAP (Phone book Access Profile) by Bluetooth SIG. However, it may be SYNC (Synchronization Profile) impossible for such units to communicate For the cell-phones verified for compatibility, with your cell-phone depending on its access the following URL: type. 22 English B64-4798-10 01_Kindb 22 11/01/06 15:07

SMS (Short Message Service) Preparation : KDC-X395/ KDC-348U: Only with the optional accessory KCA-BT300 or KCA-BT200 connected. KENWOOD ÆRmILT els +1]

Press and hold to enter Bluetooth mode. Downloading the SMS 1 CEE Press to enter Bluetooth mode. [kocx395 M koc-s4su| Press and hold the volume knob to enter Bluetooth mode. 2 Turn the volume knob to select ISETTINGS], then press to enter. 3 Turn the volume knob to select [SMS DOWNLOAD], then press to enter. 4 Start downloading = During downloading: "DOWNLOADING" is displayed. = After completion of downloading "COMPLETE" is displayed. 5 Hold # to finish the procedure. = To exit Bluetooth mode, press & SRC. = The cell-phone must be able to transmit the SMS using Bluetooth. Setting on the cell- phone may be required. IFthe cell-phone does not support SMS function, the SMS download item in Function Control mode is not displayed = When the SMS is downloaded from the cell-phone, the unopened messages in the cell-phone are opened. = The already-read and unread short messages can be respectively downloaded up to 75. B64-4798-10 01_Kindb 23 Press to enter Bluetooth mode. Display the SMS

To prevent car accidents, the driver should not read the SMS while driving, When a new message arrives “SMS RECEIVED" is displayed. Displaying the SMS Liocsrsssulrncxsos| Press &, to enter Bluetooth mode. [Kocx305 Press and hold the volume knob to enter Bluetooth mode. Turn the volume knob to select [SMS INBOX], then press to enter. Turn the volume knob to select a message. = Switches between name, phone number and message reception date, press DISP. Press the volume knob to display the text. # To scrolls the message, turn the volume knob. = To retum to the message list, press the volume knob. 5 Hold # to finish the procedure. 2 To exit Bluetooth mode, press Ü SRC.

Continued to next page English 23 11/01/06 15:07

= The unopened message is displayed at the beginning ofthe list. Other messages are displayed in the order of reception. = The SMS that has arrived when the cell- phone is not linked with Bluetooth cannot be displayed. Download the SMS. = The short message cannot be displayed during downloading the SMS = Unread messages are prefixed with an asterisk (9) HD Radio” Tuner Control Preparation : Only with the optional accessory HD Radio tuner connected. When you connect an HD Radio tuner, Tuner features ofthe unit are disabled and changed to HD Radio tuner features. With the HD Radio tuner, you can use the similar functions of Tuner features. KENWOOD = Press and hold for about 2 seconds to memorize the current station. = Press briefly to recall memorized station: 1 Press & SRC to select "HD RADIO”. Direct Access Tuning using the 2 Press BAND repeatedly to select a band mote controller (RC-405) {FM1/ FM2/ FM3/ AM). + Only with optional accessory KTGHR300 tuner 3 Press @4@/»»1to search for a station or connected. channel. 1 Press BAND to select a band. 2 Press DIRECT to enter Direct Access The following indicator lights up when: Tuning mode. HD: Lights when HD Radio broadcasting is "appears tuned 3 Press DIRECT to select tuning item. D: Lights when HD Radio digital broadcasting *: Frequency. istuned HD —" : Channel MC: Lights when HD Radio multicast Cancelling Direct Access Tuning, broadcasting is tuned. 4 Press the number buttons to enterthe TAG: Lights when iTunes Tagging is enabled frequency or channel. 5 Press #4 /+#»1t0 search for the frequency or channel. 24 English B64-4798-10_01_Kindb 24 11/01/06 15:07

= To cancel the Direct Access Tuning mode, press #. = if you make no button operation for 10 seconds, the Direct Access Tuning mode is automatically canceled Using the remote controller (RC-405) #FM+/*AM- : Selects band Hd/#wæ :Selects station 1-6 : Selects preset station iTunes Tagging + Only with optional accessory KTGHR300 tuner connected. Pressing and holding @ while “TAG is lit saves song's information. The saved songs will then show up in à playlist called Tagged” in iTunes the every next time you sync your iPod to your computer. So then you just need to click and then easily buy and download the song you were tagging directly from the Apple iTunes Music Store. Adjust [SETTINGS] mode settings While listening to the radio. 1 Press the volume knob to enter IFUNCTION] mode. 2 Turn the volume knob to select [SETTINGS], then press to enter. 3 Turn the volume knob to make a selection, then press to confirm. See table below for selection. 4 Hold # to finish the procedure. Item Selectable setting (Press SEEK MODE MANUAL: Manualy search for station. Selects the tuning mode for a / BB» buttons. AUTO *: Autamaticall search for station. ; AUTO2: Search in the order fe stations in the preset memory. ; AUTO MEMORY |YES: Automaticall starts memonizng 6 sttions with good reception. NO *: Cancel (automatic memoriingis at activated).(Selectable only f [NORM] is selected for [PRESET TYPE] (page 5) RECEIVE MODE | AUTO *: Automatically tunes to analog broadcast when there s no digital broadcast; DIGITAL: Digital broadcasts only; ANALOG: Analog broadcast any. TAG MEMORY Only with optional accessory KTC-HR300 connected #/S0:Displaysthetag memory usage of HD Radio receiver. Up to 50 tags can be registered to this unit. B64-4798-10 01_Kindb 25 English 25 11/01/06 15:07

Satellite Radio Tuner Control Preparation : Oniy with the optional accessory Satellite radio tuner connected. # Press and hold for about 2 seconds to memorize the current channel = Press briefly to recall memorized channel. 1 Press Ü SRC to select “SIRIUS" or “XM". 2 Press BAND repeatedly to select a band {SR1/ SR2/ SR3/ SR4 ; XM1/ XM2/ XM3/ XMA4). 3 Press #4 /»»1t0 search for a channel. m You need to register to the service provider to receive the service by Satellite Radio. Consult the service provider if"CALL … TO SUBSCRIBE" appears. = The radio may take a little time to start receiving after you select the Satellite Radio source. = Ifthe signal reception fails, "ACQUIRING SIGNALY “NO SIGNAL" appears. Category and Channel Search 1 Press @ to enter Category and Channel Search mode. 2 Turn the volume knob to select a category, then press to confirm. 3 Turn the volume knob to select a channel, then press to confirm. = To return to the category select, press #. = To cancel the Category and Channel Search mode, press and hold 4. 26 English B64-4798-10 01_Kindb 26 Channel Scan Press and hold @ to start Channel Scan. Every receivable channel is checked for 10 seconds. 2 Press @ to receives the current channel. Direct Access Tuning using the mote controller (RC-405) 1 Press DIRECT to enter Direct Access Tuning mode. “--" appears. 2 Press the number buttons to enter the channel number. 3 Press #4 /+»æ1to search for the channel. To cancel the Direct Access Tuning mode, press #. # Ifyou make no button operation for 10 seconds, the Direct Access Tuning mode is automatically canceled # you cannot receive any signal in the input Channel due to bad conditions on radio wave or other such problems, *ACQUIRING SIGNAL *NO SIGNAL" appears. Using the remote controller (RC-405) #FM+ :Selects band Hd / +22 : Selects channel 1-6 :Selects preset channel 11/01/06 15:07

Adjust [SETTINGS] mode settings While listening to the radio 1 Press the volume knob to enter [FUNCTION] mode. 2 Turn the volume knob to select [SETTINGS], then press to enter. 3 Turn the volume knob to make a selection, then press to confirm. See table below for selection. 4 Hold # to finish the procedure. Item Selectable setting (Prese SEEK MODE Selects the tuning mode for 4 / > buttons. CHANNEL *: Normal manual seeking control. ; PRESET: Search in order ofthe channels in the Preset memory ESNWATCH ESN=: Displays the Electronic Serial Number ofsatelite radio. B64-4798-10 01_Kindb 27

(0.5K/ 1.0K/ 1.5K/ 2.0K *: Selects the center frequency. MID LEVEL 80" — + Aduststhelevel

10.0K/ 12.5K * 15.0K/ 17.5K: Selects the center frequency. TRELEVEL 8 —0* — +8: Adjststhelevel BASS LEVEL MID LEVEL TRELEVEL KOCBTEABU/ KDC-348U on: L-8— 0* — +8: Source tone memory: Adjsts te level to memarize in each source. (Before making an acjustment, select te source you want t adjust) BALANCE LI — 0*— R15: Ajust the left and right speaker output balance. FADER RIS—0* —F15: Adjsts the rear and front speaker output balance. SUBWOOFER SET (ON *:Turns an the subwoofer output. ; OFF: Cancel DETAILED SET HPFFRONT (THROUGH *: Al signals re sent to the front speaker. ; 40/60/80/100/ 120/150/180/220 (HZ): Frequencies lower tan the specified value are cut of. (Underined: KDCK695/ KDC-X395 only) HPFREAR (THROUGH *: AI signals re sent to the rear speaker ; 40/60/80/100/ 120/150/180/220 (HZ): Frequencies lower tan the specified value are cut of. (Underined: KDC-K695/ KDC-X395 only) LPF SUBWOOFER (THROUGH *: AI signals re sent t the subwoofer ; 50/60/80/100/120 (HZ): Frequencies higher than the specified value are cut off. (Underlined: KDC-X695/ KDC-X395 onty) 28 English B64-4798-10 01_Kindb 28 11/01/06 15:07

Selectable setting (Preset: *) SUB-W PHASE REVERSE (180 NORMAL (0°) *:Selects the phase angle ofthe subwoofer output to bein ine with the speaker output for optimum performance. (Selectable only fa setting ather tan [THROUGH] is selected for ILPF SUBWOOFER]) SUPREME SET ON *: Create realiti sound by iterpolting the high-requency components that re lstin AAC/ MP3/ MMA audio compression; OFF: Cancels. (Selectable only when playback an AAC/ MP3/ WMA dis ar a USB device, exceptiPod VOLUME OFFSET |-8 — 0 * — +8 (for AUX) ; -8 — 0 * (for other sources}: Presets the volume adjustment level ofeach source. The volume level ll automatically increase or decrease when you change the source. (Before making an acjustment, select the source you want to acjust) 2 Select a source before making a source tone memory adjustment, [BASS ADJUST/ MID ADJUST/ TRE ADJUST]. = (SUB-W LEVEL/LPF SUBWOOFER/ SUB-W PHASE] is selectable only i [SUBWOOFER SET] set to [ON] ISETTINGS] Item Selectable setting (Preset: *) AUXNAMESET AUX */TV/ VIDEO/ GAME/ PORTABLE/ DVD: Selects the desred name for the connected component. (Selectable only if'AUX" is selected as the source.) CLOCKADIUST | (For etais, see page 5 TIMESYNC ON: Synchronizes the Radio Data System station time data and the unit clock. ; OFF *: Cancel. DISPLAY DIMMER SET |ON:Dims the display ilumination.; OFF *: Cancel. TEXTSCROLL [AUTO */ ONCE: Selects to scrl the display information automatical or scroll only once. ; OFF: Cancels BTDVCSTATUS | You can display the connection status, signal strength, and battery level of cel-phone. HF-CON: Connection status or cel-phone.; AD-CON: Connection status for BT Audio. ; BATT: Battery level of ell-phone.; SIGNAL: Signal strength ofcell-phone. TUNER SET : Selectable only ifany source other than tuner source selected. (For detals, see page 8) B64-4798-10_01_Kindb 29 English 29 11/01/06 15:07

Installation/connection Part list: @ Faceplate (x) ® Escutcheon tx) © Mounting sleeve. x) © Wiring harness x) ® Removal tool 62) ® Flat head screw (for Nissan cars). {x4) @ Round head screw (for Toyota cars)….(x4) ® Microphone (3 m) (KDC-X695 only).……(x1) Basic procedure 1 Remove the key from the ignition switch, then disconnect the © terminal of the car battery. 2 Make proper input and output wire connections. = <Wiring connection> (page 32) 3 Install the unit to your car. = <Installing the unit> (page 33) 4 Reconnect the © terminal of the car battery. 5 Reset the unit. (page 4) Warning = The unit can only be installed in a car with a 12 V DC power supply, negative ground. = fyou connect the ignition wire (red) and the battery wire (yellow) to the car chassis ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box: = Disconnect the battery negative terminal and make all electrical connections before installing the unit = insulte unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends ofthe unconnected wires or the terminals. = Be sure to ground this unit to the cars chassis again after installation: 30 English B64-4798-10_01_Kindb 30 = fthe power is not turned ON (*PROTECT" is displayed), the speaker wire may have à short-circuit or touched the chassis ofthe vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked Caution ælfyour cars ignition does not have an ACC position, connect the ignition wires to à power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with à constant voltage supply, as with battery wires, the battery may die. # Do not use your own screws. Use only the screws provided # Install this unit in the console of your vehicle. Make sure the faceplate will not hit the lid of the console (if any) when closing and opening, æ After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working proper. # Mount the unit so that the mounting angle is 30° or less. = Ifthe fuse blows, first make sure the wires are not touching to cause a short circuit, then replace the old fuse with one that has the same rating, # Connect the speaker wires correctly to the terminals to which they correspond, The unit may be damaged or fail to work if you share the © wires or ground them to any metal part in the car. = When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). 11/01/06 15:07

= Mounting and wiring this product requires skills and experience. For safety/s sake, leave this work to professionals. If you experience problems during installation, consult your Kenwood dealer. = Reception may drop ifthere are metal objects near the Bluetooth antenna Bluetooth antenna unit For Good Reception To assure good reception, note the following = Communicate with the cell-phone within the line-of-sight distance of 10 m (30 #0). The communication range becomes shorter depending on the surrounding environment. The communication range also becomes shorter when there is an obstacle between this unit and the cell-phone. The above maximum communication range (10 m) is not always assured = A broadcast station or walkie-talkie located nearby can interfere with communication due to too strong signal B64-4798-10_01_Kindb 31 About Bluetooth unit (Optional: KDC-X395/ KDC-348U) = This unit supports KCA-BT300 or KCA-BT200. = Plugging a KCA-BT300/ KCA-BT200 into this unit will enable BT audio —Selecting Bluetooth Audio source Press & SRC to select the “BT AUDIO EXT — To pause/resumes playback, press number button 6 (»11) — To selects track, press 4 or BB. # Set the Type Switch on KCA-BT300/ KCA- BT200 as follows:

1LOFF, 2: OFF, 3: OFF

About Satellite Radio tuner (Optional) = This unit supports Satellite Radio tuners which are released by SIRIUS and XM # Refer to the instruction manual of Satellite radio tuner. HD Radio” Tuners that can be connected to this unit

= KTCHR300 _-KTCHR200 + KTC-HRIOOTR

À CAUTION Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit, Metal part such as the heat sink and enclosure become hot. English 31 11/01/06 15:07

Wiring connection USB connector I AUX input (Stereo) FM/AM antenna

C5 which is stereo type and does not have Antenna Cor any resistance 2 — Front output 5 Sub Woofer output Fuse (10A) — re Microphone 4) Wiring harness ©) KDCX69S only) © White To Kenwood disc changer/ © White/Black 1° ont left speaker External optional accessory © Grey (To connect these leads, refer © Gray/Black © front right speaker to the relevant instruction manual) To rear left speaker To rear right speaker IFno connections are made, do not let the wire come out from the tab. Vcnnect either to the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle Blue/White {Power control/ Antenna control wire) Brown Fo connect the Kenwood navigation system, consult your navigation manual {Connect to the terminal that is grounded when either the telephone rings or during conversation. KDCX395/ KDC-348U only) (Mute control wire) Light Blue/Yellow (teering remote control [ere] STE wire) u Fo use the steering wheel remote control feature, you need to an exclusive remote adapter (not supplied) matches your car is required _ (Notused) Car fuse box Ignition key switch Red (ignition wire) Yellow (Battery wire) Car fuse box (Main fuse) Black (Ground wire) To the metallic body or chassis ofthe car + Battery 32 English B64-4798-10 01_Kindb 32 11/01/06 15:07

Installing the unit [Connect the wiring harness to the unit. Other wiring connection has © | |been completed earier. (page 32)

Before attaching, make 1 sure the direction of the escutcheon is correct. {Wider hooks on the re bottom side) ®) Dashboard of your car

A Bendthe appropriate tabs M to hold the mounting sleeve <= firmly in place Installing without using the mounting sl 1 Remove the mounting sleeve and escutcheon ®) from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with the supplied screws. : Toyota cars N: Nissan cars Removing the unit 1 Detach the faceplate À). 2 Engage the catch pin on the removal tools ©) into the holes on both sides of the escutcheon (), then pull it out. 3 Insert the removal tools ©) deeply into the slots on each side, then follow the arrows instructions as shown on the right. English 33 B64-4798-10_01_Kindb 33

Installation the Microphone Unit (KDC-X695 only) microphone (H.

installation surface. Install the microphone.

possible from the cell-phone. Peel the release coated paper of double-face adhesive tape to fix on the place shown above. Check the installation position of the Remove oil and other dirt from the Wire the microphone cable up to the hands-free box with it secured at several positions using tape or the like. = Install the microphone as far away as Fix a cable with à commercial item of tape. ( Adjust the direction ofthe microphone to the driver.

Troubleshooting Symptom Remedy/Cause Sound cannot be heard. Ajust te volume the optimum eve. / Check the cords and connections PROTECT' appears and na operations can be done. Check to be sure te terminal ofthe speaker leads are covered with insulting tape proper, then reset the uni. F*PROTECT" does ot isappear, consul your nearest service center. The unit does not work at all Reset the unit. Radio reception is poor. / Static noise while listening to the radio. Connect the antenne fmh,/ Pull the antenne out al the way “IN flashes. The CD payeris not operating proper. Reisert the disc proper. Fine condition did not improve, turn offthe unit and consult your nearest service center. <D-R/CD-RW cannot be played back and tracks cannot be skipped. Insert à finalized CD-R/CD-RW (finalize with the component which you used for recording Disc soundis sometimes iterrupted. Stop plaÿback wie driing on rough road. / Change te disc. Check the cords and connections. NA FLE" appears The units playing an unsupported audio le NO DISC appears. Insert a playable disc into the loading lot. FTOCERROR" appears. The CD is quite dira. / The CD is upside-down. The CD isscratched a ot. Try another discinstead. “ERROR 77° or“ERROR 99" appears. The units malfunctioning for some reason. Press the reset button an the unit. IFthe “ERROR 77"/ “ERROR 99” code does not disappear, consult your nearest service center 34 English B64-4798-10_01_Kindb 34 11/01/06 15:07

Symptom Remedy/Cause “COPY PRO appears Acopy-prtected les played. PREAD ERROR" appears Copy te les and folders for the USB device again. the eror messages til displayed, initiale the USB device or use other USB devices “NODEVICE" appears. No USB device is connected. Connect a USB device, and change the source to USB again. “NO MUSIC" or "ERROR 15” appears. The connected USB device contains no playable audi le. / Media was played that does not have data recorded that te uni cn play PNA DEVICE" appears. Connect a supported USB device, and check ne connections “USB ERROR” appears Remove the USB device, turn the unit off, then turn it on again. the unit still showing he same display, try to connect another USB device “iPod ERROR” appears Reconnect the iPod. / Confirm that the software for the iPod is the latest version. / Reset the iPod. Noise generated Skip to another rack or change the disc Tracks cannot play back as you have intended them to play. Playback order is determined when fles are recorded. READING" keepsflashing. Longer réadoutime required. Do notuse too many ierarchies and oldes. Elapsed playing time is not correct This is caused by how the tracks are recorded. The number ofsongs contained in “SONGS” category ofthis units different from that contained in "SONGS" category ofiPod. Podcast les are not counted in this uit as this unit does not support the playback Of podeast fils. Corect characters are not displayed (.g album name) his uni can only disply ttes lupper case, numbers, and limited number of symbols Bluetooth Symptom Remedy/Cause The hands-free talk volume is lon. The hands-free talk volume can be acjusted independent. Adjustit during hands- free talk. (MIC GAIN], [NR LEVEL) and [EC LEVEL] of <Bluetooth Setup> (page 2). No beepis heard atrecptionofan incoming all No beep is heard depending onthe type ofyourcell-phone. Te [CALL BEEP] of <Bluetooth Setup> (page 21 is set ON Voices notrecognized The vehicle window is apen, the surrounding noise large, voice cannot be recagnized proper. Clse the vehicle windows t reduce noise. 1 Smal voice. voice is too small it cannot berecognized proper. Speak into the microphone a little more loudly and natural. 1 The person uttering the voice tag not the one who registered the it. Only the aie ofthe person who registered the voice tag can be recognized. “NO NUMBER" appears The caling part does notnotfy a caler D. There no phone number data “NODATR" appears There is no outgoing cal ist. / There no incoming call ist. / There is no missed call ist, There no phone book ist. FNOENTRV” appears he celphone has not been registered (paing) HF DISCONCT” appears The unit cannot communicate with the cel-phone B64-4798-10 01_Kindb 35 Continued to next page English 35 11/01/06 15:07

Symptom Remedy/Cause HF ERROR 07" appears. The memory cannot be accessed. Turn affthe power and on again. this message til appears, press the reset button on the control unit. HF ERROR 68" appears The unit cannot communicate with the cel-phone. Turn ffthe power and on again. his message still appears, press the reset button on the control unit FUNRNOWN" appears. The Bluetooth device cannot be detected. "DEVICE FULL appears 5 Bluetooth device have aready been registered. No more Bluetoth dec cannot beregistered. PIN CODENG" appears The PIN code is wrong CONNECT NG appears. The unit cannot be connected to the device. PAIRING NG” appears. Parng eror. "NO MARCHING" appears. The voice tag is wrong. Voice cannot be recognized because ofan unregistered voice ag etc TOO SOFT” appears. Voice istoo smal and cannot be recognized TOO LOUD' appears Voice istoo large to be recognized TOO LONG appears The word or utterance s too long to be recognized “NO PHONEBOOK" appears. Data not contained in te phone book. NO MESSAGE" appears a short message in In Box. NO RECORD" appears. The voice tag is notregsteredin the phone book. MEMORY FULL' appears The number ofvoice tags reaches the maimum number to be registered in the phone book “NOVOICE" appears. No all The sound from the Bluetooth audio player is | Another Bluetooth device is ffecting the Bluetooth communication. Turn of dscontinuous, another Bluetooth device Move another Bluetooth device away from this unit 1m Another Bluetooth device or profil is used far communication, The downloading of the Phone book rthe SMS disconnectsthe sound HD Radio/ SIRIUS/ XM Symptom Remedy/Cause MEMORY FULL" appears The tag memary ofHD Radio receiver is FULL. “Pod FULL appears The iPod memory FULL PNOTAG NC" appears iPod which does not support the tag memory is connected FTAGERROR" appears. The procedure is nat registered to TAG Memory function NPA CHANNELS" appears. a receivable channel and category. NO ACCESS" appears The procedure preset with mixed preset memory function cannotbe valable. The reset content may ot be recalled depending on the selected band or source. 36 English B64-4798-10 01_Kindb 36 11/01/06 15:07

Quieting sensitivity (DIN S/N = 46 dB:

19.2 dBf (2.5 LiV/75 ©)

Frequency response (3 dB}: 30 Hz — 15 kHz Signal-to-Noise ratio (MONO): 63 dB Stereo separation (1 kHz): 40 dB AM tuner section Frequency range (10 kHz space): 530 kHz — 1,700 kHz Usablesenstivity (S/N= 20 dB}: 31 dB (36 piV) CD player section Laser diode: GaAIAS Digital filter (D/A): 8 Times Over Sampling D/A converter: 24 Bit Spindle speed: 500 rpm — 200 rpm (CLV) Wow & Flutter: Below Measurable Limit Frequency response (1 dB): 20 Hz — 20 kHz Total harmonic distortion (1 kHz): KDG695/KDCX395: 0.008 %

KDGBT648U/KDC348U: 0.01 %

Signal-to-Noise ratio (1 kHz): KDG695/KDCX395: 110 dB KDGBT648U/KDG348U: 105 dB Dynamic range: 93 dB AACdecode: AAC-LC “m4a” files (KDGBT648U/ KDGX695 only) MP3 decode: Compliant with MPEG-1/2 Audio Layer3 WMA decode: Compliant with Windows Media Audio USB interface USB standard: USB1.1/ 2.0 (Full speed) Maximum supply current: 500 mA File system: FAT 16/ 32 AACdecode: AAC-LC “m4a” files (KDGBT648U/ KDCXE95 only) MP3 decode: Compliant with MPEG-1/2 Audio Layer3 WMA decode: Compliant with Windows Media Audio Bluetooth section (KDC-BT648U/ KDC-X695 only) Technology: Bluetooth Ver. 2.0 Certified Frequency: 2.402 - 2.480 GHz Output Power: +4 dBm (MAX), O dBm (AVE) Power Class 2 Maximum Communication range: Line of sight approx. 10m (32.8 ft) Profile: HFP (Hands Free Profile), SPP (Serial Port Profile), HSP (Headset Profile), OPP (Object Push Profile), PBAP (Phonebook Access Profile), SYNC (Synchronization Profile) Audio section Maximum output power: 50 W x 4 Fall bandwidth power (at less than 1 % THD): 22Wx4 Speakerimpedance: 4 Q — 8 Tone action: Bass: 100 Hz +8 dB Middle: 1 kHz +8 dB Treble: 12.5 kHz +8 dB Preout level load (CD): KDCX695/KDCK395: 4,000 mV/ 10 KO KDCBTEABU/KDC348U: 2,500 mV/ 10 KO Preoutimpedance: < 600 Q Auxiliary input section Frequency response [43 dB: 20 Hz — 20 kHz Input maximum voltage: 1,200 mi Input impedance: 10 KO General Operating voltage: KDC-BT648U/KDC-K695; (10.5 V — 16 Vallowable): KDCX395/KDC-3480: (11 V— 16 V allowable):

Maximum current consumption: 10 A Installation size (W x H x D}: 182 mm x 53 mm x 160 mm 3/16" x 21/16" x 6-5/16") Weight: 2.9 lbs (1.3 kg) Subject to change without notice English 37

“OUTGOINGY “INCOMING'/ "MISSED

“ACQUIRING SIGNAL “NO SIGNAL"

FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual The user could lose the authority to operate this equipment if an unauthorized change or modification is made. FCCNOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, ifitis not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. IFthis equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by ane or more of the following measures: æ Reorient or relocate the receiving antenna. # Increase the separation between the equipment and receiver. # Connect the equipment into an outlet on à circuit different from that to which the receiver is connected. # Consul the dealer or an experienced radio/ TVtechnician for help. m Contains Transmitter Module

2 Contains Transmitter Module

IC: 5119A-CK500ONVIA

B64-4798-10_01_Kindb 110 IC (Industry Canada) Notice Operation is subject to the following two conditions: {1) This device may not cause interference, and

2) this device must accept any interference,

including interference that may cause undesired operation of the device. The term ‘IC:" before the certification/ registration number only signifies that the Industry Canada technical specification were met. Note de ‘IC (Industrie Canada Lutiisation de ce dispositif est autorisée seulement aux conditions suivantes:
