USER MANUAL KDC-BT61U KENWOOD

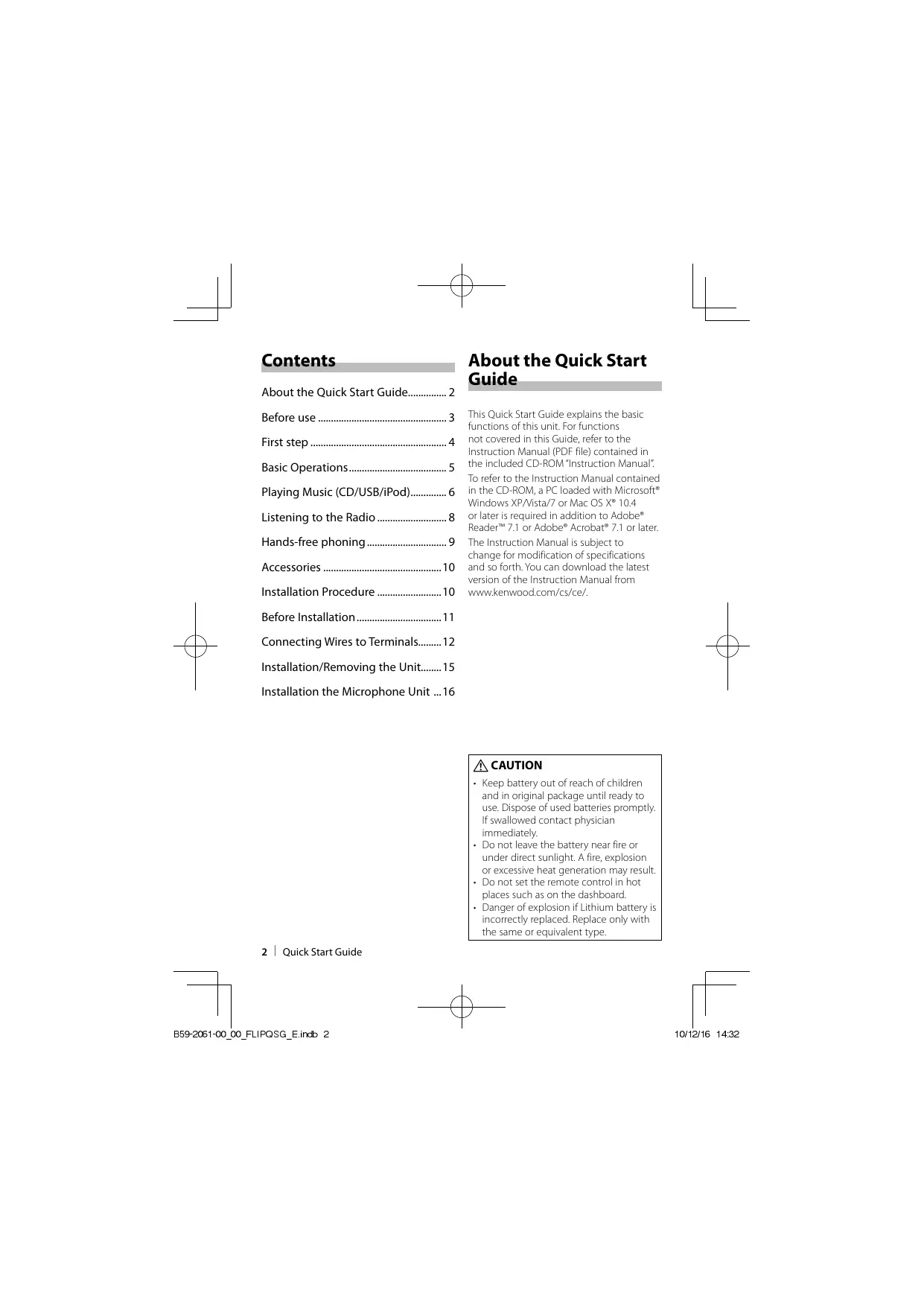

• Contents About the Quick Start Guide p. 2
• Before use p. 3
• First step p. 4
• Basic Operations p. 5
• Playing Music (CD/USB/iPod) p. 6
• Listening to the Radio p. 8
• Hands-free phoning p. 9
• Accessories p. 10
• Installation Procedure p. 10
• About the Quick Start Guide This Quick Start Guide explains the basic functions of this unit. For functions not covered in this Guide, refer to the Instruction Manual (PDF file) contained in the included CD-ROM “Instruction Manual”. To refer to the Instruction Manual contained in the CD-ROM, a PC loaded with Microsoft® Windows XP/Vista/7 or Mac OS X® 10.4 or later is required in addition to Adobe® Reader™ 7.1 or Adobe® Acrobat® 7.1 or later. The Instruction Manual is subject to change for modification of specifications and so forth. You can download the latest version of the Instruction Manual from www.kenwood.com/cs/ce/. Before Installation p. 11
• Connecting Wires to Terminals p. 12
• Installation/Removing the Unit p. 15
• Installation the Microphone Unit ¤ CAUTION p. 16

• Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries promptly. If swallowed contact physician immediately.
• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.
• Do not set the remote control in hot places such as on the dashboard.
• Danger of explosion if Lithium battery is incorrectly replaced. Replace only with the same or equivalent type. 2 | Quick Start Guide

Before use 2WARNING To prevent injury or fire, take the following precautions: To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. How to reset your unit If this unit or the Reset button connected unit (auto disc changer, etc.) fails to operate properly, press the Reset button. The unit returns to factory settings when the Reset button is pressed. Cleaning the Unit If the faceplate of this unit is stained, wipe it with a clean soft dry cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with a neutral cleaner, then wipe it again with a clean soft dry cloth. Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase characters. Unit and Faceplate Terminals

• To prevent deterioration, do not touch the terminals of the unit and faceplate with your fingers.
• If the terminals on the unit or faceplate get dirty, wipe them with a clean soft dry cloth. Lens Fogging When you turn on the car heater in cold weather, dew or condensation may form on the lens in the CD player of the unit. Called lens fogging, this condensation on the lens may not allow CDs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your Kenwood dealer. Notes
• If you experience problems during installation, consult your Kenwood dealer.
• When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area.
• Characters that conform to ISO 8859-1 can be displayed.
• Characters that conform to ISO 8859-5 or ISO 8859-1 can be displayed. Set “Russian” of <Initial Settings> (page 34) (Instruction manual) to “On”.
• The Radio Data System feature won’t work where the service is not supported by any broadcasting station.
• In this document, the description indicator will light means a status is displayed. Refer to <Basic Operation> (page 28) (Instruction manual) for the details of the status display.
• The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the illustrations on the display may be inapplicable. English | 3

Exit Demonstration Mode Adjusting the Date Turn off the demonstration mode when you use it for the first time after installation.

The item can be selected and determined as follows. ”Settings” ➜ “Clock & Date” ➜ “Date Adjust” To select the item, turn the [VOL] knob. To determine the item, press the [VOL] knob.

Press [4] or [¢] button to select year, month, or date to set.

Turn the [VOL] knob to adjust the year, month, and date.

Press the [MENU] button to finish the date adjusting.

Turn the [VOL] knob to select “Date Mode select”, and then press the [VOL] knob.

Press the [MENU] knob for at least 1 second, and then press it again briefly to exit the Menu List mode.

Press the [VOL] knob to quit the demonstration mode when the messages “To Cancel Demo Press the volume knob” are displayed (approx. 15 seconds).

Turn the [VOL] knob to select “YES”, and then press the [VOL] knob. The demonstration mode can also be canceled in the Menu List mode. Refer to <Demonstration mode Setting> (page 35) of Instruction manual. 4 | Quick Start Guide

Basic Operations [SRC] [VOL] AUX AUX Auxiliary input Power Turns the power ON by pressing the [SRC] button. Press the [SRC] button for at least 1 second to turn the power OFF. Source selection Press the [SRC] button and then turn the [VOL] knob. To determine the selected source, press the [VOL] knob. Tuner (“TUNER”) ➜ Bluetooth Audio (“BT AUDIO”) (KDC-BT61U only) ➜ USB (“USB”) or iPod (“iPod”) ➜ CD (“CD”) ➜ Auxiliary Input (“AUX”) ➜ Standby (“STANDBY”) ➜ Tuner... USB Terminal Auxiliary input Portable audio device can be connected with the stereo mini-plug (3.5 mm ø). Auxiliary input source is initially set to “OFF”. Set “Built in AUX” described in <Initial Settings> (page 34) (Instruction manual) to “ON”. Volume Turn the [VOL] knob to adjust the sound volume. USB terminal USB device or iPod can be connected. CA-U1EX or KCA-iP101 (optional accessory) is recommended to connect a USB device or iPod. English | 5

Playing Music (CD/USB/iPod) [MENU] [DISP] [Release] [SRC] KDC-BT61U [4] [38] [

USB Terminal KDC-6051U [TI] Playing Disc Press the [Release] button and drop open the faceplate. Insert the disc in the Disc slot. When inserted, the source is switched automatically and a song starts playing. Push the faceplate on the left side, and return it to its former position. Fast Forward or Fast Backward of the Song Press and hold the [4] or [¢] button to fast-forward or fast-backward the audio file containing songs (tracks or files). Pause and play Press the [38] button to pause or resume playing a song (track or file). Playing USB device Connect a USB device or iPod to the USB terminal. When connected, the source is switched automatically and a song starts playing. Selecting an Audio file folder Press the [SEARCH MODE] button to select a next folder. Selecting a Song Press the [4] or [¢] button to select a song. 6 | Quick Start Guide

Music Search Searching for the song you want to play.

Search for music. Operation type Move between items Select an item High Speed Search Turn the [VOL] knob to select “Music”, and then press the [VOL] knob. Operation Turn the [VOL] knob. Press the [VOL] knob. Press the [DISP] or [ ] / [TI] button to scroll up or down by a page. Press the [DISP] or [ ] / [TI] button for at least 1 second to continuously scroll up or down at high speed. Press the button again to stop scrolling. Return to previous item Press the [MENU] button. Return to Top menu Press the [MENU] button for at least 1 second. To cancel the music search operation of Audio file or iPod, press the [MENU] button for at least 1 second, and then press it again briefly. Removing Disc Press the [Release] button and drop open the faceplate. Press the [0] button to eject a disc. Removing USB device Press the [38] button for at least 2 seconds to enter the USB Remove mode (“USB REMOVE” is displayed) and the USB device can be removed safely. English | 7

Listening to the Radio [SRC] [MENU] [4] [VOL]

[SEARCH MODE] KDC-6051U [TI] Selecting a Tuner source Station Preset Memory

Press the [4] or [¢] button to select the station you want to memory.

Turn the [VOL] knob to select preset number (“1” – “6”), and then press the [VOL] knob for at least 2 seconds. Press the [SRC] button. Turn the [VOL] knob to select “TUNER”, and then press the [VOL] knob. Selecting the Band Press the [SEARCH MODE] button to change the band in the order of FM1 ➜ FM2 ➜ FM3 ➜ AM. Selecting a Station Press the [4] or [¢] button to select the station you want to listen to. Traffic information KDC-BT61U Press the [VOL] knob for at least 1 second to turns on or off the traffic information function alternately. KDC-6051U Press the [TI] button to turns on or off the traffic information function alternately. Turn the [VOL] knob to select “List & Memory”, and then press the [VOL] knob. Recalling the stations in the memory

Turn the [VOL] knob to select recall number (“1” – “6”), and then press the [VOL] knob. Turn the [VOL] knob to select “List & Memory”, and then press the [VOL] knob. If traffic bulletin starts when the function is ON, “Traffic INFO” is displayed and traffic information is received. 8 | Quick Start Guide

Function of KDC-BT61U/ KCA-BT300/ KCA-BT200 (Optional Accessory) Hands-free phoning [SRC] [VOL] KDC-BT61U

KDC-6051U [TI] Registering cell-phone Register your Bluetooth cellphone in this unit.

By operating the cell-phone, register the hands-free unit (pairing). Select “KENWOOD BT CD/R-4P1”, “KCA-BT300” or “KCA-BT200” from the list of connected units.

Enter the PIN code of this unit from the cellphone. The PIN code of this unit is “0000” by default. When registration of your cellphone is complete, the phone book of the cellphone is automatically downloaded to this unit. (If the phone book has not been downloaded to this unit, operate the cellphone to download it.) Calling a number in the Phone Book Dial the phone number in the phone book of your cell phone. If the phone book has not been downloaded to this unit, operate the cellphone to download it.

KDC-BT61U ] button. Press the [ KDC-6051U Press the [TI] button for at least 1 second.

Turn the [VOL] knob to select “Phonebook”, and then press the [VOL] knob.

Turn the [VOL] knob to select phone number.

Press the [VOL] knob to dial. Answering a Phone Call Press the [VOL] knob. Disconnecting a Call Press the [SRC] button. English | 9

Accessories Installation Procedure

3 (KDC-BT61U only) .....1 (3m)

1. To prevent short circuits, remove the key

from the ignition and disconnect the terminal of the battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the wire on the wiring harness.

4. Take Connector B on the wiring harness

and connect it to the speaker connector in your vehicle.

5. Take Connector A on the wiring harness

and connect it to the external power connector on your vehicle.

6. Connect the wiring harness connector to

7. Install the unit in your car.

8. Reconnect the - terminal of the battery.

9. Press the reset button.

¤ CAUTION Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. 10 | Quick Start Guide

• Mounting and wiring this product requires skills and experience. For safety’s sake, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If the power is not turned ON (“Protect” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• Make sure that all wire connections are securely made by inserting jacks until they lock completely.
• If your vehicle’s ignition does not have an ACC position, or if the ignition wire is connected to a power source with constant voltage such as a battery wire, the power will not be linked with the ignition (i.e., it will not turn on and off along with the ignition). If you want to link the unit’s power with the ignition, connect the ignition wire to a power source that can be turned on and off with the ignition key.
• Use a commercially available conversion connector if the connector does not fit in the vehicle connector.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• If the console has a lid, make sure to

install the unit so that the faceplate will not hit the lid when closing and opening. If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating. Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the - wires or ground them to any metal part in the car. After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. Mount the unit so that the mounting angle is 30° or less. Reception may drop if there are metal objects near the Bluetooth antenna. (KDC-BT61U only) Bluetooth antenna unit For Good Reception To assure good reception, note the following:

• Communicate with the cell-phone within the line-of-sight distance of 10 m (30 ft). The communication range becomes shorter depending on the surrounding environment. The communication range also becomes shorter when there is an obstacle between this unit and the cell-phone. The above maximum communication range (10 m) is not always assured.
• A broadcast station or walkie-talkie located nearby can interfere with communication due to too strong signal. English | 11

Connecting Wires to Terminals not remove the cap when you ⁄ Do do not use the USB cable. The USB connector (1m) To USB device connector will cause the unit to malfunction if it gets in touch with any metallic part of the vehicle. Microphone input (KDC-BT61U only) Microphone (Accessory3) Connector Function Guide Pin Numbers for ISO Connectors External Power Connector A-4 A-5 A-6 A-7 A-8 Cable Colour Functions Yellow Blue/White Orange/White Red Black Battery Power Control Dimmer Ignition (ACC) Earth (Ground) Connection Speaker Connector B-1 B-2 B-3 B-4 B-5 B-6 B-7 B-8 Purple Purple/Black Gray Gray/Black White White/Black Green Green/Black Rear Right (+) Rear Right (–) Front Right (+) Front Right (–) Front Left (+) Front Left (–) Rear Left (+) Rear Left (–)

• Speaker Impedance: 4–8Ω

AUX input (Stereo) Use the mini-plug which is stereo type and does not have any resistance. To Kenwood disc changer/ External optional accessory To connect these leads, refer to the relevant instruction manuals. Wiring harness (Accessory1)

If no connections are made, do not let the wire come out from the tab. Blue/White (Power control/ Antenna control wire) P.CONT ANT. CONT Brown (Mute control wire) MUTE Connect either to the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle. To connect the Kenwood navigation system, consult your navigation manual. Connect to the terminal that is grounded when either the telephone rings or during conversation. (KDC-6051U only)

Light Blue/Yellow (Steering remote control wire) REMOTE CONT STEERING WHEEL REMOTE INPUT To use the steering wheel remote control feature, an exclusive remote adapter (not supplied) that matches your car is required. English | 13

Connecting Wires to Terminals Connecting the ISO Connector The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit. The default connection for the wiring harness is described in 1 below. If the ISO connector pins are set as described in 2, make the connection as illustrated. Please be sure to reconnect the cable as shown 2 below to install this unit to the Volkswagen vehicles etc. 1 (Default setting) The A-7 pin (red) of the vehicle’s ISO connector is linked with the ignition, and the A-4 pin (yellow) is connected to the constant power supply. Ignition cable (Red) Unit Battery cable (Yellow) A-7 Pin (Red) Vehicle A-4 Pin (Yellow) 2 The A-7 pin (red) of the vehicle’s ISO connector is connected to the constant power supply, and the A-4 pin (yellow) is linked to the ignition. Ignition cable (Red) Unit Battery cable (Yellow) A-7 Pin (Red) Vehicle A-4 Pin (Yellow) 14 | Quick Start Guide

Installation/Removing the Unit Installation Removing the hard rubber frame

1. Engage the catch pins on the removal

tool and remove the two locks on the upper level. Lift up and pull the frame forward as shown in the figure. Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place.

• Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip). Lock Catch Removal tool (Accessory2)

2. When the upper level is removed,

remove the lower two locations.

• The frame can be removed from the bottom side in the same manner. Removing the Unit

1. Refer to the section <Removing the hard

rubber frame> and then remove the hard rubber frame.

2. Remove the faceplate.

3. Insert the two removal tools deeply into

the slots on each side, as shown.

4. Lower the removal tool toward the

bottom, and pull out the unit halfway while pressing towards the inside. Accessory2

• Be careful to avoid injury from the catch pins on the removal tool.

5. Pull the unit all the way out with your

hands, being careful not to drop it. English | 15

KDC-BT61U only Installation the Microphone Unit

1. Check the installation position of the

microphone (accessory 3).

2. Remove oil and other dirt from the

installation surface.

3. Install the microphone.

4. Wire the cable up to the unit with it

secured at several positions using tape or the like. Accessory3

• Install the microphone as far as possible from the cell-phone. Fix a cable with a commercial item of tape. Peel the release coated paper of doubleface adhesive tape to fix on the place shown above. Adjust the direction of the microphone to the driver. 16 | Quick Start Guide

This Product is not installed by the manufacturer of a vehicle on the production line, nor by the professional importer of a vehicle into an EU Member State. Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for EU countries that have adopted separate waste collection systems) Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment. Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead. The marking of products using lasers CLASS 1 LASER PRODUCT The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

SUBSTANCES IN ELECTRICAL AND ELECTRONIC

EQUIPMENT”. This symbol mark indicates that Kenwood manufactured this product so as to decrease harmful influence on the environment.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation is under license. Other trademarks and trade names are those of their respective owners.
• The “AAC” logo is a trademark of Dolby Laboratories.
• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
• iPhone is a trademark of Apple Inc.
• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
• “Adobe Reader” is a trademark of Adobe Systems Incorporated.

Ce symbole indique que Kenwood a fabriqué ce produit de manière à limiter les répercussions négatives sur l’environnement.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation is under license. Other trademarks and trade names are those of their respective owners.
• The “AAC” logo is a trademark of Dolby Laboratories.
• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
• iPhone is a trademark of Apple Inc.
• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
• “Adobe Reader” is a trademark of Adobe Systems Incorporated.

Dieses Symbol zeigt an, dass Kenwood bei der Herstellung dieses Produkts auf eine Verringerung schädlicher Einwirkungen auf die Umwelt geachtet hat.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation is under license. Other trademarks and trade names are those of their respective owners.
• The “AAC” logo is a trademark of Dolby Laboratories.
• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
• iPhone is a trademark of Apple Inc.
• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
• “Adobe Reader” is a trademark of Adobe Systems Incorporated.

Muziek afspelen (CD/USB/iPod) [Release] [SRC] [MENU] [DISP] KDC-BT61U [4] [38] [

Dit symbool geeft aan dat Kenwood dit product heeft vervaardigd met de bedoeling de schadelijke invloed op het milieu tot een minimum te beperken.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation is under license. Other trademarks and trade names are those of their respective owners.
• The “AAC” logo is a trademark of Dolby Laboratories.
• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
• iPhone is a trademark of Apple Inc.
• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.
• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
• “Adobe Reader” is a trademark of Adobe Systems Incorporated.

• Hereby, Kenwood declares that this unit KDC-BT61U is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
