Bowl WK340 - Kitchen scale Eldom - Free user manual and instructions

Product Type	Digital Kitchen Scale with Glass Bowl
Brand	Eldom
Model	Bowl WK340
Weight Capacity	5 kg
Resolution	1 g
Accuracy	± 8 g
Power Supply	2 x AAA batteries
Units of Measurement	g, kg, lb, oz
Display Type	LCD
Bowl Material	Glass
Functions	ON/OFF, UNIT, Z/T (Zero/Tare), Auto-off (2 minutes)
Overload Indicator	"Err" on display; max load 5 kg
Low Battery Indicator	"Lo" on display
Cleaning: Base	Wipe with dry cloth only; do not immerse in water
Cleaning: Bowl	Washable under running water with dishwashing liquid
Usage	Place on solid, stable, dry surface; original bowl recommended for accurate results
Safety	For domestic use only; not for professional use; children over 8 under supervision
Warranty	Improper use nullifies guarantee; repairs only by authorized service center
Environmental Disposal	Recycle according to WEEE directive; do not dispose as household waste

Frequently Asked Questions - Bowl WK340 Eldom

How do I change the batteries?

Open the battery case cover on the bottom of the scale. Remove old batteries. Insert new batteries (2x AAA) by placing one side under the battery baffle and pressing down the other side. Dispose of used batteries in designated containers.

How do I use the tare function?

Place the bowl on the scale and turn it on. Press the Z/T button to reset the display to zero. You can then add ingredients without removing previous items. The tare function works when the total load exceeds 4% of max capacity (200 g for 5 kg). The display shows '0 g' with a 'TARE' icon.

What does 'Lo' on the display mean?

'Lo' indicates that the batteries are low and need to be replaced. Replace with new AAA batteries.

What does 'Err' on the display mean?

'Err' means the scale is overloaded. The maximum weight is 5 kg. Remove items to avoid damage.

Can I clean the base of the scale with water?

No. The base must not be immersed in water or cleaned with wet cloth. Use a dry cloth only. Flooding the electronic parts can cause irreversible damage not covered by warranty.

Is the glass bowl dishwasher safe?

The manual recommends cleaning the bowl under running water with dishwashing liquid. It does not specify dishwasher safety; hand washing is advised.

Why does the scale turn off automatically?

The scale has an auto-off feature that turns it off after 2 minutes of inactivity to save batteries.

How do I switch between units (g, kg, lb, oz)?

Press the UNIT button to cycle through the available units: g, kg, lb, oz. The selected unit appears on the LCD.

What is the maximum weight the scale can measure?

The maximum weight capacity is 5 kg (11 lb). Exceeding this will cause an 'Err' warning.

Why is the reading unstable or showing '____'?

An unstable reading or '____' means the scale has not stabilized. Wait a moment until a stable weight appears. Ensure the scale is on a flat, stable surface and the bowl is centered.

USER MANUAL Bowl WK340 Eldom

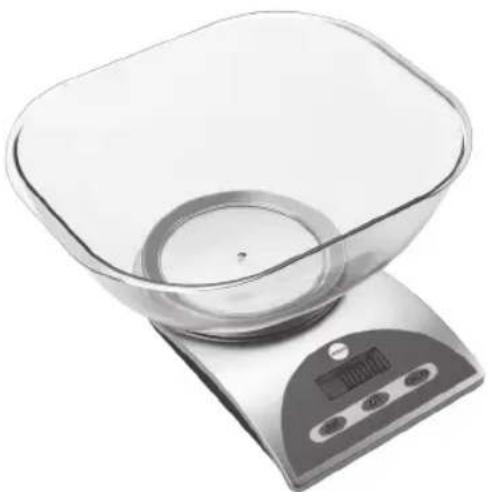

Digital kitchen scale with glass bowl and digital display (no visible text or symbols)

/PL/

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems). This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

/DE/

Close-up of a transparent glass kitchen scale with a digital display on the base (no visible text or symbols)

WYŚWIETLACZ LCD

Please read all these instructions carefully before using this appliance.

1. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

2. For home use only.

3. Keep the scale in dark and dry place.

4. While storing do not press with other objects.

5. The precision of the scales measurements depends on the way of its maintenance.

6. Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance.

7. Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

INSTRUCTION MANUAL

ELECTRONIC KITCHEN SCALE WK340

EN

TECHNICAL DATA

• weight capacity: 5 kg
• weight resolution: 1 g
• accuracy of measurement: +/- 8 g
• power:2xAAA
  Batteries do not pose the equipment.

Close-up of a transparent glass kitchen scale with digital display (no visible text or symbols)

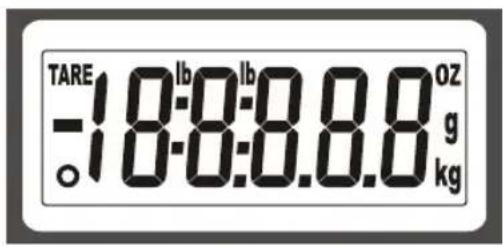

LCD DISPLAY

TARE - Tare function

- Negative sign

- Zero function

lb - Weight displayed in lb

0Z - Weight displayed in OZ

g - Weight displayed in g

kg - Weight displayed in kg

OPERATION

Insert battery before using the scale.

BATTERY REPLACEMENT:

Open the battery case cover at the bottom of scale.

Take out the used battery.

Install new baterry by putting one side of the battery bebeath the battery baffle and then pressing down the other side. Used batteries should be thrown away the containers specially designed for this purpose.

HOW TO USE

Place the scale on a solid, stable and dry surface.

Place the bowl on the scale.

Press the ON/OFF button to turn on the scale.

The LCD display will be activated and "0 g" will be displayed after a few seconds.

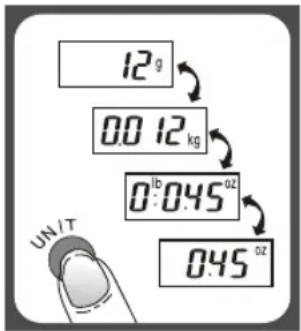

Press UNIT to select the unit of measure.

The scale is ready.

Weighing products in the original bowl is recommended because other vessels may distort the result of the measurement.

- "ZERO" OR "TARE" FUNCTION

You can add products during weighing without removing the items added earlier.

1. "Z/T" function

When total sum of all loads on scale ≤ 4% of scale's max weight capacity (4% = 200 g when capacity is 5 kg). LCD will show “_ _ _” or “0 g” each time [Z/T] button is pressed. “_ _ _” means not stable, please wait for a moment. “0 g” and meanwhile an icon “o” on lower left corner of LCD mean “ZERO” function is active. Max weight capacity remains unchanged.

2. "TARE" function

When total sum of all loads on scale > 4% of scale's max weight capacity. (4% = 200 g when capacity is 5 kg). LCD will show “____” lub “0 g” each time [Z/T] button is pressed. “____” means not stable, please wait for a moment. “0 g” and meanwhile an icon “TARE” on lower left corner of LCD mean “TARE” function is active. Max weight capacity is reduced by total weight of all loads. By pressing [Z/T] you can see the total weight of all loads on the scale. If you want to weight more loads, just press [Z/T] to reset LCD reading to „0” again.

SWITCHING OFF THE SCALE

The scale may be turned off by pressing the button or the scale will turn off automatically after 2 minutes from the end of weighing.

WARNING INDICATORS

1. Replace new battery
2. Scale overload. remove item to avoid damage.

The maximum weight allowed is 5 kg.

• CLEANING AND MAINTENANCE

The electronic kitchen scale is a very fragile device. Clean the base of the scale with a dry cloth. The bowl may be cleaned under running water with addition of dishwash.

The base must not be put in water. Flooding electronic parts of the scale may cause its irreversible damage. Damages of this type are not covered with the guarantee.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee

Close-up of a transparent glass kitchen scale with digital display and control buttons (no text or symbols visible)

LCD-ANZEIGE

Close-up of a transparent glass kitchen scale with digital display (no visible text or symbols)

Close-up of a transparent glass kitchen scale with digital display (no visible text or symbols)

PANTALLA LCD
