Product Type	Electronic Kitchen Scale
Brand	Eldom
Model	VIOLA WK330
Maximum Weight Capacity	5 kg (11 lbs)
Resolution (Graduation)	1 g
Measurement Accuracy	±15 g
Power Supply	2 x AAA batteries (not included)
Display Type	LCD
Zero / Tare Function	Yes, via ZERO button; automatic switching between ZERO and TARE based on total load (threshold 200 g)
Unit Conversion	Supported (g, oz, etc.) – press ZERO button for unit change (details in manual)
Auto Shut-Off	After 2 minutes of inactivity (display shows '0' or unchanged weight)
Overload Indication	Yes, display shows "O_Ld" or similar warning; remove excess weight
Low Battery Indication	Yes, display shows battery icon or symbol
Construction Material	Plastic (ABS) base and platform
Cleaning Method	Wipe with soft, damp cloth; do not immerse in water; no detergents
Storage Conditions	Dark, dry place; do not place heavy objects on top
Intended Use	Household only; not for professional or commercial use
Warranty	Standard manufacturer warranty; improper use voids warranty
Battery Replacement	Open battery cover on bottom, replace with correct polarity; dispose of old batteries properly
Repairs	Only by authorized service center; use of non-original parts forbidden

Frequently Asked Questions - VIOLA WK330 Eldom

How do I turn on the Eldom VIOLA WK330 kitchen scale?

Press and release the ZERO button to turn on the unit. Wait until the LCD shows all information before placing the item to be weighed.

What is the maximum weight capacity of the scale?

The maximum weight capacity is 5 kg (11 lbs). Do not exceed this limit to avoid damage.

How do I use the tare function?

Place the first load on the scale and note the weight. Press the ZERO button to reset the display to '0' before adding the next load. The scale automatically switches between ZERO and TARE functions depending on the total load (threshold at 200 g for 5 kg capacity). When TARE is active, a 'TARE' icon appears on the LCD.

What kind of batteries does the scale use and how do I replace them?

The scale uses 2 x AAA batteries (not included). To replace, open the battery compartment cover on the bottom, remove old batteries, and insert new ones with correct polarity. Dispose of used batteries properly.

Does the scale have an auto shut-off feature?

Yes, the scale automatically shuts off after 2 minutes of inactivity if the display shows '0' or the same weight reading.

How accurate is the Eldom VIOLA WK330 scale?

The scale has a measurement accuracy of ±15 g and a resolution of 1 g.

How should I clean the scale?

Clean the scale with a soft, damp cloth without detergents. Wipe dry immediately. Do not immerse the scale in water or any liquid.

What does the overload warning mean and what should I do?

If the scale is overloaded (weight exceeds 5 kg), the LCD will show a warning symbol (e.g., 'O_Ld'). Remove the excess weight immediately to prevent damage.

Can I use the scale for professional purposes?

No, this scale is designed for household use only. Using it for professional or commercial purposes voids the warranty.

How do I change the measurement units (e.g., from grams to ounces)?

The scale supports unit conversion. Press the ZERO button repeatedly to cycle through available units (g, oz, etc.). Refer to the manual for the exact sequence.

USER MANUAL VIOLA WK330 Eldom

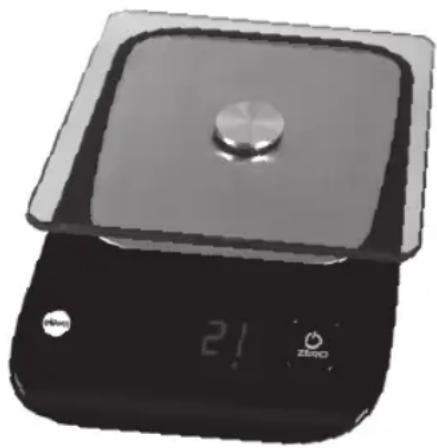

Digital kitchen scale with a square top and digital display showing 21, no visible text or symbols on the device itself.

_

| _

一

1

WARUNKI BEZPIECZEŃSTWA

Digital kitchen scale with digital display showing 21 o'clock (no text or symbols on main device)

WYMIANA BATERII:

Eldom Sp. z o.o. 40-238 Katowice

Please read all these instructions carefully before using this appliance.

1. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

2. For home use only

3. Keep the scale in dark and dry place
4. While storing do not press with other objects
5. The precision of the scales measurements depends on the way of its maintenance
6. Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance.
7. Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

EN

INSTRUCTION MANUAL

ELECTRONIC KITCHEN SCALE WK330

eldom

TECHNICAL DATA

• weight capacity: 5kg
• weight resolution: 1g
• accuracy of measurement: 15g
• power: 2xAAA

(Batteries do not pose the equipment).

BATTERY REPLACEMENT:

1. Open the battery case cover at the bottom of scale.
2. Take out the used battery
3. Install new baterry by putting one side of the battery bebeath the battery baffle and then pressing down the other side. Used batteries should be thrown away the containers specially designed for this purpose.

Digital kitchen scale with a square top and digital display showing 21 o'clock (no text or symbols on the device itself)

HOW TO USE

1. Please put the scale on a hard and flat surface.
2. Place bowl (if used) on the scale before turning on the unit.
3. Press and release 🎨 ZERO button to turn on the unit.
4. Wait until LCD shows all information.
5. Load weighing object on to start weighing, LCD will show the weight reading

CHANGES OF MEASUREMENT UNITS:

"ZERO" OR "TARE" FUNCTION

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading.

Press 🧑 button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

1. "Z/T" function

When total sum of all loads on scale ≤ 4% of scale's max weight capacity (4% = 200g when capacity is 5 kg). LCD will show “____” or “0g” each time “ZERO” button is pressed. “____” means not stable, please wait for a moment. “0g” mean “ZERO” function is active. Max weight capacity remains unchanged.

2. "TARE" function

When total sum of all loads on scale > 4% of scale's max weight capacity. (4% = 200g when capacity is 5 kg). LCD will show “_ _ _” lub “0g” each time “ZERO” button is pressed. “_ _ _” means not stable, please wait for a moment. “0g” and meanwhile an icon “TARE” on lower left corner of LCD mean “TARE” function is active. Max weight capacity is reduced by total weight of all loads. By pressing “ZERO” you can see the total weight of all loads on the scale. If you want to weight more loads, just press “ZERO” to reset LCD reading to „0” again.

AUTO SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for 2 minutes.

WARNING INDICATORS

1. Replace new battery
2. Scale overload. Remove item to avoid damage.

1.

2.

CLEANING

1. DO NOT immerse the scale in water.
2. Clean with soft moist cloth without detergents, wipe dry.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee.

BEZPEČNOSTNÍ PODMÍNKY

Digital kitchen digital counter with a square top and black base, displaying a digital display showing 21 and a 'ZERO' button (no readable text or symbols on the device itself)

OBSLUHA

Digital kitchen scale with a black base and digital display showing 21 o'clock (no text or symbols on the device itself)

BATTERIEAUSTAUSCH:

Digital kitchen digital counter with a square top and digital display showing 21 o'clock (no text or symbols on the device itself)

РАБОТА УСТРОЙСТВА

Digital kitchen scale with a square top and digital display showing 21 o'clock (no text or symbols on the device itself)

VÝMENA BATÉRIE:

Digital kitchen scale with a square top and digital display showing 21 o'clock (no text or symbols on the device itself)

HASZNÁLAT

Digital kitchen scale with a square top and digital display showing 21 o'clock (no text or symbols on the device itself)

REEMPLAZO DE LA PILA:
