Product Type	Kitchen Scale
Brand	Eldom
Model	SEELVA EK3052
Maximum Capacity	5 kg
Resolution	1 g
Accuracy	±15 g
Power Supply	2x AAA batteries
Display Type	Digital LCD
Platform Material	Glass
Functions	Weighing, Tare, Zero, Stopwatch, Thermometer
Tare Function	Yes, subtracts container weight; press Z/T
Zero Function	Yes, resets display to zero; press Z/T
Stopwatch	Yes, countdown timer up to 99 min? (max not specified); alarm for 30 seconds
Thermometer	Ambient temperature range 0°C to +40°C, accuracy ±2°C
Auto Shut-Off	After 2 minutes of inactivity (display showing '0' or stable weight)
Overload Indicator	Yes, displays 'O-Ld' or similar warning
Low Battery Indicator	Yes, displays battery symbol when low
Cleaning	Do not immerse in water; wipe with soft damp cloth
Safety	For home use only; keep away from children under 8
Warranty	Domestic use only; improper use voids warranty
Repairs	Only by authorized service center; use original parts

Frequently Asked Questions - SEELVA EK3052 Eldom

How do I turn on the scale and start weighing?

Place the scale on a hard, flat surface. Place your bowl (if using) on the scale first, then press and release the ON/OFF button. Wait until the LCD shows all information, then load the item to weigh. The weight reading will appear on the display.

How do I use the tare function to weigh ingredients in a bowl?

Place the empty bowl on the scale, then press the Z/T button. The display will reset to 0g (or show a tare icon). Now add ingredients; the scale will show only the weight of the added items. You can repeat this for multiple ingredients.

How do I change the batteries?

Open the battery compartment cover on the bottom of the scale. Remove the old batteries. Insert two new AAA batteries by placing one side under the battery baffle, then pressing down the other side. Close the cover. Dispose of old batteries properly.

What does the 'O-Ld' warning mean and how do I fix it?

The 'O-Ld' indicator means the scale is overloaded. Remove the item immediately to avoid damaging the scale. The maximum capacity is 5 kg.

Can I use the scale with a bowl or container?

Yes, place the empty bowl on the scale before turning it on, or use the tare function to zero out the bowl's weight after turning on. The scale can handle up to 5 kg total weight.

How does the stopwatch work?

Press the T-SET button to enter stopwatch mode. Use the V and ^ buttons to set the desired time. Press T-SET again to start the countdown. When time is up, an alarm sounds for about 30 seconds. Press ON/OFF to turn off the alarm at any time.

What is the accuracy of the scale?

The scale has an accuracy of ±15 g within its capacity range. For best results, use on a hard, flat surface and avoid placing the scale near electronic devices that may cause interference.

How do I clean the scale?

Do not immerse the scale in water. Clean it with a soft, damp cloth. Avoid using detergents or abrasive cleaners. Wipe dry after cleaning. Do not allow water to enter the battery compartment.

The display shows '0g' but the scale is not weighing correctly. What should I do?

Ensure the scale is on a hard, flat surface. If the display shows '0g' but no weight appears, wait a few seconds for the reading to stabilize. If the problem persists, remove any load and press the Z/T button to re-zero. Replace batteries if the display is dim or shows low battery symbol.

Is the scale waterproof?

No, the scale is not waterproof. Do not immerse it in water or expose it to excessive moisture. Clean only with a damp cloth and dry immediately.

USER MANUAL SEELVA EK3052 Eldom

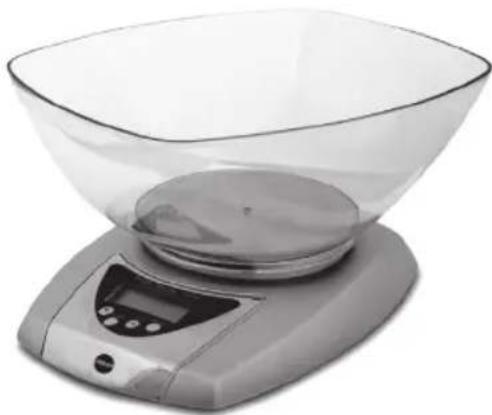

Close-up of a transparent glass kitchen scale with digital display and control buttons (no visible text or symbols)

WARUNKI BEZPIECZEŃSTWA

Close-up of a transparent glass kitchen scale with digital display and control panel (no visible text or symbols)

WYMIANA BATERII:

Please read all these instructions carefully before using this appliance.

1. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

2. For home use only.

3. Keep the scale in dark and dry place.
4. While storing do not press with other objects.
5. The precision of the scales measurements depends on the way of its maintenance.
6. Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance.
7. Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

TECHNICAL DATA

- weight capacity: 5kg

- weight resolution: 1g

- accuracy of measurement: 15g

- power: 2xAAA.

Batteries do not pose the equipment.

Close-up of a transparent glass kitchen scale with digital display and control panel (no visible text or symbols)

BATTERY REPLACEMENT:

1. Open the battery case cover at the bottom of scale.

2. Take out the used battery.

3. Install new baterry by putting one side of the battery bebeath the battery baffle and then pressing down the other side. Used batteries should be thrown away the containers specially designed for this purpose.

HOW TO USE

1. Please put the scale on a hard and flat surface.

2. Place bowl (if used) on the scale before turning on the unit.

3. Press and release [ON/OFF] button to turn on the unit.

4. Wait until LCD shows all information.

5. Load weighing object on to start weighing, LCD will show the weight reading.

THERMOMETER

The scale is fitted with a thermometer that reads the ambient temperature in the range from 0 \~ +40°C with 2°C tolerance.

STOPWATCH

To facilitate counting out (e.g. baking time), the scale is fitted with a stopwatch. To start the stopwatch, press the button "T-SET" and set the required time with the buttons "V" and "^". The start the stopwatch, press the button "T-SET" again. Counting out may be stopped by pressing the button "T-SET". When the counting out is ended, the alarm will be triggered for about 30 seconds. The alarm may be turned off at any time with the button "ON/OFF".

"ZERO" OR "TARE" FUNCTION

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading.

Press [Z/T] button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

1. "Z/T" function

When total sum of all loads on scale ≤ 4% of scale's max weight capacity (4% = 200g when capacity is 5 kg). LCD will show “_ _ _” or “0g” each time [Z/T] button is pressed. “_ _ _” means not stable, please wait for a moment. “0g” and meanwhile an icon “o” on lower left corner of LCD mean “ZERO” function is active. Max weight capacity remains unchanged.

2. "TARE" function

When total sum of all loads on scale > 4% of scale's max weight capacity. (4% = 200g when capacity is 5 kg). LCD will show “_ _ _” lub “0g” each time [Z/T] button is pressed. “_ _ _” means not stable, please wait for a moment. “0g” and meanwhile an icon “TARE” on lower left corner of LCD mean “TARE” function is active. Max weight capacity is reduced by total weight of all loads. By pressing [Z/T] you can see the total weight of all loads on the scale. If you want to weight more loads, just press [Z/T] to reset LCD reading to „0” again.

AUTO SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for 2 minutes.

WARNING INDICATORS

1. Replace new battery
2. Scale overload. Remove item to avoid damage.

CLEANING

1. DO NOT immerse the scale in water.
2. Clean with soft moist cloth without detergents, wipe dry

1.

2.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee.

BEZPEČNOSTNÍ PODMÍNKY

Close-up of a transparent glass kitchen scale with digital display and control panel (no visible text or symbols)

VÝMĚNA BATERIE:

Digital kitchen scale with a conical bowl and digital display (no text or symbols visible)

BATTERIEAUSTAUSCH:

Digital kitchen scale with a clear glass bowl and digital display (no text or symbols visible)

ЗАМЕНА БАТАРЕЙКИ:

Close-up of a transparent glass kitchen scale with digital display and control buttons (no visible text or symbols)

OBSLUHA

Digital kitchen scale with glass bowl and digital display (no text or symbols visible)

HASZNÁLAT

Close-up of a transparent glass kitchen scale with digital display and control panel (no visible text or symbols)

REEMPLAZO DE LA PILA:
