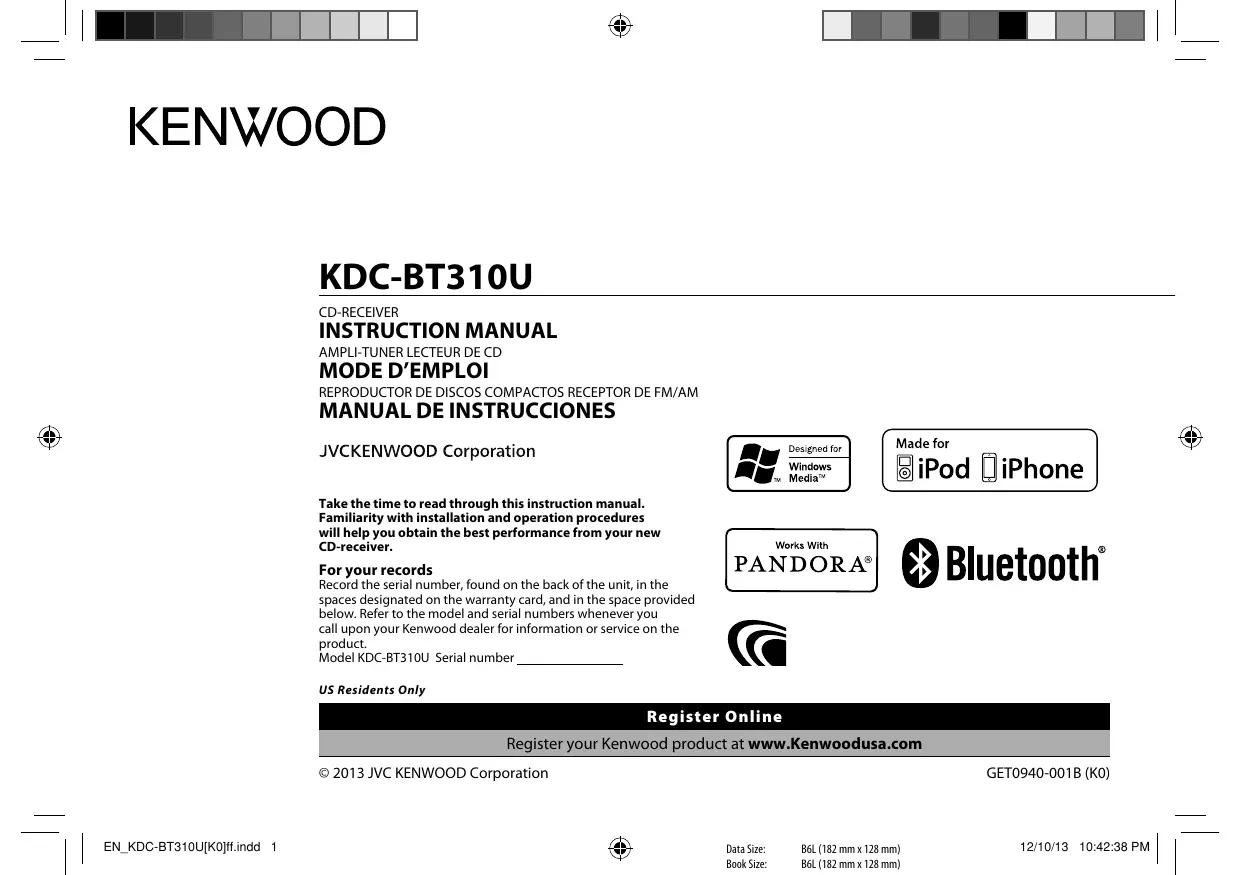

USER MANUAL KDC-BT310U KENWOOD

Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver. For your records Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product. Model KDC-BT310U Serial number US Residents Only Register Online Register your Kenwood product at www.Kenwoodusa.com © 2013 JVC KENWOOD Corporation EN_KDC-BT310U[K0]ff.indd 1 GET0940-001B (K0) Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 12/10/13 10:42:38 PM CONTENTS BEFORE USE BEFORE USE

How to read this manual

• Operations are explained mainly using buttons on the faceplate.
• [XX] indicates the selected items.
• (➜ XX) indicates references are available on the stated page. Warning Do not operate any function that takes your attention away from safe driving. Caution Volume setting:
• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the USB device or iPod/iPhone if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate. Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used batteries promptly. If swallowed, contact a physician immediately. Maintenance Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector: Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Handling discs:
• Do not touch the recording surface of the disc. Connector (on the reverse
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it. side of the faceplate)
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

EN_KDC-BT310U[K0]2.indd 2 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 4/26/13 12:54:37 PM BASICS Faceplate Remote control (RC-406) Volume knob (turn/press) Detach button Attach Detach Remote sensor (Do not expose to bright sunlight.) Loading slot Pull out the insulation sheet when using for the first time. Display window How to reset How to replace the battery Your preset adjustments will also be erased.

Do this (on the faceplate) Do this (on the remote control) Turn on the power Press L SRC.

• Press and hold to turn off the power. Press and hold SRC to turn off the power. ( Pressing SRC does not turn on the power. ) Adjust the volume Turn the volume knob. Press VOL or VOL

Press ATT during playback to attenuate the sound.

• Press again to cancel. Select a source Press L SRC repeatedly. Press SRC repeatedly. Change the display information Press SCRL DISP repeatedly.
• Press and hold to scroll the current display information. ( not available ) ENGLISH | EN_KDC-BT310U[K0]3.indd 3 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

Cancel the demonstration When you turn on the power (or after you reset the unit), the display shows: “CANCEL DEMO” \ “PRESS” \ “VOLUME KNOB” 1 Press the volume knob. [YES] is selected for the initial setup. 2 Press the volume knob again. “DEMO OFF” appears.

Set the clock 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to make a selection (one at a time), then press the knob. Selection: [SETTINGS], [CLOCK], [CLOCK ADJ] Repeat step 2 to make the next selection. 3 Turn the volume knob to adjust the clock, then press the knob. Press 4 / ¢ to move between the hour and minute adjustment. 4 Press and hold to exit. (or) Press and hold SCRL DISP to enter clock adjustment mode directly while the clock time is displayed. Then, perform step 3 above to set the clock. Press SRC to enter [STANDBY]. Press the volume knob to enter [FUNCTION]. Turn the volume knob to select [INITIAL SET], then press the knob. Turn the volume knob to make a selection (see the following table), then press the knob. 5 Press and hold to exit.

• To return to the previous hierarchy, press . Default: XX PRESET TYPE NORM: Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ AM). ; MIX: Memorizes one station for each preset button, regardless of the selected band. KEY BEEP ON: Activates the keypress tone. ; OFF: Deactivates. PANDORA SRC ON: Enables PANDORA in source selection. ; OFF: Disables. (➜ 8) BUILTIN AUX ON: Enables AUX in source selection. ; OFF: Disables. (➜ 8) CD READ 1: Automatically distinguishes between audio file disc and audio CD. ; 2: Forces to play as an audio CD. No sound can be heard if an audio file disc is played. SWITCH PRE REAR/ SUB-W: Selects whether rear speakers are connected or a subwoofer is connected to the line out terminals on the rear (through an external amplifier). SP SELECT OFF/ 5/4/ 6 × 9/6/ OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance.

F/W UP xx.xx YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated). For details on how to update the firmware, see: www.kenwood.com/cs/ce/

EN_KDC-BT310U[K0]2.indd 4 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 4/26/13 12:54:39 PM RADIO Default: XX Search for a station 1 Press L SRC to select TUNER. 2 Press repeatedly (or press *AM– / #FM+ on RC-406) to select FM1/ FM2/ FM3/ AM. 3 Press 4 / ¢ (or press 4 / ¢ (+) on RC-406) to search for a station.

• To store a station: Press and hold one of the number buttons (1 to 6).
• To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on RC-406). Direct Access Tuning (using RC-406) 1 Press *AM– / #FM+ to select a band. 2 Press DIRECT to enter Direct Access Tuning. “– – – • –” (for FM) or “– – – –” (for AM) appears on the display. 3 Press the number buttons to enter a frequency. 4 Press 4 / ¢ (+) to search for a frequency.
• If no operation is done for 10 seconds after step 3, Direct Access Tuning is automatically canceled. Other settings 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [SETTINGS], then press the knob. 3 Turn the volume knob to make a selection (see the following table), then press the knob. to exit. 4 Press and hold SEEK MODE Selects the tuning method for the 4 / ¢ buttons. AUTO1: Automatically searches for a station. ; AUTO2: Searches for a preset station. ; MANUAL: Manually search for a station. AUTO MEMORY YES: Automatically starts memorizing 6 stations with good reception. ; NO: Cancels. (Selectable only if [NORM] is selected for [PRESET TYPE].) (➜ 4) MONO SET ON: Improves the FM reception, but the stereo effect may be lost. ; OFF: Cancels. PTY SEARCH Selects the available Program Type (see below), then, press 4 / ¢ to start.

ON: Allows the unit to temporarily switch to Traffic Information. ; OFF: Cancels. CLOCK TIME SYNC ON: Synchronizes the unit’s time to the Radio Broadcast Data System station time. ; OFF: Cancels. TUNER SET: Selectable only when the source is not TUNER.

ON: Allows the unit to temporarily switch to Traffic Information. ; OFF: Cancels.

• [MONO SET]/ [PTY SEARCH]/ [TI] is selectable only for FM band.
• Available Program Type: SPEECH: NEWS, INFORM (information), SPORTS, TALK, LANGUAGE, REL TALK (religious talk), PERSNLTY (personality), PUBLIC, COLLEGE, HABL ESP (spanish talk), MUSC ESP (spanish music), HIP HOP, WEATHER MUSIC: ROCK, CLS ROCK (classic rock), ADLT HIT (adult hits), SOFT RCK (softrock), TOP 40, COUNTRY, OLDIES, SOFT, NOSTALGA (nostalgia), JAZZ, CLASSICL (classical), R & B (rhythm and blues), SOFT R&B (soft rhythm and blues), REL MUSC (religious music) The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.
• If the volume is adjusted during reception of traffic information or alarm, the adjusted volume is memorized automatically. It will be applied the next time traffic information or alarm function is turned on. ENGLISH | EN_KDC-BT310U[K0]2.indd 5 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

4/26/13 12:57:07 PM CD / USB / iPod Note: Pairing request (via Bluetooth) is automatically activated if an iPhone/ iPod touch is connected through the USB input terminal. (➜ 9) Start playback The source changes automatically and playback starts.

Do this Pause or resume playback Press 6 38 (or ENT 38 on RC-406). Select a track/file Press 4 / ¢ (or 4 / ¢ (+) on RC-406). Select a folder *3 Press 1 – / 2 + (or *AM– / #FM+ on RC-406). Reverse/Fast-forward Press and hold 4 / ¢ (or 4 / ¢ (+) on RC-406). Repeat play *4 Press 4 repeatedly.

• Audio CD: TRAC REPEAT, REPEAT OFF
• AAC/MP3/WMA file: FILE REPEAT, FOLD REPEAT, REPEAT OFF
• iPod or KENWOOD Music Editor Light (KME Light)/ KENWOOD Music Control (KMC) file: FILE REPEAT, REPEAT OFF Random play *4 Press 3 repeatedly.
• Audio CD: DISC RANDOM, RANDOM OFF
• AAC/MP3/WMA file or iPod or KME Light/ KMC file: FOLD RANDOM, RANDOM OFF iPod/iPhone USB input terminal Press and hold 3 KCA-iP102 (optional accessory)*1 Press and hold 5 iPod to select the control mode while in iPod source. MODE ON: From the iPod*2. MODE OFF: From the unit. to select “ALL RANDOM”. *5 *1 To connect devices featuring Lightning connector, both KCA-iP102 (optional accessory) and Apple Lightning to 30-pin Adapter (accessory of the iPod/iPhone) are required. Do not leave the Apple Lightning to 30-pin Adapter inside the car to prevent damages caused by the hot temperature. *2 You can still play/pause, use file selection, fast-forward or reverse files from the unit.

• Only for AAC/MP3/WMA files. This does not work for iPod. *4 For iPod: Applicable only when [MODE OFF] is selected. *5 For CD: Only for AAC/MP3/WMA files.

EN_KDC-BT310U[K0]3.indd 6 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 5/7/13 9:18:21 AM CD / USB / iPod Select a track/file from a list For iPod: Applicable only when [MODE OFF] is selected. (➜ 6) 1 Press . 2 Turn the volume knob to make a selection, then press the knob.

• MP3/WMA file: Select the desired folder, then a file.
• iPod or KME Light/ KMC file: Select the desired file from the list (PLAYLISTS, ARTISTS, ALBUMS, SONGS, PODCASTS*, GENRES, COMPOSERS*).
• To return to the root folder (or first file), press number button 5 iPod.
• To return to the previous hierarchy, press .
• To cancel, press and hold . If you have many files.... You can search through them quickly (on step 2 above) at a preset skip search ratio by pressing 4 / ¢.
• See also “Set the skip search ratio.”
• Pressing and holding 4 / ¢ skip songs at the maximum ratio (10%) regardless of the setting made.
• For USB: Only for files registered in the database created with KME Light/ KMC. (➜ 15)
• Not applicable for audio CD. Direct Music Search (using RC-406) 1 Press DIRECT. 2 Press the number buttons to enter a track/ file number. 3 Press 4 / ¢ (+) to search for music.
• Not available if Random Play is selected.
• Not applicable for iPod, KME Light/ KMC file. (➜ 15) Select a song by name While listening to iPod... 1 Press . 2 Turn the volume knob to select a category, then press the knob. 3 Press again. 4 Turn the volume knob to select the character to be searched for. 5 Press 4 / ¢ to move to the entry position. You can enter up to 3 characters. 6 Press the volume knob to start searching. 7 Turn the volume knob to make a selection, then press the knob. Repeat step 7 until the desired item is selected.
• To search for a character other than A to Z and 0 to 9, enter only “ ”.
• To return to the previous hierarchy, press .
• To return to the top menu, press number button 5 iPod.
• To cancel, press and hold . Set the skip search ratio While listening to iPod or KME Light/ KMC file... 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [SETTINGS], then press the knob. 3 Turn the volume knob to select [SKIP SEARCH], then press the knob. 4 Turn the volume knob to make a selection, then press the knob. 0.5% (default)/ 1%/ 5%/ 10%: Skip search ratio over the total files. 5 Press and hold to exit. Muting upon the reception of a phone call Connect the MUTE wire to your telephone using a commercial telephone accessory. (➜ 19) When a call comes in, “CALL” appears.
• The audio system pauses.
• To continue listening to the audio system during a call, press SRC. “CALL” disappears and the audio system resumes. When the call ends, “CALL” disappears.
• The audio system resumes.

5/7/13 9:24:01 AM AUX Pandora® Preparation: Select [ON] for [BUILTIN AUX]. (➜ 4) Preparation: Install the latest version of the Pandora application onto your device (iPhone/ iPod touch), then log in and create an account with Pandora.

• Select [ON] for [PANDORA SRC]. (➜ 4) Start listening 1 Connect a portable audio player (commercially available). Auxiliary input jack Start listening 1 Open the Pandora application on your device. 2 Connect your device to the USB input terminal.

3.5 mm (1/8") stereo mini plug

with “L” shaped connector (commercially available) Portable audio player Set the AUX name While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [SETTINGS], then press the knob. 3 Turn the volume knob to select [AUX NAME], then press the knob. 4 Turn the volume knob to make a selection, then press the knob. AUX (default)/ DVD/ PORTABLE/ GAME/ VIDEO/ TV 5 Press and hold to exit. Do this Pause or resume playback Press 6 38 (or press ENT 38 on RC-406). Thumbs up or thumbs down Press 1 / 2 .

• If thumbs down is selected, the current track is skipped. Press ¢. Skip a track Create a new station 1 Press and hold the volume knob. 2 Turn the volume knob to USB input terminal select [FROM TRACK] or [FROM ARTIST], then press the knob. A new station is created based on the current song or artist. 2 Press SRC to select AUX. 3 Turn on the portable audio player and start playback.

Save a station Press and hold number button 3, 4 or 5 to store.

• To select a stored station, press the same button (3, 4 or 5). KCA-iP102 (optional accessory)* The source changes to PANDORA and broadcast starts.
• To connect devices featuring Lightning connector, both KCA-iP102 (optional accessory) and Apple Lightning to 30-pin Adapter (accessory of the iPod/iPhone) are required. Do not leave the Apple Lightning to 30-pin Adapter inside the car to prevent damages caused by the hot temperature. Search for a registered station 1 Press . 2 Turn the volume knob to make a selection, then press the knob (or press 5/∞ on RC-406). [BY DATE]: According to the registered date. [A-Z]: Alphabetical order. 3 Turn the volume knob to the desired station, then press the knob.

EN_KDC-BT310U[K0]2.indd 8 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 4/26/13 12:54:40 PM BLUETOOTH® You can operate Bluetooth devices using this unit. Built-in microphone position If you turn off the unit or detach the control panel during a phone call conversation, the Bluetooth connection is disconnected. Continue the conversation using your mobile phone. Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Object Push Profile (OPP)
• Advanced Audio Distribution Profile (A2DP)
• Audio/Video Remote Control Profile (AVRCP) Pair a Bluetooth device When connecting a Bluetooth device to the unit for the first time, perform pairing between the unit and the device. Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit.
• Up to five devices can be registered (paired) in total.
• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.
• This unit supports Secure Simple Pairing (SSP).
• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information. 1 Press L SRC to turn on the unit. 2 Search and select this unit model name (KDC-BT3**U) on the Bluetooth device. “PAIRING” \ “PASS XXXXXX” \ Device name \ “PRESS” \ “VOLUME KNOB” scrolls on the display. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed and “BT” will light up when the Bluetooth connection is established.
• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.
• Pairing request (via Bluetooth) is automatically activated if an iPhone/iPod touch is connected through the USB input terminal. (Applicable only if [AUTO PAIR] is set to [ON].) (➜ 11) Press the volume knob to pair once you have confirm the passcode. Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit. 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [BT TEST], then press the knob. “PLEASE PAIR YOUR PHONE” appears. 3 Search and select this unit model name (KDC-BT3**U) on the Bluetooth device. 4 Press the volume knob to start pairing and begin the test mode. “PAIRING” flashes on the display. The connectivity result (OK or NG) appears after the test. PAIRING: Pairing status HF CNT: Hands-Free Profile (HFP) compatibility AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility PB DL: Phonebook Access profile (PBAP) compatibility

4/26/13 12:54:41 PM BLUETOOTH® Bluetooth mobile phone

Bluetooth mode operations 1 Press to enter Bluetooth mode. 2 Turn the volume knob to make a selection (see the following table), Do this Receive a call Press or the volume knob or one of the number buttons (1 to 6) (or on RC-406).

• The button illuminates and flashes in red when there is an incoming call. During a call, the button illuminates in red.
• When [AUTO ANSWER] is set to the selected time, the unit answers incoming call automatically. (➜ 11) Reject an incoming call Press L SRC (or End a call Press

• To return to the previous hierarchy, press .
• If the phone supports PBAP, the phonebook of the connected phone is automatically transferred to the unit when pairing. If the phone does not support PBAP, “NO DATA” appears. Transfer the phonebook manually. (➜ 11, TRANSFER PB)
• Contacts are categorized as: GE (general), HM (home), OF (office), MO (mobile), OT (others).
• This unit can display only non-accent letters. (Accent letters such as “Ú” is showns as “U”.)
• If the phonebook contains many contacts, use Alphabet Search. (➜ 12) HISTORY 1 Turn the volume knob to select a name or a phone number.
• “I” indicates call received, “O“ indicates call made, “M” indicates call missed.
• Press SCRL DISP to change the display information (name or phone number).
• “NO DATA” appears if there is no recorded call history. 2 Press the volume knob to call. on RC-406). Press 6 38 during a call.
• Operations may vary according to the connected Bluetooth device. Adjust the phone volume Turn the volume knob during a call. Phone volume: [00] to [35] (Default: [15])
• This adjustment will not affect the volume of the other sources. 1 Press to enter Bluetooth mode. 2 Press and hold to switch between the two connected phones ( [MAIN]/ [SUB] ). Text message notification When the phone receives a text message, the unit rings and “SMS RECEIVED” or “NEW SMS” appears.
• You cannot read, edit, or send a message through the unit.
• To clear the message, press any button.

Default: XX on RC-406). Switch between hands-free and private talk modes Switch between two connected phones then press the knob. Repeat step 2 until the desired item is selected.

EN_KDC-BT310U[K0]2.indd 10 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 4/26/13 12:54:42 PM BLUETOOTH® NUMBER DIAL 1 Turn the volume knob to select a number (0 to 9) or character ( , #, 2 Press 4 / ¢ to move the entry position. Repeat steps 1 and 2 until you finish entering the phone number. 3 Press the volume knob to call. SETTINGS DETAIL SET RECONNECT ON: The unit automatically reconnect when the Bluetooth device is within range. ; OFF: Cancels. AUTO PAIR ON: The unit automatically pair supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the iOS version of the connected iPhone/iPod touch, this function may not work. ; OFF: Cancels.

FRONT: Ouputs audio from the front left and right speakers. ; ALL: Outputs audio from all the speakers. (or using RC-406) 1 Press the number buttons (0 to 9) to enter the phone number. 2 Press to call. DVC PRI MAIN-XXX/ SUB-XXX: To view which device is connected as MAIN and which is connected as SUB. CALL BEEP Select the phone or audio device to connect or disconnect. ON: The unit beeps when there is an incoming call. ; OFF: Cancels. BT UPDATE 1 Turn the volume knob to select a device to delete, then press the knob. 2 Turn the volume knob to select [YES] or [NO], then press the knob. BT F/W XX.XX: YES: Updates all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; NO: Cancels. MIC GAIN –20 — +8 (0): The sensitivity of the microphone increases as the number increased. ECHO LEVEL 1 — 10 (4): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. SETTINGS PAIRING PHONE SEL AUDIO SEL DVC DELETE TRANSFER PB (Selectable only when the connected phone supports OPP.) “DL PB ” appears and transfer the phonebook of the connected phone to this unit manually. DETAIL SET PIN EDIT (0000) AUTO ANSWER Changes the PIN code (up to 8 digits). 1 Turn the volume knob to select a number. 2 Press 4 / ¢ to move the entry position. Repeat steps 1 and 2 until you finish entering the PIN code. 3 Press the volume knob to confirm. 1 — 99 (8): The unit answers incoming calls automatically in the selected time. ; OFF: Cancels. Use Voice Recognition 1 Press and hold . 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
• This unit also supports the intelligent personal assistant function of iPhone. ENGLISH | EN_KDC-BT310U[K0]2.indd 11 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

4/26/13 12:54:42 PM BLUETOOTH® Alphabet Search You can search through the contacts quickly according to the first letter (A to Z), number (0 to 9), or symbol.

• The second alphabet of the contact will be searched if the first alphabet does not exist. 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [PHONE BOOK], then press the knob. 3 Press to enter alphabet search mode. The first menu (ABCDEFGHIJK) appears. To go to the other menu (LMNOPQRSTUV or WXYZ1 ), press 4 / ¢. 4 Turn the volume knob to select the desired first letter, then press the knob.
• To search with numbers, select “1”.
• To search with symbols, select “ ”. 5 Turn the volume knob to select a name, then press the knob. 6 Turn the volume knob to select a phone number, then press the knob to call. Store a contact in memory You can store up to 6 contacts. 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [PHONE BOOK], [HISTORY], or [NUMBER DIAL], then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored.
• To erase a contact from the preset memory, select [NUMBER DIAL] in step 2 and store a blank number. Make a call from memory 1 Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press or the volume knob to call. “NO MEMORY” appears if there are no contacts stored.

• To return to the previous hierarchy, press .
• Contacts are categorized as: GE (general), HM (home), OF (office), MO (mobile), OT (others).
• This unit can display only non-accent letters. (Accent letters such as “Ú” is shown as “U”.) Bluetooth audio player Operations and display indications may differ according to their availability on the connected device.

Do this Playback 1 Press L SRC (or SRC on RC-406) to select BT AUDIO. 2 Operate the Bluetooth audio player to start playback. Pause or resume playback Press 6 38 (or ENT 38 on RC-406). Select group or folder Press 1 – / 2 + (or *AM– / #FM+ on RC-406).

EN_KDC-BT310U[K0]2.indd 12 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 4/26/13 12:54:42 PM BLUETOOTH®

Do this Reverse/ forward skip Press 4 / ¢ (or 4 / ¢ (+) on RC-406). Repeat play Press 4 repeatedly to make a selection.

FILE REPEAT, ALL REPEAT, REPEAT OFF

Random play Press 3 repeatedly to make a selection.

FOLD RANDOM, RANDOM OFF

Press and hold 3 to select “ALL RANDOM.” DISPLAY SETTINGS 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [SETTINGS], then press the knob. 3 Turn the volume knob to make a selection (see the following table), then press the knob. Repeat step 3 until the desired item is selected or activated. 4 Press and hold to exit.

• To return to the previous hierarchy, press . Default: XX DISPLAY Listen to Pandora through Bluetooth You can listen to Pandora on your smart phone (Android OS or RIM OS) through Bluetooth on this unit. 1 Open the Pandora application on your device. 2 Connect to Bluetooth audio player. (➜ 9, 11) 3 Press L SRC to select PANDORA. The source switches and broadcast starts automatically.
• You can operate Pandora in the same way as Pandora for iPod/iPhone. (➜ 8) DISP DIMMER ON: Dims the display illumination. ; OFF: Cancels. TEXT SCROLL AUTO/ ONCE: Selects whether to scroll the display information automatically, or scroll only once. ; OFF: Cancels. DVC STATUS HF-CON 1/2/ 1: Shows the connection status of the Bluetooth device. ; NO: No connection. AD-CON YES: An Bluetooth audio is connected. ; NO: No connection. BATT FULL/ MID/ LOW: Shows the battery level of the Bluetooth device. ; –––: No information. SIGNAL MAX/ MID/ LOW/ NO SIGNAL: Shows the signal strength of the Bluetooth device. ; –––: No information. ENGLISH | EN_KDC-BT310U[K0]2.indd 13 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

4/26/13 12:54:42 PM AUDIO SETTINGS While listening to any source... 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [AUDIO CTRL], then press the knob. 3 Turn the volume knob to make a selection (see the following table), then press the knob. Repeat step 3 until the desired item is selected or activated. 4 Press and hold to exit. (or using RC-406) 1 Press AUD to enter [AUDIO CTRL]. 2 Press 5/∞ to make a selection, then press ENT 38.

• To return to the previous hierarchy, press –15 to +15 (0) BASS LEVEL –8 to +8 (0) MID LEVEL –8 to +8 (0) TRE LEVEL –8 to +8 (0) LPF SUB-W THROUGH: All signals are sent to the subwoofer. ; 85HZ/ 120HZ/ 160HZ: Audio signals of frequencies lower than 85 Hz/ 120 Hz/ 160 Hz are sent to the subwoofer. SUB-W PHASE REV (180°)/ NORM (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [LPF SUB-W].) SUPREME SET ON: Creates realistic sound by interpolating the high-frequency components that are lost in AAC/MP3/WMA audio compression. ; OFF: Cancels. (Selectable only when playing back an AAC/MP3/WMA disc or a USB device, except iPhone/iPod.) VOL OFFSET (Default: 0) –8 to +8 (for AUX) ; –8 to 0 (for other sources): Presets the volume adjustment level of each source. (Before adjustment, select the source you want to adjust.)

Default: XX SUB-W LEVEL DETAIL SET Adjusts the subwoofer output level. Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) PRESET EQ NATURAL/ USER/ ROCK/ POPS/ EASY/ TOP40/ JAZZ/ POWERFUL: Selects a preset equalization suitable to the music genre. (Select [USER] to use the customized bass, middle, and treble settings.) BASS BOOST B.BOOST LV1/ B.BOOST LV2/ B.BOOST LV3: Selects your preferred bass boost level. ; OFF: Cancels. LOUDNESS LOUD LV1/ LOUD LV2: Selects your preferred low and high frequency boost to produce a well-balanced sound at a low volume level. ; OFF: Cancels. BALANCE L15 to R15 (0): Adjusts the left and right speaker output balance. FADER R15 to F15 (0): Adjusts the rear and front speaker output balance. SUB-W SET ON: Turns on the subwoofer output. ; OFF: Cancels.

• [SUB-W LEVEL]/ [SUB-W SET]/ [LPF SUB-W]/ [SUB-W PHASE] is selectable only if [SWITCH PRE] is set to [SUB-W]. (➜ 4)
• [SUB-W LEVEL]/ [LPF SUB-W]/ [SUB-W PHASE] is selectable only if [SUB-W SET] is set to [ON].

EN_KDC-BT310U[K0]ff.indd 14 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 12/10/13 10:42:51 PM MORE INFORMATION General About iPod/iPhone About Pandora

• This unit can only play the following CDs: Made for - iPod touch (1st, 2nd, 3rd, 4th, and 5th generation) - iPod classic - iPod with video - iPod nano (1st, 2nd, 3rd, 4th, 5th, 6th, and 7th generation) - iPhone, iPhone 3G, 3GS, 4, 4S, 5
• For the latest compatible list and software versions of iPhone/iPod, see: www.kenwood.com/cs/ce/ipod
• If you start playback after connecting the iPod, the music that has been played by the iPod is played first. In this case, “RESUMING” is displayed without displaying a folder name, etc. Changing the browse item will display the correct title, etc.
• You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod.

• Pandora is available only in the U.S., Australia and New Zealand.
• Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.
• Some functions of Pandora cannot be operated from this unit.
• For issues using the application, please contact Pandora at pandora-support@pandora.com.
• If the version of the OS of the connected iPhone is earlier than 4.0, start the Pandora application before selecting the PANDORA source.

• Detailed information and notes about the playable audio files are stated in an online manual on the following web site: www.kenwood.com/cs/ce/audiofile/ Playable files
• Playable disc media: CD-R/CD-RW
• Playable disc file format: ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
• Playable USB device file system: FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. Unplayable discs
• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
• Recordable/ReWritable discs that have not been finalized.
• 8 cm CD. Attempting to insert using an adapter may cause malfunction. About USB devices
• This unit can play AAC/MP3/WMA files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub and Multi Card Reader.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A. About KENWOOD Music Editor Light and KENWOOD Music Control
• This unit supports the PC application KENWOOD Music Editor Light and Android™ application KENWOOD Music Control.
• When you play audio files with song data added using the KENWOOD Music Editor Light or KENWOOD Music Control, you can search for audio files by Genres, Artists, Albums, Playlists, and Songs.
• KENWOOD Music Editor Light and KENWOOD Music Control are available on the following web site: www.kenwood.com/cs/ce/ About Bluetooth
• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
• Signal conditions vary, depending on the surroundings.
• Detailed information about Bluetooth are available on the following web site: www.kenwood.com/cs/ce/ ENGLISH | EN_KDC-BT310U[K0]2.indd 15 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

4/26/13 12:54:42 PM TROUBLESHOOTING Symptom Sound cannot be heard. “PROTECT” appears and no operations can be done.

• Sound cannot be heard.
• The unit does not turn on.
• Information shown on the display is incorrect. The unit does not work at all.
• Radio reception is poor.
• Static noise while listening to the radio. “NA FILE” appears. Remedy
• Adjust the volume to the optimum level.
• Check the cords and connections. Check to be sure the terminals of the speaker wires are insulated properly, then reset the unit. If this does not solve the problem, consult your nearest service center. Clean the connectors. (➜ 2) Symptom Remedy “COPY PRO” appears. A copy-protected file is played. “NA DEVICE” appears. Connect a supported USB device, and check the connections. “NO MUSIC” appears. Connect a USB device that contains playable audio files. “USB ERROR” appears.

• Remove the USB device, turn the unit off, then turn it on again.
• Try to connect another USB device. “iPod ERROR” appears.

• Reset the iPod. Reset the unit. (➜ 3)
• Connect the antenna firmly.
• Pull the antenna out all the way. Make sure the disc contains supported audio files. (➜ 15) “NO DISC” appears. Insert a playable disc into the loading slot. “TOC ERROR” appears. Make sure the disc is clean and inserted properly. “PLS EJECT” appears. Reset the unit. If this does not solve the problem, consult your nearest service center. Disc cannot be ejected. Press and hold 0 to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. (➜ 3) “READ ERROR” appears. Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device. “NO DEVICE” appears. Connect a USB device, and change the source to USB again. Noise is generated. Skip to another track or change the disc. Tracks do not play back as you intended them to play. Playback order is determined when files are recorded. “READING” keeps flashing. Do not use too many hierarchical levels or folders. Elapsed playing time is not correct. This is caused by how the tracks are recorded. The number of songs contained in the “SONGS” category of this unit is different from the iPod/ iPhone. Podcast files are not counted on this unit as this unit does not support the playback of podcast files. Correct characters are not displayed (e.g. album name). This unit can only display uppercase letters, numbers, and a limited number of symbols.

EN_KDC-BT310U[K0]2.indd 16 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 4/26/13 12:54:42 PM TROUBLESHOOTING “ADD ERR” “SEARCH ERR” New station creation is unsuccessful. “CHK DEVICE” Check the Pandora application on your device. Symptom Remedy Voice calling method is not successful.

• Use voice calling method in a more quiet environment.
• Reduce the distance from the microphone when you speak the name.
• Make sure the same voice as the registered voice tag is used. “NO SKIPS” The skip limit has been reached. “NO STATIONS” No stations are found. “NOT SUPPORT” appears. “STATION LIM” The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device. The connected phone does not support Voice Recognition feature. “ERROR” appears. Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “UPGRADE APP” Bluetooth® Remedy Make sure you have installed the latest version of the Pandora application on your device. No Bluetooth device is detected.

• Search from the Bluetooth device again.
• Reset the unit. (➜ 3) Pairing cannot be made.

• Make sure you have entered the same PIN code to both the unit and Bluetooth device.
• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (➜ 9) “DEVICE FULL” appears. Echo or noise occurs. Phone sound quality is poor. The number of registered devices has reached its limit. Retry after deleting an unnecessary device. (➜ 11, SETTINGS ➜ PAIRING ➜ DVC DELETE) Bluetooth® Pandora Symptom Sound is being interrupted • Reduce the distance between the unit and the Bluetooth audio player. or skipped during playback of a Bluetooth audio player. • Turn off, then turn on the unit and try to connect again.
• Other Bluetooth devices might be trying to connect to the unit. The connected Bluetooth audio player cannot be controlled. “HF ERROR” appears. Check the [ECHO LEVEL] setting. (➜ 11)

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)
• Disconnect and connect the Bluetooth player again. Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center.

• Reduce the distance between the unit and the Bluetooth device.
• Move the car to a place where you can get a better signal reception. ENGLISH | EN_KDC-BT310U[K0]ff.indd 17 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

12/12/13 12:11:59 PM INSTALLATION / CONNECTION Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car’s chassis again after installation. Installing the unit (in-dash mounting) Do the required wiring. (➜ 13) Hook on the top side Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the · wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Mount the unit at an angle of less than 30º.
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Basic procedure 1 Remove the key from the ignition switch, then

disconnect the · terminal of the car battery. Connect the wires properly. See Wiring connection. (➜ 19) Install the unit to your car. See Installing the unit (in-dash mounting). Connect the · terminal of the car battery. Reset the unit. (➜ 3) Dashboard of your car Orientate the trim plate as illustrated before fitting. Bend the appropriate tabs to hold the mounting sleeve firmly in place. When installing without the mounting sleeve 1 Remove the mounting sleeve and trim plate from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit. How to remove the unit 1 Detach the faceplate. 2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out. 3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right.

EN_KDC-BT310U[K0]4.indd 18 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 5/9/13 9:48:57 AM Wiring connection Part list for installation A Faceplate Rear/subwoofer output Fuse (10 A) Antenna terminal If no connections are made, do not let the wire come out from the tab. White To front speaker (left) White/Black To front speaker (right) Gray/Black To rear speaker (left) Green/Black To rear speaker (right) Purple/Black Gray Green Light blue/yellow (Steering remote control wire) B Trim plate To the steering wheel remote control adapter. C Mounting sleeve Blue/White (Power control wire) Purple To the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle. D Wiring harness Ignition switch Car fuse box Red Brown (Ignition wire) (Mute control wire) Yellow Car fuse box Battery (Battery wire) Black (Ground wire) Blue To the metallic body or chassis of the car (Antenna control wire) To the terminal that is grounded when the telephone rings or during conversation. (To connect the Kenwood navigation system, refer your navigations manual.) E Extraction key (Not used) ENGLISH | EN_KDC-BT310U[K0]2.indd 19 Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

4/26/13 12:54:43 PM SPECIFICATIONS USB Standard USB 1.1, USB 2.0 (Full speed)

11.2 dBf (1.0 μV/75 Ω)

Maximum Supply Current DC 5 V Quieting Sensitivity (DIN S/N = 46 dB)

87.9 MHz to 107.9 MHz (200 kHz space)

Output Power +4 dBm (MAX), 0 dBm (AVE) Power Class 2 Maximum Communication Range Line of sight approx. 10 m (32.8 ft) Profile HFP (Hands-Free Profile) SPP (Serial Port Profile) PBAP (Phonebook Access Profile) OPP (Object Push Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) Laser Diode GaAIAs Digital Filter (D/A) 8 times over sampling D/A Converter 24 Bit Spindle Speed 500 rpm to 200 rpm (CLV) Wow & Flutter Below measurable limit Frequency Response (±1 dB) 20 Hz to 20 kHz Total Harmonic Distortion (1 kHz)

Maximum Output Power 50 W × 4 Signal-to-Noise Ratio (1 kHz) 105 dB Full Bandwidth Power 22 W × 4 (at less than 1 % THD) Dynamic Range 90 dB Speaker Impedance 4 Ω to 8 Ω AAC Decode AAC-LC “.m4a” files Tone Action Bass MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio Audio Tuner FM Frequency Range 100 Hz ±8 dB Middle 1 kHz ±8 dB Treble

Maximum Current Consumption 10 A Installation Size (W × H × D) 182 mm × 53 mm × 160 mm (7-3/16" × 2-1/8" × 6-5/16") Weight

IC (Industry Canada) Notice This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC: ” before the certification/ registration number only signifies that the Industry Canada technical specification were met. CAUTION This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

• CD audio: TRAC REPEAT, REPEAT OFF
• Fichier AAC/MP3/WMA : FILE REPEAT, FOLD REPEAT, REPEAT OFF
• iPod ou fichier KENWOOD Music Editor Light (KME Light)/ KENWOOD Music Control

(KMC): FILE REPEAT, REPEAT OFF

• Cet appareil ne peut lire que les CD suivants: Made for - iPod touch (1st, 2nd, 3rd, 4th et 5th generation) - iPod classic - iPod with video - iPod nano (1st, 2nd, 3rd, 4th, 5th, 6th et 7th generation) - iPhone, iPhone 3G, 3GS, 4, 4S, 5

“CANCEL DEMO” \ “PRESS” \ “VOLUME KNOB”

5/20/13 11:05:37 AM CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. JVC KENWOOD Corporation 2967-3, ISHIKAWA-MACHI,

HACHIOJI-SHI, TOKYO, JAPAN

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE. Location : Top Plate FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. FCC NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. EN_KDC-BT310U[K0]2.indd 22

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• Lightning is a trademark of Apple Inc.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• The “AAC” logo is a trademark of Dolby Laboratories.
• Android is trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. Información acerca de la eliminación de equipos eléctricos y electrónicos al final de la vida útil (aplicable a los países que hayan adoptado sistemas independientes de recogida de residuos) Los productos con el símbolo de un contenedor con ruedas tachado no podrán ser desechados como residuos domésticos. Los equipos eléctricos y electrónicos al final de la vida útil, deberán ser reciclados en instalaciones que puedan dar el tratamiento adecuado a estos productos y a sus subproductos residuales correspondientes. Póngase en contacto con su administración local para obtener información sobre el punto de recogida más cercano. Un tratamiento correcto del reciclaje y la eliminación de residuos ayuda a conservar los recursos y evita al mismo tiempo efectos perjudiciales en la salud y el medio ambiente.

CALIFORNIA, USA ONLY

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material— special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate Data Size: Book Size: B6L (182 mm x 128 mm) B6L (182 mm x 128 mm) 4/26/13 12:54:43 PM
