Product Type	Ceiling loudspeaker (sphere)
Brand	Proel
Model	CSB10
Speaker Driver	5'' paper cone
Power Handling	20 W max
Output Power Taps	2.5 / 5 / 10 W (selectable)
Input Voltage	70/100 V
Impedance (100V)	4 kΩ / 2 kΩ / 1 kΩ
Impedance (70V)	2 kΩ / 1 kΩ / 490 Ω
Low Impedance Operation	8 Ω (10 W)
Frequency Response	110 – 15,000 Hz (-10 dB)
Sensitivity	92 dB (1 W/m)
Protection Rating	IP44
Weight	1.7 kg
Dimensions	Ø184 x 162.5 mm
Material	Metal and ABS
Color	White
Mounting	Ceiling suspension (flush mount)
Compliance	CE Regulations
Included Accessories	Cover cap, connection cable
Application	Indoor
100V Line Compatibility	Yes

Frequently Asked Questions - CSB10 Proel

How do I connect the CSB10 to a 100V line?

Connect the input line to the unit following the color code: Black for neutral, and one of the colored wires (Red, Orange, Grey, White) for the desired power tap. For 100V, use Red for 10W, Orange for 5W, Grey for 5W (also 70V), or White for 2.5W.

What is the maximum power handling of the CSB10?

The loudspeaker can handle up to 20 W max input power, but the selectable output taps are 2.5W, 5W, and 10W.

Can I use this speaker outdoors?

The speaker has an IP44 rating, which provides protection against splashing water, but it is not fully weatherproof. It is recommended for indoor use or sheltered outdoor areas.

How do I adjust the power tap?

Select the desired power by connecting the appropriate wire: Red for 10W, Orange for 5W (70V) or 10W (100V), Grey for 2.5W (70V) or 5W (100V), and White for 2.5W (100V). Ensure the input voltage matches (70V or 100V).

What type of cable should I use for installation?

Use a cable suitable for the connection, typically a two-core speaker cable. The manual recommends making a 7-8mm hole in the ceiling and passing the cable through the cover cap before connecting.

Is the speaker suitable for high humidity environments?

With an IP44 rating, it can withstand splashes but not continuous high humidity. Avoid installing near water or in very damp places.

How should I clean the speaker?

Do not use solvents, alcohol, petrol, or other volatile substances. Clean the outer components with a dry or slightly damp cloth.

Can I paint the speaker to match my ceiling?

The manual does not explicitly forbid painting, but it is recommended to avoid painting the grille or any openings as it may affect sound quality.

What is the warranty period?

The manual does not specify a warranty period. Please contact your dealer or Proel for warranty information.

How do I install the CSB10 in a ceiling?

Make a 7-8mm hole in the ceiling panel. Insert the connection cable through the cover cap first, then through the hole. Place the speaker at the desired height, tie a knot on the cable to secure it, and slide the cover up to the ceiling.

USER MANUAL CSB10 Proel

White spherical electronic device with a perforated grille and a small head, placed on a plain surface (no text or symbols visible)

PROEL

1

Thank you for choosing this PROEL loudspeaker. Our products are synonymous with professional competence, accuracy and excellent quality.

Description

This loudspeaker has been designed for suspension mounting. Its state-of-the-art design, its realization and the use of excellent quality materials (metal and ABS) give the unit a high mechanical strength and good sound features.

This product complies with the CE Regulations

Safety instructions

WARNING

To reduce the risk of electric shock do not open this apparatus.

• Before installing the unit, read carefully these instructions and keep them for future reference.
• Warning: an incorrect installation might result in an irreparable damage to the unit.
• Installation should be carried out in compliance with the relevant safety regulations.
• The use of this unit without following the technical specifications may cause the performance to be impaired.
• Close supervision is necessary when the unit is used near children.
• Protect this unit from atmospheric agents and do not use it near water or in places with high humidity levels.
• This unit should be situated away from heat sources such as radiators.
• Care should be taken so that objects do not fall into and liquids are not spilled inside the unit.
• Make sure the unit is placed in a stable and safe position.
• Do not use solvents, alcohol, petrol or other volatile substances to clean the outer components.
• Do not attempt to repair the unit yourself. Refer all servicing to qualified personnel.
• This product generates a sound pressure level that may cause permanent damages to the hearing. Do not use the loudspeaker at high volume levels for a long period of time.

Installation

1. A hole ( 7-8mm) should be made in the ceiling panel. Insert the connection cable in the cap used for covering the hole first, and then in the hole. Place the CSB10 at the height required and fix it by tying a knot on the cable. Slide the cover to the ceiling panel.

1. The input voltage and the output power can be chosen by connecting the input line to the unit. For details about the connection, refer to the instructions shown on the unit or to the illustration below:

Technical Specifications

Model	Sphere loudspeakerCSB10
Built-in speaker Paper 5”	er 5”
Input power 20 W max	max
Output power 2,5 / 5 / 10 W (max 20W)
Input impedance	100 V: 4 / 2 / 1 KΩ
	70 V: 2 KΩ / 1 KΩ / 490 Ω
	8
Input voltage 70 / 100 V
Protection rating IP 44
Frequency	110 – 15'000 Hz (-10 dB)
S.P.L. 92 dB (1 W/m)
Weight	1,7

Kg

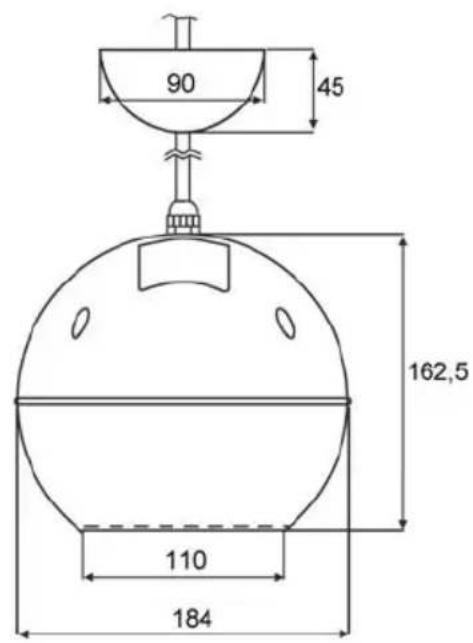

Dimensions

Proel S.p.A. pursues a policy of constant research and development and therefore reserves the right to improve its products at any time without prior notification.
