Product Type	Powered PA Speaker
Model	LT12P
Brand	Proel
Woofer Size	12 inches
Tweeter Size	1 inch
Amplifier Type	Class D
RMS Power	400 W
Peak Power	800 W
Frequency Response	55 Hz - 20 kHz
Maximum SPL	126 dB
Impedance	8 ohms
Inputs	XLR, TRS, RCA
Outputs	XLR Link Out
Enclosure Material	Polypropylene
Grille Material	Steel
Dimensions (W x H x D)	14.2 x 24.0 x 15.4 inches
Weight	32.6 lbs
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	500 W
Cooling	Convection, rear heat sink
Mounting Options	Pole mount, floor monitor
Protection Features	Thermal, overload, limiter
What's in the Box	Speaker, power cord, user manual
Cleaning Instructions	Wipe with dry cloth; do not use solvents
Safety Certification	CE, RoHS

Frequently Asked Questions - LT12P Proel

How do I connect audio sources to the LT12P?

Use balanced XLR or TRS cables for optimal sound. Connect to the Input jacks on the rear panel. For unbalanced sources, use the RCA input.

Can I use the LT12P as a floor monitor?

Yes, the speaker is designed for both pole mount and floor monitor use. Place it on its side with the logo upright for monitoring.

What is the maximum power output of the LT12P?

The built-in amplifier delivers 400 W RMS and 800 W peak, providing clear sound up to 126 dB SPL.

How do I clean the LT12P?

Unplug the speaker and wipe the enclosure with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Clean the grille with a vacuum.

What type of cables do I need for connection?

Use balanced XLR or 1/4" TRS cables for inputs. For linking multiple speakers, use an XLR cable from the Link Out jack.

Can I mount the LT12P on a stand?

Yes, it has a standard pole mount socket on the bottom. Use a speaker stand with a 35mm pole.

What should I do if the speaker overheats?

The speaker has thermal protection. If it shuts off, turn it off and let it cool for 30 minutes. Ensure ventilation is not blocked.

Does the LT12P have a warranty?

Proel offers a 2-year limited warranty for manufacturing defects. Keep your receipt and register the product online.

How do I dispose of the LT12P?

Do not dispose of with household waste. Recycle at a WEEE collection point to comply with environmental regulations.

Can I use the LT12P for outdoor events?

It is not weatherproof. Use under a cover or in dry conditions. Avoid exposure to rain or extreme humidity.

USER MANUAL LT12P Proel

passive loudspeakers

USER MANUAL

MANUALE D'USO

Line drawing of four different rectangular industrial enclosures or storage units, arranged in ascending order from bottom to top (no text or symbols present)

INDEX

INDICE

TECHNICAL SPECIFICATIONS .... 3
FREQUENCY RESPONSE 3
DIMENSIONS AND FLYING POINTS.....4
ACCESSORIES 5
INPUT PANEL (FIG.1)....6
CONNECTIONS (FIG.2) 6
CONFIGURATIONS (FIG.3) 7
SPARE PART LIST 7
SAFETY AND PRECAUTIONS....8
IN CASE OF FAULT....8
TROUBLESHOOTING....8
CE CONFORMITY....8
PACKAGING, SHIPPING AND COMPLAINT ..... 8
WARRANTY AND PRODUCTS RETURN ..... 9
INSTALLATION AND DISCLAIMER....9
GENERAL INFORMATION .... 10
INSTRUCTIONS (FIG. 1 / 2 / 3) ..... 10

SPECIFICHE TECNICHE 3
RISPOSTA IN FREQUENZA....3
DIMENSIONI E PUNTI DI SOSPENSIONE. ..... 4
ACCESSORI 5
PANNELLO INGRESSI (FIG.1)....6
CONNESSIONI (FIG.2) 6
CONFIGURAZIONI (FIG.3)....7
PARTI DI RICAMBIO....7
AVVERTENZE PER LA SICUREZZA ..... 12
IN CASO DI GUASTO 12
PROBLEMATICHE COMUNI....12
CONFORMITÀ CE....12
IMBALLAGGIO, TRASPORTO E RECLAMI ..... 12
GARANZIE E RESI 13
INSTALLAZIONE E LIMITAZIONI D'USO.....13
INFORMAZIONI GENERALI 14
ISTRUZIONI (FIG. 1 / 2 / 3)....14

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the

purchase contract. This product should not be mixed with other commercial wastes for disposal.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The information contained in this publication has been carefully prepared and checked. However no responsibility will be taken for any errors. All rights are reserved and this document cannot be copied, photocopied or reproduced in part or completely without written consent being obtained in advance from PROEL. PROEL reserves the right to make any aesthetic, functional or design modification to any of its products without any prior notice. PROEL assumes no responsibility for the use or application of the products or circuits described herein.

System type	2-way vented enclosure	2-way vented enclosure	2-way vented enclosure	2-way vented enclosure
High Frequency Device	1" neodymium tweeter	1" compression driver 1" VC	1" compression driver 1" VC	1" compression driver 1.35" VC
Low Frequency Device	6.5" woofer with 1" VC	8" woofer with 1.5" VC	10" woofer with 2" VC	12" woofer with 2.5" VC
Angular Coverage	60° H x 40° V	60° H x 40° V	90° H x 60° V	90° H x 60° V
Nominal Impedance	8 ohm	8 ohm	8 ohm	8 ohm
Power continuous (AES)	75 W	150 W	200 W	300 W
Power program	150 W	300 W	400 W	600 W
Power peak	300 W	600 W	800 W	1200 W
Frequency Response	75 Hz - 20 kHz	70 Hz - 20 kHz	60 Hz - 20 kHz	50 Hz - 20 kHz
Sensitivity (1 W / 1 m)	88 dBspl	92 dBspl	94 dBspl	96 dBspl
Max SPL at 1mt (peak)	110 dBspl	117 dBspl	120 dBspl	124 dBspl
Crossover Frequency	2400 Hz	2400 Hz	2200 Hz	2200 Hz
Connectors	INPUT, LINK: Neutrik SPEAKON© (NL4MP) 6.3mm JACK female socket	INPUT, LINK: Neutrik SPEAKON© (NL4MP)	INPUT, LINK: Neutrik SPEAKON© (NL4MP)	INPUT, LINK: Neutrik SPEAKON© (NL4MP)
Construction	Plywood	Plywood	Plywood	Plywood
Cabinet Colour	Black or White	Black or White	Black or White	Black or White
Finish	Anti-scratch Paint	Anti-scratch Paint	Anti-scratch Paint	Anti-scratch Paint
Flying System	1 x M4 top, 2 x M4 bottom, 2 x M6 rear	4 x M8 top and bottom, 3 x M6 rear	4 x M10 top and bottom 3 x M6 rear	4 x M10 top and bottom 3 x M6 rear
Handles	-	1 x rear	1 x rear	2 x sides
Mounting Pole	1 x bottom	1 x bottom, dual angle	1 x bottom, dual angle	1 x bottom, dual angle
Weight	4.9 kg (10.8 lb)	7.5 kg (16.5 lb)	11.5 kg (25.4 lb)	15.5 kg (34.2 lb)
Dimensions (W x H x D)	204 x 295 x 223 mm	220 x 442 x 260 mm	340 x 515 x 310 mm	380 x 595 x 360 mm

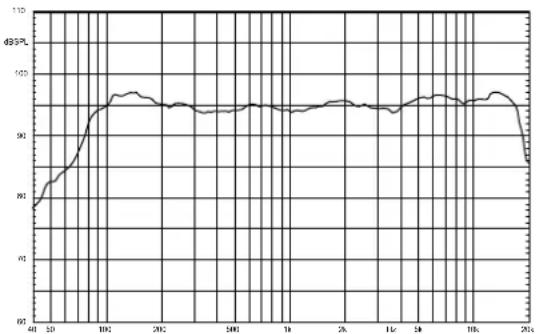

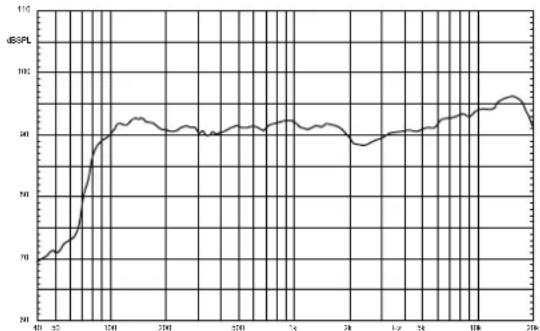

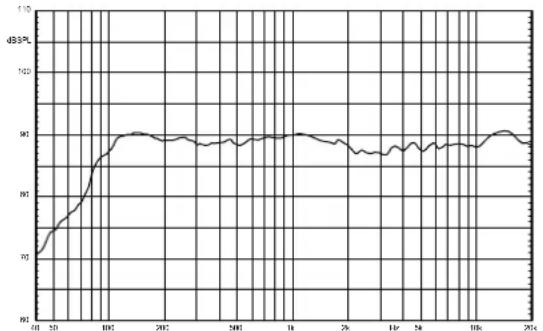

FREQUENCY RESPONSE RISPOSTA IN FREQUENZA

LT6P

LT10P

LT8P

LT12P

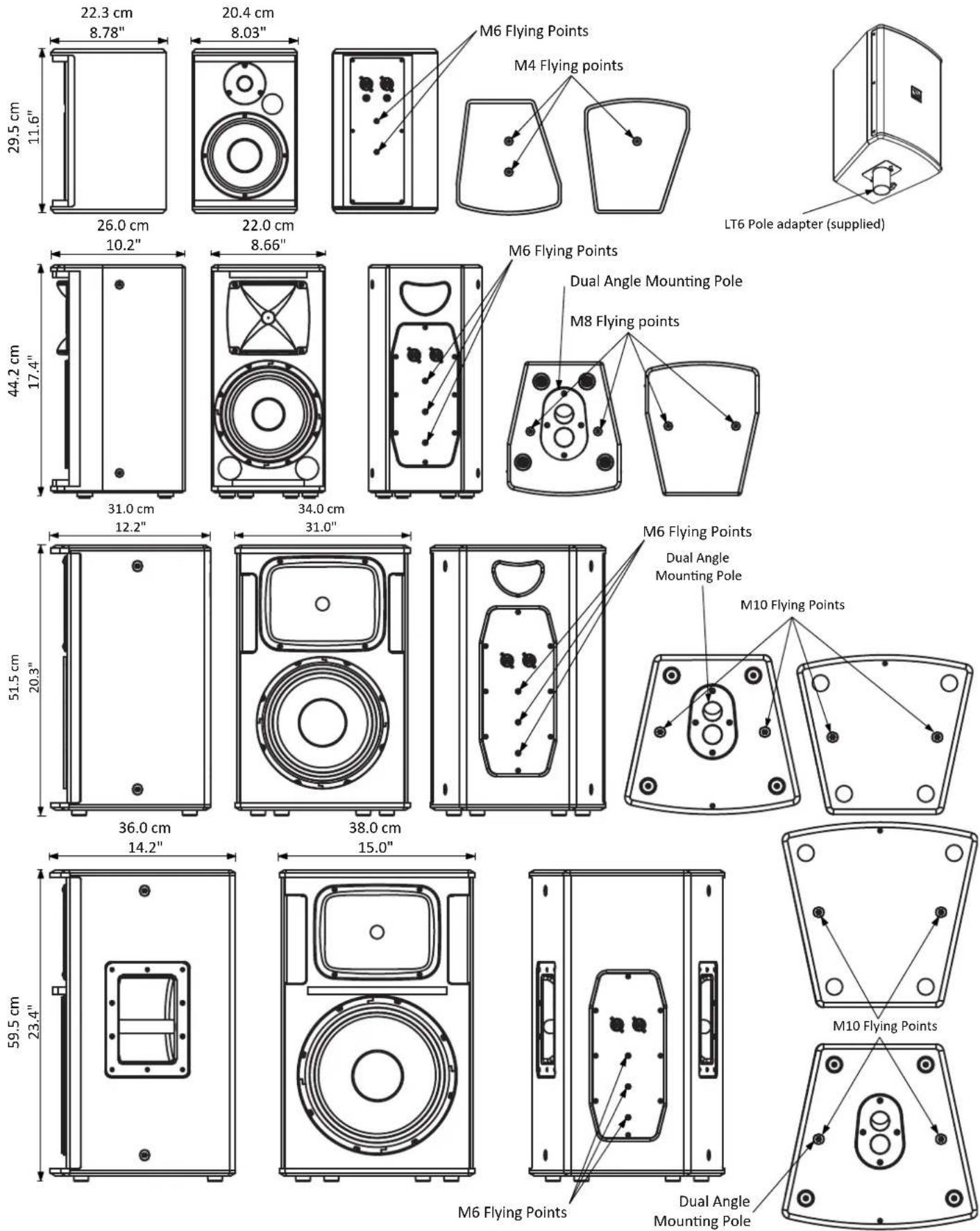

DIMENSIONS AND FLYING POINTS DIMENSIONI E PUNTI DI SOSPENSIONE

M6 Flying Points
Dual Angle Mounting Pole

ACCESSORIES

ACCESSORI

KP210

Adjustable speaker pole for speaker-subwoofer separation with terminal pieces ∅ 35 mm. Supplied with a bolt locking mechanism incorporating a steel pin for extra safety. Adjustment: 825 - 1320 mm.

KP210

Professional aluminium floor-stand for speaker with terminal pieces ∅ 35mm. Supplied with a screw locking system, a steel safety pin and "Aircushioned" air-damped release device to grant a flexible, fast and easy adjustment. Adjustment: 1470-2180 mm.

Simple line drawing of a tripod-mounted stand with no text or symbols

FRE300BK

Short aiming bracket for wall mount, 4 x 15° vertical steps, free horizontal rotation, the speaker can be mounted both vertically or horizontally.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

KPTLTP

C-shape metal bracket for wall mount of TL6P with +/- 30° free rotation.

KPTLT8

C-shape metal bracket for wall mount of TL8P with +/- 70° free rotation.

KPTLT10

C-shape metal bracket for wall mount of TL10P with +/- 70° free rotation.

KPTLT12

C-shape metal bracket for wall mount of TL12P with +/- 70° free rotation.

KPTNX04

Horizontal and Vertical adjustable metal bracket for wall mount, bar length 25 cm, 12.5° 4 step vert. aiming, 10° 7 step hor. aiming, must be used in conjunction with KPTLT8 / KPTLT10 / KPTLT12.

Technical line drawing of two mechanical bracket components (no text or symbols)

KPTLT6

Single aluminium coupler for 50mm truss with M12 bolt, always use two couplers with the KPTLT8 KPTLT10 / KPTLT12 for each speaker.

PLH300

CONNECTIONS (FIG.2)
CONNESSIONI (FIG.2)

INPUT - LINK power Jack
INPUT - LINK (ingresso-rilancio) Jack di potenza

INPUT - LINK Neutrik NL2FX Speakon Cable Connector
INPUT - LINK (ingresso-rilancio) Connettore per cavo tipo Speakon Neutrik NL2FX

PROEL flexible multiwire loudspeaker cable

LOUDSPEAKER LINE LOSSES(maximum permissible line lengths for 0.5dB losses, voltage or spl)

Perdite di collegamento(massima lunghezza per perdite inferiori a 0.5dB, tensione o spl)

8 ohm load 4 ohm load Wire section data

PROEL recommended cables

carico 8 ohm carico 4 ohm

Sezione del cavo

Cavi PROEL consigliati

meter

feet

meter

feet

mm^2

AWG

2 wires flex-black

2 wires FR installation

metri

feet

metri

feet

mm^2

AWG

2 fili nero flessibile

2 fili da in-stallazione

50 164 25 82 4.0 12 HPC624BK HPC624FRS

50 164 25 82 4.0 12 HPC624BK HPC624FRS

30 100 15 50 2.5 14 HPC620BK HPC620FRS

30 100 15 50 2.5 14 HPC620BK HPC620FRS

20 66 10 33 1.5 16 HPC610BK HPC610FRS

20 66 10 33 1.5 16 HPC610BK HPC610FRS

this is a short extraction of the wide assortment of cables available from PROEL, please visit our website at www.proel.com

questo è un breve estratto del vasto assortimento di cavi disponibile da PROEL,vi preghiamo di visitare il nostro sito web all'indirizzo www.proel.com

CONFIGURATIONS (FIG.3) CONFIGURAZIONI (FIG.3)
LT passive BASIC STEREO sound system

LT passive DOUBLE PARALLEL STEREO sound system
    subgraph_Left_ParallelSpeaker["LEFT parallel speakers 4 ohm load"]
        A1["INPUT PL6L"] --> B1["OUTPUT"]
        A2["INPUT PL6L"] --> B2["OUTPUT"]
        A3["INPUT PL6L"] --> B3["OUTPUT"]
        A4["INPUT PL6L"] --> B4["OUTPUT"]
        B1 --> C1["PROEL"]
        B2 --> C2["PROEL"]
        B3 --> C3["PROEL"]
        B4 --> C4["PROEL"]
    end
    subgraph_Right_ParallelSpeaker["RIGHT parallel speakers 4 ohm load"]
        D1["INPUT PL6L"] --> E1["OUTPUT"]
        D2["INPUT PL6L"] --> E2["OUTPUT"]
        D3["INPUT PL6L"] --> E3["OUTPUT"]
        D4["INPUT PL6L"] --> E4["OUTPUT"]
        E1 --> F1["PROEL"]
        E2 --> F2["PROEL"]
        E3 --> F3["PROEL"]
        E4 --> F4["PROEL"]
    end
    A1 --> B1 --> B2 --> B3 --> B4
    B1 --> C1 --> C2 --> C3 --> C4
    B2 --> C1 --> C2 --> C3 --> C4
    B3 --> C1 --> C2 --> C3 --> C4
    B4 --> C1 --> C2 --> C3 --> C4
    style Left ParallelSpeaker fill:#f9f,stroke:#333
    style Right ParallelSpeaker fill:#ccf,stroke:#333

SAFETY AND PRECAUTIONS

- CAUTION: before using this product read carefully the following safety instructions. Take a look of this manual entirely and preserve it for future reference.

When using any electric product, basic precautions should always be taken, including the following:

- To reduce the risk, close supervision is necessary when the product is used near children.

- Protect the apparatus from atmospheric agents and keep it away from water, rain and high humidity places.

- This product should be site away from heat sources such as radiators, lamps and any other device that generate heat.

- This product should be located so that its location or position does not interfere with its proper ventilation and heating dissipation.

- Care should be taken so that objects and liquids do not go inside the product.

- This product may be capable of producing sound levels that could cause permanent hearing loss. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a period of time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible noise level exposures shown in the following chart. According to OSHA, any exposure in excess of these permissible limits could result in some hearing loss. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels use hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or over the ears must be worn when operating the equipment in order to prevent permanent hearing loss if exposure is in excess of the limits set forth here. Keep your's attention that children and pets are more susceptible to excessive noise levels.

Duration Per Day In Hours	Sound Level dBA Slow Response	Typical Example
8	90	Duo in small club
6	92
4	95	Subway Train
3	97
2	100	Very loud classical music
1.5	102
1	105	Traffic noise
0.5	110
0.25 or less	115	Loudest parts at a rock concert

IN CASE OF FAULT

- In case of fault or maintenance this product should be inspected only by qualified service personnel when:

- There is a flaw either in the connections or in the supplied connecting cables.

– Liquids have spilled inside the product.

- The product has fallen and been damaged.

- The product does not appear to operate normally or exhibits a marked change in performance.

- The product has been lost liquids or gases or the enclosure is damaged.

- Do not operate on the product, it has no user-serviceable parts inside, refer servicing to an authorized maintenance centre.

TROUBLESHOOTING

No Sound • Is the loudspeaker cable connected?• Is the SPEAKON cable connector correctly inserted? turn it clockwise until it clicks.• Are you sure your power cable works properly? check it using a cable tester or replacing with a newone.

As soon as the music gets loud, the high frequency shuts down• The HF driver protection trips to protect the HF driver from excessive signal: turn down the volume and mid/high tone controls.

Distorted Sound • Input signal level is too high. Turn down your level controls.

Different channel level• Check if are using a balanced cable for one channel and an unbalanced one for the other, as this would cause a considerable difference in channel levels.• Be sure that your loudspeaker system is fully connected and both loudspeakers have the same impedance.

Noise / Hum• Enable GND LIFT button on rear panel, if the problem persist press all GND LIFT buttons for all system's amplifiers.• Whenever possible, preferably use only balanced cables. Unbalanced lines may also be used but may result in noise over long cable runs.• Sometimes it helps to plug all audio equipment into the same AC circuit so they share a common ground.

CE CONFORMITY

• Proel products comply with directive 2004/108/EC (EMC), as stated in EN 55103-1 and EN 55103-2 standards and with directive 2006/95/CE (LVD), as stated in EN 60065 standard.

• Under the EM disturbance, the ratio of signal-noise will be changed above 10dB.

PACKAGING, SHIPPING AND COMPLAINT

- This unit package has been submitted to ISTA 1A integrity tests. We suggest you control the unit conditions immediately after unpacking it.

- If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow inspection.

- Proel is not responsible for any damage that occurs during shipment.

- Products are sold "delivered ex warehouse" and shipment is at charge and risk of the buyer.

- Possible damages to unit should be immediately notified to forwarder. Each complaint for package tampered with should be done within eight days from product receipt.

WARRANTY AND PRODUCTS RETURN

- Proel products have operating warranty and comply their specifications, as stated by manufacturer.

- Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed description. This warranty does not extend to damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned units, and when the unit has been properly used and warranty is still valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct damage" or "indirect damage" caused by product defectiveness.

INSTALLATION AND DISCLAIMER

• Proel products have been expressly designed for audio application, with signals in audio range (20Hz to 20kHz). Proel has no liability for damages caused in case of lack of maintenance, modifications, improper use or improper installation non-applying safety instructions.
• The installation of these speakers is provided for indoors, in case of use outdoors be sure that the speakers are installed correctly in a safe location protected from wind, rain and humidity. To avoid performance deterioration of mechanical, acoustics and electrical parts is not advisable to leave these speakers exposed outdoors for a long period of time, so we suggest a temporary installation for the limited sound events.
• The installation of these speakers is provided for floor or by means of specific stands able to support their weight. Therefore avoid installation on unstable elements such as: furniture, chairs and vibrant surfaces as stages or other speakers without appropriate fix point specifically designed to avoid speaker movement. Then avoid the use of inadequate supports, we suggest to use PROEL stands and accessories only.
• In case of the speakers are provided of rigging points: DO NOT SUSPEND THE SPEAKERS FROM THE HANDLES, use exclusively these rigging points. Consult professional rigger or structural engineers prior to suspending loudspeakers from a structure not intended for that use. Always know the working load limit of the structure supporting the loudspeakers. Always make sure that the rigging hardware minimum rating is at least five times the actual load, speakers and rigging hardware.
• Locate the speakers as far away as possible from radio or television receivers or other sensitive equipment. These speakers have a strong magnetic field which can induce hum and noise into unshielded devices that are located nearby with consequent deterioration of reception of image and sound.
• Proel S.p.A. reserves the right to change these specifications at any time without notice.
• Proel S.p.A. declines any liability for damages to objects or persons caused by lacks of maintenance, improper use, installation not performed with safety precautions and at the state of the art.

GENERAL INFORMATION

Thank you for having chosen a PROEL product.

The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package. For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service. The dual-angle pole holder featured in LT8, LT10 and LT12 models offers the possibility to obtain a more uniform coverage of the audience.

For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion. The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses.

4 passive models are available, featuring carefully designed crossover filters with HF electronic protection. The choice of black or white cabinet, built-in flying points and a wide range of accessories make them suitable for any kind of fixed installation.

The LT loudspeaker systems can be combined with the SW subwoofers capable of providing the perfect low frequency extension for each model of the series.

INSTRUCTIONS (FIG. 1 / 2 / 3)

1. INPUT (SPEAKON)

External amplifier power input: this is the connector where you plug in the power cable coming from your power amplifier or powered mixer. The powered signal is filtered by an internal passive crossover that splits the power signal into a low frequency section, sent to the woofer, and a high frequency section, sent to the tweeter/driver. The frequency transition is around 2KHz. The INPUT has this pin connection:

PIN1+ (or TIP): positive power signal (usually red wire)

PIN1- (or SLEEVE): negative power signal (usually black wire)

2. LINK (SPEAKON)

Output of the power signal to be sent to an another satellite loudspeaker. INPUT and LINK connectors are connected in parallel.

CHOOSE THE AMPLIFIER POWER

We give you three power numbers: continuous, program and peak.

So these data suggest you can use any amplifier with a power capability in the range between continuous and program, but this rule is valid only if the amplifier never clip any time.

Preventing loudspeaker damage caused by clipping, that is likely the number one cause of damage, and assuming you want to use the full capability of the loudspeaker, we recommend the use of an amplifier with a built-in limiter to prevent clipping, in this case the rated power capability must be in the range between continuous and program power rating of the loudspeaker into the same nominal impedance (tipically 4 or 8 ohms):

• To obtain the best result using 4 (as single 8 ohm speaker for each channel) to 8 (as parallel 4 ohm speaker for each channel) LT6P connected in stereo, we suggest the use of PROEL AUP4150 amplifier.
• To obtain the best result using 2 (as single 8 ohm speaker for each channel) to 4 (as parallel 4 ohm speaker for each channel) LT8P connected in stereo, we suggest the use of PROEL HPX-900 amplifier.
• To obtain the best result using 2 (as single 8 ohm speaker for each channel) to 4 (as parallel 4 ohm speaker for each channel) LT10P connected in stereo, we suggest the use of PROEL HPX-1200 or DPX-1000 amplifier.
• To obtain the best result using 2 (as single 8 ohm speaker for each channel) to 4 (as parallel 4 ohm speaker for each channel) LT12P connected in stereo, we suggest the use of PROEL HPX-2400 or DPX-1500 amplifier.

IMPORTANT: Clipping occurs when the signal at the output of any device in the system (not just the amplifier) reaches its maximum level. Proper operation of a sound system includes being aware of the types of audio signals being reproduced, controlling the output levels accordingly, and operating all the devices in the system so that no clipping occurs within the signal chain.

AVVERTENZE PER LA SICUREZZA
