USER MANUAL Artia A51T Proel

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

96MAN0140-REV.12/20

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the enviroment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

GENERAL SAFETY INSTRUCTIONS

Proel S.p.A. declines any liability for damages to objects or persons caused by lack of maintenance, improper use, installation not performed with safety precautions and at the state of the art.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

EN54-24 CERTIFICATION

The product is in compliance with EN54-24:2008 standard.

CE CONFORMITY

The product is in compliance with CE Directive LVD 2014 / 35 / CE as stated in EN 60065 standard.

TECHNICAL SPECIFICATION

System Type	Wall Mount Speaker
Drivers	1" tweeter5" woofer
Power Rating @ 8Ω (nominal)	50 W
Rated Noise Power 100h	50 W
Power rating @ 100V	50 / 25 / 12.5 / 6.25 W
Power rating @ 70V	50 / 25 / 12.5 / 6.25 / 3.12 W
Impedance	8 Ω (nominal)200 / 400 / 800 / 1.6K Ω @ 100V100 / 200 / 400 / 800 / 1.6K Ω @ 70V
Connector	Ceramic Terminal block
Power selection	Rotary Switch
Measure Environment	Free Field
Frequency Response (-10 dB)	90 - 20k Hz
Sensitivity at 1W (1 kHz, 1m / 4m)	89.6 / 77.6 dB
Sensitivity at 1W (Pink Noise 6dB Crest Factor, 1m / 4m)	86.6 / 74.6 dB
Max SPL (Pink Noise 6dB Crest Factor, 1m / 4m)	100.4 / 88.4 dB
Coverage Angle at 500 / 1k / 2k / 4k Hz (-6dB)	Hor.: 360° / 180° / 130° / 85°Vert: 360° / 145° / 85° / 35°
Cabinet	Black (RAL 9011)/White (RAL 9016)
Material	ABS / Aluminium
Environmental Type	B
Protection Degree	IP43C using PG11 glands
Operating Temperature	-25 ÷ +55 °C (-13 ÷ +131 °F)
Relative humidity	<95%
Dimensions (mm)	170 x 245 x 175 (W x H x D)
Mounting	on wall using supplied bracket
Weight	2.3 kg (5.07 lb)
Standard Compliance	EN54-24:2008
Certification	0051-CPR-1996

DESCRIPTION

A51T is a compact, two-way, surface-mount loudspeaker system designed for constant-voltage or constant-impedance applications. It is equipped with a 127 mm (5") woofer and a 1" dome tweeter, able to provide an excellent speech intelligibility with wide dispersion, together with a very good background music reproduction.

A51T features a transformer to operate on 100V and 70V constant voltage systems. In a sealed compartment on the rear panel, together with the rotary selector for power taps or impedance, it includes, in compliance with EN 54-24:2008, a ceramic terminal block and a thermal fuse and it is, therefore, suitable for the use in voice alarm systems.

The ABS cabinet is available in black (A51TB) or white (A51TW) color finishing, allowing the best décor matching in any environment.

The IP43C environment protection allows the A51T speaker to be installed both indoors and outdoors.

INSTALLATION INSTRUCTIONS

[1] Separate the bracket parts (B) and (D) removing the screw and the washers (A). Then mark on the wall the fixing points for the (B) part (you can refer to the wall drilling template (H)).
[2] Fix the bracket (B) to the wall choosing an appropriate fastening system for the wall type (no fastening system is provided with the product - C). For maximum safety, consider that the fastening has to hold 5 to 10 times the weight of A51T. Note that the slot holes can accept two 6mm screws or bolts (C).
[3] Assemble the bracket part (D) to the speaker using the (E) screws.
[4] Remove the rear cover (F) and insert the speaker line cables into the black rubber slots. We suggest to use a proper speaker cable with two insulated wires in a single jacket, with diameter between 6mm and 12mm.
[5] Connect the speaker line wires to the terminator block (H), taking care to follow the +/- polarity.
[6] Set the power to be delivered to the speaker using the rotary switch (I).

WARNING! When the speaker is used in a 100V system, take special care NOT to set the rotary switch in position 5 (N.C.). Failure to observe this warning may cause damage to the duct.

[7] Close the rear cover (F) and fix the speaker to the wall, combining the two bracket parts (B) and (D) with the proper screw and washers (A).
[8] Aim the speaker to the listening area to be covered, then tighten the screw (A).

PG-11 CABLE GLANDS MOUNTING INSTRUCTIONS

Each speaker is provided with two additional PG-11 cable glands, that can be mounted on the rear cover for installations requiring IP43 level protection.

Technical line drawing of a mechanical component with threaded fasteners and bolts (no text or symbols)

TO INSTALL the PG-11 CABLE GLANDS

• Remove the rubber plugs from the cover's holes.
• Insert the PG-11 cable glands tightening the nut.
• The PG-11 cable glands can accept cables with overall diameter from 5mm to 10mm.

TRATTAMENTO DEL DISPOSITIVO ELETTRICO OD ELETTRONICO

A FINE VITA

Technical line drawing of a mechanical component with threaded connectors and housing (no text or symbols)

PER INSTALLARE I SERRACAVO PG-11

POLAR RESPONSE / RISPOSTA POLARE

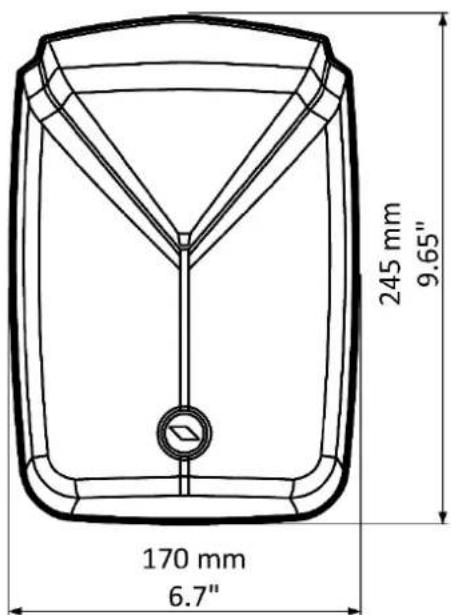

DIMENSIONS / DIMENSIONI

Line drawing of a 3D rectangular prism with cut edges and a flat top surface (no text or symbols)

INSTALLATION INSTRUCTIONS / ISTRUZIONI INSTALLAZIONE

0051

PROEL S.p.A.

Loudspeaker for voice alarm systems

for fire detection and fire alarm systems for buildings

Surface mount speaker

A51T

Type B

PROEL S.p.A. (World Headquarters - Factory)
