USER MANUAL DDX7047 KENWOOD

MANUEL D'INSTALLATION

MONITOR CON RECEPTOR DVD

MANUAL DE INSTALAÇAO

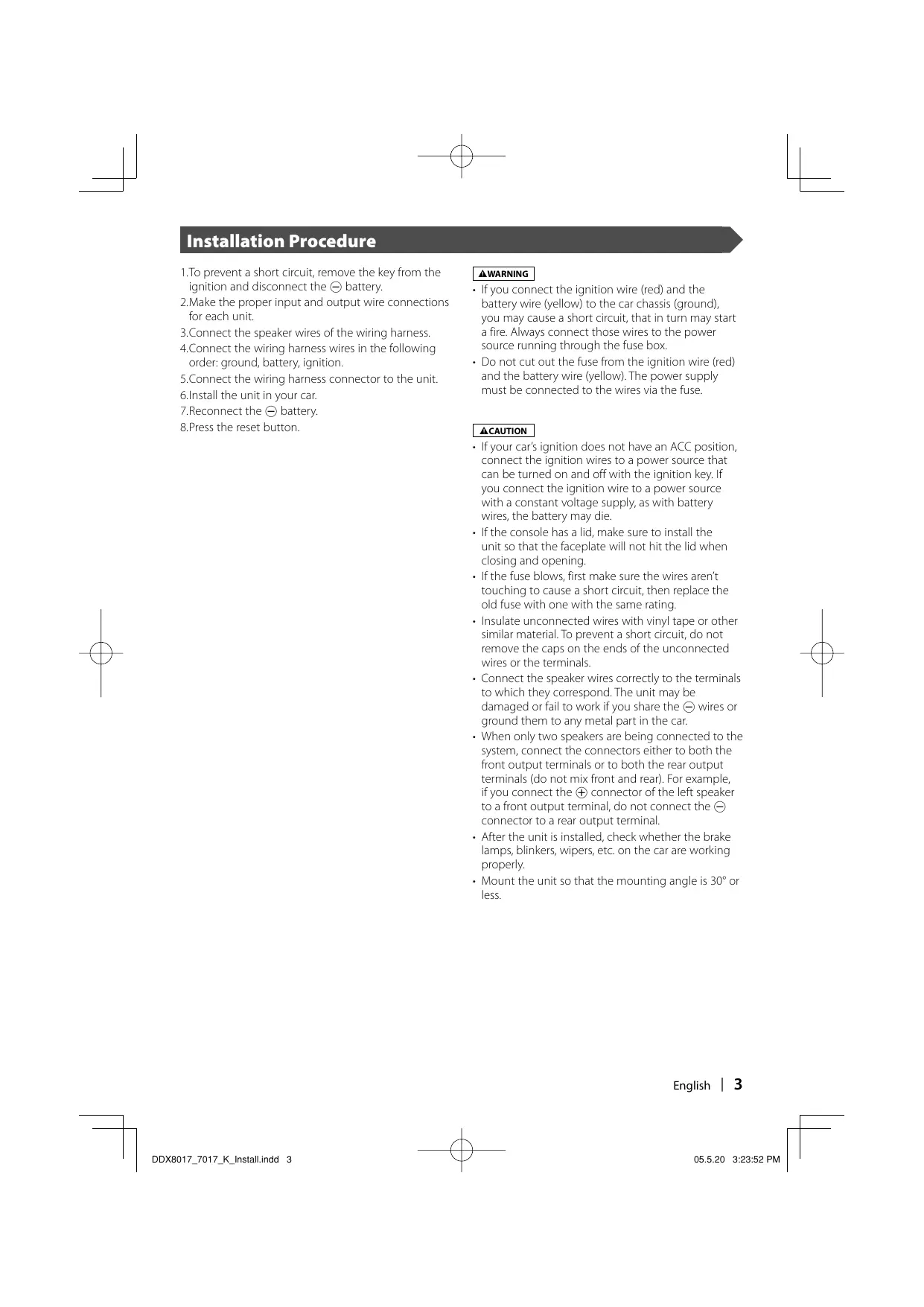

© B54-4467-00/00 (KV/RV) Installation Procedure

1. To prevent a short circuit, remove the key from the

ignition and disconnect the - battery.

2. Make the proper input and output wire connections

3. Connect the speaker wires of the wiring harness.

4. Connect the wiring harness wires in the following

order: ground, battery, ignition.

5. Connect the wiring harness connector to the unit.

6. Install the unit in your car.

7. Reconnect the - battery.

8. Press the reset button.

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse. 2CAUTION

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the - wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the + connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less. English | Connection TV tuner (Optional) If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

TV ANTENNA INPUT

TO MONITOR UNIT

Disc Changer etc.(Optional) Antenna Cord Connection cable (Included in the disc changer) Connect to the vehicle's parking brake detection switch harness using the supplied relay connector. For the sake of safety, be sure to connect the parking sensor. PRK SW Parking sensor wire (Green) To Vehicle's reverse lamp harness To car light control switch Reveres sensor wire (Pink) Dimmer control wire (Orange/White) Ground wire (Black) - (To car chassis)

Battery wire (Yellow)

( 5A ) Ignition wire (Red)

To Steering remote Steering remote control input (Light Blue/Yellow) If no connections are made, do not let the cable come out from the tab. Ground wire (Black) - (To car chassis) Connect to the terminal that is grounded when either the telephone rings or during conversation. ACC Car fuse box (Main fuse) Battery wire (Yellow)

To connect the Kenwood navigation system, consult your navigation manual.

Depending on what antenna you are using, connect either to the control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna. When using the optional power amplifier, connect to its power control terminal. To "EXT.AMP.CONT." terminal of the amplifier having the external amp control function. Mute wire (Brown) Motor antenna control wire (Blue) Power control wire (Blue/White) External amplifier control wire (Pink/Black) If no connections are made, do not let the cable come out from the tab. 4 | English Connection cable (Included in the TV tuner) IConnection cable (Included in the Navigation system) Rear view Wiring harness (Accessory 1) Wiring harness (Accessory 2) REVERSE ILLUMI Navigation System (Optional) FRONT L REMO.CONT White/Black

FRONT R Gray/Black REAR L

ANT. CONT EXT.CONT REAR R To front right speaker Gray Green/Black. Green P CONT To front left speaker White MUTE

To rear left speaker Purple/Black Purple

To rear right speaker English | System Connection To TV Tuner unit (DDX8017/DDX7017) Do not connect. To Navigation System AV IN 1 AV OUT AV IN 2 To Disc Changer etc. 6 | ■ Front Preout

• Audio left output (White)
• Audio right output (Red) ■ Rear Preout
• Audio left output (White)
• Audio right output (Red) ■ Subwoofer Preout
• Audio left output (White)
• Audio right output (Red) ■ Center Preout (DDX8017 only) ■ Audio/Visual Output
• Audio left output (White)
• Audio right output (Red) ■ Rear View Camera Input
• Visual input (Yellow) ■ Audio/Visual input 2
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red) ■ Audio/Visual Output
• Visual output (Yellow) ■ Audio/Visual input 1
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red) English System Connection To TV Tuner unit (DDX7047) Do not connect. To Navigation System AV IN AV OUT To Disc Changer etc. ■ Front Preout
• Audio left output (White)
• Audio right output (Red) ■ Rear Preout
• Audio left output (White)
• Audio right output (Red) ■ Subwoofer Preout
• Audio left output (White)
• Audio right output (Red) ■ Audio/Visual Output
• Audio left output (White)
• Audio right output (Red) ■ Rear View Camera Input
• Visual input (Yellow) ■ Audio/Visual Output
• Visual output (Yellow) ■ Audio/Visual input
• Visual input (Yellow)
• Audio left input (White)
• Audio right input (Red) English | Installation for Monitor/Player Unit Firewall or metal support Screw (M4X8) (commercially available) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw (commercially available) Metal mounting strap (commercially available) Accessory 3 Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). 8 | English Installing in Japanese-Made Cars ■ Installation on Toyota, Nissan or Mitsubishi Car using Brackets Accessory 5 (M5x6mm) or Accessory 6 (M5x7mm) Car Bracket Accessory 5 (M5x6mm) or Accessory 6 (M5x7mm) English | Installation of Remote control unit ■ Install the remote control unit holder (Accessory 7). Double-stick tape (included) Remote control holder 7 To prevent the Remote control unit from dropping down under your foot, install it using the Remote control unit holder. If the Remote control unit drops down under driving pedals, it will interfere with your driving and may result in a traffic accident. 10 | English Removing Monitor Unit ■ Removing the Hard Rubber Frame (escutcheon)

1. Engage the catch pins on the removal tool 4

and remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Removal Tool (Accessory 4) Catch Lock

2. When the lower level is removed, remove the

upper two locations. The frame can be removed from the top side in the same manner. ■ Removing the Unit

1. Remove the hard rubber frame by referring

to the removal procedure in the section <Removing the Hard Rubber Frame>. Removal Tool (Accessory 4)

2. Remove the Hex-head screw with integral

washer (M4 × 8) on the back panel.

3. Insert the two removal tools 4 deeply into

the slots on each side, as shown.

4. Lower the removal tool toward the bottom,

and pull out the unit halfway while pressing towards the inside. Be careful to avoid injury from the catch pins on the removal tool.

5. Pull the unit all the way out with your hands,

being careful not to drop it. English |
