XTEND - Child car seat JANE - Free user manual and instructions

Product type	Abdominal protector for child car seat
Brand	JANE
Model	XTEND
Compatibility	JANE group 2-3 car seats: Montecarlo, Montecarlo Plus, Momo Racing, INDY team, INDY team Plus, Superguard
Use	Converts a group 2-3 seat into group 1 (children from 9 to 18 kg)
Safety standard	European Directive ECE 44/04
Material	Impact-absorbing material, fabric cover
Main functions	Abdominal protection, frontal ventilation channels, extra padding, removable and washable cover
Installation	On rear or front seats with three-point belt; front airbag must be deactivated
Care and cleaning	Cover washable at 30°C max, do not tumble dry; plastic parts cleaned with lukewarm water and soap
Safety	Do not use with lap belt; do not leave child unattended; replace after a severe accident
Spare parts and repairability	Replacement cover available; no modifications without JANE authorization
General information	Accessory for JANE group 2-3 car seats; do not use without original cover

Frequently Asked Questions - XTEND JANE

How to install the Xtend abdominal protector in the car?

Seat the child on the seat, place the abdominal protector, route the seatbelt over it, then pass the lap belt through the red belt guides and tighten. Then pass the shoulder belt through the red belt guide and tighten the assembly. Refer to the diagram in the manual.

Can I use the Xtend with an active front airbag?

No, the front airbag must be deactivated or disconnected. Check with your vehicle manufacturer.

Which JANE car seats is the Xtend compatible with?

It is compatible with JANE group 2-3 seats: Montecarlo, Montecarlo Plus, Momo Racing, INDY team, INDY team Plus and Superguard.

How to clean the cover of the abdominal protector?

The cover is removable. Remove it by following the instructions (pull the fabric around the plastic part, then pull the top part backward). Wash at 30°C maximum, do not tumble dry.

Can I use the Xtend with a lap belt?

No, this is very dangerous. The Xtend requires an approved three-point seatbelt.

Is the Xtend abdominal protector suitable for a 15 kg child?

Yes, the Xtend is designed for children from 9 to 18 kg (group 1).

What should I do if the abdominal protector has been involved in an accident?

JANE recommends replacing the protector with a new one, as its safety may be compromised even without visible damage.

How to store the abdominal protector when not in use?

Secure it with the seatbelt or store it in the trunk to prevent it from being thrown during braking or an accident.

Can I wash the plastic parts of the Xtend?

Yes, clean them with lukewarm water and soap, then dry thoroughly.

Can I use the Xtend without the original cover?

No, the cover is an integral part of the safety system. Never use without cover and do not replace it with a non-original cover.

USER MANUAL XTEND JANE

General instructions 8
Installing your Xtend Abdominal Protector in the Car 10
Warnings 11
Recommendations 12
Maintenance 13

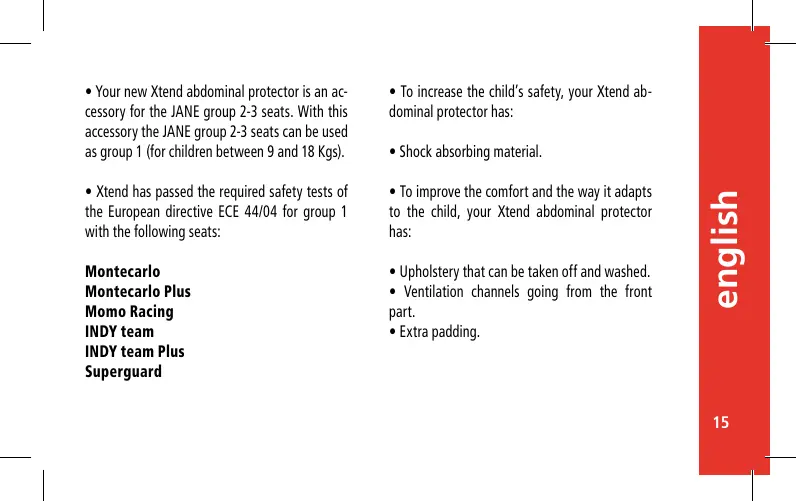

• Your new Xtend abdominal protector is an accessory for the JANE group 2-3 seats. With this accessory the JANE group 2-3 seats can be used as group 1 (for children between 9 and 18 Kgs).
• Xtend has passed the required safety tests of the European directive ECE 44/04 for group 1 with the following seats:

Montecarlo Montecarlo Plus Momo Racing INDY team INDY team Plus Superguard

• To increase the child's safety, your Xtend abdominal protector has:
• Shock absorbing material.
  To improve the comfort and the way it adapts to the child, your Xtend abdominal protector has:
• Upholstery that can be taken off and washed.
• Ventilation channels going from the front part.
• Extra padding.

GENERAL INSTRUCTIONS

In order to suitably protect the child and ensure his comfort and security in the car, it is necessary to observe the following instructions:

• The seat with the abdominal protector has been designed to be installed on the rear or front seats of the car, whenever they are fitted with three-point seat belts and a frontal AIRBAG is not connected. However, for maximum safety we advise you to install it on the rear seat whenever possible.

• It is only suitable for vehicles fitted with automatic three-point seat belts, certified by regulation ECE-16 or other equivalent standards. DO NOT use with a two-point seat belt, as this is

very dangerous in the event of sudden braking or an accident.

• In some vehicles the seat belt strap with the clasp is positioned quite far forward, and it may be in contact with the edge of the booster seat, which means it is not safe. If this is the case, try moving the seat forwards or install it on another seat.
• Not all safety systems are exactly the same, which is why we advise you to test the Xtend

abdominal protector in the vehicle in which it will be installed.

• It is very important not to use second hand products, as JANE, S.A. can only guarantee the complete safety of articles used by the original buyer.
  JANE, S.A. advises you to replace the Xtend abdominal protector with a new one when it has been subjected to violent stress in an accident.
• Check that all the straps are positioned correctly and duly adjusted to fit the child. Make sure that no strap is twisted. The child must un

derstand that he must not play with the straps or clasps under any circumstances.

• The Xtend abdominal protector is designed for use in the car, therefore it must not be used out of the car.

For more information regarding the use and installation of the Xtend abdominal protector consult our web page: www.jane.es.

Installing your Xtend Abdominal Protector In The Car.

Place the seat on the car seat in accordance with the advice and warnings given in the GENERAL INSTRUCTIONS.

1A Sit the child in the seat and fit the abdominal protector on him.
1B Pass the seat belt over the abdominal protector and fasten it.
1C Pass the abdominal seat belt through the red guides of the protector and tighten it.
1D Pass the shoulder belt through the red guide and tighten the whole lot.

To take the child out of the seat, you only have to unfasten the seat belt and remove the protector.

When it is not in use, DO NOT leave the seat or the abdominal protector unfastened in the vehicle, fasten them again with the seat belt or store them in the luggage compartment.

When you put the child back in the seat again, make sure that none of the straps are twisted or out of place and check they are flat against the belt guide area.

WARNING

• Never leave the child alone.
• Any alteration or addition to the device without the authorisation of JANE, S.A. may seriously alter the safety of the retention system.
• The instructions for the correct use of the retention system must be carefully followed to ensure the child's safety.
• This safety device must not be used without its upholstery, and it must not be replaced by another one different from the original, as it forms an integral part of the system's safety characteristics.
• Do not recline the seat when it is in use. To lower or raise the booster seat, you should adjust the length of the seat belt. Do this when the vehicle has stopped.
• This retention system can only be used in conjunction with a booster seat with a backrest classified as group 2-3 from the JANE group. These include the Indy Team, Indy Team Plus, Montecarlo, Montecarlo Plus, Momo Racing and Superguard.

RECOMMENDATIONS

• Keep this instruction book for future reference.
• Always store it in the compartment on the side of the abdominal protector.
• Make sure that inside the vehicle, any luggage or other object which may cause damage in the event of an accident is correctly fastened or stored.
• The Xtend abdominal protector must be correctly fastened with the seat belts, even if it is not in use, as in the event of an accident it could get flung about and injure the occupants of the vehicle.
• Remember not to use the Xtend abdominal protector in vehicles fitted with a frontal AIRBAG, unless it can be disconnected or deactivated. You can find this out by consulting the vehicle manufacturer or retailer.
• Check that it does not get caught between the fold down seats or the doors of your vehicle.

MAINTENANCE

• Do not expose the upholstery to the sun for prolonged periods of time, when the protector is not in use cover it up or store it in the luggage compartment.
• Wash the plastic parts with soap and warm water, and then dry all the components thoroughly.
• The upholstery can be taken off for washing. Follow the instructions below:

2A Remove the from around the plastic part.
2B Pull the upper part of the upholstery backwards.

• Wash at a temperature not exceeding 30^
• Do not tumble dry.
• To fit the upholstery again, follow the same steps in reverse order.
