Product Type	Laser Rangefinder
Model	CA770
Brand	Cotech
Measuring Range	0.05 – 70 m
Accuracy	± 2 mm
Measurement Units	m, ft, in
Laser Class	Class 2, < 1 mW, 635 nm
Functions	Distance, Area, Volume, Continuous Measurement, Addition/Subtraction, Memory
Display	Backlit LCD
Auto Shut-off	After 3 minutes of inactivity (laser), after 30 seconds (device)
Power Supply	2 × AAA batteries (1.5 V)
Battery Life	Up to 5,000 measurements
Dimensions (H × W × D)	115 × 50 × 28 mm
Weight	130 g (including batteries)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Water/Dust Protection	IP54 (splash proof)
Included Accessories	Carrying case, wrist strap, 2 × AAA batteries, user manual
Cleaning	Wipe with a soft, dry cloth; do not use solvents
Safety	Do not point laser at eyes; avoid reflective surfaces
Repairability	No user-serviceable parts; contact service center for repairs
Warranty	2 years

Frequently Asked Questions - CA770 Cotech

How to switch between units (m/ft/in)?

Press and hold the UNIT button for 2 seconds to cycle through meters, feet, and inches.

What is the maximum measuring distance?

The Cotech CA770 can measure up to 70 meters under favorable conditions (good target reflectivity, daylight).

How to perform continuous measurement?

Press and hold the MEASURE button for 2 seconds to enter continuous mode. The distance updates in real time. Press again to stop.

Why does the device show an error or no reading?

Common causes: target too far, poor reflectivity (e.g., dark surface), laser misaligned, or low battery. Ensure the target is within range and clean the lens.

How to replace the batteries?

Slide off the battery cover on the back and insert 2 AAA batteries with correct polarity. Close the cover securely.

Is the laser safe for eyes?

The device uses a Class 2 laser (< 1 mW). Avoid direct eye exposure. Do not stare into the beam.

Can I measure distances through glass or water?

No, the laser cannot penetrate glass or water. Measurements through glass may be inaccurate. Always measure to a solid, opaque target.

How to clean the lens?

Use a soft, lint-free cloth slightly dampened with water. Do not use alcohol or abrasive cleaners. Dry thoroughly before use.

What does the 'Err' message mean?

'Err' indicates an invalid measurement. The target may be too close (< 0.05 m), too far, or the laser signal is weak. Check the target surface and try again.

How to store the device when not in use?

Remove the batteries to prevent leakage. Store in the included carrying case in a dry, cool place (0–40°C). Avoid direct sunlight and humidity.

USER MANUAL CA770 Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our customer services.

1. Safety

Warning:

• Class 2 laser product (EN 60825-1:2007).
- Never look into the laser beam.
- Never point the laser beam into the eyes of people or animals.
- Do not use the distance meter on or near highly reflective surfaces since the laser beam can be reflected back into your own or someone else's eyes.
- Keep the distance meter out of children's reach.

2. Product description

• Accurate laser measurements.
• Memory and mathematical functions for calibrating, area, volume, total measurements and indirect height measurements.
• Backlit display.
• Measuring range: 0.05–70 m.
  • Automatic shut-off.
• Fold-out reference pin.

2.1 Package contains

- Carry case

- Laser distance meter

- Batteries

- Wrist strap

- Pen

- Instruction manual

2.2 Buttons and functions

1. LCD-display
2. +/u Press to add measurements or long press in to select the unit of measurement.
3. Press to measure or long press for continuous measure.
4. ☑ Press to select measuring function for area, volume or preset distance.
5. Press for timer set measuring and long press to display saved measurement.
6. Wrist strap mount
7. Laser lens
8. Press to subtract measurements or long press to turn on the backlight.
9. ⓐ Press for indirect measuring according to Pythagoras theorems I, II and III.
10. Ⓒ Press to turn on and long press to turn off.
11. Press to change measuring reference or long press to operate or turn off the laser pointer.
12. Receiver lens

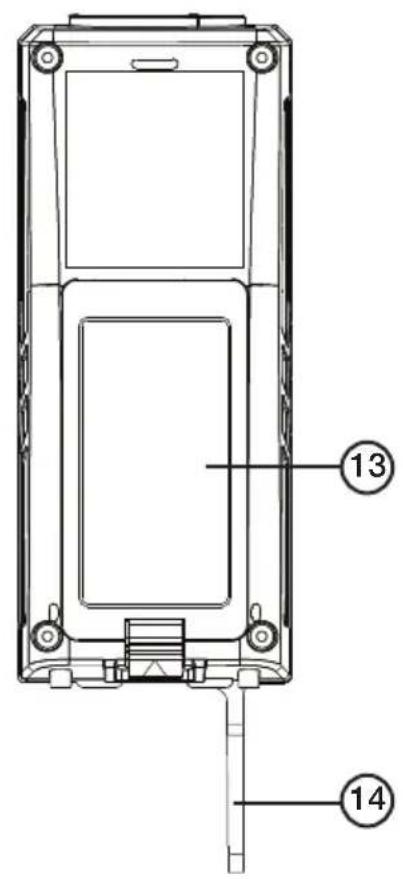

13. Battery cover
14. Fold-out reference pin

2.3 Digital display

The chosen function is shown on the display.

1. The laser icon will be displayed if the laser pointer is on.

2. Indirect measurement.

3. Pythagoras theorem measurement.
   • 4 Sum of two Pythagoras theorem measurements.
   • Subtracting one Pythagoras measurement from another.

4. Measuring functions

5. □ Area measurement
   • Volume measurement

6. Number of saved readings.

7. Timer set measurement

8. ■ Selected measuring reference point.

9. Shows any result added or subtracted from the previous measurement.

10. Max display for continuous measurement.

11. Min display for continuous measurement.

12. Displays the measuring direction between studs.

13. Main screen which displays both measurement results and units.

14. Battery status, battery symbol shows empty when it needs changing.

15. Upper display area shows measuring results and units.

16. Displays the selected unit of measurement.

3. Measuring

Important

• Measure against a hard, even surface and make sure that the area between the meter and the measured surface is free from obstructions to enable the most accurate readings.
  • Distance can be measured from the front or back of the device or by using its fold-out reference pin.
• If you need to measure the distance to a surface which is soft, irregular or too small, place a piece of cardboard in front of the surface.
• The laser beam may not be used to measure through glass surfaces. Reflections from such measuring may be faulty due to reflections.

3.1 Inserting batteries

1. Open the battery cover on the bottom.
2. Insert two AA/LR6 alkaline batteries according to the polarity markings in the battery compartment.

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

3.2 Measuring distance

Note: Always make sure that you have chosen the correct unit of measurement before measuring. The unit of measurement is displayed on the upper right corner of the screen (see Selecting the unit of measurement). Make sure that a reference point is chosen (see Changing reference points).

1. Press ☐ turn on the distance meter and laser. The laser indicator will display when the laser is on.
2. Turn on the backlight when needed. Long press ⓣ until the light comes on.
3. Point the laser onto the area to be measured and press once to measure (a short beep will be heard once the measurement has been taken).
4. The measured distance will be shown on the display.
5. If no button is pushed for 30 seconds, the laser will turn off automatically and after 3 min the device will also turn off.

3.3 Adding or subtracting measurements

Suitable for situations requiring several measurements because of immovable obstacles.

1. Take the first reading. Select distance, area or volume. Then press Ⓗ/∪ to save the reading to memory.
2. Take a second reading and press +/u to add or */- subtract the previous reading.
3. The sum is shown at the bottom of the display. Press +/U to save the reading to memory.
4. Then start again from step 2 to complete your measurements.

Example: Adding measurements

1. Take the first reading and then press +/U to save it temporarily into memory.
2. Point the laser to the next area to be measured and press 📂 again to measure. Then press +/u to add the current reading to the previous one.
3. The sum will be shown at the bottom of the display. The two added readings are shown above it.
4. Continue adding readings by pressing +/u and starting again from step 2. The sum will move to the top.

Example: Subtracting measurements

1. Take the first reading and then press +/U to save it temporarily into memory.
2. Point the laser to the next area to be measured and press 📂 again to measure. Press ⚡️ to subtract the current reading from the previous one.
3. The sum will be shown at the bottom of the display. The two previous readings are shown above it.
4. Continue subtracting readings by pressing ⚙️ and starting again from step 2. The result will move to the top.

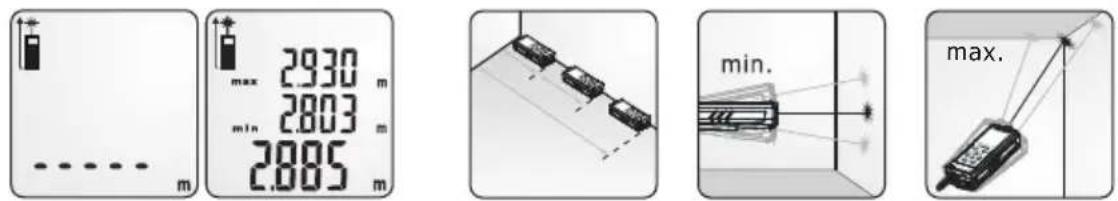

3.4 Continuous measurement

1. Long press NEAS for about three seconds.
2. The laser beam will be automatically activated.
3. Press © or NEAS if you wish to pause continuous measuring.
4. During measuring both the min and max values will be displayed.
5. To finish measuring, first press Ⓞ to pause and Ⓞ again to finish.

3.5 Timer set measuring

In order to ensure accurate measurements by having the device perfectly still, you can measure by setting the timer.

1. Point the laser to the area to be measured.
2. Press the required number of times to set your desired trigger time (3 to 15 seconds).
3. Press MEAS to turn on the laser.
4. Press 📋 to start the timer. When the timer has counted down and completed measuring a beep will be heard and the result will show in the display.

3.6 Changing reference points

The distance meter has three measuring references.

The last measuring reference used will also be the pre-selected measuring reference the next time it is used.

When needed, the measuring reference can be changed as follows:

Press Ⓜ until the measuring reference you desire appears in the upper left hand corner of the display.

Simple diagram of a vertical bar with an upward arrow and starburst symbol (no text or labels)

Measuring from the front of the distance meter.

Simple diagram of a battery with an arrow indicating upward motion (no text or symbols)

Measuring from the fold-out reference pin.

Simple black-and-white diagram of a battery with an upward arrow and starburst symbol (no text or labels)

Measuring from the back of the distance meter.

3.7 Selecting the units of measurement

Long press ⬤/IV until the desired unit of measurement is shown in the lower right hand corner. Available units of measurements:

	metres feet inches	(x.x)	0'0" 1/32	inches (x.x)	尺
Length m ft in			0'0" 1/32	in	尺
Area m^2 ft^2 ft^2	ft^2 ft^2 2				坪/尺
Volume m^3 ft^3	ft^3 ft^3 ft^3 m^3

Note: The same unit of measurement will be pre-selected the next time the meter is used.

4. Calculation functions

Note: Always make sure that you have chosen the correct units of measurement before measuring. The unit of measure is displayed on the lower right corner of the screen (see Selecting the units of measurement). Make sure that a reference point is chosen (see Changing reference points).

4.1 Area measurement

Follow the instructions on the display. The corresponding symbol for what is to be measured will flash on screen.

1. Press Ⓐ to start the distance meter and laser. The laser indicator will display when the laser is on.

2. Press ☑ once to select the area measuring function (the rectangle will show on the display). The length side will begin to flash.

1. Point the laser over the area to be measured to measure length and press once to measure (a short beep will be heard once the measurement has been taken).
2. The measured distance will be shown on the display. The width side of the rectangle will begin to flash.
3. Point the laser over the area to be measured, in the other direction and press 📂 again to measure width (a short beep will be heard once the measurement has been taken).
4. Both readings will show on top. The sum is shown at the bottom of the display.

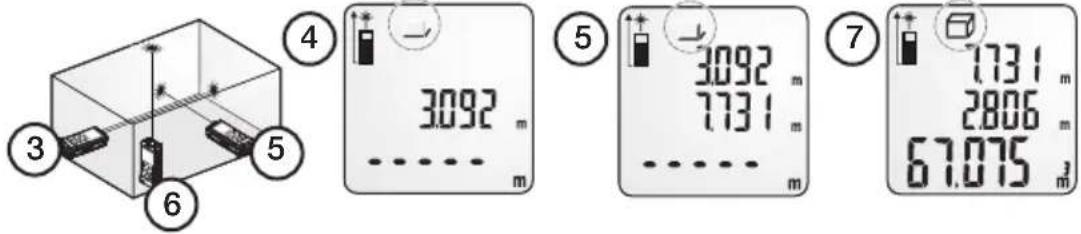

4.2 Volume measurement

Follow the instructions on the display. The corresponding symbol for what is to be measured will flash on screen.

1. Press Ⓐ to turn on the distance meter and laser. The laser indicator will display when the laser is on.
2. Press ☑ twice to select the volume measuring function (the cube will show on the display).

1. Point the laser over the area to be measured to measure length and press once to measure (a short beep will be heard once the measurement has been taken).
2. The measured distance will be shown on the display.
3. Point the laser over the area to be measured, in the other direction and press 📄 again to measure width (a short beep will be heard once the measurement has been taken).
4. Point the laser vertically on the surface of the area to be measured and press to measure height (a short beep will be heard once the measurement has been taken).
5. The two previous readings will appear on top. The sum is shown at the bottom of the display.

4.3 Indirect measurement

Follow the instructions on the display. The corresponding symbol for what is to be measured will flash on screen.

The meter uses Pythagoras' formula (a^2 + b^2 = c^2) to measure height indirectly.

1. Press Ⓤ to turn on the distance meter and laser. The laser indicator will display when the laser is on.
2. Press ④ to select indirect measurement (a triangle symbol will show in the display).
3. Point the laser to the highest point of the object to be measured (the triangle's hypotenuse will flash) Press MEAS to register the first reading.
4. Point the laser directly parallel to the object to be measured (the triangle's base will flash). Press 📋 to start measuring.
5. The height (the triangle's vertical line will begin to flash) is calculated automatically and will be shown on the display.

4.4 Measuring to a preset distance

Perfect when installing wall joists, fence posts, etc.

1. Press ☑ three times to open the menu for preset distance.

2. The smallest value will start to flash.

3. Press ☐ to change values.

4. Press +/U or */- to increase or decrease the set measure. Hold the button down to advance more quickly.

5. The preset distance can be reset by pressing ⓒ.

6. When the desired measure has been set, press 📋 once and you will leave the settings mode.

1. Start continuous measurement according to the section Continuous measurement.

2. The display will show a direction arrow, either forwards or back.

3. Move the distance meter in the direction of the arrow until both arrows show on the screen.

4.5 Display saved readings

1. Long press Ⓤk to display your saved readings.

2. The memory symbol will show on the display. The measurement type symbol will also be displayed.

3. Browse between different readings with +/U and -/.

4.6 Turning on the backlight

Turn on the backlight when needed. Long press Ⓦ/− until the light comes on.

5. Care and maintenance

The distance meter is a sensitive instrument which should be handled carefully.

- Do not subject the instrument to knocks, strong vibrations or high temperatures.

- Store the meter in a clean and dry environment.

- Do not expose the instrument to dust or moisture since the lens can be damaged.

- Wipe the instrument with a soft cloth when needed.

- Remove the battery from the meter if it is not to be used for an extended period.

- Change the battery when the battery symbol shows empty.

6. Troubleshooting

Error code	Description of fault Possible solution
Err01	Out of range. Measure shorter distances.
Err02	The reflected signal is too weak. Select a better area to measure.
Err03	Out of the display's range, max value 99,999 e.g. when measuring area for example.	Redo the measurement using several stages.
Err04	Pythagoras calculation error. Make sure the measurement was done correctly.
Err05	Flat battery. Change batteries.
Err06	Outside the recommended temperature range.	Measure inside the recommended range.
Err07	Background light is too strong. Measure in dimmer lighting conditions.

7. Specifications

Model CA770

Measuring range 0.05–70 metres

Resolution 0.001 metres

Accuracy ± 1.5 mm

Measuring speed 0.5 seconds

Laser type 650 nm, Class 2, < 1 mW

Beam size 25 mm at 30 metres

Batteries 2 × AA/LR6-batteries

Battery life Up to 10,000 measurements

Dimensions 110 × 45 × 30 mm

Operating temperature -5 to +40 °C

Storage temperature -20 to +60 °C

Automatic shut-off Laser 30 seconds

Distance meter 180 seconds

Technical line drawing of a rectangular electronic device with internal components and a separate housing (no text or symbols)

3.2 Avständsmätning

Simple diagram of a vertical bar with an upward arrow and starburst symbol (no text or labels)

Simple diagram of a battery with an arrow indicating upward motion (no text or symbols)

Simple diagram of a battery with an upward arrow and starburst symbol (no text or labels)

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

3.2 Avstandsmåling

Simple diagram of a vertical bar with an upward arrow and starburst symbol (no text or labels)

Måling fra framkant av avstandsmåleren.

Simple diagram of a battery with an arrow indicating upward motion (no text or symbols)

Simple black-and-white diagram of a battery with an upward arrow and starburst symbol (no text or labels)

1. Trykk på Ⓞ for å skru på avstandsmåleren og aktivere laserstrålen. Laserindikatoren vises när laserstrålen er aktivert.

2. Trykk på 📄 en gang for å velge arealmåling (et rektangel vises på skjermen). Den ene streken i rektangelet blinker.

1. Trykk på © for å skru på avstandsmåleren og aktivere laserstrålen. Laserindikatoren vises när laserstrålen er aktivert.

2. Trykk på 📄 to ganger for å velge volummåling (en kube vises på skjermen).

Technical line drawing of a mobile phone chassis with front panel and rear panel (no text or symbols)

3.2 Etäisyysmittaus

Simple diagram of a vertical object with an upward arrow and starburst symbol, no text or labels present.

Simple diagram of a battery with an arrow indicating upward motion (no text or symbols)

Simple black-and-white diagram of a battery with an upward arrow and starburst symbol (no text or labels)

Technical line drawing of a rectangular electronic device with internal components and a separate housing (no text or symbols)

3.2 Abstandsmessung

Simple black-and-white diagram of a vertical object with an upward arrow and starburst symbol (no text or labels)

Simple diagram of a battery with an arrow indicating upward motion (no text or symbols)

Simple black-and-white diagram of a battery with an upward arrow and starburst symbol (no text or labels)

POSTAL 10 – 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

DEUTSCHLAND
