Product Type	Pressure Washer
Model	YLQ22SH-150, YLQ22SH-150-UK
Rated Voltage	230 V AC, 50 Hz
Power Consumption	1700 W
Operating Pressure	110 bar (11 MPa)
Max. Allowed Pressure	150 bar (15 MPa)
Max. Water Supply Pressure	7 bar (0.7 MPa)
Water Consumption	6.67 l/min
Max. Water Temperature	40 °C
Weight	8 kg
Protection Class	IPX5
Sound Pressure Level	81.2 dB(A) (K=3 dB(A))
Sound Power Level	90 dB(A) (K=3 dB(A))
Vibration Level	2 m/s² (K=1.5 m/s²)
Backlash Force	12 N
Included Nozzles	Standard adjustable nozzle, Turbo nozzle lance
Detergent System	Detergent tank included
Accessories Included	Car wash brush with adaptor, Quick connector nipple
Hose Reel	Yes, pressure hose reel
Cable Reel	Yes
Safety Features	Safety lock on trigger, automatic safety valve, RCD recommended
Storage Temperature Range	5 °C to 40 °C

Frequently Asked Questions - YLQ22SH-150 Cotech

How do I start the pressure washer?

Connect the garden hose and pressure hose, open water tap, connect the plug to a mains socket with RCD, press the trigger, and turn the power switch to the I position. Ensure the safety lock is disengaged.

What type of detergent can I use?

Use only detergents specifically designed for pressure washers. Other detergents or chemicals may damage the washer or cause personal injury.

How do I adjust the water jet?

Turn the front portion of the standard nozzle to adjust the spray pattern from a narrow jet to a wide fan. Do not use the turbo lance for this adjustment.

Why is the machine not starting?

Check that the plug is connected, the socket has power, and the RCD/fuse is not tripped. Also ensure the power switch is on and the trigger is pressed to release any pressure.

How do I clean the inlet filter?

Disconnect the garden hose from the water inlet, remove the filter with pliers, clean it under running water, and replace it. Clean after each use to prevent clogging.

Can I use an extension cord?

Yes, but it must be a waterproof extension lead designed for outdoor use with a minimum cross-section of 1.5 mm². Keep it away from heat, sharp objects, and do not use it if damaged.

How do I store the pressure washer for winter?

Drain all water by running the pump with trigger pressed for 30 seconds. Disconnect hoses, clean the filter and nozzle, and store in a dry place between 5°C and 40°C. Frost damage voids the guarantee.

What safety precautions should I take?

Always wear protective glasses and ear defenders. Never point the spray at people, animals, or electrical equipment. Keep a 15 m safety zone and use an RCD. Disconnect power before servicing.

How do I release pressure after use?

Turn off the power switch, shut off the water tap, and press the trigger for a few seconds until water stops flowing. Then unplug the power and disconnect hoses.

What is the maximum water temperature allowed?

The water supply temperature must not exceed 40 °C. Do not use hot water from a water heater or similar.

USER MANUAL YLQ22SH-150 Cotech

White CO TECH water heater with coiled cable and wheels (no visible text or symbols)

ART.NO. 18-3116 40-6767

MODEL YLQ22SH-150-UK YLQ22SH-150

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services (see address on reverse).

Important safety guidelines

1. Do not use the pressure washer before reading the entire instruction manual.
2. Electrical tools should be connected to the mains with RCD (tripping at max. 30 mA within max. 30 ms).
3. Never use the pressure washer if there are bystanders in the vicinity, unless they are wearing protective clothing and glasses.
4. Pressure washers can be dangerous if used in the wrong way. Never point the water spray at people, animals, the pressure washer itself or any other electrical equipment.
5. Never point the water spray at yourself to attempt to wash the clothes or shoes that you are wearing.
6. Always pull the plug out of the wall socket before servicing and adjusting the machine.
7. The pressure washer may not be used by minors or persons without the prerequisite knowledge of the machine.
8. High pressure hoses, connections and accessories are important safety features. Use only accessories or exchangeable parts which are recommended by the manufacturer.
9. Never use the washer if the connection cable or any other important part is damaged: Safety features, high-pressure hose, lance, pistol grip, etc.
10. Warning: Use of incorrect extension leads can be dangerous.
11. If an extension lead is used it must be equipped with a waterproof plug and socket designed for outdoor use.
12. Damaged power leads and switches must always be replaced by a tradesman.
13. Be very attentive to minimise the risk of accidents if the pressure washer is to be used around children.
14. Learn how the pressure washer works so that you can quickly stop it and depressurise it.
15. Never use the pressure washer if you are tired or under the influence of drugs, alcohol or medication.
16. Keep the work area free of bystanders and pets.

17. Do not overreach or stand on unsteady surfaces. Always stand balanced with both feet on the ground.

18. Follow all instructions for service and maintenance as described in the instruction manual.

19. Always use protective clothing and safety goggles or a visor. Stones and other small objects can be thrown by the high-pressure spray.
20. Use hearing protection.
21. The wall socket that the pressure washer is connected to must have been installed by an electrician according to IEC 60364-1 standards.
22. Use only detergent designed for pressure washers. Other detergents and chemicals can damage the washer or result in personal injury.

- Keep this instruction manual, so that it is ready for use and can be used when loaning out the machine.

1. Safety rules

1. Make sure that the mains power at the socket is 230 V AC, that extension leads have an area of at least 1.5 mm^2 and that an RCD is installed.
2. Pull out the plug from the socket when the washer is not in use.
3. Keep the extension leads away from sources of heat, sharp metal objects, sharp corners etc.
4. Do not touch the electrical connections or move the pressure washer with wet hands.
5. Do not use the pressure washer or hose that is damaged. These must be exchanged immediately. Only use hoses and connections that are recommended by the manufacturer.
6. Do not expose the pressure washer to concentrated acid solutions, solvents or to environments containing flammable/explosive materials/liquids/gases, petrol, thinning agents, etc.
7. Do not lock the trigger in the on position.
8. There is no adjustable safety valve. When the water reaches maximum pressure the safety valve opens automatically.

Key to warning symbols

The high pressure washer is marked with important symbols or instructions for the safe use of the pressure washer.

Warning: Pressure washers can be dangerous if used in an improper way. Never point the water jet at people, animals, the pressure washer itself or any other electrical equipment. Always pull the plug out of the wall socket before servicing and adjusting the product.

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Use ear defenders and protective glasses or a visor.

2. Areas of use

• The pressure washer is designed to be used for the cleaning of: cars, lawnmowers, bicycles, etc.
• The pressure washer is designed to be used outdoors for the cleaning of: stones, wood, metal and plastic materials.

Caution: Read carefully through the instruction manual before using the pressure washer, be extra attentive to the warning texts and symbols. This pressure washer has many functions that make your job faster and easier. Safety, efficiency and quality have influenced the development of this pressure washer which is also easy to use and requires minimal maintenance.

3. Operation

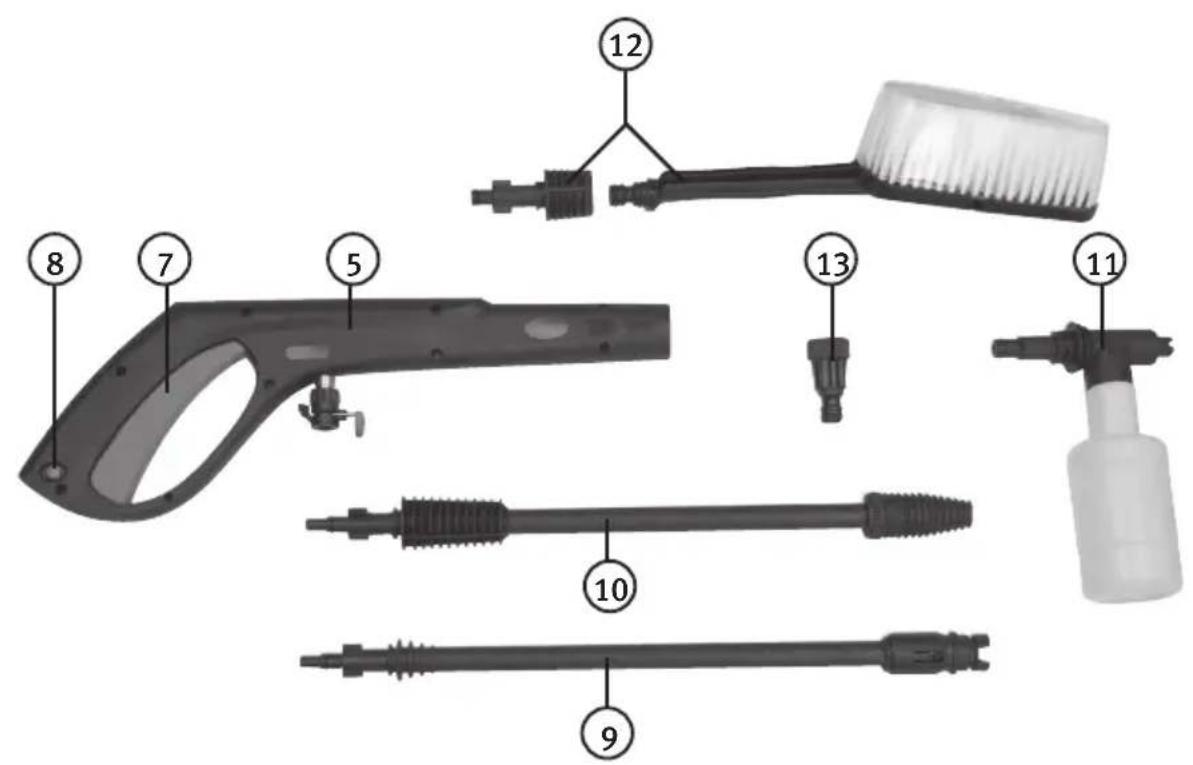

3.1 Getting familiar with the machine

1. Power switch
2. Handle
3. Pressure hose connection
4. Water supply inlet
5. Pistol grip
6. Pressure washer reel
7. Trigger
8. Safety lock
9. Standard lance with adjustable nozzle
10. Turbo nozzle lance.
11. Detergent tank
12. Car wash brush with adaptor
13. Quick connector nipple
14. Cable reel

3.2 Preparations for use

Check that all the parts are intact and that nothing is missing.

Caution: Turn off the pressure hose and pull the plug from the socket when servicing and adjusting the machine.

1. Check that the power switch is in the 0 position.

2. Grab the centre of the hose reel's handle and pull outwards to unlock the reel, then wind out the hose.

3. Connect the pressure hose (6) to the outlet connection (3).

4. Connect the pressure hose (6) to the pistol grip (5).

5. Connect the pistol grip (5) and lance (9) by pushing it into the lance (9) with the bayonet connection on the pistol grip (5) and turn it clockwise until it locks. Do this before attempting to use the pressure washer.

Caution: Make sure that the nozzle is securely fastened onto the lance otherwise it can be shot from the lance with extreme force. The above description even applies for the detergent tank and car wash brush with adaptor connected.

1. Connect a garden hose (not included) between the water tap and the machine's inlet connection (4), using either a threaded or quick connection. The water inlet (4) is already equipped with a filter from the manufacturer to remove any dirt, sediment and other contaminants which can damage the washer.
2. Pull the trigger, releasing any possible air until water begins flowing.

Caution: The temperature for the water supply must not exceed 40 °C .

Run the hose for a moment if the hose has sat in the sun and become warm.

The pressure hose must be operated in an upright/vertical position. It must not be used in the lying/horizontal position.

Caution: Make sure that no bystander or pet is within a 15 metre risk zone from the nozzle before continuing assembly.

1. Make sure that the garden hose used is undamaged and securely connected at both ends. Open the water tap completely (or as much as needed to supply the pressure washer).
2. Connect the lead's plug to a wall socket, press the trigger (7), point the lance towards a risk-free direction and turn on the motor with the power button (1).

- If the water supply is from a tank or similar source without pressure, both the pump and the inlet hose must be filled with water before the pump is started.

The tank must be placed at higher level than the pressure washer. If the water has contaminants or is cloudy an inlet filter must be mounted to the hose inlet.

- N.B. The recommended distance between the nozzle and the surface to be cleaned is approx. 30 cm. Shorter distances produce a higher degree of cleaning power on the surface to be cleaned. A longer distance produces a gentler cleaning for sensitive surfaces.

• Do not lay the power cable on roads, bike paths, etc. where there is a risk for damage.
• Caution: Never use a shorter connecting hose that 6 metres (1/2" hose). The hose buffers possible pressure surges in the water lines and protects the pressure washer and allows it work smoothly.
• Caution: When water streams from the lance backfire occurs, therefore it is important to hold it steady with both hands while standing in a balanced position.
• Never point the water jet at people, animals, the pressure washer itself or any other electrical equipment.
• Use protective glasses since water and particles can spray back towards you when pointing the water jet against an object.
• Caution: Turn off the pressure washer and pull the plug if you take a longer pause from the job. Do not leave the machine on while unattended.

3.3 Adjusting the nozzle

Make sure that the pressure washer is correctly assembled. Point the lance towards the surface to be cleaned, press the trigger and turn on the motor with the power button (1).

The water jet's width can be adjusted by turning the nozzle's front portion, see figure (not valid for the turbo lance).

3.4 Turning off after use

1. Press 0 on the power switch.
2. Shut off the water tap.
3. Minimise the pressure on the remaining water in the pump and hose by pressing the trigger for a few seconds or as long as it takes for all the water to run out of the nozzle.
4. Unplug the plug from the wall socket.
5. Loosen the pressure hose from the washer, Press in the handle into the hose reel and wind in the hose.

3.5 Storage

- Make sure that the inlet filter for incoming water (4) and the nozzle are cleaned before placing the pressure washer into storage. Store the pressure washer in a dry area out of the reach of children and others who do not have the prerequisite knowledge to operate the machine. Disassemble the pressure hose and lance and store them with the pressure washer. Avoid storing the pressure washer in temperatures under 5 °C or over 40 °C.

N.B. Protect the washer against frost. Make sure that it is completely emptied before storing.

Caution: Never run the pressure washer dry. The pump's seals can be damaged.

- Remember that the pressure washer may still be under pressure even when turned off. Depressurise it by pressing the trigger before you disconnect the hoses. Removing the pressure hose while pressurised can be dangerous.

- New nozzles for the pressure washer can be bought from the distributor.

Caution: Never look into the nozzle when it is mounted on the washer.

4. Care and maintenance

Caution: Turn off the pressure hose and pull the plug from the wall socket when servicing and adjusting the machine. Regular cleaning of the inlet connection's inlet filter (4) and the nozzle are important for the proper operation of the pressure washer. The inlet filter should be removed and cleaned regularly to prevent sediments in the water from damaging the pump and seals.

- Make sure the nozzle is open, carefully remove debris and build-up and rinse with clean water.

- Clean the inlet filter after use: Loosen the hose from the connection, remove the filter with pliers, clean when needed and replace when finished.

- Protect the washer against frost, empty it completely* and remove the pressure hose. Place the pressure washer in dry storage for the winter.

N.B. The guarantee is not valid if the machine is frost damaged.

* Start the pump with the trigger pressed or with the pressure hose removed and let the pump run for 30 seconds to completely empty the pump.

5. Troubleshooting

Problem Possible cause / Remedy
The machine does not start.	If the plug is connected, is there power at the socket, is the fuse/RCD whole/untripped?The washer is under pressure. Press the trigger.Problem with plug/socket.Problem with extension lead. Try another lead.Incorrect voltage. Check voltage.The power button is in the 0 position.
The pump has insufficient pressure.	Plugged/worn nozzle. Clean or change.Insufficient water supply. Check: A 10-litre container should be able to be filled within a minute.There can be a kink in the hose. Make sure it is straight.The inlet filter can be clogged. Make sure that it is clear and clean it when necessary.The garden hose is clogged or is leaking. Check.
Leaking pump.	The hose couple nipple is not tight.
The pump stops.	The RCD/fuse has tripped. Check.The extension lead is too long. Try it without an extension lead.The machine is overheating because of insufficient water supply. The inlet filter may be clogged. Test the water flow:A 10-litre container should be able to be filled within a minute.
No water comes out of the nozzle or there is an insufficient amount.	The pump is not drawing in water. Press the trigger and release any possible trapped air and make sure that the suction hose is filled with water. The pressure hose must be operated in an upright/vertical position. It must not be used in the lying/horizontal position.Clogged nozzle. Clean.The inlet or outlet valve is damaged. Change.
The trigger cannot be depressed.	The safety lock is activated. Press the orange button to release the lock.

6. Disposal

Dispose of your waste responsibly, sort and recycle where possible.

All machines, hoses and packing material should be sorted and handled according to local environmental regulations. If you are unsure of how to dispose of this product, please contact your municipality.

Symbol of a trash bin crossed with no visible text or labels

7. Technical Specification

Model YLQ22SH-150, YLQ22SH-150-UK

Rated voltage 230 V AC, 50 Hz

Power consumption 1700 W

Max. water supply pressure 7 bar (0.7 Mpa)

Operating pressure 110 bar (11 Mpa)

Max. allowed pressure 150 bar (15 Mpa)

Water consumption 6.67 l/min

Max. water temperature 40 °C

Weight 8 kg

Protection class IPX5

Sound pressure level (LpA) 81.2 dB(A) K: 3 dB(A)

Sound Power (LwA) 90 dB(A) K: 3 dB(A)

Vibration 2 ~m / s^2 ~K: 1.5 ~m / s^2

Backlash force 12 N

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

7. Tekniset tiedot

Malli YLQ22SH-150, YLQ22SH-150-UK

Nimellisjännite 230 V AC, 50 Hz

Teho 1700 W

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

7. Technische Daten

Declaration of Conformity

Machinery directive 2006/42/EC

EN 60335-2-79:2004 +A1

EMC directive 2004/108/EC

EN 55014-1:2006 EN 55014-2:1997+A1 EN 61000-3-2:2006 EN 61000-3-3:1995 +A1+A2

Low voltage directive 2006/95/EC

EN 50366:2003+A1 EN 60335-1:2002 +A1+A11+A12

Klas Balkow

President

Insjön, Sweden, 2011-10-14
