Product Type	Pressure Washer
Model	HPA1072-2
Voltage	220 - 240 V AC, 50 Hz
Input Power	2000 W
Maximum Input Water Pressure	6 bar (0.6 MPa)
Working Pressure	120 bar (12 MPa)
Maximum Pressure	140 bar (14 MPa)
Water Flow Rate	6.71 L/min
Water Temperature (Max)	40 °C
Weight	20.5 kg
IP Rating	IPX5
Sound Power Level (LwA)	96 dB(A)
Sound Pressure Level (LpA)	80 dB(A)
Vibration Rate	8.9 m/s²
Recoil Force	17 N
Included Accessories	Pistol grip, lance with adjustable nozzle, turbo lance, car wash brush, terrace cleaner, drain & pipe cleaner (15 m), adapter, cleaning needle
Safety Features	Residual current device (max 30 mA, 30 ms), safety lock on trigger, automatic pressure relief valve
Detergent System	Integrated detergent tank, low-pressure application
Hose Reel	Integrated hose wheel with crank
Storage Temperature	5 °C to 40 °C
Recommended Garden Hose	Minimum 6 m, 1/2 inch diameter
Warranty	As per local regulations, contact Clas Ohlson

Frequently Asked Questions - HPA1072-2 Cotech

Why won't the pressure washer start?

Check that the plug is securely connected and the socket has power. Ensure the fuse is intact. The power switch must be in the 'ON' position. If the machine is pressurised, press the trigger to release pressure. Also try without an extension cable.

What should I do if the pump provides low pressure?

Clean or replace the nozzle if blocked or worn. Check water supply: a 10-litre bucket should fill in one minute. Inspect hose for kinks. Clean the inflow filter. If the plunger seals or valve seat are damaged, contact customer service.

How do I adjust the nozzle spray pattern?

Rotate the nozzle on the lance to switch between narrow (high pressure) and wide (low pressure) beams. The turbo lance is not adjustable.

Can I use detergent with this pressure washer?

Yes, the machine has a detergent tank. Fill with approved detergent diluted as per manufacturer instructions. Use the adjustable nozzle lance or car wash brush in low-pressure mode (nozzle pulled off) to apply detergent.

How do I store the pressure washer after use?

Turn off and unplug the machine. Shut off water tap. Press trigger to release remaining pressure. Disconnect hoses. Clean the inflow filter and nozzle. Store in a dry, frost-free place between 5°C and 40°C, out of reach of children.

What safety precautions should I take?

Always wear protective goggles and clothing. Never aim the water jet at people or animals. Use a residual current device (max 30 mA). Keep a 15 m safety zone. Do not use if under influence of alcohol or drugs.

How do I clean the inflow filter?

Disconnect the garden hose from the water inlet. Use pliers to remove the filter from the connection. Rinse it with clean water and replace it before reconnecting the hose.

The trigger is stuck, what should I do?

Check if the safety lock on the pistol grip is engaged. Disengage it to free the trigger.

Can I use a longer hose than the one provided?

You can use an extension hose, but ensure it is at least 6 m long and 1/2 inch in diameter. Longer hoses may reduce pressure. Use a garden hose with a threaded or quick-connect fitting.

What is the maximum water temperature allowed?

The incoming water temperature must not exceed 40°C. If the hose has been in the sun, let cooler water run through before starting the machine.

USER MANUAL HPA1072-2 Cotech

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Co TECH water heater device with black handle and warning symbol (no text or labels on device body)

Pressure Washer Co/Tech 140 BAR

Art. nr: 18-3076 / 30-9584, modell: HPA10712-2-UK / HPA10712-2

Caution!

Always follow these rules when using this product:

1. Do not use the high pressure cleaner before having read the entire operations manual.
2. Never aim the water jet at yourself or any other person due to risk for personal injury. The water jet can penetrate the skin.
3. Electrical tools should be connected to the mains via a residual current circuit-breaker (tripping current maximum 30mA within a maximum of 30ms.)
4. Do not use the high pressure cleaner with people nearby nor without protective clothing and goggles.
5. High pressure cleaners can be dangerous if used incorrectly. Never aim the water jet at people or animals, or at the high pressure cleaner or other electrical equipment.
6. Never aim the water jet at yourself to wash clothes or shoes you are wearing.
7. Always unplug the mains cord before servicing and adjusting the machine.
8. The high pressure cleaner may not be used by minors or people not familiar with the machine.
9. Only use original parts for repairs for your own safety.
10. High pressure hoses, connections, and attachments are important safety parts; only use attachments or replacement parts recommended by the manufacturer.
11. Do not use the high pressure cleaner if the connection cable or another important part is damaged: Safety features, high pressure hoses, lances, pistol-grips, etc.
12. Caution: Faulty extension cables may be dangerous.
13. If an extension cable is used it must be equipped with a waterproof plug and waterproof extension socket designed to be used outdoors.
14. Damaged electrical cables and power switches should always be replaced by professionals.
15. Read the entire operations manual before using the product.
16. Be aware of the risk of accidents if the high pressure cleaner is used near children.
17. Familiarize yourself with how the high pressure cleaner works so you can quickly stop it and depressurise it.
18. Be attentive, be aware of what you are doing.

19. Do not use the high pressure cleaner if you are under the influence of alcohol, drugs, or medications.

20. Keep your working area free from onlookers and pets.

21. Do not reach too far or do not stand on an unstable surface. Always stand with both feet firmly on the ground and remain well-balanced.
22. Follow all instructions for service and maintenance described in the manual.
23. The high pressure cleaner should be connected to the mains via a residual current circuit-breaker (tripping current maximum 30mA within a maximum of 30ms.)
24. Always wear protective clothes and goggles or a visor. Rocks and other small objects may be expelled by the water jet. Use hearing protection.
25. The electric socket the high pressure cleaner is connected to should be installed by a qualified electrical installer in accordance with IEC 60364-1 norms.
26. Only use detergents intended for high pressure cleaners, other detergents and chemicals may damage the high pressure cleaner or cause personal injury.

Save this operations manual, to insure it is enclosed with the product when leant out to others.

1. Safety rules

1. Read all instructions before using the product; follow the safety rules to reduce the risk of accidents.
2. Check that the voltage in the socket is at 220-240 VAC, that the extension cables have a core area of at least 1.5 mm^2 , and that a residual current circuit breaker has been installed.
3. Unplug the cord when the high pressure cleaner is not in use.
4. Never expose the high pressure cleaner to rain and never aim the water jet at the high pressure cleaner.
5. Keep the extension cords away from heat sources, knives, sharp edges, etc. to avoid damage.
6. Do not touch the electrical connections with wet hands and do not move the high pressure cleaner with wet hands.
7. Do not use the high pressure cleaner if the high pressure hose is damaged; it must be replaced immediately. Only use hoses and connections recommended by the manufacturer.
8. Do not expose the high pressure cleaner to concentrated acids, solvents or to areas with flammable/explosive materials/fluids/gases, petrol, thinners, etc.
9. Do not keep the trigger pressed down.
10. There are no safety vents to adjust, when the water pressure reaches maximum the safety vents open automatically.

2. Areas of use

• The high pressure cleaner is intended for cleaning cars, lawn mowers, bicycles etc.
• The high pressure cleaner is intended for use outdoors for cleaning of: stone, wood, metal, and plastic materials.

Caution: Read the operations manual carefully before using the high pressure cleaner. Take particular notice of the cautions. This high pressure cleaner has many functions, which make your job easier and quicker. Safety, efficiency, and quality have guided the development of this high pressure cleaner. It is also easy to use and requires minimal maintenance.

3. Explanation of warning symbols on the machine:

The high pressure cleaner has markings with symbols containing important information or instructions for the use of the high pressure cleaner.

Caution: High pressure cleaners may be dangerous if used incorrectly.

Never aim the water jet at people or animals, at the high pressure cleaner, or other electrical equipment.

Always unplug the electric cord service and adjustment of the product.

Simple line drawing of a person's head wearing sunglasses inside a circle (no text or symbols)

Use hearing protection and goggles or a visor.

4. The package contains

Verify that all parts are undamaged and are included in the package at the time of delivery.

• High pressure cleaner with hose wheel
- Pistol grip with trigger
- Handle with fastening screws
- Lance with adjustable nozzle
- Adapter thread/bayonet
- Turbo lance
- Car wash brush
- Quick connection for incoming water
- Terrace cleaner with adjustable wash power
- Drain & pipe cleaner 15 m
- Cleaning needle for lances

5. Use

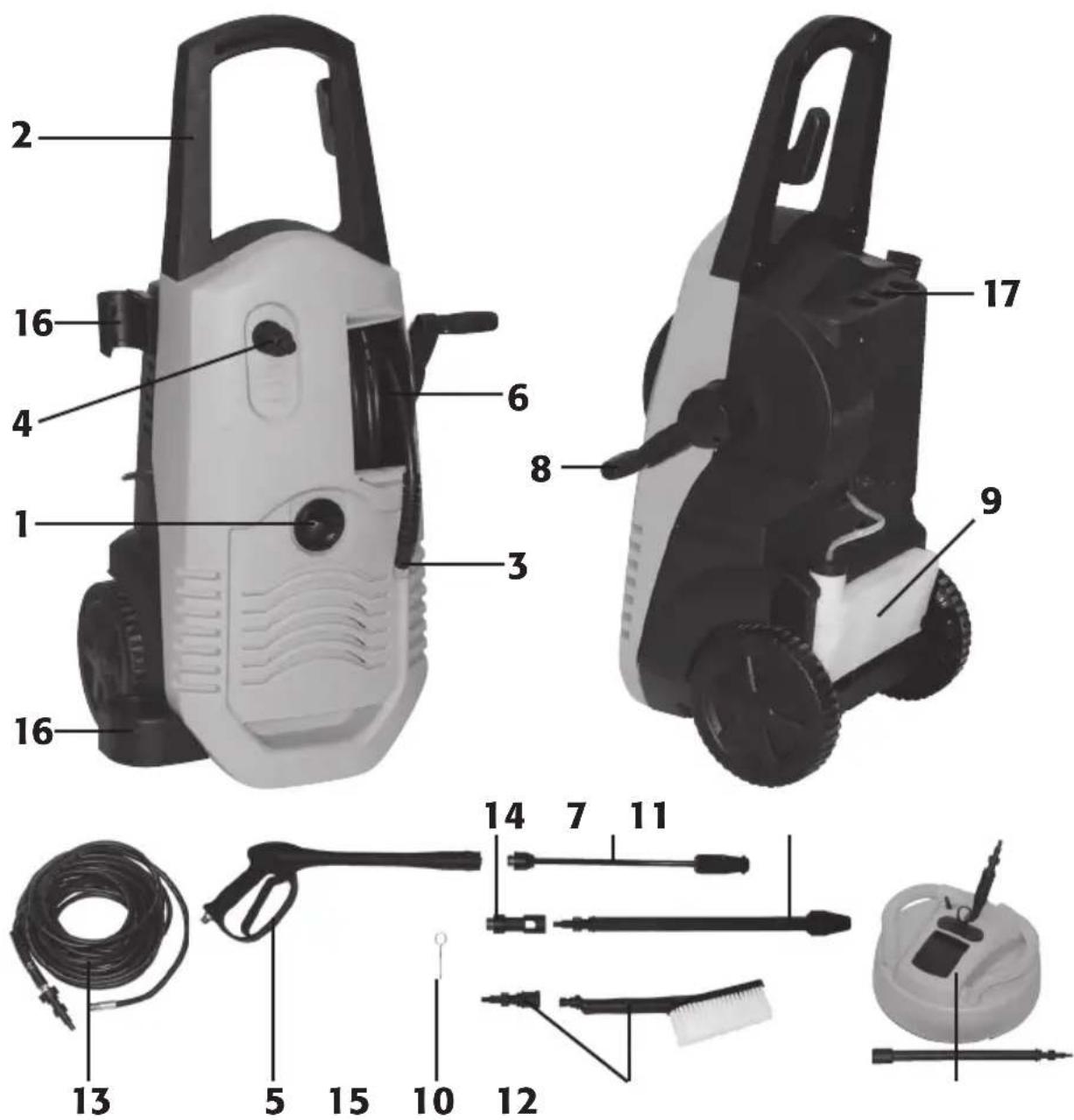

5.1 Getting to know your machine

1. Power switch
2. Handle
3. Connection for pistol grip
4. Connection for incoming water (with filter/packing)
5. Pistol grip with trigger
6. High pressure hose on a hose reel
7. Lance with adjustable nozzle
8. Hose wheel crank

9. Detergent holder

10. Car wash brush with bayonet adapter

11. Turbo lance
12. Terrace cleaner with adjustable wash power
13. Drain & pipe cleaner 15 m
14. Adapter thread/bayonet
15. Cleaning needle for lances
16. Holder pistol grip/lance
17. Compartment for attachments

5.2 Preparations before use:

Caution: Turn off the high pressure cleaner and unplug the electrical cord when servicing and adjusting the machine.

1. Check that the power switch is in the "0" position.
2. Connect the handle (2): Press it down from the upward position and secure it with the screws included (see fig. 1).

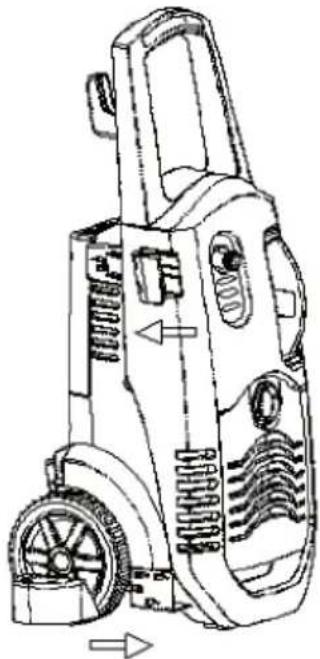

3. Connect the upper and lower holders for pistol grip/lance (16): Press the lower one to the right and the upper one to the left to fasten (see fig. 2).

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Fig 1.

Technical line drawing of a water heater with visible internal components and directional arrows indicating flow or movement (no text or symbols)

Fig 2.

1. Connect the high pressure hose (6) to the pistol grip (5), tighten with a spanner.

2. To use the regular lance (7): Attach the lance to the pistol grip (se fig. 3).

Close-up of hands holding a black mechanical device with a curved handle (no text or symbols visible)

Fig 3.

1. To use another attachment:

a. Attach the adapter (14) to the pistol grip (5) (see Illustration 3).
b. Attach one of the attachments (car wash brush, turbo lance, terrace cleaner, or drain & pipe cleaner) to the adapter as follows:

Press the holder of the attachment into the bayonet connection on the pistol grip (5) and turn clockwise until it locks. Do this before beginning to use the high pressure cleaner and attachments.

Caution: Make sure that the attachment is secure in the lance or it may be forcefully expelled from the lance.

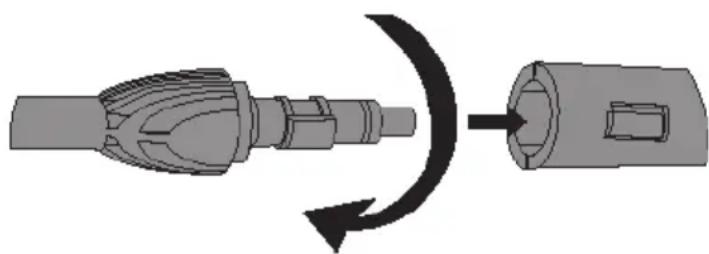

Diagram showing a mechanical component with a curved arrow indicating rotation or assembly (no text or symbols present)

1. Connect a garden hose (not included) to a water supply and to the connection for incoming water (4). Use a threaded connection or a quick connection.

The connection for incoming water (4) is factory fitted with a filter for removing sand and other pollutants that may damage the pump vents.

1. Press the trigger and release any air until the water flows.

Caution: The temperature of the incoming water must not exceed 40^ C. Let the water run for a while before starting if the hose has been lying in the sun and is warm. The high pressure cleaner must always be used in an upright/vertical position. Never use it lying down.

Caution: Make sure there are no people or pets within the risk zone of 15 m from the nozzle before assembly continues. The high pressure cleaner must be used in an upright/vertical position; use the high pressure cleaner standing up.

1. Make sure that the garden hose is intact and fastened at both ends. Turn the tap all the way on (or enough that the water supply is sufficient for the high pressure cleaner.)

2. Connect the mains cable to a socket, press the pistol grip trigger, aim the lance in a safe direction, and turn on the motor with the power switch (1).

If water is taken from a tank or similar without natural pressure, the pump and inflow of those must be filled with water before the pump is started. The tank must be at a higher level than the high pressure cleaner. If the water is polluted or cloudy, an inflow filter must be installed on the hose's inflow.

Attention: The recommended distance between the nozzle and surface to be washed is approximately 30 cm. Shorter distances provide higher cleaning power and may damage the surface being cleaned. Longer distances provide softer cleaning of fragile surfaces.

Do not place the connection cable on a pavement, cycle lane, etc, exposing it to damage.

Caution: Do not use a shorter connection hose than 6 m (1/2 inch hose). The hose absorbs any pressure surges in the water line and protects the high pressure cleaner, making it work more softly.

Caution: When the water sprays out from the lance, a recoil effect occurs on the lance. Therefore, make sure that you hold it steadily with both hands and that you stand firmly.

Never aim the water jet at people or animals or against the high pressure cleaner or any electrical equipment.

Use protective goggles, as water and particles may be kicked back when you aim the water stream at an object.

Caution: Turn off the high pressure cleaner during a long pause in your work. Do not leave the machine switched on without supervision. Activate the safety lock at the trigger.

5.3 Adjustment of the nozzle

(The turbo lance cannot be adjusted)

Make sure that the high pressure cleaner is correctly assembled. Aim the lance at the surface to be washed, press the trigger and turn on the motor with the power switch (1). Set to narrow or wide beam by turning the nozzle.

5.4 Use with detergent

The high pressure cleaner is equipped with a tank for detergent. Remove the rubber lid on the tank and add detergent (dilute according to the recommendations of the manufacturer,) replace the rubber lid.

The absorption of detergent only works with the lance with an adjustable nozzle (7) and the car wash brush (10). When using the brush, the detergent will be added continuously and the nozzle is controlled as follows:

• Press the nozzle of the lance to use the lance for high pressure cleaning. No detergent is added from the tank (HIGH).
• Pull off the nozzle of the lance to use the lance when adding detergent (LOW).

3D rendered image of a white industrial device with coiled tubing and a labeled component 'B' (no text or symbols on the device itself)

Close-up of hands using a handheld device to adjust or install a black component, labeled 'A' (no text or symbols on the device itself)

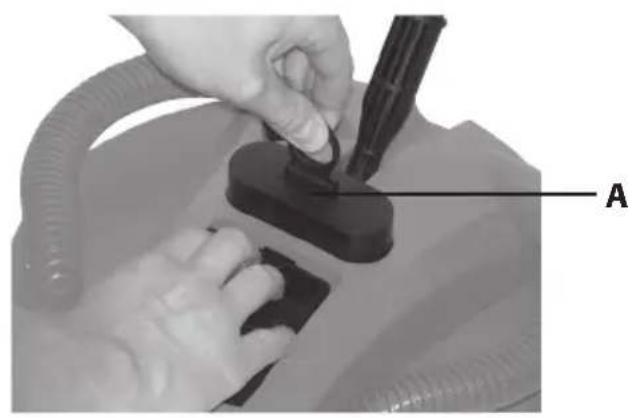

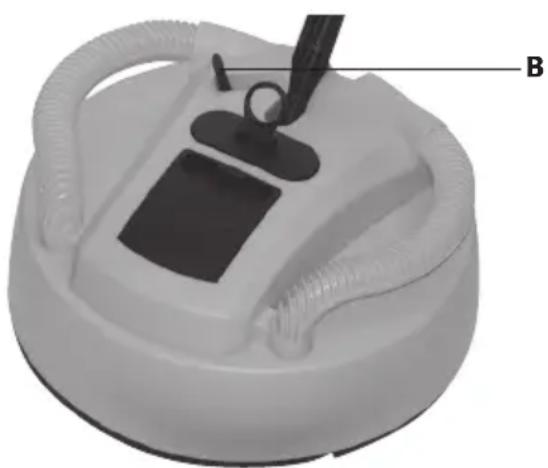

5.5 Adjustment of the terrace cleaner

The terrace cleaner has two possible adjustments:

• Raising and lowering the nozzles by releasing a lock and adjusting to the desired height.
• Adjusting the pressure with the lever

5.6 Switch off after use

1. Press the power switch.
2. Turn off the tap.
3. Reduce the pressure on the remaining water in the pump and hose by pressing the trigger for a few seconds, or until the water has run out of the nozzle.
4. Unplug the hose.

5.7 Storage

Make sure the inflow filter in the connection for incoming water (4) and the nozzle are cleaned before the high pressure cleaner is put away in storage. Store the high pressure cleaner in a dry and frost-free place out of reach of children and other people who have not read the operations manual.

Disconnect the cable and lance and store them with the high pressure cleaner. Avoid storing the high pressure cleaner in temperatures below 5^ C or above 40^ C.

Attention: Protect the high pressure cleaner from frost. Make sure that it is completely empty before it is put away for storage.

Caution: Never run the high pressure cleaner dry, as the pump's seals may be damaged.

Remember that the high pressure cleaner can be pressurised also when switched off. Depressurise it by pressing the trigger before disconnecting the hoses. Disconnection of the high pressure hose while the system is pressurised may be dangerous.

Caution: Never look straight into the nozzle if the plug is still in the socket and if the high pressure cleaner is not switched off and depressurised. Preferably remove the lance from the pistol grip.

6. Care and maintenance

Caution! Turn the pressure washer off and pull out the plug before servicing or adjusting the machine!

It is important that the inflow filter (4) is cleaned regularly if the pressure washer is to function properly. The filter should be removed and cleaned to prevent dirt in the water from damaging the pump and seals. The nozzle must also be cleaned regularly or when it is not working properly.

• Check that the nozzle is open, carefully remove dirt and deposits; rinse with clean water.
• Clean the inflow filter after use: Loosen the hose from the connection, remove the filter with pliers, and clean when necessary and replace the filter.
• Protect the pressure cleaner against frost, empty it completely.*
  * Start the pump and let it run for 30 seconds in order to empty completely.

7. Troubleshooting

Problem: The machine will not start

• Is the plug in the socket, is there voltage in the socket, is the fuse intact?
• Faulty plug/plug socket.
• Faulty extension cable, try without extension cable.
• Incorrect voltage, check.
• The power switch is in the "OFF" position.
• The machine may be pressurised, press the trigger on the pistol handle.

Problem: The pump provides too low pressure

• A blocked/worn nozzle, clean or replace.
• Poor water supply, check: a 10-litre bucket should be filled in one minute from the hose.
• The hose may be folded; check, straighten the fold.
• The inflow filter may be blocked; check and clean if necessary.
• The water hose is blocked or leaking, check.
• The plunger seals are damaged, contact our Customer Service Department.
• The safety vent's O-ring is damaged, contact our Customer Service Department.
• The pump's valve seat is leaking, contact our Customer Service Department.

Problem: The pump is leaking

• The piston seals are damaged, replace them.
• Loose bolts, tighten them.

Problem: The pump has stopped

• The fuses have blown, check them.
• Extension cable is too long, try without extension cable.
  • Overheating due to poor water supply. The inflow filter may be blocked. Test the water supply: a 10-litre bucket should be filled in one minute from the hose.

Problem: no water coming out of the nozzle or not enough water.

• The pump is not sucking in water. Press the trigger and release any air and check that the suction hose is filled with water. The high pressure cleaner must be used in an upright, vertical position. Do not use it lying down.
• Dirt in the pump, clean.
• The inflow or outflow vent is damaged, contact our Customer Service Department.

Problem: Unable to press the trigger

- The safety lock on the pistol grip is engaged, disengage it.

8. Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your local municipality.

9. Technical specifications

Model: HPA1072-2

Voltage: 220 - 240VAC, 50Hz

Input power: 2000 W

Maximum input pressure water: 6 bar (0.6Mpa)

Working pressure: 120 bar (12 Mpa)

Maximum pressure: 140 bar (14 Mpa)

Water use: 6.71 litres/min

Suitable water temperature: 5 - 40°C

Weight: 20.5 kg

Class of protection: IPX5

Sound power (LwA): 96 dB (A)

Sound pressure level (LpA): 80 dB (A)

Vibration rate: 8.9 m/s ^4

Recoil power: 17 N

Simple line drawing of a person's head wearing glasses inside a circle (no text or symbols)

Technical line drawing of a robotic vehicle showing internal components and structural details (no text or symbols)

Fig 1.

Line drawing of a water heater with visible components and airflow direction arrows (no text or symbols)

Fig 2.

Close-up of hands holding a black cable with a coiled cable (no text or symbols visible)

Fig 3.

Diagram showing a mechanical component with a curved arrow indicating rotation or assembly (no text or symbols present)

Close-up of a black industrial pipe fitting with no visible text or symbols

LOW <--> HIGH

3D rendered image of a medical or laboratory device with tubing and a labeled component 'B' (no text or symbols on the device itself)

Close-up of hands using a handheld device to adjust or install a black component, labeled 'A' (no text or symbols on the device itself)

Simple line drawing of a person's head wearing sunglasses inside a circle (no text or symbols)

Technical line drawing of a robotic vehicle showing internal components and structural details (no text or symbols)

Fig 1.

Line drawing of a water heater with visible components and airflow direction arrows (no text or symbols)

Fig 2.

1. Høytrykkslangen (6) kobles til pistolhåndtaket (5). Dra til med en fastnøkkel.

2. Bruk den vanlige lansen (7): Skru lansen fast på pistolhåndtaket (se fig. 3).

Close-up of hands holding a black mechanical device with a coiled cable (no visible text or symbols)

Fig 3.

Diagram showing a mechanical component with a curved arrow indicating rotation or assembly (no text or symbols present)

Close-up of a black electrical plug with a terminal connector (no visible text or symbols)

LOW <--> HIGH

3D rendered image of a white industrial device with coiled tubing and a labeled component 'B' (no text or symbols on the device itself)

Close-up of hands using a handheld device to adjust or install a black component, labeled 'A' (no text or symbols on the device itself)

Simple line drawing of a person's head wearing sunglasses inside a circle (no text or symbols)

Technical line drawing of a robotic vehicle showing internal components and structural details (no text or symbols)

Kuva 1.

Technical line drawing of a mechanical device with wheels and side panels (no text or symbols)

Kuva 2.

Close-up of hands holding a black mechanical device with a curved handle (no text or symbols visible)

Kuva 3.

1. Varusteiden käyttö:

Diagram showing a mechanical component with a curved arrow indicating rotation or assembly (no text or symbols present)

Close-up of a black mechanical component with no visible text or symbols

LOW <--> HIGH

3D rendered image of a white industrial device with coiled tubing and a labeled component 'B' (no text or symbols on the device itself)

Close-up of hands using a vacuum cleaner to adjust or install a component, labeled 'A' (no text or symbols on the device itself)

Declaration of Conformity

C€

Hereby, Clas Ohlson AB declares that the machinery:

PRESSURE WASHER

CO/TECH 18-3076 / 30-9584

HPA1072-2-UK / HPA1072-2

Complies with the provisions of the following Directives:

98/37/EC MACHINERY

2006/95/EC LOW VOLTAGE EQUIPMENT

89/336/EEC EMC

Insjön, Sweden, January 2008

K. Balkow,

President.

Clas Ohlson, 793 85 Insjön, Sweden

CO/TECH®

SVERIGE

KUNDTJÄNST Tel: [phone]

Fax: [phone]

E-post: [e-mail]

ÖVRIGT Tel vxl: 0247/444 00

Fax kontor: 0247/444 25

INTERNET www.clasohlson.se

BREV Clas Ohlson AB, 793 85 INSJÖN

NORGE

KUNDESENTER Tlf.: 23 21 40 00

Faks: 23 21 40 80

E-post: [e-mail]

INTERNETT www.clasohlson.no

POST Clas Ohlson AS

Postboks 485 Sentrum, 0105 OSLO

SUOMI

ASIAKASPALVELU Puh: 020 111 2222

Faksi: 020 111 2221

For consumer contact, please visit

www.clasohlson.co.uk and click on

customer service.

INTERNET www.clasohlson.co.uk
