USER MANUAL HSD 240 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue Cocraft HSD 240 electric shaver on a workbench (no visible text or symbols on the device body)

Art.no Model

18-3598

OS-004

40-9902

OS-004

Ver. 20190515

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Safety Instructions

Warning! Read all the instructions. Failure to comply with the following instructions can lead to electric shocks, fires and/or serious injury. The term “power tool” in the warning text below refers to your handheld mains operated or battery operated tool.

SAVE THESE INSTRUCTIONS.

1) The work space

a) Keep the work space clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use electrical hand tools in explosive environments, i.e. nearby flammable liquids, gas or dust. Electrical hand tools generate sparks that could easily ignite dust or fumes.
c) Keep away from children and other spectators while using the electrical hand tool. Distractions can make you lose your concentration and control.

2) Electrical safety

a) The electrical hand tool's plug must fit correctly in the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed electrical hand tools. Unmodified plugs and suitable wall sockets decrease the risk of electric shock.
b) Avoid body contact with earthed objects, such as pipes, radiators, ovens or refrigerators. There is an increased risk of electrical shock if your body is earthed.
c) Do not expose the electrical hand tool to rain or other wet conditions. If water gets inside an electrical hand tool it increases the risk of electrical shock.
d) Do not misuse the lead. Never use the lead to carry, drag or pull the plug out of the wall socket. Keep the lead away from heat, oil, sharp edges and movable parts. Damaged or tangled leads increase the risk of electrical shock.
e) When you use an electrical hand tool outdoors; use an extension cord suitable for this purpose. Use of an extension cord for outdoor use decreases the risk of electrical shock.

3) Personal safety

a) Pay attention to what you do and use common sense when using electrical hand tools. Never use an electrical hand tool if you are tired or under the influence of drugs, alcohol or medication. One moment of not paying attention while using an electrical hand tool may result in serious injury.
b) Use protective equipment. Always use safety glasses. Using protective equipment such as a face mask, slip resistant protective shoes, a helmet and ear defenders when needed decreases the risk of injury.
c) Avoid unexpected starts. Make sure that the switch is set to OFF before you connect the device to the wall socket. Never carry an electrical hand tool with one finger on the trigger or never connect the hand tool to a wall socket when the switch is set to ON, since it may result in injury.
d) Remove all service tools/keys before switching on the hand tool. A forgotten service tool on a rotating part of the electrical hand tool may result in injury.
e) Do not overreach. Make sure you stand steady and well balanced at all times. This gives better control in unexpected situations.
f) Wear suitable clothing. Do not wear loose fitting clothes or jewellery. Keep hair, clothes and gloves away from moving parts. Loose fitting clothes, jewellery or long hair could get caught in moving parts.
g) If the equipment for suctioning or collecting dust is available make sure it is connected and used properly. Using technical aids may reduce dust related hazards.

4) Use and maintenance of the electrical hand tool

a) Do not overload the hand tool. Use a hand tool suitable for the work you are to perform. At the correct rate of feed, the correct tool will carry out the work better and more safely.
b) Never use the electrical hand tool if the switch does not work properly to turn on and shut off the tool. All electrical hand tools that cannot be operated by the switch are dangerous and must be repaired.
c) Unplug the lead from the wall socket before making any adjustments, changing accessories or storing the electrical hand tool away. These precautions reduce the risk of the electrical hand tool starting unexpectedly.
d) Store electrical hand tools that are not being used out of children's reach. Do not let people unfamiliar with the electrical hand tool or its instructions use it. Electrical hand tools can be dangerous if they get into the hands of inexperienced users.
e) Inspect electrical hand tools regularly. Check that all settings are correct, that no moving parts are getting jammed, that no parts are broken and for other reasons that might cause the electrical hand tool to malfunction. If something is damaged it must be repaired before use. Many accidents are caused by poorly maintained electrical hand tools.

f) Keep the tools sharp and clean. Properly maintained cutting tools with sharp blades are less likely to jam and are easier to control.
g) Use the electrical hand tool, accessories and such according to the instructions and in a way suitable for the type of electrical hand tool used.
Using the electrical hand tool for work other than that for which it is intended could result in a dangerous situation.

5) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Specific Safety Regulations Sheet Sanders

• Wear a dust mask whenever sanding and a dust extractor connected to the sander should also be used wherever possible.
• Extra caution should be used when sanding paint containing lead or when sanding wood, metal or other material that could produce toxic dust. In this case, see that other people in the work area are well protected. Wood dust can be very flammable when mixed with air.

Safety symbol guide

Read the entire instruction manual.

Always use ear protection.

Always use a face mask and eye protection.

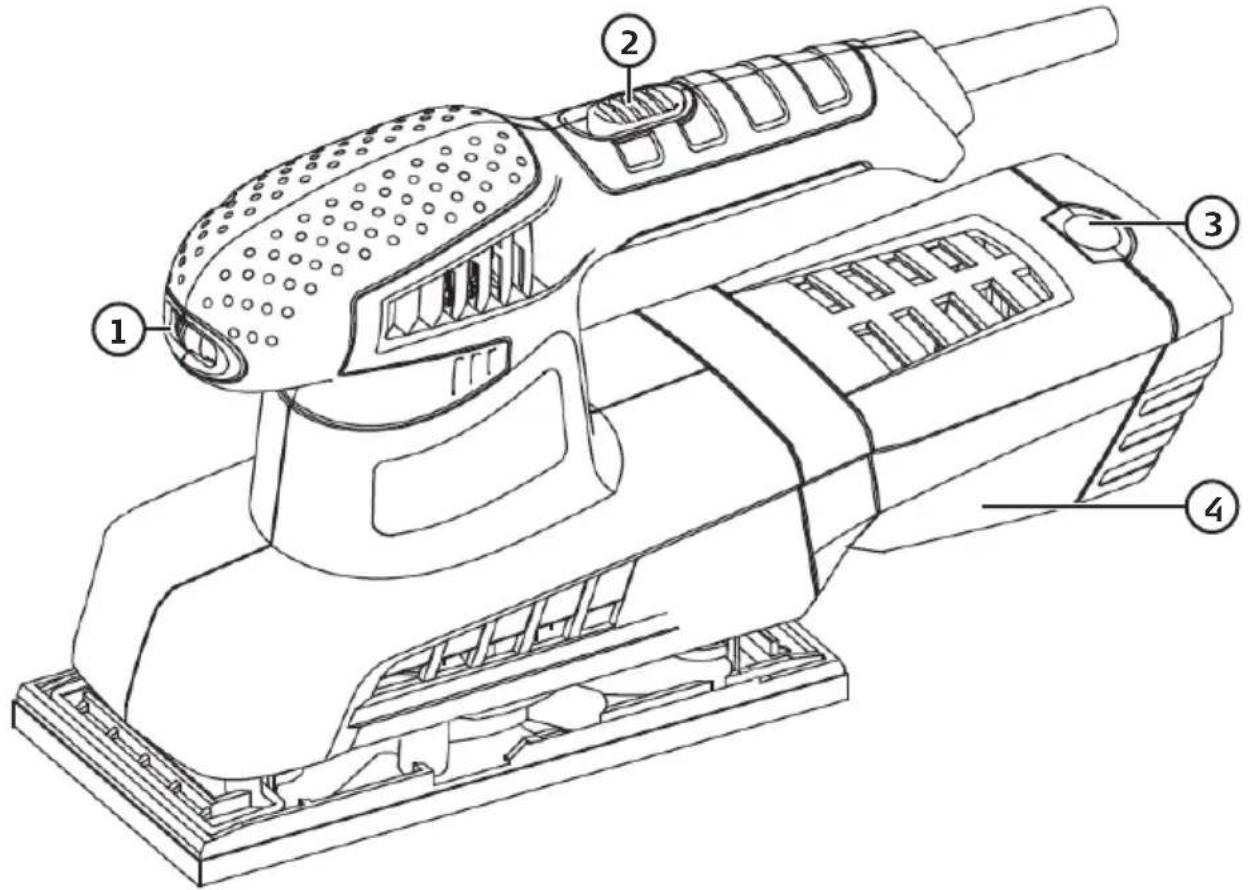

Product description

1. Speed selector
2. On/off switch
3. Dust collector release button
4. Dust collector

Operating instructions

Attaching sandpaper

1. Align the holes in the sandpaper with the holes on the sanding plate.
2. Securely press the sandpaper onto the sanding plate.

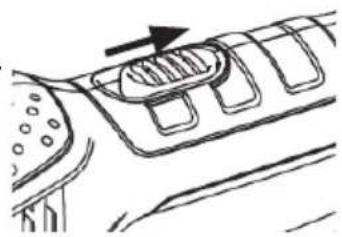

Switching the sander on/off

Note: Make sure that the power switch on the sander is in the off position before plugging the sander into the wall socket.

1. Plug the mains lead into a wall socket.
2. Slide the power switch forwards to switch the sander on.
3. Slide the power switch backwards to switch the sander off.

Diagram of a vehicle's internal components with an arrow indicating direction (no text or symbols)

Sanding

1. Set the desired speed using the speed dial (1).
2. Hold the sander firmly in both hands.
3. Move the sander back and forth, parallel with the grain of the wood.

Attaching, detaching and emptying the dust collector

Attaching the dust collector

1. Twist the collector slightly anticlockwise and slide it into the attachment coupling.
2. Twist the collector clockwise until it locks into place.

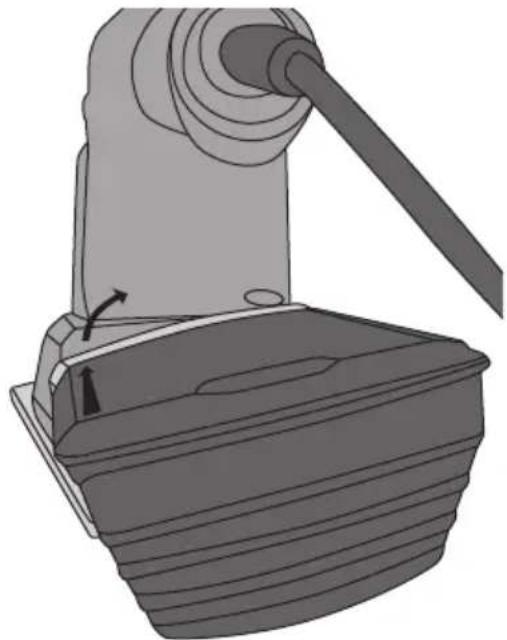

Detaching the dust collector

Twist the collector anticlockwise and pull it from the attachment coupling and shake out any debris when necessary.

Mechanical device with lever and base component, no visible text or symbols

Care and maintenance

1. Unplug the sander from the wall socket before cleaning.
2. Vacuum the sander after using it to keep it clean.

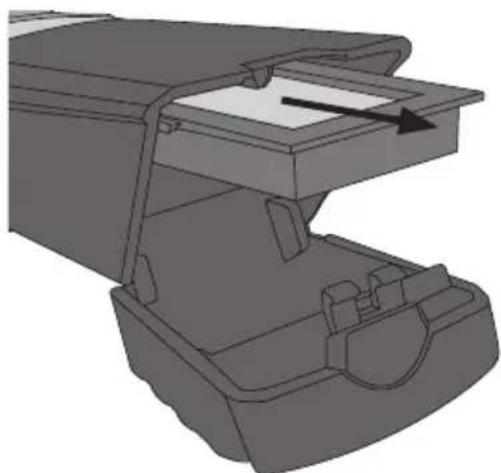

3. Remove the dust collector and pull out the filter (see fig.). Vacuum both the filter and collector.
4. Refit the filter in the collector and close it.
5. Refit the dust collector onto the sander.

3D technical illustration of a mechanical assembly with no visible text or symbols

Storage

Unplug the sander and store it out of reach of children if it is not to be used for any significant period.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Power 240 W

No-load speed 6000–13 000 rpm

Sound pressure level, LpA 78 dB(A), KpA 3 dB

Sound power level, LwA 89 dB(A), KwA 3 dB

Vibration value 3.703 m/s ^2 (K: 1.5 m/s ^2 )

Weight 1.5 kg

Planslipmaskin

Art.nr 18-3598 Modell OS-004

40-9902 OS-004

Diagram of a vehicle's intake manifold with an arrow indicating direction (no text or symbols)

Slipning

Mechanical device with lever and base component, no visible text or symbols

3D technical illustration of a mechanical assembly with no visible text or symbols

Förvaring

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V AC, 50/60 Hz

Effekt 240 W

Varvtal 6000–13000 v/min

Ljud LpA 78 dB(A), KpA: 3 dB

LwA 89 dB(A), KwA: 3 dB

Vibration 3,703 m/s ^2 , K: 1,5 m/s ^2

Vikt 1,5 kg

Plansliper

Art.nr. 18-3598 Modell OS-004

40-9902 OS-004

Les brukerveiledningen grundig før produktet tas i bruk, og ta vare på den for framtidig bruk. Vi reserverer oss mot eventuelle feil i tekst og bilder, samt endringer av tekniske data. Ved tekniske problemer eller spørsmål, ta kontakt med vårt kundesenter. (Se opplysninger på baksiden).

Sikkerhet

Diagram of a vehicle's side profile with a directional arrow indicating motion (no text or symbols)

Sliping

Mechanical device with lever and base component, no visible text or symbols

3D technical illustration of a mechanical assembly with no visible text or symbols

Oppbevaring

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Spesifikasjoner

Spenning 220–240 V AC, 50/60 Hz

Effekt 240 W

Turtall 6000–13000 o/min

Lyd LpA 78 dB(A), KpA: 3 dB LwA 89 dB(A), KwA: 3 dB

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

Hionta

Mechanical device with lever and base component, no visible text or symbols

3D technical illustration of a mechanical assembly with no visible text or symbols

Säilytys

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Tekniset tiedot

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols)

Schleifen

Mechanical component diagram showing a lever and base with a curved arrow indicating motion (no text or symbols)

Pflege und Wartung

3D technical illustration of a mechanical assembly with no visible text or symbols

Aufbewahrung

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Product Compliance Manager

Insjön, Sweden, 2019-05-15

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN
