Product Type	Rice Cooker
Brand	Panasonic
Model	SR-UH36F
Capacity	1.0 - 3.6 liters (5 to 20 cups of uncooked rice)
Dimensions (H x W x D)	34.7 cm x 42.8 cm x 38.4 cm
Weight	8.0 kg
Power Supply	230 - 240 V ~ 50 Hz
Power Consumption (Cooking)	1400 - 1524 W
Power Consumption (Keep Warm)	124 W
Cooking Pan Type	Cooking basket with non-stick coating
Main Functions	Rice cooking, automatic keep warm, steaming
Included Accessories	Measuring cup (180 mL), rice spatula, spatula holder
Indicator Lights	Rice cooking (RICE COOKING), keep warm (KEEP WARM)
Housing Material	Plastic, metal (heating plate)
Country of Manufacture	India
Usage	Indoor, domestic
Maintenance	Clean with dish soap and a soft sponge; wipe the exterior
Safety	Automatic shut-off after cooking, overheat protection
Steam Collector	Yes, removable and washable
Warranty	Consult the dealer or after-sales service

Frequently Asked Questions - SR-UH36F PANASONIC

How to cook rice with the Panasonic SR-UH36F?

Measure the rice with the supplied measuring cup (approximately 180 ml per cup). Rinse the rice in a separate bowl, then pour it into the cooking basket. Add water according to the level marks in the basket. Place the basket in the housing, close the lid, plug in the appliance, and press the RICE COOKING switch. The indicator light turns on. After cooking, the appliance automatically switches to KEEP WARM mode. Let it steam for 15 minutes before fluffing the rice.

What is the maximum cooking capacity?

The rice cooker can cook up to 20 cups of uncooked rice, which is equivalent to 3.6 liters. Do not exceed the MAX level indicated in the basket.

How to clean the rice cooker?

Unplug the appliance and let it cool. Clean the inner lid and the cooking basket with dish soap and a soft sponge. Wipe the housing and outer lid with a damp cloth. Do not use abrasive cleaners. Empty and clean the steam collector after each use.

Why is my rice too hard or undercooked?

Check the water and rice ratios. Make sure you use the appropriate level marks (white rice or sushi rice). The cooking basket must be in direct contact with the heating plate. Clean any foreign objects under the basket or on the plate. Ensure the lid is properly closed.

What to do if the appliance does not turn on?

Check that the plug is properly inserted and the power outlet is working. Check the circuit breaker. If the cord or plug is damaged, contact an authorized service center. Do not attempt to repair it yourself.

Can the cooker be used for anything other than rice?

No, this appliance is designed only for cooking rice. Do not use it to heat other foods or reheat cold rice, as this may cause odors or damage the appliance.

How to maintain the non-stick coating of the basket?

Avoid using metal utensils or abrasive sponges. Hand wash with a soft sponge. Do not leave a spatula inside the basket. The coating may wear over time, handle with care.

Can the rice stay warm for too long?

It is not recommended to keep rice warm for more than 12 hours. Beyond that, the rice may discolor, develop an odor, or become too dry. Fluff the rice after cooking for optimal storage.

What to do in case of viscous liquid overflow?

Check that you did not add too much water. Make sure to rinse the rice thoroughly to remove excess starch. Do not add oil to the rice. Regularly clean the heating plate and sensor.

Where to find spare parts or get the appliance repaired?

For any spare parts (cooking basket, measuring cup, etc.) or repairs, contact an authorized Panasonic service center. Use only original accessories. The power cord must be replaced by the manufacturer or a qualified technician.

USER MANUAL SR-UH36F PANASONIC

Line drawing of a rice cooker with control panel and side ports (no text or symbols)

Deutsch

Nederlands

svenska

português

中文

한국어

Tiếng Việt

日本語

[Unreadable]

I

1

LAP

I

IG

13

16

Operating Instructions

Electronic Rice Cooker / Warmer

Safety Precautions 2-4

Usage Precautions 4

Parts Identification 5

How to Cook Rice 6-7

To Keep Cooked Rice Warm and Tasty 7

How to Clean 8

Troubleshooting 9

Specifications 9

Memo 34

Thank you very much for purchasing Panasonic product.

Please give your special attention to "Safety Precautions" on pages 2-4 before use.

Please carefully read these instructions before use, and keep these instructions for future use.

This appliance is intended to be used in household and similar applications such as:

■ staff kitchen areas in shops, offices and other working environments; farm houses;

■ by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

Contenuti

Please follow the instructions below to prevent accident, personal injury, and property damage.

The following charts indicate the degree of damage caused by wrong operation.

Warning :

Indicates serious injury or death.

Caution :

Indicates risk of injury or property damage.

The samples of symbols used in this manual are described below.

These symbols indicate prohibition.

These symbols indicate requirements that must be followed.

Warning

Plug in the AC cord to the outlet firmly.

(Not doing so can result in an electrical shock or fire due to generation of heat.)

Do not use a damaged plug or outlet.

Do not plug or unplug the appliance with wet hands.

(Doing so can result in an electrical shock.)

Do not use wet hands

Do not place your hands or face over or near the steam vent.

(Exposure to steam can cause personal injury.)

Do not touch

Do not damage the AC cord or plug.

Do not disassemble, expose to heat or fire, twist, pull, place heavy objects on or tie the AC cord in a bundle.

(A damaged cord or plug can lead to electrical shock or fire.)

If the AC cord or plug is damaged, consult your nearest retailer or service center for repair.

Do not insert metal objects such as pins or needles, or any other objects in the exhaust outlets, or in any other portion of the unit.

(Doing so can lead to an electrical shock or malfunction.)

Prohibited

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Clean the power plug regularly.

(Dust accumulation can lead to fire or a malfunction.)

Unplug and wipe with a dry cloth.

Do not operate the appliance with damaged AC plug or cord.

(It may result in an electrical shock or fire.)

Prohibited

Be sure the supply voltage matches the required voltage of the appliance.

(It may cause electrical shock or fire.)

Safety Precautions

Warning

Stop using the appliance immediately when abnormality or breakdown occurs.

(It may cause smoking, a fire or electric shock.)

e.g. for abnormality or breaking down:

• The Power Plug and the Power Cord become abnormally hot.
• The Power Cord is damaged or power failure when it is touched.
• The Main Body is deformed or is abnormally hot.
• There are cracks, looseness or wobbles of the appliance.

Please consult your nearest retailer or service center for a check or repair immediately.

If the Power Cord is damaged, it must be replaced by the manufacturer, its Service Agent or similarly qualified person in order to avoid a hazard.

(Otherwise, it may cause a fire, electrical shock or injury.)

Do not modify, disassemble or repair the appliance.

(It may cause a fire, electrical shock or injury.) Please consult your nearest retailer or Service Center.

Do not disassemble.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

(It may result in a burn or injury.)

Do not immerse the appliance in water or other liquids.

(It may cause an electrical shock or short circuit.) If water gets inside the appliance, please consult your nearest retailer or Service Center.

Caution

Do not operate the appliance near water, near a heat source, or expose to high humidity.

Prohibited

(Doing so can lead to an electrical shock or fire.)

Do not touch heating elements while the appliance is in use or after cooking. Especially the lid, inner pan and sensor.

Do not touch

(Doing so can lead to personal injury.)

Allow the appliance to cool before cleaning.

(Touching hot elements may cause a burn.)

Do not place the appliance on uneven surfaces or non-heat-resistant carpets.

(It may overturn causing personal injury or resulting in a fire.)

Prohibited

Do not hold the handle or press on the lid release button when carrying or moving the appliance.

(The lid may open and the appliance may fall causing injury or damage.)

Do not touch

Safety Precautions

Caution

To prevent electric shock, be sure to grasp the plug itself when disconnecting it; never unplug by pulling the AC cord.

(Pulling the cord may damage the cord resulting in an electric shock.)

Do not place the appliance near a wall or furniture.

Prohibited

(The steam may cause color changes or deformation of any nearby objects.)

Do not substitute the inner pan with other containers.

※ Do not use damaged inner pan with the rice cooker. Please contact authorized service agent for replacement.

(It may cause a burn or injury due to overheat or malfunction.)

Prohibited

Unplug the power plug from the power outlet when the appliance is not in use.

Unplug

(Otherwise it may cause an electric shock and fire caused by a short circuit due to the insulation deterioration.)

Usage Precautions

Avoiding damage to the appliance.

Do not cover the outer lid with a cloth.

The outer lid may become deformed, cracked or discolored and result in malfunction.

Do not place the appliance in direct sunlight.

Do not use the inner pan for other applications.

Please always clean the foreign objects such as rice on the pan, cast heater and sensor.

Otherwise, it may result in malfunction of the unit.

Avoiding damage to the inner pan.

Do not leave the rice scoop or any other objects inside the inner pan.

The inner pan should be cleaned immediately after cooking.

Do not use the inner pan as mixing utility.

Do not use metal utensils that can scratch or crack the inner pan.

The coated surface of the inner pan will gradually wear away, so use with care.

Do not tap or rub the inner surface of the inner pan. Clean only with a sponge or soft cloth. Do not use a scouring pad.

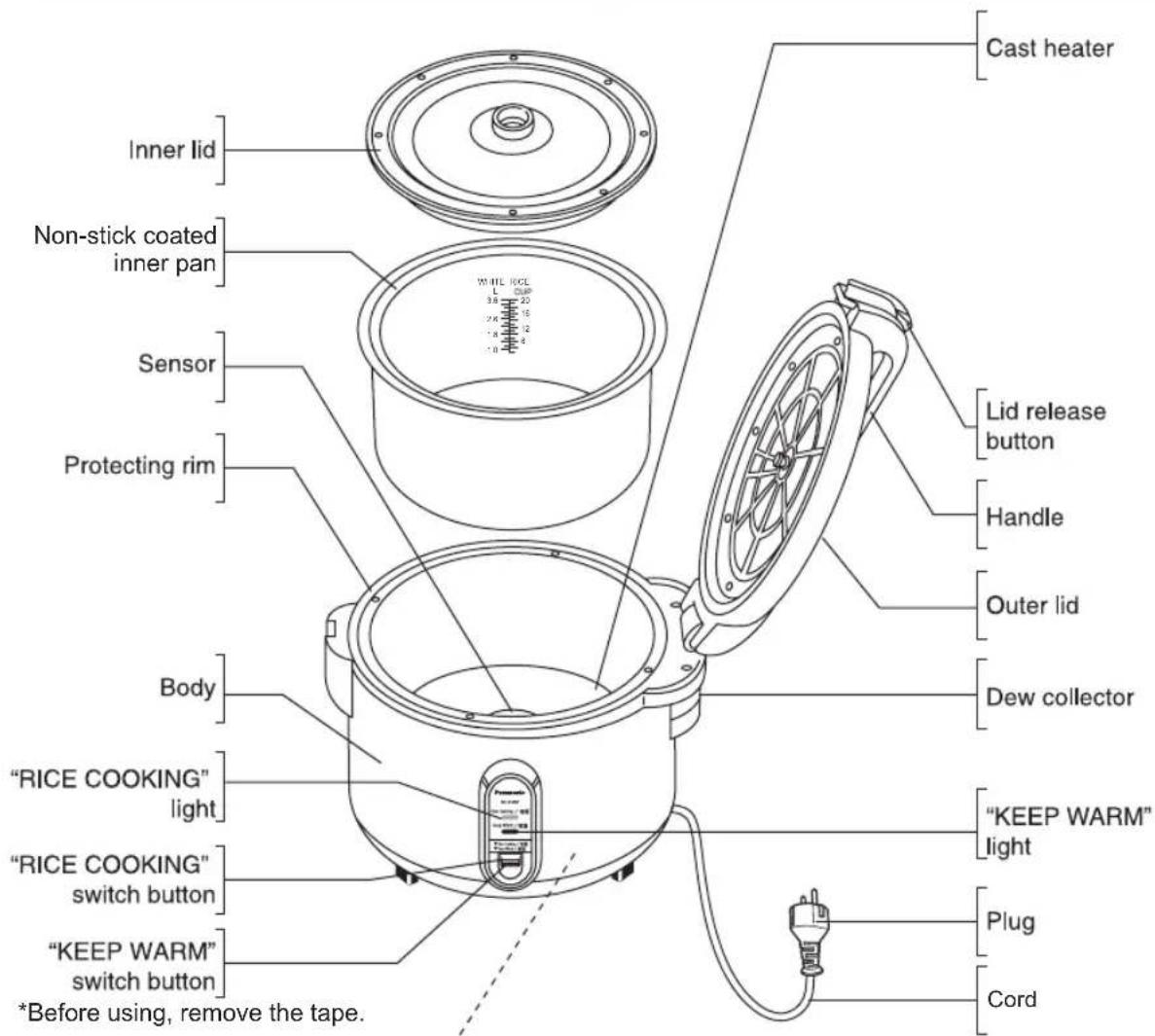

Parts Identification

Before using, remove the sheet of paper placed between the cast heater and inner pan.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Accessories

Measuring cup (approx. 180 mL) (1 pc.)

Rice scoop (1 pc.)

Scoop holder (1 pc.)

Removal and attachment of scoop holder

• Attachment
  Face the magnet of the scoop holder towards the body of the rice cooker and gently attach the surface, anywhere available.
• Removal
  Slide the scoop holder upward and pull it off. Do not attempt to forcibly pull the scoop holder off the rice cooker body since this could cause surface damage.

How to Cook Rice

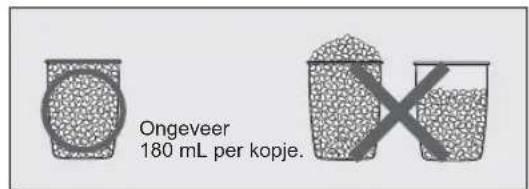

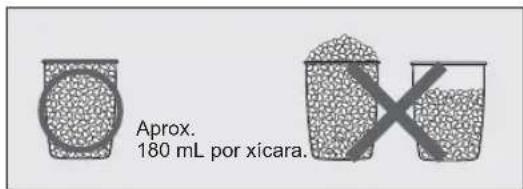

Approx. 180 mL per cup.

Measure the rice using the measuring cup provided.

Illustration of a hand pouring liquid into a container with a funnel (no text or symbols)

Add plenty of water, stir, and quickly drain the water.

Illustration of hands washing a bowl with a cloth (no text or symbols)

Rinse and wash the rice until the water becomes relatively clear.

Rinse the rice

Do not rinse the rice by using the inner pan.

Rinse the rice in a separate bowl. Do not rinse the rice in the provided inner pan as non-stick coating may be damaged.

Pour the washed rice into the inner pan.

English

e.g. To cook 15 cups of rice :

To cook sushi rice :

Pour in the desired amount of water

Set the inner pan on a flat surface when adding the water.

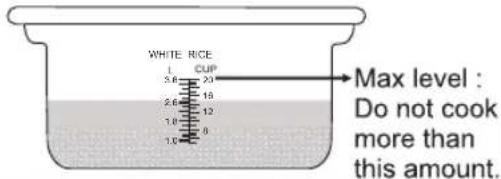

Add water according to the level indication. (When cooking sushi rice, use the level indication for sushi rice.)

Add water to the corresponding level, and then adjust to suit your taste.

(Do not increase the water more than 1/4 cup of water.)

Hot water is not recommended for cooking as it may result in soggy rice.

Put the inner pan into the body.

Wipe water off around the surface of the inner pan before placing into a rice cooker, otherwise it may result in strange noise during cooking.

Be sure that the inner pan is directly in contact with the cast heater. Improper contact between the inner pan and the cast heater may result in uncooked rice.

Be also sure that the inner lid is attached to the outer lid.

Plug in the AC cord to the power supply outlet.

Close the outer lid, plug in the AC cord to the power supply outlet.

Close the outer lid firmly. (If it is not securely closed, cooking will be affected.)

How to Cook Rice

Press the switch to start cooking.

The "RICE COOKING" light lights up

Press switch.

Do not open the outer lid or unplug the appliance while it is operating.

Please ensure that the switch is pressed and the "RICE COOKING" light lights up properly.

(The rice will not be cooked in warming mode.)

The "KEEP WARM" light lights up to Indicate warming mode.

After the rice is cooked, it is recommended to let it steam and warm for another 15 minutes. Then scoop and mix the rice well.

After the rice is cooked, the appliance will automatically switch to warming mode.

Let the rice steam and warm for another 15 minutes without opening of the outer lid. Scoop and mix the rice well.

Unplug the appliance when it is not in use.

To Keep Cooked Rice Warm and Tasty

After the rice has been steamed and warmed, scoop and mix the rice gently.

Do not leave the rice scoop inside the inner pan.

Do not warm the rice for more than 12 hours. (It may cause a smell or discoloration.)

Do not use the rice cooker to warm other kinds of food. It is for rice only.

Do not warm cold rice.

Note:

Variations in the room temperature may cause the rice to discolor and lose its fresh smell.

Unplug the rice cooker when it is not be used.

Clean the dew collector located on the side of the rice cooker by pouring out the water, cleaning and sanitizing it after every use.

How to Clean

• Before cleaning, please pull out the power plug first. Do not clean the rice cooker until it cools down.
• DO NOT use objects such as benzine, thinner, cleansing powder or metal scrubbers.

Inner lid / Inner pan

Wash with a dishwashing detergent and soft sponge. Wipe off any moisture on the outside of the inner pan.

*Note : Clean after every use.

Body / Outer lid / Protecting rim

Wipe with a damp cloth.

Cast heater

If any objects stick on the bottom of the pan or cast heater, remove them immediately.

Object, such as rice or other food debris may cause a malfunction and damage.

Dew collector

Remove, clean and sanitize after every use.

Accessories

Measuring cup

Rice scoop

Scoop holder

Wash with sponge and dishwashing liquid after use.

Troubleshooting

Check Items	Rice cooking					Keep warm			No reaction to any switch operation	Produces a strange sound
	Too hard	Uneven cooking (The core of rice remains)	Too soft	Viscous juice overflows	Burnt rice at the bottom of the inner pan	Rice produces an odor	Changes in color	Gets too dry
Are the volume of rice and the volume of water correct?	●	●	●	●	●				No current supplied. Pull out the plug and check the breaker:	"Pang" sound produced during cooking is the sound of burning of water drops under the action of thermal expansion on the bottom (outside) of the inner pan.
Is the rice rinsed adequately?				●	●	●
Is the bottom of the inner pan dented?	●	●			●
Is there any foreign matter sticking to the outside of the inner pan or the sensor?	●	●	●		●	●	●
Is the rice being cooked with oil?	●	●				●
Has the rice been well fluffed after cooking?	●		●
Is the keep warm continuing for more than 12 hours?Is the too small amount of rice kept warm?						●	●	●
Is the Keep Warm being used with the scoop in it?						●
Is the Keep Warm setting being used on cold rice?						●
Is the outer lid securely closed?				●		●		●
Is the inner pan clean?					●	●
AC cord unplugged or switched turned off during rice cooking?		●				●

Specifications

Model No.		SR-UH36F
Power supply		230 - 240 V ~ 50 Hz
Power consumption	During cooking	1400 - 1524 W
	During keep warm	124 W
Capacity		1.0 - 3.6 L (5 - 20 cups dry rice)
Weight (approx.)		17.6 lbs (8.0 kg)
Dimensions (HxWxD) (approx.)		34.7 cm × 42.8 cm × 38.4 cm
Accessories		Measuring cup, Rice scoop, Scoop holder

Manufactured by

Panasonic Appliances India Co., Ltd. N.H. No. 5, Sholavaram Village, Ponneri Taluk, Chennai, Tamil Nadu, India – 600067 Made in India

Authorized Representative in EU

Panasonic Marketing Europe GmbH Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

Illustration of hands pouring liquid into a container (no text or symbols)

Illustration of hands washing a bowl with granular material (no text or symbols)

Illustration of hands pouring liquid into a container (no text or symbols)

Illustration of hands washing a bowl with granular material (no text or symbols)

Accessori

Bicchiere dosatore

N.H. No. 5, Sholavaram Village,

Ponneri Taluk, Chennai, Tamil Nadu,

India - 600067

Prodotto in India

Panasonic Testing Centre,

Winsbergring 15, 22525 Amburgo, Germania

Illustration of a hand pouring liquid into a container with a bulb (no text or symbols)

Illustration of hands washing a bowl with granular material (no text or symbols)

Tapa interior / Sartén interior

Accesorios

Taza de mediciones

Cucharón de arroz

Sostenedor de cuchara

N.H. No. 5, Sholavaram Village,

Ponneri Taluk, Chennai, Tamil Nadu,

India - 600067

Fabricada en India

Panasonic Testing Centre,

Line drawing of a rice cooker with lid and control panel (no text or symbols)

Panasonic®

Bedienungsanleitung

Illustration of a hand pouring liquid into a container with an arrow indicating flow (no text or symbols)

Illustration of hands washing a bowl with liquid (no text or symbols)

N.H. No. 5, Sholavaram Village,

Ponneri Taluk, Chennai, Tamil Nadu,

Indien - 600067

Panasonic Testing Centre,

Rijst Koken

Illustration of a hand pouring liquid into a container with a handle (no text or symbols)

Illustration of hands pouring liquid into a bowl (no text or symbols)

N.H. No. 5, Sholavaram Village,

Ponneri Taluk, Chennai, Tamil Nadu,

India - 600067

Gemaakt in India

Panasonic Testing Centre,

Illustration of a hand pouring liquid into a container with a circular arrow (no text or symbols)

Illustration of hands washing a bowl with granular material (no text or symbols)

N.H. No. 5, Sholavaram Village,

Ponneri Taluk, Chennai, Tamil Nadu,

Indien - 600067

Tillverkad i Indien

Auktoriserad representant i EU

Panasonic Marketing Europe GmbH

Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, Tyskland

Português

Como fazer arroz

Illustration of a hand pouring liquid into a container with a handle (no text or symbols)

Illustration of hands washing a bowl with a cloth (no text or symbols)

N.H. No. 5, Sholavaram Village,

Ponneri Taluk, Chennai, Tamil Nadu,

Índia - 600067

Feito na Índia

Panasonic Testing Centre,

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
