T737 Pro - Tablet Navitel - Free user manual and instructions

Product Type	Tablet
Brand	Navitel
Model	T737 Pro
Operating System	Android 9.0
Processor	MTK8321 Cortex-A7 Quad Core 1.3 GHz
RAM	1 GB DDR
Internal Storage	16 GB
Display	7.0" IPS, 1024x600
Rear Camera	2.0 MP
Front Camera	0.3 MP
Battery	Li-ion, 2800 mAh, 3.7 V
Charger Input	AC 100-240 V, Output USB 5 V, 1.5 A
Wi-Fi	802.11 b/g/n
Bluetooth	4.0
Cellular	3G WCDMA 900/2100 MHz, 2G 850/900/1800/1900 MHz
SIM Card Slot	Dual SIM
Memory Card Slot	MicroSD up to 32 GB
GPS	Yes
G-Sensor	Yes
Dimensions	108 x 188 x 9.2 mm
Audio Jack	3.5 mm
USB Port	Micro-USB
Supported Video Formats	AVI, MOV, MP4, MKV, 3GP, FLV, etc.
Supported Audio Formats	MP3, WMA, FLAC, OGG, WAV, etc.
Cleaning Instructions	Turn off device, wipe with dry cloth, avoid chemicals
Operating Temperature	-10°C to +40°C

Frequently Asked Questions - T737 Pro Navitel

How to install a SIM card?

Turn off the device, remove the top part of the back panel, insert the SIM card with gold contacts facing down and cut-off corner facing away from the slot.

How to expand storage?

Insert a MicroSD card (up to 32 GB) into the slot with gold contacts facing down and cut-off corner facing towards the slot. Push until it clicks.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle it on, select a network and enter the password if required.

How to make a phone call?

Open the Phone app, select a contact or dial a number, then press the call button.

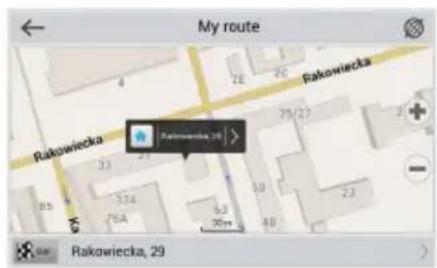

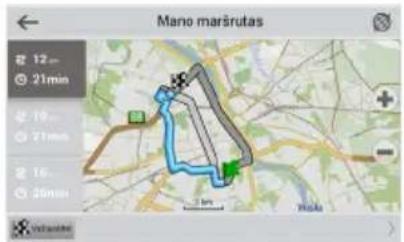

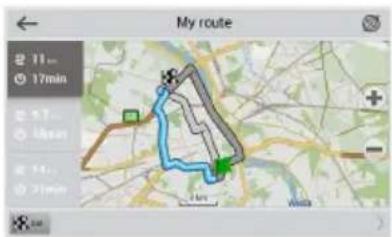

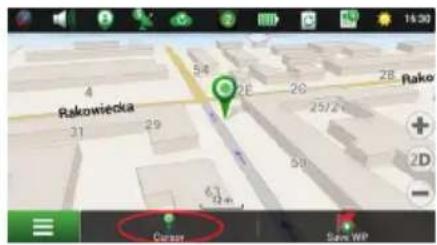

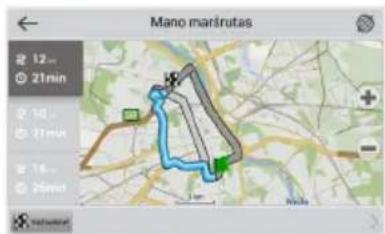

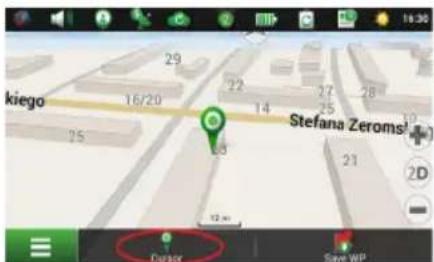

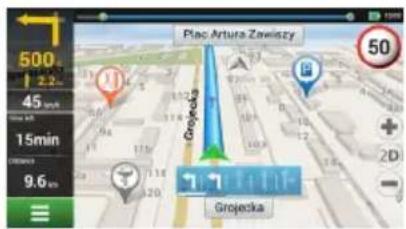

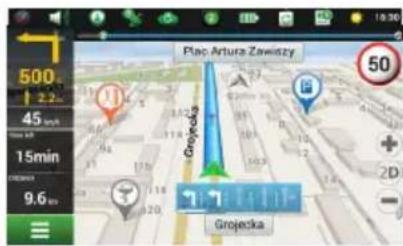

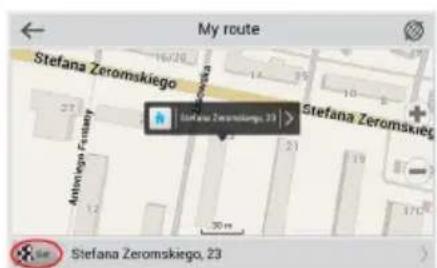

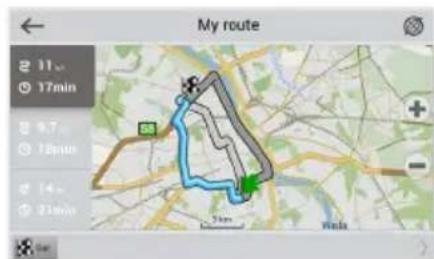

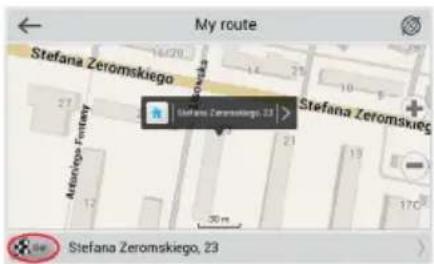

How to use GPS navigation?

Open the pre-installed Navitel Navigator app. You can search addresses or tap on the map to set a destination and follow the route.

How to take a screenshot?

Press and hold the Power button and Volume Down button simultaneously until the screen flashes.

How to perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Note: This erases all data.

How to update maps in Navitel Navigator?

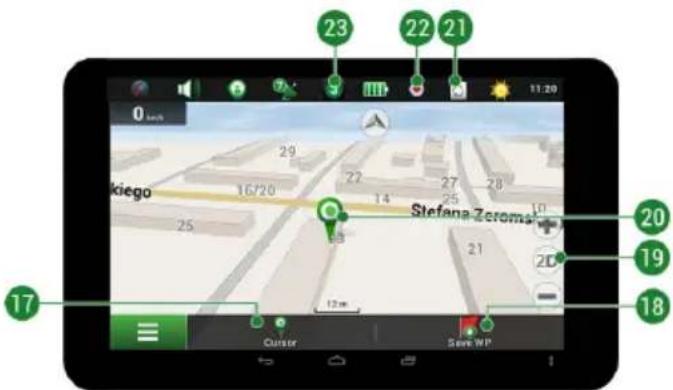

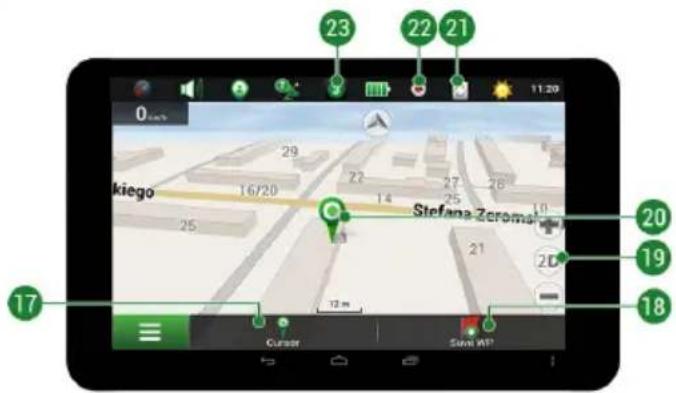

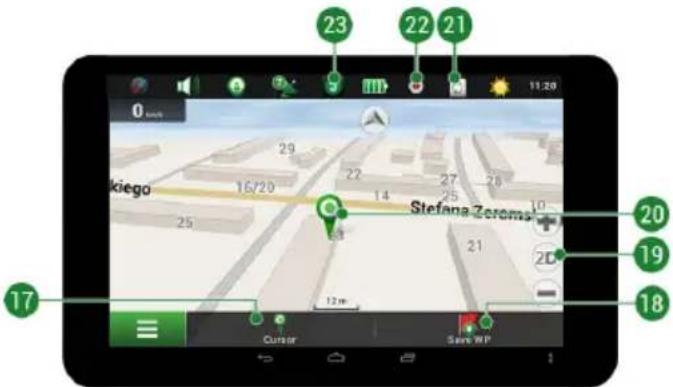

Open the app, tap the Updates icon (button 21 in the interface), then follow prompts to download free maps of 45 European countries.

What is the battery life?

The battery capacity is 2800 mAh. Actual usage time varies; for navigation with screen on, expect several hours.

How to clean the tablet?

Always turn off the tablet first. Use a soft dry cloth. Do not use chemicals or detergents.

USER MANUAL T737 Pro Navitel

Backup your important data to Google servers or perform factory reset on your device.

Účty

Obr. 7 Obr. 8 Obr. 9

Obr. 10 Obr. 11 Obr. 12

Obr. 6

Online služby

3D architectural rendering of a city street with buildings, roads, and green spaces (no visible text or symbols)

Zchng. 4

Zchng. 5 Zchng. 6

Zchng. 7 Zchng. 8 Zchng. 9

Zchng. 10

Zchng. 12

Zchng. 3

Zchng. 4 Zchng. 5 Zchng. 6

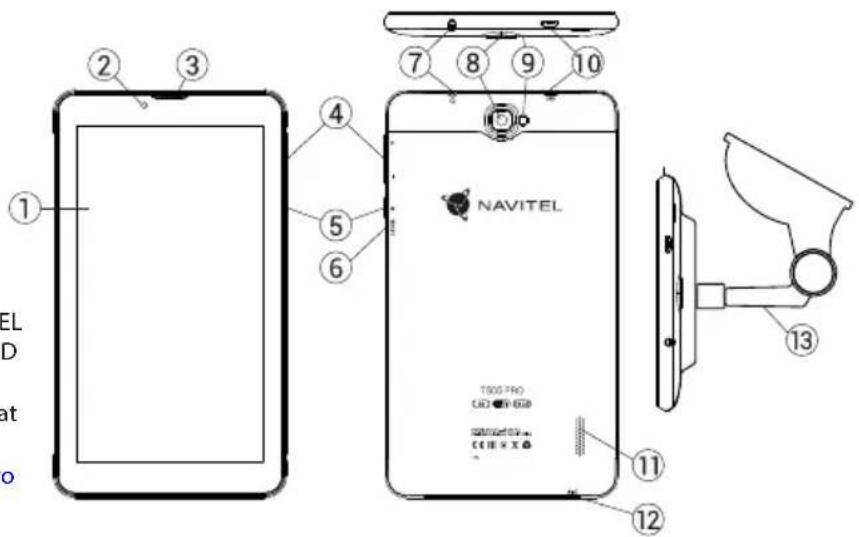

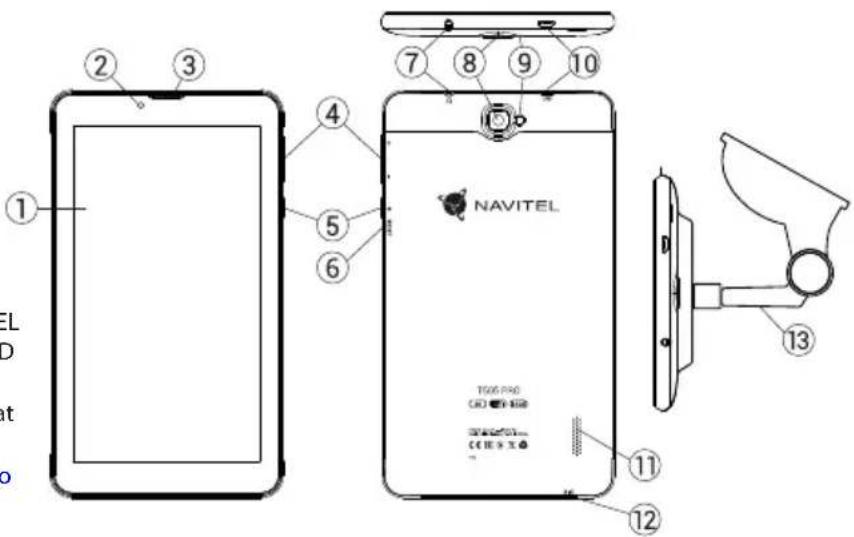

1. Screen 8. Main camera
2. Front camera 9. Flash
3. Speaker 10. Micro-USB
4. Volume 11. Speaker
5. On/off button 12. Microphone
6. Reset 13. Holder
7. 3.5 mm jack

NAVITEL s.r.o. hereby declares that the device NAVITEL T737 PRO is compatible with the European directive RED 2014/53/EU.

The full text of Declaration of conformity is available at the following internet address:

www.navitel.cz/en/declaration_of_conformity/t373-pro

Technical specifications

Main characteristics
Battery Type 2800 m	Ah/3.7 V
Power adapter input	AC 100 V-240 V, output USB 5 V, 1.5 A
Dimensions (mm)	108x188x9,2
Hardware specifications
CPU MTK8321 Cortex	-A7 Quad Core 1.3 GHz
RAM 1 GB DDR
Flash Memory 16 GB
Screen Resolution 7	0" 1024x600 IPS
WiFi 802.11 b/g/n
Bluetooth Bluetooth	4.0
3G WCDMA 900/2100 MHz
2G 850/900/1800/1900 MHz

Note: the specifications may change due to upgrades.

GPS yes
G-sensor yes
Camera Front 0.3 MP, Main 2.0 MP
SD slot	MicroSD, 32 GB
SIM Card slot	Dual SIM
Charging port Micro-USB (5 V 1.5 A)
USB port Micro-USB
Earphone jack 3.5 mm
Photo format	JPEG, PNG, BMP, GIF
Video format	AVI, MOV, TS, M2TS, FLV, 3GP, MP4, MPEG, DAT, MKV (XVID/Vidx/H.264), RM/RMBV
Audio format	MP3, WMA, APE, FLAC, OGG, WAV
Software specifications
OS	Android^TM 9.0

Using Device in Vehicle

Windscreen holder and battery charger are delivered as part of the product package.

Windscreen holder

Carefully select a place to attach the holder. Do not attach the holder to the windscreen in a way that limits the driver's line of sight. If the car windscreen contains a built-in heating system or UV protection, the quality of signal reception may be lower than usual.

Set-up of windscreen holder

First remove the protective layer from the vacuum cup. Then, select an appropriate place to attach the holder. Make sure the area is clear of dust, dirt, and moisture, and then secure the vacuum cup on the windscreen. Under normal operating conditions, the vacuum cup holder locks the device well. However, if you leave it there overnight, the holding strength may get weaker as a result of moisture condensation due to temperature fall. For this reason, in order to prevent the device and holder from being damaged, it is recommended to remove the device and holder from the windscreen.

Safety requirements

• Do not disassemble or repair tablet by yourself. In case of tablet failure, contact the service center.
• Permissible ambient temperature in operating mode: -10 to +40 °C. Storage temperature: +5 to +55 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the tablet away from fire sources to avoid explosion or fire.
• Do not expose the tablet to physical impacts.
• The manufacturer is not responsible if the screen is damaged by the user.
• Avoid contacting the tablet with sources of electromagnetic radiation.
• Do not use chemicals or detergents to clean the product; always turn off the tablet before cleaning.
• Use accessories only approved by manufacturer.

Installing and removing a SIM card

To install:

1. Shut off the device.
2. Remove the top part of the device's back panel to find the SIM card slot.
3. Insert the SIM card into the slot so that the gold contacts are facing down, and the cut-off corner is facing away from the slot.

To remove:

1. Shut off the device.
2. Remove the top part of the device's back panel to find the SIM card slot.
3. Carefully remove the SIM card.

Installing and removing an SD card

To install:

1. Shut off the device.
2. Remove the top part of the device's back panel to find the SD card slot.
3. Insert the SD card into the slot so that the gold contacts are facing down and the cut-off corner is facing towards the slot. Push it in until it clicks into place.

To remove:

1. Unmount the SD card by going to Application Menu > Settings > Storage > Portable storage - click the arrow on the right side to dismount.
2. Shut off the device.
3. Remove the top part of the device's back panel to find the SD card slot.
4. Lightly push the SD card into the slot and let it slide out.

NAVITEL

Accounts

Use accounts to synchronize your data - e-mails, contacts, calendar, etc.

Adding an account

Go to 📄 Application Menu > Settings, then scroll down to the "Accounts" section. Press "Add account".

You can add the following account types:

• Google – add a Gmail account to synchronize your calendar, contacts, mail, app data, as well as Google+ services.
  • Corporate email – add a corporate email account.
• IMAP email – add a personal email account (IMAP protocol).
• POP3 email – add a personal email account (POP3 protocol).

Contacts

You can save contacts, phone numbers, email addresses, and other related information.

New contacts

To add a new contact:

1. Go to 📷 Contacts > New contact.
2. Enter the contact's information.
3. Press "√" (top right corner) to save the contact.

Edit a contact

1. Press to open the contact list.
2. Select the contact you want to edit, then press 📄. After editing, press "√" to save the changes.

Delete a contact

1. Press
   to open the contact list.
2. Select a contact which you want to delete.
3. Press ☐, in the pop-up list select "Delete".
4. Mark the contacts you want to delete, then press "OK".

Backup contacts

You can export your contact data to an external memory card.

1. Press
   to open the contact list.
2. Press □ > "Import/Export".
3. Select "Export to storage".

Import contacts

1. Press
   to open the contact list.
2. Press □ > "Import/Export".
3. Select "Import from storage".

NAVITEL

NAVITEL T737 PRO

Favorite contacts

You can favorite frequently used or special contacts to access them more quickly. To do that, select a contact from your list, then press on the star icon next to their name.

To view your favorites, press "All contacts" (top left corner), and select "Favorites" in the pop-up list.

Phone call

Making a phone call

1. Press

1. Select a contact from your contact list or press enter a number using the dial pad. You can press remove the last entered digit.

2. Press to make the call.

Receiving a phone call

When you get an incoming call, three options are available:

1. Answer the phone – press and drag the icon onto the icon.

2. Hang up - press and drag the icon onto the icon.

Hang up and write a message – press and drag the 📄 icon onto the 📁 icon.

Call history

To view your call history, go to 📄 Phone > 📅 History. You can choose to only view:

• Incoming calls
• Outgoing calls
• Missed calls

Message

Sending a message

1. Go to 🙏 Messages > New message.
2. Enter the intended recipient's number or press and find the recipient in your contact list.
3. Write the text you want to send.
4. Press ▶ to send the message.

NAVITEL

Answering messages

You will be notified when you receive a new message.

1. Go to 🤘 Messages.
2. Select the message you want to reply to.
3. Enter the text you want to send.

4. Press ▶ to send the message.

5. Pictures – attach a picture stored on your device.

6. Videos – attach a video stored on your device.
7. Audio – attach an audio file stored on your device.
8. Slideshow – create a picture slideshow to attach to the message.
9. Press ▶ to send the message.

MMS

1. Go to 🤨 Messages > 📁 New message.
2. Enter the recipient's number or press and find the recipient in your contact list.
3. Press clip icon in the top right corner, then select one of the following options:
4. Capture picture – capture a photo that will be automatically attached to the message.
5. Capture video – capture a video that will be automatically attached to the message.
6. Record audio – record an audio file that will be automatically attached to the message.

Wi-Fi

Enabling and disabling Wi-Fi

Wi-Fi can be turned on from the Home Screen.

1. Press in the Quick Settings Menu. The icon will turn white when Wi-Fi is on.
2. Press on the icon again to disable Wi-Fi, if necessary.

Alternatively:

1. Go to 📄 Application Menu > Settings.

2. In the "Wireless&Networks" section, find the "Wi-Fi" entry.

3. Use the toggle on the right to turn Wi-Fi on/off.

Connecting to a Wi-Fi network

When Wi-Fi is turned on, a notification icon [?] will appear in the Status Bar showing that there are available Wi-Fi networks. To connect to a network:

1. Put your finger on the left side of the Status Bar and swipe down to display the list of notifications.
2. Tap on "Wi-Fi network available". You will be shown the list of available networks.
3. Choose a network from the list and tap on the corresponding entry. If the network is password protected, you will be prompted to enter the password.

Every time you connect to a new network, the device "remembers" it and connects automatically when it is available. To make your device "forget" a network, long press on the network's name, then select "Forget network" from the pop-up list.

Note: "forgetting" a network includes "forgetting" the password, thus to connect to a secured network again, you will have to re-enter the password.

Mobile network

To enable mobile Internet access, press Application Menu > Settings.

Note: you need to have a SIM card installed for mobile Internet to work.

Bluetooth

Enabling and disabling Bluetooth

Bluetooth can be turned on from the Home Screen:

in the Quick Settings Menu. The icon will turn n Bluetooth is on.
2. Press on the icon again to disable Bluetooth.

NAVITEL

Another way to enable Bluetooth:

1. Go to Application Menu > Settings.
2. Find the "Bluetooth" entry.
3. Use the toggle on the right to turn it on/off.

Connecting devices via Bluetooth

1. Tap on the Bluetooth entry to see the Bluetooth settings. The entry at the very top displays the name of your device and indicates whether it is visible to other Bluetooth devices. Tap on the entry to toggle the visibility of your device.
2. The "Available devices" section below shows the devices that your device can currently see. Tap on a device's entry to pair with it. Another section will appear, titled "Paired devices", where all the Bluetooth connections to your device will be displayed.
3. To unpair a device, press on the right in the device's entry, then press "Unpair".

Tethering&Portable hotspot

You can share your device's data connection with other devices. First, enable your mobile Internet connection.

Then, go to 🎨 Application Menu > 🎨 Settings and in the "Wireless&Networks" section press "More...", then "Tethering&portable hotspot". You will see several sharing

options.

Wi-Fi hotspot

1. Tap on the entry to configure your Wi-Fi hotspot.
2. Press "Set up Wi-Fi hotspot". A window will pop up.
3. Choose a name for your network and type it in the "Network SSID" text field.
4. Choose a security protocol for your network or leave it open.
5. Enter a password to protect your network, if necessary.
6. Set the maximum number of allowed connections (1-8).
7. Press "Save".
8. Use the toggle in the top right corner to turn on the hotspot.

USB tethering

Share Internet connection between two devices via USB cable.

1. Connect your device to the other device.
2. A USB icon will appear in the Status Bar. In the list of notifications you will see "Connected as a media device" (or other connection mode). It does not matter for tethering.
3. Go to 📄 Application Menu > under "Wireless&Networks" select "Tethering&portable hotspot".
   Settings, "More...", then

NAVITEL

NAVITEL T737 PRO

1. Tick the checkbox on the right in the "USB tethering" entry.

Bluetooth tethering

Share Internet connection between two devices paired via Bluetooth.

1. Enable Bluetooth on both devices.
2. Pair the devices.
3. If you want to use the other device's Internet connection, press in the device's entry under "Paired devices", then, under profiles, select "Internet access".
4. If you want to share your Internet connection with the other device, perform step 3 on said device (consult the user manual for the device, if necessary).

Camera

The camera allows you to take pictures and record videos.

To access the camera, tap on the 📄 icon on the Home Screen, or go to 🏠 Application Menu > 📋 Camera.

Press to switch between front and main cameras.

Taking a picture

1. Point the camera at whatever you want to capture.
2. "Stretch" and "pinch" the screen to zoom in or out, if necessary.
3. Press to take a picture. It will be saved automatically

to the gallery.

Recording a video

1. Press ☐ to start recording a video. The icon will turn red, and a small red circle will appear in the bottom left corner of the screen indicating that the recording is in process. A timer next to it will show the length of the recording.
2. If necessary, you can zoom in and out while recording by "stretching" and "pinching" the screen.
3. Press ☐ once more to stop recording. The video will be saved to the gallery.

Camera settings

Press 📄 to open the Camera Settings Menu. It is divided into three tabs – 📋 General, 📋 Photo, and 📋 Video settings.

Press 📂 to open another menu, where you can set up exposure level, color effect, white balance, and day/night mode. After changing the settings, tap anywhere on the screen to exit the Camera Settings Menu.

View gallery

Tap on the square frame in the down right corner of the screen to go to your gallery, where all your pictures and videos are contained.

NAVITEL

You can perform various actions (i.e. edit, crop, rotate, mute, delete) on the items in your gallery. To do that, select an item from the gallery, then press and choose an action from the list.

Sharing pictures and videos

Select an item from the gallery, then press in the top right corner and choose a sharing method from the list. Press to share the file via Gmail (as an attachment).

Sound recorder

1. Go to Application Menu > Sound recorder.
2. Press to start recording.
3. Press □ to stop.
4. Press ▶ to play back the recording, if necessary.
5. Press "Save", if you want to save the audio file, or press "Discard" to delete it.

Settings

To open the Settings Menu:

• Go to 📄 Application Menu > Settings.

- Tap on the Status Bar and in the pop-up menu press

The Settings Menu is divided into 5 sections:

1. Wireless networks - set your device's wireless connection, such as WiFi, Bluetooth, mobile network, etc.
2. Device - theme, sound, display, storage options, etc.
3. Personal - location, security, language, backup.
4. Accounts - Google and email accounts.
5. System - time and date, accessibility, software version, legal information, etc.

NAVITEL

NAVITEL T737 PRO

Wireless&Networks

SIM cards

Enable/disable your SIM cards using the toggles on the right, or edit them by tapping on their respective entries.

Wi-Fi

Connect to wireless networks, view and edit your connection settings.

Bluetooth

Pair your device with other Bluetooth devices in the vicinity.

Data usage

View your data usage statistics. (press "More..." to access the menus listed below)

Airplane mode

Disable all communication with your device.

Default SMS app

Set your default messaging application.

Tethering&portable hotspot

Share your Internet access with other devices.

VPN

Configure your virtual private networks.

Mobile networks

Enable/disable mobile data connection.

Device

Display

Select your wallpaper, set up notifications, brightness, font size, etc.

Storage

Choose a default write disk, view available and occupied space on your storage units.

Battery

View your battery status - current charge, time left, energy consumption per process.

Apps

View and manage your installed applications.

Personal

Location

Location service settings.

Security

Set up screen lock, SIM card protection, and other security parameters.

Language&input

Select your preferred language and input method.

NAVITEL

Backup&reset

Backup your important data to Google servers or perform factory reset on your device.

Accounts

Create, edit, and manage your Google and email accounts.

System

Date&time

Set current date and time, date and time display format, your time zone.

Scheduled power On&Off

Set your device to turn on or off automatically at a certain time.

Accessibility

Accessibility options for people with disabilities.

About tablet

Updates, status, model number, software version, etc.

Navitel Navigator

Navitel Navigator is a multifunctional navigation application used for efficient address search and route planning. NAVITEL T500 3G Tablet includes pre-installed latest version of Navitel Navigator software.

Press the icon in your home screen to run the program. You will be able to download maps of 45 European countries available for free.

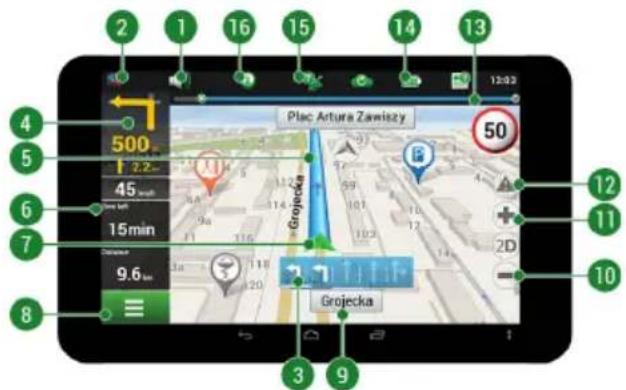

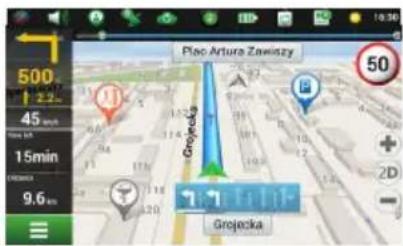

Program interface

1 Sound	Tap on the button to open the sound menu.
2 Compass	Tap to open the context menu where you can choose map orientation ("North up" or "Track up"), map view (2D/3D), and skin (Night/Day/Auto).
3 Road lanes	This panel displays road lanes with possible maneuvers.
4 Information panel	This panel shows the upcoming maneuver and distance before it. Tap on the panel to open
5 Route Visualization of	the current route.

# E	Element Function
6	Information panel	The panel shows current speed, the remaining time to the destination point, distance to the destination point, and estimated time of arrival.
7 GPS-cursor		Indicates current position on the map when the GPS receiver is switched on.
8 Menu		Tap on the button to open the main program menu.

NAVITEL

# E	Element Function
9	Information panel	The panel shows the name of the street you are currently on. The information is available only if GPS/GLONASS connection is established and the map contains such information. If there is no street name, the movement direction will be displayed.
10	Zoom out button Tap to zoom out.
11	Zoom in button Tap to zoom in.
12	"Navitel.Events"	Button for controlling the "Navitel. Events" service.
13	Route progress bar	The progress bar displays the remaining route, waypoints (if any), and traffic density on the route, marked by color.
14	Battery	The icon indicates the level of battery charge. Tapping on the icon shows free device memory.

# Element Function
15 GPS		GPS-connection indicator. Grey indicator – GPS/GLONASS-receiver is off; red – receiver is turned on, but there is no connection with satellites; yellow – bad connection; green – connection is established. The number on the icon indicates the number of satellites.
16 “Navitel.Friends”		The icon of the “Navitel.Friends” service. Tap on it to open the settings menu. The service is intended for adding friends, viewing their location and exchanging messages with them.
# E	Element Function

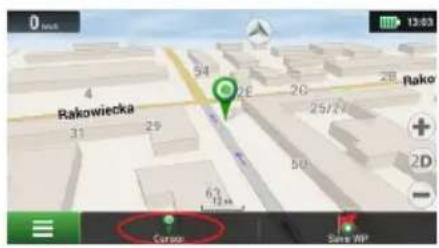

17	“Cursor” button	Tapping on the button shows the menu for operations with the point marked on the map (making it a destination point by pressing “Go!” button or proceeding to the properties screen).
18	“Save WP” button	Saves the point marked on the map as a waypoint.
19	2D/3D	Switching between the plain 2D and the panoramic 3D map views.
20	Point on the map	Short tap on the map marks the point for further operations with it: saving as a waypoint, adding to the route or viewing the object’s data, and others.
21	Updates	Provides access to the program and map update menu screen.
22	Track recording	Button for track recording: red dot – recording is on, grey dot – recording is stopped.
23	Navitel.Traffic	The icon displays general traffic intensity on ten-point scale. Tapping on the button shows the menu for controlling the “Navitel. Traffic” service.

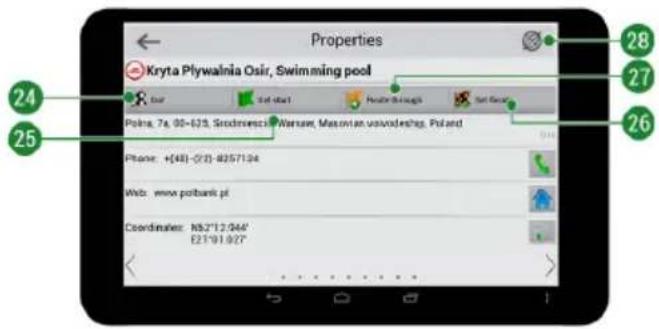

# E	ement Function

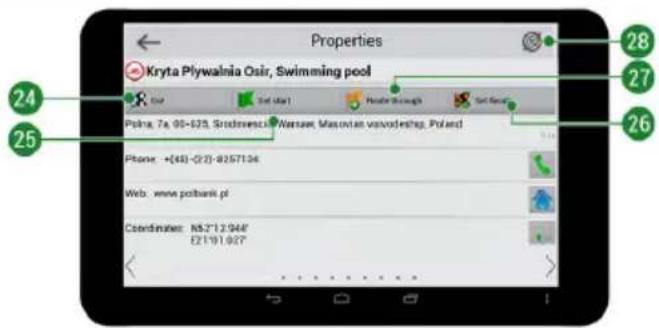

24 "Go!"		Tapping on the button gives a command to the program to calculate a route from the current position or the set initial point to the selected point.
25 "Set start"		Tapping on the button determines the selected point as a starting point of the route (GPS-receiver must be switched off).
26 "Set finish"		The button is active only when there is an existing route. Pressing the button continues the route up to the selected point making it the destination point of the route.

NAVITEL

27 “Route through”	The button is active only when there is an existing route. Pressing the button marks the selected point as a point to be included in the route. The last added point becomes the first one in the route after the starting point.
28 Map Tap to return to	the map.

Routing

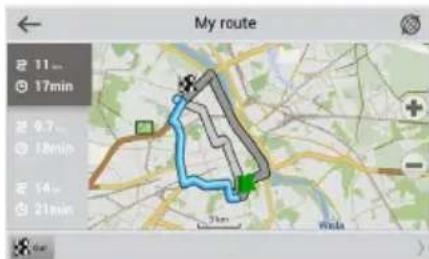

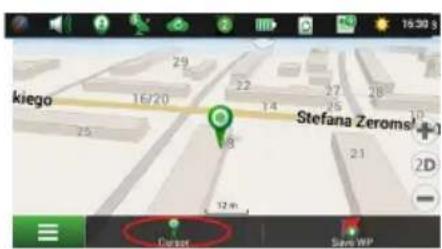

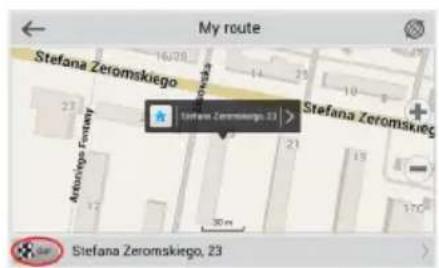

Route to a point selected on the map

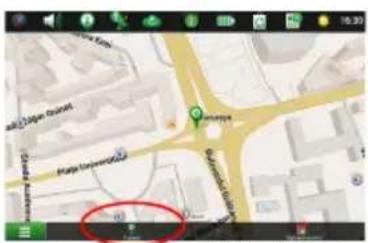

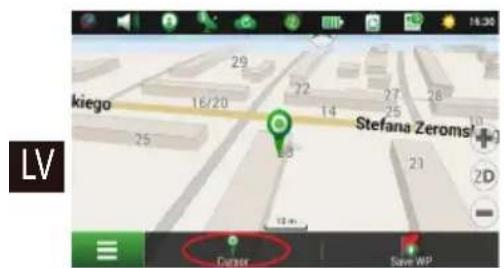

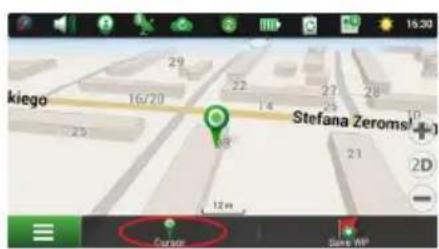

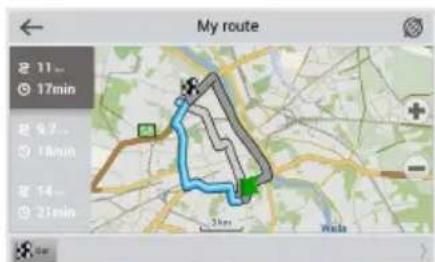

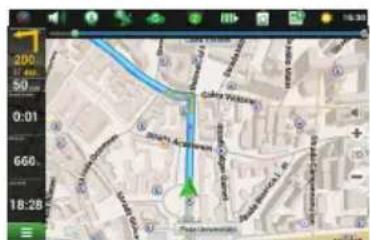

You can have a route planned to a point, which can be found and marked on the map and then set as the destination, while current position of the device, determined by the GPS system becomes the starting point. To plan a route press on the map to mark the point, select "Cursor" [1] and then "Go!" [2]. The program will offer 3 alternate routes with an approximate distance and time to the finish point [3]. Press «Go!» to start follow the route.

Fig. 1 Fig. 2

To have a route calculated to a point of a known address, press "Menu" in the bottom left corner of the screen [4] > "Find" [5] > "By address" [6], then press "Select country" and start entering the name of a country [7]. Press the icon in the upper right part of the screen to hide the keyboard. Select the country [8]. "Select city", "Select street" and «Select a building» become active only if the previous fields were filled out [9]. When all information is entered the object will be shown in the screen [10]. Press «Go!». The program will offer 3 route options from a current location to the indicated address [11]. Now you can follow the route [12].

NAVITEL

3D architectural rendering of a modern building complex with wooden walkways and green flooring (no visible text or symbols)

Fig. 4

Fig. 5 Fig. 6

Fig. 10

Fig. 11

Fig. 12

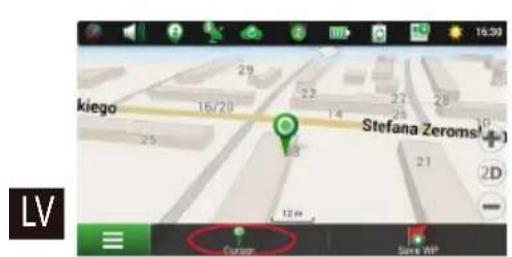

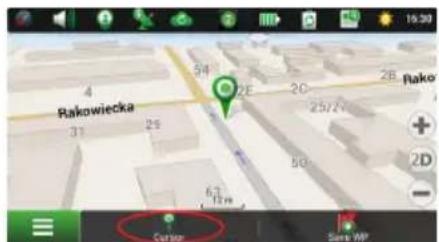

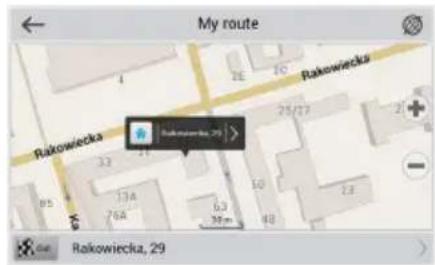

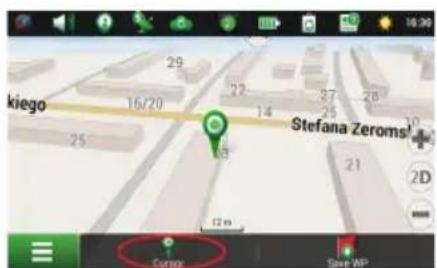

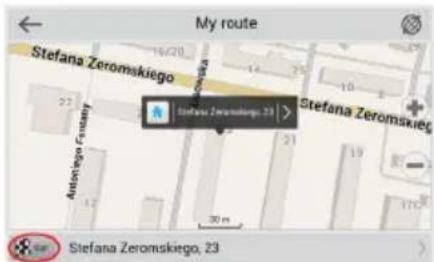

Manual setting of all route points

To plan a route, where the starting and the destination points are determined manually, first mark a point on the map where you plan to start and press «Cursor» [1] to proceed to the «My route» screen. Tap on the information panel at the bottom of the screen [2]. Press «Set start» in the «Properties» screen [3]. The GPS-receiver must be switched off. The point will be marked on the map as a starting point. Select a destination point on the map: tap on the map to mark the point, press «Cursor» [4] and then press «Go!» in the «My route» screen [5]. The program will offer 3 alternative routes [6]. Select the appropriate and press «Go!».

Fig. 1

Fig. 2

Fig. 3

This service provides real-time information about density of traffic on the map. If a part of a road is marked green on the map, this means that road traffic here is normal, if it is marked yellow – traffic is rather dense, orange – traffic is heavy, red – there is a traffic jam. To configure the service select "Menu" > "Settings" > "Online services".

Navitel.Friends

The "Navitel.Friends" interactive service allows viewing positions of friends on the map in real-time, to plan a route using their coordinates, or to share coordinates of other points and exchange messages. To turn the service on select "Menu" > "Settings" > "Online services" and switch on the "Turn on Navitel.Friends" toggle.

Navitel.Events

This interactive service allows users to mark and see on the map other users' marks of the various types of road events.

Navitel.Weather

Navitel.Weather service shows weather forecast for 4 days for any place on Earth.

Navitel.Cloud

Navitel.Cloud service allows you to save your settings, waypoints, and search history in the cloud data storage. The data saved in the cloud can be restored afterwards in case you have reinstalled the program. If you use Navitel Navigator on several devices, waypoints and history data can be synchronized between all of them, which might come handy, saving you time otherwise spent transferring the necessary files.

The Internet connection is required.

To synchronize with another device:

1. On the map screen, within the toolbar, tap the icon.
2. If you do not see this icon, try rotating the screen in order to change the screen orientation. If it does not help and the icon does not appear, select Menu > Settings > Interface > Map buttons, and then enable the Navitel.Cloud icon display.
3. In the newly opened dialog box, select Turn on.
4. Enter your login and password data (same as on Navitel website or Navitel.Friends service). Alternatively, you can log in with either VK, FB, or Google Plus. Your Navitel account has to be synched with them.
5. In the Navitel.Cloud dialog box, select Settings, then select data which you want to synchronize.
6. Go back to the Navitel.Cloud dialog box, and tap the Synchronize now option.
7. Repeat these steps on the other device that you want to synchronize with.

Navitel.News

With the help of the Navitel.News service we deliver to you important update and program news and announce special offers and discounts.

To open the service page, select Menu > My Navitel > News.

If you want to turn this feature on or off, select Menu > Settings > Online services, find the "Show Navitel.News notifications" menu option, and then set the toggle into the position of your choice.

You can also put the Navitel.News icon on the toolbar. Go to Menu > Settings > Interface > Map buttons, and then enable the Navitel.News icon display.

NAVITEL

Package contents

• NAVITEL T737 PRO Tablet
• Car windscreen holder
• Car charger 12/24 V
- Home charger
- Micro-USB – USB cable
- User Manual
- Warranty Card

Device layout

1. Screen 8. Main camera
2. Front camera 9. Flash
3. Speaker 10. Micro-USB
4. Volume 11. Speaker
5. On/off button 12. Microphone
6. Reset 13. Holder
7. 3.5 mm jack

NAVITEL s.r.o. hereby declares that the device NAVITEL T737 PRO is compatible with the European directive RED 2014/53/EU.

The full text of Declaration of conformity is available at the following internet address:

www.navitel.cz/en/declaration_of_conformity/t737-pro

Technical specifications

Main characteristics
Battery Type 2800 m	Ah/3.7 V
Power adapter input	AC 100 V-240 V,output USB 5 V, 1.5 A
Dimensions (mm)	108x188x9,2
Hardware specifications
CPU MTK8321 Cortex-A7 Quad Core 1.3 GHz
RAM 1 GB DDR
Flash Memory 16 GB
Screen Resolution 7.0" 1024x600 IPS
WiFi 802.11 b/g/n
Bluetooth Bluetooth 4.0
3G WCDMA 900/2100 MHz
2G 850/900/1800/1900 MHz

GPS yes
G-sensor yes
Camera Front 0.3 MP, Main 2.0 MP
SD slot	MicroSD, 32 GB
SIM Card slot	Dual SIM
Charging port Micro-USB (5 V 1.5 A)
USB port Micro-USB
Earphone jack 3.5 mm
Photo format	JPEG, PNG, BMP, GIF
Video format	AVI, MOV, TS, M2TS, FLV, 3GP, MP4, MPEG, DAT, MKV (XVID/Vidx/H.264), RM/RMBV
Audio format	MP3, WMA, APE, FLAC, OGG, WAV
Software specifications
OS	Android^TM 9.0

Note: the specifications may change due to upgrades.

Using Device in Vehicle

Windscreen holder and battery charger are delivered as part of the product package.

Windscreen holder

Carefully select a place to attach the holder. Do not attach the holder to the windscreen in a way that limits the driver's line of sight. If the car windscreen contains a built-in heating system or UV protection, the quality of signal reception may be lower than usual.

Set-up of windscreen holder

First remove the protective layer from the vacuum cup. Then, select an appropriate place to attach the holder. Make sure the area is clear of dust, dirt, and moisture, and then secure the vacuum cup on the windscreen. Under normal operating conditions, the vacuum cup holder locks the device well. However, if you leave it there overnight, the holding strength may get weaker as a result of moisture condensation due to temperature fall. For this reason, in order to prevent the device and holder from being damaged, it is recommended to remove the device and holder from the windscreen.

Safety requirements

• Do not disassemble or repair tablet by yourself. In case of tablet failure, contact the service center.
• Permissible ambient temperature in operating mode: -10 to +40 °C. Storage temperature: +5 to +55 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the tablet away from fire sources to avoid explosion or fire.
• Do not expose the tablet to physical impacts.
• The manufacturer is not responsible if the screen is damaged by the user.
• Avoid contacting the tablet with sources of electromagnetic radiation.
• Do not use chemicals or detergents to clean the product; always turn off the tablet before cleaning.
• Use accessories only approved by manufacturer.

Installing and removing a SIM card

To install:

1. Shut off the device.

2. Remove the top part of the device's back panel to find the SIM card slot.

3. Insert the SIM card into the slot so that the gold contacts are facing down, and the cut-off corner is facing away from the slot.

To remove:

1. Shut off the device.
2. Remove the top part of the device's back panel to find the SIM card slot.
3. Carefully remove the SIM card.

Installing and removing an SD card

To install:

1. Shut off the device.
2. Remove the top part of the device's back panel to find the SD card slot.
3. Insert the SD card into the slot so that the gold contacts are facing down and the cut-off corner is facing towards the slot. Push it in until it clicks into place.

To remove:

1. Unmount the SD card by going to Application Menu > Settings > Storage > Portable storage - click the arrow on the right side to dismount.
2. Shut off the device.
3. Remove the top part of the device's back panel to find the SD card slot.
4. Lightly push the SD card into the slot and let it slide out.

NAVITEL

Accounts

Use accounts to synchronize your data - e-mails, contacts, calendar, etc.

Adding an account

Go to 📄 Application Menu > Settings, then scroll down to the "Accounts" section. Press "Add account".

You can add the following account types:

• Google – add a Gmail account to synchronize your calendar, contacts, mail, app data, as well as Google+ services.
  • Corporate email – add a corporate email account.
• IMAP email – add a personal email account (IMAP protocol).
• POP3 email – add a personal email account (POP3 protocol).

Contacts

You can save contacts, phone numbers, email addresses, and other related information.

New contacts

To add a new contact:

1. Go to Contacts > New contact.
2. Enter the contact's information.
3. Press "√" (top right corner) to save the contact.

Edit a contact

1. Press to open the contact list.
2. Select the contact you want to edit, then press 📄. After editing, press "√" to save the changes.

Delete a contact

1. Press to open the contact list.
2. Select a contact which you want to delete.
3. Press ☐, in the pop-up list select "Delete".
4. Mark the contacts you want to delete, then press "OK".

Backup contacts

You can export your contact data to an external memory card.

1. Press to open the contact list.
2. Press □ > "Import/Export".
3. Select "Export to storage".

Import contacts

1. Press to open the contact list.
2. Press ☐ > "Import/Export".
3. Select "Import from storage".

NAVITEL

NAVITEL T737 PRO

Favorite contacts

You can favorite frequently used or special contacts to access them more quickly. To do that, select a contact from your list, then press on the star icon next to their name.

To view your favorites, press "All contacts" (top left corner), and select "Favorites" in the pop-up list.

Phone call

Making a phone call

1. Press
2. Select a contact from your contact list or press enter a number using the dial pad. You can press remove the last entered digit.
3. Press to make the call.

Receiving a phone call

When you get an incoming call, three options are available:

1. Answer the phone – press and drag the 📄 icon onto the 📋 icon.
2. Hang up - press and drag the icon onto the icon.

Hang up and write a message – press and drag the 📄 icon onto the 📋 icon.

Call history

To view your call history, go to Phone > History. You can choose to only view:

- Incoming calls - Outgoing calls - Missed calls

Message

Sending a message

1. Go to Messages > New message.
2. Enter the intended recipient's number or press and find the recipient in your contact list.
3. Write the text you want to send.
4. Press ▶ to send the message.

NAVITEL

Answering messages

You will be notified when you receive a new message.

1. Go to Messages.
2. Select the message you want to reply to.
3. Enter the text you want to send.
4. Press ▶ to send the message.

• Pictures – attach a picture stored on your device.
- Videos – attach a video stored on your device.
- Audio – attach an audio file stored on your device.
- Slideshow – create a picture slideshow to attach to the message.
4. Press ▶ to send the message.

MMS

1. Go to 🤨 Messages > 📝 new message.
2. Enter the recipient's number or press and find the recipient in your contact list.
3. Press clip icon in the top right corner, then select one of the following options:
4. Capture picture – capture a photo that will be automatically attached to the message.
5. Capture video – capture a video that will be automatically attached to the message.
6. Record audio – record an audio file that will be automatically attached to the message.

Wi-Fi

Enabling and disabling Wi-Fi

Wi-Fi can be turned on from the Home Screen.

1. Press in the Quick Settings Menu. The icon will turn white when Wi-Fi is on.
2. Press on the icon again to disable Wi-Fi, if necessary.

Alternatively:

1. Go to 📄 Application Menu > Settings.

2. In the "Wireless&Networks" section, find the "Wi-Fi" entry.

3. Use the toggle on the right to turn Wi-Fi on/off.

Connecting to a Wi-Fi network

When Wi-Fi is turned on, a notification icon [?] will appear in the Status Bar showing that there are available Wi-Fi networks. To connect to a network:

1. Put your finger on the left side of the Status Bar and swipe down to display the list of notifications.
2. Tap on "Wi-Fi network available". You will be shown the list of available networks.
3. Choose a network from the list and tap on the corresponding entry. If the network is password protected, you will be prompted to enter the password.

Every time you connect to a new network, the device "remembers" it and connects automatically when it is available. To make your device "forget" a network, long press on the network's name, then select "Forget network" from the pop-up list.

Note: "forgetting" a network includes "forgetting" the password, thus to connect to a secured network again, you will have to re-enter the password.

Mobile network

To enable mobile Internet access, press Application Menu > Settings.

Note: you need to have a SIM card installed for mobile Internet to work.

Bluetooth

Enabling and disabling Bluetooth

Bluetooth can be turned on from the Home Screen:

1. Press
   Press 📋 in the Quick Settings Menu. The icon will turn white when Bluetooth is on.
2. Press on the icon again to disable Bluetooth.

NAVITEL

Another way to enable Bluetooth:

1. Go to 📄 Application Menu > Settings.
2. Find the "Bluetooth" entry.
3. Use the toggle on the right to turn it on/off.

Connecting devices via Bluetooth

1. Tap on the Bluetooth entry to see the Bluetooth settings. The entry at the very top displays the name of your device and indicates whether it is visible to other Bluetooth devices. Tap on the entry to toggle the visibility of your device.
2. The "Available devices" section below shows the devices that your device can currently see. Tap on a device's entry to pair with it. Another section will appear, titled "Paired devices", where all the Bluetooth connections to your device will be displayed.
3. To unpair a device, press 📄 on the right in the device's entry, then press "Unpair".

Tethering&Portable hotspot

You can share your device's data connection with other devices. First, enable your mobile Internet connection. Then, go to

Application Menu > Settings and in the "Wireless&Networks" section press "More...", then "Tethering&portable hotspot". You will see several sharing options.

Wi-Fi hotspot

1. Tap on the entry to configure your Wi-Fi hotspot.
2. Press "Set up Wi-Fi hotspot". A window will pop up.
3. Choose a name for your network and type it in the "Network SSID" text field.
4. Choose a security protocol for your network or leave it open.
5. Enter a password to protect your network, if necessary.
6. Set the maximum number of allowed connections (1-8).
7. Press "Save".
8. Use the toggle in the top right corner to turn on the hotspot.

USB tethering

Share Internet connection between two devices via USB cable.

1. Connect your device to the other device.

2. A USB icon will appear in the Status Bar. In the list of notifications you will see "Connected as a media device" (or other connection mode). It does not matter for tethering.

3. Go to 📄 Application Menu > 📋 Settings, under "Wireless&Networks" select "More...", then "Tethering&portable hotspot".

4. Tick the checkbox on the right in the "USB tethering" entry.

Bluetooth tethering

Share Internet connection between two devices paired via Bluetooth.

1. Enable Bluetooth on both devices.
2. Pair the devices.
3. If you want to use the other device's Internet connection, press in the device's entry under "Paired devices", then, under profiles, select "Internet access".
4. If you want to share your Internet connection with the other device, perform step 3 on said device (consult the user manual for the device, if necessary).

Camera

The camera allows you to take pictures and record videos.

To access the camera, tap on the icon on the Home

Screen, or go to 🎯 Application Menu > Camera.

Press to switch between front and main cameras.

Taking a picture

1. Point the camera at whatever you want to capture.
2. "Stretch" and "pinch" the screen to zoom in or out, if necessary.
3. Press to take a picture. It will be saved automatically to the gallery.

Recording a video

1. Press ☐ to start recording a video. The icon will turn red, and a small red circle will appear in the bottom left corner of the screen indicating that the recording is in process. A timer next to it will show the length of the recording.
2. If necessary, you can zoom in and out while recording by "stretching" and "pinching" the screen.
3. Press ☐ once more to stop recording. The video will be saved to the gallery.

Camera settings

Press to open the Camera Settings Menu. It is divided into three tabs – General, Photo, and Video settings.

Press 📁 to open another menu, where you can set up exposure level, color effect, white balance, and day/night mode. After changing the settings, tap anywhere on the screen to exit the Camera Settings Menu.

View gallery

Tap on the square frame in the down right corner of the screen to go to your gallery, where all your pictures and videos are contained.

NAVITEL

You can perform various actions (i.e. edit, crop, rotate, mute, delete) on the items in your gallery. To do that, select an item from the gallery, then press and choose an action from the list.

Sharing pictures and videos

Select an item from the gallery, then press in the top right corner and choose a sharing method from the list. Press to share the file via Gmail (as an attachment).

Sound recorder

1. Go to Application Menu > Sound recorder.
2. Press to start recording.
3. Press □ to stop.
4. Press ▶ to play back the recording, if necessary.
5. Press "Save", if you want to save the audio file, or press "Discard" to delete it.

Settings

To open the Settings Menu:

- Go to 📄 Application Menu > Settings.

- Tap on the Status Bar and in the pop-up menu press The Settings Menu is divided into 5 sections:

1. Wireless networks - set your device's wireless connection, such as WiFi, Bluetooth, mobile network, etc.
2. Device - theme, sound, display, storage options, etc.
3. Personal - location, security, language, backup.
4. Accounts - Google and email accounts.
5. System - time and date, accessibility, software version, legal information, etc.

Wireless&Networks

SIM cards

Enable/disable your SIM cards using the toggles on the right, or edit them by tapping on their respective entries.

Wi-Fi

Connect to wireless networks, view and edit your connection settings.

Bluetooth

Pair your device with other Bluetooth devices in the vicinity.

Data usage

View your data usage statistics.

(press "More..." to access the menus listed below)

Airplane mode

Disable all communication with your device.

Default SMS app

Set your default messaging application.

Tethering&portable hotspot

Share your Internet access with other devices.

VPN

Configure your virtual private networks.

Mobile networks

Enable/disable mobile data connection.

Device

Display

Select your wallpaper, set up notifications, brightness, font size, etc.

Storage

Choose a default write disk, view available and occupied space on your storage units.

Battery

View your battery status - current charge, time left, energy consumption per process.

Apps

View and manage your installed applications.

Personal

Location

Location service settings.

Security

Set up screen lock, SIM card protection, and other security parameters.

Language&input

Select your preferred language and input method.

NAVITEL

Backup&reset

Backup your important data to Google servers or perform factory reset on your device.

Accounts

Create, edit, and manage your Google and email accounts.

System

Date&time

Set current date and time, date and time display format, your time zone.

Scheduled power On&Off

Set your device to turn on or off automatically at a certain time.

Accessibility

Accessibility options for people with disabilities.

About tablet

Updates, status, model number, software version, etc.

Navitel Navigator

Navitel Navigator is a multifunctional navigation application used for efficient address search and route planning. NAVITEL T500 3G Tablet includes pre-installed latest version of Navitel Navigator software.

Press the icon in your home screen to run the program. You will be able to download maps of 45 European countries available for free.

Program interface

# E	Element Function
1	Sound	Tap on the button to open the sound menu.
2	Compass	Tap to open the context menu where you can choose map orientation ("North up" or "Track up"), map view (2D/3D), and skin (Night/Day/Auto).
3	Road lanes	This panel displays road lanes with possible maneuvers.
4	Information panel	This panel shows the upcoming maneuver and distance before it. Tap on the panel to open

# Element Function
5 Route Visualization of the current route.
6	Information panel	The panel shows current speed, the remaining time to the destination point, distance to the destination point, and estimated time of arrival.
7 GPS-cursor		Indicates current position on the map when the GPS receiver is switched on.
8 Menu		Tap on the button to open the main program menu.

NAVITEL

# E	Element Function
9	Information panel	The panel shows the name of the street you are currently on. The information is available only if GPS/ GLONASS connection is established and the map contains such information. If there is no street name, the movement direction will be displayed.
10	Zoom out button Tap to zoom out.
11	Zoom in button Tap to zoom in.
12	"Navitel.Events"	Button for controlling the "Navitel. Events" service.
13	Route progress bar	The progress bar displays the remaining route, waypoints (if any), and traffic density on the route, marked by color.
14	Battery	The icon indicates the level of battery charge. Tapping on the icon shows free device memory.

# Element Function
15 GPS		GPS-connection indicator. Grey indicator - GPS/GLONASS-receiver is off; red - receiver is turned on, but there is no connection with satellites; yellow - bad connection; green - connection is established. The number on the icon indicates the number of satellites.
16 "Navitel.Friends"		The icon of the "Navitel.Friends" service. Tap on it to open the settings menu. The service is intended for adding friends, viewing their location and exchanging messages with them.
# E	Element Function
17	“Cursor” button	Tapping on the button shows the menu for operations with the point marked on the map (making it a destination point by pressing “Go!” button or proceeding to the properties screen).
18	“Save WP” button	Saves the point marked on the map as a waypoint.
19	2D/3D	Switching between the plain 2D and the panoramic 3D map views.
20	Point on the map	Short tap on the map marks the point for further operations with it: saving as a waypoint, adding to the route or viewing the object’s data, and others.
21	Updates	Provides access to the program and map update menu screen.
22	Track recording	Button for track recording: red dot – recording is on, grey dot – recording is stopped.
23	Navitel.Traffic	The icon displays general traffic intensity on ten-point scale. Tapping on the button shows the menu for controlling the “Navitel.Traffic” service.

# Element Function
24 "Go!"		Tapping on the button gives a command to the program to calculate a route from the current position or the set initial point to the selected point.
25 "Set start"		Tapping on the button determines the selected point as a starting point of the route (GPS-receiver must be switched off).
26 "Set finish"		The button is active only when there is an existing route. Pressing the button continues the route up to the selected point making it the destination point of the route.

NAVITEL

# E	Element Function
27	"Route through"	The button is active only when there is an existing route. Pressing the button marks the selected point as a point to be included in the route. The last added point becomes the first one in the route after the starting point.
28	Map Tap to return to	the map.

Routing

Route to a point selected on the map

You can have a route planned to a point, which can be found and marked on the map and then set as the destination, while current position of the device, determined by the GPS system becomes the starting point. To plan a route press on the map to mark the point, select "Cursor" [1] and then "Go!" [2]. The program will offer 3 alternate routes with an approximate distance and time to the finish point [3]. Press «Go!» to start follow the route.

Fig. 1 Fig. 2

To have a route calculated to a point of a known address, press "Menu" in the bottom left corner of the screen [4] > "Find" [5] > "By address" [6], then press "Select country" and start entering the name of a country [7]. Press the icon in the upper right part of the screen to hide the keyboard. Select the country [8]. "Select city", "Select street" and «Select a building» become active only if the previous fields were filled out [9]. When all information is entered the object will be shown in the screen [10]. Press «Go!». The program will offer 3 route options from a current location to the indicated address [11]. Now you can follow the route [12].

NAVITEL

3D architectural rendering of a modern building complex with green flooring and wooden walkways (no visible text or symbols)

Fig. 4

Fig. 5 Fig. 6

Fig. 12

Manual setting of all route points

To plan a route, where the starting and the destination points are determined manually, first mark a point on the map where you plan to start and press «Cursor» [1] to proceed to the «My route» screen. Tap on the information panel at the bottom of the screen [2]. Press «Set start» in the «Properties» screen [3]. The GPS-receiver must be switched off. The point will be marked on the map as a starting point. Select a destination point on the map: tap on the map to mark the point, press «Cursor» [4] and then press «Go!» in the «My route» screen [5]. The program will offer 3 alternative routes [6]. Select the appropriate and press «Go!».

Fig. 1

Fig. 2

Fig. 3

This service provides real-time information about density of traffic on the map. If a part of a road is marked green on the map, this means that road traffic here is normal, if it is marked yellow – traffic is rather dense, orange – traffic is heavy, red – there is a traffic jam. To configure the service select "Menu" > "Settings" > "Online services".

Navitel.Friends

The "Navitel.Friends" interactive service allows viewing positions of friends on the map in real-time, to plan a route using their coordinates, or to share coordinates of other points and exchange messages. To turn the service on select "Menu" > "Settings" > "Online services" and switch on the "Turn on Navitel.Friends" toggle.

Navitel.Events

This interactive service allows users to mark and see on the map other users' marks of the various types of road events.

Navitel.Weather

Navitel.Weather service shows weather forecast for 4 days for any place on Earth.

Navitel.Cloud

Navitel.Cloud service allows you to save your settings, waypoints, and search history in the cloud data storage. The data saved in the cloud can be restored afterwards in case you have reinstalled the program. If you use Navitel Navigator on several devices, waypoints and history data can be synchronized between all of them, which might come handy, saving you time otherwise spent transferring the necessary files.

The Internet connection is required.

To synchronize with another device:

1. On the map screen, within the toolbar, tap the icon.
2. If you do not see this icon, try rotating the screen in order to change the screen orientation. If it does not help and the icon does not appear, select Menu > Settings > Interface > Map buttons, and then enable the Navitel.Cloud icon display.
3. In the newly opened dialog box, select Turn on.
4. Enter your login and password data (same as on Navitel website or Navitel.Friends service). Alternatively, you can log in with either VK, FB, or Google Plus. Your Navitel account has to be synched with them.
5. In the Navitel.Cloud dialog box, select Settings, then select data which you want to synchronize.
6. Go back to the Navitel.Cloud dialog box, and tap the Synchronize now option.
7. Repeat these steps on the other device that you want to synchronize with.

Navitel.News

With the help of the Navitel.News service we deliver to you important update and program news and announce special offers and discounts.

To open the service page, select Menu > My Navitel > News.

If you want to turn this feature on or off, select Menu > Settings > Online services, find the "Show Navitel.News notifications" menu option, and then set the toggle into the position of your choice.

You can also put the Navitel.News icon on the toolbar. Go to Menu > Settings > Interface > Map buttons, and then enable the Navitel.News icon display.

NAVITEL

Csomag

1. sz. ábra

3D architectural model of a city street with buildings and roads, no visible text or symbols

Pav. 1 Pav. 2 Pav. 3

Pav. 4 Pav. 5 Pav. 6

Pav. 7 Pav. 8 Pav. 9

Pav. 4 Pav. 5 Pav. 6

Share Internet connection between two devices via USB cable.

1. Connect your device to the other device.
2. A USB icon will appear in the Status Bar. In the list of notifications you will see "Connected as a media device" (or other connection mode). It does not matter for tethering.

1. Go to Application Menu > Settings, under "Wireless&Networks" select "More...", then "Tethering&portable hotspot".

2. Tick the checkbox on the right in the "USB tethering" entry.

Bluetooth tethering

Share Internet connection between two devices paired via Bluetooth.

1. Enable Bluetooth on both devices.
2. Pair the devices.
3. If you want to use the other device's Internet connection, press
   in the device's entry under "Paired devices", then, under ones, select "Internet access".
4. If you want to share your Internet connection with the other device, perform step 3 on said device (consult the user manual for the device, if necessary).

NAVITEL

NAVITEL T737 PRO

Camera

The camera allows you to take pictures and record videos.

To access the camera, tap on the icon on the Home

Screen, or go to 📄 Application Menu > Camera.

Press 📄 to switch between front and main cameras.

Taking a picture

1. Point the camera at whatever you want to capture.
2. "Stretch" and "pinch" the screen to zoom in or out, if necessary.
3. Press 📋 to take a picture. It will be saved automatically to the gallery.

Recording a video

1. Press ☐ to start recording a video. The icon will turn red, and a small red circle will appear in the bottom left corner of the screen indicating that the recording is in process. A timer next to it will show the length of the recording.
2. If necessary, you can zoom in and out while recording by "stretching" and "pinching" the screen.
3. Press ☐ once more to stop recording. The video will be saved to the gallery.

Camera settings

Press 📋 to open the Camera Settings Menu. It is divided into three tabs – 🎨 General, 📄 Photo, and 📋 Video set- tings.

Press ▲ to open another menu, where you can set up exposure level, color effect, white balance, and day/night mode.

After changing the settings, tap anywhere on the screen to exit the Camera Settings Menu.

View gallery

Tap on the square frame in the down right corner of the screen to go to your gallery, where all your pictures and videos are contained.

You can perform various actions (i.e. edit, crop, rotate, mute, delete) on the items in your gallery. To do that, select an item from the gallery, then press and choose an action from the list.

Sharing pictures and videos

Select an item from the gallery, then press in the top right corner and choose a sharing method from the list. Press to share the file via Gmail (as an attachment).

NAVITEL

Sound recorder

1. Go to Application Menu > Sound recorder.
2. Press to start recording.
3. Press □ to stop.
4. Press ▶ to play back the recording, if necessary.
5. Press "Save", if you want to save the audio file, or press "Discard" to delete it.

Settings

To open the Settings Menu:

• Go to 📄 Application Menu > Settings.
• Tap on the Status Bar and in the pop-up menu press

The Settings Menu is divided into 5 sections:

1. Wireless networks - set your device's wireless connection, such as WiFi, Bluetooth, mobile network, etc.
2. Device - theme, sound, display, storage options, etc.
3. Personal - location, security, language, backup.
4. Accounts - Google and email accounts.
5. System - time and date, accessibility, software version, legal information, etc.

Wireless&Networks

SIM cards

Enable/disable your SIM cards using the toggles on the right, or edit them by tapping on their respective entries.

Wi-Fi

Connect to wireless networks, view and edit your connection settings.

Bluetooth

Pair your device with other Bluetooth devices in the vicinity.

Data usage

View your data usage statistics.

(press "More..." to access the menus listed below)

Airplane mode

Disable all communication with your device.

Default SMS app

Set your default messaging application.

Tethering&portable hotspot

Share your Internet access with other devices.

VPN

Configure your virtual private networks.

Mobile networks

Enable/disable mobile data connection.

NAVITEL

NAVITEL T737 PRO

Device

Audio profiles

Create, edit and use your audio profiles.

Display

Select your wallpaper, set up notifications, brightness, font size, etc.

Storage

Choose a default write disk, view available and occupied space on your storage units.

Battery

View your battery status - current charge, time left, energy consumption per process.

Apps

View and manage your installed applications.

Personal

Location

Location service settings.

Security

Set up screen lock, SIM card protection, and other security parameters.

Language&input

Select your preferred language and input method.

Backup&reset

Backup your important data to Google servers or perform factory reset on your device.

Accounts

Create, edit, and manage your Google and email accounts.

System

Date&time

Set current date and time, date and time display format, your time zone.

Scheduled power on&off

Set your device to turn on or off automatically at a certain time.

Accessibility

Accessibility options for people with disabilities.

Printing

Printing services.

Developer options

Various options for Android developers.

About tablet

Updates, status, model number, software version, etc.

NAVITEL

Navitel Navigator

Navitel Navigator is a multifunctional navigation application used for efficient address search and route planning. NAVITEL T500 3G Tablet includes pre-installed latest version of Navitel Navigator software.

Press the icon in your home screen to run the program. You will be able to download maps of 45 European countries available for free.

Program interface

1 Sound		Tap on the button to open the sound menu.
2 Compass		Tap to open the context menu where you can choose map orientation ("North up" or "Track up"), map view (2D/3D), and skin (Night/Day/Auto).
3 Road lanes		This panel displays road lanes with possible maneuvers.
4	Information panel	This panel shows the upcoming maneuver and distance before it. Tap on the panel to open
5 Route Visualization of the current route.

# E	Element Function
6	Information panel	The panel shows current speed, the remaining time to the destination point, distance to the destination point, and estimated time of arrival.
7	GPS-cursor	Indicates current position on the map when the GPS receiver is switched on.
8	Menu	Tap on the button to open the main program menu.
9	Information panel	The panel shows the name of the street you are currently on. The information is available only if GPS/GLONASS connection is established and the map contains such information. If there is no street name, the movement direction will be displayed.
10	Zoom out button Tap to zoom out.
11	Zoom in button Tap to zoom in.
12	"Navitel.Events"	Button for controlling the "Navitel. Events" service.
13	Route progress bar	The progress bar displays the remaining route, waypoints (if any), and traffic density on the route, marked by color.
14	Battery	The icon indicates the level of battery charge. Tapping on the icon shows free device memory.

# Element Function
15 GPS		GPS-connection indicator. Grey indicator – GPS/GLONASS-receiver is off; red – receiver is turned on, but there is no connection with satellites; yellow – bad connection; green – connection is established. The number on the icon indicates the number of satellites.
16 “Navitel.Friends”		The icon of the “Navitel.Friends” service. Tap on it to open the settings menu. The service is intended for adding friends, viewing their location and exchanging messages with them.

NAVITEL

# E	ement Function
17	"Cursor" button	Tapping on the button shows the menu for operations with the point marked on the map (making it a destination point by pressing "Go!" button or proceeding to the properties screen).
18	"Save WP" button	Saves the point marked on the map as a waypoint.
19	2D/3D	Switching between the plain 2D and the panoramic 3D map views.
20	Point on the map	Short tap on the map marks the point for further operations with it: saving as a waypoint, adding to the route or viewing the object's data, and others.
21	Updates	Provides access to the program and map update menu screen.
22	Track recording	Button for track recording: red dot - recording is on, grey dot - recording is stopped.
23	Navitel.Traffic	The icon displays general traffic intensity on ten-point scale. Tapping on the button shows the menu for controlling the "Navitel. Traffic" service.

# Element Function
24 "Go!"		Tapping on the button gives a command to the program to calculate a route from the current position or the set initial point to the selected point.
25 "Set start"		Tapping on the button determines the selected point as a starting point of the route (GPS-receiver must be switched off).
26 "Set finish"		The button is active only when there is an existing route. Pressing the button continues the route up to the selected point making it the destination point of the route.

NAVITEL

NAVITEL T737 PRO

# E	Element Function
27	"Route through"	The button is active only when there is an existing route. Pressing the button marks the selected point as a point to be included in the route. The last added point becomes the first one in the route after the starting point.
28	Map Tap to return to	the map.

LV

NAVITEL

Routing

Route to a point selected on the map

You can have a route planned to a point, which can be found and marked on the map and then set as the destination, while current position of the device, determined by the GPS system becomes the starting point. To plan a route press on the map to mark the point, select "Cursor" [1] and then "Go!" [2]. The program will offer 3 alternate routes with an approximate distance and time to the finish point [3]. Press «Go!» to start follow the route.

Fig. 1 Fig. 2

Fig. 3

Route to an address

To have a route calculated to a point of a known address, press "Menu" in the bottom left corner of the screen [4] > "Find" [5] > "By address" [6], then press "Select country" and start entering the name of a country [7]. Press the icon in the upper right part of the screen to hide the keyboard. Select the country [8]. "Select city", "Select street" and «Select a building» become active only if the previous fields were filled out [9]. When all information is entered the object will be shown in the screen [10]. Press «Go!». The program will offer 3 route options from a current location to the indicated address [11]. Now you can follow the route [12].

NAVITEL

NAVITEL T737 PRO

3D architectural rendering of a modern building interior with wooden walkways and green flooring (no visible text or symbols)

Fig. 4

Fig. 5 Fig. 6

Fig. 10

Fig. 12

NAVITEL

Manual setting of all route points

To plan a route, where the starting and the destination points are determined manually, first mark a point on the map where you plan to start and press «Cursor» [1] to proceed to the «My route» screen. Tap on the information panel at the bottom of the screen [2]. Press «Set start» in the «Properties» screen [3]. The GPS-receiver must be switched off. The point will be marked on the map as a starting point. Select a destination point on the map: tap on the map to mark the point, press «Cursor» [4] and then press «Go!» in the «My route» screen [5]. The program will offer 3 alternative routes [6]. Select the appropriate and press «Go!».

Fig. 1

Fig. 2

Fig. 3

This service provides real-time information about density of traffic on the map. If a part of a road is marked green on the map, this means that road traffic here is normal, if it is marked yellow – traffic is rather dense, orange – traffic is heavy, red – there is a traffic jam. To configure the service select "Menu" > "Settings" > "Online services".

Navitel.Friends

The "Navitel.Friends" interactive service allows viewing positions of friends on the map in real-time, to plan a route using their coordinates, or to share coordinates of other points and exchange messages. To turn the service on select "Menu"> "Settings"> "Online services" and switch on the "Turn on Navitel.Friends" toggle.

Navitel.Events

This interactive service allows users to mark and see on the map other users' marks of the various types of road events.

Navitel.Weather

Navitel.Weather service shows weather forecast for 4 days for any place on Earth.

Navitel.Cloud

Navitel.Cloud service allows you to save your settings, waypoints, and search history in the cloud data storage. The data saved in the cloud can be restored afterwards in case you have reinstalled the program. If you use Navitel Navigator on several devices, waypoints and history data can be synchronized between all of them, which might come handy, saving you time otherwise spent transferring the necessary files.

The Internet connection is required.

NAVITEL

To synchronize with another device:

1. On the map screen, within the toolbar, tap the icon.
2. If you do not see this icon, try rotating the screen in order to change the screen orientation. If it does not help and the icon does not appear, select Menu > Settings > Interface > Map buttons, and then enable the Navitel.Cloud icon display.
3. In the newly opened dialog box, select Turn on.
4. Enter your login and password data (same as on Navitel website or Navitel.Friends service). Alternatively, you can log in with either VK, FB, or Google Plus. Your Navitel account has to be synched with them.
5. In the Navitel.Cloud dialog box, select Settings, then select data which you want to synchronize.
6. Go back to the Navitel.Cloud dialog box, and tap the Synchronize now option.
7. Repeat these steps on the other device that you want to synchronize with.

Navitel.News

With the help of the Navitel.News service we deliver to you important update and program news and announce special offers and discounts.

To open the service page, select Menu > My Navitel > News.

If you want to turn this feature on or off, select Menu > Settings > Online services, find the "Show Navitel.News notifications" menu option, and then set the toggle into the position of your choice.

You can also put the Navitel.News icon on the toolbar. Go to Menu > Settings > Interface > Map buttons, and then enable the Navitel.News icon display.

NAVITEL

NAVITEL T737 PRO

Application Menu > Settings.

under "Wireless&Networks" select

ttings,

"More...", then

"Tethering&portable hotspot".

1. Tick the checkbox on the right in the "USB tethering" entry.

Tethering prin Bluetooth

NAVITEL

Рис. 1

Obr. 1 Obr. 2 Obr. 3

Obr. 1 Obr. 2 Obr. 3

Obr. 4 Obr. 5 Obr. 6

NAVITEL

Комплект поставки

Рис.4

Рис.

Рис.2

Рис.

Рис. 5

Рис. 6

NAVITEL

Онлайн-сервіси

Навітел.Затори

The content of this user manual is subject to copyright law. No part of this document shall be utilized for commercial purposes without written permission from NAVITEL s.r.o.

Trademarks

NAVITEL ^® and the NAVITEL logo are registered trademarks of NAVITEL s.r.o.

Android is a trademark of Google Inc.

The Bluetooth ^® word mark and figure mark (stylized "B Design") are registered trademarks owned by the Bluetooth SIG.

Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.

microSD ^TM and the microSD logo are trademarks of the SD Card Association.
