T757 LTE - Tablet Navitel - Free user manual and instructions

Product Type	Tablet
Dimensions	192 x 113.2 x 8.85 mm (7.56 x 4.46 x 0.35 in)
Power Supply	Li-Pol battery 2500 mAh, 3.7 V; charger input AC 100-240 V, output Micro-USB 5 V, 2.0 A
Main Functions	4G LTE, Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS/GLONASS, FM radio, dual SIM, microSD slot, rear camera 2.0 MP, front camera 0.3 MP, 7.0" IPS display 1280x800, Android 8.1, Navitel Navigator pre-installed
Maintenance and Cleaning	Turn off device before cleaning; do not use chemicals or detergents; use a soft dry cloth
Safety	Do not disassemble; avoid exposure to extreme temperatures (-10 to +40°C operating, +5 to +55°C storage); keep away from fire and electromagnetic sources
Spare Parts and Repairability	No user-serviceable parts; contact authorized service center for repairs
General Information	OS Android 8.1, CPU MTK8735W quad-core 1.3 GHz, 2 GB RAM, 16 GB storage, microSD support, battery 2500 mAh
Package Contents	Tablet, car charger, home charger, windscreen holder, stand, user manual, warranty card

Frequently Asked Questions - T757 LTE Navitel

How do I install a SIM card?

Shut off the device. Remove the top part of the back panel to find the SIM card slot. Insert the SIM card with gold contacts facing down and the cut-off corner facing away from the slot.

How do I connect to a Wi-Fi network?

Enable Wi-Fi from the Quick Settings Menu or Settings. Then swipe down the status bar, tap on 'Wi-Fi network available', and select your network. Enter the password if required.

How do I make a phone call?

Open the Phone app. Use the dial pad to enter a number or select a contact from your contact list. Press the call button to dial.

How do I use the GPS navigation?

Use the pre-installed Navitel Navigator. Open the app, ensure GPS is enabled. The software will find your location and allow you to plan routes by address or map selection.

How do I pair a Bluetooth device?

Enable Bluetooth from Quick Settings or Settings. In Bluetooth settings, tap on the device you want to pair under 'Available devices'. Confirm pairing on both devices.

How do I change the wallpaper?

Long press on the Home Screen until it shrinks. Tap 'Wallpapers' and select an image from the carousel or pick an image from your device. Tap 'Set wallpaper'.

How do I perform a factory reset?

Go to Application Menu > Settings > Backup&reset. Tap 'Factory data reset' and follow the prompts. Note: this will erase all data on the device.

How do I share my mobile internet connection?

Enable mobile data. Go to Settings > Wireless&Networks > More... > Tethering&portable hotspot. Set up a Wi-Fi hotspot or USB/Bluetooth tethering.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously until the screen flashes. The screenshot is saved in the gallery.

How do I install or remove an SD card?

For installation: shut off the device, remove the back panel, and insert the SD card with gold contacts facing down and cut-off corner towards the slot. For removal: first unmount the SD card via Settings > Storage, then shut off and remove the card.

USER MANUAL T757 LTE Navitel

The content of this user manual is subject to copyright law. No part of this document shall be utilized for commercial purposes without written permission from NAVITEL s.r.o.

Trademarks

NAVITEL® and the NAVITEL logo are registered trademarks of NAVITEL s.r.o.

Google, Android, Google Play and other marks are trademarks of Google Inc. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

The Bluetooth® word mark and figure mark (stylized "B Design") are registered trademarks owned by the Bluetooth SIG.

Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.

microSD ^™ and the microSD logo are trademarks of the SD Card Association.

Začínáme

Obsah balení 4

Vnější vzhled 4

UŽIVATELSKÁ PŘÍRUČKA – T757 LTE

Tisk 24

Tapety

UŽIVATELSKÁ PŘÍRUČKA – T757 LTE

Importovat kontakty

UŽIVATELSKÁ PŘÍRUČKA – T757 LTE

- Odchozí hovory

• Zmeškané hovory

Zprávy

Odeslání zprávy

UŽIVATELSKÁ PŘÍRUČKA – T757 LTE

UŽIVATELSKÁ PŘÍRUČKA – T757 LTE

UŽIVATELSKÁ PŘÍRUČKA – T757 LTE

Úložiště

Obr. 7 Obr. 8 Obr. 9

Technical specifications 4

Physical characteristics 4

Hardware specifications 4

Software specifications 4

Using Device in Vehicle 5

Safety requirements 5

Installing and removing a SIM card. 6

Installing and removing an SD card 6

Home Screen 7

Main buttons....7

Status Bar 7

Applications 7

Shortcuts 8

Widgets 8

Wallpapers 8

Accounts&Contacts

Accounts 9

Adding an account 9

Contacts 9

New contacts....9

Edit a contact 10

Delete a contact 10

Backup contacts 10

Import contacts 11

Favorite contacts....11....

Calling&Messaging

Phone call 12

Making a phone call 12

Receiving a phone call 12

Call history 12

Message 13

Sending a message 13

Answering messages 13

MMS 14

Networks

Wi-Fi 15

Enabling and disabling Wi-Fi 15

Connecting to a Wi-Fi network 15

Mobile network 16

NAVITEL

Bluetooth

Enabling and disabling Bluetooth 16

Connecting devices via Bluetooth 17

Tethering&Portable hotspot 17

Wi-Fi hotspot 17

USB tethering....18.

Bluetooth tethering 18

Multimedia

Camera

Taking a picture 19

Recording a video 19

Camera settings....19

View gallery 20

Sharing pictures and videos 20

Sound recorder 20

Settings

Wireless&Networks 21

SIM management 21

Wi-Fi 21

Bluetooth 21

Data usage 22

16 Airplane mode 22

Default SMS app 22

Tethering&portable hotspot 22

VPN

Mobile networks 22

Device 22

Audio profiles 22

Display 22

Storage 23

Battery 23

Apps 23

Personal 23

Location 23

Security 23

Language&input 23

Backup&reset 23

Accounts 23

System 24

Date&time 24

Scheduled power on&off 24

Accessibility 24

NAVITEL

T757 LTE

Printing 24

Developer options 24

About tablet 24

Navitel Navigator

Introduction 25

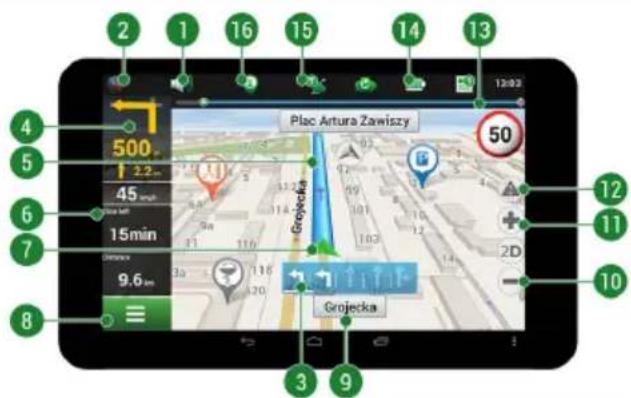

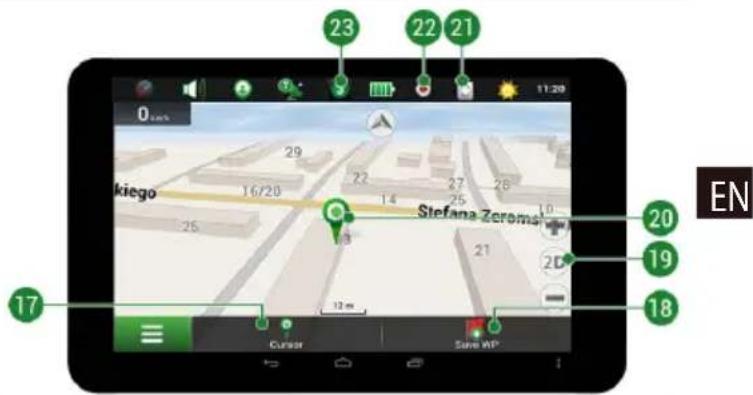

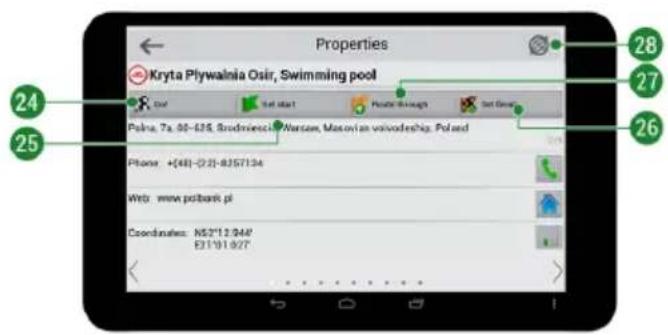

Program interface 25

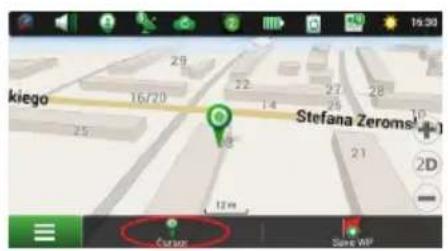

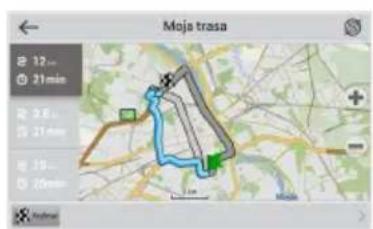

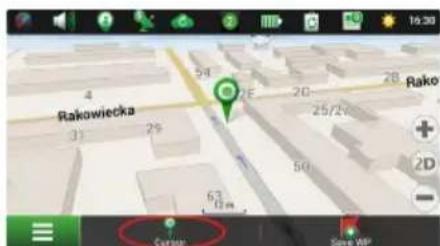

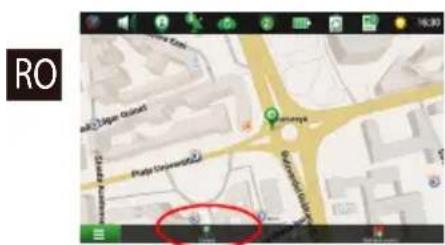

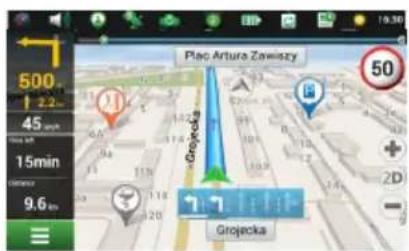

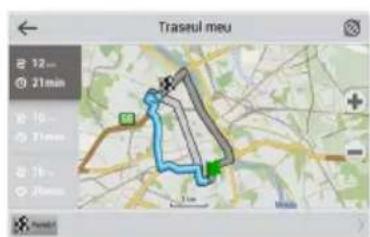

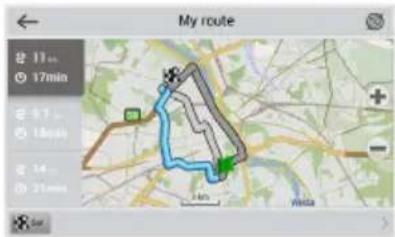

Routing 29

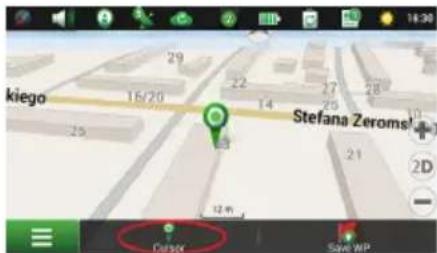

Route to a manually selected point on the

map 29

Route to an address 29

Manual setting of all route points 31

Online services 32

Navitel.Traffic 32

Navitel.Friends 32

Navitel.Events 32

Navitel.Weather 32

Navitel.Cloud 32

Navitel.News 33

Package contents

• NAVITEL T757 LTE Tablet
- Car charger
• Car windscreen holder
- User Manual
- Stand
- Warranty Card
• Home charger 12/24 V

Device layout

1. Screen
2. 3.5 mm jack
3. Front camera
4. Rear camera
5. Speaker
6. Flash
7. Volume
8. Micro-USB
9. On/off button
10. Speaker
11. Reset
12. Microphone

Technical specifications

Physical characteristics
Battery Type LI-Pol battery, 2500 mAh / 3.7 V
Power adaptor	Input AC 100 V-240 V,output Micro-USB 5 V, 2.0 A
Dimensions 192 x 11	3.2 x 8.85 mm
Hardware specifications
CPU	MTK8735W Cortex-A53Quad core 1.3 GHz
DDR Memory 2 GB DDR

Flash Memory 16 GB
Screen Resolution 7.0" IPS 1280 x 800
Wi-Fi 802.11 b / g / n
Bluetooth Bluetooth 4.0
2G/3G 850/900/1800/1900/2100 MHz
4G B1/B3/B7/B20
GPS/GLONASS Yes
FM radio Yes

Camera	Front 0.3 MP, rear 2.0 MP
SD slot	microSD
SIM Card slot	Dual SIM
Charging port Micro-USB (5 V 2.0 A)
USB port Micro-USB
Earphone jack 3.5 mm
G-sensor Yes
Software specifications
OS	AndroidTM 8.1

Using Device in Vehicle

Windscreen holder

Carefully select a place to attach the holder. Do not attach the holder to the windscreen in a way that limits the driver's line of sight. If the car windscreen contains a built-in heating system or UV protection, the quality of signal reception may be lower than usual.

Set-up of windscreen holder

First remove the protective layer from the vacuum cup. Then, select an appropriate place to attach the holder. Make sure the area is clear of dust, dirt, and moisture, and then secure the vacuum cup on the windscreen. Under normal operating conditions, the vacuum cup holder locks the device well. However, if you leave it there overnight, the holding strength may get weaker as a result of moisture condensation due to temperature fall. For this reason, in order to prevent the device and holder from being damaged, it is recommended to remove the device and holder from the windscreen.

Safety requirements

• Do not disassemble or repair tablet by yourself. In case of tablet failure, contact the service center.
• Permissible ambient temperature in operating mode: -10 to +40 °C. Storage temperature: +5 to +55 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the tablet away from fire sources to avoid explosion or fire.
• Do not expose the tablet to physical impacts.
• The manufacturer is not responsible if the screen is damaged by the user.
• Avoid contacting the tablet with sources of electromagnetic radiation.
• Do not use chemicals or detergents to clean the product; always turn off the tablet before cleaning.
• Use accessories only approved by manufacturer.

Installing and removing a SIM card

To install:

1. Shut off the device.
2. Remove the top part of the device's back panel to find the SIM card slot.
3. Insert the SIM card into the slot so that the gold contacts are facing down, and the cut-off corner is facing away from the slot.

To remove:

1. Shut off the device.
2. Remove the top part of the device's back panel to find the SIM card slot.
3. Carefully remove the SIM card.

Installing and removing an SD card

To install:

1. Shut off the device.
2. Remove the top part of the device's back panel to find the SD card slot.
3. Insert the SD card into the slot so that the gold contacts are facing down and the cut-off corner is facing towards the slot. Push it in until it clicks into place.

To remove:

1. Unmount the SD card by going to Application Menu > Settings > Storage > Unmount SD card.
2. Shut off the device.
3. Remove the top part of the device's back panel to find the SD card slot.
4. Lightly push the SD card into the slot and let it slide out.

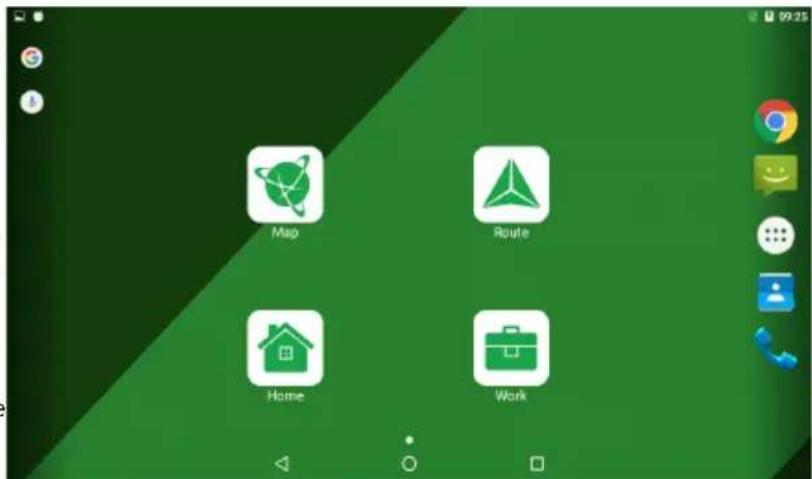

Home Screen

The Home Screen contains the Status Bar at the top, the Quick Settings Panel, and shortcuts to various applications, menus, and functions of the device.

Main buttons

- open the Application Menu.

- return to the Home Screen.

- return to the previous screen.

- show the list of recently used applications. Tap on an application icon to open it.

Status Bar

The Status Bar displays a selection of icons that describe the current state of the device - for example, battery level, signal strength, Wi-Fi and Bluetooth connection, etc.

Press your finger against the left half of the status bar and swipe down to display the list of notifications; do the same with the right half to display the Quick Settings Menu.

Applications

Your installed apps are located in the Application Menu that can be accessed by pressing 📄. Tap on an application icon to open it.

Long press and drag the icon onto the trash bin in the top left corner to delete the application.

Shortcuts

You can create shortcuts to your most used apps and position them however you like on the Home Screen. To add an application shortcut to the Home Screen:

1. Open the Application Menu.
2. Long press on the icon of the app, then drag and release to place it on the Home Screen.

To remove a shortcut, long press, then drag and drop it onto the little cross in the top left corner.

Widgets

You can place widgets on your Home Screen, i.e. calendar, clock, battery, Google Search, and others. To do that:

1. Long press on the Home Screen until it shrinks. Below it you will see three new icons.
2. Tap on the one labeled "Widgets". You will see the list of available widgets.
3. Select a widget from the list by touching and holding, then drag and release to place it on the screen.

To remove a widget, long press, then drag and drop it onto the little cross in the top left corner.

Wallpapers

To change the wallpaper:

1. Long press on the Home Screen until it shrinks. Below it you will see three new icons.
2. Tap on the one labeled "Wallpapers". You will see the available wallpapers in the image carousel at the bottom of the screen.
3. Choose an image from the carousel, or press "Pick image" (the leftmost picture in the carousel) to choose a different image saved on your device. Then press "Set wallpaper" in the top left corner.

Accounts

Use accounts to synchronize your data - e-mails, contacts, calendar, etc.

Adding an account

Go to Application Menu > Settings then scroll down to the "Accounts" section. Press "Add account".

You can add the following account types:

• Google - add a Gmail account to synchronize your calendar, contacts, mail, app data, as well as Google+ services.
  • Corporate email - add a corporate email account.
• IMAP email - add a personal email account (IMAP protocol).
• POP3 email - add a personal email account (POP3 protocol).

Contacts

You can save contacts, phone numbers, email addresses, and other related information.

New contacts

To add a new contact:

1. Go to Contacts > New contact.

2. Enter the contact's information.

3. Press "Done" (top left corner) to save the contact.

NAVITEL

Edit a contact

1. Press to open the contact list.

1. Select the contact you want to edit, then press 📄. After editing, press "Done" to save the changes.

Delete a contact

1. Press to open the contact list.

2. Press , in the pop-up list select "Delete".

3. Mark the contacts you want to delete, then press "OK".

Backup contacts

You can export your contact data to an external memory card.

1. Press to open the contact list.
2. Press > "Import/Export".
3. Select "Export to storage".

NAVITEL

T757 LTE | 11

Import contacts

1. Press to open the contact list.
2. Press > "Import/Export".
3. Select "Import from storage".

Favorite contacts

You can favorite frequently used or special contacts to access them more quickly. To do that, select a contact from your list, then press on the star icon next to their name.

To view your favorites, press "All contacts" (top left corner), and select "Favorites" in the pop-up list.

NAVITEL

Phone call

Making a phone call

1. Press

1. Select a contact from your contact list or press the last entered digit.

to enter a number using the dial pad. You can press ✗ to remove

1. Press

Receiving a phone call

When you get an incoming call, three options are available:

1. Answer the phone - press and drag the

icon

1. Hang up - press and drag the

Hang up and write a message - press and drag the

icob

Call history

To view your call history, go to

- Incoming calls

History. You can choose to only view:

NAVITEL

T757 LTE

- Outgoing calls

- Missed calls

Message

Sending a message

1. Go to

Messages >

1. Enter the intended recipient's number or press

and find the recipient in your contact list.

1. Write the text you want to send.

2. Press to send the message.

Answering messages

You will be notified when you receive a new message.

1. Go to Messages.
2. Select the message you want to reply to.

3. Enter the text you want to send.

4. Press to send the message.

NAVITEL

MMS

1. Go to Messages > New Message.

EN

1. Enter the recipient's number or press and find the recipient in your contact list.

2. Press in the bottom left corner, then select one of the following options:

3. Capture picture - capture a photo that will be automatically attached to the message.
4. Capture video - capture a video that will be automatically attached to the message.
5. Record audio - record an audio file that will be automatically attached to the message.
6. Pictures - attach a picture stored on your device.
7. Videos - attach a video stored on your device.
8. Audio - attach an audio file stored on your device.

9. Slideshow - create a picture slideshow to attach to the message.

10. Press to send the message.

Wi-Fi

Enabling and disabling Wi-Fi

Wi-Fi can be turned on from the Home Screen.

1. Press The Quick Settings Menu. The icon will turn white when Wi-Fi is on.
2. Press on the icon again to disable Wi-Fi, if necessary.

Alternatively:

1. Go to Application Menu > Settings.

2. In the "Wireless&Networks" section, find the "Wi-Fi" entry.

3. Use the toggle on the right to turn Wi-Fi on/off.

Connecting to a Wi-Fi network

When Wi-Fi is turned on, a notification icon will appear in the Status Bar showing that there are available Wi-Fi networks. To connect to a network:

1. Put your finger on the left side of the Status Bar and swipe down to display the list of notifications.
2. Tap on "Wi-Fi network available". You will be shown the list of available networks.
3. Choose a network from the list and tap on the corresponding entry. If the network is password protected, you will be prompted to enter the password.

The list of networks can also be accessed by tapping on the "Wi-Fi" entry in Settings.

Every time you connect to a new network, the device "remembers" it and connects automatically when it is available. To make your device "forget" a network, long press on the network's name, then select "Forget network" from the pop-up list.

Note: "forgetting" a network includes "forgetting" the password, so, if you want to connect to a secured network again, you will have to re-enter the password.

Mobile network

To enable mobile Internet access, open the Quick Settings Menu and press it again to disable it.

You can also do it by going to

Note: you need to have a SIM card installed for mobile Internet to work.

Bluetooth

Enabling and disabling Bluetooth

Bluetooth can be turned on from the Home Screen:

1. Press the Quick Settings Menu. The icon will turn white when Bluetooth is on.
2. Press on the icon again to disable Bluetooth.

Another way to enable Bluetooth:

1. Go to Application Menu >
   Setting
2. Find the "Bluetooth" entry.
3. Use the toggle on the right to turn it on/off.

NAVITEL

T757 LTE

Connecting devices via Bluetooth

1. Tap on the Bluetooth entry to see the Bluetooth settings. The entry at the very top displays the name of your device and indicates whether it is visible to other Bluetooth devices. Tap on the entry to toggle the visibility of your device.
2. The "Available devices" section below shows the devices that your device can currently see. Tap on a device's entry to pair with it. Another section will appear, titled "Paired devices", where all the Bluetooth connections to your device will be displayed.
3. To unpair a device, press the right in the device's entry, then press "Unpair".

Tethering&Portable hotspot

You can share your device's data connection with other devices. First, enable your mobile Internet connection. Then, go to

Application Menu > Settings and in the "Wireless&Networks" section press "More...", then "Tethering&portable hotspot". You will see several sharing options.

Wi-Fi hotspot

1. Tap on the entry to configure your Wi-Fi hotspot.
2. Press "Set up Wi-Fi hotspot". A window will pop up.
3. Choose a name for your network and type it in the "Network SSID" text field.
4. Choose a security protocol for your network or leave it open.
5. Enter a password to protect your network, if necessary.
6. Set the maximum number of allowed connections (1-8).
7. Press "Save".
8. Use the toggle in the top right corner to turn on the hotspot.

USB tethering

Share Internet connection between two devices via USB cable.

1. Connect your device to the other device.
2. A USB icon will appear in the Status Bar. In the list of notifications you will see "Connected as a media device" (or other connection mode). It does not matter for tethering.

Application Menu >

Settings, under "Wireless&Networks" select "More...", then "Tethering&portable

1. Tick the checkbox on the right in the "USB tethering" entry.

Bluetooth tethering

Share Internet connection between two devices paired via Bluetooth.

1. Enable Bluetooth on both devices.

2. Pair the devices.

3. If you want to use the other device's Internet connection, press profiles, select "Internet access".

in the device's entry under "Paired devices", then, under

1. If you want to share your Internet connection with the other device, perform step 3 on said device (consult the user manual for the device, if necessary).

NAVITEL

T757 LTE

Camera

The camera allows you to take pictures and record videos.

To access the camera, tap on the 📄 icon on the Home Screen, or go to Application Menu > Camera. Press 📋 to switch between front and rear cameras.

Taking a picture

1. Point the camera at whatever you want to capture.
2. "Stretch" and "pinch" the screen to zoom in or out, if necessary.
3. Press to take a picture. It will be saved automatically to the gallery.

Recording a video

1. Press ☐ to start recording a video. The icon will turn red, and a small red circle will appear in the bottom left corner of the screen indicating that the recording is in process. A timer next to it will show the length of the recording.
2. If necessary, you can zoom in and out while recording by "stretching" and "pinching" the screen.
3. Press once more to stop recording. The video will be saved to the gallery.

Camera settings

Press to open the Camera Settings Menu. It is divided into three tabs - General, Photo, and Video settings. Press to open another menu, where you can set up exposure level, color effect, white balance, and day/night mode. After changing the settings, tap anywhere on the screen to exit the Camera Settings Menu.

NAVITEL

View gallery

Tap on the square frame in the top right corner of the screen to go to your gallery, where all your pictures and videos are contained. You can perform various actions (i.e. edit, crop, rotate, mute, delete) on the items in your gallery. To do that, select an item from

the gallery, then press choose an action from the list.

Sharing pictures and videos

Select an item from the gallery, then press in the top right corner and choose a sharing method from the list. Press to share the file via Gmail (as an attachment).

Sound recorder

1. Go to Application Menu > Sound recorder.
2. Press to start recording.
3. Press to pause, or to stop.

4. Press to play back the recording, if necessary.

5. Press "Save", if you want to save the audio file, or press "Discard" to delete it.

NAVITEL

T757 LTE

To open the Settings Menu:

- Go to

ication Menu >

Setti

- Tap on the Status Bar and in the pop-up menu press

The Settings Menu is divided into 5 sections:

1. Wireless networks - set your device's wireless connection, such as WiFi, Bluetooth, mobile network, etc.
2. Device - theme, sound, display, storage options, etc.
3. Personal - location, security, language, backup.
4. Accounts - Google and email accounts.
5. System - time and date, accessibility, software version, legal information, etc.

Wireless&Networks

SIM management

Enable/disable your SIM cards using the toggles on the right, or edit them by tapping on their respective entries.

Wi-Fi

Connect to wireless networks, view and edit your connection settings.

Bluetooth

Pair your device with other Bluetooth devices in the vicinity.

NAVITEL

Data usage

View your data usage statistics.

(press "More..." to access the menus listed below)

Airplane mode

Disable all communication with your device.

Default SMS app

Set your default messaging application.

Tethering&portable hotspot

Share your Internet access with other devices.

VPN

Configure your virtual private networks.

Mobile networks

Enable/disable mobile data connection.

Device

Audio profiles

Create, edit and use your audio profiles.

Display

Select your wallpaper, set up notifications, brightness, font size, etc.

NAVITEL

T757 LTE

Storage

Choose a default write disk, view available and occupied space on your storage units.

Battery

View your battery status - current charge, time left, energy consumption per process.

Apps

View and manage your installed applications.

Personal

Location

Location service settings.

Security

Set up screen lock, SIM card protection, and other security parameters.

Language&input

Select your preferred language and input method.

Backup&reset

Backup your important data to Google servers or perform factory reset on your device.

Accounts

Create, edit, and manage your Google and email accounts.

NAVITEL

System

Date&time

Set current date and time, date and time display format, your time zone.

Scheduled power on&off

Set your device to turn on or off automatically at a certain time.

Accessibility

Accessibility options for people with disabilities.

Printing

Printing services.

Developer options

Various options for Android developers.

About tablet

Updates, status, model number, software version, etc.

Introduction

Navitel Navigator is satellite navigation software whose key functionality includes:

• Finding and displaying the user's current position
• Routing
• Object search
• Providing various travel-related information via satellites and online services

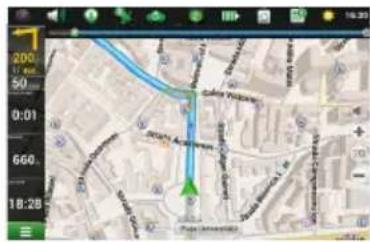

Program interface

# E	Element Function
1	Sound	Tap on the button to open the sound menu.
2	Compass	Tap to open the context menu where you can choose map orientation ("North up" or "Track up"), map view (2D/3D), and skin (Night/Day/Auto).
3	Road lanes	This panel displays road lanes with possible maneuvers.
4	Information panel	This panel shows the upcoming maneuver and distance before it. Tap on the panel to open

# E	Element Function
5	Route Visualization of the current route.
6	Information panel	The panel shows current speed, the remaining time to the destination point, distance to the destination point, and estimated time of arrival.
7	GPS-cursor	Indicates current position on the map when the GPS receiver is switched on.
8	Menu	Tap on the button to open the main program menu.

NAVITEL

# E	Element Function
9	Information panel	The panel shows the name of the street you are currently on. The information is available only if GPS/ GLONASS connection is established and the map contains such information. If there is no street name, the movement direction will be displayed.
10	Zoom out button Tap	to zoom out.
11	Zoom in button Tap to zoom in.
12	"Navitel.Events"	Button for controlling the "Navitel. Events" service.
13	Route progress bar	The progress bar displays the remaining route, waypoints (if any), and traffic density on the route, marked by color.
14	Battery	The icon indicates the level of battery charge. Tapping on the icon shows free device memory.

# E	Element Function
15	GPS	GPS-connection indicator. Grey indicator - GPS/GLONASS-receiver is off; red - receiver is turned on, but there is no connection with satellites; yellow - bad connection; green - connection is established. The number on the icon indicates the number of satellites.
16	"Navitel.Friends"	The icon of the "Navitel.Friends" service. Tap on it to open the settings menu. The service is intended for adding friends, viewing their location and exchanging messages with them.
17	“Cursor” button	Tapping on the button shows the menu for operations with the point marked on the map (making it a destination point by pressing “Go!” button or proceeding to the properties screen).
18	“Save WP” button	Saves the point marked on the map as a waypoint.
19	2D/3D	Switching between the plain 2D and the panoramic 3D map views.
20	Point on the map	Short tap on the map marks the point for further operations with it: saving as a waypoint, adding to the route or viewing the object's data, and others.
21	Updates	Provides access to the program and map update menu screen.
22	Track recording	Button for track recording: red dot - recording is on, grey dot - recording is stopped.

# E	Element Function
23	Navitel.Traffic	The icon displays general traffic intensity on ten-point scale. Tapping on the button shows the menu for controlling the “Navitel.Traffic” service.
24	“Go!”	Tapping on the button gives a command to the program to calculate a route from the current position or the set initial point to the selected point.

NAVITEL

# E	Element Function
25	“Set start”	Tapping on the button determines the selected point as a starting point of the route (GPS-receiver must be switched off).
26	“Set finish”	The button is active only when there is an existing route. Pressing the button continues the route up to the selected point making it the destination point of the route.
27	“Route through”	The button is active only when there is an existing route. Pressing the button marks the selected point as a point to be included in the route. The last added point becomes the first one in the route after the starting point.
28	Map Tap to return to	the map.

Routing

Route to a point selected on the map

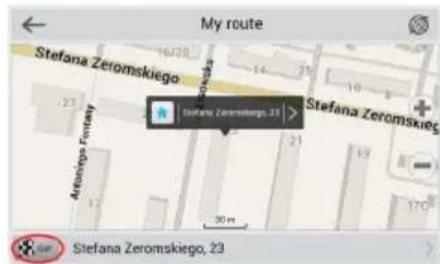

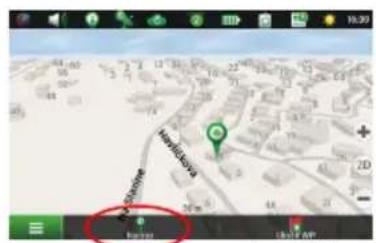

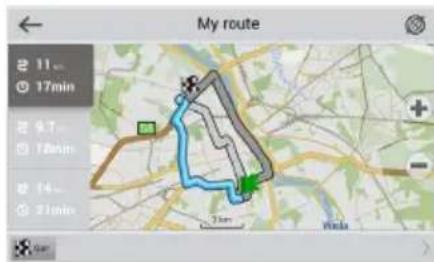

You can have a route planned to a point, which can be found and marked on the map and then set as the destination, while current position of the device, determined by the GPS system becomes the starting point. To plan a route press on the map to mark the point, select "Cursor" [1] and then "Go!" [2]. The program will offer 3 alternate routes with an approximate distance and time to the finish point [3]. Press «Go!» to start follow the route.

Fig. 1 Fig. 2

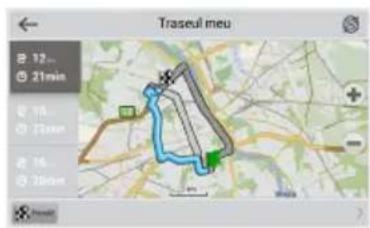

To have a route calculated to a point of a known address, press "Menu" in the bottom left corner of the screen [4] > "Find" [5] > "By address" [6], then press "Select country" and start entering the name of a country [7]. Press the icon in the upper right part of the screen to hide the keyboard. Select the country [8]. "Select city", "Select street" and «Select a building» become active only if the previous fields were filled out [9]. When all information is entered the object will be shown in the screen [10]. Press «Go!». The program will offer 3 route options from a current location to the indicated address [11]. Now you can follow the route [12].

NAVITEL

3D architectural rendering of a modern building complex with wooden walkways and green flooring (no visible text or symbols)

Fig. 4

Fig. 5 Fig. 6

Fig. 10

Fig. 11

Fig. 12

Manual setting of all route points

To plan a route, where the starting and the destination points are determined manually, first mark a point on the map where you plan to start and press «Cursor» [1] to proceed to the «My route» screen. Tap on the information panel at the bottom of the screen [2]. Press «Set start» in the «Properties» screen [3]. The GPS-receiver must be switched off. The point will be marked on the map as a starting point. Select a destination point on the map: tap on the map to mark the point, press «Cursor» [4] and then press «Go!» in the «My route» screen [5]. The program will offer 3 alternative routes [6]. Select the appropriate and press «Go!».

Fig. 1

Fig. 2

Fig. 3

This service provides real-time information about density of traffic on the map. If a part of a road is marked green on the map, this means that road traffic here is normal, if it is marked yellow – traffic is rather dense, orange – traffic is heavy, red – there is a traffic jam. To configure the service select "Menu" > "Settings" > "Online services".

Navitel.Friends

The "Navitel.Friends" interactive service allows viewing positions of friends on the map in real-time, to plan a route using their coordinates, or to share coordinates of other points and exchange messages. To turn the service on select "Menu" > "Settings" > "Online services" and switch on the "Turn on Navitel.Friends" toggle.

Navitel.Events

This interactive service allows users to mark and see on the map other users' marks of the various types of road events.

Navitel.Weather

Navitel.Weather service shows weather forecast for 4 days for any place on Earth.

Navitel.Cloud

Navitel.Cloud service allows you to save your settings, waypoints, and search history in the cloud data storage. The data saved in the cloud can be restored afterwards in case you have reinstalled the program. If you use Navitel Navigator on several devices, waypoints and history data can be synchronized between all of them, which might come handy, saving you time otherwise spent transferring the necessary files.

The Internet connection is required.

NAVITEL

T757 LTE

To synchronize with another device:

1. On the map screen, within the toolbar, tap the icon.
2. If you do not see this icon, try rotating the screen in order to change the screen orientation. If it does not help and the icon does not appear, select Menu > Settings > Interface > Map buttons, and then enable the Navitel.Cloud icon display.
3. In the newly opened dialog box, select Turn on.
4. Enter your login and password data (same as on Navitel website or Navitel.Friends service). Alternatively, you can log in with either VK, FB, or Google Plus. Your Navitel account has to be synched with them.
5. In the Navitel.Cloud dialog box, select Settings, then select data which you want to synchronize.
6. Go back to the Navitel.Cloud dialog box, and tap the Synchronize now option.
7. Repeat these steps on the other device that you want to synchronize with.

Navitel.News

With the help of the Navitel.News service we deliver to you important update and program news and announce special offers and discounts.

To open the service page, select Menu > My Navitel > News.

If you want to turn this feature on or off, select Menu > Settings > Online services, find the "Show Navitel.News notifications" menu option, and then set the toggle into the position of your choice.

You can also put the Navitel.News icon on the toolbar. Go to Menu > Settings > Interface > Map buttons, and then enable the Navitel.News icon display.

NAVITEL

Háttérképek

1. sz. ábra

1. sz. ábra

Ekrano fonai

Ekrano fono pakeitimas:

3D architectural model of a city street with wooden trails and surrounding buildings (no visible text or symbols)

Pav. 1 Pav. 2 Pav. 3

RO

NAVITEL

Aplikácie

SK

Obr. 1 Obr. 2 Obr. 3

Obr. 1 Obr. 2 Obr. 3

Obr. 4 Obr. 5 Obr. 6

Green globe with orbiting rings and star highlights (no text or symbols)

NAVITEL
