KW-AV60BT/KW-AV60 FRANÇAIS Instructions Having TROUBLE with operation? Please reset your unit

[J/JW] Covers_AV60[JJW].indb 2 11/12/03 13:44 ENGLISH Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the

top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

INFORMATION (For U.S.A.) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not approved by JVC could void the user’s authority to operate the equipment. WARNINGS: (To prevent accidents and damage)

• DO NOT operate the unit while driving. If you need to operate the unit while driving, be sure to look around carefully.
• The driver must not watch the monitor while driving.
• The driver must not put on the headphones while driving.

• DO NOT install any unit or wire any cable in a location where; – it may obstruct the steering wheel and gearshift lever operations. – it may obstruct the operation of safety devices such as air bags. – it may obstruct visibility. [European Union only]

EN_KW-AV60JJW.indb 2 11/12/12 16:19 Temperature inside the car... Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. JVC KENWOOD Corporation

2967-3, ISHIKAWA-MACHI, HACHIOJI-SHI, TOKYO, JAPAN

THIS PRODUCT COMPLIES WITH DHHS RULES

21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE. If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit. How to reset your unit ENGLISH CAUTION

• Your preset adjustments will also be erased (except the registered Bluetooth devices). Location : Bottom How to forcibly eject a disc Cautions on the monitor: Press SRC/

• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip. Touch the buttons on the touch panel with your finger directly (if you are wearing a glove, take it off).
• When the temperature is very cold or very hot... – Chemical changes occur inside, causing malfunction. – Pictures may not appear clearly or may move slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments. and 0 at the same time.

• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit. (☞ above) For safety...
• Do not raise the volume level too much, as this will make driving dangerous by blocking outside sounds, and may cause hearing loss.
• Stop the car before performing any complicated operations. How to read this manual:
• Illustrations of KW-ADV64BT/KW-AV60BT are mainly used for explanation.
• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For operations using the remote controller (RM-RK252: supplied only for KW-ADV64BT/KW-AV68BT), ☞ page 62.
• < > indicates the variable screens/menus/operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel.
• Indication language: English indications are used for the purpose of explanation. You can select the indication language from the <Settings> menu. (☞ page 48)

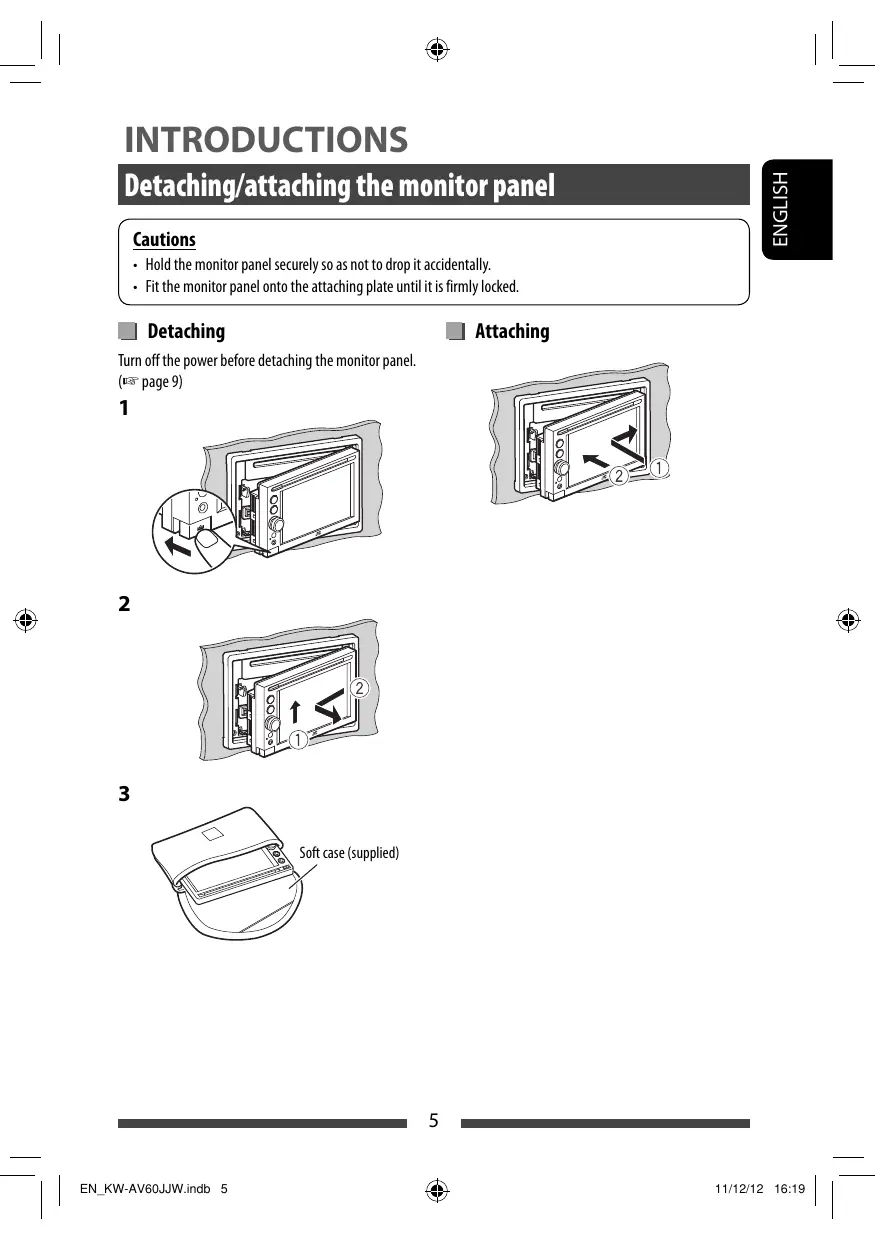

• Hold the monitor panel securely so as not to drop it accidentally.
• Fit the monitor panel onto the attaching plate until it is firmly locked. Detaching Attaching Turn off the power before detaching the monitor panel. (☞ page 9)

Soft case (supplied)

• Displays <AV Menu> screen. (Press) (☞ page 11)
• Turns off/on the screen. (Hold) (☞ page 9) 4 SRC / button
• Turns off the power. (Hold) (☞ page 9)
• Turns on the power. (☞ page 9)
• Selects the AV source. (Press) (☞ page 12) 5 VOLUME/ATT knob. (☞ page 9)
• Attenuates the sound. (Press)
• Adjusts the audio volume. (Turn) 6 Remote sensor 7 Reset button Resets the unit. (☞ page 3) 8 AUX input jack (Detach) button Detaches the monitor panel. (☞ page 5) Caution on volume setting: Digital devices (CD/USB/iPod) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level. You can change the color of the buttons on the monitor panel. (☞ page 41)

EN_KW-AV60JJW.indb 6 11/12/12 16:19 When you power on the unit for the first time or reset the unit, the initial setting screen appears.

• You can also change the settings on the <Settings> screen. (☞ page 46)

EN_KW-AV60JJW.indb 8 11/12/12 16:19 Turning on the power ENGLISH Common operations Turning off the screen (Hold) The screen is turned off.

• You can also turn off the screen on <AV Menu> screen. Turning off the power (Hold) Adjusting the volume To adjust the volume (00 to 50) Decrease Increase To turn on the screen
• On the source control screen, you can also adjust the volume by moving your finger on the touch panel as illustrated. Decrease

EN_KW-AV60JJW.indb 9 11/12/12 16:19 ENGLISH Turning on/off the AV source Touch screen operation You can activate the AV function by selecting source on <AV Menu> screen. A Displays the video control menu while playing a video. B Displays the source control screen while playing a video. Goes to the previous chapter/track.* To turn off the AV source Goes to the next chapter/track.* A Video control menu AV source is turned off. B Source control screen for video playback

• The operation buttons disappear by touching the screen or when no operation is done for about 10 seconds.
• Not available for video from an external component. Dragging your finger to left or right functions in the same way as touching.

• Pressing MENU on the monitor panel also displays <AV Menu>. <AV Menu> screen Displays source control screen/settings screen and changes picture source. ☞ page 12 Displays the screen of App from connected iPod touch/iPhone. (☞ page 30)
• Displays the phone control screen. (Press)
• Switches to the last connected mobile phone. (Hold) (☞ page 53) Displays the sound adjustment screen. (☞ page 39) Activates/deactivates TA standby reception mode. (☞ page 16) ENGLISH Switching screens <Settings> screen Changes the detailed settings. (☞ page 46) Displays the phone control screen *2 Changes the page *1 Appears when <Input> setting in <Navigation Input> screen is set to <iPhone>. (☞ page 30) *2 Only for KW-ADV64BT/KW-AV68BT/KW-AV60BT. *3 The icon varies depending on the connection status of the Bluetooth device (☞ page 51). Select an item to display on the screen. [AV] Displays the source control screen. (☞ above) [Camera] Displays the picture from the rear view camera. (☞ page 45) [Apps]*1 Displays the screen of App from connected iPod touch/iPhone. (☞ page 30) [Off] Turns off the screen. (☞ page 9)

• Press [ ] to return to the previous screen.
• Press [ ] to display the current source control screen.

AV SOURCE OPERATIONS

Selecting the playback source

KW-ADV64BT/KW-AV60BT

• Pressing SRC on the monitor panel repeatedly also selects the playback source. TUNER (☞ page 13) Satellite*1 (☞ page 35) DISC (☞ page 17) USB (☞ page 24) iPod (☞ page 26) Pandora*1 (☞ page 32) Switches to the radio broadcast. Switches to the SiriusXM™ radio broadcast. Plays a disc. Plays files on a USB device. Plays an iPod/iPhone. Switches to the PANDORA® internet radio broadcast. Bluetooth*2 (KW-ADV64BT/KWAV68BT/KW-AV60BT: ☞ page 59/KWAV60: ☞ page 61)

• KW-ADV64BT/KW-AV68BT/KW-AV60BT: Plays a Bluetooth audio player.
• KW-AV60: Operates a Bluetooth device. AV-IN*3 (☞ page 34) Switches to an external component connected to LINE IN/VIDEO IN jacks on the rear panel. Apps*4 (☞ page 30) Switches to the screen of App from the connected iPod touch/ iPhone. Front AUX (☞ page 34) Switches to an external component connected to AUX input terminal on the monitor panel. AV Off (☞ page 10) Turns off the AV source.

EN_KW-AV60JJW.indb 12 11/12/12 16:19 ENGLISH Listening to the radio Preparation: Select the appropriate tuner channel interval for <Area Setting>. (☞ page 15) DX/LO indicator ST/MO indicator Standby reception indicator Preset no. Band The station frequency currently tuned in/PS (station name) for FM RBDS when PS signal is coming in PTY code for FM RBDS Preset list ☞ page 16

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength. [P1] – [P6] [TP]* [3] [PTY

• Tunes in the preset station. (Press)
• Presets the currently tuned station. (Hold) Activates/deactivates TA standby reception mode. (☞ page 16) Displays/hides the information of the current station (☞ below). Enters FM RBDS program search mode. (☞ page 16) [BAND] Selects the band. [4] [¢] Searches for a station.
• Manual search (Hold) Selects a preset station. [Mode] Displays tuner setting screen. (☞ pages 14 – 15) [AV MENU] Displays <AV Menu> screen.

• Appears only when FM is selected as the source. Displaying the information of the current station Hides the text information Text information (only for Radio Text Plus) Scrolls the text information

EN_KW-AV60JJW.indb 13 11/12/12 16:19 ENGLISH When an FM stereo broadcast is hard to receive... When the FM reception is interfered...

Activate monaural mode for better reception.

Off Activate monaural mode to improve FM reception, but the stereo effect will be lost. The MO indicator lights up. Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.) Wide Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain. Restore the stereo effect. To tune in FM stations only with strong signals—LO/DX (Local/Distance-extreme)

Local Select this to tune in only to stations with sufficient signal strength. The LO indicator lights up.

Deactivate the function. The DX indicator lights up.

EN_KW-AV60JJW.indb 14 11/12/12 16:19 Storing stations in memory You can preset six stations for each band. Tuner channel interval changes depending on the area you use this unit. Automatic presetting—SSM (Strongstation Sequential Memory) (For FM only)

ENGLISH Changing the tuner channel interval (Hold)

Local stations with the strongest signals are searched and stored automatically. Select this when using in North/ Central/South America. FM/AM intervals are set to 200 kHz/10 kHz. Manual presetting Europe Select this when using in any other areas. FM/AM intervals are set to 50 kHz/9 kHz.

1 Tune in to a station you want to preset. (☞ page 13) 2 Select a preset number. Select this when using in South American countries where FM interval is 50 kHz. AM interval is set to 10 kHz.

• Initial setting is <US> for KW-ADV64BT/KWAV60BT/KW-AV60, and <SA> for KW-AV68BT. (Hold) The station selected in step 1 is stored.

EN_KW-AV60JJW.indb 15 11/12/12 16:19 Activating/deactivating TA Standby Reception ENGLISH Selecting a preset station TP indicator Also changes preset stations The following features are available only for FM RBDS stations. Searching for FM RBDS program— PTY Search You can search for your favorite programs being broadcast by selecting the PTY code for your favorite programs.

TP indicator TA Standby Reception Lights up The unit will temporarily switch to Traffic Announcement (TA) if available. Flashes Not yet activated. Tune in to another station providing the RBDS signals. Goes off Deactivated.

• The volume adjustment for Traffic Announcement is automatically memorized. The next time the unit switches to Traffic Announcement, the volume is set to the previous level. 2 Select a PTY code. (Hold) Changes the page PTY Search starts. If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

• If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc. Inserting a disc ENGLISH Disc operations To eject a disc Label side

• You can eject a disc when playing another AV source.
• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.
• If the disc cannot be ejected, ☞ page 3. The source changes to “DISC” and playback starts. ) indicator lights up while a
• The DISC IN ( disc is inserted. When removing a disc, pull it horizontally. To prohibit disc ejection Press SRC/

• If “ ” appears on the screen, the unit cannot accept the operation you have tried to do. – In some cases, without showing “ ,” operations will not be accepted.
• When playing back a multi-channel encoded disc, the multi-channel signals are downmixed to stereo. and 0 at the same time.

To cancel the prohibition, repeat the same procedure to select <Eject OK?>.

• DTS sound cannot be reproduced or emitted from this unit. Recording format, file type, etc. Playable

DVD-Video * Region Code:

• If you insert a DVD Video disc of an incorrect Region Code, “Region Code Error” appears on the screen. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not playable. *3 It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a +R/+RW disc is loaded. +RW double layer discs are not playable. *4 Playable only for KW-ADV64BT/KW-AV60BT/KW-AV60. *5 This unit cannot play back contents protected with CPRM (Content Protection for Recordable Media). Caution for DualDisc playback The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Playback status (3: play / 8: pause / 7: stop)

• DVD Video: Title no./ Chapter no.
• DVD-VR: Program no. (or Playlist no.)/Chapter no.*1
• DivX/MPEG1/MPEG2: Folder no./Track no.
• JPEG: Folder no./File no.
• VCD: Track no. [4] [¢]*5 • Selects chapter/track. (Press)
• Reverse/forward search.*6 (Hold) Selects title (DVD)/program or [ ] [ ]*5 *7 playlist (DVD-VR)/folder(DivX/

MPEG1/MPEG2/JPEG). *1

[Mode]*7 Changes the settings for disc playback. (☞ page 23) [AV MENU] Displays <AV Menu> screen. Stops playback. Displays folder/track list. (☞ page 20) Selects playback mode. (☞ page 22) Starts/pauses playback. To display the Original Program/Playlist screen, ☞ page 21. Appears only for DVD/DVD-VR/VCD. Does not appear for DVD/DVD-VR/VCD. Does not appear for DVD/DVD-VR/JPEG. The icon displayed between the buttons varies depending on the type of disc or file. Search speed varies depending on the type of disc or file. Does not appear for VCD.

EN_KW-AV60JJW.indb 19 11/12/12 16:19 ENGLISH For CD/MP3/WMA/WAV Playback mode (☞ page 22) Audio format Playing time DISC IN indicator Playback status (3: play / 8: pause ) Media type

• MP3/WMA/WAV: Folder no./Track no.
• CD: Track no. While playing, the jacket picture is shown if the file has the tag data including the jacket picture.

• Touching an information bar scrolls the text if not all of the text is shown. [4] [¢] Displays folder/track list. (☞ below) Selects playback mode. (☞ page 22) Starts/pauses playback. [ ] [ ]*1 [Mode]*1 [AV MENU]

• Selects track. (Press)
• Reverse/forward search.*2 (Hold) Selects folder. Changes the settings for disc playback. (☞ page 23) Displays <AV Menu> screen. *1 Does not appear for CD. *2 Search speed varies depending on the type of disc or file. Selecting folder/track on the list Changes the page Plays tracks/files in the folder Playing Recordable/Rewritable discs
• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).
• Use only “finalized” discs.
• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
• Some discs or files may not be played back due to their characteristics or recording conditions. Returns to the root folder Returns to the upper layer

EN_KW-AV60JJW.indb 20 11/12/12 16:19 Selects view angle. Displays the disc menu (DVD)/playlist (DVD-VR). [Top Menu] Displays the disc menu (DVD)/original program (DVD-VR). Displays the menu/playlist/original program/scene selecting screen. (☞ below) Switches to the direct menu selection mode. Touch the target item to select.

• To exit from the menu selecting screen, press [

[Menu] You can display the video menu screen while watching the playback pictures on the screen.

• Available items on the screen differ depending on the types of the loaded disc and playback files.
• The operation buttons disappear by touching the screen or when no operation is done for about 10 seconds. ENGLISH Video menu operations

• Touching any position other than operation buttons displays the source control screen. Using menu/playlist/original program/ scene selecting screen

• The screen for MPEG1/MPEG2 differs from the above. [5] [∞] [2] [3] [Enter] [Return] [Zoom] [Aspect] [Adjust]

Selects an item. Confirms the selection. Returns to the menu screen of the previous layer. Displays the menu screen of the top layer when several menu screens exist on the disc.

• For DivX only [2] [3] Skips back or forward by about 5 minutes. [Return] Returns to the previous screen. Exits from the scene selecting screen.

• To deactivate the PBC function, press [7] then the direct selecting buttons to select a track number. ENGLISH

Selects Repeat playback mode For VCD (without PBC)/CD/DivX/MPEG1/MPEG2/MP3/ WMA/WAV Selects Random playback mode* Selects Repeat playback mode* Direct selecting buttons (☞ below) [Zoom] [Aspect] [Adjust]

• Each time you press the button, the playback mode changes. (The corresponding indicator lights up.) – Available items differ depending on the types of loaded disc and playback file. Indicator Playback mode CHAPTER Repeats current chapter. TITLE PROGRAM

• To select a track directly Repeats current title. Repeats current program (not available for Playlist playback). SONGS Repeats current track. FOLDER Repeats all tracks of the current folder. FOLDER Randomly plays all tracks of current folder, then tracks of next folders. ALL Randomly plays all tracks. To cancel, press the button repeatedly until the indicator disappears. – To switch between chapter/track entry and title/ folder entry, press [Direct/CLR]. – When you enter a wrong number, press [Direct/ CLR] to delete the last entry.

EN_KW-AV60JJW.indb 22 11/12/12 16:19 ENGLISH Settings for disc playback Disc Setup items Selectable setting/item Initial: Underlined Menu Language Select the initial disc menu language; Initial English (☞ page 67). For DVD/DVD-VR/DivX Audio Language Select the initial audio language; Initial English (☞ page 67). Subtitle Select the initial subtitle language or erase the subtitle (Off).

• Initial for KW-ADV64BT/KW-AV60BT/KW-AV60: Off, for KW-AV68BT: English (☞ page 67) Down Mix When playing back a multi-channel disc, this setting affects the signals reproduced through the FRONT OUT/REAR OUT jacks. ♦ Dolby Surround : Select this to enjoy multi-channel surround audio by connecting an amplifier compatible with Dolby Surround. ♦ Stereo : Normally select this. For discs except VCD/CD Monitor Type Select the monitor type to watch a wide screen picture on the external monitor. ♦ 16:9 ♦ 4:3 LB (Letterbox) ♦ 4:3 PS (PanScan) For discs containing audio/ video/picture files D. (Dynamic) You can change the dynamic range while playing Dolby Digital software. : Select this to enjoy a powerful sound at a low volume Range Compres. ♦ Off level with its full dynamic range. (Compression) ♦ On : Select this to reduce the dynamic range a little. ♦ Dialog : Select this to reproduce the movie dialog more clearly. File Type Select the playback file type when a disc contains different types of files. : Plays back audio files. ♦ Audio : Plays back JPEG files. ♦ Still Picture : Plays back DivX/MPEG1/MPEG2 files. ♦ Video ♦ Audio&Video : Plays back audio files and DivX/MPEG1/MPEG2 files.
• For playable file types, ☞ page 18.
• If the disc contains no files of the selected type, the existing files are played in the following priority: audio, video, then still picture.

EN_KW-AV60JJW.indb 23 11/12/12 16:19 ENGLISH USB operations Playing a USB device

• This unit can play JPEG/MPEG1/MPEG2 */MP3/WMA/ WAV files stored in a USB mass storage class device.
• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).
• Make sure all important data has been backed up to avoid losing the data. Cautions:
• This unit may not play back files in a USB device properly when using a USB extension cord.
• USB devices equipped with special functions such as data security functions cannot be used with the unit.
• Do not use a USB device with 2 or more partitions.
• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.
• This unit may not recognize a memory card inserted into the USB card reader.
• Connect only one USB device to the unit at a time. Do not use a USB hub.
• When connecting with a USB cable, use the USB 2.0 cable.
• The maximum number of characters for (when the characters are 1 byte): – Folder names: 50 characters – File names: 50 characters
• Avoid using the USB device if it might effect driving safety.
• Do not pull out and connect the USB device repeatedly while “Now Reading” is shown on the screen.
• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.
• Operation and power supply may not work as intended for some USB devices.
• Do not leave a USB device in the car, or expose to direct sunlight or high temperature to avoid deformation or damage to the device.

• Except for MPEG2 files recorded by JVC Everio camcorder (extension code <.mod>). Connecting a USB device You can connect a USB mass storage class device such as a USB memory, Digital Audio Player etc. to the unit.
• You cannot connect a computer or portable HDD to the USB cable from the rear of the unit. USB cable from the rear of the unit The source changes to “USB” and playback starts.
• All tracks in the USB device will be played repeatedly until you change the source.

Playback status (3: play / 8: pause)

• MP3/WMA/WAV: Folder no./ Track no.
• JPEG: Folder no./File no. While playing, the jacket picture is shown if the file has the tag data including the jacket picture.

• When the operation buttons are not displayed on the screen, touch the area shown on the illustration.
• To change settings for video playback, ☞ page 43. Track/file information (for MP3/ WMA/WAV)
• Touching an information bar scrolls the text if not all of the text is shown. ] Switches between the internal and external memory source of the connected device (such as mobile phone). [6] Starts/pauses playback. [4] [¢]*3 • Selects track. (Press)
• Reverse/forward search.*4 (Hold) Selects folder. [Mode] Changes the settings for <File Type> and <Monitor Type>. (☞ below) [AV MENU] Displays <AV Menu> screen. Displays folder/track list. (☞ page 20) Selects repeat playback mode. *1 *2 SONGS: Repeats current track. FOLDER: Repeats all tracks of the current folder. Selects random playback mode. *1 *2 FOLDER: Randomly plays all tracks of the folder. ALL: Randomly plays all tracks.

• Available items differ depending on the types of playback file.

To cancel random or repeat mode, press the button repeatedly until the indicator disappears. You cannot activate the repeat mode and the random mode at the same time. The icon displayed between the buttons varies depending on the file type. Search speed varies depending on the file type. Setting <File Type> Setting <Monitor Type> Audio Still Picture Video Audio&Video Select the monitor type to watch a wide screen picture on the external monitor. 16:9 4:3 LB 4:3 PS (Letterbox) (PanScan) Plays back audio files. Plays back JPEG files. Plays back MPEG1/MPEG2 files. Plays back audio files and MPEG1/ MPEG2 files.

• If the USB device contains no files of the selected type, the existing files are played in the following priority: audio, video, then still picture.

• To use App of iPod touch/iPhone (such as MotionX-GPS Drive), ☞ page 30.
• To listen to PANDORA® internet radio, ☞ page 32. Preparation Setting <AV Input> for iPod/iPhone playback iPod/iPhone that can be connected to this unit: Made for – iPod with video (5th Generation) – iPod classic – iPod nano (6th Generation) – iPod nano (5th Generation) – iPod nano (4th Generation) – iPod nano (3rd Generation) – iPod nano (2nd Generation) – iPod nano (1st Generation) – iPod touch (4th Generation) – iPod touch (3rd Generation) – iPod touch (2nd Generation) – iPod touch (1st Generation) – iPhone 4 – iPhone 3GS – iPhone 3G – iPhone Select appropriate input setting for <AV Input> according to the connection method of the iPod/iPhone. 1 Turn off the AV source. On <AV Menu> screen: 2 Display <Input> setting screen. Connecting iPod/iPhone Connect your iPod/iPhone using the appropriate cable according to your purpose.
• To listen to music: USB 2.0 cable (accessory of the iPod/iPhone) To iPod/iPhone

USB cable from the rear of the unit AV-IN Select this when the iPod/iPhone is connected by using USB 2.0 cable (accessory of the iPod/iPhone).

• To watch video and listen to music: USB Audio and Video cable for iPod/iPhone—KS-U30 (separately purchased) (☞ Installation/Connection Manual) iPod Caution:
• Video is not displayed on the screen if connected with any cable other than KS-U30. Select this when the iPod/iPhone is connected by using KS-U30 (separately purchased).

EN_KW-AV60JJW.indb 26 11/12/12 16:19 Select the unit controlling iPod/iPhone playback. Selecting preference settings for iPod/iPhone playback When the source is “iPod”... When the source is “iPod”...

Head Controls playback from this unit. (☞ page 28) iPod Controls audio/video playback from the iPod/iPhone.

• Playback information is shown. iPod Out * Displays the menu and playback screen output from iPod/iPhone. (☞ page 29)
• You can control playback from this unit in the same way as on the iPod/iPhone. ENGLISH Setting iPod control mode Audiobooks Select the speed of audio books. Artwork

• When using iPod nano (1st Generation) or iPod with video (5th Generation) with <iPod> selected for <iPod Control>, select <iPod> for <AV Input> and connect iPod using KS-U30 (separately purchased). (☞ page 26) Shows/hides the iPod artwork. Notice: When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http:// www3.jvckenwood.com/english/car/> (English website only)

• <iPod Out> is available only for the following iPod/ iPhone models: – iPod nano (6th Generation) – iPod touch (4th Generation) – iPod touch (3rd Generation) – iPod touch (2nd Generation) – iPhone 4 – iPhone 3GS – iPhone 3G For some iPod/iPhone models, the performance may be abnormal or unstable during operation. In this case, disconnect the iPod/iPhone device, then check its condition. If the performance is not improved or slow, reset your iPod/iPhone.

EN_KW-AV60JJW.indb 27 11/12/12 16:19 ENGLISH iPod/iPhone playback operations for <Head> mode

• When the operation buttons are not displayed on the screen, touch the area shown on the illustration.
• To change settings for video playback, ☞ page 43.
• Select “iPod” as the source. (☞ page 12)
• Make sure to select <Head> for <iPod Control>. (☞ page 27)
• When you turn on this unit, the iPod/iPhone is charged through the unit. Track no./Total track number/ Playing time iPod control mode (☞ page 27) Playback mode (☞ below) Playback status ( 3: play/8: pause) Song/video information
• Touching an information bar scrolls the text if not all of the text is shown. While playing, Artwork (the picture displayed on the screen of iPod/iPhone) is shown if the song contains the Artwork (☞ page 27).

Displays the Music/Video menu on the iPod/iPhone. (☞ page 29) Selects Repeat playback mode. *1 SONGS: Functions the same as “Repeat One.” Selects Random playback mode. *1 SONGS: Functions the same as “Shuffle Songs.” ALBUMS: Functions the same as “Shuffle Albums.” [6] Starts/pauses playback. [4] [¢] • Selects a track/video. *2 (Press)

• Reverse/forward search. (Hold) [Mode] Changes the settings for iPod playback. (☞ page 27) [AV MENU] Displays <AV Menu> screen.

• To watch the video, select an item on the list of the Video menu. (☞ page 29) *1 To cancel random and repeat mode, press the button repeatedly until the indicator disappears. *2 You cannot resume playback for video sources.

• Select the item in the selected layer until a desired track starts playing. Music menu: Switches between Music (

ENGLISH Selecting a track/video from menu on the iPod/iPhone Selecting a track from the menu on the iPod/iPhone ) and Video

Returns to the top layer [5] [∞] Selects a category. [Select/6] Confirms the selection. [iPod Menu] Returns to the previous layer. Returns to the previous layer Plays all items in the layer Operations during playback Video menu: Switches between Music (

) and Video [2] [3] Skips to the previous/next track. [Select/6] Starts/pauses playback. [iPod Menu] Displays the menu.

• Available categories differ depending on the type of your iPod/iPhone.
• You can switch to the top of the category by pressing the corresponding tab: Playlist ( ), Artist ( ), Albums ( ) or Songs( ).

• You can operate some functions of an App on the touch panel. Preparation
• Connect the iPod touch/iPhone using KS-U30 (separately purchased). (☞ Installation/Connection Manual)
• Select <iPod> for <AV Input> setting. (☞ page 26)
• For Apps you can use on this unit, visit <http://mobile.jvc.com>. 1 Start App on your iPod touch/iPhone. 2 Select “Apps” as the source.

• When you use an App of the iPod touch or iPhone, see also page 68 for safety instructions. On <AV Menu> screen: Displaying the screen of App while listening to other source You can switch the display to screen of App (such as MotionX-GPS Drive) from connected iPod touch/iPhone while listening to other source. Activating input of iPod touch/iPhone to show buttons for switching display

• You can also play back the audio/video using iPod/ iPhone itself instead of the unit. – You can operate for basic playback on the touch panel. Audio 1 Turn off the AV source. On <AV Menu> screen: 2 Display <Input> setting screen. Video

• When using MotionX-GPS Drive, operating buttons and information are not shown. You can perform the operations on the touch panel, such as scrolling the map.

On source control screen:

• When <Input> is set to <iPhone>, [Apps] button is shown on the <AV Menu> screen, and [ ] button is shown on the source control screen. You can display the screen of App by pressing either button. (☞ below)
• When <Input> is set to <iPhone>, <AV Input> setting is automatically changed and fixed to <iPod>. To cancel the screen of App To deactivate, select <Off> for <Input>.

EN_KW-AV60JJW.indb 31 11/12/12 16:19 ENGLISH PANDORA® internet radio operations (only for KW-ADV64BT/KW-AV60BT/KW-AV60) Preparation Install the latest version of the PANDORA® application on your iPhone.

• Select “Pandora” as the source. (☞ page 12)
• You can operate PANDORA using the remote controller (for KW-AV60BT/KW-AV60: separately purchased). Only playing, pausing, and skipping are available. Station name/Playing time Playback status ( 3: play/8: pause) Song information
• Touching an information bar scrolls the text if not all of the text is shown. The picture data is displayed if available from the current content.

Displays the Station List. (☞ page 33) Registers the current song as favorite. [6]

Thumbs down to the current song and skips to the next song. Bookmarks the artist. Bookmarks the current song. [AV MENU] Starts/pauses playback. Skips the current song.

EN_KW-AV60JJW.indb 32 11/12/12 16:19 Selecting station from the Station List The requirements for listening to Pandora are as follows:

• Use an Apple iPhone or iPod touch running under iOS3 or later.
• Search for “Pandora” in the Apple iTunes App Store to find and install the most current version of the Pandora® application on your device.
• In the application on your device, log in and create an account with Pandora. (If you are not already a registered user, an account can also be created at <www.pandora.com>)
• Internet connection by 3G, EDGE, or WiFi.
• Pandora® is available only in the U.S.
• Because Pandora® is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some functions of Pandora® cannot be operated from this unit.
• For issues using the application, please contact Pandora at <pandora-support@pandora.com> Appears when the station is shared Changes the page To sort the Station List [By Date] Sorts the list in reverse chronological order. [A−Z] Sorts the list in alphabetical order.
• The letter selection screen appears. Select a letter, and the stations with the selected letter as their initial come to the top. ENGLISH About Pandora® internet radio Appears when Quick Mix is activated (All songs in the registered stations are played randomly)

EN_KW-AV60JJW.indb 33 11/12/12 16:19 ENGLISH Using other external components

• When the operation buttons are not displayed on the screen, touch the area shown on the illustration.
• To change settings for video playback, ☞ page 43. AV-IN name* ( ☞ below) Source type (“AV-IN” or “Front AUX”)

[Mode]* Changes the AV-IN name.

• Press [2] or [3] to select an AV-IN name. Displays <AV Menu> screen. [AV MENU]

• Appears when “AV-IN” is selected as the source. Front AUX AV-IN 1 Connect an external component. You can connect an external component to the LINE IN/ VIDEO IN jacks. (☞ Installation/Connection Manual) Preparation: Select <AV-IN> for <AV Input> setting. (☞ page 47)
• <AV Input> setting can be changed only when <Input> setting in <Navigation Input> is set to <Off>. 1 Select “AV-IN” as the source. (☞ page 12) 2 Turn on the connected component and

3.5 mm stereo mini plug

(not supplied) start playing the source. 2 Select “Front AUX” as the source. (☞ page 12) 3 Turn on the connected component and start playing the source.

EN_KW-AV60JJW.indb 34 11/12/12 16:19 Before operating, connect the SiriusXM tuner (not supplied) to the expansion port on the rear of the unit. (☞ Installation/Connection Manual) Everything worth listening to is on SiriusXM, getting over 130 channels, including the most commercial-free music, plus the best sports, news, talk and entertainment. To start listening to the SiriusXM™ Satellite Radio, A SiriusXM Vehicle Tuner (separately purchased) and Subscription are required. For more information, visits www.siriusxm.com. ENGLISH Listening to the SiriusXM™ Radio (only for KW-ADV64BT/KW-AV60BT/KW-AV60) Activating subscription 1 To listen to SiriusXM Satellite Radio, a subscription is required. Activate the SiriusXM Vehicle Tuner using one of the two methods below:

• Online: Go to www.siriusxm.com/activatenow
• Phone: Call 1-866-635-2349 2 Check your Radio ID. Radio ID is labeled on the casing of the SiriusXM Tuner or the bottom of the Sirius XM Tuner unit.
• You can also display the Radio ID on the screen by tuning in to Channel 0. – To hide the ID display, select any channel other than “0.” 3 Select “Satellite” as the source. (☞ page 12) SiriusXM Tuner starts updating all the SiriusXM channels. Tuning in to a channel Preset no. Signal Reception indicator Channel no./Channel name Band Category name Preset list [P1] – [P6] [3]

• Tunes in the preset channel. (Press)
• Presets the currently tuned channel. (Hold) Displays/hides the information of the current channel. (☞ page 36) [BAND] Selects the band. [4] [¢]• Selects a channel. (Press)
• Changes the channel rapidly. (Hold) – While searching, invalid and unsubscribed channels are skipped. Selects a preset channel. [Mode] Changes the settings of the reception restrictions. (☞ page 37) [AV MENU] Displays <AV Menu> screen. Displays the Category/Channel List. (☞ page 36) Displays direct channel selecting screen. (☞ page 36)

EN_KW-AV60JJW.indb 35 11/12/12 16:19 Displaying the information of the current channel ENGLISH Selecting a preset channel Also changes preset channels Selecting a channel on the list

2 Select a category (1), then a channel (2) from the selected category. Hides the text information Current category Text information Scrolls the text information Current channel no./ channel name Storing channels in memory You can preset six channels for each band. 1 Tune in to a channel you want to preset. (☞ page 35) 2 Select a preset number. Selecting a channel directly

2 Enter the desired channel no. (1), then (Hold) confirm (2). The channel selected in step 1 is stored.

ENGLISH Activating the parental lock Setting the parental lock You can set the parental lock in order to, for example, restrict children from receiving adult channels. On <Mode> screen: Setting the parental code

• Initial setting is “0000.”
• Changing the code does not change the <P.Lock Channel Select> and <Skip Channel Select> settings. 1 Display <Parental Code> screen. 2 Enter your parental code number (1), then confirm the entry (2). Deletes last character 2 Enter the new code number to <New 3 Select the category (1), then the Code> input box (1), then confirm the entry (2). channel you want to activate the parental lock for (2). Deletes last character The icon appears beside the channel with the parental lock activated. 3 Repeat the above procedure to enter the same code to <Confirm Code> input box.
• To change the parental code, press [Change] on step 1, enter current code, then new code on step 2 above.

• To cancel the selection, select the locked channel again in Step 3. The icon disappears and the selection is canceled.
• When you try to receive a channel with the parental lock activated, the parental code input screen appears and you cannot receive the channel until you enter the correct code. Skipping the unwanted channels If you do not want to receive some channels, you can skip them. Setting the channel skipping 1 Activate the channel skip. 0n <Mode> screen: To clear parental lock for all locked channel

0n <Mode> screen: 2 Select the category (1), then the channel you want to skip (2) 2 Enter your parental code number (1), then confirm the entry (2). The icon appears beside the selected channels.

• Repeat this step if you want to skip more channels. To clear the channel skipping for all skipped channels Deletes last character 0n <Mode> screen: (Hold)

• The adjustment is memorized for each source until you adjust the sound again. If the source is a disc, the adjustment is stored for each of the following categories.

– CD – DivX/MPEG1/MPEG2/MP3/WMA/WAV

• You cannot adjust the sound when the AV source is turned off. Selecting a preset sound mode

On the source control screen: The adjustments are stored and <User> is activated.

• To finish the procedure, press [ ].
• To make precise adjustments, ☞ page 40. 2 Select a sound mode. Changes the page

EN_KW-AV60JJW.indb 39 11/12/12 16:19 ENGLISH Adjusting the sound precisely Adjusting the crossover frequency 1 Perform steps 1 and 2 of “Selecting a preset sound mode,” then...

On <AV Menu> screen: 2 Select a band. 3 Adjust the sound. 3 Select the item to adjust, then make adjustments. Adjusts the crossover for front or rear speakers (high pass filter). Reset Freq Bass SW Level Changes level of Low/Mid/ High to 0. Selects frequency. Adjusts the width of the frequency.*1 Activates/deactivates bass.*2 Adjusts subwoofer level. Adjusts the crossover for subwoofer (low pass filter). The adjustments are overwritten if <User> setting has been made (☞ page 39), and <User> is activated.

• The adjustments are memorized until you adjust sound again.
• To make adjustment for other bands, repeat steps 2 and 3. *1 Fixed for “High” band. *2 Only for “Low” band. Adjusts the crossover frequency. Selects the phase for the subwoofer.* Adjusts the subwoofer level.

• Not selectable when <Freq> is set to <Through>.

Color palette Dimmer setting: You can make selections for each dimmer setting—< > (Dimmer On) or < > (Dimmer Off) User color adjuster: You can make your own color adjustment and store it to <User> Text/Buttons Select/adjust the color. (For details, ☞ above.) 3 Select an item (<Backgrnd>, <Text> or <Buttons>), then change the setting. Variable color illumination*

• Illumination color changes gradually. Background 1 Select a background Basic image (default)

• Appears only for button color selecting screen. When variable color illumination is selected, you cannot adjust the color. You can select a color on the color palette or adjust the color on the user color adjuster (☞ the right column) For setting your favorite scene as the background, ☞ page 42

EN_KW-AV60JJW.indb 41 11/12/12 16:19 5 Capture the image displayed on the ENGLISH Using your favorite scene as the background screen. While playing a video or JPEG, you can capture an image and use the captured image as a background.

• You cannot capture copyrighted content and image from iPod/iPhone.
• When using a JPEG file as the background, make sure that the resolution is 800 x 600 pixels.
• The color of the captured image may look different from that of the actual scene. 1 Play back a video or JPEG. 2 Display <Display Design> screen. A confirmation message appears. Press [Yes] to store the newly captured image. (The existing image is replaced with the new one.)
• Press [No] to return to the previous screen. (☞ page 41)

• To cancel the capture, press [

*1 Not displayed when playing an external component connected to LINE IN/VIDEO IN jacks. *2 Not displayed when <Full> is selected.

EN_KW-AV60JJW.indb 42 11/12/12 16:19 ENGLISH Setting for video playback You can change the setting for video playback. 3 Adjust the picture (–15 to +15). Adjusting the picture You can adjust the picture quality. 1 Display the adjustment menu. Adjusts the brightness Adjusts the contrast Adjusts the blackness Adjusts the color Adjusts the tint * Adjusts the detail

• Adjustable only when the incoming signal is NTSC. 2 Select Dimmer On (< >) or Off

EN_KW-AV60JJW.indb 43 11/12/12 16:19 ENGLISH Changing the aspect ratio Zooming the picture You can change the aspect ratio for video playback. You can zoom the picture (<Full>, <Zoom1> to <Zoom3>).

• Not displayed when <Full> is selected.
• Zooming function cannot be used for some video sources.

• For “DISC”/ “USB” only: Aspect ratio is automatically selected to match to the incoming signals.

• While DivX is played back with <Monitor Type> set to <16:9> (☞ page 23), the aspect ratio is not set correctly.

• To use a rear view camera, the REVERSE GEAR SIGNAL lead connection is required. For connecting a rear view camera, ☞ Installation/Connection Manual. To display the picture from the rear view camera manually Activating the rear view camera

To deactivate, select <Off>. When displaying the picture from the rear view camera manually, you can change the setting of the picture. (☞ page 43) Displaying the picture from the rear view camera The rear view screen is displayed when you shift the gear to the reverse (R) position. To cancel the rear view screen

• For KW-ADV64BT/KW-AV60BT/KW-AV60: To erase the caution message, touch the screen.

• When changing settings for <Amplifier Gain>, <AV Input> and <Input> setting in <Navigation Input>, turn off the AV source. For other settings, change them when the AV source is turned on. Menu item Selectable setting/item Initial: Underlined Fader : Adjust the front and rear speaker output balance. ♦ F6 to R6; Initial 0
• When using a two-speaker system, set the fader to the center (0). Balance : Adjust the left and right speaker output balance. ♦ L6 to R6; Initial 0 Press [ 5/∞/2/3 ] or drag [ ] to adjust.
• To clear the adjustment, press [Center]. Equalizer Change the sound mode or adjust and store the equalization for each source. (☞ page 39) ♦ Flat/Natural/Dynamic/Vocal Boost/Bass Boost/Vibrant/User Loudness You can activate/deactivate loudness. : Boost low and high frequencies to produce a well♦ On balanced sound at a low volume level. ♦ Off : Cancels. Crossover Adjust the crossover frequency. (☞ page 40) Volume Adjust Adjust and store the auto-adjustment volume level for each source. (For discs, the adjustment is stored for each of the following categories: DVD/ DVD-VR, VCD/CD, and DivX/MPEG1/MPEG2/MP3/WMA/WAV.) The volume level will automatically increase or decrease when you change the source. ♦ –15 to +6; Initial 0 Amplifier Gain * ♦ On ♦ Off Speaker Select Select the size of the connected speaker. ♦ Standard/Narrow/Middle/Wide Audio Fader/Balance : Activates the built-in amplifier. : Deactivates the built-in amplifier.

• To change the setting, turn off the AV source by pressing [AV Off] on <AV Menu> screen beforehand.

EN_KW-AV60JJW.indb 46 11/12/12 16:19 Dimmer Selectable setting/item ♦ Auto ♦ On ♦ Off ♦ Dimmer : Dims the screen and button illumination when you turn on the headlights.

• The ILLUMI lead connection is required. (☞ Installation/Connection Manual) : Activates dimmer. : Cancels. : Sets the Dimmer On ( )/Off ( ) times.
• Press [5] or [∞] to set the time. Display Design Change the display design (background, the color of text, touch panel buttons, and monitor panel buttons). (☞ page 41) OSD Clock ♦ On ♦ Off : Displays the clock while a video source is played back. : Cancels. Demonstration ♦ On ♦ Off : Activates the demonstration on the screen. : Cancels. Scroll : Repeats scrolling. : Scrolls the displayed information once. : Cancels.
• Touching an information bar scrolls the text regardless of this setting. GUI Adjust Adjust the brightness and blackness of the screen. Press [Enter] to display the setting screen, select Dimmer On ( )/Off ( ), then change the following settings: ♦ Brightness : Adjusts brightness (–15 to +15; Initial 00 for Dimmer On/+15 for Dimmer Off). ♦ Black : Adjusts blackness (–15 to +15; Initial 00). NTSC/PAL Select the color system of the external monitor. ♦NTSC, PAL AV Input *1 *2 You can determine the use of LINE IN/VIDEO IN jacks. ♦ AV-IN*3 : Select to use the external component connected to LINE IN/VIDEO IN jacks or the iPod/iPhone connected by using USB 2.0 cable. (☞ pages 26 and 34) ♦ iPod : Select to use the iPod/iPhone connected by using JVC KS-U30. (☞ page 26) ♦ BT*3*4 : Select when playing back the Bluetooth audio player using the Bluetooth adapter (KS-BTA100). (☞ page 61) Input Display Time Set Initial: Underlined ENGLISH Menu item ♦ Auto ♦ Once ♦ Off *1 To change the setting, turn off the AV source by pressing [AV Off] on <AV Menu> screen beforehand. <AV Input> setting can be changed only when <Input> setting in <Navigation Input> is set to <Off>. *2 The initial setting is <iPod> for KW-ADV64BT/KW-AV60BT/KW-AV60, and <AV-IN> for KW-AV68BT. *3 When <AV Input> is set to <AV-IN> or <BT>, the video from iPod/iPhone is not displayed on the screen. *4 Only for KW-AV60.

EN_KW-AV60JJW.indb 47 11/12/12 16:19 Input Camera Input System ENGLISH Menu item Selectable setting/item ♦ On ♦ Off Initial: Underlined : Displays the picture from the rear view camera when you shift the gear to the reverse (R) position. : Cancels. Navigation Input Change the settings for displaying the screen of App from connected iPod touch/iPhone. (☞ page 30)

• <Navigation Mute> is not used for this unit. Language Select the text language used for on-screen information. ♦ English/Español/Français/Deutsch/Italiano/Nederlands/Svenska/ Dansk/Руccĸий/Português
• “Please Power Off” appears when the setting is changed. Turn off the power, then turn on to enable the change. ♦ GUI : Select a language (<English> or <Local>: the Language language selected above) used for displaying operation buttons and menu items. Time Set Adjust the clock time. (☞ page 8) Beep ♦ On ♦ Off User Profile You can memorize, recall, or clear the settings you have made. (☞ page 49) : Activates the key-touch tone. : Cancels. Touch Panel Adjust Adjust the touch position of the buttons on the screen. (☞ page 50) Initialize Initialize all settings you have made. Hold [Enter] to initialize the settings.
• After initializing the settings, adjust the settings on the <Initial Settings> screen. (☞ page 7) DivX® VOD Only for KW-ADV64BT/KWAV60BT/KW-AV60 This unit has its own Registration Code. Once you have played back a file with which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection.
• Press [Enter] to display the information.

EN_KW-AV60JJW.indb 48 11/12/12 16:19 You can memorize the following settings:

• Settings on <Settings> screen: Fader/Balance, Equalizer, Loudness, Crossover (HPF/LPF/SW Level settings), Volume Adjust, Speaker Select, Dimmer, Display Design, AV Input, Camera Input, Navigation
• Settings for “AV-IN”: AV-IN Name Memorizing your settings Recalling your settings

• Turn off the AV source by pressing [AV Off] on <AV Menu> beforehand. On <Settings> screen:

<User3>) to memorize the settings. Clears all settings memorized in <User1>, <User2> and < User3> A confirmation message appears. Press [Yes]. 4 Finish the procedure. A confirmation message appears. Press [Yes]. 3 Finish the procedure.

EN_KW-AV60JJW.indb 49 11/12/12 16:19 ENGLISH Updating the system Adjusting the touch position You can update the system by connecting a USB device containing an update file. You can adjust the touch position on the touch panel if the position touched and the operation performed do not match. 1 Create an update file, copy it to a USB

device, and connect it to the unit. On <Settings> screen:

On <Settings> screen: 2 Touch the center of the marks at the lower left and at the upper right as instructed.

It may take a while. If the update has been completed successfully, “Update Completed” appears. Reset the unit.

• To cancel the current operation, press [Cancel].
• To reset to the initial setting, press [Reset].

• If the update has failed, turn the power off and then on, and retry the update.
• Even if you have turned off the power during the update, you can restart the update after the power is turned on. The update will be performed from the beginning.

EN_KW-AV60JJW.indb 50 11/12/12 16:19 Information for using Bluetooth® devices

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.
• This unit may not work for some Bluetooth devices.
• Connecting condition may vary depending on circumstances around you.
• For some Bluetooth devices, the device is disconnected when the unit is turned off. Bluetooth Information: If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www3. jvckenwood.com/english/car/> (English website only) ENGLISH BLUETOOTH OPERATIONS Bluetooth operations for KW-ADV64BT/KW-AV68BT/KW-AV60BT Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected without cables and communicate with each other.
• Refer to pages i and ii at the end of manual to check the countries where you may use the Bluetooth® function. Bluetooth profile Icons for Bluetooth button This unit supports the following Bluetooth profiles;
• HFP (Hands-Free Profile) 1.5
• PBAP (Phone Book Access Profile) 1.0 : No device is connected. : A Bluetooth audio player is connected. : A Bluetooth mobile phone is connected. : Both a Bluetooth mobile phone and audio player are connected. When shipped from the factory, the Bluetooth adapter (KS-UBT1) is attached.

• Keep the Bluetooth adapter attached when using the Bluetooth function.
• This port is designed for the use with KS-UBT1 only. Other Bluetooth adapters or USB devices cannot be used. Bluetooth adapter (KS-UBT1)

EN_KW-AV60JJW.indb 51 11/12/12 16:19 ENGLISH Connecting Bluetooth devices 2 Change the PIN code. Connecting a new Bluetooth device for the first time

• If you skip changing the PIN code, go to step 3. When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate each other. To make pairing, you may need to enter the PIN (Personal Identification Number) code of your Bluetooth device you want to connect.
• Once the connection is established, it is registered in the unit even if you reset the unit. Up to 5 devices can be registered in total.
• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.
• To use the Bluetooth function, you need to turn on Bluetooth function of the device. PIN code (initial: 0000) Deletes last character

Audio player For connecting a Bluetooth mobile phone The phone setting screen is displayed. Cancel For connecting a Bluetooth audio player 5 Operate the Bluetooth device to connect. “Connected” appears. Press [OK] to confirm the operation. Now connection is established and you can use the Bluetooth device through the unit. <Mode> screen is displayed.

• For Bluetooth mobile phone: Phone setting screen

A confirmation message appears. Press [Yes]. ENGLISH To disconnect Connecting/disconnecting a registered Bluetooth device Deleting a registered Bluetooth device To connect

On <Connect Device> screen (☞ Step 2 on the left column): Select the device you want to connect. 2 Select a device to delete the registration. A confirmation message appears. Press [Yes]. “Connected” appears. Press [OK] to confirm the operation.

• All registered devices (mobile phone and audio player) are listed on <Connect Device>. – Selectable items depend on the device you are operating.
• When a mobile phone is connected, holding ] on the source control screen switches between the last connected mobile phone and current one. To detach the Bluetooth adapter “JVC”

• Store the Bluetooth adapter in the supplied bag.
• When inserting the Bluetooth adapter again, attach it firmly with the JVC logo facing up.

EN_KW-AV60JJW.indb 53 11/12/12 16:19 ENGLISH Using the Bluetooth mobile phone Receiving a call Adjusting the volume of microphone When a call comes in... Status of the device/Battery reminder (only when the information comes from the device) While talking... Call information (if acquired)

• This adjustment does not affect the volume level of the other sources.
• To adjust the volume of calls/earpiece, turn the volume adjustment knob. Rejects the call Switching between handsfree mode and phone mode

• Phone operation is not available while the picture from the rear view camera is displayed. (☞ page 45) While talking... When <Auto Answer> is set to <On> The unit answers the incoming call automatically. (☞ page 60) Ending a call Each time you press the button, the talking method is : handsfree mode / : phone switched ( mode). While talking... Checking SMS reception If the mobile phone is compatible with SMS (Short Message Service), the unit tells you a message has been received. To read a received message, operate the mobile phone after stopping the car in a safe place.
• You cannot read, edit, or send a message through the unit.
• For some mobile phones, the notification message may not be shown even if the SMS function is supported.

Deletes last character On the source control screen: ENGLISH Direct number entry Making a call Hold: Adds “+” Presets the entered phone number on the preset list (☞ page 57)

• You can also display the phone control screen by pressing [ Phone] on <AV Menu> screen.

• You can enter up to 32 numbers. Voice Dialing 2 Select a method to make a call. Direct number entry (☞ the right column)

• Available only when the connected mobile phone has the voice recognition system. Preset list/phone book/call lists (☞ page 56) Speak the name you want to call. Preset list (For presetting, ☞ page 57) Voice dialing (☞ the right column) To cancel, press [Cancel]. To reduce echo/noise while talking Make sure that NR/EC (Noise reduction/Echo cancel) function is activated on the screen while talking. Select <On> to reduce the noise and cancel the echo while talking.

From dialled call list.

From received call list.

From missed call list.

• For copying the phone book, ☞ page 57. Displays the other letters 3 Select a phone number from the list. To display the details of an entry When phone book list screen is displayed, you can display the details of an entry and select a phone number if several phone numbers are registered.

1 Display the details of the desired entry. 2 Select a phone number to call. To use the A to Z search on phone book When phone book list screen is displayed, you can search by initial.

You can copy the phone book memory of a mobile phone into the unit (up to 400 entries). On the source control screen:

On the source control screen: ENGLISH Presetting the phone numbers 2 Select an item from phone book/call

lists. 3 Select a phone number. (Hold) 4 Select a preset number to store. PIN code (initial: 0000) Numbers of the phone book entries copied 3 Operate the target mobile phone.

• You can also preset a phone number entered on the direct number entry screen by pressing [Save]. (☞ page 55)

• Refer to the instruction manual supplied with your mobile phone.
• To cancel the transfer, press [Finish]. 4 Finish the procedure. The phone book memory is copied from the mobile phone.

EN_KW-AV60JJW.indb 57 11/12/12 16:19 ENGLISH About mobile phones compatible with Phone Book Access Profile (PBAP) Deleting the phone number entries in the unit 1 Display the preset list/phone book/call If your mobile phone supports PBAP, the phone book and call lists are automatically copied to the unit when the mobile phone is connected.

• Phone book: up to 5 000 entries
• Dialled calls, received calls, and missed calls: up to 50 entries each list you want to delete. (☞ page 56)

To display the phone book/call lists of the mobile phone or the unit Connected mobile phone

• You cannot delete data when <Phone> is selected. 3 Select the item you want to delete. This unit Delete all the numbers/names in the selected list A confirmation message appears. Press [Yes].

• To register a new device, ☞ page 52.
• To connect/disconnect a device, ☞ page 53. Status of the device/Battery reminder (only when the information comes Playback mode *1 (☞ below) Track no./Playing time *1 from the device) Playback status (3: play / 8: pause) *1 ☞ page 51 Tag data (current track title/artist name/album title) *1
• Touching an information bar scrolls the text if not all of the text is shown.

• The operation buttons, indications and information displayed on the screen differ depending on the connected device. [8]

[3] Pauses playback. Selects Repeat playback mode. *1 *2 Selects Random playback mode. *1 *2 Starts playback. [4] [¢] • Selects track. (Press)

• Reverse/forward search. (Hold) [Mode] Displays the Bluetooth setting screen. (☞ page 60) [AV MENU] Displays <AV Menu> screen. *1 Available only for the devices compatible with AVRCP 1.3. *2 To cancel random and repeat mode, press the button repeatedly until the indicator disappears.

EN_KW-AV60JJW.indb 59 11/12/12 16:19 Bluetooth device settings Mobile phone ENGLISH Bluetooth audio player On “BT Audio” source control screen: Menu items Selectable setting/item Initial: Underlined Connection ♦ Connect ♦ Disconnect PIN Code Changes the PIN code of the unit.

• Touch the current PIN code, enter a new PIN code, then press [Save]. Device Name Shows the device name to be shown on the Bluetooth device—JVC Unit. : ☞ page 53 : ☞ page 53 Device Address Shows the MAC address of the unit. Phone Device*1 Shows the phone device name. Audio Device*2 Shows the audio device name. Auto connect ♦ On ♦ Off HF/Audio Output : The connection is automatically established with the last connected Bluetooth device when the unit is turned on. : Cancels. Select the speakers used for Bluetooth (both phone use and audio player). : From front speakers only. : From all speakers. ♦ Front ♦ All Initialize Hold [Enter] to clear the registration of Bluetooth devices and memory of the preset list and call lists. Auto Answer*1 ♦ On ♦ Off : The unit answers the incoming calls automatically. : The unit does not answer the calls automatically. Answer the calls manually. SMS Notify*1 : The unit informs you of the arrival of a message by ringing and displaying “Receiving Message.” : The unit does not inform you of the arrival of a message. ♦ On ♦ Off Ring Mode*

Ring Tone Change*1 ♦ System ♦ Phone : Selects the ring tone set on the unit. : Selects the ring tone set on the mobile phone. (This function may not work depending on the mobile phone.) When <Ring Mode> is set to <System>, press [Enter], then select the ring tone for received calls and SMS from <Tone1>, <Tone2>, <Tone3>. : Selects the ring tone for phone calls. ♦ Call Tone ♦ Message Tone : Selects the ring tone for SMS. *1 Appears only for the phone setting screen. *2 Appears only for <Mode> screen while “BT Audio” is selected as the source.

EN_KW-AV60JJW.indb 60 11/12/12 16:19 For Bluetooth operations, it is required to connect the Bluetooth adapter, KS-BTA100 (separately purchased) to the LINE IN terminals on the rear of the unit. (☞ the Installation/Connection Manual)

• KS-BTA100 is not available in some countries. Please contact your dealer where you purchased this unit.
• For details, refer also to the instructions supplied with the Bluetooth adapter and the Bluetooth device.
• Operations may be different according to the connected device. ENGLISH Bluetooth operations for KW-AV60 Preparation 1 Register (pair) a Bluetooth device with KS-BTA100.
• Refer to the instructions manual supplied with KS-BTA100. 2 Select <BT> for <AV Input> setting. (☞ page 47) Using the Bluetooth mobile phone KS-BTA100 (Low) (High) (Press) Microphone (Hold) Adjusting the microphone volume Volume level: High/Normal (initial)/Low
• Receiving a call When a call comes in...
• Making a call Making a call to the last connected number from your phone.
• Switching between handsfree and phone While talking...
• Voice dialing Voice dialing is available only when the connected mobile phone has the voice recognition system. About microphone volume:
• When you turn off the power of the unit, the volume level changes to Normal. Using the Bluetooth audio player 1 Select “Bluetooth” as the source. (☞ page 12) KS-BTA100 Starts playback/pauses.
• If playback does not start, operate the Bluetooth audio player to start playback.
• Selects track. (Press)
• Fast-forwards or reverses the track. (Hold)

EN_KW-AV60JJW.indb 61 11/12/12 16:19 ENGLISH REFERENCE Using the remote controller For KW-AV60BT/KW-AV60 : To use the remote controller, purchase RM-RK252P separately. If the effectiveness of the remote controller decreases, replace the batteries. Installing the batteries

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.
• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting). Insert the batteries into the remote controller by matching the polarity (+ and –) correctly. The unit is equipped with the steering wheel remote control function.
• See the Installation/Connection Manual (separate volume) for connection.
• Operations may differ depending on the types of the steering wheel remote control. Caution:
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like. Operations using the remote controller (RM-RK252) Button Operations ATT / Attenuates/restores the sound. DISP Does not function for this unit. 5/∞

• Tuner: Selects the preset stations.
• SiriusXM radio *1: Selects a category.
• Selects a title/item/folder. Button

• Tuner: – Searches for stations automatically. – Searches for stations manually. (Hold)
• SiriusXM radio*1 : – Selects a channel. – Selects a channel rapidly. (Hold)
• Reverse search/forward search. (Hold)
• Reverse search/forward search.
• DVD-Video/DVD-VR/VCD: Slow motion playback (during pause). – DVD-VR/VCD: Reverse slow motion does not work.

• Adjusts the volume level.
• “2nd VOL” function does not work for this unit. SOURCE Selects the source.

• Enters a number while holding SHIFT.
• “SETUP” function does not work for this unit. 1–6 Enters preset station number while holding SHIFT. ASPECT Changes the aspect ratio.
• To check the current aspect ratio setting, operate on the touch panel. (☞ page 44) RETURN Returns to the previous screen. TOP M (☞ page 64)

• DVD-Video: Shows the disc menu.
• DVD-VR: Shows the Original Program screen.

• DVD-Video: Shows the disc menu.
• DVD-VR: Shows the Playlist screen.
• VCD: Resumes PBC playback.

• DVD-Video: Makes selection/ settings.
• DivX*1: Skips back or forward by about 5 minutes. Selects the bands. Stops playback. Ends the call. Pauses playback of Bluetooth audio.*3 Operations ENT Confirms selection. OSD/ Does not function for this unit. DUAL/ Does not function for this unit. SHIFT Functions with other buttons. DIRECT/CLR

• Enters direct search mode when pressed with SHIFT button. (☞ page 64)
• Erases the misentry when pressed with SHIFT button.
• “SURROUND” function does not work for this unit. ENGLISH Button *1 Only for KW-ADV64BT/KW-AV60BT/KW-AV60. *2 Does not work while listening to Bluetooth audio. *3 Only for KW-ADV64BT/KW-AV68BT/KW-AV60BT.

EN_KW-AV60JJW.indb 63 11/12/12 16:19 ENGLISH Searching for an item directly Various disc operations Tuner frequency 1 Press DIRECT while holding SHIFT to enter the search mode. 2 Press number buttons while holding SHIFT to enter a frequency.

• To erase a misentry, press CLR (clear) while holding SHIFT. 3 Press ENT to confirm the entry. Using the disc menu
• DVD-Video/DVD-VR 1 For DVD Video, press TOP M or MENU. For DVD-VR, press... TOP M: To display Original Program MENU: To display Playlist 2 Press % / fi/@ / # to select an item you want to play. 3 Press ENT to confirm the selection. DVD-Video/DVD-VR/DivX/MPEG1/MPEG2/JPEG/

1 Press DIRECT while holding SHIFT to enter the search mode.

• Each time you press DIRECT, the item to search for changes. 2 Press a number button while holding SHIFT to select a desired item.
• To erase a misentry, press CLR (clear) while holding SHIFT. 3 Press ENT to confirm the selection.

• VCD During PBC playback... 1 Press DIRECT while holding SHIFT to enter the search mode. 2 Press a number button while holding SHIFT to select the item you want to play. 3 Press ENT to confirm the selection.
• To return to the previous screen, press RETURN. To cancel PBC playback 1 Press 7 to stop PBC playback. 2 Press DIRECT while holding SHIFT. 3 Press a number button while holding SHIFT to select a desired track. 4 Press ENT to confirm the selection.
• To resume PBC, press TOP M or MENU.

EN_KW-AV60JJW.indb 64 11/12/12 16:19 Caution on cleaning the unit To keep discs clean Do not use any solvent (for example, thinner, benzine, etc.), detergent, or insecticide. This may damage the monitor or the unit. Recommended cleaning method: Gently wipe the panel with a soft, dry cloth. A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs. ENGLISH Maintenance To play new discs How to clean the connector New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc. Connectors Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors. Do not use the following discs: Moisture condensation Moisture may condense on the lens inside the unit in the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates. 3 inch disc Warped disc Sticker and sticker residue Stick-on label Unusual shape C-thru Disc (semitransparent disc) How to handle discs When removing a disc from Center holder its case, press down the center holder of the case and lift the disc out, holding it by the edges.
• Always hold the disc by the edges. Do not touch its recording surface. When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).
• Make sure to store discs in their cases after use. Transparent or semitransparent parts on its recording area

• This unit can play back files with the extension code <.mp3>, <.wma>, or <.wav> (regardless of the letter case—upper/lower).
• This unit can play back the files meeting the conditions below: – Bit rate: MP3/WMA: 32 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)
• This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3).
• This unit can also show WAV/WMA Tag.
• This unit can play back files recorded in VBR (variable bit rate).
• Files recorded in VBR have a discrepancy in elapsed time indication.
• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and voice format. – WMA files which are not based upon Windows Media® Audio. – WMA files copy-protected with DRM.
• This unit can display the jacket picture meeting the conditions below: – Picture size: 32 x 32 to 1 232 x 672 resolution – Data size: less than 650 KB. − File type: JPEG Playing DivX files (for discs only)
• This unit can play back DivX files with the extension code <.divx>, <.div>, or <.avi> (regardless of the letter case—upper/lower).
• Audio stream should conform to MP3 or Dolby Digital.
• The file encoded in the interlaced scanning mode may not be played back correctly.
• The maximum bit rate for video signals (average) is 4 Mbps. Playing MPEG1/MPEG2 files
• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>.
• The stream format should conform to MPEG system/ program stream. The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.
• The maximum bit rate for video signals (average) is 4 Mbps. Playing JPEG files
• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.
• This unit can play back JPEG files that are at 32 x 32 to 8 192 x 7 680 resolution. It may take time to display the file depending on its resolution.
• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played. We bear no responsibility for any loss of data in an iPod/iPhone and USB mass storage class device while using this unit.

EN_KW-AV60JJW.indb 66 11/12/12 16:19 Sound signals emitted through the rear terminals ENGLISH Through the analog terminals (Speaker out/REAR OUT/FRONT OUT) 2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals are downmixed. Language codes (for DVD/DVD-VR/DivX language selection) Code

Language Galician Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua Interlingue Inupiak Indonesian Icelandic Hebrew Japanese Yiddish Javanese Georgian Kazakh Greenlandic Cambodian Kannada Korean (KOR) Kashmiri Kurdish Kirghiz Latin Lingala Laothian Lithuanian Latvian, Lettish Malagasy Code

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
• Font for this product is designed by Ricoh. Only for KW-ADV64BT/KW-AV68BT/KW-AV60BT
• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. Only for KW-ADV64BT/KW-AV60BT/KW-AV60:
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
• DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. SAFETY INSTRUCTIONS Use of the iPhone Navigation App is only permitted if the traffic conditions are suitable and you are absolutely sure that no risk, obstruction or injury will be incurred to you, your passengers or other road users. The requirements of the Road Traffic Regulations must always be followed and may vary by state. The destination must not be entered while the vehicle is in motion. iPhone Navigation guidance may not be applicable to the current situation because of changes in traffic conditions (e.g. changes in tollroads, principal roads, one-way traffic, or other traffic regulations). In this case, observe the current traffic signs or regulations.
• Traffic signs should be observed carefully while driving using the iPhone Navigation App. iPhone Navigation App is only an aid. Driver must always decide whether or not to heed the information provided. We do not accept liability for erroneous data provided by the iPhone Navigation App.
• Do not operate the unit while driving.

EN_KW-AV60JJW.indb 68 11/12/12 16:19 What appears to be trouble is not always serious. Check the following points before calling a service center.

• For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).
• Messages (enclosed in “ ”) in the tables below are shown in the language selected on <Language> (☞ page 48). ENGLISH Troubleshooting If the following messages appear Message “No Signal” “MISWIRING Check wiring connection then reset unit” “WARNING Check wiring connection then reset unit” “Parking Brake” “Eject Error” / “Loading Error” “Restricted Device” “USB Device Error” “No BT Dongle”* “Connection Error”* “Please Wait...”* “No Voice Device”* “No Data”* “Initialize Error”* “Dial Error”* “Hung Up Error”* “Pick Up Error”* “Pairing Error”* Remedy/Cause
• Start the playback on the external component connected to VIDEO IN jack.
• Check the cords and connections.
• Signal input is too weak. A speaker cord has shorted or it has come in to contact with the car chassis. Wire or insulate the speaker cord as appropriate, then reset the unit (☞ page 3). See also the Installation/Connection Manual. No playback picture is shown when the parking brake is not engaged. Eject the disc forcibly. (☞ page 3) Check whether the connected iPod/iPhone is compatible with this unit. (☞ page 26)
• The USB power voltage is abnormal.
• Turn off and turn on the unit.
• Connect another USB device. Bluetooth adapter (KS-UBT1) is removed. The device is registered but the connection has failed. Connect the registered device. (☞ page 53) The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit). The connected mobile phone does not have the voice recognition system. No phone book data is contained in the connected Bluetooth phone. The unit has failed to initialize the Bluetooth module. Try the operation again. Dialing has failed. Try the operation again. The call has not ended yet. Park your car, and use the connected mobile phone to end the call. The unit has failed to receive a call. Pairing between the unit and Bluetooth device has failed. Register the device again. (☞ page 52)

• Only for KW-ADV64BT/KW-AV68BT/KW-AV60BT.

EN_KW-AV60JJW.indb 69 11/12/12 16:19 If there seems to be a problem ENGLISH Symptom Remedy/Cause General No sound comes out of the speakers.

• Adjust the volume to the optimum level.
• Check the cords and connections. No picture is displayed on the screen. Turn on the screen. (☞ page 9) The unit does not work at all. Reset the unit. (☞ page 3) The remote controller*1 does not work. USB DivX/MPEG1/MPEG2/

Replace the battery. Desired source button (“Bluetooth”* , “AV-IN”, or “Apps”) is not displayed on <AV Menu> screen. Select appropriate setting for <AV Input>. (☞ page 47) SSM automatic presetting does not work. Store stations manually. (☞ page 15) Static noise while listening to the radio. Connect the antenna firmly. Disc can be neither recognized nor played back. Eject the disc forcibly. (☞ page 3) Disc cannot be ejected. Unlock the disc. (☞ page 17)

• Recordable/Rewritable discs cannot be
• Insert a finalized disc.
• Finalize the discs with the component which you used played back.
• Tracks on the Recordable/Rewritable discs for recording. cannot be skipped. Playback does not start. The format of files is not supported by the unit. No picture appears on the external monitor.

• Connect the video cord correctly.
• Select the correct input on the external monitor. Disc cannot be played back.

• Record the tracks using a compliant application on the appropriate discs. (☞ page 18)
• Add appropriate extension codes to the file names. Tracks are not played back as you have intended them to play. Playback order may differ from the one played back using other players. “Now Reading...” keeps flashing on the screen. Turn off the power and on again. While playing a track, sound is sometimes interrupted. The tracks are not properly copied into the USB device. Copy tracks again, and try again. *1 For KW-AV60BT/KW-AV60: Purchase RM-RK252P separately. *2 Only for KW-AV60.

EN_KW-AV60JJW.indb 70 11/12/12 16:19 AV-IN iPod/iPhone Symptom Remedy/Cause

• Disconnect the iPod, then connect it again.
• Select another source, then reselect “iPod”. The iPod/iPhone does not turn on or does not work.

Sound is distorted. Deactivate the equalizer either on this unit or the iPod/ iPhone. A lot of noise is generated. Turn off (uncheck) “VoiceOver” of the iPod. For details, visit <http://www.apple.com>. No operations are available when playing back a track containing Artwork. Operate the unit after the Artwork is loaded. (☞ page 28) Sound does not synchronize with the video. Select <iPod> for <AV Input>. (☞ page 47)

• Videos cannot be played.
• No sound of videos come out.

• Connect with USB Audio and Video cable JVC KS-U30. Other cables cannot be used.
• Select <iPod> for <AV Input>. (☞ page 47) No picture appears on the screen.

• Turn on the video component if it is not on.
• Connect the video component correctly. ENGLISH No sound comes out of the speakers. Check the connecting cable and its connection. Update the firmware version. Charge the battery. Check whether the iPod control mode is correctly selected. (☞ page 27)
• Reset the iPod/iPhone.

EN_KW-AV60JJW.indb 71 11/12/12 16:19 SiriusXM™ radio (only for KW-ADV64BT/KW-AV60BT/KW-AV60) ENGLISH Symptom Remedy/Cause “No Signal” appears on the screen. Make sure the SiriusXM radio antenna is mounted outside the vehicle. Move vehicle to an area with a clear view of the sky. “Check Antenna” appears on the screen.

• Check the SiriusXM radio antenna connection and make sure it is firmly attached to the tuner.
• Check the SiriusXM radio antenna cable to see whether it is bent or broken. If the antenna cable is damaged, replace it. “Check Tuner” appears on the screen. The communication is disconnected or an error occurs. Wait for a while. “Chan Unavailable” appears on the screen for about 2 seconds, then returns to the previous channel. Selected channel is no longer available or is unauthorized. Select another channel or continue listening to the previous channel. "Ch Unsubscribed" appears on the screen. Selected channel is not part of your current subscription plan. Call 1-866-635-2349 to subscribe. “Subscription Updated” appears on the screen. Your subscription is updated. Press the appropriate button to continue. “Channel Locked” appears on the screen. The selected channel has been locked by the parental controls, or a mature channel has been selected. Enter unlock code after you are asked. (☞ page 38)

EN_KW-AV60JJW.indb 72 11/12/12 16:19 Bluetooth (only for KW-ADV64BT/KW-AV68BT/KW-AV60BT ) Remedy/Cause Phone sound quality is poor.

• Reduce the distance between the unit and the Bluetooth mobile phone.
• Move the car to place where you can get a better signal reception. The sound is interrupted or skipped while using a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.
• Disconnect the device connected for Bluetooth phone.
• Turn off, then turn on the unit.
• (When the sound is not yet restored) connect the player again. The connected audio player cannot be controlled. Check whether the connected audio player supports AVRCP (Audio Video Remote Control Profile). Bluetooth device does not detect the unit.

• Check whether the Bluetooth adapter (KS-UBT1) is inserted correctly.
• Search from the Bluetooth device again.
• When “Waiting for connection...” appears on the screen, press [Cancel] then connect a Bluetooth device. The unit does not make pairing with the Bluetooth device. Enter the same PIN code for both the unit and target device. If the PIN code of the device is not indicated on its instructions, try “0000” or “1234.” Echo or noise occurs.

• Adjust the microphone unit position.
• Make sure that NR/EC (Noise reduction/Echo cancel) function is activated. (☞ page 55) The unit does not respond when you try to copy the phone book to the unit. You may have tried to copy the same entries (as stored) to the unit. ENGLISH Symptom

EN_KW-AV60JJW.indb 73 11/12/12 16:19 ENGLISH Specifications Signal-to-Noise Ratio 20 W RMS × 4 Channels at 4 Ω and ≤ 1% THD+N 80 dBA (reference: 1 W into 4 Ω) Load Impedance Equalizer Control Range Frequencies AMPLIFIER Power Output Audio Output Level LINE OUT (FRONT/REAR), SUBWOOFER Other Terminals

Frequency Range FM Tuner DVD/CD AM Tuner Signal Detection System Frequency Response Dynamic Range Signal-to-Noise Ratio Wow and Flutter Color System Video-Out (composite) Level 4 Ω (4 Ω to 8 Ω allowance) Low: 60 Hz, 80 Hz, 100 Hz, 150 Hz Mid: 500 Hz, 1 kHz, 1.5 kHz, 2 kHz High: 10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz ±10 dB Line-Out Level/Impedance 4 V/20 kΩ load (full scale) Output Impedance 1 kΩ Input LINE IN, VIDEO IN, CAMERA IN, USB input, MIC IN*1, AUX, Antenna input Expansion port (SXi)*2, OE REMOTE

87.9 MHz to 107.9 MHz

Others FM with channel interval set to 200 kHz with channel interval set 87.5 MHz to 108.0 MHz to 50 kHz 530 kHz to 1 700 kHz Usable Sensitivity

9.3 dBf (0.8 μV/75 Ω)

50 dB Quieting Sensitivity

16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity 65 dB (400 kHz) Frequency Response 40 Hz to 15 000 Hz Stereo Separation 40 dB Sensitivity/Selectivity 20 μV/40 dB Non-contact optical pickup (semiconductor laser) DVD, fs=48 kHz/96 kHz 16 Hz to 22 000 Hz VCD/CD 16 Hz to 20 000 Hz 93 dB 95 dB Less than measurable limit NTSC/PAL 1 Vp-p/75 Ω *1 Only for KW-ADV64BT/KW-AV68BT/KW-AV60BT. *2 Only for KW-ADV64BT/KW-AV60BT/KW-AV60.

2.3 kg (5.1 lbs) (including the Trim plate and

• Only for KW-ADV64BT/KW-AV68BT/KW-AV60BT. Design and specifications are subject to change without notice. If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

KW-ADV64BT/KW-AV60BT

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• Pandora, el logotipo de Pandora y la imagen de la marca Pandora son marcas comerciales o marcas comerciales registradas de Pandora Media, Inc., utilizadas con autorización.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
• DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

Étui souple (fourni)

KW-ADV64BT/KW-AV60BT

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• Pandora, le logo Pandora, et l’habillage commercial Pandora sont des marques de commerce et des marques déposées de Pandora Media, Inc., utilisées avec permission.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
• DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

INSTRUCTIONS DE SÉCURITÉ

Refer to page of How to reset your unit

KW-AV60BT/KW-AV60 FRANÇAIS Instructions Having TROUBLE with operation? Please reset your unit

Refer to page of How to reset your unit

KW-AV60BT/KW-AV60 FRANÇAIS Instructions Having TROUBLE with operation? Please reset your unit
