USER MANUAL KWM750BT JVC

B5K-0607-10 (K)© 2019 JVC KENWOOD Corporation

10.14 or later is required in addition to Adobe®

Acrobat Reader™ DC or Adobe® Acrobat® DC or later. The Instruction manual is subject to change for modification of specifications and so forth. Be sure to download the latest edition of the Instruction manual for reference. How to read this manual NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels. If above icons are showed, read the article applicable to the unit you use.

• The screens and panels shown in this manual are examples used to provide a clear explanation of operations. For this reason, they may be different from the actual screens or panels, or some display patterns may be different from the actual ones.

• Display language: English is used for the purpose of explanation. You can select a display language from the [SETUP] menu. See User Interface Setup (P.68) in the Instruction Manual. Contents3English Precautions # WARNINGS Ñ To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metallic tools) inside the unit.

• Do not watch or fix your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your JVC dealer. Ñ Precautions on using this unit

• When you purchase optional accessories, check with your JVC dealer to make sure that they work with your model and in your area.

• You can select a language to display menus, audio file tags, etc. See User Interface Setup (P.68) in the Instruction Manual.

• The Radio Data System or Radio Broadcast Data System feature won’t work in areas where the service is not supported by any broadcasting station. Ñ Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with a sharp tip. Ñ Cleaning the unit

• If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe it with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth. NOTE

• Applying spray cleaner directly to the unit may damage its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase the screened print. Ñ Lens fogging When you turn on the car heater in cold weather, dew may form on the lens in the disc player of the unit due to condensation. This condensation on the lens (also called lens fogging) may not allow discs to play. In such a situation, remove the disc and wait for the dew to evaporate. If the unit still does not operate normally after a while, consult your JVC dealer. Ñ Precautions on handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use disc type accessories.

• Clean the disc from the center toward the outside rim.

• When removing a disc from this unit, pull it out horizontally.

• If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc.

• Discs that are not round cannot be used.

• 8-cm (3 inch) discs cannot be used.

• Discs with coloring on the recording surface or discs that are dirty cannot be used.

• This unit can only play the following types of CDs.

• This unit may not correctly play discs which do not have the mark.

• You cannot play a disc that has not been finalized. (For the finalization process, see your writing software and your recorder's instruction manual.)4 Initial Settings Initial setup Perform this setup when you use this unit first time.

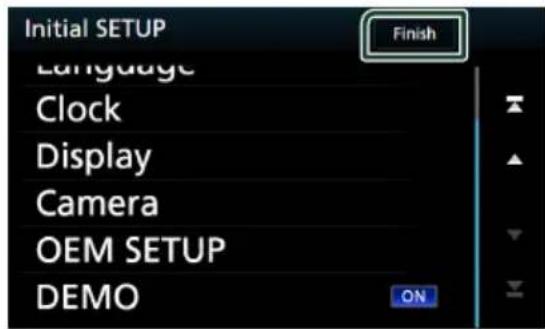

Set each item as follows. ■ [Language] Select the language used for the control screen and setting items. Default is “American English(en)”. 1 Touch [Language]. 2 Touch [Language Select]. 3 Select the desired language. 4 Touch [

For details of operation, see User Interface Setup (P.68) in the Instruction Manual. ■ [Clock] Sets the synchronization of the clock and adjusts it. For detailed operation, see Calendar/clock settings (P.5). ■ [Display] Set the button illumination color. If it is hard to see the image on the screen even, adjust the viewing angle. 1 Touch [Display]. 2 Touch [Key Color]. 3 Select the desired color. 4 Touch [

For details of, see Camera Setup (P.53) in the Instruction Manual. ■ [OEM SETUP] This function requires a commercial adaptor. Consult your JVC dealer for details. ■ [DEMO] Set the demonstration mode. Default is “ON”. 1 Touch [DEMO] and select ON or OFF.

• These settings can be made from the SETUP menu. See Setup (P.67) in the Instruction Manual.5English Calendar/clock settings

Press the [FNC] button. Popup menu appears.

Touch [ ]. HOME screen appears.

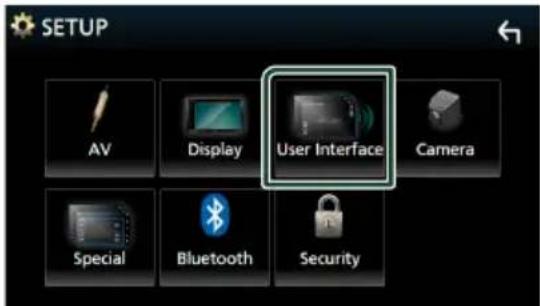

Touch [User Interface]. User Interface screen appears.

Select the time zone.

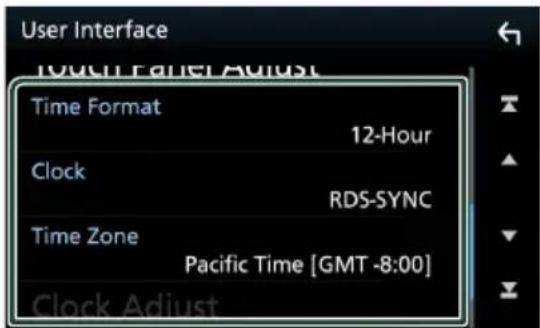

Set each item as follows. Scroll the page to show hidden items. ■ [Time Format] Select the time display format. [12-Hour] (Default)/ [24-Hour] ■ [Clock] [[RDS-SYNC] ](Default): Synchronizes the clock time with the RDS. [Manual]: Set the clock manually. ■ [Time Zone] Select the time zone. ■ [Clock Adjust] If you select [Manual] for Clock, adjust the date and time manually (P.69) in the Instruction Manual. NOTE

• Please set the date and time. If they are not set, some functions may not work. Adjusting the volume You can adjust the volume (0 to 40). Press [+] to increase, and press [–] to decrease. Holding [+] increases the volume continuously to level 15. KW-V850BT/ KW-V85BT/ KW-M750BT/ KW-M75BT KW-M650BT6 Basic Operations Functions of the Buttons on the Front Panel KW-V850BT/ KW-V85BT

• The panels shown in this guide are examples used to provide a clear explanation of operations. For this reason, they may be different from the actual panels. Number Name Motion

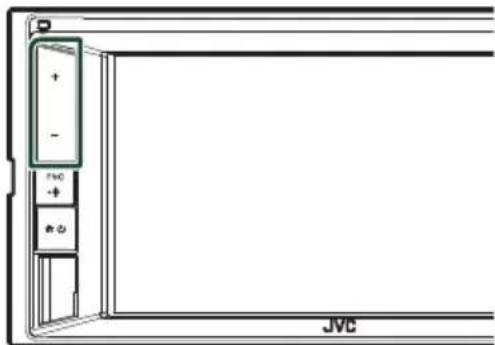

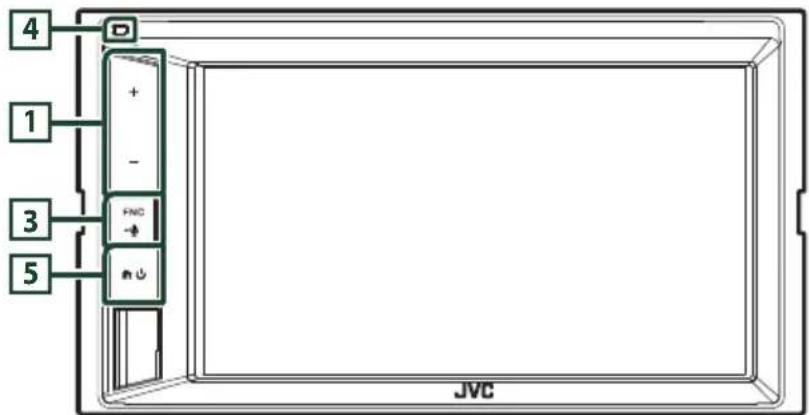

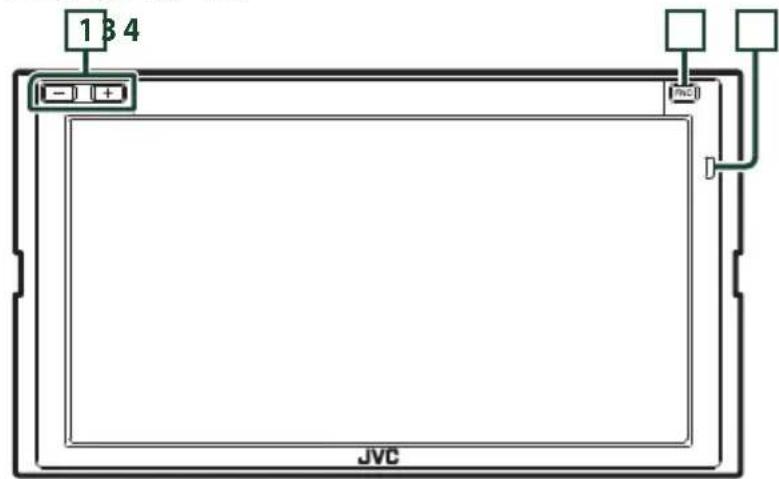

• Adjusts the volume. The volume will go up to 15 when you keep pressing [+].

• Pressing for 1 second displays the Voice Recognition screen (P.63) in the Instruction Manual.

• When the power is off, turns the power on.

• Receives the remote control signal.

• Displays the HOME screen (P.13) in the Instruction Manual.

• Pressing for 1 second turns the power off.

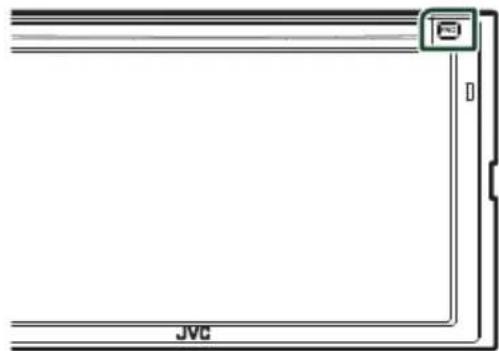

• When the power is off, turns the power on. Turning on the Unit The method of turning on is different depending on the model. KW-V850BT/ KW-V85BT/ KW-M750BT/ KW-M75BT

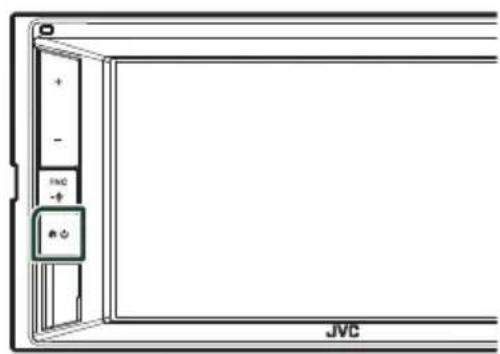

Press the [FNC] button. The unit is turned on. KW-M650BT

Press the [ ] button. The unit is turned on. NOTE

• If it is your first time to turn the unit on after installation, it will be necessary to perform Initial setup (P.4).8 Select the playback source

Press the [FNC] button. Popup menu appears.

Touch [ ]. HOME screen appears.

Touch [ ]. From the screen, you can select the following sources and functions.

• [Apple CarPlay]: Switches to the Apple CarPlay screen from the connected iPhone.

• [Android Auto]: Switches to the Android Auto screen from the connected Android device.

• Displays the Hands Free screen. When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

• Switches to the Radio broadcast.

• Switches to the SiriusXM® satellite radio broadcast.

• Plays a Bluetooth audio player.

• Plays an iPod/iPhone.

• Plays files on a USB device.

• Switches to Pandora.

• Switches to Spotify.

• Switches to an external component connected to the AV-IN input terminal.

• Displays the Audio screen.

• Turns off the AV source.

• For sources and information displayed when an ADS adapter is connected, see OEM Features Operation (P.55) in the Instruction Manual.

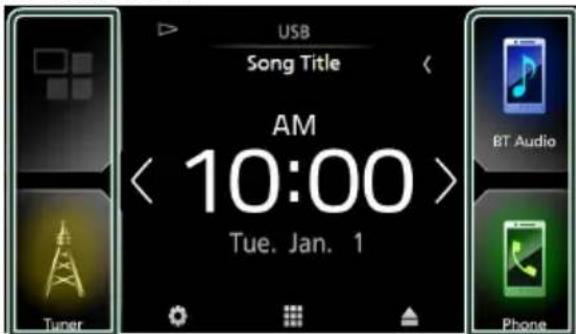

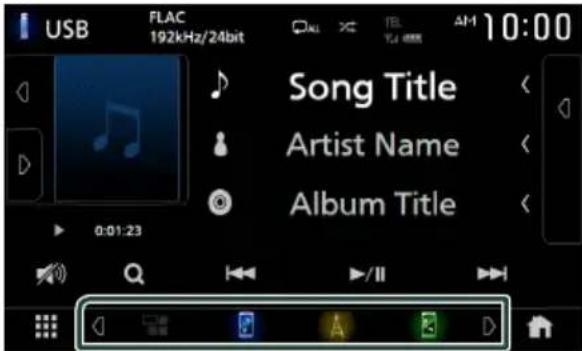

KW-V850BT/ KW-V85BT only To select the playback source on the HOME screen The 4 items displayed on the source selection screen with large icons are shown on the HOME screen. You can change the items displayed on this area by customizing the source selection screen. (P.9) To select the playback source on the source control screen Display source selection buttons by touching [ ]/[ ] or flicking left or right on the source control screen, then select a playback source. To turn off the AV source

Press the [FNC] button. Popup menu appears.

Touch [ ]. HOME screen appears.

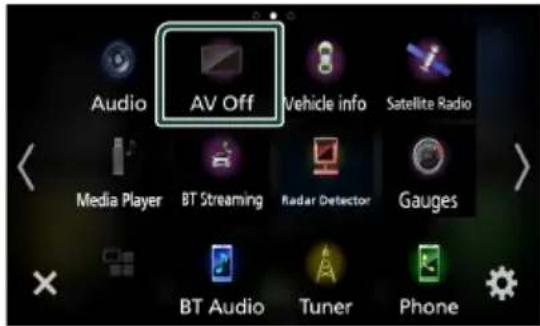

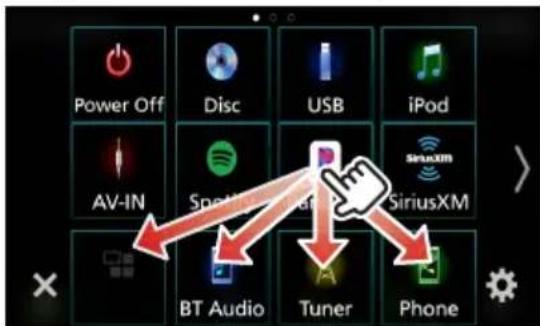

Touch [AV Off].9English Customize Short-cut buttons on HOME screen You can arrange the positions of the source icons as you like.

Press the [FNC] button. Popup menu appears.

Touch [ ]. HOME screen appears.

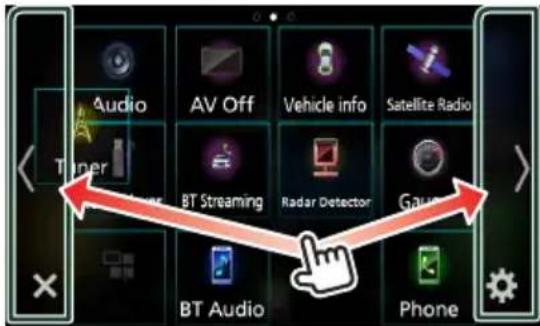

Touch and hold the icon which you want to move in the customizing mode.

Drag the icon to the desired position. Changes the page Source control screen descriptions There are some functions which can be performed from most screens. Indicators

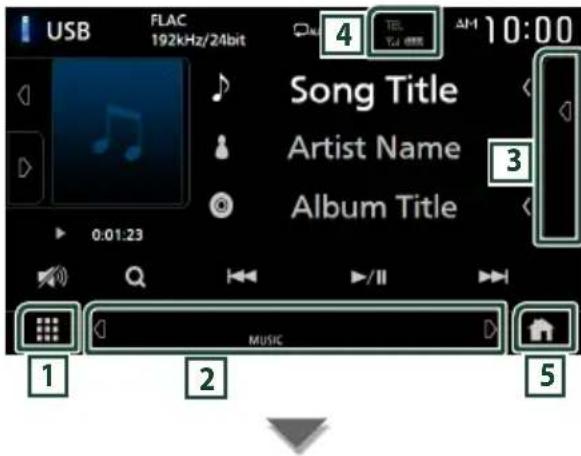

All sources icon Displays the source selection screen. (P.8)

]/[ ] : The Secondary screen changes to another one every time you touch it. You can also change the Secondary screen by flicking left or right on the screen.

• Indicators: Displays the current source condition and so on. – [ATT]: The attenuator is active. – [DUAL]: The dual zone function is active. – [LOUD]: The loudness control function is active.

• Short-cut buttons: The source changes to the one you have set with a short-cut. For the short-cut setting, refer to Customize Short- cut buttons on HOME screen (P.9).

Connected Bluetooth device information.

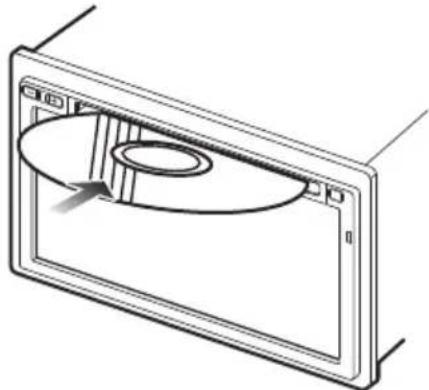

Insert the disc into the slot. The unit loads the disc and playback starts. Ñ Eject a disc

Press the [FNC] button. Popup menu appears.

Touch [G]. When removing a disc, pull it horizontally. NOTE

• This is not displayed on the popup menu screen of Apple CarPlay or Android Auto source. Change Apple CarPlay or Android Auto source to other one to display the popup menu screen. Connecting a USB device

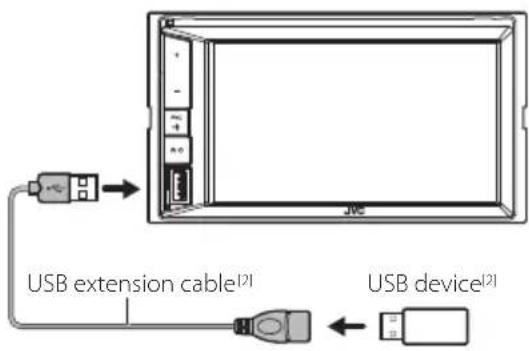

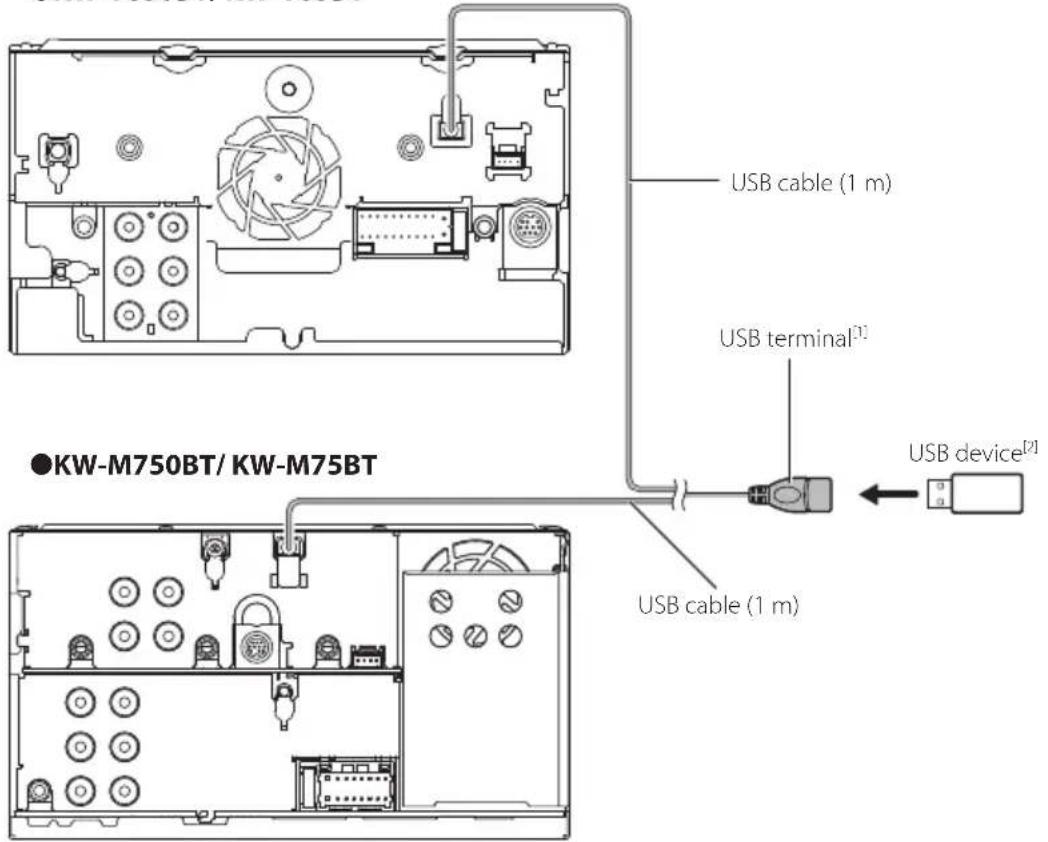

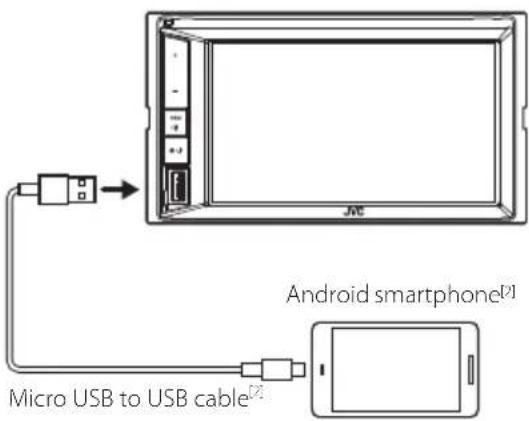

Connect the USB device with the USB cable. (P.25)

Press the [FNC] button. Popup menu appears.

Touch [ ]. HOME screen appears.

Press the [FNC] button. Popup menu appears.

Touch [ ]. HOME screen appears.

Touch a source other than [USB].

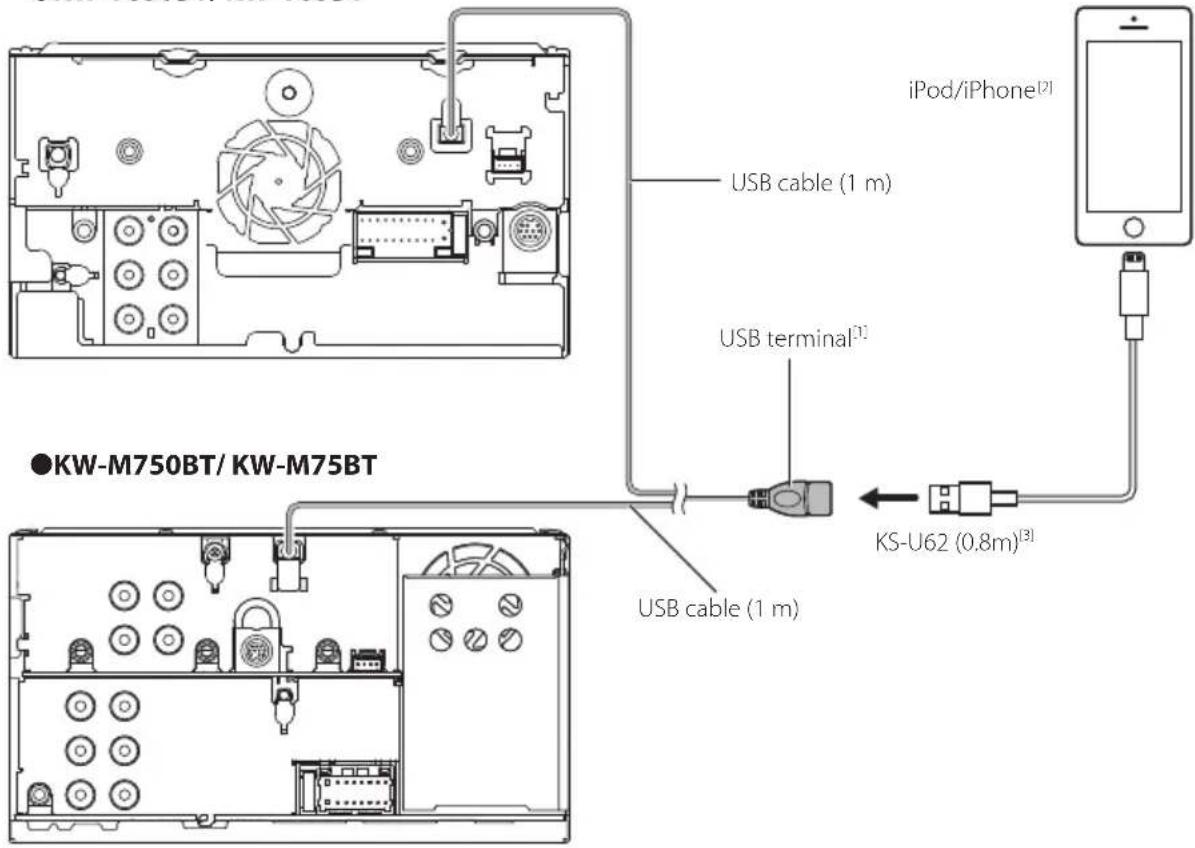

Detach the USB device. Connect iPod/iPhone Wired connection

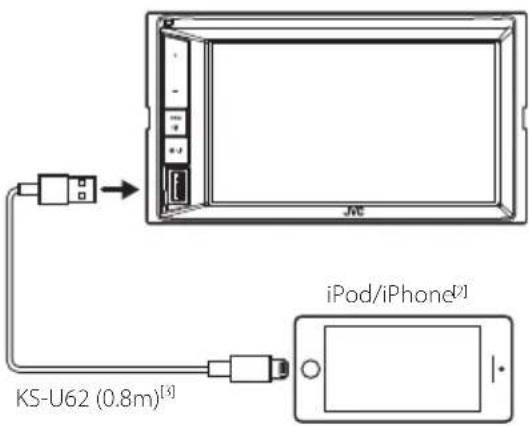

Connect the iPod/iPhone using the KS- U62. (P.26)

Press the [FNC] button. Popup menu appears.

Touch [ ]. HOME screen appears.

Touch [iPod]. ● To disconnect the iPod/iPhone connected with the cable:

Detach the iPod/iPhone. Bluetooth connection Pair the iPhone through Bluetooth. (P.15)11English DVD/ VCD Basic Operation (KW-V850BT/ KW-V85BT) NOTE

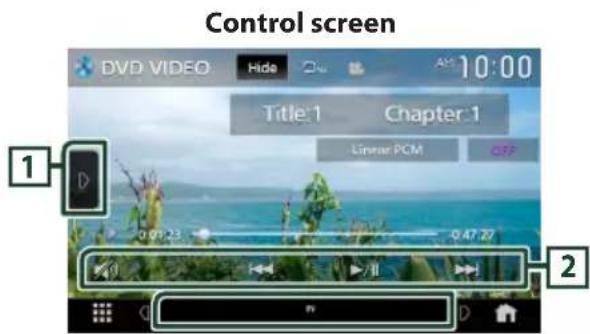

• The screen shot below is for DVD. It may be different from the one for VCD.

When the operation buttons are not displayed on the screen, touch

area. Control screen

Function panel Touch the left side of the screen to display the function panel. Touch again to close the panel.

• [E] [F] : Searches for the previous/next content. Touch and hold to fast-forward or fast- backward the disc.

] : Touch to attenuate/restore the sound.

Searching area Touch to search for the next/previous content.

• The control screen disappears when no operation is done for 5 seconds.• If you use a remote control, you can jump directly to the desired image by entering the chapter number, scene number, play time, etc. (P.84) the Instruction Manual.12 Tuner Basic Operation Control screen

Seek mode Touch to switch seek mode in the following sequence: [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.

• [AUTO2]: Tunes in the memorized stations one after another.

• [MANUAL]: Switches to the next frequency manually.

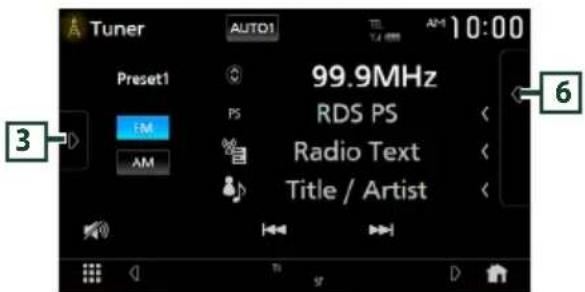

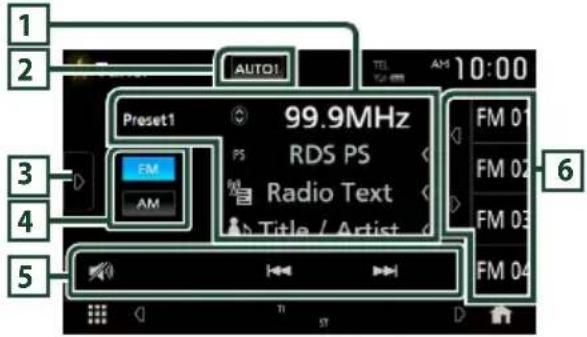

Function panel Touch the left side of the screen to display the function panel. Touch again to close the panel.

Band buttons Switches bands (between FM and AM).

• [E] [F] : Tunes in a station. The method of switching frequencies can be changed (see

] : Touch to attenuate/restore the sound.

• Recalls the memorized station.

• When touched for 2 seconds, stores the currently being received station in the memory.13English Music CD/ Disc media/USB Basic Operation NOTE

• In this manual, “Music CD” means a general CD which includes music tracks. “Disc media” means a CD/DVD disc which includes audio or video files.

• The screen shot below is for disc media. It may be different from the one for CD. Control screen

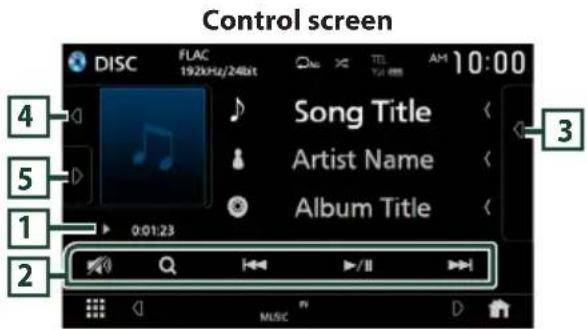

• D, B, etc.: Current play mode indicator Meanings of the icons are as follows: D (play), B (fast forward), A (fast backward), H (pause).

• For confirmation of current playing position. You can drag the circle left or right to change the playing position. (Video file only)

• [1] (Disc media only) : Searches files. For details on search operation, see File search Operation (P.22) in the Instruction Manual.

• [E] [F] : Searches for the previous/next content. Touch and hold to fast-forward or fast- backward the disc.

] : Touch to attenuate/restore the sound.

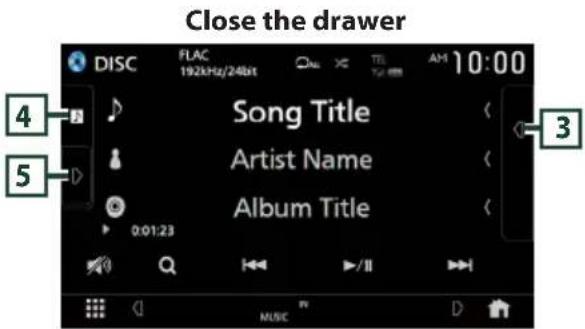

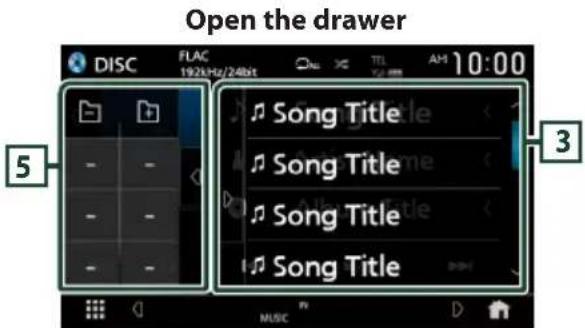

• Touch the right side of the screen to display the Content list. Touch again to close the list.

• Displays the playing list. When you touch a track/file name on the list, playback will start.

• Displays/hides artwork area.

• The jacket of the currently playing file is displayed. (Disc media only)

• When touched, switches the artwork to the VU meter.

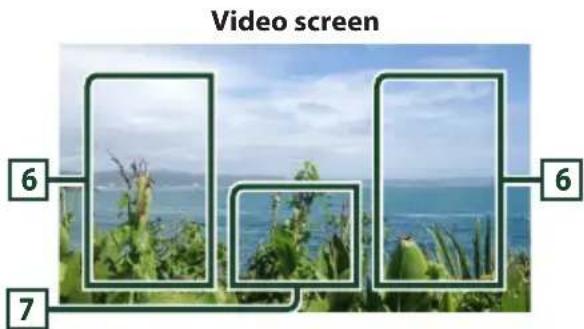

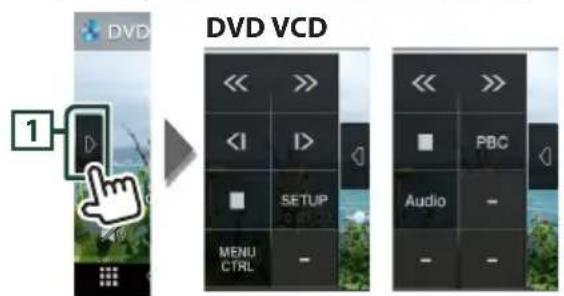

Function panel (Disc media only) Touch the left side of the screen to display the function panel. Touch again to close the panel. Video screen

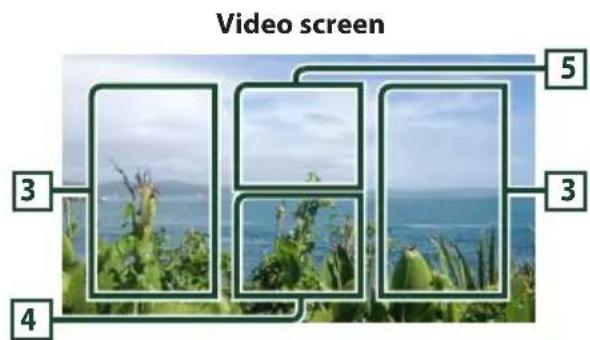

File search area (Video file only) Touch to search for the next/previous file.

Key display area (Video file only) Touch to display the control screen.14 iPod/iPhone Basic Operation Ñ Connectable iPod/iPhone The following models can be connected to this unit. Made for

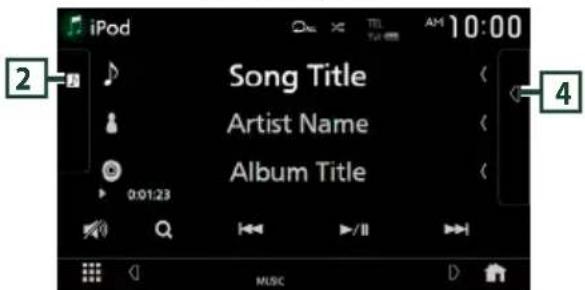

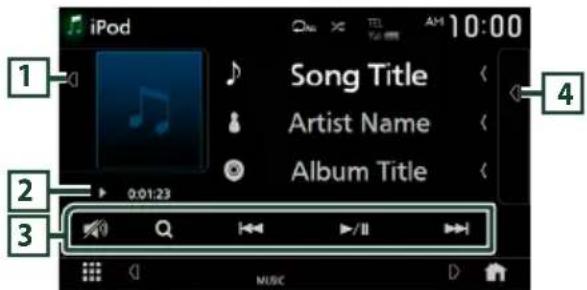

• iPod touch (6th generation) Control screen

• Displays/hides artwork area.

• The jacket of the currently being played file is displayed.

• When touched, switches the artwork to the VU meter.

• D, B, etc.: Current play mode indicator Meanings of individual icons are as follows: D (play), B (fast forward), A (fast backward), H (pause).

• 1] : Searches for a track/file. For details on search operation, see File search Operation (P.37) in the Instruction Manual.
• E] [F] : Searches for the previous/next track/file. Touch and hold to fast forward or fast backward.

] : Touch to attenuate/restore the sound.

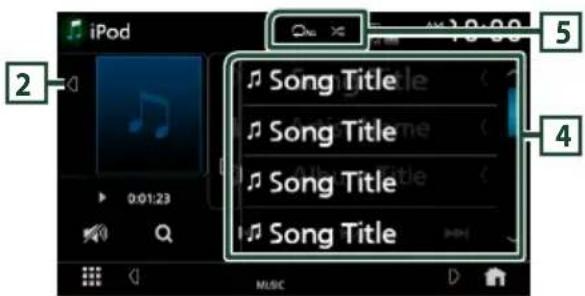

• Touch the right side of the screen to display the Content list. Touch again to close the list.

• Displays the playing list. When you touch a track/file name on the list, playback will start.

] : Repeats the current track/album. Each time you touch the key, repeat modes are switched in the following sequence: Song repeat ( ), All songs repeat ( ), Repeat off ( )

] : Randomly plays all tracks in the current album. Each time you touch the key, random modes are switched in the following sequence: Song random ( ), Random off ( )15English Bluetooth Setup

Press the [FNC] button. Popup menu appears.

Touch [ ]. HOME screen appears.

Touch [ ]. SETUP screen appears.

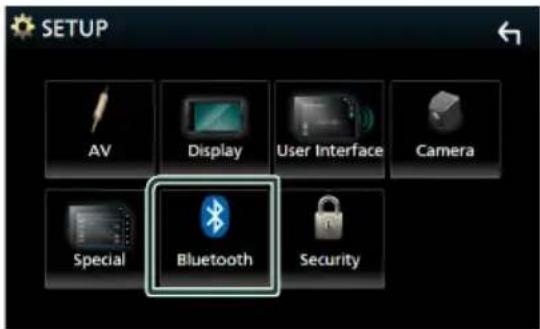

Touch [Bluetooth]. Bluetooth Setup screen appears. See the following section for each setting.

• Connect the Bluetooth device (P.15)

• Change the device name (P.59) in the Instruction Manual.

• Change the PIN Code (P.59) in the Instruction Manual. Ñ Connect the Bluetooth device

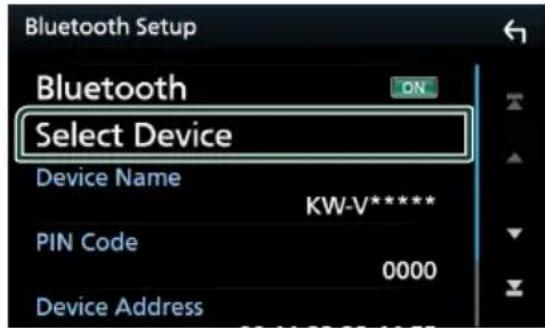

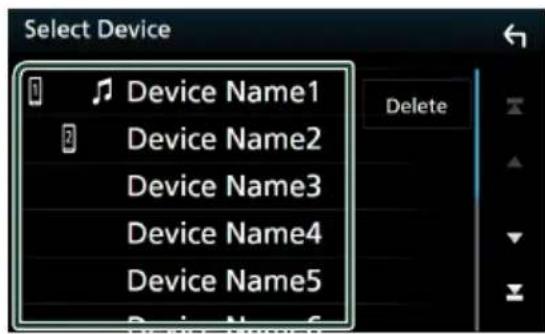

Touch [Select Device] on the Bluetooth Setup screen.

Touch the name of the device you want to connect. Profile select screen appears. NOTE

• If the icon is lighted, it means that the unit will use that device.

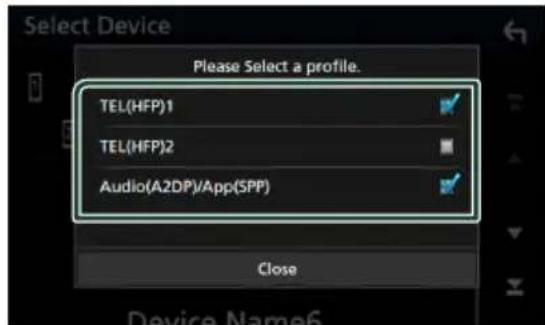

Set each profile as follows.

■ [TEL (HFP) 1], [TEL (HFP) 2]

Select when the device is connected with the unit as hands-free phone 1 or 2. ■ [Audio (A2DP)/App (SPP)] Select to interwork with an application installed in a smartphone or to use as an audio player.

Touch [Close].16 Using the Hands-Free Unit You can use the telephone function by connecting the Bluetooth telephone to this unit. NOTE

• While Apple CarPlay or Android Auto is connected, the Bluetooth Hands-Free function and two Bluetooth devices connections cannot be used. Only the Apple CarPlay or Android Auto Hands-Free function can be used. Ñ Make a call

Press the [FNC] button. Popup menu appears.

Touch [Phone]. Hands Free screen appears. NOTE

• If your cell-phone supports PBAP, you can display the phone book and call lists onto the touch panel screen when the cell-phone is connected. – Phone book: up to 1000 entries – Up to 50 entries including dialed calls, received calls, and missed calls

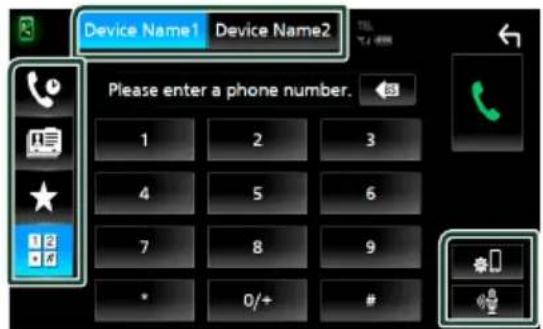

Select a dialing method.

]: Call by entering a phone number ● Select the cell-phone to use When you connect two cell-phones

] to select the phone you want to use. ● Bluetooth Setup

Bluetooth Setup screen appears. ● Voice Recognition

• Status icons such as battery and antenna icons may differ from those displayed on the cell-phone.• Setting the cell-phone in the private mode can disable the hands-free function. Call using call records

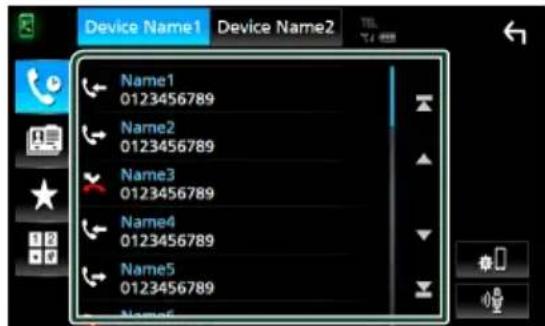

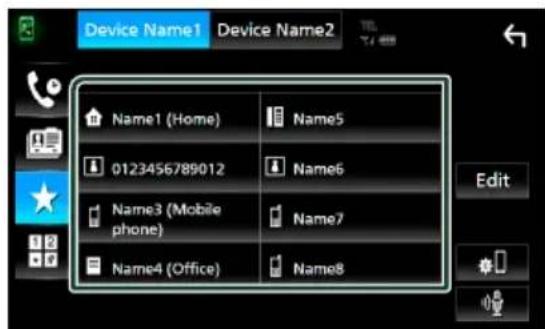

Select the phone number from the list. Call using the preset number

Touch the name or phone number.17English Call by entering a phone number

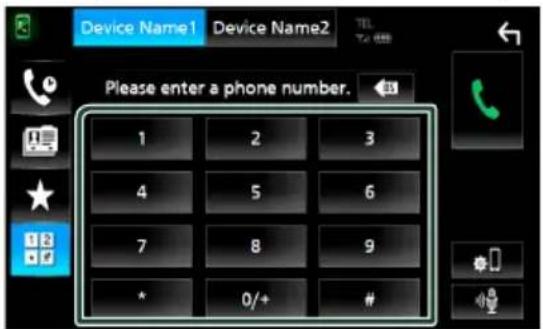

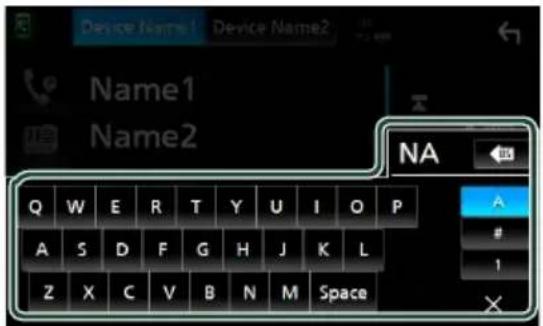

Enter a phone number with number keys.

• Characters with no corresponding name will not appear.

• A first character with an accent character such as “ü” can be searched for with a non-accent character “u” . A character with an accent character in a sentence cannot be searched for.

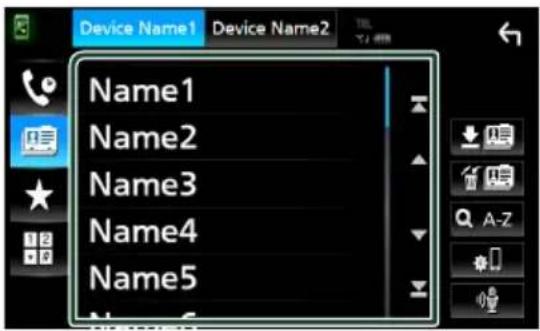

Select the person you want to call from the list.

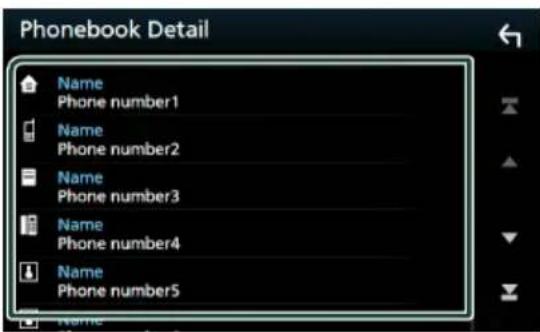

Select the phone number from the list.18 Connection/Installation Before Installation Before installation of this unit, please note the following precautions. # WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse. # CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.

• If the power is not turned ON (“There is an error in the speaker wiring. Please check the connections.” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.

• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the ¤ wires or ground them to any metal part in the car.

• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the ¢ connector of the left speaker to a front output terminal, do not connect the ¤ connector to a rear output terminal.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Mount the unit so that the mounting angle is 30° or less.

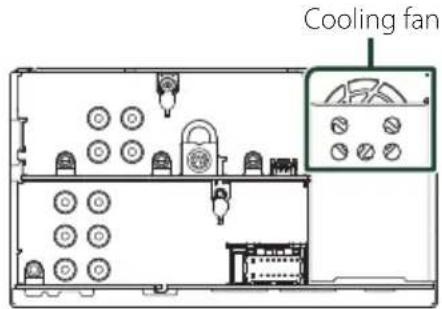

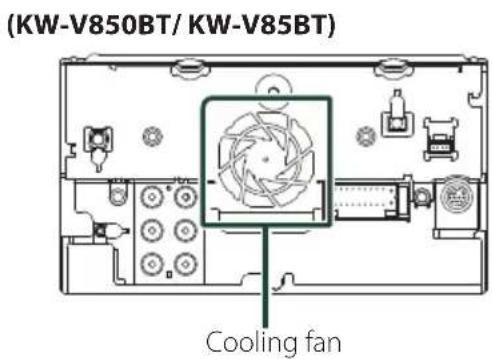

• This unit has the cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit is blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.19English (KW-V850BT/ KW-V85BT) Cooling fan (KW-M750BT/ KW-M75BT/ KW-M650BT) Cooling fan

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

• Reception may drop if there are metal objects near the Bluetooth antenna. Bluetooth antenna unit Ñ Supplied accessories for installation

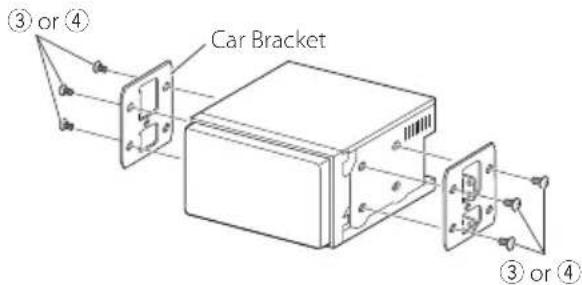

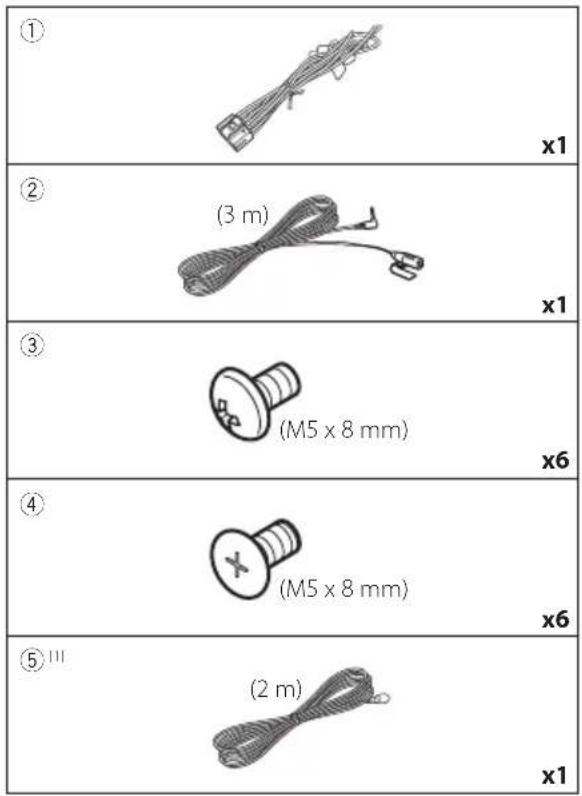

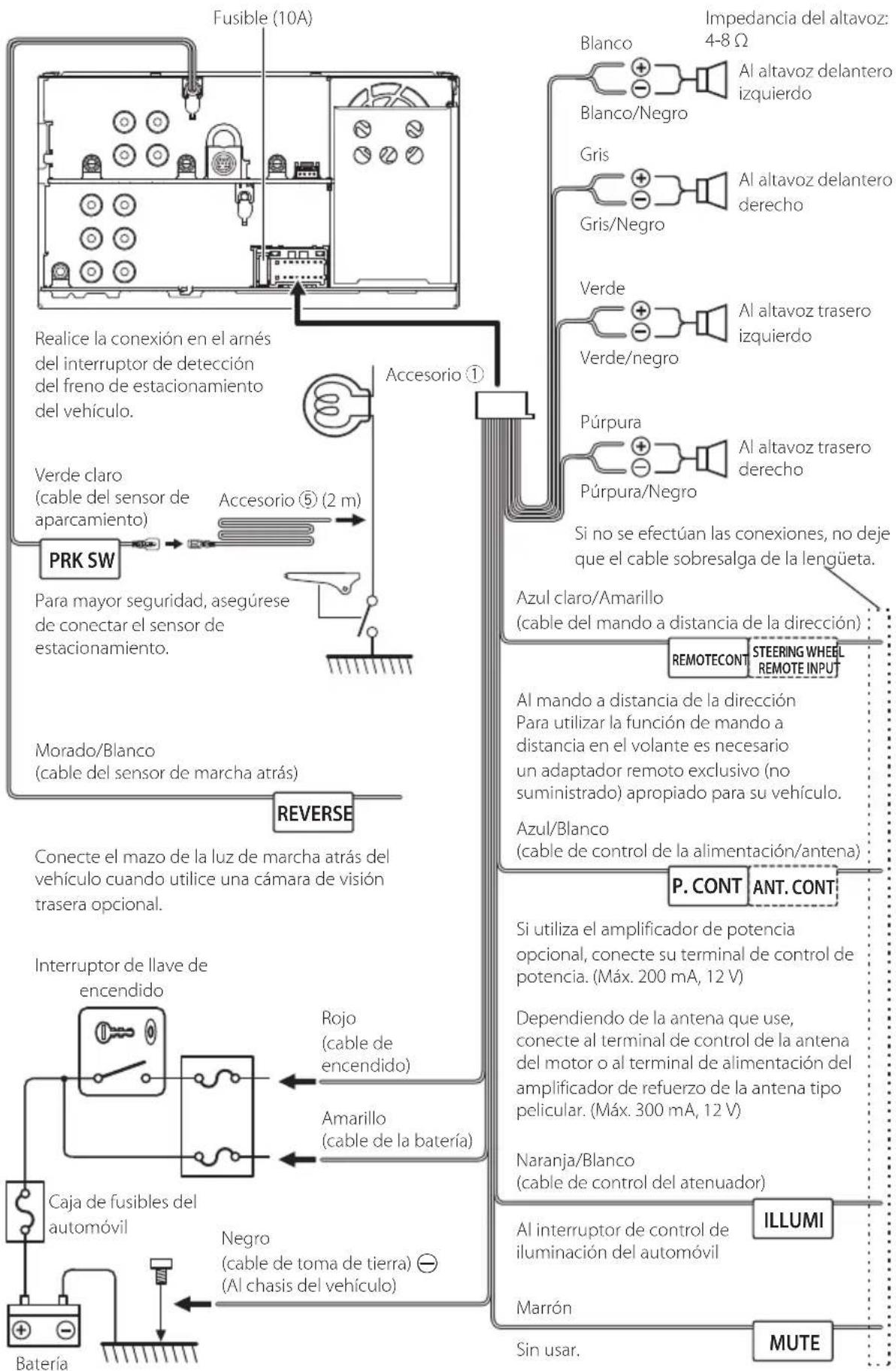

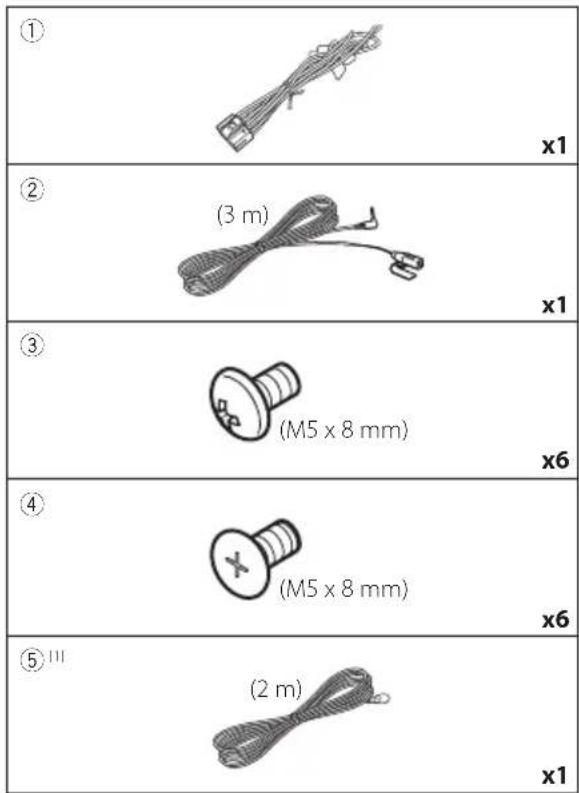

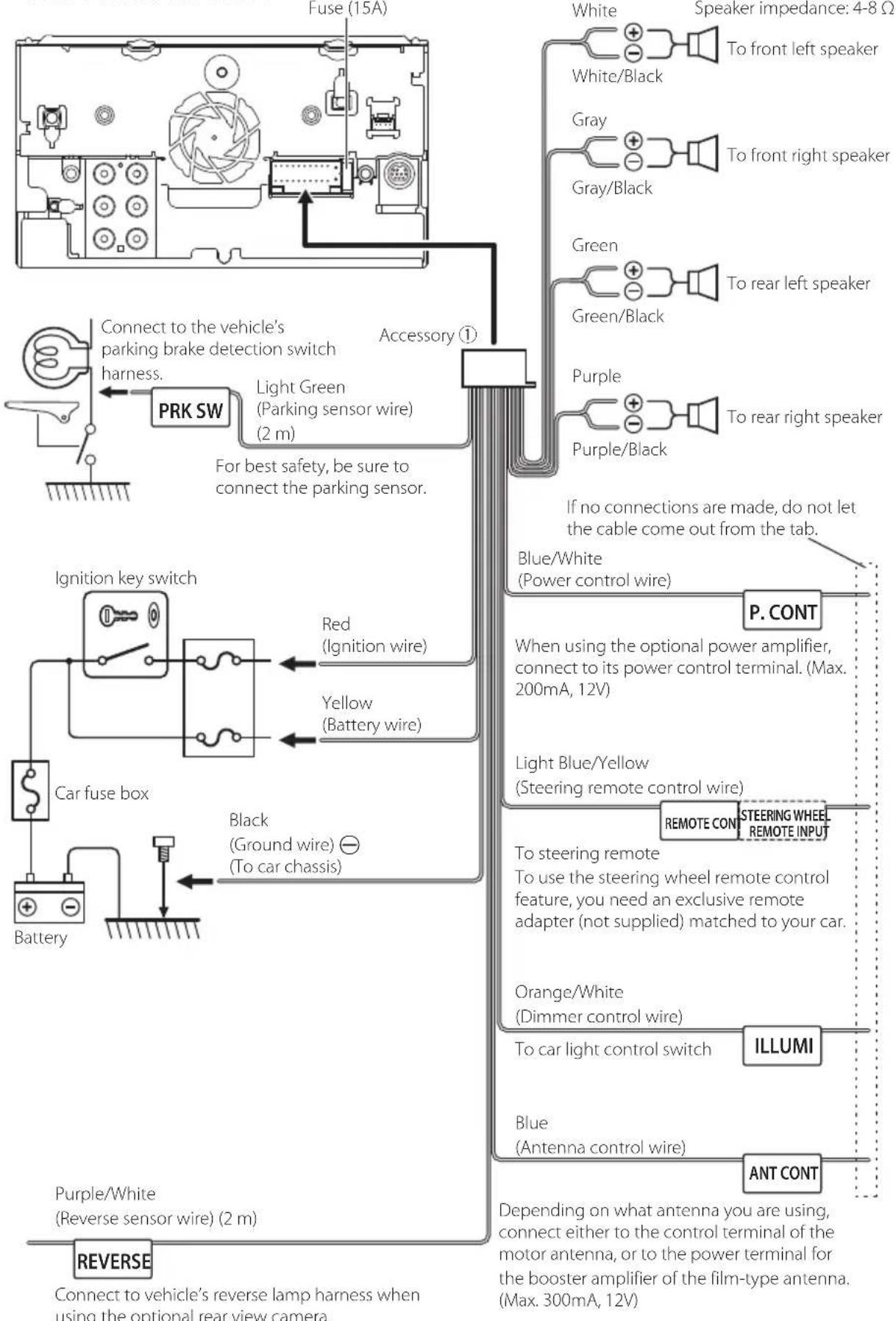

[1] KW-M750BT/ KW-M75BT/ KW-M650BT only Ñ Installation procedure

1) To prevent a short circuit, remove the key

from the ignition and disconnect the ¤ terminal of the battery.

2) Make the proper input and output wire

connections for each unit.

3) Connect the speaker wires of the wiring

4) Connect the wiring harness wires in the

following order; ground, battery, ignition.

5) Connect the wiring harness connector to the

6) Install the unit in your car.

7) Reconnect the ¤ terminal of the battery.

8) Perform the Initial Setup.

See Initial setup (P.4).20 Installing the unit 3 or 4 3 or 4 Car Bracket NOTE

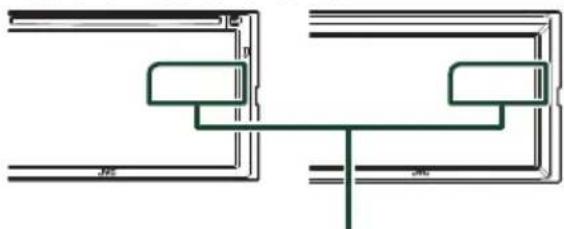

• Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). Ñ Microphone unit

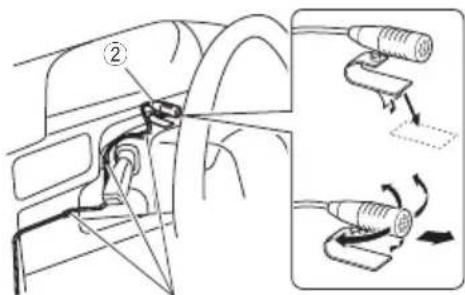

1) Check the installation position of the

microphone (accessory 2).

2) Clean the installation surface.

3) Remove the separator of the microphone

(accessory 2), and stick the microphone to the place shown below.

4) Wire the microphone cable up to the unit

with it secured at several positions using tape or other desired method.

5) Adjust the direction of the microphone

(accessory 2) to the driver.

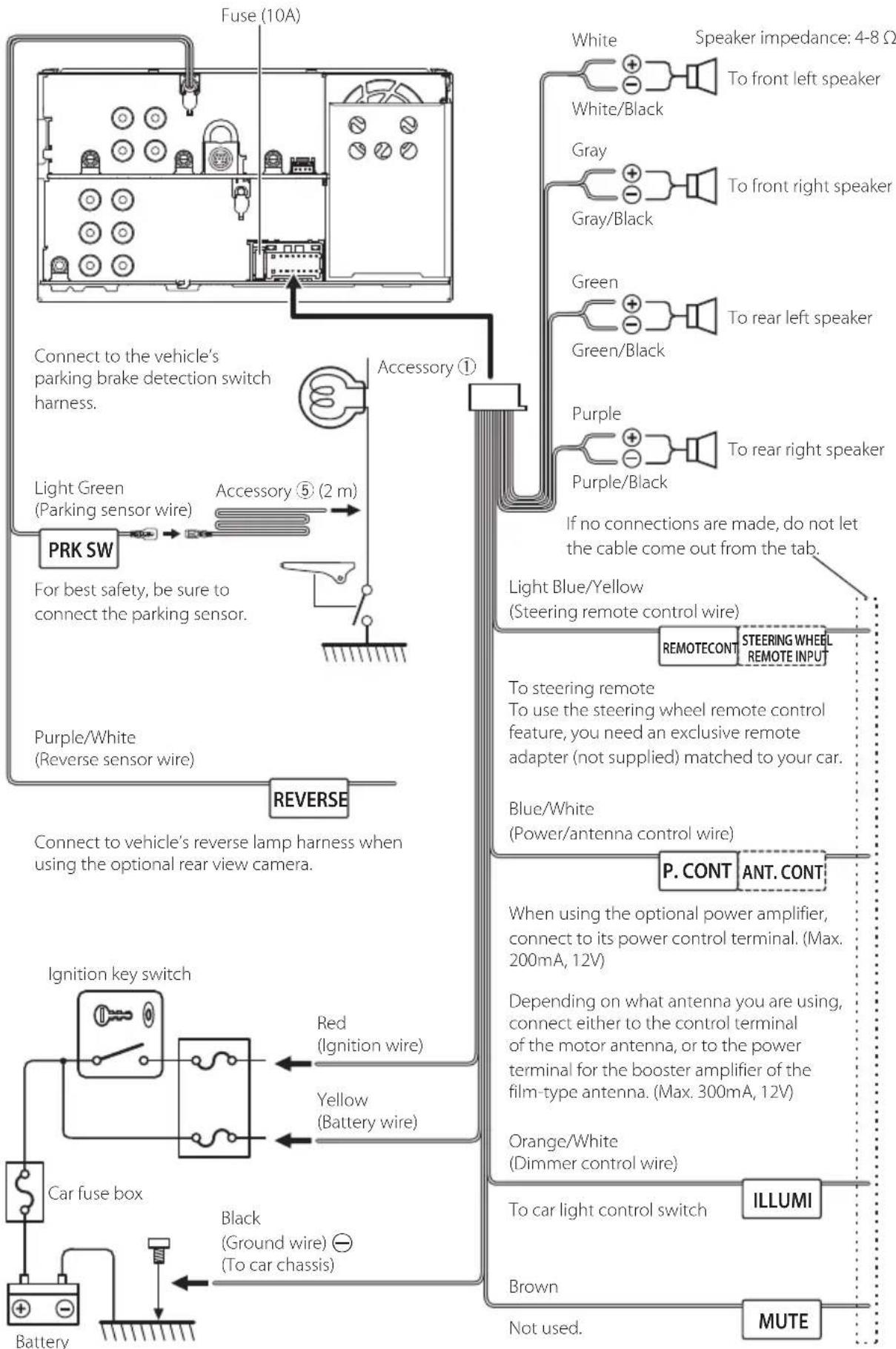

Fix a cable with a commercial item of tape.21English Ñ Connecting wires to terminals ● KW-V850BT/ KW-V85BT ILLUMI ANT CONT STEERING WHEEL REMOTE INPUT REMOTE CONT PRK SW REVERSE P. CONT Fuse (15A) When using the optional power amplifier, connect to its power control terminal. (Max. 200mA, 12V) Depending on what antenna you are using, connect either to the control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna. (Max. 300mA, 12V) Blue/White (Power control wire) Blue (Antenna control wire) To car light control switch Orange/White (Dimmer control wire) Purple/White (Reverse sensor wire) (2 m) Light Blue/Yellow (Steering remote control wire) Connect to vehicle’s reverse lamp harness when using the optional rear view camera. To steering remote To use the steering wheel remote control feature, you need an exclusive remote adapter (not supplied) matched to your car. If no connections are made, do not let the cable come out from the tab. Purple/Black To rear right speaker To rear left speaker To front right speaker To front left speaker Speaker impedance: 4-8 Ω Purple Green/Black Green Gray/Black Gray White/Black White Accessory 1 Connect to the vehicle’s parking brake detection switch harness. Light Green (Parking sensor wire) (2 m) For best safety, be sure to connect the parking sensor. Ignition key switch Red (Ignition wire) Yellow (Battery wire) Car fuse box Battery Black (Ground wire) ¤ (To car chassis)22 ILLUMI MUTE STEERING WHEEL REMOTE INPUT REMOTECONT PRK SW REVERSE P. CONT ANT. CONT Fuse (10A) When using the optional power amplifier, connect to its power control terminal. (Max. 200mA, 12V) Depending on what antenna you are using, connect either to the control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna. (Max. 300mA, 12V) Blue/White (Power/antenna control wire) Brown To car light control switch Not used. Orange/White (Dimmer control wire) Purple/White (Reverse sensor wire) Light Blue/Yellow (Steering remote control wire) Connect to vehicle’s reverse lamp harness when using the optional rear view camera. To steering remote To use the steering wheel remote control feature, you need an exclusive remote adapter (not supplied) matched to your car. If no connections are made, do not let the cable come out from the tab. Purple/Black To rear right speaker To rear left speaker To front right speaker To front left speaker Speaker impedance: 4-8 Ω Purple Green/Black Green Gray/Black Gray White/Black White Accessory 1 Connect to the vehicle’s parking brake detection switch harness. Light Green (Parking sensor wire) Accessory 5 (2 m) For best safety, be sure to connect the parking sensor. Ignition key switch Red (Ignition wire) Yellow (Battery wire) Car fuse box Battery Black (Ground wire) ¤ (To car chassis) ● KW-M750BT/ KW-M75BT/ KW-M650BT23English Ñ 3-way speaker system setup ● KW-V850BT/ KW-V85BT ● KW-M750BT/ KW-M75BT/ KW-M650BT When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. White/Black Gray/Black Green/Black Purple/Black Speaker impedance: 4-8 Ω Purple Green Gray White To mid range left speaker Subwoofer Preout Subwoofer Preout To mid range right speaker Mid Range Preout Mid Range Preout To tweeter left speaker Tweeter Preout Tweeter Preout To tweeter right speaker Power amplifier (optional accessory) RCA Cable (Sold separately) Input Speaker Preout NOTE

• For speaker system setup, see 3-way speaker system setup (P.73) in the Instruction Manual.

• For speaker setup and crossover setup, see Speaker / X’over setup (P.74) in the Instruction Manual.

• For how to connect speaker wires to terminals other than speaker terminals and Preout terminals, see Connecting the system and external components (P.24) and Connecting wires to terminals (P.21).24 Ñ Connecting the system and external components ● KW-V850BT/ KW-V85BT

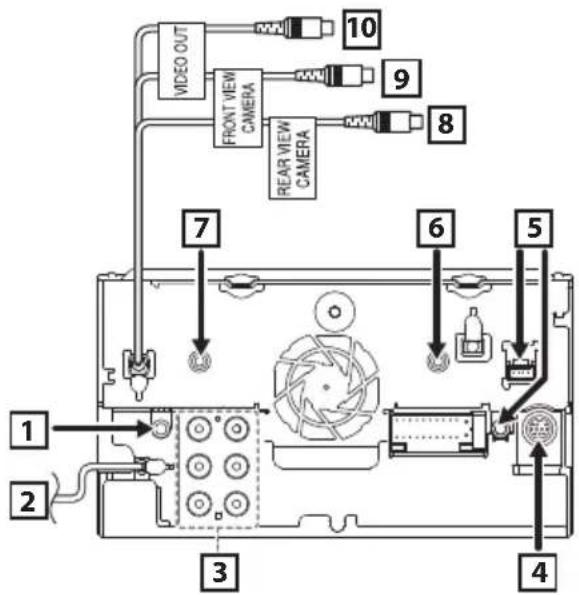

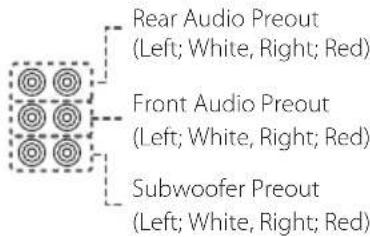

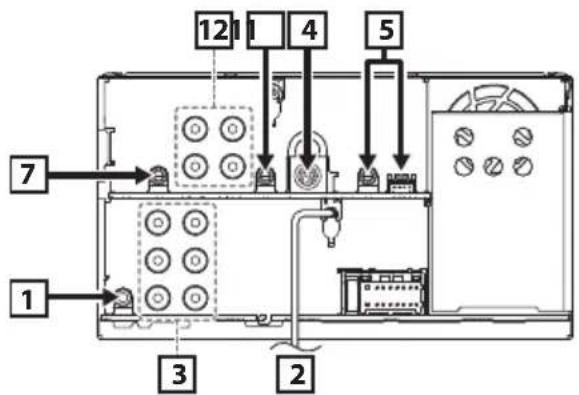

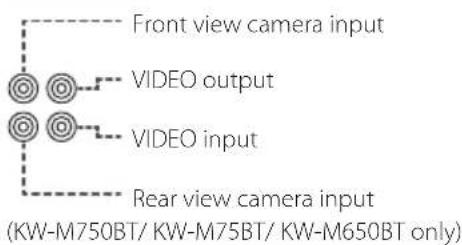

AV Audio output (ø3.5 mini jack) FM/AM antenna input When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit.Rear Audio Preout (Left; White, Right; Red)Front Audio Preout (Left; White, Right; Red)Subwoofer Preout (Left; White, Right; Red) SiriusXM Connect Vehicle Tuner connector For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included with the tuner. iDatalink connector AV-IN input (1; Left audio, 2; Right audio, 3; Ground, 4; Visual) (KW-V850BT/ KW-V85BT only)1 2 3 4 Accessory 2: Bluetooth Microphone Rear view camera input (Yellow) (KW-V850BT/ KW-V85BT only) Front view camera input (Yellow) (KW-V850BT/ KW-V85BT only) VIDEO Output (Yellow) (KW-V850BT/ KW-V85BT only) Audio input(KW-M750BT/ KW-M75BT/ KW-M650BT only) Front view camera inputVIDEO outputVIDEO inputRear view camera input(KW-M750BT/ KW-M75BT/ KW-M650BT only)25English Ñ Connecting a USB device ● KW-V850BT/ KW-V85BT USB terminal [1] USB cable (1 m) USB device [2] USB device [2] USB extension cable [2] [1] USB maximum power supply current : DC 5 V = 1.5 A [2] Sold separately ● KW-M750BT/ KW-M75BT ● KW-M650BT USB cable (1 m)26 Ñ Connecting an iPod/iPhone ● KW-V850BT/ KW-V85BT USB cable (1 m) USB terminal [1] KS-U62 (0.8m) [3] iPod/iPhone [2] iPod/iPhone [2] KS-U62 (0.8m) [3] ● KW-M750BT/ KW-M75BT ● KW-M650BT [1] USB maximum power supply current : DC 5 V = 1.5 A [2] Sold separately [3] Optional accessory USB cable (1 m)27English Ñ Connecting an Android smartphone ● KW-V850BT/ KW-V85BT Android smartphone [2] Android smartphone [2] Micro USB to USB cable [2] ● KW-M750BT/ KW-M75BT ● KW-M650BT [1] USB maximum power supply current : DC 5 V = 1.5 A [2] Sold separately USB terminal [1] Micro USB to USB cable [2] USB cable (1 m) USB cable (1 m)28 About this Unit ■ Copyrights

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.

• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• This software is based in part on the work of the independent JPEG Group.

• The “AAC” logo is a trademark of Dolby Laboratories.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.

• Android, Android Auto, Google Play and other marks are trademarks of Google LLC.

• BlackBerry®, RIM®, Research In Motion® and related trademarks, names and logos are the property of Research In Motion Limited and are registered and/ or used in the U.S. and countries around the world. Used under license from Research In Motion Limited.

• This product includes FontAvenue® fonts licenced by NEC Corporation.FontAvenue is a registered trademark of NEC Corporation.

• This product includes "Ubiquitous QuickBoot TM" technology developed by Ubiquitous Corp. Ubiquitous QuickBoot TM is a trademark of Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp. All rights reserved.

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and29English the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ■ Compatible iPhone devices You can use CarPlay with the following iPhone models.

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.

• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• This software is based in part on the work of the independent JPEG Group.

• The “AAC” logo is a trademark of Dolby Laboratories.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.

• Android, Android Auto, Google Play and other marks are trademarks of Google LLC.

• BlackBerry®, RIM®, Research In Motion® and related trademarks, names and logos are the property of Research In Motion Limited and are registered and/ or used in the U.S. and countries around the world. Used under license from Research In Motion Limited.

• This product includes FontAvenue® fonts licenced by NEC Corporation.FontAvenue is a registered trademark of NEC Corporation.

• This product includes "Ubiquitous QuickBoot TM" technology developed by Ubiquitous Corp. Ubiquitous QuickBoot TM is a trademark of Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp. All rights reserved.

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the57Français above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.

• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• This software is based in part on the work of the independent JPEG Group.

• The “AAC” logo is a trademark of Dolby Laboratories.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.

• Android, Android Auto, Google Play and other marks are trademarks of Google LLC.

• BlackBerry®, RIM®, Research In Motion® and related trademarks, names and logos are the property of Research In Motion Limited and are registered and/ or used in the U.S. and countries around the world. Used under license from Research In Motion Limited.

• This product includes FontAvenue® fonts licenced by NEC Corporation.FontAvenue is a registered trademark of NEC Corporation.

• This product includes "Ubiquitous QuickBoot TM" technology developed by Ubiquitous Corp. Ubiquitous QuickBoot TM is a trademark of Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp. All rights reserved.

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.85Español – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

• This equipment generates,used and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. # CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. JVC KENWOOD Corporation 2967-3, ISHIKAWA-MACHI,

21 CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE. Location KW-V850BT/KW-V85BT: Top plate KW-M750BT/KW-M75BT/KW-M650BT: Bottom plate This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ■ IC (Industry Canada) Notice This device complies with Industry Canada's applicable licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. # CAUTION This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Contains FCC ID: 2ALS3-3903 Contains IC: 22661-3903 Supplier’s Declaration of Conformity Trade Name: JVC Products: MONITOR WITH DVD RECEIVER Model Name: KW-V850BT/ KW-V85BT Products: MONITOR WITH RECEIVER Model Name: KW-M750BT/ KW-M75BT/ KW-M650BT Responsible Party: JVCKENWOOD USA CORPORATION 2201 East Dominguez Street, Long Beach, CA 90810, U.S.A. PHONE: 310 639-9000 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
