USER MANUAL KW-M593BT JVC

KW-M593BT KW-M595DBT

MONITOR WITH RECEIVER

Quick Start Guide

MONITEUR AVEC RÉCEPTEUR

https://www.jvc.net/cs/car/

Model name indication position

See Removing the trim plate (P.17)

Software License on This Product

The software embedded in this product comprises a number of independent software components, each of which is copyrighted by JVCKENWOOD Corporation or by a third party.

This product uses software components that are based on an End-User License Agreement (hereinafter called "EULA") stipulated by JVCKENWOOD Corporation and by third parties.

The EULA dictates the availability of the source codes of free-software components as a prerequisite to distributing them in executable form under the terms of the GNU General Public License or the Lesser General Public License (hereinafter called "GPL/LGPL"). To get information about the software components that are subject to the terms of the GPL/LGPL, please visit the following Website:

Website URL https://www3.jvckenwood.com/english/download/gpl/

Queries concerning the contents of the source code or the like will not be accepted.

Please note that software components based on a EULA that is not subject to the terms of the GPL/LGPL or those that have been developed or created by JVCKENWOOD Corporation will be excluded from the scope of source code disclosure.

Because licenses to use software components distributed under the GPL/LGPL are offered to the customers for free of charge, no warranty is granted to the customers, whether explicitly or implicitly, to the extent of the applicable laws.

Unless otherwise stipulated by the applicable laws or agreed upon in writing, the copyright holders or those who are entitled to modify and redistribute the software components are not held responsible for any and all damages resulting from their use or from inability to use them. For more information about the terms of use of the software components, required items of compliance and so on, please refer to the GPL/LGPL.

Customers wishing themselves to use a software component that is subject to the GPL/LGPL embedded in this product are encouraged to read the terms of the corresponding license before use. Because each individual license is prescribed by a third party other than JVCKENWOOD Corporation, the original (English) of the license is presented.

EULA

Software License Agreement

JVCKENWOOD Corporation (hereinafter called

"Licensor") holds either the copyright to the embedded software or the right to sublicense it. This agreement establishes the conditions under which the customer uses this "Licensed Software."

The customer shall agree to the terms of this license agreement before proceeding to use Licensed Software.

This agreement is deemed to have taken effect when the customer (hereinafter called "User") has used a product implementation of Licensed Software.

The Licensed Software may contain software Licensor has been licensed to use by third parties directly or indirectly. Some third parties may have terms of use prescribed for their customers, apart from this Software License Agreement. This agreement does not apply to such software. Be sure to consult "Important Notice on Software" as presented separately.

Article 1 (General)

Licensor grants to User a non-exclusive, non-assignable right of use Licensed Software within the country where the User purchases the Product (hereinafter the "Country") (except for the exception provided for in Paragraph 1, Article 3).

Article 2 (Right of Use)

1. The rise of use granted under this agreement is the right to use Licensed Software in this product.
2. User may not duplicate, copy, modify, add to, translate or otherwise alter, or loan licensed Software and the associated literature in whole or in part.
3. Use of Licensed Software is limited to a private extent, and Licensed Software may not be distributed, licensed or sublicensed for any purposes whatsoever, including commercial use.
4. User shall use Licensed Software as per the instruction manual or instructions given in the help file and may not use or duplicate data in violations of the regulations of the Copyright Law or other governing laws by using Licensed Software in whole or in part.

Article 3 (Terms of License)

1. In assigning this product, User may not retain the original copy of the embedded Licensed Software (including associated literature, updates and upgrades) and any duplicates and associated literature with regard to the license to use Licensed Software. User may transfer Licensed Software only to the condition of binding the assignee to abide by the terms of this Software License Agreement.
2. User may not reverse-engineer, disassemble, decompile or otherwise analyze the source code of Licensed Software.

Article 4 (Rights to Licensed Software)

All rights to Licensed Software and the associated literature, including copyrights, shall reside with Licensor or the original right holder who has granted the Right of Use and right to sublicense to Licensor (hereinafter referred to as "Original Right Holder"), and User does not have any rights other than Right of Use granted hereunder with regard to Licensed Software and the associated literature.

Article 5 (Exemption Granted to Licensor)

1. Licensor and Original Right Holder do not assume any responsibility for damages caused to User or third parties resulting from the exercise by User of the license granted hereunder, unless otherwise provided by any law to the contrary.
2. Licensor does not warrant Licensed Software to be merchantable, compatible and fit for specific purposes.

Article 6 (Responsibility for Third Parties)

If disputes over the infringement of third parties' intellectual property rights, such as copyrights and patent rights, arise out of the use of Licensed Software by User, User shall resolve these disputes at User's own expenses while keep Licensor and Original Right Holder harmless.

Article 7 (Secrecy Obligation)

User shall keep confidential Licensed Software provided hereunder, information contained in the associated literature or the like and those provisions of this agreement not yet in public knowledge and may not disclose or leak these to third parties without prior written consent from Licensor.

Article 8 (Cancellation of the Agreement)

Licensor reserves the right to cancel this agreement forthwith and claim compensation from User for the damages caused by such cancellation when User:

(1) Breaches any of the provisions of this agreement, or
(2) Has received a petition for seizure, provisional seizure, provisional disposition or any other kind of compulsory execution.

Article 9 (Destruction of Licensed Software)

If this agreement is terminated under the provision of the foregoing paragraph, User shall destroy Licensed Software, along with all associated literature and its duplicates, within two (2) weeks from the date of termination.

Article 10 (Copyright Protection)

1. Copyrights and all other intellectual property rights relating to Licensed Software shall reside with Licensor and Original Right Holder and in no circumstances with User.
2. User shall abide by the laws relating to copyrights and intellectual property rights in using Licensed Software.

Article 11 (Export Control)

1. Licensed Software and the associated literature or the like may not be exported to places outside the Country (including transmission outside the Country over the Internet or the like).
2. User agrees that Licensed Software is subject to export controls imposed by the Country and the United States of America.
3. User agrees to comply with all the international and domestic laws that apply to this software (U.S. Export Administration Regulations and regulations established by the U.S., the Country and their governmental agencies regarding usage by end users and export destinations).

Article 12 (Miscellaneous)

1. Even if this agreement is invalidated in part by law, all other provisions shall remain in effect.
2. Licensor and User shall consult each other in good faith to resolve any matters not provided for in this agreement or questions arising from the interpretation of this agreement.
3. Licensor and User agree that this agreement is governed by the law of Japan and that all disputes involving claims and obligations that may arise out of this agreement will be settled by arbitration at the Tokyo District Court as the court of first instance.

Before Use

About the Quick start guide

This Quick Start Guide describes basic functions of this unit.

For detailed operations and information, refer to the INSTRUCTION MANUAL on the following website:

https://www.jvc.net/cs/car/

QR code image containing encoded data, no visible human-readable text

The Instruction manual is subject to change for modification of specifications and so forth.

Be sure to download the latest edition of the Instruction manual for reference.

How to read this manual

• The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual screens or panels used, or some display patterns may be different.
- Indication language: English indications are used for the purpose of explanation. You can select the indication language from the
[SETUP] menu. See Instruction Manual.

This symbol on the product means there are important operating and maintenance instructions in this manual.

Be sure to carefully read instructions in this manual.

Precautions

⚠️ WARNINGS

To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

• Do not watch or fix your eyes on the unit's display when you are driving for any extended period.
• If you experience problems during installation, consult your JVC dealer.

Precautions on using this unit

• When you purchase optional accessories, check with your JVC dealer to make sure that they work with your model and in your area.
• You can select language to display menus, audio file tags, etc. See Instruction Manual.
• The Radio Data System or Radio Broadcast Data System feature won't work where the service is not supported by any broadcasting station.

Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip.

Cleaning the unit

- If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

NOTE

- Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

How To Reset Your Unit

- If the unit or the connected unit fails to operate properly, reset the unit. Press the button. The unit returns to factory settings.

+ - JVC

Reset button

Basic Operations

Turning on the Unit

1 Press the [button.

The unit is turned on.

●To turn off the unit:

1 Press and hold the [button.

NOTE

- If it is your first time turning the unit on after installation, it will be necessary to perform Initial setup (P.6).

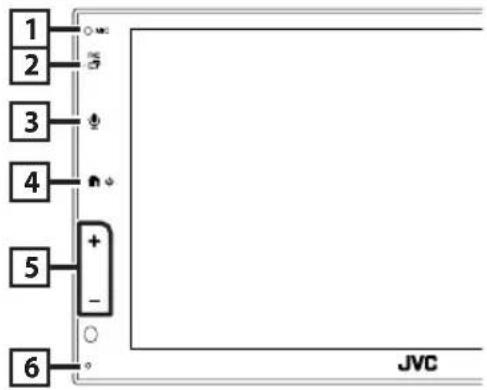

Functions of the Buttons on the Front Panel

1 2 3 4 5 6 JVC

	Name• Motion
1	Built-in microphoneSpeak via Bluetooth hands-free mode when a Bluetooth telephone is connected.
2	[FNC] [IMAGE]Displays the popup menu screen.Press and hold to display the APP (Apple CarPlay/ Android AutoTM) screen.
3	[IMAGE]Displays the Voice Recognition screen.
4	[+] [ ]Displays the HOME screenPress and hold to turn off the power.When the power off, turns the power on.
5	[+], [—] (Volume)Adjusts volume.The volume will go up until 15 when you keep pressing +.

Name

- Motion

6 Reset

- If the unit or the connected unit fails to operate properly, the unit returns to initial settings when this button is pressed.

NOTE

- Noise inside the vehicle during a call may affect call quality. If call quality is poor, we recommend setting the air conditioner's fan to the lowest setting.

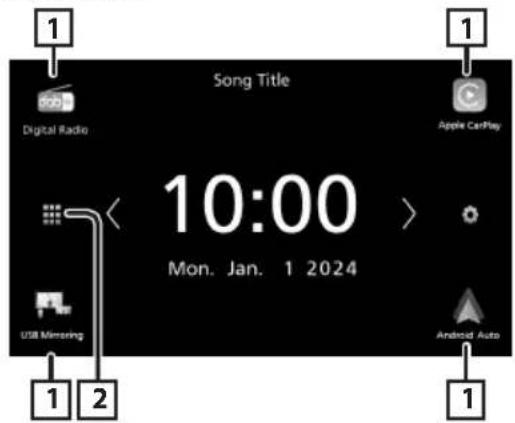

HOME screen descriptions

Most functions can be performed from the HOME screen.

Song Title Digital Radio Apple CarPlay 10:00 Mon. Jan. 1 2024 USB Miserving Android Auto

1 • Short-cut playback source icons. (P.6)

2 • Displays the source selection screen. (P.6)

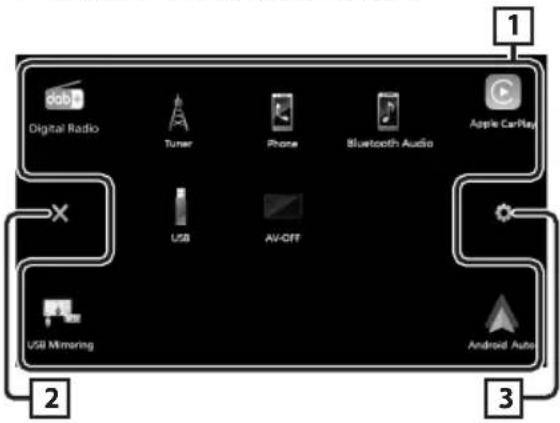

Select the playback source

1 Touch upon the HOME screen.

Digital Radio Tuner Phone Bluetooth Audio Apple CarPlay USB AV-OFF USB Mirroring Android Auto

1 • Changes the playback source.
2 • Returns to previous screen.
3 • Displays the SETUP Menu screen.

From the screen, you can select the following sources and functions.

• Switches to the Digital Radio broadcast. (P.B) (KW-M595DBT only)

• Switches to the Apple CarPlay screen from the connected iPhone.

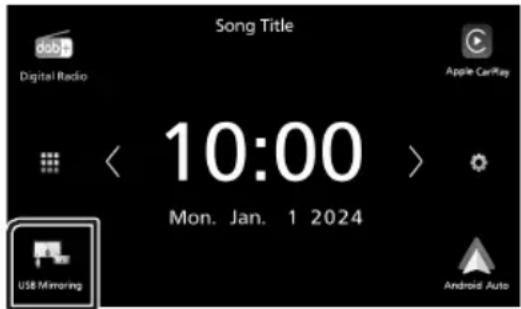

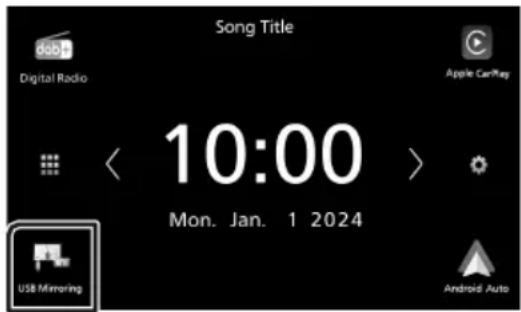

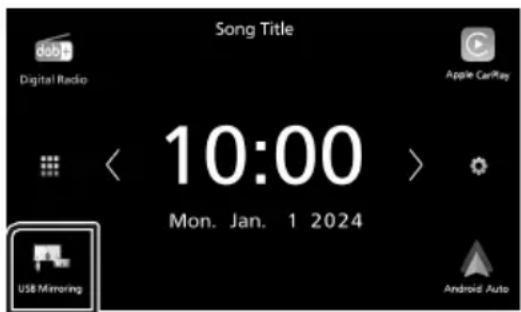

- Switches to the USB Mirroring screen from the connected iPhone or Android smartphone. It is necessary to connect iPhone or Android smartphone with "MirrorAPP+TM" application installed.

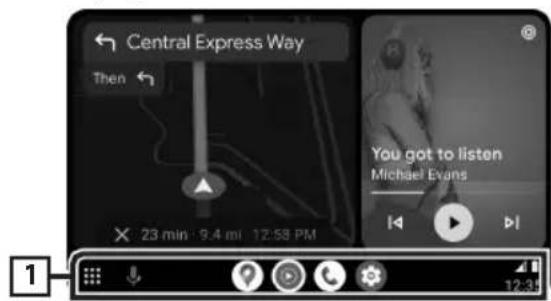

- Switches to the Android Auto screen from the connected Android smartphone.

• Switches to the Radio broadcast. (P.7)

- Displays the Hands Free screen. (P.9) When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, displays "[Disconnected]" message in the TEL screen. When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

- Plays a Bluetooth audio player.

- Plays files on a USB device.

• Turns off the AV source.

Getting Started

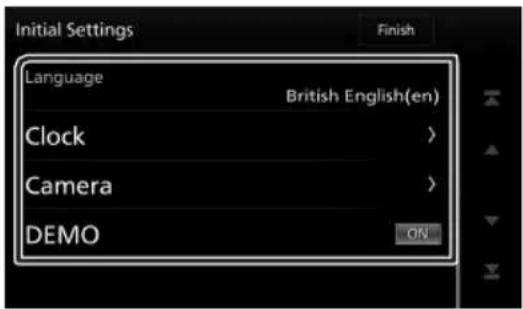

Initial setup

Perform this setup when you use this unit first time.

1 Set each item as follows.

Initial Settings Finish Language British English(en) Clock Camera DEMO ON

■[Language]

Select the language used for the control screen and setting items. Default is "[British English(en)]".

① Touch [Language].
② Select the desired language.
③ Touch [Close].

[Clock]

Sets the synchronization of the clock and adjusts it.

For detailed operation, see Calendar/clock settings (P.7).

[Camera]

Set the parameters for the camera.

① Touch [Camera].
② Set each item and touch [←].
For detailed operation, see Instruction Manual.

[DEMO]

Set the demonstration mode. Default is "ON".
① Touch [DEMO] and set [ON] or [OFF].

2 Touch [Finish].

NOTE

• These settings can be set from the SETUP menu.

Calendar/clock settings

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

▶ SETUP Menu screen appears.

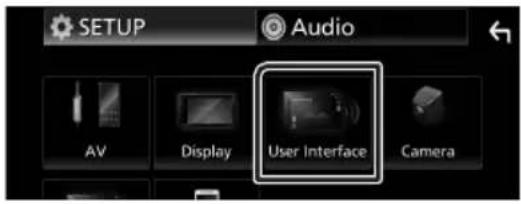

3 Touch [User Interface].

SETUP Audio AV Display User Interface Camera

▶ User Interface screen appears.

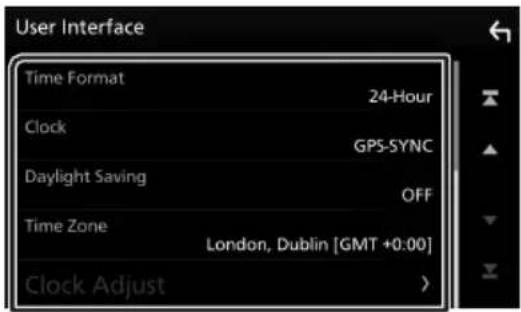

4 Set each item as follows.

Scroll the page to show hidden items.

User Interface Time Format 24-Hour Clock GPS-SYNC Daylight Saving OFF Time Zone London, Dublin [GMT +0:00] Clock Adjust >

[Time Format]

Select the time display format.

[12-Hour]/[24-Hour] (Default)

[Clock]

[GPS-SYNC] (Default): Synchronizes the clock time with the GPS.

[Manual]: Set the clock manually.

■ [Daylight Saving]

(Not used when the clock is set manually) Activate this by selecting the additional time for daylight saving time (if available in your residential area).

[OFF] (Default)/[+1 hr.]/[+30 min.]

[Time Zone]

Select the time zone.

[Clock Adjust]

If you select [Manual] for Clock, adjust the date and time manually.

NOTE

- Please set the date and time. If they are not set, some functions may not work.

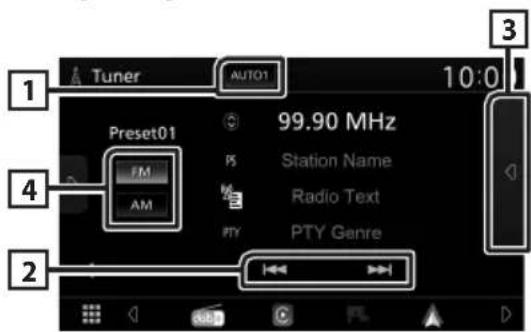

Tuner Basic Operation

Touch [Tuner] icon.

Tuner AUTO1 10:0 Preset01 FM AM 99.90 MHz PS Station Name Radio Text PTY PTY Genre 2 3

1 Seek mode

Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.
• [AUTO2]: Tunes in stations in memory one after another.
- [MANUAL]: Switches to the next frequency manually.

2 Operation keys

- [◀◀] [▶▶] : Tunes in a station. The method of frequency switching can be changed (see 1 in table).

3 Preset list

• Touch [Q] twice on the right side of the screen to display the Preset list. Touch [D] to close the list.
  • Recalls the memorized station.
• When touched for 2 seconds, stores the current receiving station in memory.

4 [FM] [AM]

Switches the band.

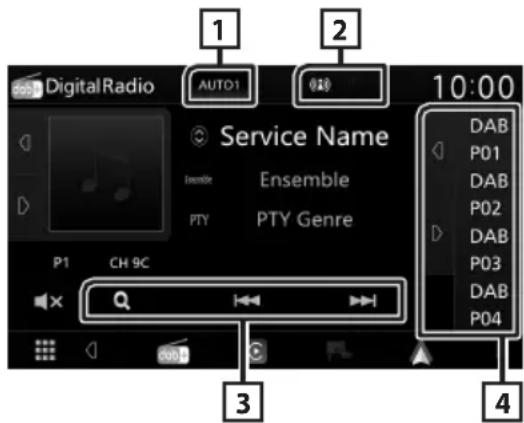

Digital Radio Basic Operation (KW-M595DBT)

Touch [Digital Radio] icon.

DigitalRadio AUTO1 Service Name Ensemble PTY Ensemble PTY Genre 10:00 DAB P01 DAB P02 DAB P03 DAB P04 P1 CH 9C Q 3 4

1 Seek mode

Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a ensemble with good reception automatically.
• [AUTO2]: Tunes in ensemble in memory one after another.
• [MANUAL]: Switches to the next ensemble manually.

2 Indicator display

Displays the received signal strength.

3 Operation keys

• [Q]: Displays the Service List screen. For details on search operation, see Instruction Manual.
• [◀◀] [▶▶] : Tunes in a ensemble, service, and component. The seek mode switching can be changed. (see 1 in table).

4 Preset list

• Touch [A] / [D] allows you to change the display size.
  • Recalls the memorized service.
• When touched for 2 seconds, stores the current service in memory.

Bluetooth Control

Register the Bluetooth device

It is necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function.

1 Turn on the Bluetooth function on your smartphone/cell-phone.
2 Search the unit ("KW-M*****") from your smartphone/cell-phone.
3 Operate your smartphone/cell-phone according to the displayed messages.

■Confirm the request on the smartphone/cell-phone.

Would you like to pair with this device? 012345 Device name Yes No 012345 OK

4 Touch [Yes].

Connect the Bluetooth device

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

▶ SETUP Menu screen appears.

3 Touch [Connection].

▶ Connection screen appears.

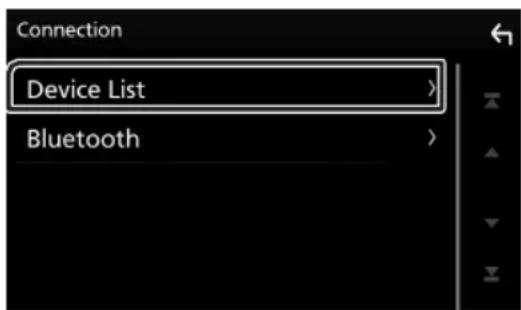

4 Touch [Device List] in the Connection screen.

Connection Device List > Bluetooth >

5 Touch You want to connect.

Device List Device name Device name Delete Delete

NOTE

- If 📄ns to [ ], if 📄ns that the unit will use that device.

To delete the registered Bluetooth device

1 Touch Delete

Device List Device name Delete Device name Delete

▶ Confirmation message appears.

2 Touch [Yes].

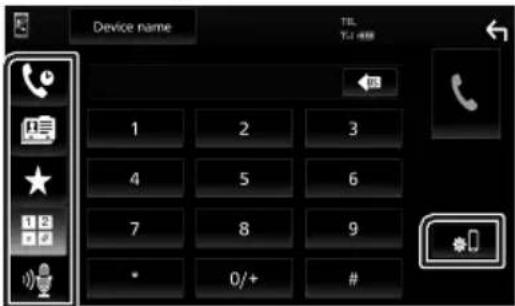

Using Hands-Free Unit

You can use telephone function by connecting the Bluetooth telephone to this unit.

NOTE

- While Apple CarPlay or Android Auto is being connected, Bluetooth Hands-Free function cannot be used. Only Apple CarPlay or Android Auto Hands-Free function can be used.

Make a call

1 Touch

dab Digital Radio Turner Phone Bluetooth Audio Apple CarPlay

▶ Hands Free screen appears.

2 Select a dialing method.

Device name TEL TCL 4888 1 2 3 4 5 6 7 8 9 * 0/+ #

• Call using call records
  • [图标]: Call using the phonebook
  • ★]: Call using the preset number
• [REDACTED] : Call by entering a phone number
  • [ ]: Voice Recognition
  • [icon] : Device List

Receive a call

1 Touch to answer a phone call or

to reject an incoming call.

0123456789 Incoming...

APPS

Apple CarPlay Operation

Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product. You can get directions, make calls, send and receive messages, and listen to the music from iPhone while driving. You can also use Siri voice control to make it easier to operate iPhone.

For details about Apple CarPlay, visit https://www.apple.com/ios/carplay/.

NOTE

- If your iPhone isn't working the way you want, try restarting it by turning it off and then turning it back on.

Preparation

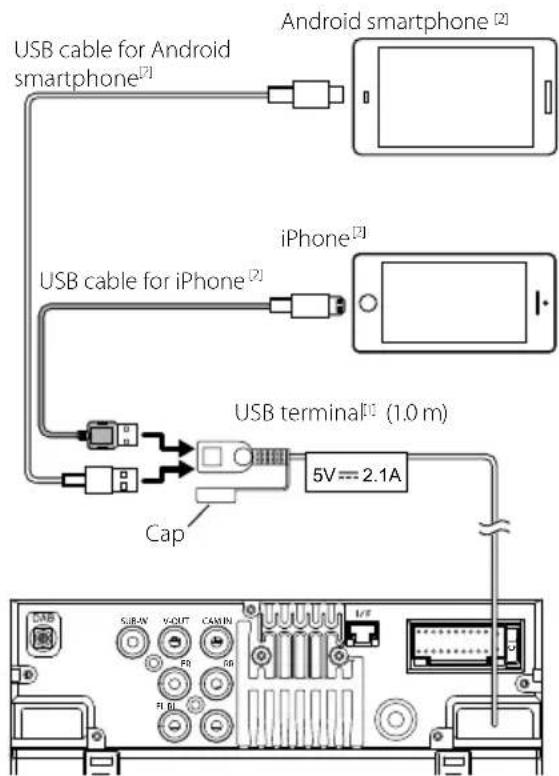

1 Connect your iPhone with the USB cable that matches the connector. (P.20)

2 Unlock your iPhone.

NOTE

- Depending on the iPhone connector, use a genuine Apple Lightning-USB cable or a USB-IF certified USB-C® to USB-A USB cable. If you use non-certified cable, it may not work properly.

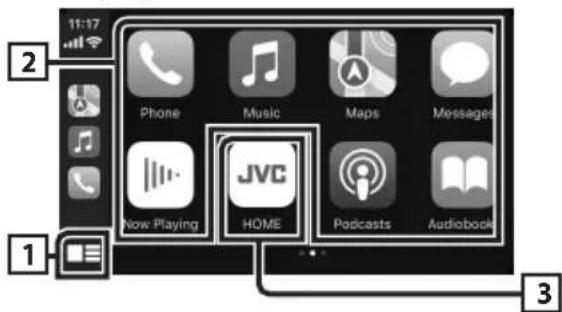

Operation buttons and available Apps on the home screen of Apple CarPlay

You can use the Apps of the connected iPhone. The items displayed and the language used on the screen differ among the connected devices. To enter Apple CarPlay mode, touch [Apple CarPlay] icon in the source selection screen. (P.6)

11:17 Phone Music Maps Messages Now Playing JVC HOME Podcasts Audiobook

• Displays the home screen of Apple CarPlay.
- Touch and hold to activates Siri.

2 Application buttons

Starts the application.

3 [HOME]

Exits the Apple CarPlay screen and displays the Home screen.

* The icon design may change depending on the iOS version.

To exit the Apple CarPlay screen

1 Press the [ ] button.

Switch to the Apple CarPlay screen while listening to another source

1 Press and hold the [FNC] button.

NOTE

- If sound is output using Apple CarPlay when the Apple CarPlay screen is displayed, the source is switched to Apple CarPlay.

Android Auto™ Operation

Android Auto enables you to use functions of your Android smartphone convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android smartphone while driving.

For details about Android Auto, visit https://www.android.com/auto/ and https://support.google.com/androidauto.

NOTE

- If your Android smartphone isn't working the way you want, try restarting it by turning it off and then turning it back on.

Preparation

1 Connect an Android smartphone via USB terminal. (P.20)

To use the hands-free function, connect the Android smartphone via Bluetooth.

2 Unlock your Android smartphone.

Operation buttons and available Apps on the Android Auto screen

You can perform the operations of the Apps of the connected Android smartphone.

The items displayed on the screen differ among the connected Android smartphone.

To enter Android Auto mode, touch

[Android Auto] icon in the source selection screen. (P.6)

Central Express Way Then You got to listen Michael Evans 23 min · 9.4 mi · 12:58 PM 12:35

Application/information buttons

Starts the application or displays information.

To exit the Android Auto screen

1 Press the button.

Switch to the Android Auto screen while listening to another source

1 Press and hold the [FNC] button.

NOTE

- If sound is output using Android Auto when the Android Auto screen is displayed, the source is switched to Android Auto.

USB Mirroring Operation for iPhone

You can display and control the App on the unit while your iPhone is connected to the USB terminal.

To use USB mirroring, follow the instructions on your iPhone.

NOTE

• When using USB Mirroring, park in a safe place. While driving, an iPhone screen will not appear on this unit's display.
• Some content and applications may not display or output sound due to copyright reasons.
• If your iPhone isn't working the way you want, try restarting it by turning it off and then turning it back on.

Preparation

1 Download Mirroring App from the App store.

Install the latest version of the Mirroring application "MirrorAPP+" on your iPhone.

NOTE

• Go to the MirrorAPP+ web page on the App Store to confirm compatibility.
• This application is not provided by JVCKENWOOD.
  JVCKENWOOD is not liable for any damages incurred by the customer in connection with the use of the application, except in cases where such damages are caused by JVCKENWOOD's willful misconduct or gross negligence.

Connecting an iPhone

1 Pair your iPhone with the unit via Bluetooth.
See Register the Bluetooth device (P.8) and Connect the Bluetooth device (P.8).
2 Connect an iPhone via the USB terminal.
3 Launch Mirroring App on your iPhone.
Touch [Screen Mirror] to start Mirroring App.
Touch [Start Broadcast] to start capturing your iPhone screen.
Wait 15 to 30 seconds until the screen calibration is complete. (First time only)
Touch [Close] to close the message. You can display the same screen of the iPhone on the monitor of the unit.

4 Start to enjoy Mirroring.

NOTE

• When an advertisement appears, touch the [Close] to close it.
• When you lock iPhone screen orientation, please unlock it.

Mirroring Operation

1 Operate your iPhone to activate Mirroring App, then connect to this unit.

2 Press the 📁 button.

3 Touch USB Mirroring.

Song Title Digital Radio Apple CarRay 10:00 Mon. Jan. 1 2024 USB Mimoring Android Auto

USB Mirroring Operation for Android Smartphone

You can display and control the App on the unit while your Android smartphone is connected to the USB terminal.

To use USB mirroring, follow the instructions on your Android smartphone.

NOTE

• When using USB Mirroring, park in a safe place. While driving, an Android smartphone screen will not appear on this unit's display.
• Some content and applications may not display or output sound due to copyright reasons.
• If your Android smartphone isn't working the way you want, try restarting it by turning it off and then turning it back on.

Preparation

1 Download Mirroring App from the Google Play.

Install the latest version of the Mirroring application "MirrorAPP+" on your Android smartphone.

NOTE

• Go to the MirrorAPP+ web page on the Google Play to confirm compatibility.
• This application is not provided by JVCKENWOOD. JVCKENWOOD is not liable for any damages incurred by the customer in connection with the use of the application, except in cases where such damages are caused by JVCKENWOOD's willful misconduct or gross negligence.

Connecting an Android rtphone

1 Pair your Android smartphone with the unit via Bluetooth.
See Register the Bluetooth device (P.8) and Connect the Bluetooth device (P.8).
2 Connect an Android smartphone via the USB terminal.
3 Launch Mirroring App on your Android Smartphone.

Touch [OK] to start Mirroring App.

Touch [Start now] to start capturing your Android screen.

4 Start to enjoy Mirroring.

NOTE

• When an advertisement appears, touch the [Close] to close it.

Mirroring Operation

1 Operate your Android smartphone to activate Mirroring App, then connect to this unit.
2 Press the button.
3 Touch USB Mirroring.

Song Title Digital Radio 10:00 Mon. Jan. 1 2024 USB Mimoring Android Auto

• After the app's advertisement ends, you can display the same screen of the Android smartphone on the monitor of the unit.

Connection/Installation

This section is for the professional installer. For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.

Before Installation

Before installation of this unit, please note the following precautions.

▲ WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.
• When wiring wires, be sure to wrap insulating tape, to protect the insulation, around wires where they contact metal parts. Failure to do so may result in fire or electric shock.

CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.
• To prevent injury from sharp edges, etc., do not expose the skin on your arms and hands while installing this unit.
- Be careful not to pinch the harnesses during the installation.

NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• If the power is not turned ON ("There is an error in the speaker wiring. Please check the connections." is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.

• If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.
• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating.
  • Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
  • After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.
• Reception may drop if there are metal objects near the Bluetooth antenna.

JVC

Bluetooth antenna unit

Supplied accessories for installation

1x1	2x1
3x1	4x1
5x2	6(3 m) x1
7x1	8x1

Installation procedure

1) To prevent a short circuit, remove the key from the ignition and disconnect the terminal of the battery.
2) Make the proper input and output wire connections for each unit.
3) Connect the wire on the wiring harness.
4) Take Connector B on the wiring harness and connect it to the speaker connector in your vehicle.
5) Take Connector A on the wiring harness and connect it to the external power connector on your vehicle.
6) Connect the wiring harness connector to the unit.
7) Install the unit in your car.
8) Reconnect the terminal of the battery.
9) Press the reset button.

Installing the unit

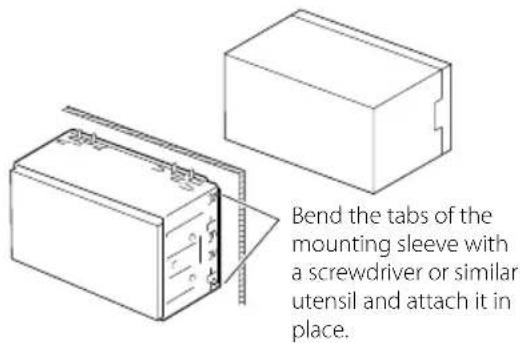

Mounting sleeve

Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place.

NOTE

- Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip).

Trim plate

1) Attach accessory ② to the unit.

Diagram showing two rectangular panels with a directional arrow between them, no text or symbols present

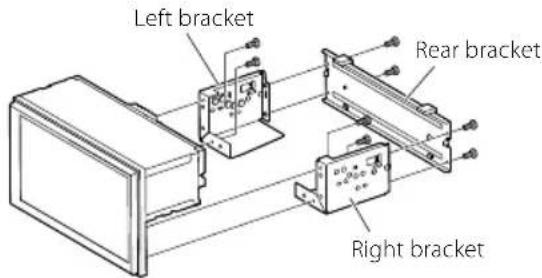

1DIN install (without mounting sleeve)

You can install the unit in a 1DIN size space by removing the right, left, and rear brackets.

1) Remove the four black screws from the rear bracket, then remove two black screws from each of the left and right brackets.

Left bracket Rear bracket Right bracket

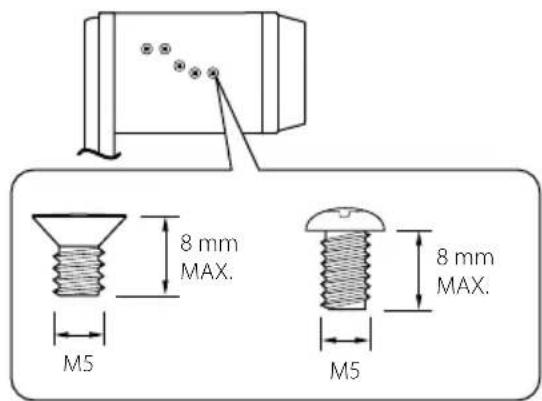

2) Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (Sold separately).

8 mm MAX. M5 8 mm MAX. M5

CAUTION

Use only the specified screws. Using wrong screws might damage the unit.

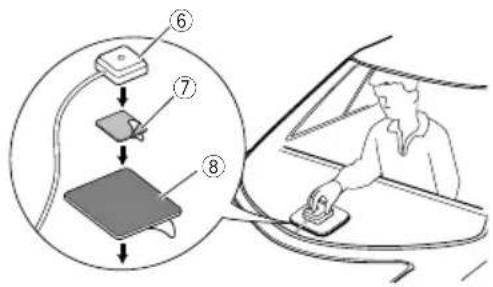

GPS antenna

GPS antenna is installed inside of the car. It should be installed as horizontally as possible to allow easy reception of the GPS satellite signals.

To mount the GPS antenna inside your vehicle:

1) Clean your dashboard or other mounting surface.
2) Remove the separator of the metal plate (accessory ⑧).
3) Press the metal plate (accessory ⑧) down firmly on your dashboard or other mounting surface. You can bend the metal plate (accessory ⑧) to conform to a curved surface, if necessary.
4) Peel off the backing paper of the double-sided tape (accessory ⑦) and use it to attach the GPS antenna (accessory ⑥) and metal plate (accessory ⑧).

Diagram showing a car interior with numbered components and a person using a computer, illustrating a mechanical or electronic setup.

NOTE

• Use the supplied GPS antenna. Using the GPS antenna other than the supplied one may cause a drop in positioning accuracy.
• Depending on the type of car, reception of the GPS satellite signals might not be possible with an inside installation.
• Please install this GPS antenna in an area away from any antennas that are used with CB radios or satellite televisions.
• The GPS antenna should be installed at a position that is spaced at least 12 inch (30 cm) from smartphone/cell-phone or other transmitting antennas. Signals from the GPS satellite may be interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint may cause a drop in performance.

Removing the trim plate

1) Insert the extraction key (accessory ④) between the trim plate and the main unit from between the claws.

Technical diagram showing a mechanical component with labeled parts and an inset magnified view of a section detail.

2) Pull the plate out towards yourself.

Simple line drawing of a rectangular frame with a curved arrow indicating rotation or movement (no text or symbols)

Removing the unit

1) Remove the trim plate by referring to step 1 in "Removing the trim plate".

2) Insert the extraction key (accessory ⑤) deeply into the gap between the grooves as shown. (The protrusion at the tip of the extraction key must face toward the unit.)

Technical line drawing of a mechanical component with an inset magnified view (no text or symbols)

3) With the inserted extraction key secured, insert the other extraction key into the slot.

Technical line drawing of a mechanical component with no visible text or symbols

4) Pull out the unit halfway.

Line drawing of hands holding a rectangular object with arrows indicating movement (no text or symbols)

NOTE

- Be careful to avoid injury from the catch pins on the extraction key.

5) Pull the unit all the way out with your hands, being careful not to drop it.

Technical line drawing of a mechanical component with no visible text or symbols

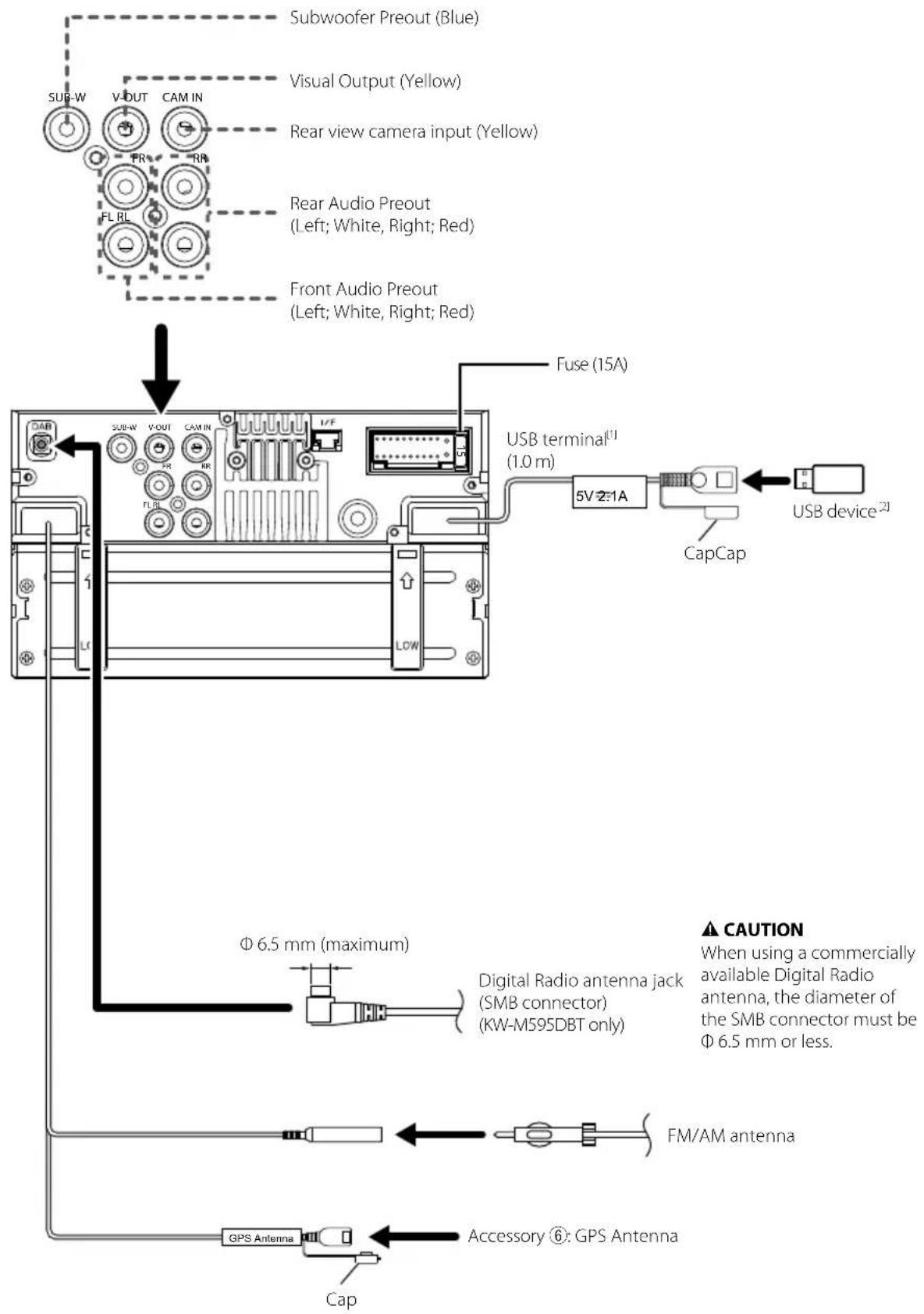

Connecting wires to terminals

Subwoofer Preout (Blue) Visual Output (Yellow) Rear view camera input (Yellow) Rear Audio Preout ( Left; White, Right; Red ) Front Audio Preout ( Left; White, Right; Red ) USB terminal[1] ( 1.0 m ) 5V 2:1A CapCap USB device[2] SubW VOUT CAM IN FL RL DAR SUBW VOUT CAM IN L/F Fuse (15A) Φ 6.5 mm (maximum) Digital Radio antenna jack (SMB connector) (KW-M595DBT only) FM/AM antenna GPS Antenna Cap Accessory ⑥: GPS Antenna ▲ CAUTION When using a commercially available Digital Radio antenna, the diameter of the SMB connector must be Φ 6.5 mm or less.

[1] USB maximum power supply current :
DC 5 V = 2.1 A
[2] Sold separately

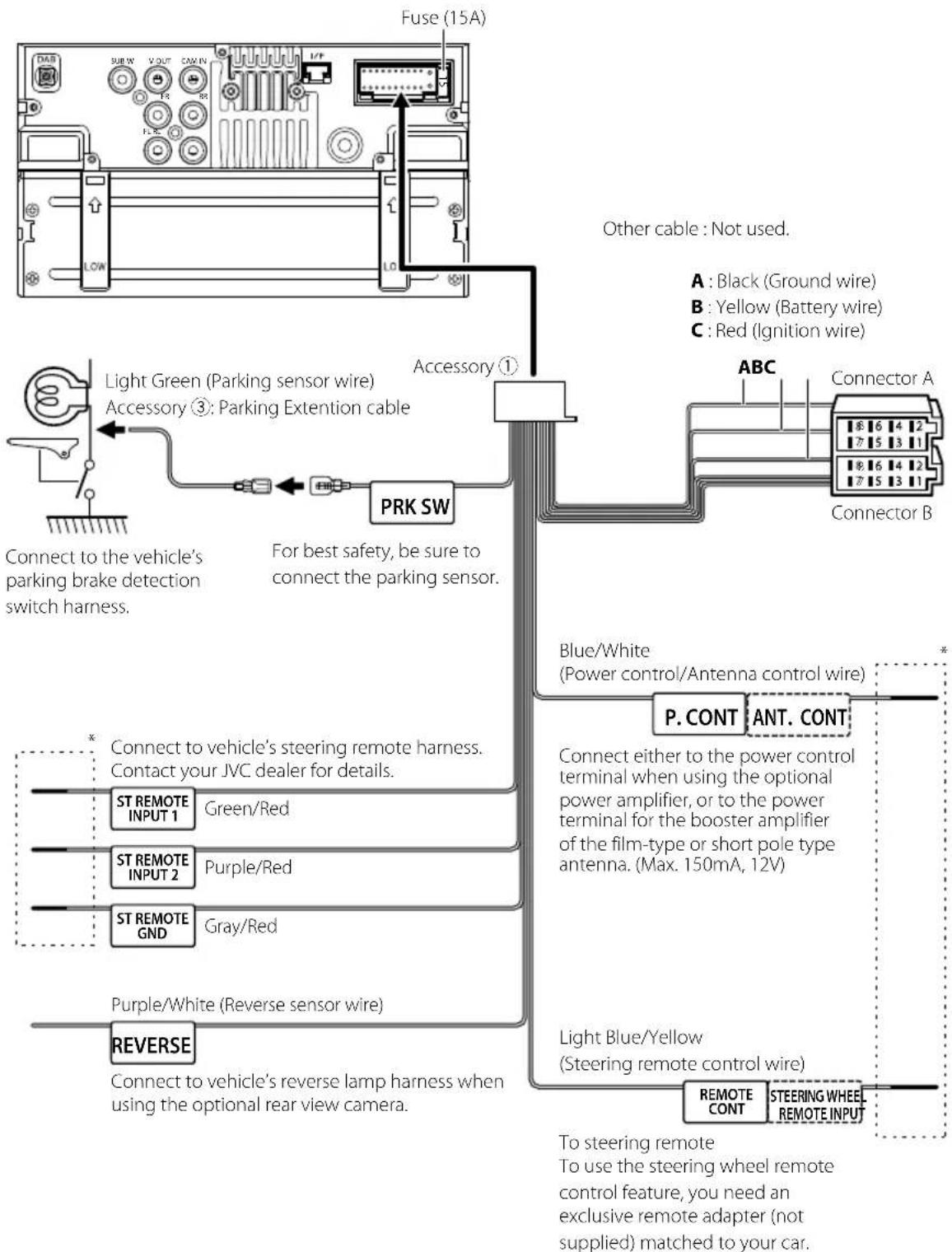


* Do not remove the cable from the heat shrink tubing unless you are making a connection.

Connecting an iPhone/Android

USB cable for Android smartphone[7] Android smartphone [2] USB cable for iPhone [2] iPhone[3] USB terminal[1] (1.0 m) Cap 5V==2.1A

[1] USB maximum power supply current : DC 5 V = 2.1 A
[2] Sold separately

ISO Connector function guide

Pin Color and function
A-4 Yellow Battery
A-5 Blue Power Antenna	[1]
A-6 Orange/White Illumination
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground)	Connection
B-1/ B-2 Purple (+) /Purple/Black (-)		Rear Right
B-3/ B-4 Gray (+) /Gray/Black (-)		Front Right
B-5/ B-6 White (+) /White/Black (-)		Front Left
B-7/ B-8 Green (+) /Green/Black (-)		Rear Left

[1] Max. 150 mA, 12V
• Speaker Impedance: 4-8 Ω

CAUTION

Before you connect the commercially available ISO connectors to the unit, check the following condition:

• Make sure that the pin assignment of the connector matches with the JVC unit.
  • Take extra notice of the power wire.
  • In case battery wire and ignition wire are not corresponding then change them accordingly.
• In case the car does not have an ignition wire, use a commercially available interface.

Specifications

■Bluetooth section

Frequency

: 2.402 - 2.480 GHz

RF Output Power (E.I.R.P.)

:+9 dBm (MAX), Power Class 1

■General

Operating Voltage

: 12V DC Car Battery

Speaker Impedance

:4-8Ω

Specifications subject to change without notice.

Avant l'utilisation

https://www.jvc.net/cs/car/

Initial Settings Finish Language British English(en) Clock Camera DEMO ON

■[Language]

SETUP Audio AV Display User Interface Camera

Would you like to pair with this device? 012345 Device name Yes No 012345 OK

4 Touchez [Yes].

Connection Device List > Bluetooth >

Device List Device name Device name Delete Delete

REMARQUE

Device List Device name Delete Device name Delete

https://www.apple.com/ios/carplay/.

REMARQUE

11:17 Phone Music Maps Messages Now Playing JVC HOME Podcasts Audiobook

3 Touchez USB Mirroring.

Song Title Digital Radio Apple CarPlay 10:00 Mon. Jan. 1 2024 USB Mimoring Android Auto

Diagram showing two rectangular panels with a directional arrow between them, no text or symbols present

Diagram illustrating a device operation sequence with numbered steps and a person using a device near the window.

REMARQUE

Technical diagram showing a mechanical component with labeled parts and an inset view of a section detail.

Simple line drawing of a rectangular frame with a curved arrow pointing downward (no text or symbols)

Technical line drawing of a mechanical component with an inset detail view (no text or symbols)

Technical line drawing of a mechanical component with labeled part (5), no readable text or symbols present

Illustration of hands holding a rectangular object with directional arrows indicating movement (no text or symbols)

REMARQUE

Line drawing of a mechanical component with a clamped part, no text or symbols present

https://www.jvc.net/cs/car/

Initial Settings Finish Language British English(en) Clock > Camera > DEMO ON

■[Language]

SETUP Audio AV Display User Interface Camera

Connection Device List > Bluetooth >

Device List Device name Device name Delete Delete

HINWEIS

Device List Device name Delete Device name Delete

11:17 Phone Music Maps Messages Now Playing JVC HOME Podcasts Audiobook

Diagram showing two rectangular components with an arrow indicating direction, no text or symbols present

Diagram illustrating a mechanical or electrical assembly process with numbered steps and a person working on equipment.

HINWEIS

Technical diagram showing a mechanical component with labeled parts and an inset view of a wire connection detail.

Simple line drawing of a rectangular frame with a curved arrow pointing downward (no text or symbols)

Ausbau des Geräts

Technical line drawing of a mechanical component with an inset detail view (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust or install a rectangular component (no text or symbols visible)

HINWEIS

Line drawing of a mechanical component with two slots and a handle (no text or symbols)

https://www.jvc.net/cs/car/

Initial Settings Finish Language British English(en) Clock Camera DEMO ON

■[Language]

SETUP Audio AV Display User Interface Camera

Would you like to pair with this device? 012345 Device name Yes No 012345 OK

4 Raak [Yes] aan.

Connection Device List > Bluetooth >

Device List Device name Device name Delete Delete

OPMERKING

Device List Device name Delete Device name Delete

https://www.apple.com/ios/carplay/.

OPMERKING

11:17 Phone Music Maps Messages Now Playing JVC HOME Podcasts Audiobook

Central Express Way Then You got to listen Michael Evans 23 min 9.4 mi 12:58 PM 12:30

Diagram showing two rectangular panels with an arrow indicating direction, no text or symbols present

Diagram showing a car interior with numbered components and a person using a device, likely illustrating a vehicle or electronics setup.

OPMERKING

Technical diagram showing a mechanical component with labeled parts and an inset view of a section detail.

Simple line drawing of a rectangular frame with a curved arrow pointing downward (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing a detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust or install a rectangular object (no text or symbols visible)

OPMERKING

Line drawing of a hand holding a rectangular electronic component (no text or symbols)

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
  • Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.
• App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
  • Google, Android, Google Play, Android Auto and other marks are trademarks of Google LLC.
• To use Android Auto on your car display, you'll need an Android phone running Android 8 or higher, an active data plan, and the Android Auto app.
• USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.
• MirrorAPP+ is a trademark of Gigaboyz.com Limited.
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (j)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (jj)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/ OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1 VIDEO") AND/OR (ii) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A

PERSONAL AND NON-COMMERCIAL ACTIVITY AND/ OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

- libFLAC

Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

– Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libvorbis

Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• libogg

Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

– Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Two identical diagrams of a trash bin with diagonal lines crossing each other, no text or symbols present.

■Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for EU countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you.

Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Declaration of Conformity with regard to the RE Directive 2014/53/EU

Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Manufacturer:

JVCKENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN

EU Representative:

JVCKENWOOD Europe B.V.

Rendementsweg 20 B-9, 3641 SL Mijdrecht, THE NETHERLANDS

English

Hereby, JVCKENWOOD declares that the radio equipment KW-M593BT/KW-M59SDBT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

Français

Declaration of Conformity with regard to the Radio Equipment Regulations 2017 (S.I. 2017/1206)

Declaration of Conformity with regard to the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (S.I. 2012/3032)

Manufacturer:

JVCKENWOOD Corporation 3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN

UK Importer:

JVCKENWOOD U.K. Limited First Floor, Gleneagles, the Belfry, Colonial Way, Watford, Hertfordshire WD24 4WH, UNITED KINGDOM

Hereby, JVCKENWOOD declares that the radio equipment "KW-M593BT/KW-M595DBT" is in compliance with the relevant statutory requirements.

The full text of the declaration of conformity is available at the following internet address: https://www.jvc.net/euukdoc/

JVC

Bluetooth®

Made for

iPhone

Works with

Apple CarPlay

Android

Auto
