CA002AB6-DA - Radio Clas Ohlson - Free user manual and instructions

Product Type	Portable AM/FM Radio
Brand	Clas Ohlson
Model	CA002AB6-DA
Dimensions (approx.)	200 x 120 x 60 mm
Weight (approx.)	0.5 kg
Power Supply	3 x AA batteries (1.5 V) or DC 6V adapter (not included)
Frequency Range FM	88 - 108 MHz
Frequency Range AM	530 - 1600 kHz
Audio Output	Built-in speaker, 3.5 mm headphone jack
Controls	Volume knob, tuning knob, on/off switch, band selector (AM/FM)
Antenna	Telescopic FM antenna, built-in ferrite rod for AM
Display	Analog tuning dial with frequency markings
Additional Features	Carrying handle, battery indicator (optional)
Material	Plastic casing
Cleaning	Wipe with a soft, dry cloth. Do not use abrasive cleaners.
Safety	Keep away from water and moisture. Do not expose to extreme temperatures.
Spare Parts Availability	Contact Clas Ohlson customer service for spare parts.
Repairability	Repairs should be carried out by qualified personnel.
General Information	This radio is designed for indoor and outdoor use. User manual available for download.

Frequently Asked Questions - CA002AB6-DA Clas Ohlson

How do I download the user manual for the Clas Ohlson CA002AB6-DA radio?

You can download the manual in PDF format from the official Clas Ohlson website or from notice-facile.com by entering the model number CA002AB6-DA. The manual is free and available in multiple languages.

What type of batteries does the CA002AB6-DA radio use?

The radio operates on 3 x AA batteries (1.5 V each). Alternatively, you can use a DC 6V adapter (not included).

Why is the FM reception weak on my radio?

Make sure the telescopic antenna is fully extended and positioned for best reception. For AM, rotate the radio to align the internal ferrite antenna. Avoid placing the radio near metal objects or electronic devices.

Can I use headphones with this radio?

Yes, the radio has a 3.5 mm headphone jack. Plugging in headphones will mute the built-in speaker.

What is the frequency range of the CA002AB6-DA?

FM: 88 - 108 MHz. AM: 530 - 1600 kHz. The band selector lets you switch between AM and FM.

How do I clean the radio?

Use a soft, dry cloth to wipe the exterior. Never use water, solvents, or abrasive cleaners, as they may damage the surface.

Is the radio suitable for outdoor use?

Yes, it is portable and can be used outdoors. However, avoid exposing it to rain or excessive moisture to prevent damage.

What should I do if the radio does not turn on?

Check that the batteries are inserted correctly and have sufficient charge. If using an adapter, ensure it is plugged in and delivers 6V DC. Also, verify the on/off switch is in the 'ON' position.

Can I get spare parts for this radio?

Spare parts such as knobs or antennas may be available. Contact Clas Ohlson customer service with your model number for assistance.

How can I improve AM reception?

AM uses a built-in ferrite antenna. Rotate the entire radio to find the best signal. Keep away from large metal objects and electrical interference.

USER MANUAL CA002AB6-DA Clas Ohlson

38-6905, 38-6906, 38-6907

Model

CA002AB6-DAB

Ver. 20150701

Bluetooth DAB Radio

Art.no 38-6905, 38-6906, 38-6907 Model CA002AB6-DAB

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• The product should not be taken apart or modified. Certain unshielded components inside the casing carry dangerous voltages. Contact with these can lead to fire or electric shock.
• The product is intended for indoor use only.
• Never subject the product to high temperature, dust, heavy vibration, impacts, humidity or moisture.
• Do not place the product where there is a risk of it falling into water or other liquid. Do not place any objects containing liquid on the product, e.g. flower vases or drinks.
• Do not cover the product. Adequate ventilation with a distance of at least 10 cm between ventilation holes and the surrounding area is necessary to prevent the appliance from becoming too warm.
• Disconnect the product from the power supply by unplugging it from the wall socket. Make sure that the wall socket and plug are easily accessible.
• The on/off switch on the product does not disconnect it from the mains power supply.
• Protect your hearing. Listening on high volume for prolonged periods can lead to permanent hearing loss.
• Repairs and service should only be performed by qualified tradesmen, and only with original spare parts.

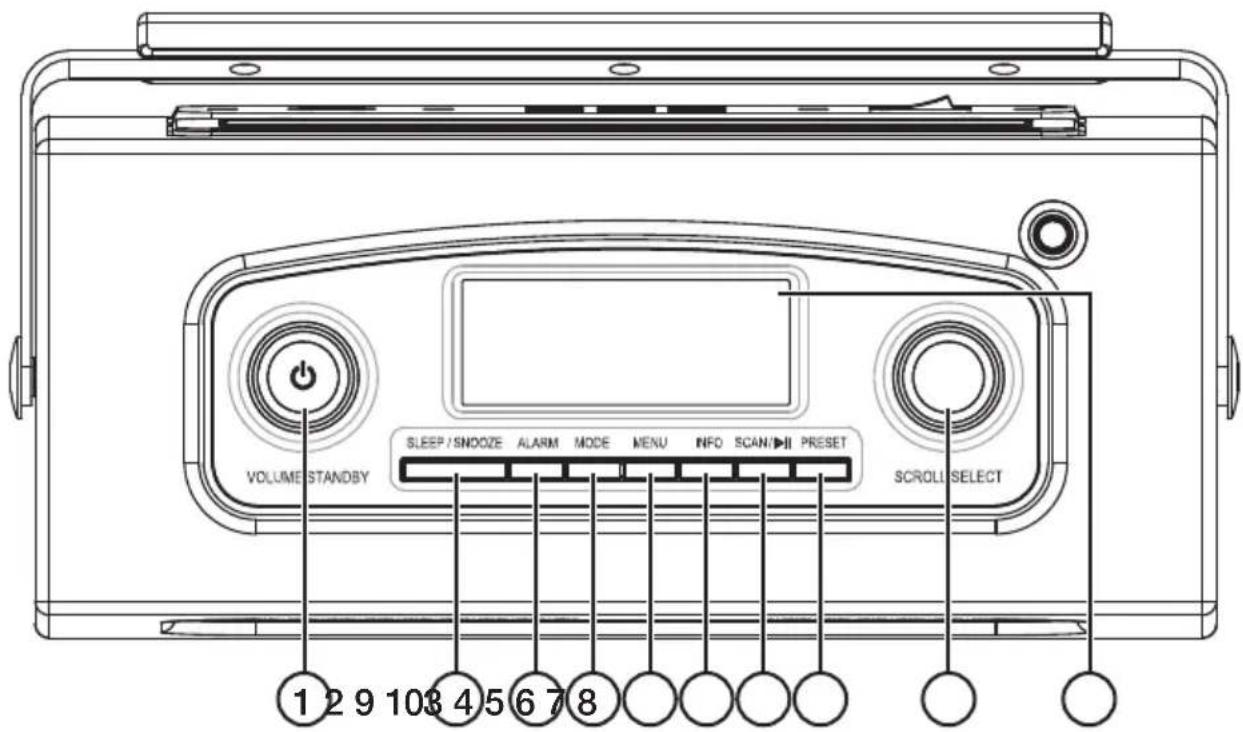

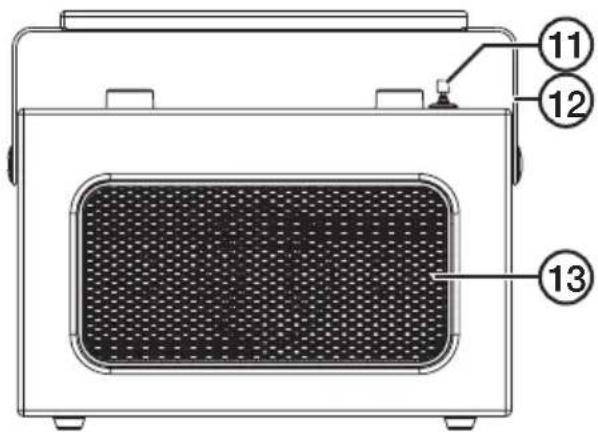

Buttons and functions

1. [VOLUME/STANDBY]
2. [SLEEP/SNOOZE]
3. [ALARM] Set alarm time
4. [MODE] Function selector
5. [MENU] Menu
6. [INFO] Display information
7. [SCAN/▶II] Automatic station search
8. [PRESET] Save and listen to preset stations
9. [SCROLL/SELECT] Manual station search
10. Display
11. Telescopic aerial
12. Handle
13. Speaker

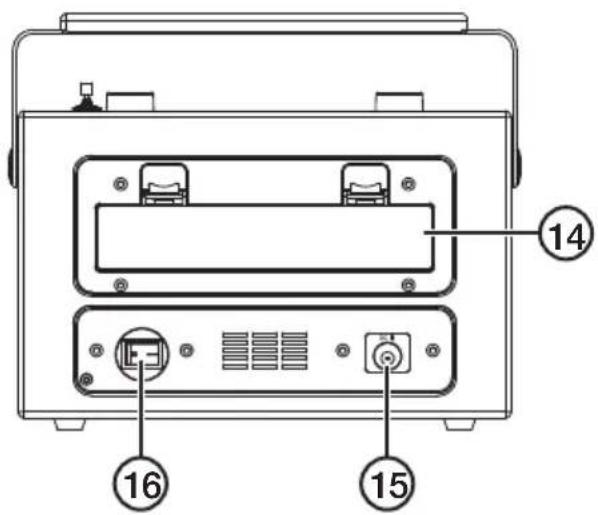

14. Battery compartment
15. DC IN: Mains adaptor socket
16. [I/0] Power switch

Power supply

The radio can be powered either by the mains via the included AC/DC adaptor or by five 1.5 V, LR14 batteries (sold separately.

Mains adaptor power

Connect the adaptor to the adaptor socket (15) and to an available power point.

Battery power

1. Open the battery compartment on the back of the radio and insert the batteries in accordance with the polarity markings.
2. Refit the battery cover.

Power on/off

• Set the power switch (16) to I to put the radio in standby mode and press [↓VOLUME/STANDBY] to switch the radio on.
• Press [ VOLUME/STANDBY ] to put the radio in standby mode and set the power switch to 0 to switch it off.

Setting the time and date

1. Press [MENU] while in either DAB or FM mode, and turn the [SCROLL/SELECT] knob until "SYSTEM" appears on the display.
2. Press the [ SCROLL/SELECT ] knob to confirm.
3. Turn the [ SCROLL/SELECT ] knob until "TIME" appears on the display.
4. Press the [ SCROLL/SELECT ] knob to confirm.
5. Turn the [ SCROLL/SELECT ] knob until "SET. TIME/DATE" appears on the display.
6. Press the [ SCROLL/SELECT ] knob to confirm.
7. The hours start to flash. Press [ SCROLL/SELECT ] to set the hours, and then press [ SCROLL/SELECT ] to confirm.
8. Set the minutes and date in the same way.

Listening to FM radio

1. Press [MODE] until "FM" appears on the display.
2. Turn the [ SCROLL/SELECT ] knob to tune into a station manually.
3. Press [SCAN/▶II] to search for a station automatically. The scan stops when a station has been found.
4. Press [SCAN/▶II] again to resume the search.

Listening to DAB radio

1. Press [MODE] until "DAB" appears on the display.
2. The radio will automatically search for DAB stations.
3. Press [ SCROLL/SELECT ] to stop the automatic search when the radio is on a DAB station that you want to listen to.
4. Press [ INFO ] to display more information about the current DAB station.

Presetting and listening to radio stations

Presetting a station

1. Select a station while in either FM or DAB mode.
2. Press and hold down [ PRESET ] until “PRESET STORE” and “1” appear on the display.
3. Turn the [ SCROLL/SELECT ] knob to choose which memory slot (1–10) you want to save the station on.
4. Confirm by pressing the [ SCROLL/SELECT ] knob.
5. The same procedure (steps 1–4 above) can be repeated to save up to 10 stations.

Listening to preset radio stations

1. In playback mode, press [ PRESET ], "PRESET RECALL" will appear on the display.
2. Turn the [ SCROLL/SELECT ] knob to select the preset memory slot.
3. Press the [ SCROLL/SELECT ] knob to listen to the station.

Connecting an external Bluetooth device

1. Press [MODE] until "Bluetooth" appears on the display.
2. Activate Bluetooth on the device which is to be paired with the radio.
3. The radio will appear on your device as CA002-DBT, select it and pair it with your device.

Note: If the radio is not detected by your Bluetooth device, you can make it detectable again by holding in the [ INFO ] button for 3 seconds. “Bluetooth discoverable” will appear on the display to indicate that the radio is detectable for other Bluetooth devices.

Sleep timer

1. Press [SLEEP/SNOOZE] while in either DAB or FM mode.
2. "Set Sleep Time" will appear on the display. Turn the [ SCROLL/SELECT ] knob to set the radio to either "Sleep off" (sleep timer deactivated) or automatic shutdown after 15, 30, 45, 60 or 90 minutes. Press the [ SCROLL/SELECT ] knob to confirm.

Alarm 1 and 2

1. Press [ ALARM ] once to select alarm 1. Press once more to select alarm 2.
2. Press the [ SCROLL/SELECT ] knob to enter settings mode and to confirm in the same way as with the other settings.

3. Input settings in this sequence:

4. “On time”: the hours and minutes for when the alarm is to come on.

5. “Duration”: how long the alarm is to be on for – 15, 30, 45, 60 or 90 minutes.
6. "Source": in which mode the alarm is to come on – alarm signal, DAB radio or FM radio.
7. Choice of when the alarm is to come on: "Once", "Weekends", "Weekdays", "Daily".
8. "Volume": the volume of the alarm signal.
9. “Alarm On/off”: turns the alarm on or off.

Care and maintenance

• Clean the product using a soft, dry cloth. Never use solvents or abrasive cleaning agents.
• Remove the batteries if the radio is to be powered by the mains adaptor or not to be used for a long time.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local council.

Specifications

Input voltage 100–240 V AC, 50/60 Hz

Output voltage 7.5 V DC, max 2 A

Batteries 5 × C/LR14 batteries (sold separately)

Troubleshooting guide

The radio won't turn on.	If the radio is powered by the mains adaptor:Make sure that the power switch (16) on the back of the radio is in the ON (I) position.Make sure that the mains adaptor is intact and is securely connected to both the wall socket and the radio.Is the wall socket live?If the radio is powered by batteries:Check that the batteries are not flat and that they are inserted correctly.
No sound. Check the volume.If using Bluetooth:Make sure that the Bluetooth connection has been properly established.Test the playback from your external device before connecting it to the radio to ensure that it works.Try playback using another file. The file you are attempting to play may be corrupted.Things to consider:Other wireless equipment using the same frequency band can reduce the transmission range.The range of all wireless equipment depends on the type of obstacles located between the transmitter and the receiver (e.g. a concrete wall will interfere with the signal more than a plasterboard wall).If you experience problems, try the following:Turn off any other existing wireless equipment to check whether this is the cause of the problem. Reposition the wireless equipment, shorten the distance between the transmitter and the receiver or reduce the number of obstacles (walls, furniture, etc.) between them.
Poor radio signal reception.	Extend the aerial completely.Adjust the position of the aerial.Move the radio to another location.
If none of the above remedies work.	Remove the batteries or unplug the mains adaptor. Wait for at least 5 minutes. Refit the batteries/reconnect the mains adaptor. Turn the radio on again.

DAB-radio med Bluetooth

Art.nr 38-6905, 38-6906, 38-6907 Modell CA002AB6-DAB

In 100–240 V AC, 50/60 Hz

Ut 7,5 V DC, max 2 A

Batterier 5 × C/LR14-batterier (säljs separat)

Felsökningsschema

In 100–240 V AC, 50/60 Hz

Ut 7,5 V DC, 2 A (maks)

Batterier 5 × C/LR14-batterier (selges separat)

Feilsøking

Declaration of Conformity

CE

Hereby, Clas Ohlson AB declares that following product(s):

38-6905, 38-6906, 38-6907

CA002AB6-DAB

is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and 2006/95/EC.

Article 3.1a (Health): EMF/SAR 99/519 EC Council Recommendation

Article 3.1a (Safety): EN 60065

Article 3.1b (EMC): EN 301489-1 EN 301489-17

Article 3.2 (Radio): EN 300328

Insjön, Sweden, May 2015

Klas Balkow

President

Clas Ohlson, 793 85 Insjön, Sweden

Sverige

Postal 10 – 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland
