Product Type	Brush cutter (grass trimmer)
Model	LXC GT18 (ASYGT02230)
Battery	18 V, 2.0 Ah lithium-ion
No-load Speed	8500 rpm
Cutting Diameter	230 mm
Line Diameter	1.6 mm
Operating Time	25–50 minutes
Weight (incl. battery)	2.0 kg
Charger Input	230–240 V AC, 50/60 Hz, 80 W
Charger Output	18 V DC, 2.8 A
Charging Time (2.0 Ah)	35 min to 80%, 50 min to 100%
Noise Level (LpA)	78.8 dB(A), K = 3 dB(A)
Vibration (Rear Handle)	2.675 m/s², K = 1.5 m/s²
Vibration (Front Handle)	3.114 m/s², K = 1.5 m/s²
Adjustable Telescopic Shaft	Yes
Adjustable Trimmer Head	5 positions + 90° pivot for edging
Overload Protection	Yes, self-resetting
Overheat Protection	Yes, self-resetting
Battery Charge Indicator	3 LEDs (red, yellow, green)
Trimmer Guard	Included with automatic line cutting blade
Plant Guard	Yes
Support Wheel for Edging	Yes
Maintenance	Clean with soft brush; do not use water
Intended Use	Domestic only

Frequently Asked Questions - LXC GT18 Cocraft

How do I adjust the telescopic shaft length?

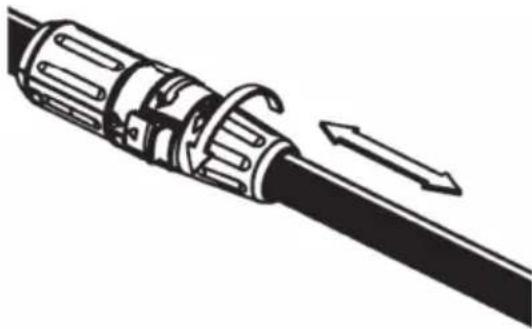

Turn the locking knob (9) clockwise to unlock, slide the shaft to the desired length, then tighten the knob anticlockwise.

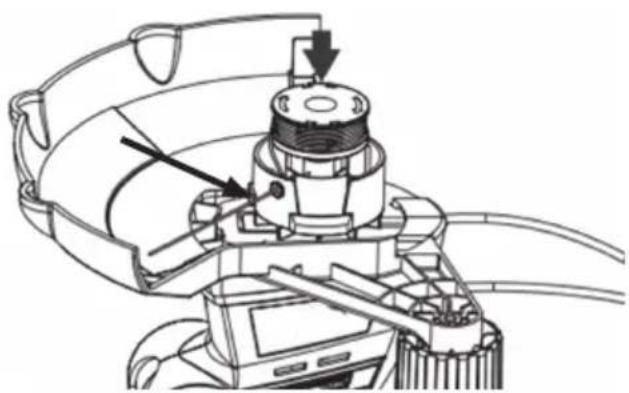

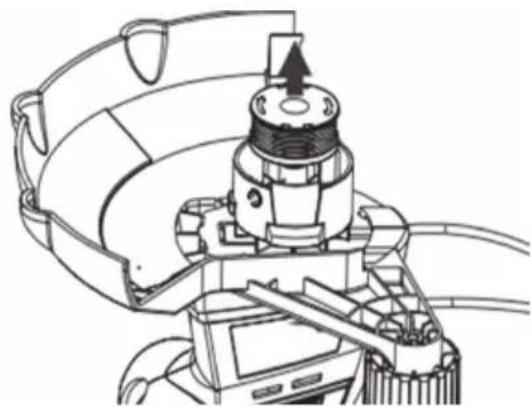

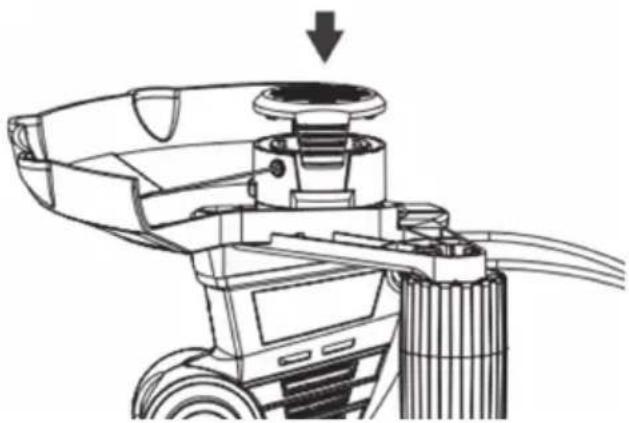

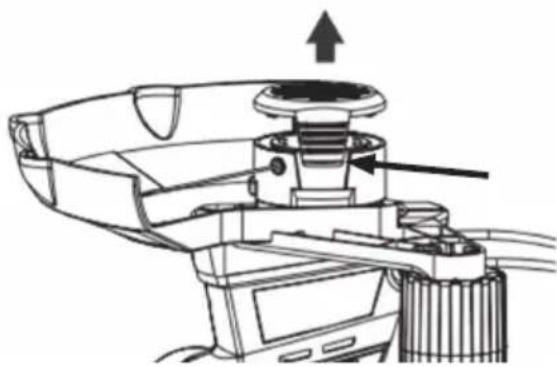

How do I replace the trimmer line spool?

Press the tabs on the sides of the trimmer line head and remove the cover. Lift out the old spool, thread the new line through the hole, insert the spool ensuring the spring is in place, and refit the cover until it clicks.

What battery does the LXC GT18 use?

It uses an 18 V LXC lithium-ion battery pack. Models 18-1465 and 31-9457 include a 2.0 Ah battery, while 31-9458 is sold without battery.

How do I pivot the trimmer head for edging?

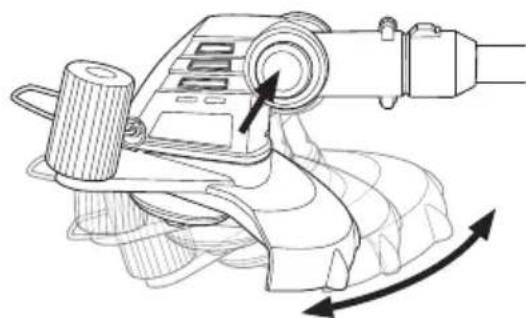

Pull back the catch (17) on the trimmer head and twist the head 90° to the right or left. Release the catch to lock it in position.

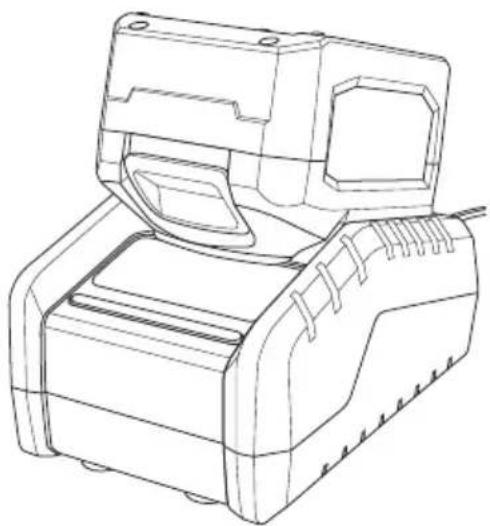

How do I charge the battery?

Plug the charger into a mains socket (230–240 V). Slide the LXC battery onto the charger. The indicator shows red for 0–80%, flashes green for 80–99%, and steady green at 100%. Unplug when done.

What safety equipment should I wear?

Always wear eye protection, hearing protection, sturdy footwear, long trousers, and gloves. Keep bystanders and pets at least 5 metres away.

Why does the trimmer stop suddenly?

The overload or overheat protection may have activated. Release the trigger, wait a few seconds (or let it cool), ensure no load, and restart. If the battery is hot, let it cool first.

How should I clean and store the trimmer?

Remove the battery. Clean the exterior with a soft brush or cloth, especially around motor ventilation slits. Never use water. Store in a dry place out of children's reach.

Can I use metal blades on this trimmer?

No, metal cutting blades are not allowed. Only use the recommended trimmer line (1.6 mm diameter). Fitting metal blades can cause serious injury.

What is the cutting diameter of the trimmer?

The cutting diameter is 230 mm, giving a wide cutting swath for efficient grass trimming.

USER MANUAL LXC GT18 Cocraft

Blue and black electric shaver tool with blade and handle, resting on sandy ground (no text or symbols visible)

Art.no Model

18-1465

31-9457

31-9458

ASYGT02230

ASYGT02230

ASYGT02230

Important:

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

DEUTSCHLAND

Kundeservice Hotline: [phone]

E-Mail: [e-mail]

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

This product is not intended for use by persons (including children) whose physical, sensory or mental capabilities, or lack of experience and knowledge, prevents them from using the product safely without supervision or instruction. Local regulations may restrict the age of the operator.

Safety

General Power Tool Safety Warnings

Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Specific safety instructions for grass trimmers

• This grass trimmer is only intended for domestic use and only in the manner described in this instruction manual.
• Never let children play with the grass trimmer and always keep it out of children's reach.
• Always wear sturdy footwear, long trousers, safety glasses and gloves. Ensure that the safety clothing that you wear allows you to move freely.
• Switch the grass trimmer off immediately should any adults, children or pets, come within 5 metres of the work area. Stones and other debris can be ejected by the grass trimmer.
• Only operate the grass trimmer in daylight or adequate artificial lighting.
• Always check the operation of the grass trimmer before use. If it is in any way damaged or malfunctioning, it must be repaired before use.

• All repairs must be carried out by qualified service technicians using genuine spare parts.

• All safety devices must be intact and correctly fitted when the grass trimmer is operated. The grass trimmer must not be operated if any of its safety devices is damaged or incorrectly fitted.

• Before starting to work, check the work area for foreign objects that could be thrown by the grass trimmer.
• Always hold the grass trimmer firmly. Hold the product firmly with both hands.
• Never try to fit this grass trimmer with metal cutting blades.
• Make sure that the ventilation slots on the motor housing are clean and free from contaminants.
• The trimmer line head will continue to rotate after the motor has been turned off. Wait until it has completely stopped before cleaning or servicing.
• The grass trimmer must not be exposed to rain or high humidity.
• Make sure that you are familiar with all the controls and settings before using the grass trimmer.
• Keep hands and feet away from the trimmer head and line at all times and especially when switching the motor on.
• Never switch the grass trimmer on until you are holding it correctly, using both hands.

• Only use the grass trimmer with parts and accessories recommended by the manufacturer or retailer.
  • Always remove the battery:

• when leaving the grass trimmer unattended.

• before cleaning, service or other maintenance.
• before inspecting the grass trimmer after the trimmer line head has hit a foreign object.

• before troubleshooting if the grass trimmer begins to vibrate abnormally.

• Always make sure to stand well-balanced and not to overreach. Extra caution should be exercised when working on slopes.
  • Always walk calmly and carefully, never run when using the grass trimmer.

• Do not attempt to stop the trimmer line head with hands or feet when the trimmer has been switched off, always let it stop by itself.
• Avoid operating the grass trimmer on gravel paths, gravel covered yards or other places where stones could be ejected.
• Make sure that everyone who operates the grass trimmer has read and understood the whole of this instruction manual.
• The operator is responsible for any damage or injury which may befall a third party or their property.

Additional safety instructions for grass trimmers

Operating the grass trimmer for long periods without interruption or if it is not operated correctly or is poorly maintained, can lead to adverse health effects caused by exposure to high levels of vibration.

⚠ Warning: The grass trimmer generates an electromagnetic field during operation. This field can, under certain conditions, interfere with active or passive medical implants. In order to reduce the risk of serious injury or fatality, persons with medical implants should always consult a doctor before operating the grass trimmer.

Minimising exposure to noise and vibration

In order to limit the harmful effects of noise and vibration, working for long periods without a break should be avoided. If possible, any setting or method of working which minimises exposure to noise and vibrations should be employed, and suitable protective equipment should be used.

Product safety symbols

max 50 °C

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

Warning: Grass trimmers can be dangerous.

Read the instruction manual.

Do not expose the grass trimmer to rain or moisture.

Wear eye protection.

Keep all persons and animals at a safe distance from the grass trimmer.

Thrown objects can ricochet and result in personal injury or property damage. Wear protective clothing and boots.

Wear hearing protection.

Caution: warning for a possible hazard which may lead to minor or moderate personal injury and/or damage to the product if the written instructions are not followed.

Note: Calls attention to an important piece of information or advice.

General safety instructions for batteries and chargers

a) Always be careful of inadvertent starts while attaching the battery. Make sure that both the safety catch and start trigger are not engaged.
b) Only use the included battery charger or a charger recommended by the manufacturer. The battery charger is only designed to charge certain types of batteries. If a charger designed for another type of battery is used the risk for fire or explosion is significantly increased.
c) Only use batteries designed for the electric power tool it was specifically designed for. Use of any other types of batteries can lead to fire and/or bodily injury.
d) Keep unused batteries a safe distance away from paper clips, screws, nails and other metal objects that could potentially short-circuit the battery terminals. Short-circuiting the battery terminals can lead to fire or explosion.
e) Battery fluid can leak from the battery if it is damaged. Avoid physical contact with this fluid. If this fluid comes into contact with skin; rinse the area thoroughly with water. If the fluid comes into contact with the eyes, seek medical attention immediately. Fluid which has leaked from a battery pack can cause skin irritation or burns.

• The battery can become hot after a longer period of use. Let it cool before attempting to recharge it.
• Never attempt to open the battery casing.
• Never store a battery in direct sunlight or at temperatures above 50 °C.
• Only charge the battery when the ambient temperature is between 5 °C and 40 °C.

• Never expose the battery or charger to water.

• Keep the charger and batteries out of the reach of children.

• Never use the battery charger or batteries in environments where flammable liquids or gases are stored.
• Always transport batteries in a safe manner ensuring that they do not come into contact with each other and never in a metal container.
• Check that the battery charger and mains lead are whole and undamaged before use.
• Charge the battery completely if it is not to be used for an extended period.
• The battery must only be charged with a charger that conforms to EN60335-2-29 standards.

Safety Warnings for battery pack

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20 ± 5 °C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the specified charger. Do not use any charger other than that specifically provided for use with the equipment.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

Product description

i

• 31-9457, 18-1456 comes with a rechargeable 2.0 Ah 18 V battery pack and charger.
- 31-9458 comes without a battery pack or charger. It is the perfect complement to persons already in possession of an 18 V LXC battery pack and charger.

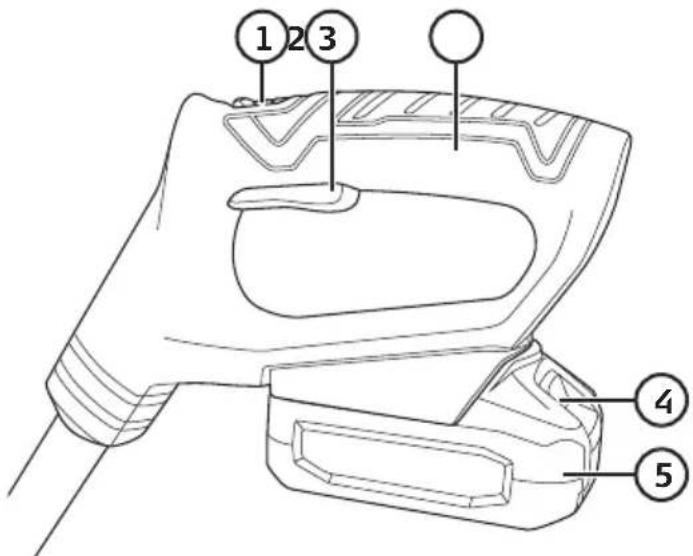

1. Power trigger safety catch
2. Power trigger
3. Handle
4. Battery release button
5. Battery (only supplied with 31-9457, 18-1456)

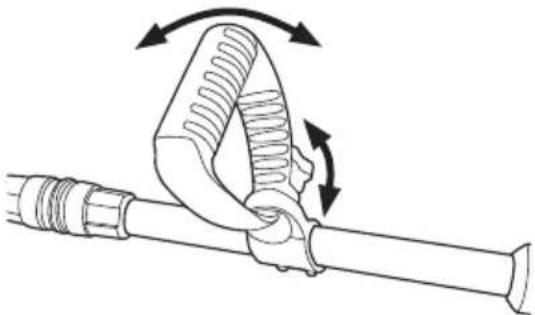

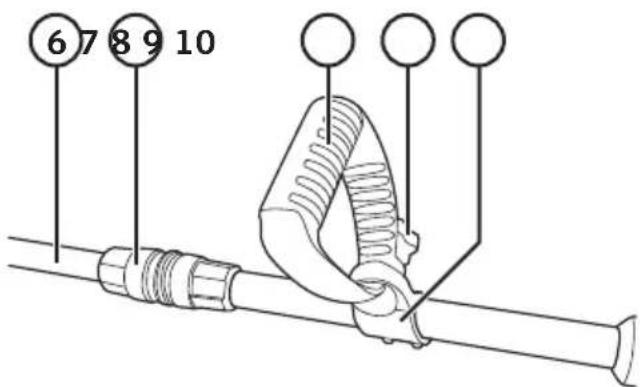

1. Telescopic shaft
2. Locking knob for adjusting the length of the telescopic shaft. Twist clockwise to unlock and anticlockwise to lock.
3. Front handle
4. Locking knob for adjusting the front handle
5. Front handle bracket

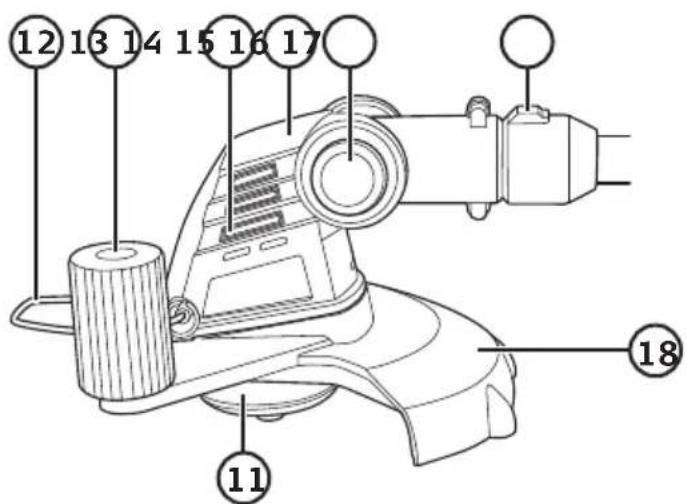

1. Trimmer line head
2. Plant guard
3. Support wheel for edge trimming
4. Motor housing ventilation slits
5. Trimmer head
6. Catch for adjusting the trimmer head angle
7. Catch for pivoting the trimmer head 90° in either direction.
8. Trimmer guard

Assembly Trimmer guard

• Never use the grass trimmer without the trimmer guard in place.
• Be very careful, the trimmer guard is fitted with a blade which cuts the trimmer line to the correct length.

Technical line drawing of a mechanical device with two views (top and side), showing internal components and motion arrows (no text or symbols)

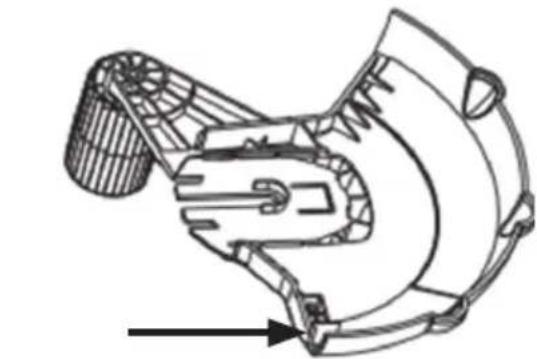

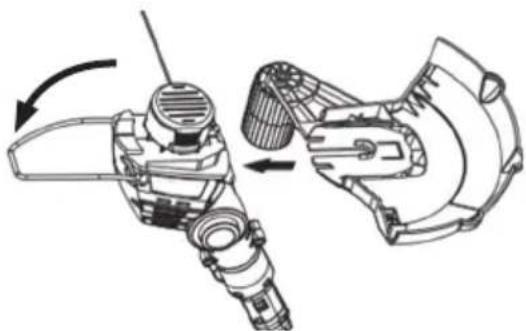

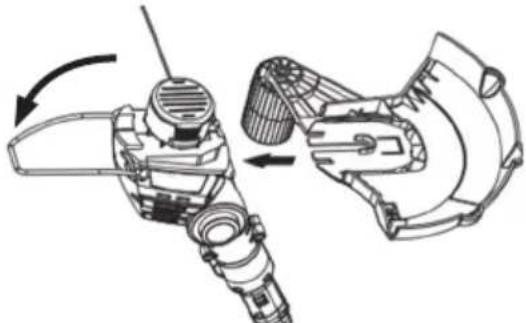

1. Slide the trimmer guard into its bracket and fold down the plant guard (12).

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a hand gripping a cylindrical object with directional arrows indicating motion (no text or symbols)

1. Undo the locking knob (9) and adjust the angle and position of the front handle.

Charging the battery

Temperature range for charging and storing the battery: 5–40 °C.

1. Plug the charger into a wall socket. The indicator will shine green to indicate that the charger is receiving power from the mains.

2. Slide the LXC battery onto the charger.

3. The indicator will shine red when the battery is 0–80% charged. When the battery has reached 80% charge, the indicator will flash green until the battery is fully charged, when the indicator will shine a steady green.

4. Remove the battery from the charger when it is fully charged. Unplug the charger from the wall socket when it is not in use.

Line drawing of a mechanical device with a top component and internal components (no text or symbols)

Important

- If a fully charged battery is connected to a battery charger that is connected to the mains, the indicator will first shine red for a couple of seconds and then change to green.

- If battery which is too warm is connected to the battery charger, nothing will happen. The indicator will continue to shine a steady green. When the battery has cooled sufficiently, it will begin charging automatically.

The charger indicates the charging status as follows

Charge indication Red Green
The charger is connected to the mains Off On
Charge level 0–79% On Off
Charge level 80–99% Off Flashes
Charge level 100% Off On
Faulty battery Flashes Off

Battery charge status indicator

The battery has a charge status indicator (10) consisting of three LEDs. Press the button to the right of the indicator to display the current battery status.

- When fully charged (100%), all three LEDs, green, yellow and red, will shine.

- At approximately 80% charge only the yellow and red LEDs will shine.

- At approximately 20% charge only the red LED will shine.

- When none of the LEDs shine when the button is pressed, the battery is flat and needs to be charged.

Overload protection and other safety features

The battery has a number of safety features to prevent damage to the trimmer and battery during use.

- During short high-load situations the overload protection may turn the trimmer off. This protection resets automatically. Release the trigger, wait a few seconds, ensure that there is no load and then restart the trimmer. The trimmer should now function normally again.

- If subjected to a high-load for an extended period the overheating protection may turn the trimmer off. This feature is self-resetting but the trimmer cannot be restarted until it has returned to normal operating temperature. Let the trimmer/battery cool properly before trying to start working again. Adverse temperatures can occur in direct sunlight and should therefore be avoided.

- The battery has a deep discharge undervoltage protection device which operates when the battery becomes discharged. The undervoltage protection device turns the trimmer off automatically and the battery then needs to be recharged.

Instructions for use Set-up

Technical illustration of a mechanical component with directional arrows indicating movement (no text or symbols)

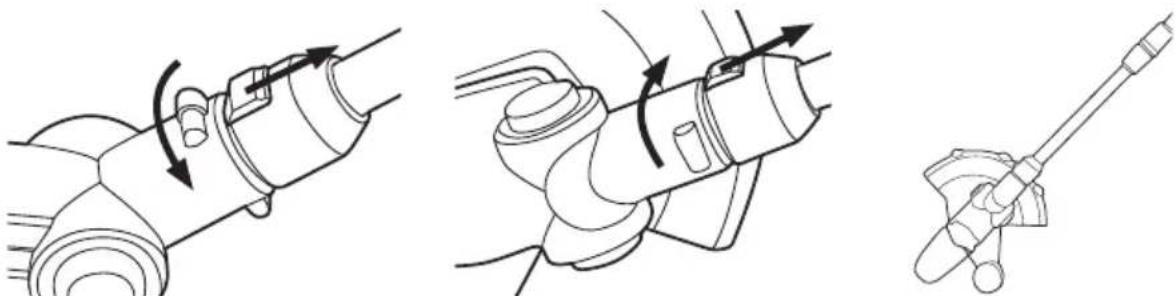

1. Adjust the length of the telescopic shaft to suit your height. Undo the locking knob (7) by turning it clockwise, adjust the length and then tighten the locking knob.

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

1. Adjust the angle of the trimmer head by holding in the catch (16) and moving the head to one of the 5 settings. Release the catch when the trimmer head is at the desired setting.

Technical line drawings of mechanical components with directional arrows indicating motion (no text or symbols)

1. For edging, the trimmer head can be pivoted 90^ to the right or left. Pull back the catch (17) and twist the head to the desired position. Release the catch.

Switching the trimmer on

Before starting:

• Check regularly to ensure that no grass and twigs have built up around the spindle.

• Check that the power trigger and safety catch are undamaged and work correctly.

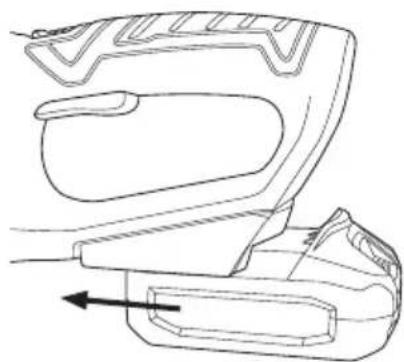

• Fit the battery onto the trimmer (see fig.).

• Push the safety catch for the power switch (1) forwards.
• Switch the trimmer on by pressing in the power trigger (2).
• Release the power trigger to switch the trimmer off.

Line drawing of a car interior frame with a directional arrow indicating movement (no text or symbols)

Care, maintenance and storage

Always remove the battery from the trimmer before cleaning, transport, trimmer spool changes or maintenance.

Replacing the line spool

Technical line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

1. Press in the tabs on the sides of the trimmer line head and remove the cover.

2. Thread the line of the new spool through the hole in the trimmer line head and insert the spool into the trimmer line head, making sure that the spring is in place.

3. Refit the cover back onto the trimmer line head, making sure that it clicks securely into place.

⚠️ Wear safety glasses and make sure that there are no bystanders nearby when starting the grass trimmer after a new line has been fitted because any excess cut off line will fly out at high speed.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Lift out the spool. Note: Take care not to lose the spring under the spool.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Grass trimmer

• Always remove the battery from the trimmer before cleaning it and putting it away.
- Clean the exterior of the trimmer with a soft brush or cloth. Never use water, solvents or corrosive chemicals for cleaning.
- Regularly remove all dirt, especially from around the motor ventilation slits (14).
- Store the trimmer in a dry place out of children's reach whenever it is not to be used for a long time.
- The battery should be stored in an ambient temperature of 5–50 °C.
- Charge the battery fully every six months to maintain the battery capacity.

Battery charger

• Unplug the mains lead from the wall socket before cleaning.
• Keep the housing of the charger clean. Wipe the charger clean with a dry cloth and vacuum clean when needed. Dirt can cause electric shocks.
• If the charger is not to be used for an extended period, it should be unplugged and stored in a dry and dust-free location out children's reach.

Troubleshooting guide

The trimmer won’t start.	Discharged or incorrectly inserted battery. Charge the battery and ensure that it is properly fitted to the trimmer.
The trimmer is sluggish and/or cuts out.	·Dirt and debris are preventing the trimmer line head from rotating. Remove the battery from the trimmer and clean around the trimmer line head. ·Too much force applied. Decrease the applied force. ·The battery might be overheated. Read the Overload protection and other safety features section.
Poor battery operating time.	·The battery is not fully charged. A few charging cycles where the battery is charged 100% might be needed before it reaches full capacity. ·The battery needs replacing.
The battery does not charge.	·Check that the mains lead is properly plugged into a wall socket. ·Check that the wall socket is energised. ·The battery is too warm, let it cool. ·Check that the battery is inserted correctly into the charger. ·The battery or charger contacts might need to be cleaned. Note: Unplug the charger from the wall socket before cleaning the contacts. ·The charger or its cable is damaged. ·The battery is defective and must be replaced.
The battery charge is poor after it has been charged.	·The battery is not fully charged. Charge the battery until the indicator (2) shines a steady green. ·The battery needs replacing.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Grass trimmer

Battery LXC 18 V/2.0 Ah lithium-ion battery

No-load speed 8500 rpm

Operating time 25–50 min

Cutting diameter 230 mm

Line diameter 1.6 mm

Noise level LpA = 78.8 dB(A), K = 3 dB(A)

$$ \mathrm{LwA} = 9 0. 4 \mathrm{dB(A)}, \mathrm{K} = 1. 9 3 \mathrm{dB(A)} $$

Vibration Rear handle 2.675 m/s ^4 , K = 1.5 m/s ^2

Front handle 3.114 m/s ^2 , K = 1.5 m/s ^2

Weight (incl. battery) 2.0 kg

Charger

Rated voltage 230–240 V AC, 50/60 Hz, 80 W

Output voltage 18 V DC

Output current 2.8 A

Fuse 3.15 A, slow-blow

Charging times* 1.5 Ah: 25 min 80%, 40 min 100%

2.0 Ah: 35 min 80%, 50 min 100%

3.0 Ah: 50 min 80%, 75 min 100%

4.0 Ah: 75 min 80%, 100 min 100%

Size 15 × 10.5 × 7.5 cm

*Charging times can vary depending on the age and condition of the batteries.

Vibration

• The measurement of the vibration emission level (triaxial vector sum) and the noise level values declared in this instruction manual have been carried out in accordance with a standardised test method described in EN 50636-2-91 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Grästrimmer

Art.nr 18-1465, 31-9457, 31-9458 Modell ASYGT02230

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with two views (top and side), showing internal components and motion arrows (no text or symbols)

Diagram of a hand gripping a tool with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with a top component and internal components (no text or symbols)

△

Viktigt!

Technical illustration of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Technical line drawings of mechanical components with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

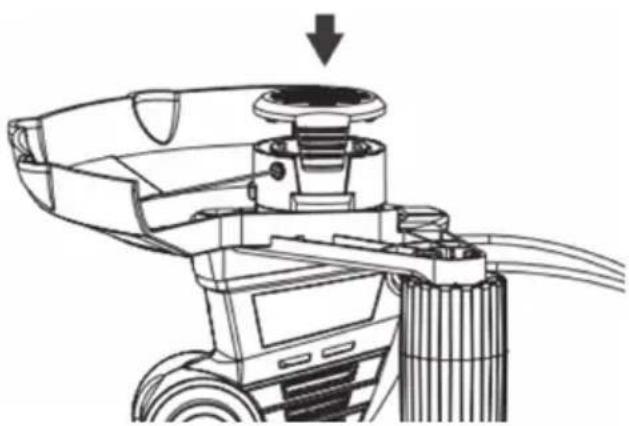

Technical line drawing of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Grästrimmer

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifikationer

Grästrimmer

Batteri LXC 18 V/2,0 Ah litiumjonbatteri

Varvtal obelastad 8500 v/min

Arbetstid 25–50 min

Klippdiameter 230 mm

Tråddiameter 1,6 mm

Ljudnivå LpA = 78,8 dB(A), K = 3 dB(A)

LwA = 90,4 dB(A), K = 1,93 dB(A)

Vibration Bakre handtag 2,675 m/s ^4 , K = 1,5 m/s ^2

Främre handtag 3,114 m/s², K = 1,5 m/s²

2,0 Ah: 35 min 80%, 50 min 100%

3,0 Ah: 50 min 80%, 75 min 100%

4,0 Ah: 75 min 80%, 100 min 100%

Mått 15 × 10,5 × 7,5 cm

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with two views (top and side), showing internal components and motion arrows (no text or symbols)

Diagram of a hand gripping a cylindrical object with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with a top component and internal components (no text or symbols)

Viktig!

Technical illustration of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawings of mechanical components with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Gresstrimmer

Batteri LXC 18 V/2,0 Ah li-ionbatteri

Turtall ubelastet 8500 o/min

Driftstid 25-50 min

Klippediameter 230 mm

Tråddiameter 1,6 mm

Nettspenning 230–240 V AC, 50/60 Hz, 80 W

Utspenning 18 V DC

2,0 Ah: 35 min 80%, 50 min 100%

3,0 Ah: 50 min 80%, 75 min 100%

4,0 Ah: 75 min 80%, 100 min 100%

Mål 15 × 10,5 × 7,5 cm

Technical illustration of a mechanical device with two views, showing internal components and motion arrows (no text or symbols)

Technical illustration of a mechanical device with two views: top shows a handle mechanism, bottom shows a lever mechanism (no text or symbols)

Line drawing of a mechanical device with a top component and side panels (no text or symbols)

Huom.!

Technical illustration of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawings of mechanical components with directional arrows indicating motion (no text or symbols)

Line drawing of a car interior component with an arrow indicating direction (no text or symbols)

Huolto ja säilytys

Technical line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

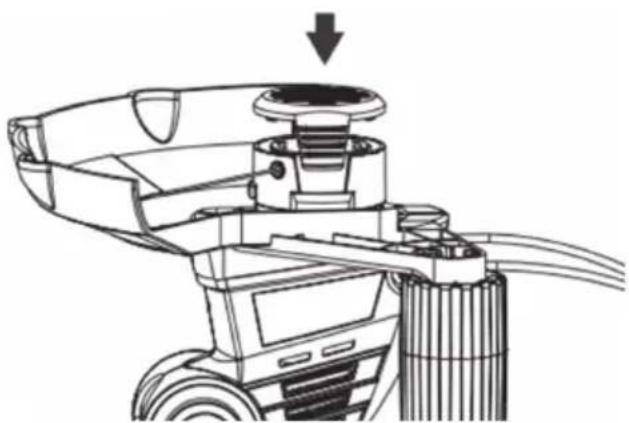

Technical line drawing of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Ruohotrimmeri

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Tekniset tiedot

Ruohotrimmeri

Akku LXC 18 V/2,0 Ah, litiumioni

2,0 Ah: 35 min 80%, 50 min 100%

3,0 Ah: 50 min 80%, 75 min 100%

4,0 Ah: 75 min 80%, 100 min 100%

Mitat 15 × 10,5 × 7,5 cm

Mechanical assembly diagram showing a motor and gear mechanism with directional arrows (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a hand gripping a tool with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Wichtig

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawings of mechanical components with directional arrows indicating motion (no text or symbols)

Line drawing of a car seat assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

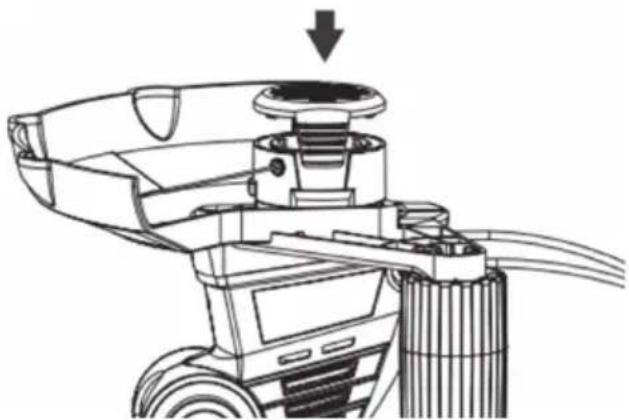

Technical line drawing of a mechanical device with a downward arrow indicating force or motion (no text or symbols present)

Rasentrimmer

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Rasentrimmer

2,0 Ah: 35 min 80%, 50 min 100%

3,0 Ah: 50 min 80%, 75 min 100%

4,0 Ah: 75 min 80%, 100 min 100%

Abmessungen 15 × 10,5 × 7,5 cm

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

Low Voltage Directive 2014/35/EU

EN 50636-2-91: 2014 EN:

55014-1:2006

+A2: 2011

EN: 55014-2: 2015

EN 60335-1:2012

+A11:2014

Henrik Alfredsson

Technical Manager

Insjön, Sweden, 2018-01-12

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

LXC

LITHIUM XROSS CONNECT

18V LITHIUM SERIES
