Gammix S50 Lite - SSD XPG - Free user manual and instructions

Product Type	Internal Solid State Drive (SSD)
Form Factor	M.2 2280
Interface	PCIe Gen3x4, NVMe 1.3
Capacity	256 GB / 512 GB / 1 TB / 2 TB (model dependent)
Sequential Read Speed	Up to 2400 MB/s
Sequential Write Speed	Up to 1800 MB/s
Random Read (4K)	Up to 300,000 IOPS
Random Write (4K)	Up to 250,000 IOPS
Controller	Realtek RTS5766DL (or similar)
Flash Type	3D NAND TLC
DRAM Cache	None (uses HMB technology)
Dimensions	80 x 22 x 3.5 mm
Weight	~8 g
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Power Consumption (Active)	Up to 8 W
Power Consumption (Idle)	~0.3 W
Endurance (TBW)	Up to 1200 TBW (for 2 TB model, varies by capacity)
Warranty	5 years limited
Compatibility	Desktop and laptop with M.2 slot supporting PCIe NVMe
Maintenance	No regular maintenance required; keep in dry, cool environment
Safety	Avoid physical shock, static discharge, and liquids; always power off PC before installation
Spare Parts / Repairability	Not user-serviceable; no spare parts available

Frequently Asked Questions - Gammix S50 Lite XPG

Is the XPG Gammix S50 Lite compatible with my laptop?

Yes, if your laptop has an M.2 slot that supports PCIe NVMe (Gen3 or higher). Check your laptop manual for slot type and size (2280). The S50 Lite uses the M.2 2280 form factor.

Does this SSD require a heatsink?

The S50 Lite is designed to run without a heatsink in most cases, but if you experience thermal throttling in a high-performance build, adding a heatsink may help. The drive itself does not include one.

What is the difference between S50 Lite and S50?

The S50 Lite is a more affordable version with slightly lower sequential speeds (up to 2400 MB/s vs 3500 MB/s) and a DRAM-less design using HMB technology, while the S50 has DRAM cache and higher performance.

How do I install the Gammix S50 Lite in a desktop?

Refer to the manual section 'Installing an M.2 SSD on a desktop PC'. Steps: 1. Gather tools and backup data. 2. Remove the PC case. 3. Locate the M.2 PCIe slot (usually under the graphics card). 4. Insert the SSD at a 30-degree angle, then push down and secure with the provided screw. 5. Reassemble the case and power on.

How do I install the Gammix S50 Lite in a laptop?

Follow the manual section 'Installing an M.2 SSD on a laptop PC'. Key steps: 1. Backup data and power off. 2. Remove the back plate. 3. Locate the M.2 slot. 4. Insert the SSD at an angle and secure with the screw. 5. Replace the back plate and power on. Note: Battery removal may be required for some models.

What is the maximum speed I can expect?

Sequential read up to 2400 MB/s and sequential write up to 1800 MB/s. Actual speed depends on your system configuration, such as PCIe generation and CPU.

Can I use this SSD as a boot drive?

Yes, it is ideal for boot drives and everyday computing. Ensure your BIOS is set to UEFI mode and the drive is initialized as GPT for best performance.

Does the Gammix S50 Lite support TRIM?

Yes, it supports TRIM command via NVMe. TRIM helps maintain performance over time by informing the SSD which data blocks are no longer in use.

What is the lifespan of this SSD?

The endurance (TBW) varies by capacity: for 1TB it is typically 600 TBW, for 2TB 1200 TBW. Under typical use, this corresponds to many years of reliable operation. The 5-year warranty covers defects.

Can I upgrade firmware on the S50 Lite?

Yes, XPG provides a firmware update tool via their website. Download the XPG SSD Toolbox or visit the support page for your specific model. Always backup data before updating firmware.

USER MANUAL Gammix S50 Lite XPG

Chinese traditional 03

Chinese simple 07

English 11

German 15

Japanese 19

Korean 23

Portuguese 27

Russian 31

Romanian 35

Spanish 39

INSTALLING AN M.2 SSD ON A LAPTOP PC

Chinese traditional 43

Chinese simple 47

English 51

German 55

Japanese 59

Korean 63

Portuguese 67

Russian 71

Romanian 75

Spanish 79

如何在桌機安裝 M.2固態硬碟

Exterior view of a computer monitor with a colorful circular lens and XPG chip, set against a red background (no text or symbols on main components)

更換前準備步驟

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

1. 準備工具

Hand inserting a socket into a black rack-mounted server unit (no visible text or labels)

Hand placing a computer tower case with visible internal components and a screwdriver nearby (no text or symbols)

1.將主機機殼卸下

Interior view of a computer motherboard with CPU socket, RAM slots, and ventilation duct (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a computer motherboard with CPU socket and monitor (no visible text or symbols)

3.對準M.2插槽、插上固態硬碟

Close-up of hands assembling a computer motherboard with a tool (no visible text or symbols)

4.拴上螺絲固態硬碟

再以螺絲起子固定M.2固態硬碟。

Close-up of a hand inserting a component into a black internal device, with visible wiring and hardware (no text or symbols)

5.重新裝上機殼

Close-up of a hand inserting a rack-mounted server into a black rack with ventilation grilles (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular light pattern, next to a black GPU RAM module labeled XPG (no text or symbols on the device itself)

更换前准备步骤

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

1. 准备工具

Hand inserting a socket into a black rack-mounted server unit (no visible text or labels)

Hand placing a hard drive into a black desktop computer case with visible internal components (no text or symbols)

1. 将机箱侧板卸下

Interior view of a computer motherboard with CPU socket, RAM slots, and visible CPU socket (no text or symbols)

Close-up of a hand holding a computer monitor with an open motherboard and CPU socket (no visible text or symbols)

3.对准M.2插槽、插上固态硬盘

Close-up of hands assembling a computer motherboard with a tool (no visible text or symbols)

4.拧上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

Close-up of a hand inserting a component into a black internal device, with visible wiring and hardware (no text or symbols)

5.重新装上机箱侧板

Close-up of a hand inserting a rack-mounted server into a black rack, showing internal ventilation slots and ports (no text or symbols visible)

Exterior view of a computer monitor displaying a colorful circular light pattern, next to a black XPG RAM module on a red background (no text or symbols on the device itself)

BEFORE INSTALLATION

Interior view of a computer tower case with exposed internal components and a small inset showing plastic parts (no visible text or symbols)

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdrivers, and ADATA M.2 SSD

* Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Hand inserting a rack into a server rack with ventilation grilles (no visible text or labels)

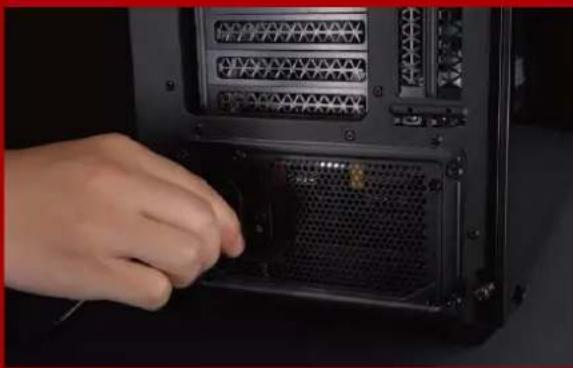

4. SWITCH OFF THE POWER SWITCH AND UNPLUG POWER CORD

This action is necessary to discharge residual power that can damage your PC and its components.

*The location of the power switch may vary by PC, please check your user manual.

INSTALLATION

Hand placing a hard disk into a black server tower case with visible internal components and tools (no text or symbols)

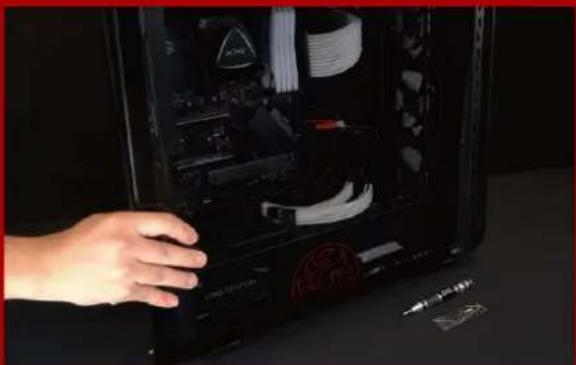

1. REMOVE THE PC CASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

Interior view of a computer motherboard with CPU socket, RAM slots, and visible circuitry (no text or symbols)

2. LOCATE THE M.2 PCIE SLOT AND CONFIRM THERE ARE SCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit, and confirm there are screws present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.
**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the PC is shipped from the factory.

Close-up of a hand using a computer to adjust the CPU into a motherboard (no visible text or symbols)

3. ALIGN THE M.2 SLOT AND INSERT THE SOLID STATE DRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

* The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Close-up of a hand inserting a component into a computer motherboard (no visible text or symbols)

4. FASTEN THE SCREWS TO SECURE THE SSD

Use your small Phillips screwdriver to secure the SSD into place.

Close-up of a hand inserting a component into a black internal computer case (no visible text or symbols)

5. RESEMBLE THE CASE

* Do not overtighten the screws as it may damage the screws ad back plate

Close-up of a hand inserting a rack-mounted server into a black rack with ventilation grilles (no visible text or labels)

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

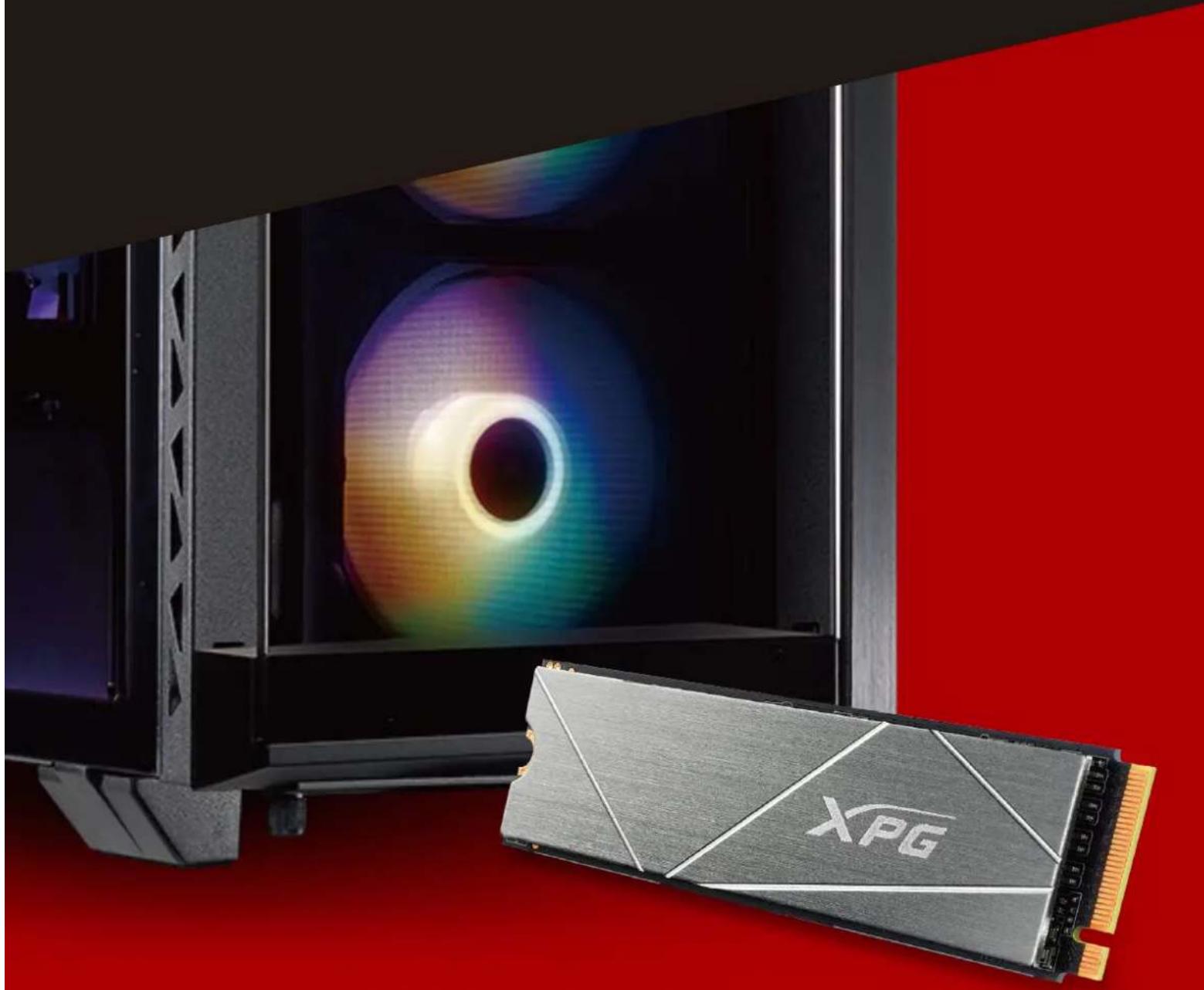

EINE M.2-SSD AN EINEM DESKTOP-PC INSTALLIEREN

Exterior view of a computer monitor displaying a colorful circular light pattern, next to a black XPG RAM module on a red background (no text or symbols on the device itself)

VOR DER INSTALLATION

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

1. ALLES NÖTIGE ZUSAMMENTRAGEN

2. IHRE DATEN SICHERN

Hand inserting a rack into a server rack with a mesh vent (no visible text or labels)

Hand placing a computer tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. PC-GEHÄUSE ENTFERNEN

Interior view of a computer motherboard with CPU socket, RAM slots, and ventilation duct (no visible text or symbols)

2. M.2-PCIE-STECKPLATZ AUSFINDIG MACHEN UND SICHERSTELLEN, DASS SCHRAUBEN VORHANDEN SIND

Close-up of a hand using a tool to adjust or install a computer motherboard with CPU socket and monitor (no visible text or symbols)

Close-up of hands assembling a computer motherboard with a tool (no visible text or symbols)

Close-up of a hand inserting a component into a black internal computer case (no visible text or symbols)

Close-up of a hand inserting a rack-mounted server into a black rack with ventilation grilles (no visible text or labels)

Exterior view of a computer monitor with a colorful circular lens and XPG chip, set against a red background (no text or symbols on main components)

交換前の準備

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

1. 準 備するもの

Hand inserting a socket into a server rack (no visible text or labels)

Hand placing a computer tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. パソコン本体のケースを取り外す

Interior view of a computer motherboard with CPU socket, RAM slots, and ventilation duct (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a computer motherboard with CPU socket and monitor (no visible text or symbols)

3. M.2スロットにSSDを差し込む

Close-up of hands installing a computer monitor with a small electronic device (no visible text or symbols)

4. SSDをねじで 固定する

Close-up of a hand inserting a component into a black internal device, with visible wiring and hardware (no text or symbols)

5.ケースを元の位置に取り付ける

Close-up of a hand inserting a rack-mounted server into a black rack, showing internal ventilation slots and ports (no text or symbols visible)

Exterior view of a computer monitor with a colorful circular lens and XPG chip, set against a red background (no text or symbols on main components)

설치하기 전에

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

1. 필요한 도구 준비

2.데이터 백업

Hand inserting a socket into a server rack (no visible text or labels)

Hand placing a computer tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. PC 케이스 제거

Interior view of a computer motherboard with CPU socket, RAM slots, and ventilation duct (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a computer motherboard with CPU socket and monitor (no visible text or symbols)

Close-up of hands assembling a computer motherboard with a tool (no visible text or symbols)

4. 나사를 조여서 SSD 고정

Close-up of a hand inserting a component into a black internal device, with visible wiring and hardware (no text or symbols)

5. 케이스 재조립

Close-up of a hand inserting a rack-mounted server into a black rack, showing internal ventilation slots and ports (no text or symbols visible)

Exterior view of a computer monitor displaying a colorful circular light pattern, next to a black XPG RAM module on a red background (no text or symbols on the device itself)

ANTES DA INSTALAÇÃO

Interior view of a computer tower case with exposed internal components and a small inset showing a tool (no visible text or symbols)

1. REÚNA AS COISAS QUE VOCÊ PRECISA

PC, chaves de fenda Phillips e SSD ADATA M.2

Hand inserting a rack into a server rack with ventilation grilles (no visible text or labels)

Hand placing a computer tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. REMOVA O GABINETE DO PC

Interior view of a computer motherboard with CPU socket, RAM slots, and ventilation duct (no visible text or symbols)

2. LOCALIZE O SLOT M.2 PCIE E CONFIRME SE HÁ PARAFUSOS

Close-up of a hand using a tool to adjust or install a computer motherboard with CPU socket and monitor (no visible text or symbols)

3. ALINHE O SLOT M.2 E INSIRA A UNIDADE DE ESTADO SÓLIDO

Close-up of a hand using a computer to adjust or install a device (no visible text or symbols)

4. APERTE OS PARAFUSOS PARA PRENDER O SSD

Close-up of a hand inserting a component into a black internal device, with visible wiring and hardware (no text or symbols)

Close-up of a hand inserting a rack-mounted server into a black rack with ventilation grilles (no visible text or labels)

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

Hand inserting a socket into a black rack-mounted server unit (no visible text or labels)

Hand placing a computer tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Interior view of a computer motherboard with CPU socket and monitor, showing internal components like a BOSB222 logo (no readable text or symbols)

Close-up of a hand using a tool to adjust or install a computer motherboard with CPU socket and monitor (no visible text or symbols)

Close-up of hands assembling a computer motherboard with a tool (no visible text or symbols)

Close-up of a hand inserting a component into a black internal computer case (no visible text or symbols)

5. ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИНУ НА МЕСТЕ

Close-up of a hand inserting a rack-mounted server into a black rack with ventilation grilles (no visible text or labels)

Exterior view of a computer monitor displaying a colorful circular light pattern, next to a black XPG RAM module on a red background (no text or symbols on the device itself)

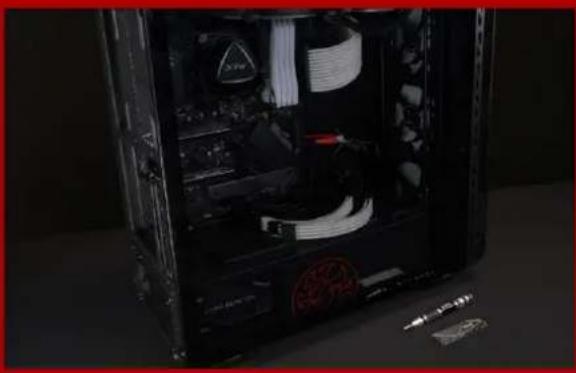

ÎNAINTE DE INSTALARE

Interior view of a black server or computer case with visible internal components and wiring (no text or symbols)

1. ADUNATI LUCRURILE DE CARE VETI AVEA NEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

Hand inserting a rack into a server rack socket (no visible text or labels)

4. DECONECTATI ALIMENTAREA CU ENERGIE ŞI CABLUL DE ALIMENTARE

Hand placing a hard disk into a black server rack with visible internal components and tools (no text or symbols)

1. SCOATETI CARCASA PC-ULUI

Interior view of a computer motherboard with CPU socket and RAM slots (no visible text or symbols)

2. LOCALIZATI FANTA M.2 PCIE ŞI CONFIRMAȚI CĂ EXISTĂ ŞURUBURI

Close-up of a hand inserting a cable into a computer motherboard with visible CPU socket and connectors (no text or symbols)

3. ALINIATI FANTA M.2 ŞI INTRODUCEȚI UNITATEA SOLID STATE

Close-up of hands operating a computer motherboard with a CPU socket and monitor (no visible text or symbols)

4. STRÂNGETI ŞURUBURILE PENTRU A FIXA SSD

Close-up of a hand inserting a device into a black server rack with visible internal components (no text or symbols)

5. REASAMBLATI CARCASA

Close-up of a hand pressing a button on a black server rack with multiple drive bays (no visible text or labels)

6. CONECTATI CABLUL DE ALIMENTARE ŞI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD

DE ESTADO SÓLIDO M.2

EN UN EQUIPO DE

SOBREMESA

Interior view of a computer tower case showing internal components and wiring (no visible text or symbols)

1. REUNIR LOS ELEMENTOS QUE NECESITARÁ

Hand inserting a socket into a black rack-mounted server unit (no visible text or labels)

Hand placing a button into a black computer tower case with visible internal components and a screwdriver nearby (no text or symbols)

1. QUITAR LA CARCASA DEL EQUIPO

Interior view of a computer motherboard with CPU socket, RAM slots, and visible wiring (no text or symbols)

2. LOCALIZAR LA RANURA PCIE M.2 Y CONFIRMAR QUE TIENE TORNILLOS

Close-up of a hand inserting a component into a computer motherboard with visible CPU socket and hardware (no text or symbols)

3. ALINEAR LA RANURA M.2 E INSERTAR LA UNIDAD DE ESTADO SÓLIDO

Close-up of hands operating a computer motherboard with a CPU socket and monitor (no visible text or symbols)

Close-up of a hand inserting a component into a black internal computer case (no visible text or symbols)

5. VOLVER A MONTAR LA CARCASA

Close-up of a hand inserting a rack-mounted server into a black rack, showing internal ventilation slots and ports (no text or symbols visible)

2.備份資料

Close-up of two hands resting on a dark surface, with a small triangular logo visible in the background (no readable text or symbols)

4.將電源線及電池拔除

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. 將主機背板卸下

Interior view of a laptop showing exposed circuit board and drive bays (no visible text or labels)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3.對準M.2插槽、插上固態硬碟

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

4.拴上螺絲以固定固態硬碟

再以螺絲起子固定M.2固態硬碟。

5.重新蓋上背板

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

2.备份数据

Close-up of human hands resting on a dark surface, no visible text or symbols

4. 将电源线及电池拔除

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. 将电脑背板卸下

Interior view of a laptop showing exposed circuit board and drive bays (no visible text or labels)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3.对准M.2插槽、插上固态硬盘

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

4.拴上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

5. 重新盖上背板

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdrivers, and ADATA M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Close-up of human hands resting on a dark surface, no visible text or symbols

4. UNPLUG POWER CORD AND BATTERY

This action is necessary to discharge residual power that can damage your PC and its components.

*The battery removal step applies only to laptops when it's possible to remove the battery. To see how to remove the battery, refer to your user manual.

INSTALLATION

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. REMOVE YOUR PC'S BACK PLATE

Use your standard Phillips screwdriver to remove the screws from the back plate.

* If you are unsure how to do this, refer to your user manual

Top-down view of a laptop showing internal circuit board and battery pack (no text or symbols visible)

2. LOCATE THE M.2 PCIe SLOT AND CONFIRM THERE ARE SCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit and confirm there are screws present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.
**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the laptop is shipped from the factory.

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. ALIGN THE M.2 SLOT AND INSERT THE SOLID STATE DRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

4. FASTEN THE SCREWS TO SECURE THE SSD

Use your small Phillips screwdriver to secure the SSD into place.

* Do not overtighten the screws

5. SECURE THE BACK PLATE INTO PLACE

* Do not overtighten the screws as it may cause damage

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINE M.2-SSD AN EINEM LAPTOP-PC INSTALLIEREN

VOR DER INSTALLATION

1. ALLES NÖTIGE ZUSAMMENTRAGEN

2.IHRE DATEN SICHERN

3.IHREN PC ABSCHALTEN

Close-up of human hands resting on a dark surface, no visible text or symbols

4. NETZKABEL UND AKKU TRENNEN

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. RÜCKPLATTE IHRES PCS ENTFERNEN

Interior view of a laptop showing exposed circuit board and drive bays (no visible text or labels)

2. M.2-PCIE-STECKPLATZ AUSFINDIG MACHEN UND SICHERSTELLEN, DASS SCHRAUBEN VORHANDEN SIND

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

5. RÜCKPLATTE WIEDER EINSETZEN

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

2. データの バックアップ

Close-up of human hands resting on a dark surface, no visible text or symbols

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. パソコンのバックパネルを取り外す

Interior view of a laptop showing exposed circuit board and drive bays (no text or symbols visible)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. M.2スロットにSSDを差し込む

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

4. SSDをねじで固定する

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

2.데이터 백업

Close-up of two hands resting on a dark surface, with a small triangular logo visible in the background (no readable text or symbols)

4.전원 코드와 배터리 분리

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. PC 뒤판 제거

Interior view of a laptop showing exposed circuit board and drive bays (no visible text or labels)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

4.나사를 조여서 SSD 고정

5. 뒤판 제자리에 고정

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

2. FAÇA BACKUP DE SEUS DADOS

Close-up of two hands resting on a dark surface, with a small triangular logo visible in the background (no readable text or symbols)

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. REMOVA A PLACA TRASEIRA DO SEU PC

Interior view of a laptop showing exposed circuit board, drive bays, and battery pack (no text or symbols visible)

2. LOCALIZE O SLOT M.2 PCIE E CONFIRME SE HÁ PARAFUSOS

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. ALINHE O SLOT M.2 E INSIRA A UNIDADE DE ESTADO SÓLIDO

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

4. APERTE OS PARAFUSOS PARA PRENDER O SSD

5. PRENDA A PLACA TRASEIRA NO LUGAR

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

2. ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

Close-up of two hands resting on a dark surface, with a small triangular logo visible in the background (no readable text or symbols)

Close-up of hands installing a device on a laptop keyboard (no visible text or symbols)

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

Interior view of a laptop showing exposed circuit board and drive bays (no visible text or labels)

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

5. ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИНУ НА МЕСТЕ

Close-up of human legs and hands resting on a dark surface, no visible text or symbols

2. FACETI O COPIE DE REZERVĂ A DATELOR

Close-up of two hands resting on a dark surface, no visible text or symbols

4. DECONECTATI CABLUL DE ALIMENTARE ŞI BATERIA

Close-up of hands holding a small electronic device on a black laptop case (no visible text or symbols)

1. SCOATEȚI PLACA DIN SPATE A PC-ULUI

Top-down view of a laptop showing internal circuitry and memory components (no visible text or symbols)

2. LOCALIZATI FANTA M.2 PCIE ŞI CONFIRMATI CĂ EXISTĂ ȘURUBURI

Close-up of a hand inserting a CPU into a motherboard with visible components and a logo (no readable text or symbols)

3. ALINIATI FANTA M.2 ŞI INTRODUCETI UNITATEA SOLID STATE

Close-up of hands using a screwdriver to adjust or repair a device on a circuit board (no visible text or symbols)

4. STRÂNGETI ŞURUBURILE PENTRU A FIXA SSD

5. FIXAREA PLĂCII DIN SPATE ÎN POZITIE

Close-up of human hands resting on a dark surface, no visible text or symbols

6. CONECTATI CABLUL DE ALIMENTARE ŞI PORNITI PC-UL PENTRU A FINALIZA INSTALAREA

INSTALAR UNA UNIDAD DE ESTADO SÓLIDO M.2 EN UN EQUIPO PORTÁTIL

3. APAGAR EL EQUIPO

Close-up of human hands resting on a dark surface, no visible text or symbols

Close-up of hands holding a flashlight next to a laptop keyboard (no visible text or symbols on the device)

1. RETIRAR LA PLACA POSTERIOR DE SU PC

Interior view of a laptop showing exposed circuit board, drive bays, and battery pack (no text or symbols visible)

2. LOCALIZAR LA RANURA PCIE M.2 Y CONFIRMAR QUE TIENE TORNILLOS

Close-up of a hand inserting a XPG into a computer motherboard (no visible text or symbols)

3. ALINEAR LA RANURA M.2 E INSERTAR LA UNIDAD DE ESTADO SÓLIDO

Close-up of hands using a screwdriver to adjust or repair a device component labeled 'XPG' (no readable text beyond label)

5. ASEGURAR LA PLACA POSTERIOR EN SU LUGAR

Close-up of human legs and hands resting on a dark surface, no visible text or symbols
