Product Type	2.5-inch Solid State Drive (SSD)
Brand	XPG (ADATA)
Model	Ultimate SU650
Interface	SATA III 6Gb/s, backward compatible with SATA II
Form Factor	2.5 inch
Capacities Available	120GB, 240GB, 480GB, 960GB (varies by SKU)
Dimensions (LxWxH)	100 x 69.85 x 7 mm
Weight	Approximately 50 g
Power Consumption (Active)	Typical 4W
Power Consumption (Idle)	Typical 2W
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Shock Resistance	1500G / 0.5ms
MTBF	1,500,000 hours
Warranty	3 years limited warranty
Compatibility	Desktop PCs with 2.5-inch drive bay or adapter
Installation Requirements	Phillips screwdriver (3.5mm), PC, backup external drive
Data Backup Required Before Installation	Yes, to avoid data loss
Maintenance	No user maintenance needed; keep dry and free from dust
Safety Precautions	Power off and unplug PC; discharge residual power; avoid static discharge
Spare Parts and Repairability	No user-replaceable parts; do not disassemble

Frequently Asked Questions - Ultimate SU650 XPG

Is the XPG Ultimate SU650 compatible with laptops?

Yes, as long as your laptop has a standard 2.5-inch SATA bay. Some ultra-thin laptops may require a 7mm thick drive; the SU650 is 7mm thick.

Do I need any special tools to install this SSD?

You will need a Phillips screwdriver (3.5mm) to open your PC case and secure the drive. No other specialized tools are required.

Can I install the SSD without backing up my data?

It is strongly recommended to back up important data to an external device before installation to prevent data loss in case of accidental errors.

Does the SSD come with a mounting bracket?

The SSD is a bare drive. Most desktop cases have a built-in 2.5-inch bracket or require an adapter (sold separately) for 3.5-inch bays.

What is the maximum capacity available for this model?

The XPG Ultimate SU650 is available in capacities up to 960GB, depending on the specific SKU.

How do I connect the SSD to my motherboard?

Use the included SATA data cable (not supplied with the drive) to connect the SSD to a SATA port on the motherboard, and connect the SATA power cable from the power supply.

Will this SSD work with Windows 10/11?

Yes, the SSD is compatible with Windows 10, 11, and earlier versions. It may require initialization and formatting in Disk Management before use.

How do I ensure the SSD is properly secured?

After inserting the SSD into the bracket, use the screws provided by your case to tighten firmly but not overtighten to avoid damaging the drive or bracket.

Is the SSD hot-swappable?

No, this is a standard SATA SSD that requires the system to be powered off and unplugged before installation or removal.

What should I do if my computer does not recognize the SSD?

First, check that the SATA and power cables are securely connected. Then go to Disk Management to initialize the drive (if new). If still not detected, test with a different cable or port.

USER MANUAL Ultimate SU650 XPG

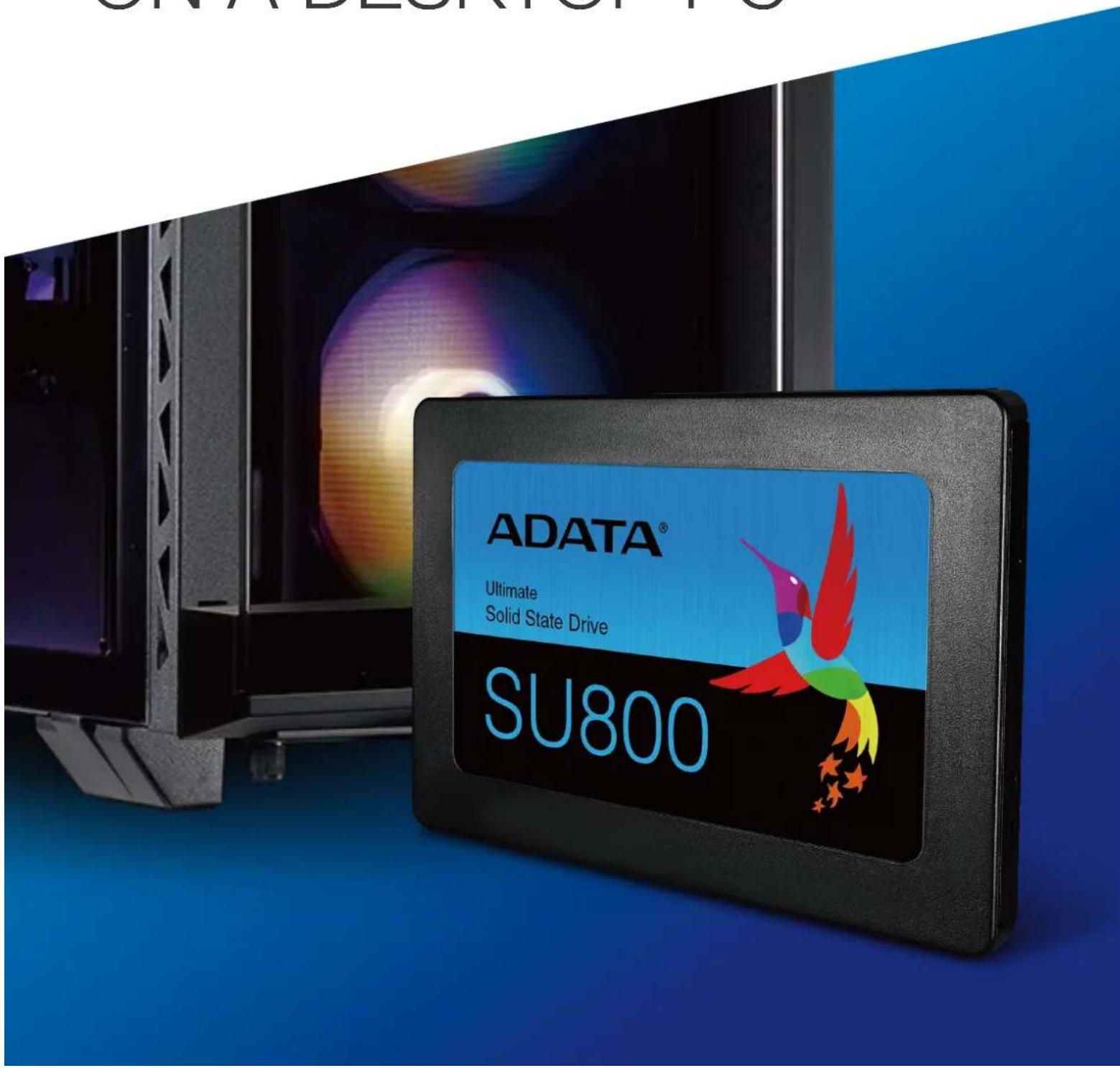

INSTALLING AN 2.5" SATA SSD ON A DESKTOP PC

BEFORE INSTALLATION

Interior view of a computer tower case with visible internal components and a close-up of a monitor displaying blue LED (no text or symbols)

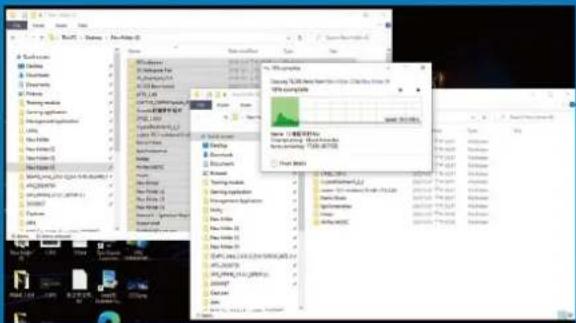

1. GATHER THE THINGS YOU'LL NEED

PC, Phillips screwdriver, and ADATA 2.5" SATA SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case.

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

Hand inserting a rack into a server rack with multiple drive bays (no visible text or labels)

4. SWITCH OFF THE POWER SWITCH AND UNPLUG POWER CORD

This action is necessary to discharge residual power that can damage your PC and its components.

INSTALLATION

Hand placing a hard disk into a black server rack with visible internal components and a digital display (no text or symbols)

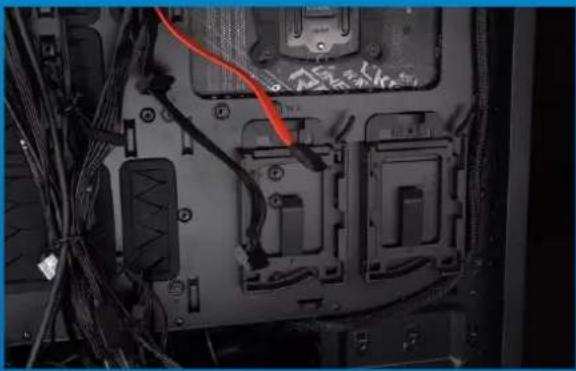

1. REMOVE THE PC CASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

Interior view of a computer motherboard showing exposed circuit boards, cables, and connectors (no visible text or symbols)

2. CONFIRM THE POSITION OF THE 2.5" SLOT AND REMOVE THE BRACKET

*Please check the side of the motherboard to find the unused 2.5" bracket

Close-up of hands installing a red cable on an electronic device with cables and connectors (no visible text or symbols)

3. REMOVE THE BRACKET AND CABLE

*Each PC has different ways to fix drives. There may be drawers or brackets to place the solid state hard drives. The way to remove them will involve pulling out the bracket or support frame.

**When removing the stand, please check the screws on the top or side carefully, these screws may be fixed on it.

Close-up of hands installing a device into a computer motherboard with an 'SUBCO' label (no readable text beyond label)

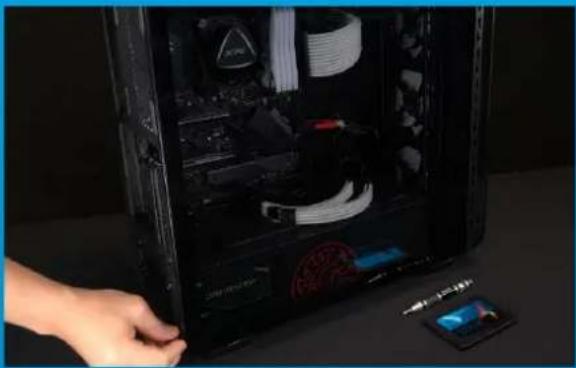

4. CONNECT CABLES AND ATTACH BRACKET TO THE NEW 2.5" SATA SSD. PUT THE BRACKET IN THE SLOT TO FIX DRIVES

There is a row of pins on the cable as well as on the SSD. Align to the correct orientation and place the bracket back into the slot.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot.. Do not insert it forcibly to avoid damage to the product.

Close-up of a hand inserting a CPU into a black server rack, with visible internal components and a small electronic device nearby (no text or symbols)

5. RESEMBLE THE CASE

*Do not overtighten the screws as it may damage the screws ad back plate

Hand pointing at a black rack-mounted server unit with ventilation grilles and connectors (no visible text or symbols)

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION
