Product Type	Shaver / Body Groomer
Brand	ECG
Model	ZH 3620
Power Supply	AC adapter 100-240 V~, 50/60 Hz, 0.2 A; output 5 V, 500 mA
Battery	Li-ion rechargeable, 3.7 V, 600 mAh
Charging Time	Approx. 2 hours
Operating Time (fully charged)	Approx. 60 minutes
Protection Class	IPX5 (water resistant)
Permissible Ambient Temperature	5 °C to 35 °C
Noise Level	< 70 dB
Shaving System	Rotary blade with trimming comb attachments (3 mm, 5 mm, 7 mm)
Included Accessories	Charging stand, adapter, 3 trimming combs, back shaving attachment, cleaning brush, oil
Usage	Wet or dry shaving and trimming on all body parts; can be used in shower/bathtub (unplugged)
Cleaning	Rinse shaving head and combs under running water; lubricate blade with silicone oil after each use
Safety Features	Automatic shut-off when not in use; only use original adapter; keep away from water when charging
Dimensions	Not specified in manual; typical shaver size: approx. 16 x 4 x 4 cm
Weight	Not specified in manual; typical shaver weight: approx. 200 g

Frequently Asked Questions - ZH 3620 ECG

How do I charge the ECG ZH 3620 shaver?

Ensure the device is off (switch in position 0). Connect the adapter to the charging stand, then plug into mains. Place the shaver on the stand. The red indicator shows charging; it turns green when fully charged. Charging takes about 2 hours. Unplug after charging.

How long does the battery last after a full charge?

A fully charged battery provides approximately 60 minutes of cordless operation. The red flashing indicator warns when only about 10 minutes remain.

Can I use the shaver in the shower or bath?

Yes, the shaver is water resistant (IPX5) and can be used in the shower or bathtub. However, it must be unplugged from the power source during such use. Charging must be done in a dry area.

What attachments are included and what are they used for?

The set includes three trimming combs (3 mm, 5 mm, 7 mm) for different hair lengths, a back shaving attachment for hard-to-reach areas, a cleaning brush, and a bottle of silicone oil. The combs are used for trimming, the back shaver for back hair, and the blade without comb for close shaving.

How should I clean the shaver?

Always turn off and unplug the device before cleaning. Remove the trimming comb and rinse it under water. Detach the shaving head by pulling it gently, then rinse the head and the interior under lukewarm running water. Let all parts dry completely. Use the cleaning brush for stubborn debris. Lubricate the blade edge with the provided silicone oil after each use.

Can I replace the blades or accessories?

The manual does not specify replacement parts. For optimal performance, use only original accessories. If the blade becomes dull or damaged, contact ECG service center for repair. Do not attempt to disassemble the device yourself.

What should I do if the shaver stops working?

First, check if the battery is empty and recharge if needed. Ensure the adapter is properly connected. If the blades do not move smoothly, clean and lubricate them. If the problem persists, disconnect the device and contact a qualified service center. Do not open or repair the shaver yourself.

Is the shaver suitable for all body parts?

Yes, the shaver is designed for cutting or shaving human hair on all parts of the body. Do not use it on animals, artificial hair, or for trimming nose, ear, or eyebrow hair. Also avoid use on open wounds, sunburn, or blisters.

Can I use the shaver while it is charging?

No, the shaver must be used cordlessly. It cannot be used while connected to the charging stand or adapter. Always unplug before use.

How should I store the shaver?

Store the shaver in a dry place at room temperature. Avoid direct sunlight and temperatures above 60°C. After storage in cold conditions, let it acclimate for at least 2 hours before use. Keep the device and accessories out of reach of children.

USER MANUAL ZH 3620 ECG

Product photo of a black ECG-based hairbrush with attached grip and accessories (no text or symbols visible)

ZH 3620

CZ

HOLICÍ STROJEK

NÁVOD K OBSLUZE

SK

HOLIACI STROJČEK

NÁVOD NA OBSLUHU

PL

MASZYNKA DO GOLENIA

INSTRUKCJA OBSŁUGI

HU

BOROTVA

HASZNÁLATI ÚTMUTATÓ

DE

RASIERER

BEDIENUNGSANLEITUNG

GB

BODY GROOMER

INSTRUCTION MANUAL

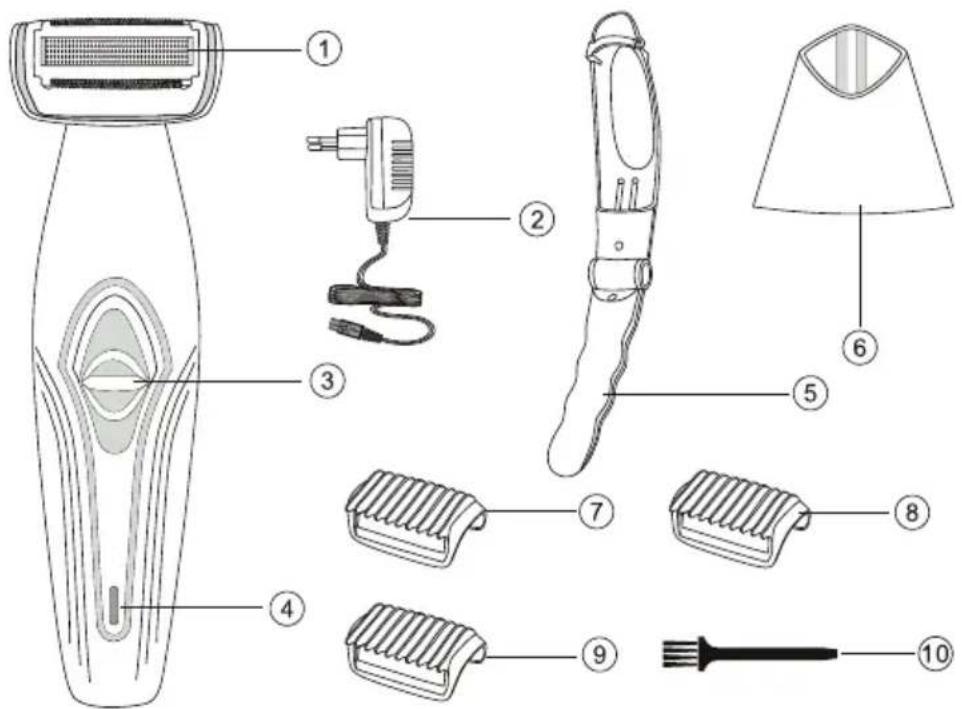

POPIS / POPIS / OPIS / A KÉSZÜLÉK RÉSZEI / BESCHREIBUNG / DESCRIPTION

CZ

1. Head with shaving blade
2. Adapter
3. Sliding switch
4. Charging light indicator
5. Back shaving attachment
6. Charging stand
7. 3 mm trimming comb
8. 5 mm trimming comb
9. 7 mm trimming comb
10. Cleaning brush

Items not pictured: oil

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. These factors must be therefore secured by the user/users using and operating this device. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

Read the operating instructions carefully before using the device for the first time and follow the safety instructions!

The device may only be used as described in this manual.

Save the manual for future reference.

If you pass the device to another person, please add this manual.

Warnings in this manual

If necessary, the following warnings will be used in this manual:

DANGER! High risk: Failure to observe this warning may endanger life or health.

DANGER! Medium risk: Failure to observe this warning may result in injury or serious damage.

NOTICE: Low risk: Failure to observe this warning may result in minor injury or minor damage.

NOTE: Circumstances and specifics to be observed when handling the device.

SAFETY INSTRUCTIONS

Purpose

Electric shaver is intended exclusively for cutting or shaving of human hair on all parts of the body.

The device is designed for home use and must not be used for commercial purposes.

The device may be used only indoors.

This shaver is water resistant. It is suitable for use in a bathtub or in a shower or to be cleaned under running water.

DANGER:

You can use it in the bathtub or in the shower for safety reasons only without a plugged in power cable.

Possible ways of improper use

Do not use the device to cut artificial hair or animal fur. Do not use the trimmer for trimming nose and ear hair or for trimming eyebrows.

Instructions for safe operation

• Use only the supplied original power cable to connect to the power supply.
• This appliance may be used by children under 8 years of age and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if supervised or instructed to use the appliance in a safe manner and understand the potential hazards. Children shall not play with the appliance. Cleaning and maintenance operations must not be carried out by children unless supervised by an adult. Children under the age of 8 shall keep away from the appliance and its power supply.
• Store the device in a dry place.
• Do not leave the unit unattended during operation or charging.

DANGER for children

Children must not play with the packaging material.

Do not let the children play with plastic bags.

Risk of suffocation.

DANGER

Injury by electric shock caused by dampness (during charging)

Never place the device, the charging stand, or the adapter so that it can fall into the water, especially during charging.

• Protect the stand and adapter from moisture, dripping or splashing water.
• Never touch the stand or the adapter with wet hands.
• The stand or the adapter must not be immersed in water or other liquids or rinsed under running water.
• If ...

- If the charger falls into the water during charging, immediately disconnect the power adapter from the mains and then remove the appliance and the stand from the water. Afterwards do not use the appliance and the stand, but have them checked by a qualified technician.

• If liquid penetrates the appliance, the stand or the adapter, have them checked before switching on them again.
• If you charge the appliance in the bathroom, the adapter and stand must be disconnected after use, because the closeness of water presents a risk.
• Before you use the shaver for the first time, make sure that your main power voltage corresponds to the operating voltage of the AC adapter as shown on the adapter label. The outlet must be installed in accordance with applicable electrical codes according to EN.

- Do not leave the appliance unattended during charging.

DANGER!

Do not use the charging stand or the adapter close to bathtubs, basins, showers or other places containing water.

DANGER of electric shock

Do not use the shaver or any of its attachments if it is visibly damaged or if you dropped it.

- Make sure that the cable can not be damaged by sharp edges or hot surfaces.

• Make sure that the cable is not pinched or crushed.

• Unplug the adapter from the power supply after each charging, when it is malfunctioning and during thunderstorms.

• Never pull on the cable when disconnecting.

• To avoid any risk, do not make any changes to the device or accessories.
  • Repairs must be carried out by a specialized company.
• Charge the device using only the original power supply.
• Do not expose the product to direct sunlight or high temperatures over 60°C.

WARNING! Risk of cuts

The blades are sharp. Handle them carefully.

• Do not use the device when the head or the attachment are damaged.
  • Always disconnect the device before cleaning.

WARNING! Risk of injury

Do not use the device on open wounds, cutting wounds, sunburns and blisters.

DANGER! Danger of injury by the trimmer oil

Keep the small oil container from the reach of children.

• Avoid contact of the trimmer oil with your eyes. If the trimmer oil gets into your eyes, rinse them out immediately with plenty of water and remove the oil completely.
• Never swallow the trimmer oil. In case of swallowing the oil or eye contact, contact your doctor

NOTICE! Property damage

Use original accessories only.

• Never place the device on hot surfaces (eg hot plates) or near sources of heat or naked flames.
• Do not cover the power source to prevent overheating.
• Never use compressed air, metallic cloths, abrasive or aggressive cleaning agents such as benzine or acetone to clean the appliance.
• Do not use the electric outlet in which there was or is plugged an electric air freshener or in its vicinity. You will prevent an irreparable damage of the source.

Before first use

• After transporting or storing in cold conditions, the device must be allowed to acclimate at room temperature for at least 2 hours.

CHARGING

NOTICE!

Remember that the battery capacity becomes shorter after prolonged periods of storage. Therefore, long term charging should be avoided and the alternating of charging and discharging cycles should be preferred.

WARNING: Use only the adapter delivered with the shaver for charging. Make sure before charging that the switch is in the "0" position.

The battery life is affected by ambient temperature (if it is less than 5^ C, or more than 35^ C).

Charging takes about 2 hours. The shaver works without connection to electricity about 60 minutes if fully charged.

When the battery status indicator flashes red, the battery is almost exhausted (approximately 10 minutes remaining) and the machine needs to be recharged.

• Make sure that the appliance is off (sliding switch is in position 0).
• First, connect the adapter connector to the stand (fig. 1) and only then connect the adapter plug to the electric outlet (fig. 2).
• Insert the appliance into the stand. Charging indicator lights up red.
• When the battery is charged the indicator light changes to continuous green.
• When the appliance is charged, disconnect the stand with the adapter from the electric outlet.

TRIMMING

The trimmer can be used for wet or dry shaving or trimming on all parts of the body.

The trimmer is not designed to clip nose or ear hair and eyebrows trimming.

Use of trimming combs

The trimmer accessories include 3 trimming combs with a cut length of 3, 5 and 7 mm.

The cut length is in mm on the back of each comb.

1. Attach the comb onto the head of the device so that the teeth of the combs point in the direction in which you will shave (fig. 3 and 3A).

When you move the device towards you, the teeth of the comb must point toward you. (Fig. 4). When you move the device away from you, the teeth have to move away from you (fig. 5).

Slide the switch in position I to turn on the device (fig. 6).

1. Move the device against the direction of hair growth.

2. When you finish trimming, turn the slider switch to position 0 (fig. 7).

WARNING!

Always turn off the device when changing attachments.

SHAVING

For shaving, use the device without a trimming comb!

1. If it is attached, remove the trimming comb from the head of the device (fig. 8).

Note: When removing the attachment, gently push on the overhanging part of the comb away from the body and remove it.

1. Slide the switch in position I to turn on the device (fig. 6).
2. Move the device against the direction of hair growth.
3. When you finish trimming, turn the slider switch to position 0 (fig. 7).

Note: When shaving, move the shaver against the growth of the beard and stretch the skin with the other hand in the same time. When shaving, you can pull the device towards yourself and away.

Shaving with a back shaving attachment

1. Press and hold the release button (fig. 9, fig. 1) and open the back shaving attachment (fig. 9, fig. 2). Release the lock (fig. 9, fig. 3) by a gentle push in the direction of the arrow marked on the lock.
2. Insert the lower part of the device into the lower part of the back shaving attachment holder. Then press the upper part of the holder, insert in the holder the upper part of the device and snap the lock (fig. 10).
3. Shave your back using the back shaving attachment handle moving it up and down (fig. 11).
4. To detach the cutter from the back shaving attachment, open the lock and pull the shaver out of the holder (Figure 12).
5. Press and hold the release button and fold the back shaving attachment (fig. 13).

Tips for trimming and shaving:

• Make sure that the flat part of the trimming comb is completely in contact with the skin.
• When trimming, we recommend first using a longer cut attachment and shorten it gradually by using other attachments.
• Turn the device off in the breaks between shaving and cutting,

CLEANING

The device has to be cleaned after each use. Always make sure that the device is off and unplugged from power supply before cleaning.

Warning: Never use compressed air, metallic sponges, abrasive or aggressive cleaning agents such as benzine or acetone to clean the shaver.

1. Take out the removable trimming comb and rinse it in water. Before reassembly, allow it to dry thoroughly.
2. Carefully pull the shaving head unit out of the device by gripping it by the teeth (Figure 14).

Warning: Do not press on the shaving blade. Protect it from sharp objects which could damage it.

1. Rinse the unit under lukewarm running water (fig. 15) and leave it to dry completely.

2. Using the supplied cleaning brush, carefully clean the inside of the shaving head or rinse it under lukewarm running water (Figure 16). Shake off the excess water and let the device dry. Use only the brush supplied with the appliance.

3. Lubricate the mechanism under the head and carefully return the unit in the shaver (fig. 17).

4. We recommend after each use to lubricate gently the moving teeth of the cutting blade using the silicone oil.

5. You can use the supplied oil.

6. Use only acid free oil.
   • DO NOT USE vegetable oils, grease or oils with solvents for lubrication. The solvents evaporate and leave a strong layer of lubricant in the mechanism, which can slow the movement of the blades.

7. Remove the excess lubricant with a dry, lint-free cloth.

8. Clean the back shaving attachment with wet cloth.

TROUBLESHOOTING

DANGER!

Do not attempt to repair the device by yourself.

In any malfunction disconnect the plug from the electric outlet.

Malfunction: Check the following:
The device does not work • Is power supply ensured during charging?• Is the battery empty?
The heads of the trimmer do not work smoothly	• Are the heads clean and lubricated?

If any of the above-mentioned malfunctions occur, contact our service center without delay.

Repairs must be carried out by a specialized company.

TECHNICAL DATA

Charging adapter:Input voltageOutput voltageProtection class	100-240 V~, 50/60 Hz, 0.2 A5 V ,500 mA□ II
Shaver:Input voltageBatteryPermissible ambient temperatureProtection classOperating conditionsNoise level	5 V ,500 mALi-ion battery 600 mAh, 3,7 V ---from 5 °C to +35 °CIPX5Designed exclusively for use indoorsDesigned for domestic use<70 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

PRODUCT DISPOSAL AFTER END OF LIFE

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

The Li-ion battery used in this unit must not be disposed of in mixed household waste. The battery must be properly disposed off. For more information, check with your battery distributors or collection points for waste disposal.

08/05

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating manual is available on internet at www.ecg-electro.eu.

Changes of text and technical parameters are reserved.

www.ecg-electro.eu

CZ

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany e-mail: [e-mail]

SK
