Product Type	Stand Fan
Model	FS-41M
Brand	Vivax
Diameter	40 cm
Height	130 cm
Weight	4.8 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	50 W
Speed Settings	3 speeds (low, medium, high)
Oscillation	Yes, 90° wide oscillation
Tilt Adjustment	Manually adjustable tilt
Control Type	Rotary knob on the motor housing
Material	Plastic body with metal grille
Color	White/Black (typical)
Noise Level	Approx. 45-60 dB (depending on speed)
Cleaning	Wipe with a damp cloth; do not use abrasive cleaners
Safety Features	Overheating protection, stable base, safety grille
Spare Parts	Available from authorized service centers
Included Accessories	User manual

Frequently Asked Questions - FS-41M Vivax

How do I clean the Vivax FS-41M fan?

Turn off and unplug the fan. Use a soft, damp cloth to wipe the exterior and grille. Do not use water directly on the motor. Ensure all parts are dry before reuse.

Can I use the fan outdoors?

The FS-41M is designed for indoor use only. Exposure to moisture or dust can damage the fan and pose safety risks.

The fan makes a loud noise when running. What should I do?

Check if the blades are properly attached and not obstructed. Ensure the fan is on a stable, level surface. If the noise persists, contact Vivax support.

Does the fan have a remote control?

No, the FS-41M is operated manually via a rotary knob on the motor housing for speed and oscillation control.

How do I adjust the tilt of the fan?

Gently tilt the fan head up or down to the desired angle. The tilt mechanism allows for manual adjustment without tools.

What is the maximum height of the fan?

The FS-41M has a height of approximately 130 cm (51 inches), measured from the base to the top of the motor housing.

How do I activate the oscillation feature?

Press the oscillation button (usually located near the speed knob) to start automatic left-right oscillation. Press again to stop.

Is the fan easy to assemble?

Yes, the FS-41M comes in a few parts: base, pole, motor housing, and fan guard. Assembly typically takes less than 15 minutes with the included manual.

What should I do if the fan stops working suddenly?

Unplug the fan and check the power cord for damage. Ensure the plug is fully inserted. If the problem continues, do not attempt to repair yourself; contact Vivax service.

Can I replace the fan blades?

Replacement blades are available through Vivax authorized service centers. Always use genuine parts to ensure safety and performance.

USER MANUAL FS-41M Vivax

Exterior view of a modern outdoor air conditioner unit with a black base and fan blade (no visible text or symbols)

Za vašu sigurnost i za dugotrajno uživanje u korištenju ovog proizvoda, molimo vas da obavezno pročitate upute prije samog korištenja uređaja.

SIGURNOST I UPOZORENJA

Diagram showing a device with a hand pressing down on its screen, before and after assembly (no text or symbols)

OVLAŽIVAČ

Sastavite i koristite ovlaživač na sljedeći način.

1. Otvorite pretinac spremnika za vodu i uklonite spremnik.
2. Odvinite poklopac spremnika za vodu i napunite ga hladnom i svježom vodom iz slavine.
3. Vratite spremnik s vodom u uređaj.

Exterior view of a modern outdoor air conditioner unit with a black base and fan blade (no visible text or symbols)

1. Ploča za stvaranje vodene pare

2. Prednja mrežica

3. Navrtanj za ventilator

4. Lopatica ventilatora

5. Navrtanj zadnje mrežice

6. Zadnja mrežica

7. Motor

8. Dugme za podešavanje

9. Postolje

10. Podloga postolja

11. Izlazni otvor

12. Ulazni priključak za odvod vode prema mlaznici za paru

13. Crevo za dovod vode prema mlaznici

SASTAVLJANJE I INSTALACIJA

1. Otvorite pakovanje i proverite da li su svi delovi unutra.
2. Sastavite delove uređaja.
3. Postolje postavite na postavljenu podlogu.
4. Ubacite štapni nosač u otvor na glavnom delu uređaja i pričvrstite ga pomoću šrafa.
5. Fiksirajte motor na štapni nosač i spojite ga na vrh podupirača.
6. Stavite zadnju zaštitu na motor i pričvrstite s odgovarajućim navrtanjem.
7. Ventilator s lopatama pričvrstite sa odgovarajućim šrafom, i okrećite ga u smeru suprotnom od smera kazaljke na satu.
8. Mrežicu postavite preko prednje zaštite i spojite je na zadnju zaštitu mrežicu.
9. Pričvrstite mrežice zajedno.

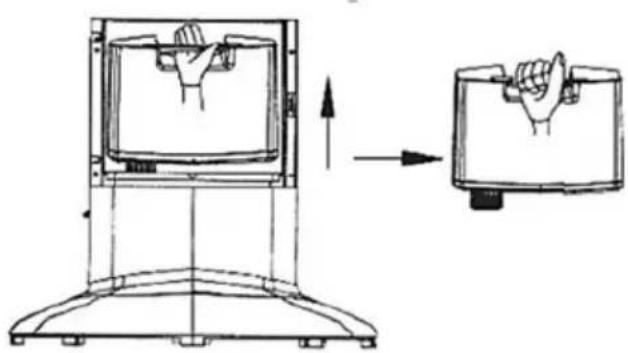

REZERVOAR SA VODOM

Vodoravno uklonite rezervoar sa vodom.

Technical line drawing showing a device with a handle and its internal structure, before and after assembly (no text or symbols)

OVLAŽIVAČ

Exterior view of a modern outdoor air conditioner unit with a black base and fan blade (no visible text or symbols)

Diagram showing a device with a handle and its internal structure before and after assembly (no text or symbols)

ОСВЕЖУВАЧ

Exterior view of a modern outdoor fan with a black and white base, featuring a large fan with visible blades and a digital display (no text or symbols)

Diagram showing a device with a hand gesture inside, before and after assembly (no text or symbols)

VLAŽILEC

Exterior view of a modern outdoor air conditioner unit with a black base and fan blade (no visible text or symbols)

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference.

SAFETY AND WARNINGS

IMPORTANT: Please retain your instruction booklet for future use.

We believe that safe performance is the first priority in any consumer product. We ask that any electrical appliance that you use be operated in a sensible fashion with due care and attention placed on the following important operating instructions.

Important Safeguards for your Mist Fan

When using any electrically powered appliance, basic safety precautions should always be followed.

Warning: To reduce the risk of fire, electrical shock or injury to person or property:

• Ensure all packing materials and labels or stickers are removed from the appliance before first use.
• Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
• Close supervision is necessary when the product is used by or near children or incapacitated individuals. Do not allow children to use it as a toy.
• Do not operate the product with a damaged cord or plug, or after the product malfunctions, or has been dropped or appears damaged in any way. Return the complete product to the place of purchase for inspection, replacement or refund.

• Unplug from the mains when not in use and before cleaning.

• The appliance should not be used by adults or children whose lack of experience, product knowledge or disability might cause a hazard, unless they have been correctly instructed and are adequately supervised.

• The appliance can be used by childrenaged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

● Children shall not play with the appliance

- Cleaning and user maintenance shall not be mad by children without supervision.

● Children should always be supervised to ensure that they do not play with this product.

- Do not use any other accessories or attachments with this appliance.

- To protect against fire, electric shock or personal injury, do not immerse cord, plug or unit in water or any other liquids.

● Always place the unit on a flat level surface. Never leave the product unattended while in use.

- Do not use the appliance with an extension cord to avoid product overloading.

- Do not leave the cord hanging over the edge of a table or worktop.

- Avoid contact between the cord and hot surfaces.

- For indoor use only. For domestic use only.

- Do not use the appliance for any other than its intended use.

- This appliance should be used only as described within the instructions for use that accompany it. Please retain these instructions for future reference.

- Always ensure that your hands are dry before removing the plug from the main outlet. Never pull the plug out of the mains outlet by its cord. Close supervisions is necessary when this appliance is used by or near children and invalids.

- Keep the air intake cover free of dust or fluff.

- Do not allow the air inlet to become blocked or even partially blocked. This may cause the fan to overheat. If it does overheat, the safety cut-out will cause the fan to switch off and remain inoperable until the unit has sufficiently cooled down. In this event, switch off the appliance, unplug it and let it cool down. Remove any blockage to the air inlet or outlet before resuming use. If the fan should cut out again, even when there is no blockage, contact the approved service center for examination and repair.

- Do not cover the fan or place anything over it.

- Do not place anything through the grills or into the fan.

- Do not use the fan if it is not properly and completely assembled.

- Do not use the fan without the mesh guards, as this could lead to injury.

- Do not use the fan within 1 meter of any other electrical or electronic appliance (e.g.TV,computer,etc.) as it may cause interference.

- The installation of a residual current-operated protective device with a nominal trip current of 30mAh offers

additional protection. Contact your electrician.

Caution:

1. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
2. Make sure your hands are dry when plugging in and unplugging appliance.
3. Ensure all the parts are correctly mounted before switching on the appliance.
4. Do not immerse the appliance in water or any other liquid.
5. Always remove the plug after use.

Important Safeguards for all Electrical appliances

1. Carefully read all instructions before operating the appliance and save for future reference.
2. Remove and safely discard all packing materials and promotional labels before using the appliance for the first time.
3. Fully unwind the power cable before use.
4. Do not let the power cord hang over the edge of a bench or table, touch hot surface or become knotted.
5. To protect against electric shock, do not immerse the power cord, plug or appliance in water or any other liquid, unless it is recommended in the cleaning instructions.
6. It is recommended to inspect the appliance regularly. Do not use the appliance if the supply cord, plug, connector or appliance becomes damaged in any way.
7. The appliance is for household use only. Do not use this appliance for any other than its intended use. Do not use in moving vehicles or boats. Do not use outdoor. Misuse

may cause injury.

1. Always switch off at the power outlet and unplug at the power outlet when the appliance is not use.
2. Before cleaning, always turn the appliance to the OFF position. Switch off at the power outlet and remove the power cord, if detachable, from the appliance and allow all parts to cool.
3. Do not place this appliance on or near a heart source, such as a hot plate or oven.

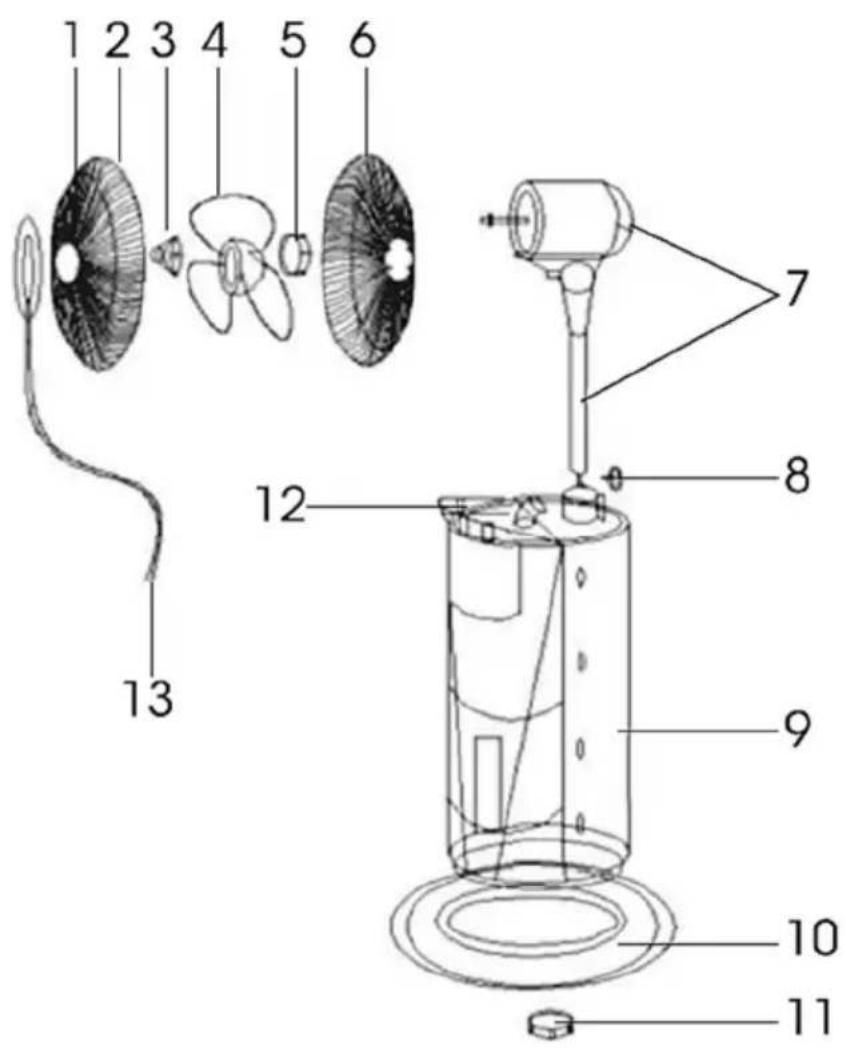

OPERATING INSTRUCTIONS

1. Misting dish
2. Front guard
3. Fan blade nut
4. Fan blade
5. Rear guard nut
6. Rear guard

7. Motor

8. Adjusting knob

9. Base
10. Base nut
11. Misting outlet
12. Mist tube inlet
13. Mist tuber

ASSEMBLY AND INSTALLATION

1. Open the packing and ensure all the parts are present.
2. Assemble the Chassis components.
3. Place the main body onto the assembled Chassis.
4. Insert the stanchion into the opening of the top of the main body and secure, using the stanchion screw.
5. Affix the motor to the support pole and connect to the top of the stanchion.
6. Place back guard onto the motor and secure with the rear guard screw.
7. Place the fan blade and secure with the fan blade screw, by turning in an anti-clockwise direction.
8. Place the hoop net over the front guard and connect to the back guard.
9. Tighten the hoop net.

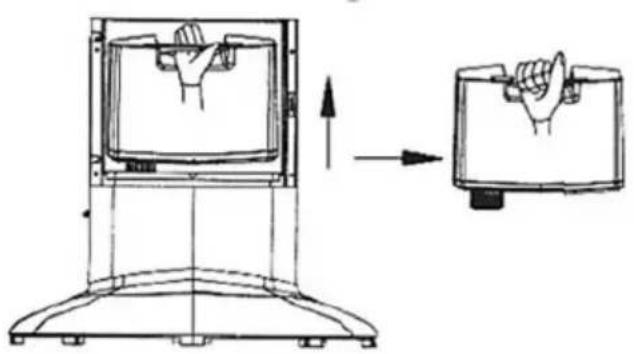

WATER TANK

Remove the water tank horizontally

Diagram showing a device with a handle pressing into a tray, before and after assembly (no text or symbols)

HUMIDIFIER

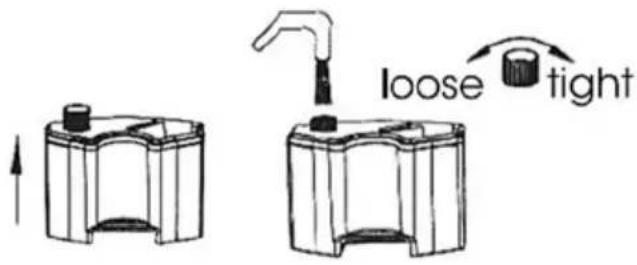

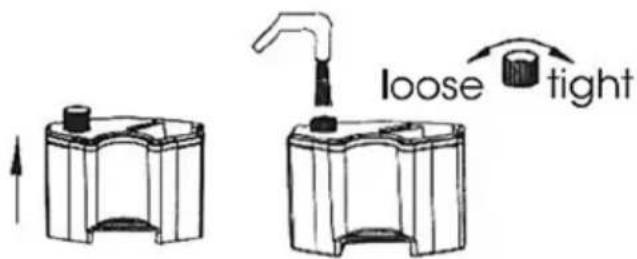

Assemble and use the humidifier as follows:

1. Open the water tank compartment and remove the tank.
2. Unscrew the water tank cap and fill it with cold, fresh tap water.
3. Screw the water tank cap back on and place the tank into the water tank compartment.
4. Connect the mist tube. Connect the power supply and press "Mist Button". The mist will appear in 2-5 seconds.
5. The light on the function display will be blue when the appliance is working. The light will turn red when the water tank is empty.

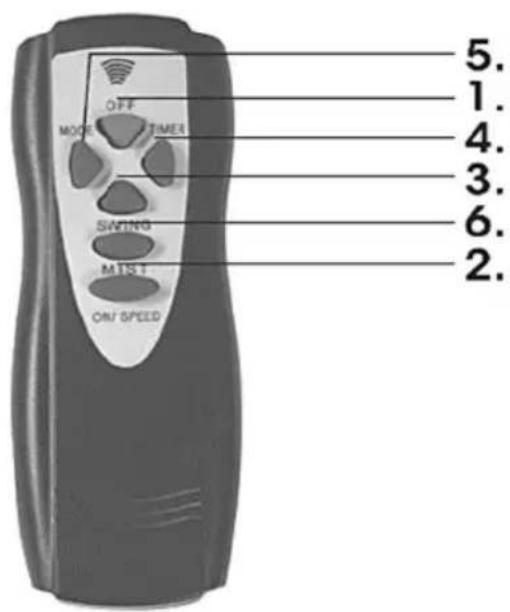

REMOTE CONTROL

1. OFF:The OFF button turns the fan unit off.
2. ON/SPEED: Turns the fan on and allows you to increase/decrease the fan speed.
3. SWING: Turns the oscillating function on or off.
4. TIMER: Operation time can be set as follows: 0.5/1/2/4 hours. The remaining time will appear on the LED panel.
5. MODE: Allows you to set the type of air flow-Normal/Nature/Sleep.
6. MIST: Activates the humidifier and produces mist.

INSTRUCTIONS FOR CLEANING

Should you need to clean the fan:

● Unplug the fan from the power outlet.
- Wipe it down with a damp cloth and a small amount of non-abrasive cleaning agent.
- Never get the fan wet.
- Do not use the appliance it if it is wet.
- Clean the air inlet and outlet regularly. You may use a vacuum cleaner for this.

STORAGE INSTRUCTIONS

The fan should be stored in a cool, dry place.

Do not allow to be in reach of children.

TECHNICAL SPECIFICATION

Model	Voltage	Frequency	Power	Blade size
FS-41M	220V-240V	50-60Hz	100W	40cm

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic. The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa dd or the dealer where you purchased the product.

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartiklala

CE

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore za koje jamstvo traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
